基于自动温度监测的山东省疫苗冷链报警信息分析
收藏切换
PDF下载
栾桂杰 1, 2 , 李刚 3 , 孙靓 1 , 张伟燕 1 , 刘少楠 1
现代预防医学 | 疾病预防控制 2025,52(10): 1892-1896
收起
收藏切换
现代预防医学 | 疾病预防控制 2025, 52(10): 1892-1896
基于自动温度监测的山东省疫苗冷链报警信息分析
全屏
栾桂杰1, 2, 李刚3, 孙靓1, 张伟燕1, 刘少楠1
作者信息
  • 1.山东省疾病预防控制中心免疫预防管理所，山东 济南 250014
  • 2.艾美诚信生物制药有限公司博士后工作站
  • 3.济宁市疾病预防控制中心生物制品科

    • 栾桂杰（1987—），男，博士，主管医师，研究方向：疫苗管理

通讯作者:

刘少楠，E-mail：
Analysis of vaccine cold chain alarm information based on automatic temperature monitoring, Shandong Province
Gui-jie LUAN1, 2, Gang LI3, Liang SUN1, Wei-yan ZHANG1, Shao-nan LIU1
Affiliations
  • Institute for Immunization Management, Shandong Center for Disease Control and Prevention, Jinan, Shandong 250014, China
出版时间: 2025-05-25 doi: 10.20043/j.cnki.MPM.202502019
文章导航
收藏切换
摘要
收起
目的

分析山东省疫苗冷链监测平台中的报警信息，为提升疫苗冷链保障水平提供科学依据。

方法

收集山东省疫苗冷链监测平台内2024年1月1日至12月31日的超温报警和断电报警信息，按照季节、地区、单位类型进行描述性分析。

结果

山东省冷链监测平台配备安装了5 463台数据记录设备和25 159个数据采集设备，实时监测全省16地市疾病预防控制机构和预防接种单位的疫苗储存和运输温度。夏季7月份的报警信息最多，平均超温和断电报警数分别为4.2条和2.0条，冬季12月份的报警信息最少，平均超温和断电报警数均为1.1条。泰安市、日照市和菏泽市的平均超温报警数超过40条，济宁市的平均超温报警数最少为17.6条；滨州市、聊城市、菏泽市和德州市的平均断电报警数超过20条，济南市的断电报警最少（10.1条）。CDC的超温报警数最多，平均超温报警数为59.7条；常规预防接种门诊的断电报警最多，平均断电报警数为19.8条；狂犬病暴露预防处置门诊的平均超温报警数和平均断电报警数均较多，分别为48.2条和18.8条。

结论

疫苗冷链报警存在季节、地区和单位类型差异，应针对性的加强疫苗冷链管理，保障疫苗安全。

疫苗  /  冷链  /  超温  /  断电  /  报警
Objective

To analyze the alarm information of monitoring platform for vaccine cold chain in Shandong Province and to provide scientific basis for improving the cold chain guarantee level of vaccines.

Methods

We have collected data on overtemperature and blackout alarms from January 1 to December 31, 2024 in Shandong Province through the cold chain monitoring platform, and descriptive analysis was conducted by season, region, and unit type.

Results

The cold chain monitoring platform in Shandong Province is equipped with 5 463 data recording devices and 25 159 data collection devices, which monitor in real-time the temperature of vaccine storage and transportation in 16 cities’ Centers for Disease Control and Prevention and vaccination units throughout the province. The summer month of July has the highest number of alarm information, with an average of 4.2 for overtemperature and 2.0 for blackout alarm. The winter month of December has the lowest number of alarm information, with an average of 1.1 for both overtemperature and blackout alarms. The average number of overtemperature alarms in Tai’an City, Rizhao City, and Heze City exceeds 40, while the average number of overtemperature alarms in Jining City is at least 17.6. The average number of blackout alarms in Binzhou City, Liaocheng City, Heze City, and Dezhou City exceeds 20, while Jinan City has the lowest number of blackout alarms, with an average of 10.1. The CDC has the highest number of overtemperature alarms, with an average of 59.7 alarms. The routine vaccination clinic has the highest number of blackout alarms, with an average of 19.8 alarms. The average number of overtemperature alarms and blackout alarms in the rabies exposure prevention and treatment outpatient department are relatively high, with 48.2 and 18.8 alarms, respectively.

Conclusion

There are seasonal, regional, and unit type differences in vaccine cold chain alarms, and targeted measures should be taken to strengthen vaccine cold chain management and ensure vaccine safety.

Vaccine  /  Cold chain  /  Overtemperature  /  Blackout  /  Alarm
栾桂杰, 李刚, 孙靓, 张伟燕, 刘少楠. 基于自动温度监测的山东省疫苗冷链报警信息分析. 现代预防医学, 2025 , 52 (10) : 1892 -1896 . DOI: 10.20043/j.cnki.MPM.202502019
Gui-jie LUAN, Gang LI, Liang SUN, Wei-yan ZHANG, Shao-nan LIU. Analysis of vaccine cold chain alarm information based on automatic temperature monitoring, Shandong Province[J]. Modern Preventive Medicine, 2025 , 52 (10) : 1892 -1896 . DOI: 10.20043/j.cnki.MPM.202502019
正文
收起
疫苗是需要在特定温度条件下储存和运输的生物制品，在不适宜的温度环境中疫苗成分可能会发生物理或化学变化，导致疫苗的效力发生改变，严重时可能构成健康风险[1-3]。因此，确保疫苗在储存和运输过程中符合冷链管理要求是确保疫苗安全和有效的关键。山东省运用物联网、大数据等先进技术建立起较为完善的疫苗冷链监测平台[4]，实现了对全省范围内疫苗储存和运输的实时监控。本论文通过对山东省2024年度疫苗冷链监测平台收集到的报警信息进行分析，旨在探索报警信息的分布规律，为进一步提高疫苗冷链管理的效率和质量提供参考依据。
1　资料与方法
收起
1.1　资料来源
2024年1月1日至12月31日冷链报警数据来源于山东省疫苗冷链监测平台，报警类型包括超温和断电报警[5]。报警信息按照月份、地市和单位类型（疾病预防控制机构、常规预防接种门诊、常规预防接种站、产科预防接种室、成人预防接种门诊和狂犬病暴露预防处置门诊）[6]进行分类整理。
1.2　研究方法
对收集到的数据进行整理，计算以下指标：
1.2.1　平均超温报警数
超温报警监测的是探头、温湿度标签的温度情况，因此以单位数据采集设备收集的报警数量作为参考依据。
1.2.2　平均断电报警数
断电报警监测的是冷库、冷链室等设施的供电情况，因此以单位数据记录设备的报警数量作为参考依据。
1.3　统计学分析
采用微软办公Excel 2021软件建立数据库，采用R 4.4.2软件对评价指标进行统计分析。
2　结果
收起
2.1　冷链监测设备分布情况
山东省疫苗冷链监测平台在16地市安装了5 463台数据记录设备，青岛市最多（548台），东营市最少（153台）；常规预防接种门诊安装的数据记录设备最多（2 636台），常规预防接种站安装的数据记录设备最少（110台）。全省配备了25 159个数据采集设备，临沂市最多（2 635个），东营市最少（687个）；常规预防接种门诊安装的数据记录设备最多（16 845个），常规预防接种站安装的数据记录设备最少（688个）（表1）。

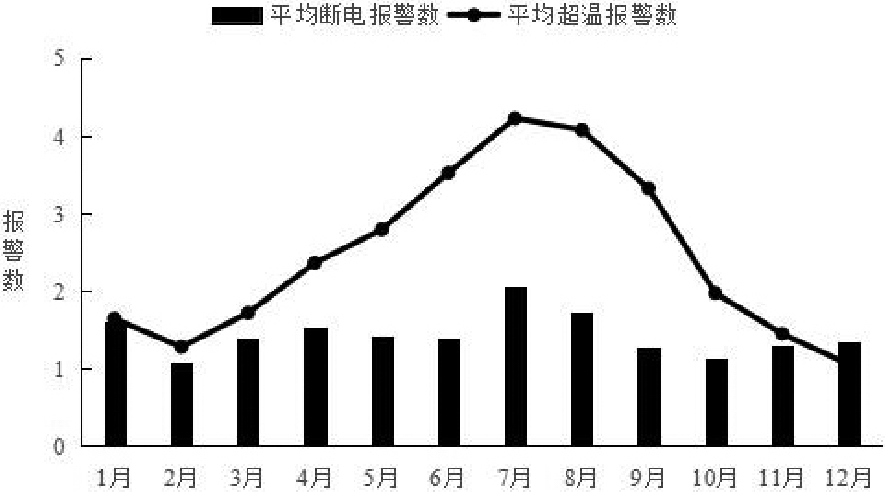

2.2　报警信息季节分布情况
夏季时超温报警和断电报警较多，其中7月份的每个采集设备的平均超温报警数和每个记录设备的平均断电报警数最多，分别为4.2条和2.0条。冬季时超温报警较少，其中12月份（1.1条）的平均超温报警数最少；秋季和冬季时断电报警较少，其中2月份和10月份的平均断电报警数均为1.1条（图1）。

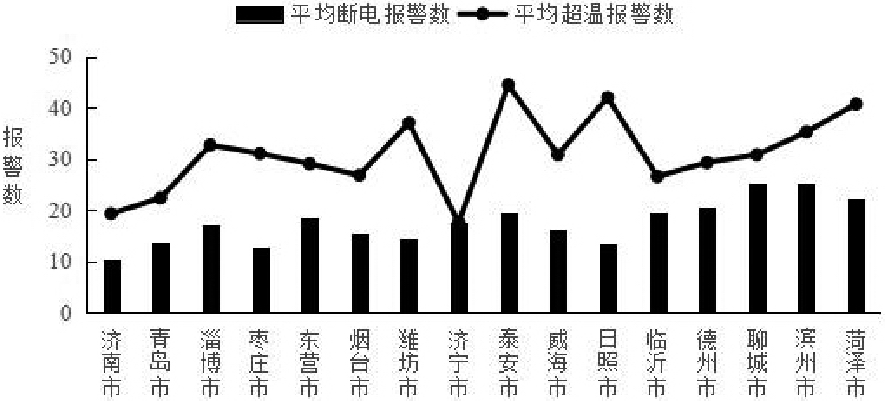

2.3　报警信息地区分布情况
泰安市、日照市和菏泽市的超温报警数较多，2024年每个采集设备的平均超温报警数分别为44.5条、42.0条和40.7条；滨州市（25.2条）、聊城市（25.1条）、菏泽市（22.0条）和德州市（20.6条）、济宁市（17.6条）。2024年济南市2024年的断电报警最少，每个记录设备的平均断电报警数为10.1条（图2）。

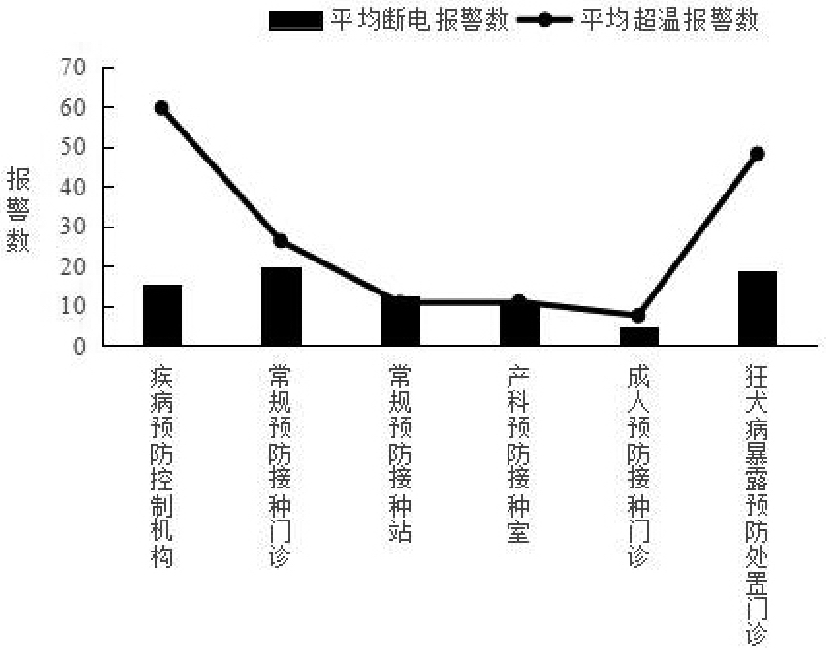

2.4　报警信息单位分布情况
2024年疾病预防控制机构的超温报警数最多，每个采集设备的平均超温报警数为59.7条；常规预防接种门诊的断电报警最多，每个记录设备的平均断电报警数为19.8条。另外，狂犬病暴露预防处置门诊的平均超温报警数和平均断电报警数均较多，分别为48.2条和18.8条。成人预防接种门诊的平均超温报警数和平均断电报警数最少，分别为7.6条和4.5条（图3）。
3　讨论
收起
本研究对2024年山东省疫苗冷链监测平台的报警信息进行了统计分析，结果显示，夏季的超温报警和断电报警最为频繁，而冬季的报警较少。季节性的变化趋势在很大程度上反映了环境温度和电力供应对冷链系统的影响。夏季高温导致冷链设备的工作负荷增加而影响制冷效果[7-8]，并且高温时开关设备更容易影响设备内的储存温度，而冬季温度较低时设备的工作负荷相对较小。季节性的波动需要疫苗冷链管理部门给予充分关注，尤其是在高温季节，及时进行设备维护和电力供应保障是确保疫苗质量的关键措施。
泰安市、日照市和菏泽市的超温报警数显著高于其他地市，这种高超温报警可能与当地管理水平、冷链设备的维护状况等有关[9]，经费投入较多地市的冷链设备运行和维护能得到更好的保障，另外人员的规范性操作的培训也能减少人为因素造成的超温报警[10]。滨州市、聊城市、菏泽市和德州市的高断电报警数可能与当地的电力供应状况有关，这些地市位于鲁西南地区，该地区的电力供应可能受到电网容量和线路维护的影响较大[11]。而省会城市济南的断电报警数最少，表明济南市在电力供应保障方面做得较好，冷链系统的稳定性较高。
疾病预防控制机构的超温报警数最多，主要与承担的疫苗储存和运输任务繁重和设备使用频率较高有关，尤其是在疫苗装卸过程中，但是设备维护和技术支持水平可能相对较低会导致故障升高。常规预防接种门诊是目前主要的预防接种单位，要从事免疫规划、非免疫规划、成人等各种接种活动[12]，断电报警数最多主要是由于冷链设备较多，需要更大的电力供应保障，而大部分常规预防接种门诊的建设较早，配套设施可能相对落后。成人预防接种门诊是近两年刚开始建设的新的门诊类型[13-14]，通常位于医疗设施较为完善的城区，电力供应和设备维护条件较好，所以超温和断电报警均较少。此外，成人预防接种门诊的疫苗种类和数量相对较少，接种任务较少进一步降低了其报警频率。但是，狂犬病暴露预防处置门诊的平均超温报警数和平均断电报警数均较高，表明在冷链管理和电力保障方面存在较大的改进空间[15-16]。
疫苗冷链管理应建立定期检查和培训机制[17-18]。针对超温报警高发的地区和单位，定期对冷链设备进行检查和维修，尤其确保在高温季节能够正常运行。对于断电报警较多的地区，应常备发电机组、增加电力线路维护频率和提高电力设施的抗压能力来减少断电事件的发生，特别是在高温季节。除此之外，还应加强冷链管理人员培训，提高其对冷链设备的管理和维护水平。同时，平台内正着手建立数据驱动的决策支持系统，充分利用监测平台的大数据构建风险预测模型，并结合对历史数据的挖掘和分析，预测和防范可能的报警事件。
本研究的局限性首先是结果主要关注报警次数，未深入探讨报警的具体原因和影响因素，未来可以结合现场调研和故障分析，进一步明确报警的原因，为改进措施提供更具体的依据。
综上，本研究分析了山东省2024年疫苗冷链监测平台的报警信息，揭示了冷链报警信息在季节、地区和单位之间的差异，提出了相应的改进措施，以期能够为提高疫苗冷链管理提供参考，确保疫苗的安全性和有效性。
基金
收起
  • 中华预防医学会疫苗与免疫青年人才托举项目(CPMAQT_YM0314)
  • 山东省疾病预防控制中心青年创新基金项目(QC-202301)
文献
收起
参考文献 引证文献
排序方式：
[1]
石岩，刘晓凡，刘军，等．轮状病毒疫苗温度挑战性研究[J].国际生物制品学杂志，2024,47(1):7-10.
Shi Y, Liu XF, Liu J, et al. Rotavirus vaccine temperature challenge study[J]. International Journal of Biologicals, 2024, 47(1): 7-10.(In Chinese)
[2]
胡文青．论疫苗冷链运输追溯管理的风险和应急处理体系[J].中国储运，2022,(7):188-190.
Hu WQ.On the risk of vaccine cold chain transportation traceability management and emergency treatment system[J]. China Storage & Transport, 2022,(7): 188-190.(In Chinese)
[3]
马汝飞，傅宇婷，李国良，等．Ⅰ型Ⅲ型脊髓灰质炎减毒活疫苗(人二倍体细胞)实际储运中的稳定性[J].中国生物制品学杂志，2020,33(8):855-863.
Ma RF, Fu YT, Li GL, et al. Stability of types Ⅰ and m oral live attenuated poliomyelitis vaccine(human diploid cells) in actual storage and transportation environment[J]. Chinese Journal of Biologicals, 2020, 33(8): 855-863.(In Chinese)
[4]
栾桂杰，刘少楠，孙靓，等．山东省疫苗冷链监测平台建设与应用评价[J].中国疫苗和免疫，2024,30(2):225-230.
Luan GJ, Liu SN, Sun L, et al. Construction and application evaluation of the Shandong Monitoring Platform for Vaccine Cold Chain[J]. Chinese Journal of Vaccines and Immunization, 2024, 30(2): 225-230.(In Chinese)
[5]
余文周，刘怡，叶家楷，等．《预防接种工作规范(2023年版)》解读[J].中国疫苗和免疫，2024,30(3):343-348.
Yu WZ, Liu Y, Ye JK, et al. Interpretation of the specifications for vaccination(2023 version)[J]. Chinese Journal of Vaccines and Immunization, 2024, 30(3): 343-348.(In Chinese)
[6]
山东省卫生健康委员会．山东省疾病预防控制局 山东省卫生健康委员会 关于印发《山东省预防接种门诊建设管理标准(2024年版)》的通知[EB/OL].[2025-04-06]．http://wsjkw.shandong.gov.cn/zwgk/fdzdgknr/gfxwj/202410/t20241008_4763145.html.
Shandong Provincial Health Commission. Shandong Provincial Bureau of Disease Prevention and Control, Shandong Provincial Health Commission Notice on the issuance of the Construction and Management Standards for Shandong Provincial Vaccination Outlets(2024 Edition)[EB/OL]. [2025-04-06]. http://wsjkw.shandong.gov.cn/zwgk/fdzdgknr/gfxwj/202410/t20241008_4763145.html.(In Chinese)
[7]
秦兴铎，李海军，苏之勇，等．环境温度对新型冷库制冷系统性能的影响[J].低温与超导，2023,51(8):89-94.
Qin XD, Li HJ, Su ZY, et al. Effect of ambient temperature on the performance of new cold storage refrigeration systems[J]. Cryogenics and Superconductivity, 2023, 51(8): 89-94.(In Chinese)
[8]
袁永超，蒋正帅，马利军．电冰箱夏季高温环境运行实验研究[J].电子世界，2017,(8):38.
Yuan YC, Jiang ZS, Ma LJ. Experimentalstudy on the operation of refrigerators in high temperature environments in summer[J]. Electronics World, 2017,(8): 38.(In Chinese)
[9]
陶传银．疾控中心疫苗冷链管理问题及改进对策[J].中国农村卫生，2021,13(15):84-85.
Tao CY.Vaccine cold chain management problems and improvement measures of CDC[J]. China Rural Health, 2021, 13(15): 84-85.(In Chinese)
[10]
张吟．探索疾控中心疫苗冷链管理问题及改进对策[J].中国卫生产业，2022,19(4):101-104, 108.
Zhang Y. Exploring CDC vaccine cold chain management issues and improving countermeasures[J]. China Health Industry, 2022, 19(4): 101-104, 108.(In Chinese)
[11]
魏明奎，周全，周泓，等．基于两阶段鲁棒优化的西南地区微电网经济调度[J].中国电力，2019,52(11):1-8, 18.
Wei MK, Zhou Q, Zhou H, et al. Economic dispatch of microgrid in southwest China based on two-stage robust optimization[J]. Electric Power, 2019, 52(11): 1-8, 18.(In Chinese)
[12]
栾桂杰，张伟燕，明明，等．山东省预防接种服务可及性的公平性研究[J].现代预防医学，2023,50(23):4323-4327.
Luan GJ, Zhang WY, Ming M, et al. Study on thefairness of vaccination service accessibility in Shandong Province[J]. Modern Preventive Medicine, 2023, 50(23): 4323-4327.(In Chinese)
[13]
李仁鹏，于洋，张伟燕，等．山东省成人预防接种门诊设置和运行状况调查分析[J].中华预防医学杂志，2023,57(12):2043-2049.
Li RP, Yu Y, Zhang WY, et al. Investigationand analysis on the establishment and operation of adult vaccination clinics in Shandong Province[J]. Chinese Journal of Preventive Medicine, 2023, 57(12): 2043-2049.(In Chinese)
[14]
胡苏兰，于洋，张伟燕，等．山东省预防接种相关人员对成人预防接种门诊建设的认识和态度定性调查[J].中国疫苗和免疫，2024,30(3):317-322.
Hu SL, Yu Y, Zhang WY, et al. A qualitative survey of cognition and attitudes towards adult vaccination clinic construction among vaccination staff in Shandong province[J]. Chinese Journal of Vaccines and Immunization, 2024, 30(3): 317-322.(In Chinese)
[15]
齐英，陈叶，王萍，等．2018～2019年沈阳市狂犬病暴露处置门诊设置及管理分析[J].预防医学论坛，2020,26(5):354-357.
Qi Y, Chen Y, Wang P, et al. Analysis on hydrophobia clinics setting and management, Shenyang city, 2019-2019[J]. Preventive Medicine Tribune, 2020, 26(5): 354-357.(In Chinese)
[16]
姚亚萍，付国华，顾丽华，等．犬伤门诊疫苗全程冷链温度监测结果分析[J].预防医学，2018,30(11):1169-1171.
Yao YP, Fu GH, Gu LH, et al. Analysis ofcold chain temperature monitoring results for canine injury outpatient vaccines throughout the whole process[J]. Journal of Preventive Medicine, 2018, 30(11): 1169-1171.(In Chinese)
[17]
梁海峰，刘禹，张萍．太原市疫苗冷链管理存在的问题及建议[J].实用医技杂志，2022,29(2):210-213.
Liang HF, Liu Y, Zhang P.Problems and suggestions on vaccine cold chain management in Taiyuan[J]. Journal of Practical Medical Techniques, 2022, 29(2): 210-213.(In Chinese)
[18]
丁小磊，胡冉，方蕾．江苏省疫苗冷链设备和监测系统建设现状与评价[J].江苏预防医学，2021,32(5):639-641.
Ding XL, Hu R, Fang L.Status and evaluation of vaccine cold chain equipment and monitoring system construction in Jiangsu Province[J]. Jiangsu Journal of Preventive Medicine, 2021, 32(5): 639-641.(In Chinese)
