A Bond Wire Aging Monitoring Method for IGBT Modules Based on Back Propagation Neural Networks
Full
Gengle LIANG1, Xinglai GE1, Huimin WANG2, Zhiliang XU1, Dong LUO1, Yi WANG1
Affiliations
  • 1 Southwest Jiaotong University School of Electrical Engineering Chengdu 610031 China
  • 2 Key Laboratory of Railway Industry of Maglev Technology (TJU), National Railway Administration of P.R.C Key Laboratory of Railway Industry of Maglev Technology (TJU) Shanghai 201804 China

    • Gengle Liang received the B.S. degree in electrical engineering from the Southwest Jiaotong University, Chengdu, China, in 2022. He is currently pursuing the M.S. degree in electrical engineering at Southwest Jiaotong University. His research interests are the reliability of power semiconductor devices, such as SiC MOSFETs junction temperature monitoring and powerloss calculation.

    Xinglai Ge received the B.S., M.S., and Ph.D. degrees in electrical engineering from Southwest Jiaotong University, Chengdu, China, in 2001, 2004, and 2010, respectively. He is currently a Full Professor in the School of Electrical Engineering, Southwest Jiaotong University and a Vice Director of Department of Power Electronics and Power Drive. From October 2013 to October 2014, he was a visiting scholar at the School of Electrical and Computer Engineering, Georgia Institute of Technology, Atlanta, GA, USA. He is the author and co-author of more than 70 technical papers. His research interests include stability analysis and control of electrical traction system, fault diagnosis and reliability evaluation of traction converter and motor drive system.

    Huimin Wang received the B.Eng. and Ph.D. degrees in electrical engineering from Southwest Jiaotong University (SWJTU), Chengdu, China, in 2016 and 2021, respectively. From October 2019 to October 2020, he has been a Visiting Ph.D. Student with the Department of Energy Technology, Aalborg University, Aalborg, Denmark. He is currently a researcher with TongJi University. His research interests include AC motor drive system and its speed-sensorless control, synchronization techniques in grid-connected system, and reliability evaluation in traction drives. Dr. Wang was the recipient of one ESI Highly Cited Paper on IEEE Journal of Emerging and Selected Topics in Power Electronics, and the Best Paper Award of IEEE Transportation Electrification Conference and EXPO Asia-Pacific (ITEC Asia Pacific) in 2019.

    Zhiliang Xu was born in Jiangxi Province, in 1999. He received the B.S. degree in electrical engineering from the Southwest Jiaotong University, Chengdu, China, in 2021. He is currently pursuing the M.S. degree in electrical engineering at Southwest Jiaotong University. His research interests are the reliability of power semiconductor devices, such as IGBT junction temperature monitoring.

    Luo Dong was born in Jiangxi Province, in 1998. He received the M.S. degree in electrical engineering from the Southwest Jiaotong University, Chengdu, China, in 2023. His research interests are the reliability of power semiconductor devices, such as IGBTS electrical-thermal-mechanical coupling analysis and condition monitoring.

    Yi Wang received the B.Eng. and M.S. degrees in electrical engineering from Southwest Jiaotong University, Chengdu, China, in 2002 and 2005, respectively. She is currently a deputy party secretary in the School of Electrical Engineering, Southwest Jiaotong University. Her research interests include control of electrical traction system, and reliability evaluation of traction converter and motor drive system.

Published: 2024-03-10 doi: 10.24295/CPSSTPEA.2023.00048
Outline
收藏切换

A typical degradation mechanism of insulated gate bipolar transistor (IGBT) modules is the bond wire degradation (BWD), and thus the bond wire aging monitoring (AM) shows much attractiveness for IGBT modules. However, the performance degradation with junction temperature swings and load current dependence in many bond wire AM methods remains an obstacle. To address this, a bond wire AM method based on the back propagation neural networks (BPNN) is proposed in this paper, in which the onstate voltage drop (OVD) is used as the indicator of bond wire AM. In the proposed AM method, a multiphysical field coupling model of the IGBT module is established. Then, with the assistance of the model, the characterization behaviors of the OVD are thoroughly analyzed. According to the analysis, it is known that the junction temperature swings and load current dependence may obviously degrade the performance of the proposed AM method. Afterward, BPNN is adopted to deal with these issues. Finally, the performance of the proposed AM method is explored through extensive experimental tests.

Back propagation neural networks (BPNN)  /  bond wire aging monitoring (AM)  /  insulated gate bipolar transistor (IGBT) modules  /  multi-physical field coupling model
Gengle LIANG, Xinglai GE, Huimin WANG, Zhiliang XU, Dong LUO, Yi WANG. A Bond Wire Aging Monitoring Method for IGBT Modules Based on Back Propagation Neural Networks[J]. CPSS Transactions on Power Electronics and Applications, 2024 , 9 (1) : 39 -50 . DOI: 10.24295/CPSSTPEA.2023.00048
Full Text
Less
I. Introduction
Less
In NCREASING demands for a new paradigm of energy conversion necessitate the reliable operation of high-efficiency and high-power density converters [1]-[5]. In particular, the power modules, e.g., insulated gate bipolar transistor (IGBT) modules, in power converters are crucial because they are used to implement the task of energy conversion and power control.
However, the IGBT modules are regarded as one of the major contributors to the reliability degradation of power converters due to their high failure rate. Among many failure types of the IGBT modules, the bond wire degradation (BWD) is particularly prominent [6]-[8]. In this sense, accurate bond wire aging monitoring (AM) is desirable for ensuing the reliability of power converters.
Generally, the bond wire AM methods are classified into two groups, i.e., the direct AM methods [9]-[11] and the indirect AM methods [12]-[27]. Regarding to the direct AM methods, they are typically carried out by using special equipment, e.g., the eddy current pulsed thermography [9], the scanning electron microscope [10], and the acoustic detector [11], to detect the BWD without opening the shell of power modules. In spite of this, the direct AM methods are not appropriate for real-time applications. Moreover, these methods usually suffer from high complexity and cost because of the use of additional detection equipment. The indirect AM method accomplishes the task of bond wire AM by monitoring the electrical parameters associated with the BWD without destroying the device, making it suitable for online applications.
According to the type of the used electrical parameters, the indirect AM methods are further divided into the static electrical parameter (SEP) methods and the dynamic electrical parameter (DEP) methods. The SEP methods use the electrical parameters that are not involved in the turn-on and the turn-off transient processes to implement the bond wire AM [12]-[19]. Among them, as detailed in [12], it had been experimentally investigated that the bond wire aging will lead to an apparent increase of the on-state voltage drop (OVD). However, this method is highly affected by junction temperature swings. To address this, a SEP method based on the on-state voltage at inflection point is proposed in [13], and a major contribution of this method is able to monitor the BWD and be irrespective of the junction temperature swings. Whereas, this bond wire AM method is implemented at the fixed load current, which, however, is inapplicable because the load current of the IGBT module will obviously vary in practice. Following that,[14] revealed that the short-circuit current shows a high sensitivity to the BWD, and more importantly, this indicator of the BWD is free from the effects of junction temperature swings. Unfortunately, the short-circuit current of the IGBT module is barely measurable when the power converters are operating.
Alternatively, considerable research efforts have been developed towards utilizing the DEP methods to enhance the performance of bond wire AM [20]-[27]. Though the flourishing developments of the bond wire AM methods are observed in the considerable literature, most of these methods are troubled by the challenging issues like junction temperature swings and load current dependence.
Recently, a new paradigm in the research of reliability evaluation of power modules is to use the artificial intelligence (AI) techniques [28]-[35], in which the neural networks, the machine learning, and the digital twins are notable examples. In [29], the artificial neural networks were assisted in the thermal model for power modules to handle the troublesome problem of thermal cross-coupling effects. Additionally, a noninvasive condition monitoring method for power converters based on the digital twins is reported in [32], and the degradation trends of power modules can be effectively observed. Following that,[34] provided a physics-informed machine learning-based condition monitoring method for power converters, and respectable achievements of high accuracy and strong robustness are developed. Moreover, a deep learning method is adopted in [35] to conduct the maximum junction temperature estimation for multichip power modules.
In light of the above, a bond wire AM method for IGBT modules based on the back propagation neural networks (BPNN) is proposed in this paper, which takes OVD as a static electrical parameter and eliminates the influence of temperature swings and load current well. The rest of this paper is organized as follows. In Section II, the multi-physics field coupling model of IGBT module is provided, and the accuracy of the model is carefully verified. In Section III, based on theoretical analysis and the multi-physics field coupling model, the characterization behavior of OVD is analyzed comprehensively. It can be clearly seen that junction temperature swings and load current dependence will adversely affect the use of OVD for bond wire AM. Following that, BPNN is used to ensure the performance of bonded wire AM with junction temperature swings and load current dependence, as detailed in Section IV. Finally, extensive experimental tests are carried out to investigate the performance of the proposed AM method under different operating conditions. The main contributions are as follows:
• A bond wire aging monitoring method for IGBT is proposed, and the issues of junction temperature swing and load current dependence can be avoided effectively in this method.
• BPNN is introduced to solve the complex coupling relationship of junction temperature, load current, OVD and wire aging, compared with traditional methods, which improves the resolution and accuracy of detection.
• The proposed AM method has satisfactory performance for the monitoring of early bond wire aging.
• A multi-physics filed coupling model of IGBT is established, which allows for a comprehensive analysis of OVD behavior under different conditions.
II. Multi-Physical Field Coupling MODEL OF THE IGBT MODULES
Less
The measured SEP is difficult to reveal the bond wire degradation directly because of the dependence of temperature the current. In this section, a multi-physical field coupling model of an IGBT module is established. The quantified coupling effects serve as a fundamental of analyzing the relationship between the measured SEP and the degradation.

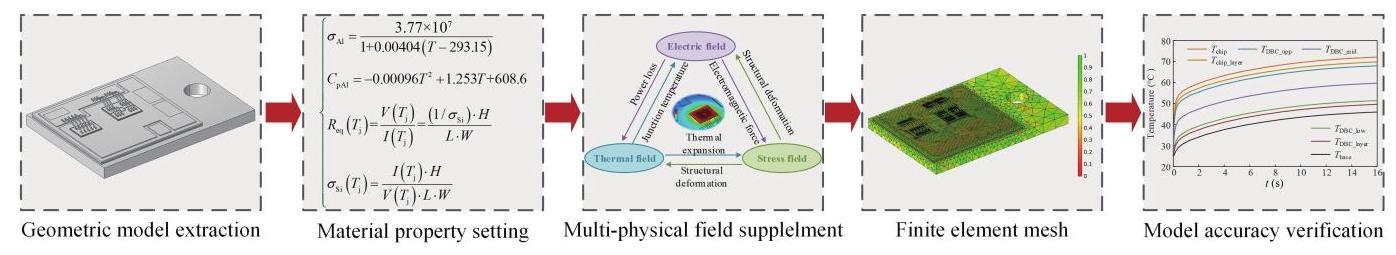

Fig. 1 shows the block diagram of the multi-physical field coupling model of the IGBT module, in which there are five steps involved in the establishment of this model, i.e., the geometric model extraction, the material property setting, the supplement of the multi-physical field, the generation of the finite element mesh, and the verification of model accuracy.

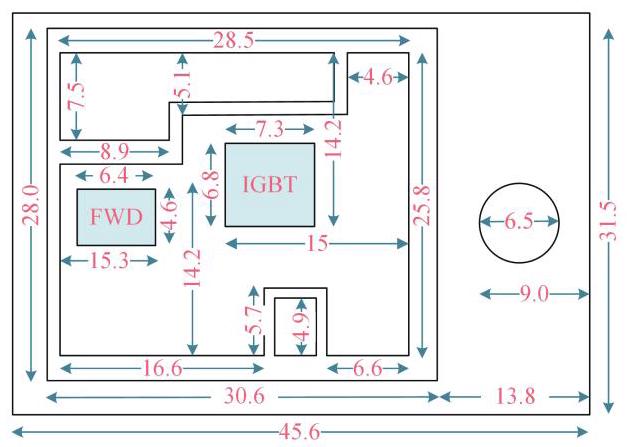

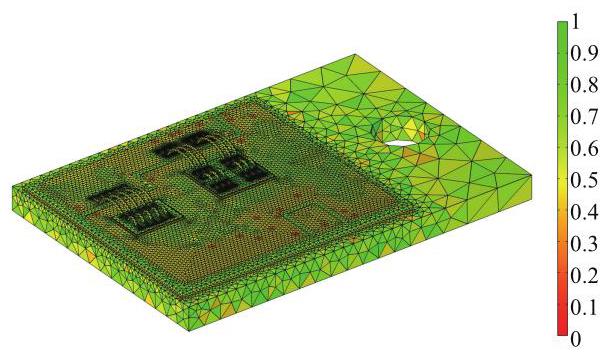

As for the extraction of the geometric model, it is accomplished by obtaining the geometric parameters and determining the geometric position of each layer. In this paper, the IGBT module of Infineon FF50R12RT4 is used as a case study, and the open-shelled IGBT module is presented in Fig. 2. With this, some of geometric parameters are measurable, and several geometric parameters can be obtained from the data sheet of Infineon FF50R12RT4. Moreover, due to the irregular geometric structure of the upper copper layer, the geometric position of the upper copper layer is depicted in Fig. 3, in which the number is the dimension parameter and the unit is millimeter. Accordingly, the geometric model is obtained.
After extracting the geometric model, the material properties of the IGBT modules should be properly set. According to the data sheet of the IGBT module and the material property, the conductivity and the heat capacity at constant pressure of the bond wire (its material is aluminum) can be fitted as [36],[37]:
$\left\{\begin{array}{l}{\sigma }_{\mathrm{{Al}}}= \frac{{3.77}\times {10}^{7}}{1 +{0.00404}\left({T -{293.15}}\right)} \\{C}_{\mathrm{{pAl}}}= -{0.00096}{T}^{2}+ {1.253T}+ {608.6}\end{array}\right.$
with T being the Kelvin temperature. Additionally, the material of the IGBT chip is silicon, and its conductivity of the IGBT chip is affected by the junction temperature and the load current. Considering this, the equivalent resistance of the IGBT chip at the junction temperature is given by
${R}_{\mathrm{{eq}}}= \frac{{V}_{\mathrm{{ce}}}}{{I}_{\mathrm{c}}}= \frac{1}{{\sigma }_{\mathrm{{Si}}}}\frac{H}{LW}$
in which ${R}_{\mathrm{{eq}}},{V}_{\mathrm{{ce}}},{I}_{\mathrm{c}}, H, L, W$, and ${\sigma }_{\mathrm{{Si}}}$ are the equivalent resistance of the IGBT chip, the OVD that is affected by junction temperature, the current of the IGBT module, the thickness of the IGBT chip, the length of the IGBT chip, the width of the IGBT chip, and the conductivity of silicon, respectively. Subsequently,
${\sigma }_{\mathrm{{Si}}}= \frac{{I}_{\mathrm{c}}H}{{V}_{\mathrm{{ce}}}{LW}}$

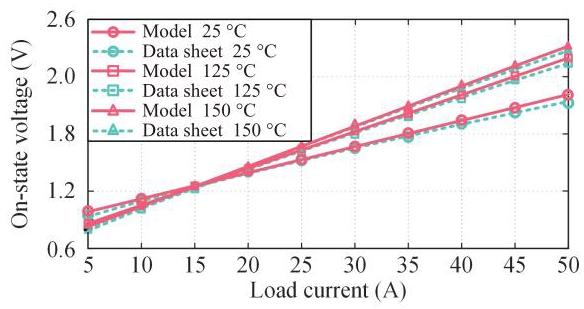

According to the output I-V characteristic curve of the data manual and conductivity expression [38], and combined with MATLAB curve fitting toolbox, the conductivity of silicon can be obtained that
${\sigma }_{\mathrm{{Si}}}\left({{T}_{\mathrm{j}},{I}_{\mathrm{c}}}\right)= \frac{{1.126}\times {10}^{7}{I}_{\mathrm{c}}}{{2.826}\times {10}^{6}+ {4.02}\times {10}^{4}{I}_{\mathrm{c}}+ {6161}{T}_{\mathrm{j}}+ {321.4}{I}_{\mathrm{c}}{T}_{\mathrm{j}}}$
Similarly, the heat capacity of silicon at constant pressure is calculated as [39]
${C}_{\mathrm{{pSi}}}= {5.27}\times {10}^{-6}{T}^{3}- {8.43}\times {10}^{-3}{T}^{2}+ {4.77T}- {108.1}$
Moreover, the material of both the baseplate layer and the direct bond copper layer is copper, and the conductivity and the heat capacity of copper at constant pressure are described as:
$\left\{\begin{array}{l}{\sigma }_{\mathrm{{Cu}}}= \frac{{5.95}\times {10}^{7}}{1 +{0.00404}\left({T -{293.15}}\right)} \\{C}_{\mathrm{{pCu}}}= -{2.25}\times {10}^{-4}{T}^{2}+ {0.2927T}+ {317.7}\end{array}\right.$
Then, the multi-physical field is supplemented to analyze the coupling effects, which includes the setting of the related constraints and the introduction of the multi-physical coupling. Additionally, a combination of the thermal field and the stress field is developed, and eventually the electric-thermal-stress coupling of the IGBT module is made. To ensure model accuracy and computational efficiency, the user-defined mesh method is used. More specifically, the tetrahedron mesh method and the triangular mesh are adopted for the bond wire and the IGBT chip, respectively. Notably, the free mesh method and the subdivision mesh method are applied for the baseplate and the other layers, and the finite element mesh of the IGBT module is shown in Fig. 4.
As mentioned previously, the model is of importance for the characterization behaviors of the IGBT modules. Due to this, the model accuracy is further evaluated. The I-V characteristic curves of the IGBT module provided by the multi-physical coupling model are compared to those of the data sheet with different junction temperature, which is shown in Fig. 5. Observations in Fig. 6 indicate that the characteristic curves of the multi-physical coupling model under different junction temperature agree with those of the data sheet well. Moreover, another comparison between the multi-physical coupling model and the data sheet in terms of thermal transient curve, and the results are shown in Fig. 6. As shown, a satisfactory agreement between the thermal transient curve of the proposed model and that of the data sheet is made, which justifies the accuracy of the multi-physical coupling model.
III. Characterization Behavior Analysis of the On- State Voltage Drop With the Effects of Bond Wire DEGRADATION
Less
In the proposed AM method, the OVD is used as the indicator of the BWD. Considering this, in this section, the characterization behaviors of the OVD with different operation conditions are analyzed in detailed based on the multi-physical field coupling model.
A. Characterization Behavior Analysis of the On-State Voltage Drop With the Effects of Bond Wire Lift-Off

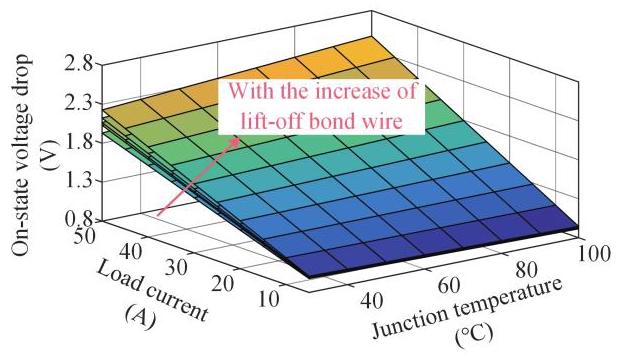

The characterization behaviors of the OVD with different numbers of lift-off bond wires are first analyzed. The OVD of the IGBT module can be expressed as [16]:
${V}_{\mathrm{{ce}}}= {R}_{\mathrm{{ce}}}{I}_{\mathrm{c}}+ {V}_{\mathrm{{ce}}0}$
in which ${R}_{\mathrm{{ce}}}$ and ${V}_{\mathrm{{ce}}0}$ are the on-state resistance and the intersection point of the horizontal axis of the I-V curve, respectively. And,
${R}_{\mathrm{{ce}}}= {R}_{\text{chip }}+ {R}_{\text{bond }}+ {R}_{\text{copper }}+ {R}_{\text{term }}$
in which ${R}_{\text{chip }},{R}_{\text{bond }},{R}_{\text{copper }}$, and ${R}_{\text{term }}$ are the equivalent resistance of the IGBT chip, the equivalent resistance of the bond wire, the equivalent resistance of the copper layer, and the equivalent resistance of the terminal, respectively. When the bond wire lift-off occurs, the increase of the on-state resistance can be observed. Consequently, the OVD is increased with the effects of bond wire lift-off, and shows a good sensitivity to the BWD, which can be seen in Fig. 7. With this characteristic, the OVD is selected as the indictor of the BWD.
B. Characterization Behavior Analysis of the On-State Voltage Drop With Load Current Variations
Additionally, the effects of junction temperature swings on the characterization behaviors of the OVD are explored. The internal structure of the IGBT is shown in Fig. 8. The IGBT model in on-state state can be simplified as a P-i-N rectifier in series with a MOSFET operating in the triode region.

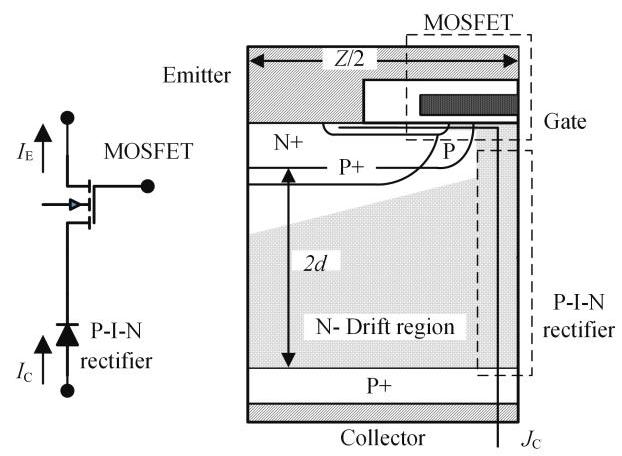

The on-state voltage when the MOSFET section operates in the triode region can be expressed as [40]:
${V}_{\mathrm{{MOS}}}= \frac{Z{L}_{\mathrm{{CH}}}{J}_{\mathrm{C}}}{{\mu }_{\mathrm{{ni}}}{C}_{\mathrm{{OX}}}\left({{V}_{\mathrm{G}}- {V}_{\mathrm{{TH}}}}\right)} $
where $Z$ is the cell pitch, ${L}_{\mathrm{{CH}}}$ is the channel length, ${J}_{\mathrm{C}}$ is the collector current density, ${\mu }_{\mathrm{{ni}}}$ is the inversion layer electron mobility, ${C}_{\mathrm{{OX}}}$ is the specific capacitance of the gate oxide, ${V}_{\mathrm{G}}$ is the gate bias voltage, and ${V}_{\mathrm{{TH}}}$ is the threshold voltage.
Then, the on-state voltage of the $\mathrm{P}- \mathrm{i}- \mathrm{N}$ rectifier can be expressed as:
${V}_{\mathrm{{PiN}}}= \frac{2\mathrm{k}T}{q}\ln \left\lbrack \frac{{J}_{\mathrm{C}}d}{{2q}{D}_{\mathrm{a}}{n}_{\mathrm{i}}F\left({d/2{L}_{\mathrm{a}}}\right)}\right\rbrack $
Function $F\left({d/2{L}_{\mathrm{a}}}\right)$ is given by:
$ F\left(\frac{d}{{L}_{\mathrm{a}}}\right)= \frac{\left({d/{L}_{\mathrm{a}}}\right)\tanh \left({d/{L}_{\mathrm{a}}}\right)}{\sqrt{1 -{0.25}{\tanh }^{4}\left({d/{L}_{\mathrm{a}}}\right)}}{\mathrm{e}}^{-\frac{q{V}_{\mathrm{M}}}{2\mathrm{k}T}}$
where $\mathrm{k}$ is the Boltzmann constant, T is the temperature, $q$ is the elementary charge, $d$ is a half of drift region thickness, ${D}_{\mathrm{a}}$ is the bipolar diffusion coefficient, ${n}_{\mathrm{i}}$ is the intrinsic carrier concentration, ${L}_{\mathrm{a}}$ is the bipolar diffusion length, and ${V}_{\mathrm{M}}$ is the voltage drop on the drift region.
Thus, the on-state voltage of IGBT can be expressed as:
${V}_{\mathrm{{IGBT}}}= {V}_{\mathrm{{PiN}}}+ {V}_{\mathrm{{MOS}}}\\= \frac{2\mathrm{k}T}{q}\left({\ln \left({{J}_{\mathrm{C}}d}\right)- \ln \left(\frac{{2q}{D}_{\mathrm{a}}{n}_{\mathrm{i}}\left({d/{L}_{\mathrm{a}}}\right)\tanh \left({d/{L}_{\mathrm{a}}}\right)}{\sqrt{1 -{0.25}{\tanh }^{4}\left({d/{L}_{\mathrm{a}}}\right)}}\right)}\right)\\+ {V}_{\mathrm{M}}+ \frac{Z{L}_{\mathrm{{CH}}}{J}_{\mathrm{C}}}{{\mu }_{\mathrm{{ni}}}{C}_{\mathrm{{OX}}}\left({{V}_{\mathrm{G}}- {V}_{\mathrm{{TH}}}}\right)} $
In (11), the first term predominates when ${J}_{\mathrm{C}}$ is low, i.e., the IGBT conducts with small current. When the collector current density is large, i.e., when the IGBT conducts with large current, the third term dominates. In this case, the collector current of the IGBT increases linearly with the increase of the on-state voltage drop. Generally, in the linear region OVD is treated as a parameter for AM.

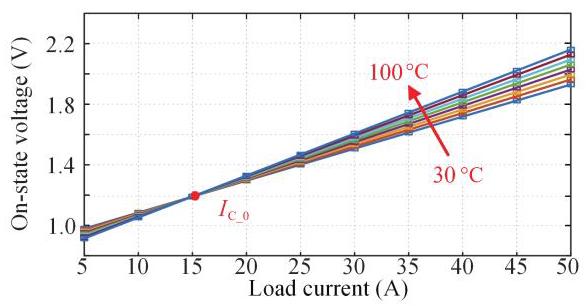

Referring to (12), the load current is involved in the OVD. Due to this, the characterization behaviors of the OVD are further investigated with load current variations based on the coupled multi-physical field model. In this case, the junction temperature is increasing, and the variations of the load current from 5A to 50A are applied. The simulation results are shown in Fig. 9, clearly, different load currents result in different characterization behaviors of the OVD. That means, the load current will significantly affect the performance of the OVD.
C. Characterization Behavior Analysis of the On-State Voltage Drop With Junction Temperature Swings

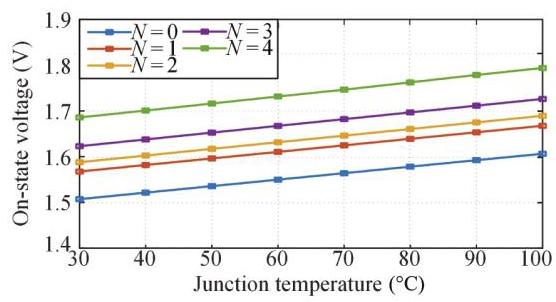

To emphasize the effects of temperature on OVD,(12) can be expressed linearly as [41]:
${V}_{\mathrm{{IGBT}}}= {\left(\frac{\mathrm{d}{V}_{\mathrm{{IGBT}}}}{\mathrm{d}T}\right)}_{{I}_{\mathrm{c}}}T +{V}_{\mathrm{{IGBT}}- 0}$
The coefficient ${\left(\frac{\mathrm{d}{V}_{\mathrm{{IGBT}}}}{\mathrm{d}T}\right)}_{{I}_{\mathrm{c}}}$ is correlated with ${I}_{\mathrm{C}}$. When ${I}_{\mathrm{C}}$ is equal to current threshold ${I}_{\mathrm{C},0}$, OVD has no temperature dependent; when ${I}_{\mathrm{C}}> {I}_{\mathrm{C}- 0}$, coefficient ${\left(\frac{\mathrm{d}{V}_{\mathrm{{IGBT}}}}{\mathrm{d}T}\right)}_{{I}_{\mathrm{c}}}> 0$, OVD is positively correlated with temperature; conversely, coefficient ${\left(\frac{\mathrm{d}{V}_{\mathrm{{IGBT}}}}{\mathrm{d}T}\right)}_{{I}_{\mathrm{c}}}< 0$, OVD is negatively correlated with temperature, as shown in Fig. 9. That is, the OVD is challenged by the issue of junction temperature swings, which may make the proposed AM method suffer from obvious performance degradation with different junction temperature.
From the above analysis, it is known that the OVD is accompanied by the challenges of junction temperature swings and load current dependence. A viable solution to these troublesome problems is provided by using the BPNN, which is elaborated in the next section.
IV. Implementations of the Proposed Bond Wire Aging Monitoring Method Based on the BPNN
Less
The OVD is criticized for performance degradation with junction temperature swings and load current dependence. To address this, a bond wire AM method based on the BPNN is proposed, and the implementations of the proposed AM method are provided in this section.
A. Basics of Back Propagation Neural Networks
As one of widely-used neural networks techniques, features like strong nonlinear mapping ability and flexible network structure make the BPNN attract much popularity. The BPNN that is based on the gradient descent method, is a multilayer feedforward network trained by using the error back propagation method [42].

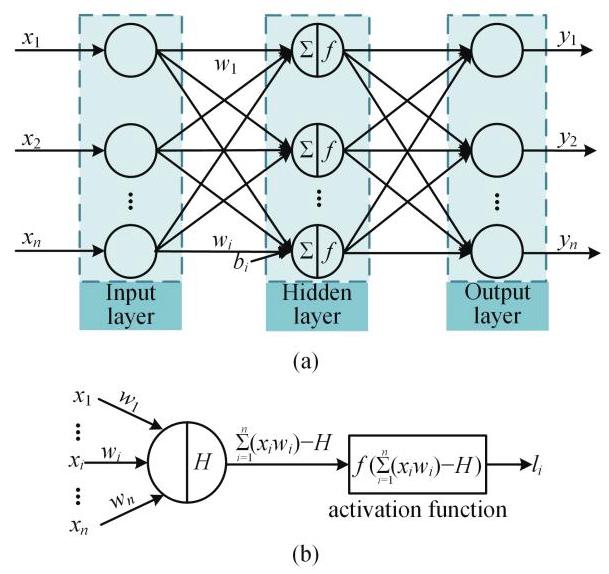

Fig. 10 shows the block diagram of the BPNN, which includes the input layer, the hidden layer, and the output layer. ${x}_{1},{x}_{2},\ldots,{x}_{n}$ and ${y}_{1},{y}_{2},\ldots,{y}_{n}$ are the $n$-dimensional input and output of every sample in the BPNN. And, ${w}_{i}$ and ${b}_{i}(i = 1,2$, $\ldots, n)$ are the connection weight between the previous layer of neurons and the next layer of neurons, and the offset that is used for proper data fitting, respectively. The hidden layer is of importance for the BPNN, which mainly includes the sum operation and the activation function (see Fig. 10(b)). In the hidden layer, the use of the activation function is able to enhance the non-linearity, and hence, the performance improvement of the BPNN is made. There are two processes in the BPNN, i.e., the forward propagation and the back propagation. More specifically, in the forward propagation, the inputs undergo the nonlinear transformation through the hidden layer to generate the outputs. When checking the large errors between the reference output and the actual output, the back propagation is accordingly implemented. That is, the errors are transmitted through the hidden layer to the input layer. Then, the connection weight and the offset are adjusted to make the errors decrease along the gradient direction. In this way, the target of error minimization is eventually achieved.
B. Practical Implementation of the Proposed Bond Wire AM Method

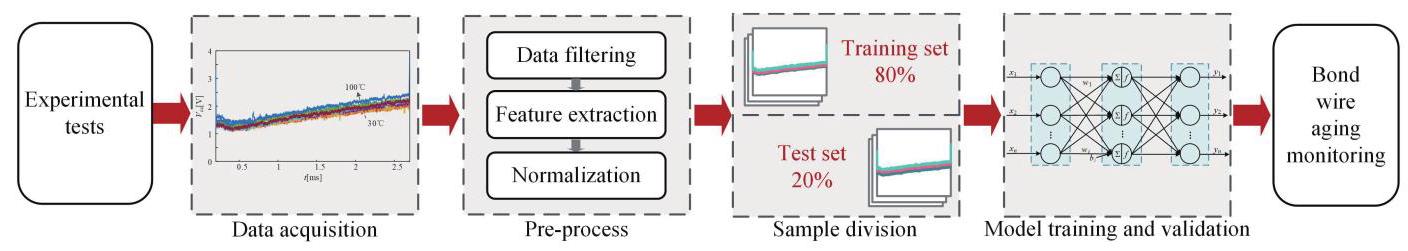

Fig. 11 illustrates the block diagram of the proposed AM method based on the BPNN, in which five steps are involved in the implementations of the proposed AM method, i.e., the data acquisition, the pre-process, the sample division, the model training and validation, and the bond wire AM.
At first, extensive experimental tests are carried out to obtain OVD data of IGBT module at different load currents, different junction temperatures and different bond wire aging degrees. The test conditions are given in Section V. Then, the data of the OVD are pre-processed to guarantee the features of the OVD. That is, the collected data of the OVD are filtered to mitigate the effects of noise. And, the features of the OVD are extracted from these filtered data. Meanwhile, the extracted features of the OVD are normalized to remove the dimensional effects and eliminate the singular sample. With this, both the training time and the model convergence of the BPNN are maintained. In the proposed AM method, the maximum-minimum normalization method is used to make the extracted features normalize within the range of $\left\lbrack {0,1}\right\rbrack$, which is described as
${\bar{x}}_{i}= \frac{{x}_{i}- {x}_{\min }}{{x}_{\max }- {x}_{\min }}$
in which ${\bar{x}}_{i},{x}_{i},{x}_{\min }$, and ${x}_{\max }$ are the normalized feature of the training sample, the $i$-dimensional feature of the training sample, the minimum value and the maximum value of the training sample, respectively.
Afterward, the processed features of the OVD are further divided into the training set and the test set with an appropriate ratio of the number of the training set to the test set. In the proposed AM method, 80% of the samples of the OVD are used for the training set while the test set includes ${20}\%$ of the samples of the OVD. A further process of random shuffling the training samples is implemented to improve the convergence speed. By doing so, the effects of overfitting are avoided and the generalization ability of the BPNN is improved. Moreover, as a supervised learning method, the training sample in the BPNN should be labeled, and in the proposed AM method, the number of lift-off bond wire is used as the label of the BPNN.
The fourth step of the proposed AM method is the model training and validation, which is crucial for the proposed AM method. The architecture of the BPNN and the initialization of the BPNN are first performed. Notably, the number of the input layer neurons is the dimension of sample feature while the number of the hidden layer neurons is determined according to the test results of the BPNN. As discussed previously, the activation function shows high importance in the BPNN and different types of activation functions are employed in the BPNN, which are given in (15)-(17). That is, the sigmod function and the tansig function are adopted in the input layer and the hidden layer, respectively. While, the output layer uses the purelin function as the activation function.
$\operatorname{sigmod}\left( x\right)= \frac{1}{1 +{\mathrm{e}}^{-x}}$
$\tan \operatorname{sig}\left( x\right)= \frac{1 -{\mathrm{e}}^{-{2x}}}{1 +{\mathrm{e}}^{-{2x}}}$
$\text{purelin}\left( x\right)= x $

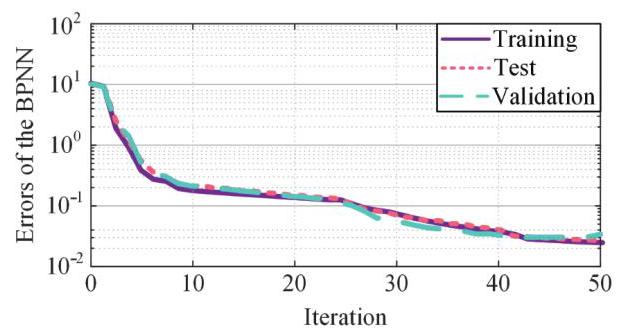

As for the initialization of the BPNN, the training times and the training target are set to 300 and 0.01, respectively. Specifically, the training target means the errors between the reference and the output of the BPNN during the training processes of every sample. Moreover, the learning rate of the BPNN should be carefully considered. This is because that a small learning rate makes the BPNN get stuck at local optimum, and the BPNN model suffers from a slow convergence. By contrast, the BPNN with a large learning rate may swings at the minimum value, and even cause the divergence of the BPNN. In the proposed AM method, the learning rate is set to 0.02 . Then, in the training set, the Levenberg-Marquardt method is used to implement the task of minimizing the errors between the reference and the output of the BPNN, aiming at a satisfactory training performance of the BPNN. In this method, the Gaussian-Newton algorithm is employed to iteratively optimize the parameters of the BPNN. Meanwhile, an attenuation coefficient is introduced in the BPNN to perform a quick convergence and the attenuation coefficient will be adjusted according to the errors of the BPNN. When the errors meet the requirements, the model of the BPNN is identified as well-trained. Eventually, with the assistance of the well-trained model, accurate AM of bond wire is achieved. The training process of the BPNN is shown in Fig. 12. Seen from Fig. 12, after 40 iterations, the errors of the training set and the test set are obviously decreased, and the errors of the BPNN approach the training target (i.e., 0.01), which demonstrates that an acceptable training performance of the BPNN is achieved. Then, the performance of the proposed AM method with the well-trained BPNN is examined, which is presented in Fig. 13. Observations in Fig. 13 suggest that with the assistance of the well-trained model, the proposed AM method exhibits a satisfactory performance in terms of bond wire AM.
C. Performance of the Proposed AM Method With Junction Temperature Swings and Load Current Variations
As mentioned previously, the OVD is obviously affected by junction temperature swings and load current dependence. To address this, in the proposed AM method, solution to junction temperature swings and load current variations is provided, which is shown in Fig. 14. That is, the data of the OVD under different numbers of lift-off bond wires, different load currents and different junction temperature are collected (see Fig. 15 ). Then, with these collected OVD, the BPNN for bond wire AM is effectively trained. Subsequently, the measured OVD, the measured junction temperature and the measured load current are used as the inputs of the well-trained BPNN, and the information of the BWD is obtained. By doing so, the task of bond wire AM is accomplished and the effects of junction temperature swings and load current dependence are avoided.
D. Performance of the Proposed AM Method for Early Bond Wire Aging
In practice, in addition to the complete lift-off, there are also early bond wire aging manifestations such as cracks. The early aging is difficult to monitor. In order to explore the performance of proposed AM method for cracks, simulation for bond wire cracks is added based on multi-physical field coupling model.
As the cracks affect the contact area of the bond wire solder point, the contact resistance of the solder point increases. A method based on adjusting the contact resistance of the bond wire weld joints is used to simulate the diffusion process of cracks, and a schematic diagram of the contact resistance of the solder joints is given in Fig. 16. A random setting of 18 groups with different cracking degrees and current conditions are used as samples for analysis, as shown in Table I.

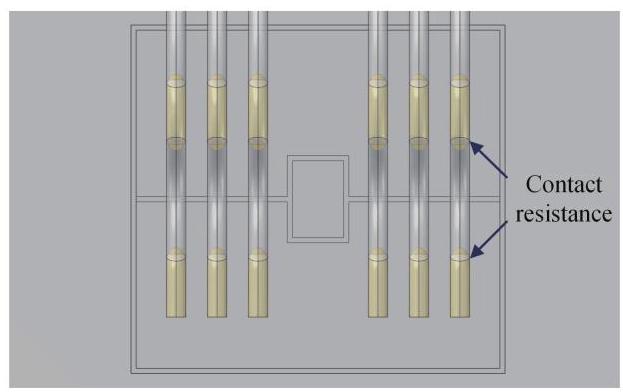

In the previous simulation, the contact resistance is set to 0.002Ω for the healthy case of the bond wire. It is tested that when bond wire contact resistance is set to 0.0125Ω, it is equivalent to the case of only one lift-off bond wire. Then, based on function fitting, the relationship between the bond wire contact resistance and the number of lift-off numbers $N\left({N < 1}\right)$ can be given by
$ N ={0.9749}{\mathrm{e}}^{{0.1541}\frac{{R}_{\text{bonding }}- {0.002}}{{0.0125}- {0.002}}}+ {0.0251}{\mathrm{e}}^{{0.9681}\frac{{R}_{\text{bonding }}- {0.002}}{{0.0125}- {0.002}}}- 1 $

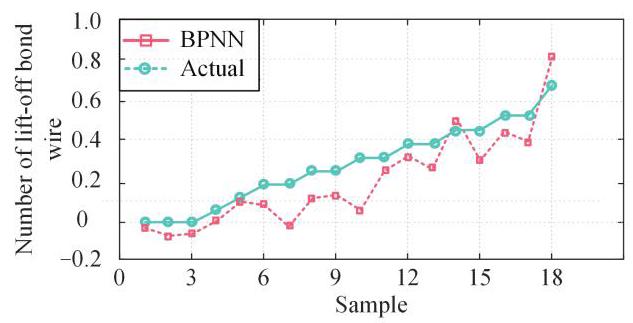

Eighteen samples of different working conditions are used as inputs to the well-trained BPNN bond wire aging monitoring model. Finally, the cracks simulation samples output results and the results obtained according to (18) are shown in Fig. 17. It can be seen that the error is in a small range, which indicates that the proposed AM method performs well for monitoring early aging such as bond wire cracks.
V. Experimental Results
Less

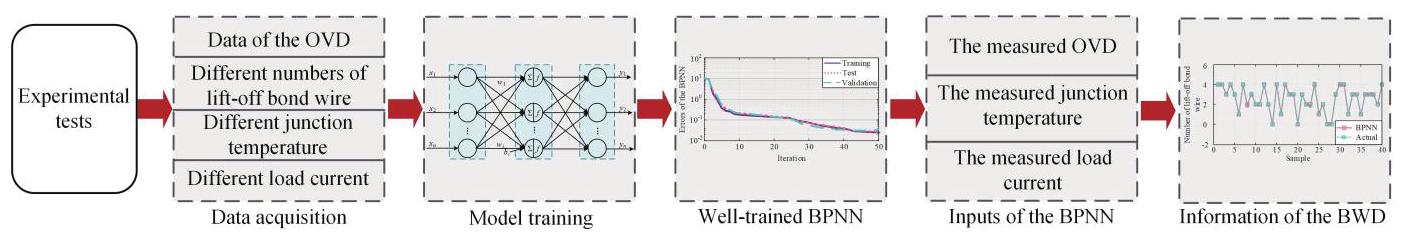

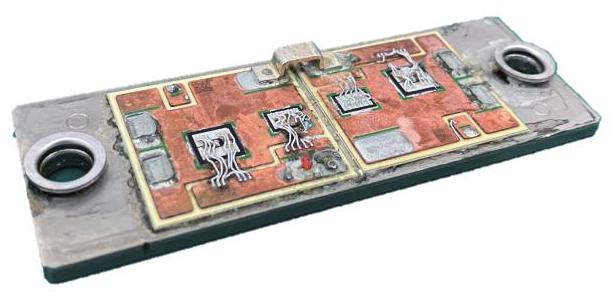

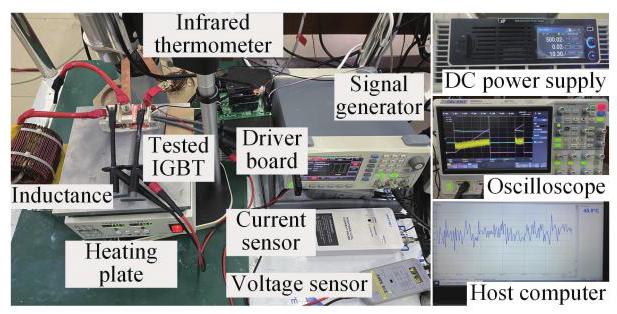

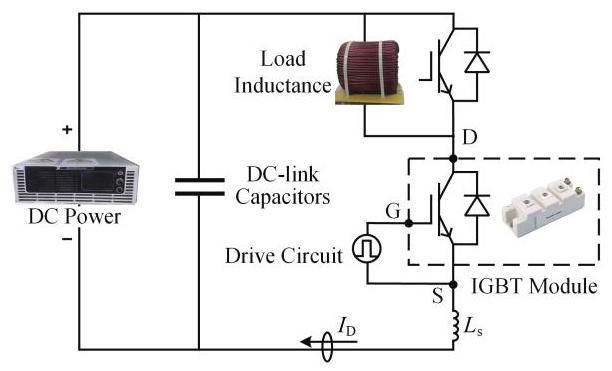

To illustrate the effectiveness of the proposed AM method, the experimental tests based on the test bench in Fig. 18 are carried out, and the test cases are listed in Table II. Seen from Fig. 18, the experimental test bench consists of an infrared thermometer (Optris LT-CF2-CB3), the DC-link capacitors, the inductance, the heating plate, the driver board, the signal generator, the voltage sensor, the current sensor, the DC power supply, the oscilloscope, the host computer, and the tested IGBT module (Infineon FF50R12RT4). Notably, in the experimental tests, the load current is varied from 5A to 40A with the interval of 5A. It is difficult to quantify the aging degrees of the bond wire in the experiment, thus, the bond wire aging is simulated by stripping the bond wire, the number of lift-off bond wire is varied from 0 to 4, and the junction temperature is varied from 65.5℃ to 101.9℃. With this, there are 320 data of the OVD that are used as the inputs of the BPNN, and the ratio of the training set to the test set is also given to 80:20 during the training processes.
With the well-trained model, the bond wire monitoring performance of the proposed AM method is experimentally investigated, and the results are provided in Fig. 20. It is clear from Fig. 20 that the monitored lift-off bond wire provided by the proposed AM method makes a good agreement with the actual lift-off bond wire, thereby demonstrating the effectiveness of the proposed AM method. The monitoring errors of the proposed AM method lie in a limited range of ±0.4 . According to the experimental results, it is known that the proposed AM method enables to provide accurate information of the BWD.

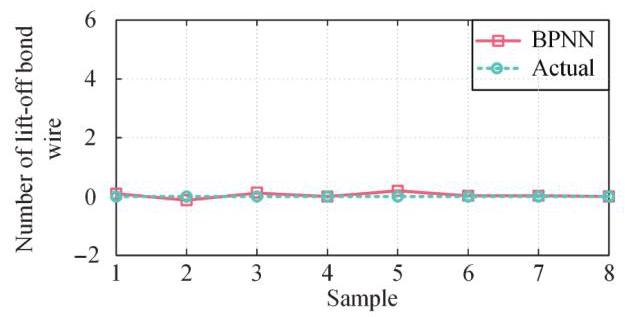

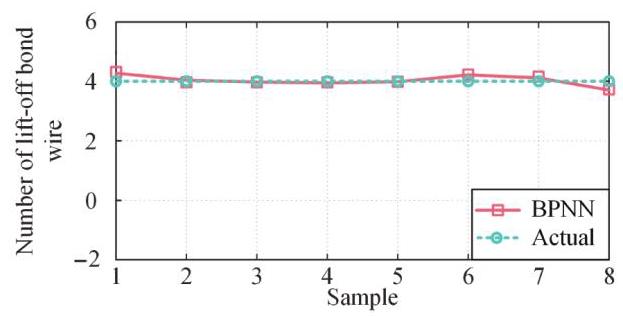

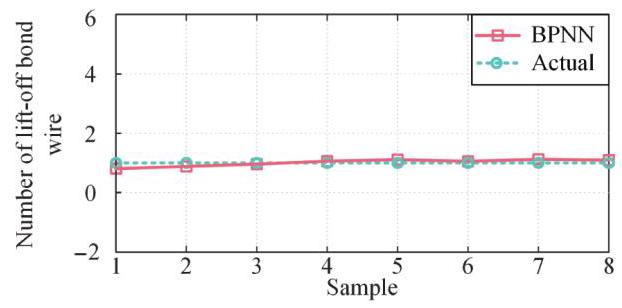

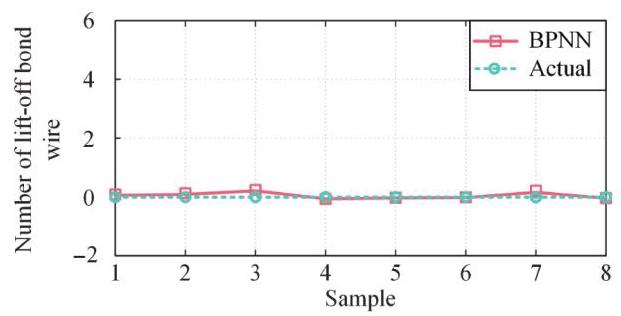

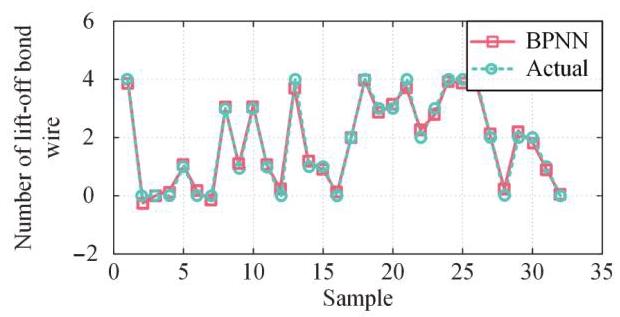

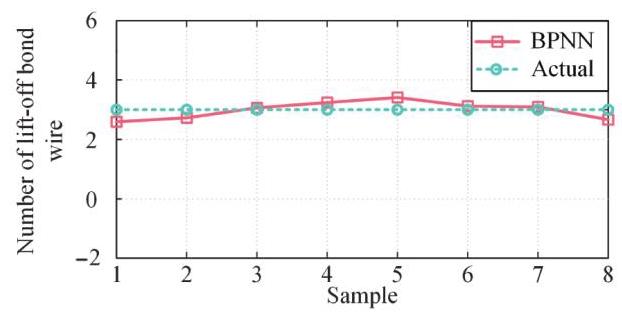

Figs. 21 and Fig. 22 show the performance of the proposed AM method with different junction temperature and different load currents. In the two cases, the number of the lift-off bond wire is set to 0 (that means the bond wire of the IGBT module is healthy), and the junction temperature is set to ${88}^{\circ }\mathrm{C}$ and ${95}^{\circ }\mathrm{C}$, respectively. Based on the results in Figs. 23 and 24, the proposed AM method shows an acceptable performance in terms of bond wire AM. Additionally, it is worth noting that with different junction temperature of the IGBT module, an achievement of accurate AM is still made by using the proposed AM method.

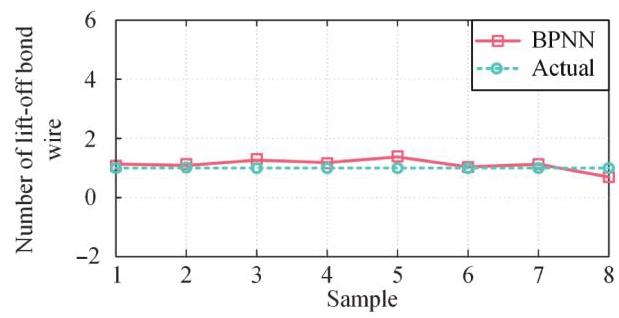

Meanwhile, the performance of the proposed AM method with different junction temperature is further examined, and the results are presented in Figs. 23 and 24, in which 1 bond wire is lifted off. Seen from Figs. 23 and 24, the monitored liftoff bond wire agrees with the actual lift-off bond wire well, and the issue of junction temperature swings makes a negligible effect on the performance of the proposed AM method.

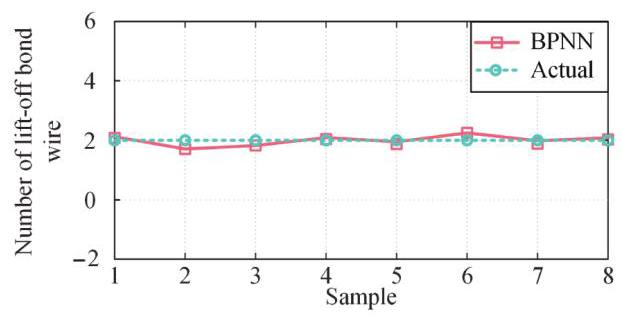

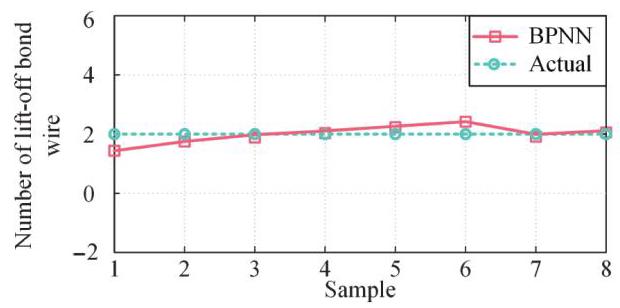

Moreover, the case of 2 lift-off bond wires with different junction temperature is implemented, and the results are shown in Figs. 25 and 26. It is suggested that in this case, the bond wire AM performance of the proposed AM method is acceptable, and the monitoring errors are within a reasonable range.

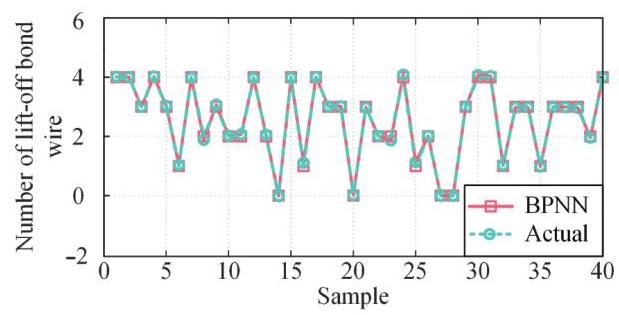

To further evaluate the performance of the proposed AM method, cases of 3 and 4 lift-off bond wires are carried out, which are shown in Figs. 27 and 28. The results in Figs. 27 and 28 indicate that the proposed AM method has the ability of providing the accurate information of the BWD.
VI. Conclusion
Less
This paper attempted a bond wire AM method based on the BPNN for IGBT modules. In the proposed AM method, the OVD is selected as the indicator of the BWD, and with the established multi-physical field coupling model of the IGBT module, the characterization behaviors of the OVD were thoroughly analyzed. The analyzed results revealed that the OVD shows a good sensitivity to the BWD but suffers from the serious performance degradation with junction temperature swings and load current dependence. Considering this, the BPNN is used in the proposed AM method to maintain the performance of bond wire AM under different operation conditions. Experimental tests were conducted to extensively investigate the performance of the proposed AM method. The results confirm that the proposed AM method exhibits a satisfactory performance of bond wire monitoring, and interesting benefits of avoiding the effects of junction temperature swings and load current dependence are achieved.
Nevertheless, the proposed AM method needs to cooperate with the junction temperature monitoring methods and measure the OVD of the IGBT modules, which may increase the complexity of the proposed AM method in practice. Notably, many studies have given feasible OVD measurement methods. In addition, the junction temperature extraction based on thermal network method can be used for the junction temperature information of the proposed method. Thus, further research efforts should be performed to achieve industrial applicability enhancement.
