High performance ethylene sensor based on palladium-loaded tin oxide: Application in fruit quality detection
Full
Qiuni Zhaoa, Zaihua Duana, Zhen Yuana, Xian Lib, Si Wanga, Bohao Liua, Yajie Zhanga, Yadong Jianga, Huiling Tai*, a
Affiliations
  • a State Key Laboratory of Electronic Thin Films and Integrated Devices, School of Optoelectronic Science and Engineering, University of Electronic Science and Technology of China (UESTC), Chengdu 610054, China
  • b Agricultural Information Institute, Chinese Academy of Agricultural Sciences, Key Laboratory of Agricultural Information Service Technology of Ministry of Agriculture, Beijing 100081, China
Published: 2020-08-15 doi: 10.1016/j.cclet.2020.04.032
Outline
收藏切换

Ethylene (C2H4), as a plant hormone, its emission can be served as an indicator to measure fruit quality. Due to the limited physiochemical reactivity of C2H4, it is a challenge to develop high performance C2H4 sensors for fruit detection. Herein, this paper presents a resistive-type C2H4 sensor based on Pd-loaded tin oxide (SnO2). The C2H4 sensing performance of proposed sensor are tested at optimum operating temperature (250 ℃) with ambient relative humidity (51.9% RH). The results show that the response of Pd-loaded SnO2 sensor (11.1, Ra/Rg) is about 3 times higher than that of pristine SnO2 (3.5) for 100 ppm C2H4. The response time is also significantly shortened from 7 s to 1 s compared with pristine SnO2. Especially, the Pd-loaded SnO2 sensor possesses good sensitivity (0.58 ppm-1) at low concentration (0.05-1 ppm) with excellent linearity (R2=0.9963) and low detection limit (50 ppb). The high sensing performance of Pd-loaded SnO2 are attributed to the excellent adsorption and catalysis effects of Pd nanoparticle. Meaningfully, the potential applications of C2H4 sensor are performed for monitoring the maturity and freshness of fruits, which presents a promising prospect in fruit quality evaluation.

Ethylene sensing  /  Pd-loaded SnO2  /  High performance  /  Low detection limit  /  Fruit quality monitoring
Qiuni Zhao, Zaihua Duan, Zhen Yuan, Xian Li, Si Wang, Bohao Liu, Yajie Zhang, Yadong Jiang, Huiling Tai. High performance ethylene sensor based on palladium-loaded tin oxide: Application in fruit quality detection[J]. Chinese Chemical Letters, 2020 , 31 (8) : 2045 -2049 . DOI: 10.1016/j.cclet.2020.04.032
Full Text
Less
Ethylene (C2H4) as a colorless and odorless phytohormone is closely related to the maturity and freshness of fruit [1]. For example, low concentration of C2H4 (from 10 ppb to 10 ppm) would be released from immature fruit, and C2H4 also triggers ripening genes resulting in changes in texture, color and taste of fruit [2]. With the fruit maturing, the C2H4 production increases gradually to over 100 ppm. Thus, the emission of C2H4 can be used as an indicator of fruit maturity [3]. Furthermore, excess C2H4 during fruit storage can accelerate respiratory rates of fruits resulting in senescence and even spoilage [4]. Therefore, in order to evaluate the quality of fruit efficiently and intelligently, it is important to develop a high performance gas sensor for detecting C2H4 concentration at trace level.
Up to now, various techniques, including optical, electrical and mass-sensitive methods, have been applied for C2H4 detection. Among them, gas chromatography [5], fluorescence [6], photoacoustic spectroscopy [7] could achieve high-sensitive detection of C2H4, but the expensive cost, bulky and non-portability of these methods largely impede their application in fruit detection. Instead, the resistive-type sensor are worth exploring because of its simple and affordable. Due to the limited physiochemical reactivity of C2H4, C2H4 sensors working at room temperature have poor performance [8-11]. In order to accelerate the adsorption and desorption of nonpolarC2H4molecules on sensitive materials, it is necessary to use assist antmethods such as heating [12] or ultraviolet irradiation[13]. Several C2H4 sensors based on heating have been reported in the literature [14-20]. For example, Kathirvelan et al. studied the C2H4 sensing properties of titanium dioxide and tungsten trioxide (TiO2-WO3) nanocomposites at 250 ℃, the minimum achievable concentration was 8 ppm for continuous detection and the response time is unknown [14]. Nimittrakoolchai et al. reported a WO3 gas sensor prepared by precipitation method, the detection range is 3–10 ppm and the response time is about a few minutes for 3–5 ppm C2H4 [15]. Wang et al. employed a porous zinc oxide (ZnO) nanosheets based C2H4 gas sensor, it is of 5 ppm detection limit and the response less than 2 at 500 ℃ [16]. Progress has been made in resistive-type C2H4 sensors, but the detection limit, response value and response time still need to be improved.
In order to enhance the performance of gas sensor, using noble metals (e.g., Pt [17], Au [21], Ag [22] and Pd [23]) loaded metal oxide semiconductors (MOS) is a prevalent strategy. In particular, as a potential C2H4 acceptor and catalyst [24-26], Pd loaded MOS is expected to achieve high response, fast speed and low detection limit. Herein, Pd-loaded tin oxide (SnO2) is used to prepare C2H4 gas sensor. The C2H4 sensing properties are investigated at 50–400 ℃, and the C2H4 gas sensing mechanism is discussed in this paper. Particularly, the potential application of Pd-loaded SnO2 C2H4 sensor has been developed in fruit detection.
The Pd-loaded SnO2 C2H4 sensor (Fig. S1a in Supporting information) was fabricated by simple coating method, and the details referred to the supplementary material. The micromorphologies, lattice images, crystallization and chemical valence states of pristine SnO2 and Pd-loaded SnO2 were characterized by various techniques including scanning electron microscopy (SEM, Zeiss, SUPRA 55), transmission electron microscope (TEM, FEI, Tecnai G2 F20 S-TWIN), X-ray diffraction (XRD, Bruker, D8 Advance) with a range of 2θ from 20° to 80° at 40 kV and 40 mA using Co-Kα as the irradiation source (λ= 0.1789 nm), and X-ray photoelectron spectroscopy (XPS, Thermo Fisher Scientific, K-Alpha), respectively.
The C2H4 sensing performance of sensors were measured by a dynamic homemade system with the Keithley 2700 data acquisition instrument and a regulated power supply (Fig. S1b in Supporting information). The operating temperature of sensor was varied between 50 ℃ and 400 ℃. In order to simulate the conventional atmospheric environment, the testing relative humidity (RH) is controlled at 51.9% by air with bubbling distilled water [27, 28], and calibrated by a high-accuracy hygrometer (CEM, DT-625, Shenzhen Everbest Machinery Industry Co., Ltd., China). The response of gas sensor is calculated as following equation: Response = Ra/Rg (Ra: resistance under the air, Rg: resistance under the target gas). The sensitivity is defined as the slope of response– concentration linear fitting curve. And the response/recovery times are defined as the time taken by C2H4 gas sensor to achieve 90% of the total resistance change in the case of adsorption and desorption respectively.
The SEM images of pristine SnO2 and Pd-loaded SnO2 are shown in Fig. S2 (Supporting information). It can be seen that both of them are composed of nanoparticles, but there is no obvious difference in microscopic morphology of two SEM images. In order to confirm the existence of Pd, the XRD patterns of pristine SnO2 and Pdloaded SnO2 are characterized in Fig. 1a. All the diffraction peaks of SnO2 can be well coincided with JCPDS card No. 41-1445 and match the tetragonal rutile structure [29], the diffraction peaks of Pd are tally with JCPDS data No. 46-1043, which reflect the face-centered cubic crystalline structure [30]. Compared with the prominent peaks of SnO2, the weak diffraction peaks of Pd indicate that the trace existence of Pd in composite film. The TEM images of Pdloaded SnO2 are performed as shown in Figs. 1b and c. The lattice fringes with an inter-planar distance of 0.33 nm coincide well with the (110) plane of SnO2 in Fig. 1c. And the lattice distance of 0.22 nm is correspond to the (111) crystalline plane of Pd, which further suggests that the Pd-loaded SnO2 nanoparticles have been successfully synthesized from the micro-morphology. It is beneficial to regulate the interface barrier between SnO2 and Pd [31].

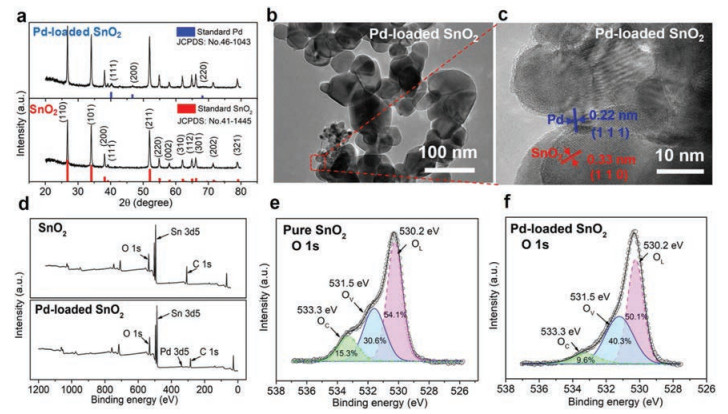

The surface compositions and chemical valence states are analyzed by XPS. Fig. 1d is the full range XPS spectra of pristine SnO2 and Pd-loaded SnO2. Fig. 1e displays the O 1s spectra of SnO2 and the binding energies at 530.2, 531.5 and 533.3 eV can be assigned to lattice oxygen species (OL), oxygen vacancy (OV) and the chemisorbed oxygen species (OC, H2O species and impurity oxygen) on the surface of sensing materials, respectively [32-34]. The oxygen vacancy has significant influence on the gas sensing properties of resistance-type MOS [33]. Compared Fig. 1f with Fig. 1e, the content of oxygen vacancy in Pd-loaded SnO2 (40.3%) is higher than pristine SnO2 (30.6%). The increase of oxygen vacancies of Pd-loaded SnO2 is conducive to C2H4 reaction and further enhance the sensing performance [34]. The higher content of chemisorbed oxygen (15.3%) in pristine SnO2 could be due to the adsorption of water molecules [35, 36]. The high-resolution XPS spectra of Pd 3d is shown in Fig. S3 (Supporting information), the Pd 3d 5/2 electron binding energies in palladium oxide (PdO) and metallic Pd are 335.9 and 334.5 eV, respectively [31]. The contents of PdO of Pd-loaded SnO2 are calculated to be 58%, it is confirmed that Pd nanoparticles are easy to oxidize intoPdO in air due totheir strong electron transport ability. Moreover, the conversion of Pd and PdO in the oxygen environment plays an important role in MOS sensitization [24].

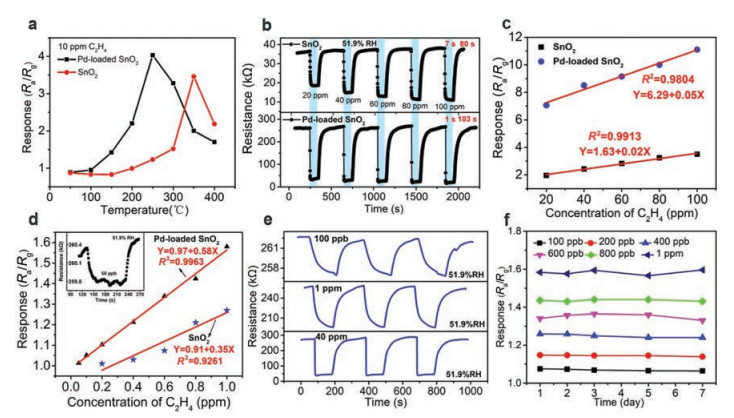

The working temperature has great influence on the response of MOS based gas sensors [37]. In order to investigate the relationship between operating temperature and the C2H4 sensing properties, the response of sensors based on pristine SnO2 and Pd-loaded SnO2 to 10 ppm C2H4 at operating temperatures ranging from 50 ℃ to 400 ℃ are shown in Fig. 2a. As can be seen, the addition of Pd reduces the optimum working temperature of gas sensor from 350 ℃ to 250 ℃. The phenomena of the increasing sensing response and the decreasing working temperature for SnO2 are consistent with the previous researches by Zhang's group [38], which directly verifies the promotion effect of Pd nanoparticles. Fig. 2b displays the realtime resistance variation curves of two gas sensors to 20–100 ppm C2H4 at 250 ℃. When exposed to 100 ppm C2H4, the response of Pdloaded SnO2sensor(11.1)is about 3 times higher than that of pristine SnO2 (3.5). Moreover, the response time is also significantly shortened from 7 s to 1 s compared with pristine SnO2. As shown in Fig. 2c, both of two sensors exhibit good linearity, but the Pdloaded SnO2 gas sensor holds a larger sensitivity (0.05 ppm-1) than that of pristine SnO2 one (0.02 ppm-1). Fig. 2d displays the linear fitting curves of two sensors to low concentration C2H4 (0.05–1 ppm), the Pd-loaded SnO2 gas sensor exhibits better sensitivity (0.58 ppm-1) with excellent linearity (R2 = 0.9963). Especially, the Pd-loaded SnO2 gas sensor achieves ultra-low detection concentration (50 ppb) (the inset of Fig. 2d). The real-time resistance variation curves of two sensors corresponding to Fig. 2d are shown in Figs. S4 and S5 (Supporting information). Fig. 2e exhibits the response and recovery curves for three cycles when the Pd-loaded SnO2 gas sensor is exposed to 100 ppb, 1 ppm and 40 ppm C2H4 concentrations. As can be seen, the response and recovery curves can switch to the steady states after the C2H4 level changed, indicating that the sensor shows good repeatability in the continuous measurements. Fig. 2f presents the good stability and durability of the Pd-loaded SnO2 gas sensor for low concentration C2H4 inaweek. Moreover, the other sensing performance(humidity, selectivity) of Pd-loaded SnO2 gas sensor are studied in supplementary material. Compared with previous works [8-11, 14-20], the C2H4 sensor based on Pd-loaded SnO2 shows high performance in terms of the response value (Ra/Rg = 11.1 for 100 ppm), detection limit (≤50 ppb) and response speed (1 s for 100 ppm), which are listed detailly in Table 1.

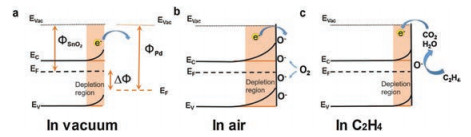

A plausible explanation of C2H4 sensing mechanism for Pdloaded SnO2 sensor is discussed as follows. As shown in Fig. 3a, since the work function of Pd (5.12 eV) is higher than that of SnO2 (4.5 eV), the Schottky junction will be formed at the interface of Pd and SnO2, which causes the part of electrons transfer from SnO2 to Pd [39]. It is beneficial to the formation of depletion region around SnO2. When the Pd-loaded SnO2 gas sensor is exposed to air (Fig. 3b), oxygen molecules combine with electrons to form adsorbed oxygen (O- at 250 ℃) on the surface area of Pd-loaded SnO2, resulting in a thick electron-depleted layer [40]. Furthermore, Pd (PdO) as a catalyst activates the dissociation of oxygen molecules and enhances the adsorption activity of oxygen on the surface of SnO2 [41]. The increase of oxygen vacancy of Pd-loaded SnO2 is also proved by XPS analysis. The thicker electron-depleted layer results in the increase of air resistance of SnO2 after Pd loading [24], which is beneficial to improve the C2H4 sensing response of SnO2 sensor.
When the Pd-loaded SnO2 gas sensor is exposed to C2H4 gas (Fig. 3c), C2H4 molecules with a carbon-carbon double bond (C = C) are oxidized to ethylene oxide or acetaldehyde, then further reacted to produce carbon dioxide (CO2) and water (H2O), and the reaction process can be shown as follows [42]:
The process of C2H4 oxidation releases the trapped electrons back to the conduction band, leading to the reduction of depletion region and the decrease in resistance. As the potential receptors of C2H4, Pd nanoparticles can increase the number of efficient adsorption sites of C2H4 molecules near the surface of sensitive film [26]. Moreover, adsorbed C2H4 molecules on Pd will spillover onto the surface of SnO2 because of the spillover effect [43], leading to the high sensing response. In summary, the C2H4 gas-sensing mechanism of Pd-loaded SnO2 can be explained by depletion layer theory, the catalysis and receptor function of Pd.

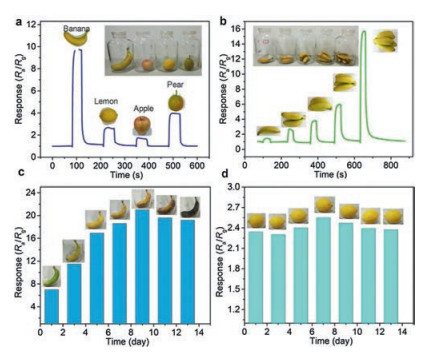

The C2H4 emission can be used as an indicator to estimate the coloration, texture, and flavor taste of fruits [44]. Inspired by the demand for fruit freshness and ripeness monitoring, potential applications of Pd-loaded SnO2 gas sensor are explored. The temperature and humidity of the laboratory are controlled at 25±2 ℃ and 50%±5% RH by an air conditioner, and recorded by the high-accuracy hygrometer. Fig. 4 displays the response curves in the application of fruit quality detection. In order to simulate the storage conditions and observe morphological changes, fruits are put into a transparent bottle packed with porous plastic wrap to avoid fermentation, and then place the gas sensor at the bottle mouth during detection. Fig. 4a shows the real-time response curves of the gas sensor to four fresh fruits (banana, lemon, apple and pear), the weight of each fruit is about 120–150 g. It can be seen that the Pd-loaded SnO2 gas sensor presents different responses to different fruits. Fig. 4b displays the increasing response to gradually increasing banana weight (about 25 g, 50 g, 75 g, 100 g and 125 g). The nonlinear increase indicates that C2H4 emissions are mutually reinforcing [2]. To further support potential applications in fruit storage, Fig. 4c presents the variation in response to one banana at different ripening stages. As a comparison, the same test to lemon is shown in Fig. 4d. The results show that the response of banana changed significantly from non-climacteric to climacteric, while that of lemon changed smoothly. As a respiratory climacteric fruit, banana is susceptible to the influence of C2H4 concentration in senescence and metamorphosis, while the non-respiration climacteric lemon is more resistant to storage than banana due to the slow metabolism of lemon, which is consistent with the experimental results. In short, the above tests demonstrate that different species, quantities and storage states of fruits can be estimated by the Pd-loaded SnO2 gas sensor like a smart nose, which suggest that the potential applications of Pd-loaded SnO2 gas sensor in fruits quality evaluation.
In summary, a Pd-loaded SnO2 C2H4 sensor for fruit quality evaluation is fabricated by coating method. The high sensing performance of Pd-loaded SnO2 C2H4 sensor are obtained at 250 ℃, it is of high response (11.1 for 100 ppm), fast speed (1 s for 100 ppm), good linearity (R2 = 0.9804 for 20-100 ppm), low detection limit (50 ppb) and good stability. The sensing mechanism of Pd-loaded SnO2 sensor is discussed by the depletion layer theory, the catalysis and receptor function of Pd. Furthermore, the applications of the Pd-loaded SnO2 sensor in detecting fruit species, quantities and storage states are explored. The results show that the prepared Pd-loaded SnO2 sensor has great potential for developing high-performance C2H4 sensor in fruit quality monitoring.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
This work is supported by the National Science Funds for Excellent Young Scholars of China (No.61822106), National Science Funds for Creative Research Groups of China (No. 61421002), Natural Science Foundation of China (No. 61671115) and Central Public-interest Scientific Institution Basal Research Fund (No.Y2019XK18).
Appendix A. Supplementary data
Less
Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2020.04.032.
References
Less
[1]
F. Mustafa, S. Andreescu, Foods 7 (2018) 168.
[2]
C.S. Barry, J.J. Giovannoni, J. Plant Growth Regul. 26 (2007) 143.
[3]
F. Caprioli, L. Quercia, Sens. Actuator. B-Chem. 203 (2014) 187-196.
[4]
S. Janssen, K. Schmitt, M. Blanke, et al., Phil. Trans. R. Soc. 372 (2014) 20130311.
[5]
N.A. Zaidi, M.W. Tahir, M.J. Vellekoop, W. Lang, Sensors 18 (2018) 2589.
[6]
M. Sun, X. Yang, Y. Zhang, et al., J. Agric. Food Chem. 67 (2019) 507-513.
[7]
Y. Hitomi, T. Nagai, M. Kodera, Chem. Commun. 48 (2012) 10392-10394.
[8]
B. Esser, J.M. Schnorr, T.M. Swager, Angew. Chem. Int. Ed. 51 (2012) 5752-5756.
[9]
P. Pattananuwat, D. Aht-Ong, Mater. Sci. Forum 654-656 (2010) 2285-2288.
[10]
J. Kathirvelan, R. Vijayaraghavan, J. Sensors 2014 (2014) 6.
[11]
P. Pattananuwat, D. Aht-Ong, Polymer-Plast. Tech. 52 (2013) 189-194.
[12]
C. Yang, Y. Xu, L. Zheng, et al., Chin. Chem. Lett. (2020), doi: http://dx.doi.org/10.1016/j.cclet.2020.01.011.
[13]
Y. Li, D.L. Li, J.C. Liu, Chin. Chem. Lett. 26 (2015) 304-308.
[14]
J. Kathirvelan, Sensor Rev. 37 (2017) 147-154.
[15]
O.U. Nimittrakoolchai, S. Supothina, Mater. Chem. Phys. 112 (2008) 270-274.
[16]
L.P. Wang, Z. Jin, T. Luo, et al., New J. Chem. 43 (2019) 3619-3624.
[17]
P. Ivanov, E. Llobet, A. Vergara, et al., Sens. Actuator. B-Chem. 111-112 (2005) 63-70.
[18]
D. Jadsadapattarakul, C. Thanachayanont, J. Nukeaw, T. Sooknoi, Sens. Actuator. B-Chem. 144 (2010) 73-80.
[19]
H. Ahn, J.H. Noh, S.B. Kim, et al., Mater. Chem. Phys. 124 (2010) 563-568.
[20]
M. Krivec, R. Leitner, R. Waldner, J. Gostner, F. Überall, SPIE2015205 (2020) 951713.
[21]
L. Liang, J. Yin, J. Bao, et al., Chin. Chem. Lett. 30 (2019) 167-170.
[22]
J. Zhang, X. Liu, G. Neri, N. Pinna, Adv. Mater. 28 (2016) 795-831.
[23]
D. Amalric-Popescu, F. Bozon-Verduraz, Catal. Today 70 (2001) 139-154.
[24]
G. Li, X. Wang, L. Yan, et al., ACS Appl. Mater. Interfaces 11 (2019) 26116-26126.
[25]
H. Li, J. Xu, Y. Zhu, X. Chen, Q. Xiang, Talanta 82 (2010) 458-463.
[26]
K. Besar, J. Dailey, H.E. Katz, ACS Appl. Mater. Interfaces 9 (2017) 1173-1177.
[27]
Q. Zhao, Z. Yuan, Z. Duan, et al., Sens. Actuator. B-Chem. 289 (2019) 182-185.
[28]
Z. Duan, Y. Jiang, M. Yan, et al., ACS Appl. Mater. Interfaces 11 (2019) 21840-21849.
[29]
Z. Zhang, Y. Hou, S. Zhang, et al., Chin. Chem. Lett. 29 (2018) 1656-1660.
[30]
Y. Li, L. Wang, J. Low, et al., Chin. Chem. Lett. 31 (2020) 231-234.
[31]
D.J. Yang, I. Kamienchick, D.Y. Youn, A. Rothschild, I.D. Kim, Adv. Funct. Mater. 20 (2010) 4258-4264.
[32]
H. Wang, L. Zhou, Y. Liu, et al., Sens. Actuator. B-Chem. 305 (2020) 127498.
[33]
Y. Zhang, D. Li, L. Qin, et al., Sens. Actuator. B-Chem. 255 (2018) 2240-2247.
[34]
S. Semancik, T.B. Fryberger, Sens. Actuator. B-Chem. 1 (1990) 97-102.
[35]
J.L.G. Fierro, Catal. Today 8 (1990) 153-174.
[36]
Z.Yang, Z.Zhang, K.Liu, Q. Yuan, B.Dong, J.Mater.Chem.C3 (2015)6701-6708.
[37]
T. Zhao, Y. Ren, G. Jia, et al., Chin. Chem. Lett. 30 (2019) 2032-2038.
[38]
L. Wang, H. Dou, Z. Lou, T. Zhang, Nanoscale 5 (2013) 2686-2691.
[39]
F. Li, T. Zhang, X. Gao, R. Wang, B. Li, Sens. Actuator. B-Chem. 252 (2017) 822-830.
[40]
L. Qiao, Y. Bing, Y. Wang, et al., Sens. Actuator. B-Chem. 241 (2017) 1121-1129.
[41]
D. Haridas, V. Gupta, Sens. Actuator. B-Chem. 166 (2012) 156-164.
[42]
M. Agarwal, M.D. Balachandran, S. Shrestha, K. Varahramyan, J. Nanomater. 2012 (2012) 5.
[43]
K. Tomishige, Y. Nakagawa, M. Tamura, Chin. Chem. Lett. 31 (2020) 1071-1077.
[44]
C.S. Günther, K.B. Marsh, R.A. Winz, et al., Food Chem. 169 (2015) 5-12.
Appendix
