One-step constructing advanced N-doped carbon@metal nitride as ultra-stable electrocatalysts <i>via</i> urea plasma under room temperature

One-step constructing advanced N-doped carbon@metal nitride as ultra-stable electrocatalysts via urea plasma under room temperature

PDF

Tao Tang^a, Chen Li^a, Sipu Li^a, Zhong Qiu^b, Tianqi Yang^c, Beirong Ye^a, Shaojun Shi^d, Chunyang Wu^e, Feng Cao^f, Xinhui Xia^*^,^b^,^c^,^h, Minghua Chen^g, Xinqi Liang^*^,^a^,^g, Xinping He^c, Xin Liuⁱ, Yongqi Zhang^*^,^a

Chinese Chemical Letters | 2024, 35(11) : 109887

Less

Chinese Chemical Letters | 2024, 35(11): 109887

• Communication •

One-step constructing advanced N-doped carbon@metal nitride as ultra-stable electrocatalysts via urea plasma under room temperature

Full

Affiliations

^a Institute of Fundamental and Frontier Science, University of Electronic Science and Technology of China, Chengdu 611731, China

^b Department of Materials Science and Engineering, Zhejiang University, Hangzhou 310027, China

^c College of Materials Science & Engineering, Zhejiang University of Technology, Hangzhou 310014, China

^d School of Chemistry and Materials Engineering, Changshu Institute of Technology, Changshu 215500, China

^e State Key Laboratory of Electronic Thin Film and Integrated Devices, University of Electronic Science and Technology of China, Chengdu 611731, China

^f Department of Engineering Technology, Huzhou College, Huzhou 313000, China

^g Key Laboratory of Engineering Dielectric and Applications (Ministry of Education), School of Electrical and Electronic Engineering, Harbin University of Science and Technology, Harbin 150080, China

^h State Key Laboratory of Photocatalysis on Energy and Environment, Fuzhou University, Fuzhou 350116, China

ⁱ State Key Laboratory of New Textile Materials and Advanced Processing Technologies, Wuhan Textile University, Wuhan 430200, China

Published: 2024-11-15 doi: 10.1016/j.cclet.2024.109887

Outline

Abstract

Less

Highly active transition metal nitrides are desirable for electrocatalytic reactions, but their long-term stability is still unsatisfactory and thus limiting commercial applications. Herein, for the first time, we report a unique and universal room-temperature urea plasma method for controllable synthesis of N-doped carbon coated metal (Fe, Co, Ni, etc.) nitrides arrays electrocatalysts. The preformed metal oxides arrays can be successfully converted into metal nitrides arrays with preserved nanostructures and a thin layer of N-doped carbon (N-C) via one-step urea plasma. Typically, as a representative case, N-C@CoN nanowire arrays are illustrated and corresponding formation mechanism by plasma is proposed. Notably, the designed N-C@CoN catalysts deliver excellent electrocatalytic activity and long-term stability both in oxygen evolution reaction (OER) and urea oxidation reaction (UOR). For OER, a low overpotential (264 mV at 10 mA/cm²) and high stability (>50 h at 20 mA/cm²) are acquired. For UOR, a current density of 100 mA/cm² is achieved at only 1.39 V and maintain over 100 h. Theoretical calculations reveal that the synergetic coupling effect of CoN and N-C can significantly facilitate the charge-transfer process, optimize adsorbed intermediates binding strength and further greatly decrease the energy barrier. This strategy provides a novel method for fabrication of N-C@ metal nitrides as highly active and stable catalysts.

Key words

Urea plasma / Metal nitrides / Carbon shell / Oxygen evolution reaction / Urea oxidation reaction

Cite this Article

Tao Tang, Chen Li, Sipu Li, Zhong Qiu, Tianqi Yang, Beirong Ye, Shaojun Shi, Chunyang Wu, Feng Cao, Xinhui Xia, Minghua Chen, Xinqi Liang, Xinping He, Xin Liu, Yongqi Zhang. One-step constructing advanced N-doped carbon@metal nitride as ultra-stable electrocatalysts via urea plasma under room temperature[J]. Chinese Chemical Letters, 2024 , 35 (11) : 109887 - . DOI: 10.1016/j.cclet.2024.109887

Full Text

Less

With the rapid development of industrial society, electrocatalytic chemistry pervades every aspect of our lives and is playing an important role in “Carbon peak and carbon neutrality” [1,2]. Typically, electrocatalytic reactions can help to increase energy efficiency and reduce pollution. Among the various anode half-reactions, the oxygen evolution reaction (OER) is the most frequently employed, despite its challenges of high theoretical potential and sluggish reaction kinetics [3]. Additionally, the urea oxidation reaction (UOR) serves as an alternative anode reaction with relatively low theoretical potential that can also facilitate wastewater treatment; however, it is also hampered by slow kinetics [4]. Therefore, highly active catalysts with long service life are highly desirable to optimize reaction pathways and reaction rate, and thereby boosting efficiency and modulating catalytic products [5]. Noble metal-based materials are working as the state-of-the-art catalysts in general, but their large-scale applications are seriously limited by scarcity [6]. Given all that, alternative catalysts including carbon materials [7], transition metal alloys [8], metal carbides/nitrides/chalcogenides [9], have been developed with tremendous efforts to design and construct high efficient and stable electrocatalysts.

Of the explored candidates, transition metal nitrides (TMNs) have attracted great attention in the field of electrocatalysis, such as hydrogen evolution reaction [10], OER [11,12], oxygen reduction reaction [13], UOR [4], because of their excellent catalytic activity, good electrical conductivity [9,14]. However, TMNs catalysts still surfer from a common problem, namely, unfavorable stability under atmospheric environment and harsh operation conditions, leading to decayed catalytic activities and short life [15]. To address this problem, doping and coating are two popular ways [16]. Especially, armed active materials with a protective thin layer is a general and facile strategy to protect from structure collapse and phase transformation. To date, lots of coating materials such as metal compounds, and carbon have been reported as outer shell materials to suppress the unfavorable phase transformation and side reactions [17]. Among them, carbon materials have been proven to be the best candidates due to their superior chemical stability and high electronic conductivity [18]. Specifically, Bao's group proposed a concept that some unique electrons from the encapsulated metal core can penetrate through the carbon shell layer to stimulate a catalytic reaction on the outermost surface of the carbon layer [19]. This effect is beneficial to design and fabricate advanced metal nitrides for various catalytic reactions under harsh conditions [20]. Meanwhile, the carbon layer has been aptly termed as “chain mail” for catalysts [21]. For instance, Bao and co-workers presented an approach to encapsulate FeNi binary metal nanoalloy in ultrathin graphene layers to achieve enhanced electrical performance and OER activity on the graphene surface [22]. In addition, Yuan et al. found that compared with pure carbon, the nitrogen-doped carbon not only serves as the conductive protection network, but also promote the density of electrons in the Fermi level to endow Co₄N@NC-700 with a low OER overpotential of 257 mV at 10 mA/cm² [23]. However, till now, most of TMNs have been synthesized via an annealing method in ammonia atmosphere with long duration (≥1 h) and high temperature (≥400 ℃) [13]. These fabrication processes are tedious with high energy consumption and pollution. Moreover, their carbon shells or matrixes come from carbonized organics, whose thickness is uncontrollable. Therefore, it is urgent to develop a controllable and efficient synthetic strategy to produce TMNs with tailored N-doped carbon.

Over the past decades, plasma emerges as a new powerful method to fabricate metal compounds with high efficiency, controllable microstructure and tunable electronic structure [10]. Previously, our group employed a N₂ plasma method to obtain metal nitrides at room temperature in 1 min [11]. Qiu et al. reported a SF₆ plasma method to construct an artificial SEI layer consisting of LiF and Li₂S on Li metal [24]. Nevertheless, all the reported works focus on gas plasma (such as N₂) to prepare pure metal compounds, and there is no report on solid-source plasma for synthesis of carbon@metal nitrides and their application in electrocatalytic field is still awaiting to be studied.

In this work, we report a new room-temperature solid-source urea plasma method, which is a powerful and burgeoning tool for fabrication of N-doped carbon@metal nitride arrays. In our case, the preformed metal oxides can be rapidly converted into corresponding nitrides with a thin N-doped carbon coating by one-step plasma process. Our method can accomplish two tasks with only one effort in just a few minutes at room temperature and the morphologies of preformed metal oxides precursors can be well preserved. Representative examples including N—C@Fe_xN, N—C@CoN and N—C@Ni₃N are prepared, demonstrating its generality and universality, and also offering the possibility for fast and efficient synthesis of metal nitrides with high stability and good electrochemical performance. Taking the N—C@CoN arrays for example, it is verified with greatly enhanced OER and UOR performance. It shows a low overpotential of 264 mV at 10 mA/cm² for OER in 1 mol/L KOH. Notably, the N—C@CoN can be stably cycled for 50 h at 20 mA/cm² with only 8% degradation, much better than that of uncoated cobalt nitride prepared via NH₃ annealed (14% degradation for 30 h). Moreover, the N—C@CoN also shows excellent UOR catalytic performance. A current density of 100 mA/cm² can be achieved at only 1.39 V and maintain over 100 h. The enhanced electrocatalytic performance is due to activated sites by plasma and favorable electronic structure of cobalt nitride as well as the protective effect of N—C layer. Theoretical calculations indicate that the CoN and N—C coupling effect can significantly benefit the charge-transfer process. The d-band center of Co atoms in the N—C@CoN system shifts to a higher energy compared to the bare CoN system, indicating that the N—C@CoN and adsorbed intermediates occupy less space, resulting in the optimization of their binding strength and catalytic activity. Moreover, N—C@CoN exhibits the lowest energy barrier for the rate-determining step of OER and has a high adsorption capacity for both H₂O and urea molecules. This characteristic feature promotes the succeeding oxidation reactions of H₂O and urea. Our work opens up a novel room-temperature urea plasma method for high-efficiency construction of stable metal nitrides with high activity and long cycling life.

As shown in Scheme S1 (Supporting information), N-doped carbon@metal nitride (N—C@TMN) arrays are prepared by urea plasma technology at room temperature, using a plasma system (Hangzhou Zhehe Co., Ltd.) (Fig. S1 in Supporting information). In our case, transition metal oxide (TMO) arrays prepared by hydrothermal methods are chosen as the preformed precursors. Then, urea vapor is utilized as the plasma source to realize the conversion from TMO to N—C@TMN arrays. When exposed in the urea plasma, TMOs (e.g., Co₃O₄, NiO, and Fe₂O₃) can be converted to corresponding TMNs with a thin layer of N-doped carbon layer as a protective shell (e.g., N—C@CoN, N—C@Ni₃N, and N—C@Fe_xN), which endows the obtained TMNs a highly chemical stability under harsh conditions. In particular, it should be noted that our urea plasma method is very efficient and the whole reaction can be finished in several minutes at room temperature. Compared to traditional nitridization methods, our method is much greener without tedious processes and NH₃ gas. Furthermore, the array morphology of N—C@TMN can be well preserved after nitridization and N—C coating. To illustrate the formation mechanism and enhanced performance more clearly, N—C@CoN nanowire arrays are selected as the representative case to further demonstrate the corresponding formation mechanism and study their electrochemical performance as the OER and UOR catalysts.

The phases of samples before and after urea plasma reaction were characterized by X-ray diffraction (XRD). As shown in Fig. 1A, the characteristic diffraction peaks corresponding to the preformed Co₃O₄ (JCPDS No. 73–1701) vanish and new peaks indexed to CoN (JCPDS No. 83–0831) are detected, verifying the successful conversion from Co₃O₄ to CoN after urea plasma treatment in 3 min. It is noteworthy that the Co₃O₄ nanowires treated under urea plasma at room temperature for different time (1, 3, 5 and 7 min) are denoted as urea-1, urea-3, urea-5 and urea-7, respectively. The phase and composition of these samples were studied by XRD (Fig. S2 in Supporting information). For the urea-1, the peaks for both Co₃O₄ and CoN coexist. For the urea-3, only peaks indexed to CoN remain (red line). Beyond that, there is no difference among urea-3, urea-5 and urea-7, implying that pure CoN nanowire arrays are formed after only 3 min via urea plasma treatment. In the following discussion, all CoN samples are obtained via urea plasma with 3 min. For comparison, we also prepared CoN phase via NH₃ annealing treatment for 2 h at 500 ℃ (Fig. S3 in Supporting information).

Furthermore, the surface chemical compositions were investigated via X-ray photoelectron spectroscopy (XPS). After urea plasma treatment, the XPS survey spectra (Fig. S4 in Supporting information) shows that the peak of N element appears and the peak intensity of C 1s becomes stronger while that of O 1s becomes weaker. The high-resolution N 1s spectrum of N—C@CoN in Fig. 1B reveals the existence of Co-N (396.7 eV), pyridinic N (398.2 eV), and pyrrolic N (399.6 eV), reconfirming the successful fabrication of CoN and introduction of N-doped carbon [25]. Furthermore, the quantity of graphitic nitrogen relates to the temperature when N-doped carbon forms. Therefore, the amount of graphitic nitrogen significantly decreases when synthesized at lower temperature [26]. Urea plasma treatment is carried out at room temperature, which results in a minimum content of graphitic nitrogen at 401 eV, hence not identified in this result. On contrary, no C—N peaks (pyridinic N and pyrrolic N) are detected in the sample of CoN—NH₃ annealing and no any peaks are detected in the sample of Co₃O₄ in this rang. Fig. 1C presents the high-resolution spectra of Co 2p for Co₃O₄, CoN and N—C@CoN, respectively. For Co₃O₄, the binding energies of 781.2 and 783.6 eV correspond to Co(Ⅲ) 2p_3/2 and Co(Ⅱ) 2p_3/2, respectively. And the peak at 785.6 eV is attributed to the satellite peaks. For CoN and N—C@CoN, the peak at 778.8 eV corresponds to Co⁰, fitting nicely with the metallic Co⁰ in CoN [27]. The peak at 781.0 eV is attributed to Co(III)-O bonds, which are formed by the unavoidable surface oxidation when contacted with air [28]. In the high-resolution spectra of C 1s (Fig. S5A in Supporting information), the peaks of C—C, C—N, C—O and C=O bonds appear at the binding energies at 284.8, 285.5, 286.7 and 289.0 eV, respectively [14]. The C—N bond can derive from the N doping of carbon. The peaks of Co-O, H—O and adsorbed oxygen bond appear at 529.6, 531.2 and 533.0 eV in the high-resolution spectra of O 1s (Fig. S5B in Supporting information), respectively. In contrast, the peak at 529.6 eV, derived from Co-O resulting from inevitable surface oxidation, decreases significantly for CoN and N—C@CoN after nitrogenization [11]. Furthermore, the research examined the N-carbon and CoN layer utilizing Raman spectra, illustrated in Fig. 1D. The CoN and N—C@CoN samples manifested typical Raman scattering peak stretching vibrations (Co−N), specifically the peaks at 475, 515 and 678 cm⁻¹ [29]. Similarly, the ~1350 cm⁻¹ peak, “D band”, is linked to vibrations at defects, and the 1580 cm⁻¹ peak, "G band," indicates in-plane lattice sheets of graphitic carbon. The I_D/I_G value estimated the carbon's crystallinity and is commonly used as a parameter. The ratio value of urea-derived carbon is 2.2, illustrating a low graphitization where there are lots of defects (like edges, vacancies and heteroatoms) in carbon sheets, which in general is beneficial to promote the catalytic process [30].

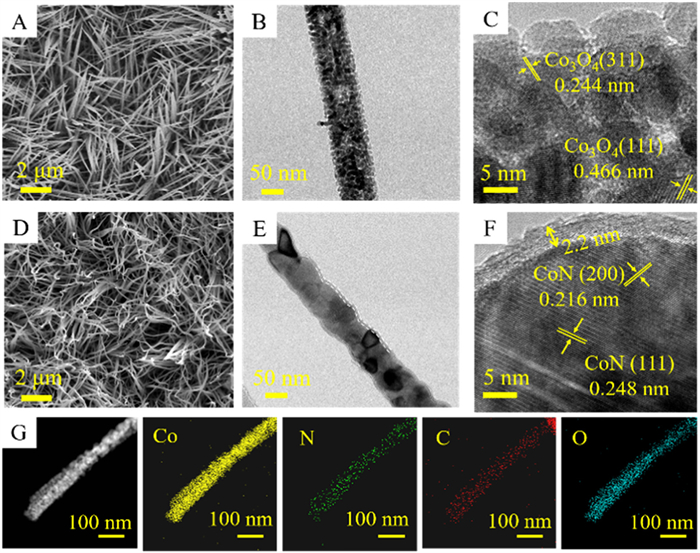

The morphologies of the pristine Co₃O₄ and N—C@CoN were examined using scanning electron microscopy (SEM) and transmission electron microscopy (TEM). As the images shown in Fig. 2A, the pristine Co₃O₄ nanowires have a diameter of 50–100 nm with an acicular morphology. After urea plasma treatment, the nanowires of N—C@CoN become curvature and entanglement (Fig. 2D). The room-temperature urea plasma process effectively preserves the morphology of the nanowire array, resulting in a relatively independent open space for the catalyst. This configuration is advantageous because it not only increases the utilization rate of the active material, but also ensures that the material is fully engaged in the reaction. From the TEM, it can be found that the Co₃O₄ nanowires are further composed of numbers of nanoparticles (Fig. 2B) and after urea plasma treatment, a thin carbon layer is coated on the surface of the nanowire (Fig. 2E). In high-resolution TEM image (HRTEM) (Fig. 2F), the thickness of carbon layer is around 2.2 nm and the inside lattice fringes measured to be 0.216 and 0.248 nm can be well indexed to (200) and (111) crystal planes of CoN, which is different from that of Co₃O₄ in Fig. 2C. And the energy-dispersive X-ray spectroscopy (EDS) elemental mapping analysis shows the Co, N, C and O elements are homogeneously distributed throughout the whole N—C@CoN nanowire (Fig. 2G). As the HRTEM images show in Fig. S6 (Supporting information), the thickness of the coated carbon layer increases with the treatment duration and the treatment N—C@CoN was successfully obtained over 3 min. Therefore, precise control of the carbon layer thickness can be achieved by adjusting the treatment time of the urea plasma. For comparison, SEM images show that the morphologies CoN nanowires via the NH₃ annealing treatment become excess curvature and entanglement (Fig. S7A in Supporting information). In the HRTEM image, the inside lattice fringes measured to be 0.248 nm can also be well indexed to (111) crystal planes of CoN. But the CoN nanowires via the NH₃ annealing does not have the carbon layer on the surface (Figs. S7B and C in Supporting information).

In addition, we also successfully converted the NiO nanosheets and Fe₂O₃ into N—C@Ni₃N and N—C@Fe_xN via urea plasma. As shown in Fig. S8 (Supporting information), those characteristic diffraction peaks corresponding to the NiO (JCPDS No. 44–1159) and Fe₂O₃ (JCPDS No. 89–0599) were vanished, and these peaks indexed to Ni₃N (JCPDS No. 83–0831) and Fe_xN (JCPDS Nos. 76–0091, 72–2126 and 77–2006) were emerged verifying the successful and complete conversion of NiO and Fe₂O₃ to Ni₃N and Fe_xN after urea plasma treatment. Then, XPS spectra (Fig. S9 in Supporting information) shows that metallic M⁰ (Ni⁰ and Fe⁰) valence peaks in the nitrides (Ni₃N and Fe_xN), as well as the corresponding C—N (pyridinic N and pyrrolic N) and M-N (Ni-N and Fe-N) bonds. Thus, XPS spectra also demonstrates the successful synthesis of N—C@Ni₃N and N—C@Fe_xN. In addition, SEM images show that N—C@Ni₃N nanosheets are sparser and more porous than NiO nanosheets, as well as N—C@Fe_xN nanowires are rougher than Fe₂O₃ nanowires (Fig. S10 in Supporting information). HRTEM image of N—C@Ni₃N shows the clear lattice fringes with an interplanar distance of 0.203 nm corresponding to (111) planes of Ni₃N and the thickness of carbon layer is about 2.1 nm (Figs. S11A and B in Supporting information). The representative EDS elemental mapping analysis also shows the Co, N, C and O elements are evenly dispersed throughout the whole N—C@Ni₃N nanowire (Fig. S11C in Supporting information). Therefore, based on the SEM and TEM images, we confirm the Ni₃N with a N-doped carbon layer, further illustrating the feasibility of urea plasma method to fabricate N-doped carbon@metal nitride. Table S1 (Supporting information) displays the estimated content of every element in the three N—C@ metal nitride samples.

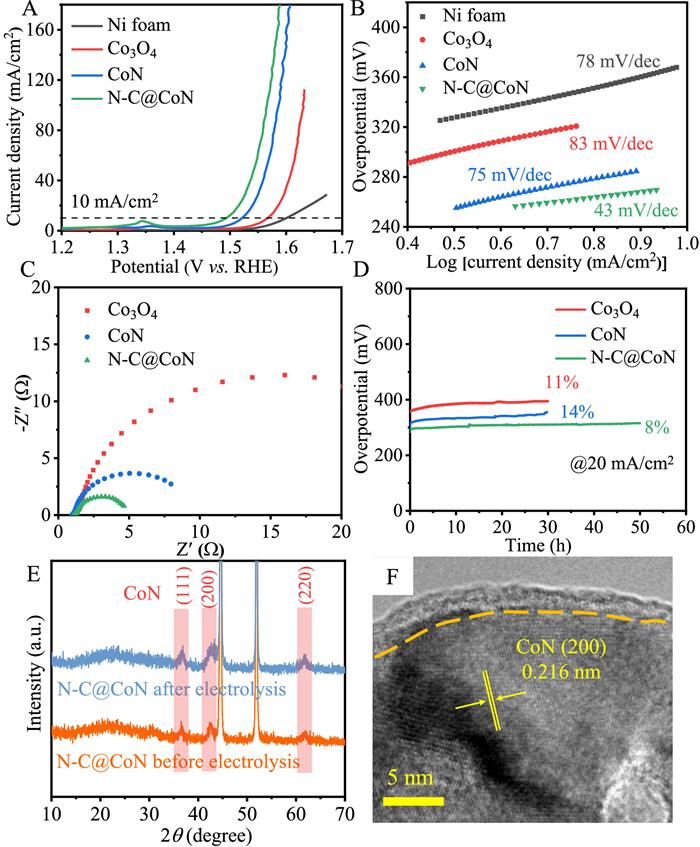

The catalytic activities of all synthesized samples for OER were evaluated in 1 mol/L KOH using a standard three-electrode system (Fig. 3). All potentials are referred to the reversible hydrogen electrode (RHE) without specification. Fig. 3A illustrates the linear sweep voltammogram (LSV) collected at 1 mV/s for all electrodes after iR correction. It can be observed that the N—C@CoN sample shows the highest catalytic activity (highest current density) throughout the potential window. The N—C@CoN sample requires an overpotential of only 264 mV to reach a current density of 10 mA/cm² (η₁₀), which is lower than that of Co₃O₄ (338 mV) and CoN (293 mV). Compared to the CoN, the enhanced activity of N—C@CoN is mainly attributed to the N-doped carbon, which can highly promote the charge transfer. Nickel foam was also measured for comparison. The effect of nickel foam on the catalytic activity is almost negligible. In addition, as mentioned above, we prepared N—C@CoN with different treatment durations, and the urea-3 sample shows the best electrochemical performance (Fig. S12 in Supporting information). Note that the sample with urea plasma treatment of less time period (1 min) and more time period (5 min and 7 min) display inferior OER performance to the urea-3 sample, on account of the inadequate nitridation and excessively thick carbon layer hindering electron penetration, respectively. The Tafel slope was used to investigate the reaction kinetics of electrodes. Compared with Ni, Co₃O₄ and CoN, N—C@CoN performs the lowest Tafel slope of 43 mV/dec, indicating the fastest OER reaction kinetic of N—C@CoN (Fig. 3B). This shows clearly that the N—C@CoN sample can markedly improve the catalytic activity (larger current density and faster reaction kinetics). Compared with previous literatures, N—C@CoN obtained by urea plasma surpass most of the samples in terms of OER catalysis (Table S2 in Supporting information).

The electrode kinetics was evaluated by electrochemical impedance spectroscopy (EIS). It is found that the N—C@CoN shows the smallest charge transfer resistance (R_ct) in Fig. 3C. Electrochemically active surface areas (EASAs) were evaluated by applying electrochemical double layer capacitance (C_dl; Figs. S13 and S14 in Supporting information). The EASAs of each sample were in a rank of N—C@CoN (121.8 mF/cm²) > CoN (106 mF/cm²) > Co₃O₄ (84 mF/cm²), illustrating that there are more active sites after urea plasma treatment. The LSV curves were normalized by ECSAs to compare their intrinsic activity. It can be seen that the catalytic activity of N—C@CoN is much improved (Fig. S14D). This result directly supports that urea plasma is an effective method to design efficient OER catalysts.

Cycling stability is another essential factor in the assessment of an electrocatalyst. The stability of the Co₃O₄, CoN and N—C@CoN catalysts were evaluated at 20 mA/cm² (Fig. 3D). The N—C@CoN can stably run about 50 h with just 8% increase of the overpotential. For Co₃O₄ and CoN catalysts, after 30 h test, their overpotential increased by 11% and 14%, respectively. In the polarization curves of Co₃O₄, CoN and N—C@CoN catalysts before and after OER, especially the curves of N—C@CoN nearly overlap with each other (Fig. S15 in Supporting information). Thus, N—C@CoN catalyst has more excellent stability, primarily because of its protective thin N—C layer to protect N—C@CoN from structure collapse and phase transformation.

To probe the origin of good stability, the phase and morphology stability of catalysts can also be confirmed by the XRD, HRTEM and XPS of the cycled N—C@CoN electrode. After cycling at 20 mA/cm² for 50 h, the XRD of N—C@CoN electrode shows no significant changes (Fig. 3E). The carbon layer and the cobalt nitride are well preserved (Fig. 3F), demonstrating that N—C@CoN has a more stable crystal structure during electrolysis. The surface chemical state in CoN (NH₃ annealing) and N—C@CoN before and after OER at 20 mA/cm² were investigated via XPS (Fig. S16 in Supporting information). The signal of the metallic Co⁰ valence peak (778.8 eV) dramatically decreased after the OER, indicating that CoN is unstable under harsh operation conditions. On contrary, for N—C@CoN, the signal of the metallic Co⁰ valence peak (778.8 eV) only slightly weaker after the OER, suggesting that N—C@CoN is more tolerant to the oxidation of the OER due to the protective effect of N—C layer.

Furthermore, we have also demonstrated the OER performance of N—C@Ni₃N, which outperforms the NiO (Figs. S17 and S18 in Supporting information). Therefore, higher catalytic activity of metal nitrides can be obtained after urea plasma treatment. In addition, N—C@Ni₃N also shows better cycling stability than pristine Ni₃N (NH₃ annealing) (Figs. S19 and S20 in Supporting information). The conversion of NiO via urea plasma not only improve the OER catalytic activity but also the longtime stability.

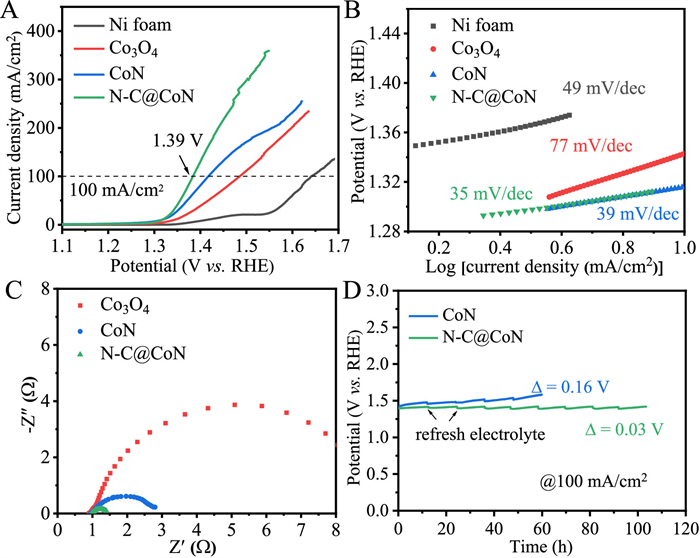

Despite the N—C@CoN showing the well performance in the area of OER, there is still space for improvement in the production of hydrogen due to high OER overpotential [31]. Anodic UOR is a simple method for lowering the energy required for hydrogen production. UOR has been considered to be a favourable prospect of energy-related applications thanks to its advantages of low-cost and relatively low thermodynamic potential (0.37 V). Moreover, urea-enriched wastewater from industrial and agriculture can be degraded simultaneously through UOR. In 1.0 mol/L KOH with 0.33 mol/L urea, the UOR performance of the samples was evaluated using the same setup of OER (Fig. 4). For comparison, the UOR performance of Ni, Co₃O₄, CoN and N—C@CoN also examined in Fig. 4A. In particular, among these electrodes, the N—C@CoN exhibits the lowest potentials of 1.39 V to reach 100 mA/cm², which outperforms Ni (1.64 V), Co₃O₄ (1.49 V) and CoN (1.42 V) catalysts. Furthermore, the Tafel slope was utilized to study the reaction kinetics of electrodes. N—C@CoN possesses the smallest Tafel slope of 35 mV/dec, much smaller than those of Ni (49 mV/dec), Co₃O₄ (77 mV/dec) and CoN (39 mV/dec) (Fig. 4B), indicating a faster UOR reaction kinetics of N—C@CoN. This shows clearly that the N—C@CoN sample can significantly improve the UOR activity (larger current density and faster reaction kinetics). Our N—C@CoN nanowire arrays obtained by urea plasma treatment is superior to most of those reported samples in terms of UOR catalysis (Table S3 in Supporting information). The R_ct between electrolyte and electrode was estimated by EIS to further investigate the charge transfer kinetics (Fig. 4C). As expected, the N—C@CoN because of the metallic CoN and N-doped carbon exhibits a smaller charge-transfer kinetics than those of Ni, Co₃O₄ and CoN, which is in accordance with the lowest Tafel slope.

Additionally, the ECSA of the electrocatalyst can be evaluated by the C_dl to reveal the number of active sites. (Figs. S21 and S22 in Supporting information). In comparison to the initial Co₃O₄ (153 mF/cm²) and CoN (165 mF/cm²), the EASA of N—C@CoN (206 mF/cm²) rises noticeably after the urea plasma treatment, as a result of the rougher surface that was attained during the urea plasma treatment. The LSV curves were normalized by ECSAs to compare the intrinsic UOR activity. It can be seen that the UOR activity of N—C@CoN is much improved by urea plasma (Fig. S22D). This reveals that urea plasma treatment improves its catalytic activity for UOR, providing a new option for designing efficient UOR catalysts. Meanwhile, we compared the UOR longtime stability of CoN and N—C@CoN at 100 mA/cm² (Fig. 4D). The N—C@CoN runs at 100 mA/cm² for 100 h with a potential slightly increase of only 0.03 V, however, the CoN runs for 60 h with a voltage increase of 0.16 V. Furthermore, the LSV curve responses the well-maintained activity after longtime stability test at 100 mA/cm² (Fig. S23 in Supporting information). This reveals the well longtime stability. The good UOR performance of N—C@CoN can be ascribed to the metallic CoN species and a thin layer of N-doped carbon on its surface to protect internal CoN from corrosion.

To elucidate the universality of the urea plasma strategy for the preparation of highly active and stable catalysts, the UOR electrochemical properties of N—C@Ni₃N have also been examined. In UOR, Ni₃N@N—C obtained after urea plasma treatment has a better UOR activity (Figs. S24 and S25 in Supporting information). Also, Ni₃N@N—C possesses superior longtime stability attributed to the protective effect of the N-doped carbon layer (Figs. S26 and S27 in Supporting information). The above proves that this work provides a facile and universal strategy for the preparation of efficient and stable transition metal nitride -based electrocatalysts.

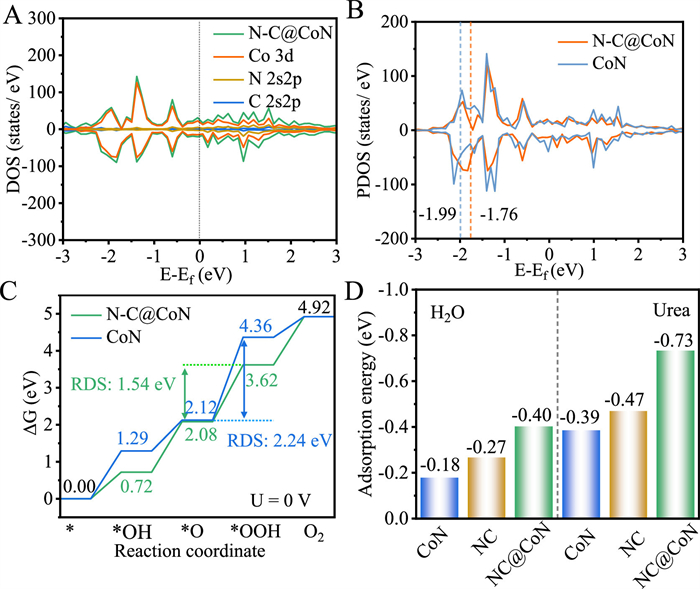

The atomistic interaction of CoN and N—C was further investigated by density functional theory (DFT) calculations based on spin polarized first principles. Based on the previous theoretical research and experimental results, the (111) specific plane was chosen as the representative surface for modelling the CoN interfacial model, and single layer N-doped graphite was used to construct the N—C@CoN interfacial heterojunction model [29]. The model structures of N—C@CoN, CoN and N—C are shown in Figs. S28 and S29 (Supporting information). Due to the effects of N—C, the Co atoms of N—C@CoN are more positively charged than bare CoN, resulting in a built-in electric field, and thus the charges can be rapidly transferred between CoN and N—C. The synergistic effects of CoN and N—C lead to an increase in electron mobility, which improves the calculation of the total density of states (DOS) (Fig. 5A). The continuous distribution of the DOS and a substantial amount of electronic states near the Fermi level indicate that N—C@CoN is in the metallic state with strong electrical conductivity indicating that N—C@CoN promotes fast electron transfer during the electrocatalytic process. Furthermore, since the OER kinetics is related to the d-orbital of transition metal active centres, the projected density of states (PDOS) of Co 3d orbitals is used to gain deeper insights into the electronic structure regulation (Fig. 5B). The d-band centre of the Co atoms in the N—C@CoN system is shifted to a higher energy of −1.76 eV compared to that in the bare CoN system (−1.99 eV) (the dotted lines indicate the d-band centre for each system). The antibonding states between the N—C@CoN and the adsorbed intermediates would be less occupied as a result of the d-band centre shift, thus optimizing their binding strength and enhancing the catalytic activity [32]. The DOS and PDOS results demonstrate the favourable role of the synergistic coupling effects of CoN and NC. Then, the N—C@CoN with facilitated charge transfer and enhanced binding strength with intermediates can significantly enhance the OER and UOR activity.

The DFT calculation was also conducted to simulate the Gibbs free energy of various OER intermediates for N—C@CoN, CoN and N—C (Fig. 5C, and Fig. S30 in Supporting information). The optimized structures of the intermediates in the Gibbs free energy profiles for N—C@CoN, CoN and N—C, which base on the 4e⁻ adsorbate evolution mechanism (*, *OH, *O and *OOH, * denotes the active sites). We noticed that N—C@CoN exhibited lower free energy for the generation of *OH, *O, and *OOH immediate than bare CoN and N—C, revealing a more favourable OER kinetics in N—C@CoN structures. For both N—C@CoN, CoN and N—C, the formation of *OOH group from *O group (step *OOH→*O) was found to be the rate-determining step (RDS) in OER. The energy barrier of RDS is calculated to be 1.54, 2.24 and 1.91 eV for N—C@CoN, CoN and N—C, respectively. The low energy barrier of RDS for N—C@CoN is favourable for optimizing the intermediate adsorption, and thus, boosting the OER catalytic activity. In Fig. 5D, the adsorption energy of H₂O on N—C@CoN (−0.40 eV) surface is larger than that of CoN (−0.18 eV) surface and N—C (−0.27 eV) surface. Besides, the adsorption energy of Urea on N—C@CoN (−0.73 eV) surface is also larger than that of CoN (−0.39 eV) surface and N—C (−0.47 eV) surface. This imply that N—C@CoN can improve the adsorption capacity of H₂O and urea molecules, which is conducive to the subsequent H₂O and urea oxidation reaction.

In summary, we have demonstrated a powerful room-temperature solid-source urea plasma method to realize the rapid conversion of transition metal oxide precursors to N—C coated metal nitrides. Our proposed plasma method is highly efficient, safe and green, and can be used to construct stable transition metal nitride based electrocatalysts. Different metal nitrides (such as N—C@Fe_xN, N—C@CoN and N—C@Ni₃N) have been prepared via urea plasma with N and C radicals. Thin N—C shell can be simultaneously formed on metal nitride core in one-step plasma process. Owing to good electrical conductivity and protection of N—C layer, the designed N—C@CoN exhibits good OER and UOR properties with lower overpotential and better long-term life, superior to the performance in the literature and other metal nitride counterparts prepared by NH₃ annealing, due to boosted electrocatalytic activity and reinforced stability. Theoretical calculations demonstrate that the CoN and N—C synergetic coupling effect greatly enhances the charge-transfer process. The d-band centre of Co atoms in the N—C@CoN system is shifted to a higher energy, optimizing their binding strength between N—C@CoN and intermediates. Moreover, N—C@CoN exhibits the lowest energy barrier for the rate-determining step in OER, and has high adsorption capacity for both H₂O and urea molecules, making it favorable for H₂O and urea oxidation reactions. Our work provides a novel plasma method for fabrication of carbon/metal compound composites for applications in energy conversion.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work is supported by National Natural Science Foundation of China (No. 52073252), Science and Technology Department of Zhejiang Province (No. 2023C01231), Key Research and Development Project of Science and Technology Department of Sichuan Province (No. 2022YFSY0004), Key Laboratory of Engineering Dielectrics and Its Application (Harbin University of Science and Technology), Ministry of Education (No. KFM 202202), and the Open Project Program of the State Key Laboratory of New textile Materials and Advanced Processing Technologies (No. FZ2021009).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2024.109887.

References

Less

[1]

Z. Wang, C. Zhu, H. Tan, et al., Adv. Funct. Mater. 31 (2021) 2104735.

[2]

C. Li, H. Wang, S. Yang, et al., Chin. Sci. Bull. 67 (2022) 2950–2957.

[3]

R. Zhang, L. Pan, B. Guo, et al., J. Am. Chem. Soc. 145 (2023) 2271–2281.

[4]

Y. Zhang, C. Wang, Chin. Chem. Lett. 32 (2021) 2222–2228.

[5]

Q. Xu, S. Wang, C. Xu, et al., Chin. Chem. Lett. 34 (2023) 108188.

[6]

C. Liang, P. Zou, A. Nairan, et al., Energy Environ. Sci. 13 (2020) 86–95.

[7]

F. Chang, P. Su, U. Guharoy, et al., Chin. Chem. Lett. 34 (2023) 107462.

[8]

J. Luo, Q. Qing, L. Huang, et al., Chin. Chem. Lett. 35 (2024) 108483.

[9]

Y. Zhang, B. Ouyang, G. Long, et al., Sci. China Chem. 63 (2020) 890–896.

[10]

B. Ouyang, Y. Zhang, X. Wang, et al., Small 18 (2022) 2204634.

[11]

Y. Zhang, B. Ouyang, J. Xu, et al., Angew. Chem. Int. Ed. 55 (2016) 8670–8674.

[12]

Y. Ma, Y. An, Z. Xu, L. Cheng, W. Yuan, Sci. China Mater. 65 (2022) 3053–3061.

[13]

Y. Yang, R. Zeng, Y. Xiong, F.J. DiSalvo, H.D. Abruna, J. Am. Chem. Soc. 141 (2019) 19241–19245.

[14]

K. Li, B. Zhao, H. Zhang, et al., Adv. Funct. Mater. 31 (2021) 2103073.

[15]

H. Wang, J. Li, K. Li, et al., Chem. Soc. Rev. 50 (2021) 1354–1390.

[16]

W. Yuan, L. Cheng, H. Wu, et al., Chem. Commun. 54 (2018) 2755–2758.

[17]

J.M. Yoo, H. Shin, D.Y. Chung, Y.E. Sung, Acc. Chem. Res. 55 (2022) 1278–1289.

[18]

H. Zhang, F. Wan, X. Li, et al., Adv. Funct. Mater. 33 (2023) 2306340.

[19]

J. Deng, D. Deng, X. Bao, Adv. Mater. 29 (2017) 1606967.

[20]

Y. Zang, T. Liu, P. Wei, et al., Angew. Chem. Int. Ed. 61 (2022) e202209629.

[21]

L. Yu, D. Deng, X. Bao, Angew. Chem. Int. Ed. 59 (2020) 15294–15297.

[22]

Y. Tu, P. Ren, D. Deng, X. Bao, Nano Energy 52 (2018) 494–500.

[23]

W. Yuan, S. Wang, Y. Ma, et al., ACS Energy Lett. 5 (2020) 692–700.

[24]

Z. Qiu, S. Shen, P. Liu, et al., Adv. Funct. Mater. 33 (2023) 2214987.

[25]

M. Wu, G. Zhang, Y. Hu, et al., Carbon Energy 3 (2020) 176–187.

[26]

J. Ma, J. Yu, G. Chen, et al., Adv. Mater. 35 (2023) 2302537.

[27]

Y. Lu, Z. Li, Y. Xu, et al., Chem. Eng. J. 411 (2021) 128433.

[28]

M. Luo, Y. Bai, R. Sun, et al., J. Energy Chem. 73 (2022) 407–415.

[29]

D. Guo, Z. Zeng, Z. Wan, et al., Adv. Funct. Mater. 31 (2021) 2101324.

[30]

P. Li, H. Wang, X. Tan, et al., Appl. Catal. B: Environ. 316 (2022) 121674.

[31]

M. Cai, Q. Zhu, X. Wang, Z. Shao, et al., Adv. Mater. 35 (2022) 2209338.

[32]

J.K. Nørskov, J. Rossmeisl, A. Logadottir, et al., J. Phys. Chem. B 108 (2004) 17886–17892.
