White light generation by regulating hydrogen bond-sensitive ESPT of naphthalimide dyes
Full
Jin Lia, b, c, Qinglong Qiaob, Ning Xub, Wei Zhoub, Jingli Yuana, Zhaochao Xub, c, *
Affiliations
  • a State Key Laboratory of Fine Chemicals, School of Chemistry, Dalian University of Technology, Dalian 116024, China
  • b CAS Key Laboratory of Separation Science for Analytical Chemistry, Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian 116023, China
  • c University of Chinese Academy of Sciences, Beijing 100049, China
Published: 2024-01-15 doi: 10.1016/j.cclet.2023.108348
Outline
收藏切换

White light emitting systems of pure organic materials have attracted extensive research interest due to their better compatibility and functional scalability. The reported organic white light materials are mainly based on the multi-channel emission regulation of the compound itself or the mixing of multicolor luminescence materials, but studies on the dependence between multicolor luminescence and the external environment are lacking, which limits the application of these materials in areas such as identification and sensing. This paper reports that the 4- or 3‑hydroxyl-substituted naphthalimides NapH1 and NapH2 form intermolecular hydrogen bonds with adjacent molecules in the environment, and undergo excited-state intermolecular proton transfer under irradiation, resulting in blue-yellow or blue-red dual fluorescence emission, respectively. Since the two compounds have different two-color luminescence channels and the two-color intensity ratio is affected by the environment, and the intermolecular hydrogen bond is determined by the hydrogen bond receptor, polarity, and temperature in the environment, the full spectrum from blue to red light and white light emission can be obtained by adjusting the mixing ratio of the two dyes and the solvent polarity and the ambient temperature. This environmentally sensitive white emission is used to detect the alkalinity of different papers, and the dyed paper can be used as a test strip for acid-base vapor detection.

White light  /  ESPT  /  Hydrogen bond  /  Naphthalimide  /  Double emission
Jin Li, Qinglong Qiao, Ning Xu, Wei Zhou, Jingli Yuan, Zhaochao Xu. White light generation by regulating hydrogen bond-sensitive ESPT of naphthalimide dyes[J]. Chinese Chemical Letters, 2024 , 35 (1) : 108348 - . DOI: 10.1016/j.cclet.2023.108348
Full Text
Less
White light-emitting materials have attracted extensive attention due to their potential applications in optoelectronic devices, digital displays, lighting, and data encryption [1,2]. Compared with inorganic materials, pure organic white light-emitting materials have many advantages, such as better compatibility, adjustability, functional extensibility, diversified molecular design, lower cost, toxicity, etc. [3]. The preparation of organic white light-emitting materials usually adopts dye-crosslinked polymer materials [4], supramolecular assembly [5], and the formation of aggregates or deposition on the carriers [6]. And the focus of the field research is mainly on the composition of illuminants, that is, the source of white light. Since the wavelength range of the white light spectrum is 400–700 nm, the most commonly used method to generate white light is to mix a variety of illuminants of different colors, among which the most representative is to mix red, green, and blue primary colors. Due to the obvious differences in emission brightness and stability of different color illuminants, the white light produced by mixing different types of dyes has poor stability in terms of light stability and material preparation repeatability. The white light emission of a single molecule has obvious advantages in material preparation, so it has become one of the goals pursued in the current research of organic white light materials [7]. For a single molecule to emit white light, it needs to have multiple emission channels, the most common of which are blue and yellow dual fluorescence channels. However, there is still a large gap between the composite light emitted by the two channels and the white light with the chromaticity coordinate {CIE (0.33, 0.33)}. Therefore, how to make a single molecule have three or more fluorescence emission wavelengths has become a strategy to obtain purer white light. However, dyes with blue, green, and red emissions have rarely been reported so far [8].
The reported organic white light materials are mainly based on the multi-channel emission regulation of the compound itself or the combination of multi-color materials, which are mostly used for display, and lack of studies on the dependence between multicolor luminescence and external environment, which limits the application expansion of these materials in fields such as recognition sense [9–11].

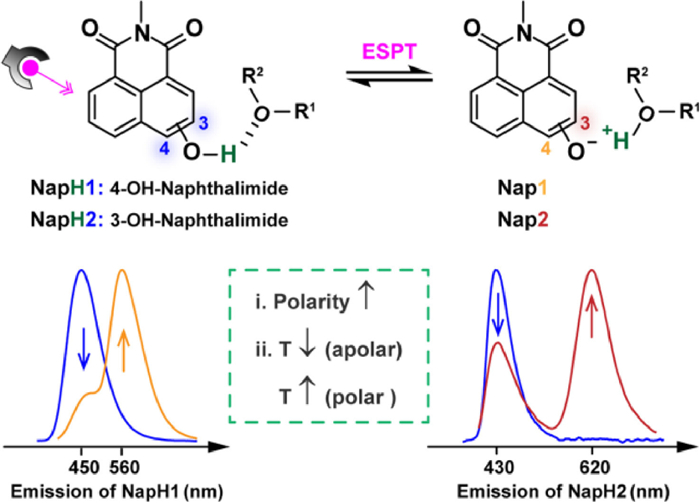

In this paper, we develop environmentally sensitive organic white light materials based on the isomers of hydroxy–naphthalimide, which are 4-substituted compound NapH1 and 3-substituted compound NapH2, respectively (Scheme 1). Excited state proton transfer (ESPT) occurs in NapH1 and NapH2, resulting in blue and yellow two-channel emission and blue and red two-channel emission, respectively. The change of polarity or temperature modulates the hydrogen bond between the hydroxyl group and the external environment, thereby changing the intensity ratio of the dual emission wavelengths of NapH1 and NapH2, in which NapH1 generates a luminescence close to white light. Since they are the same dye matrix and have similar chemical properties, the two dyes are mixed in a certain ratio to obtain white light with the CIE (0.30, 0.33). This environmentally sensitive white emission can recognize the polarity, temperature, and surface alkalinity of different types of paper. A test strip capable of visually detecting acid-base vapors was prepared by spraying dyes onto paper.

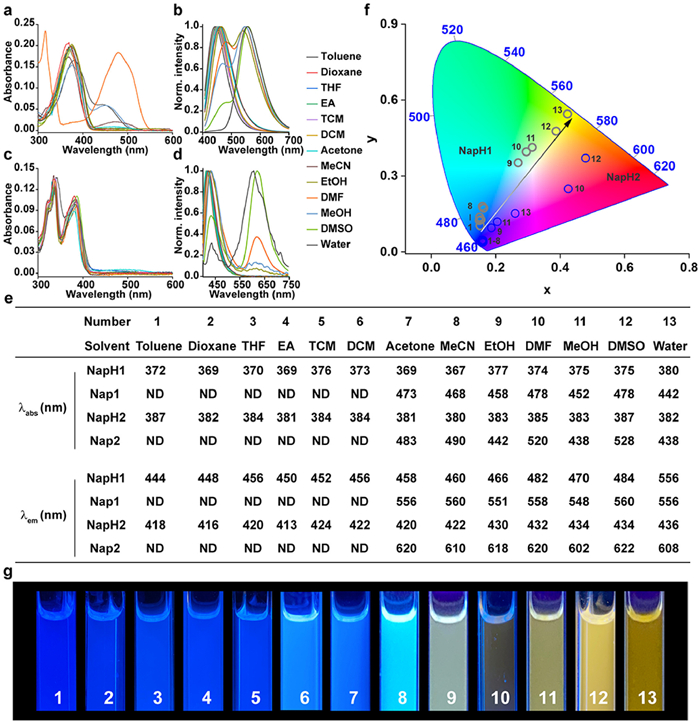

Firstly, the absorption and fluorescence emission spectra of NapH1 and NapH2 in different solvents were detected (Fig. 1). The maximum absorption of the two in different solvents is around 370 nm and 380 nm, respectively (Figs. 1a,c, and e). This wavelength is suitable for spraying portable displays or detection materials or instruments that use 365 nm as excitation light. In low-polarity solvents, the emission wavelengths of the two are around 450 nm and 430 nm, respectively. Both two exhibited dual fluorescence emission with increasing polarity, with secondary fluorescence wavelengths around 560 nm and 620 nm, respectively (Figs. 1b,d, and e). The absorption and fluorescence emission spectra of NapH1 and NapH2 under alkaline conditions in different solvents indicate that the long wavelength emission peaks are from dehydrogenated products Nap1 and Nap2 (Scheme 1, Fig. S1 in Supporting information). Compared with NapH1 and NapH2, the absorption wavelength of Nap1 and Nap2 in different polar solvents showed a large redshift and returned after adding acid to the solution. Under acidic conditions, NapH1 and NapH2 still produce long-wavelength fluorescence in strong polar solutions, which shows that NapH1 and NapH2 form intermolecular hydrogen bonds with solvent molecules, and after being excited by light, ESPT occurs, and Nap1 and Nap2 are generated in the excited state thereby emitting long-wavelength fluorescence. The superposition of the two emission wavelengths makes NapH1 and NapH2 produce different colors in different solvents (Figs. 1f and g). It can be seen that the emission of NapH1 in different solvents is closest to white light, and the CIE in ethanol is (0.27, 0.35). No matter what kind of solvent NapH2 is in, there is no way to produce white light. As can be seen from Fig. 1f, the CIE of NapH1 and NapH2 are located on both sides of white. Therefore, we guessed that the mixture of NapH1 and NapH2 would obtain ideal white light. It should also be pointed out that most NapH1 molecules deprotonate to Nap1 in the ground state in strongly alkaline solution DMF, and only a partial proportion of deprotonation occurs in acetonitrile, methanol, and water (Fig. 1a). However, NapH2 in the ground state hardly undergoes deprotonation reactions in different solvents (Fig. 1c).

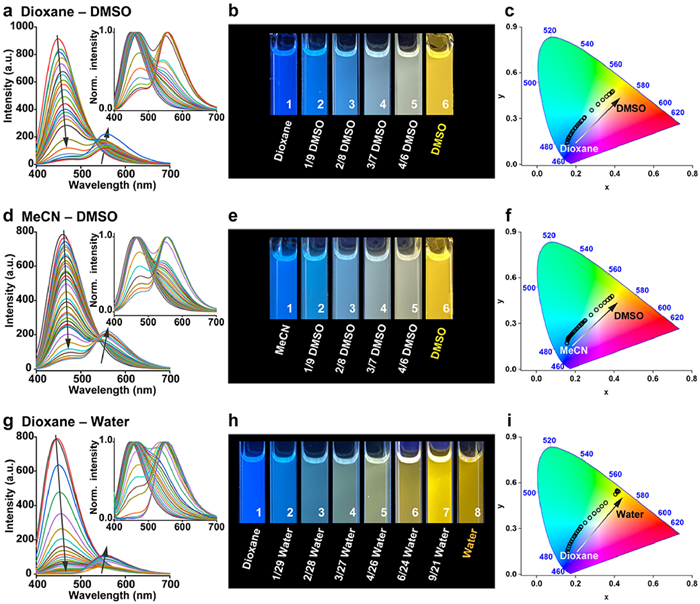

To clarify the conditions for NapH1 and NapH2 to mix and emit white light, we first choose two solvents with low polarity and high polarity to mix in different ratios and detect the fluorescence emission spectra of the two in these solvents (Fig. 2 and Fig. S2 in Supporting information). The tested systems include dioxane-DMSO, MeCN-DMSO, and dioxane-water. Both compounds do not undergo ESPT in dioxane and acetonitrile, but in DMSO and water, most of the molecules undergo ESPT after being excited by light. With the increase of the proportion of DMSO or water content, the intermolecular hydrogen bond strengthens, leading to the increase of long-wavelength fluorescence intensity, accompanied by the gradual weakening of short-wavelength fluorescence intensity. The luminescence of NapH1 gradually changed from blue to yellow in different proportions of mixed solutions.

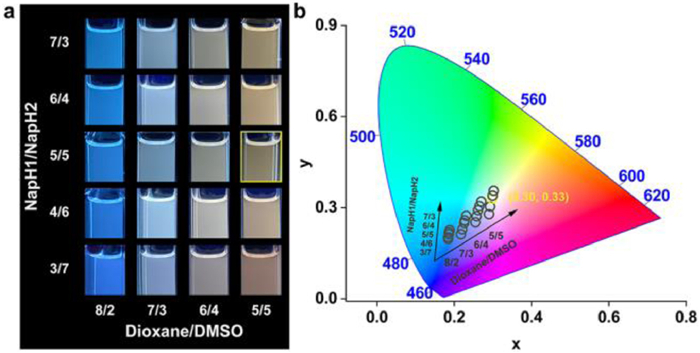

Next, we chose dioxane and DMSO as the mixed solution and detected the emission of the two solvents at different mixing ratios with different mixing ratios of NapH1 and NapH2 (Fig. 3, Figs. S3 and S4 in Supporting information). When dioxane and DMSO are mixed in a 5/5 ratio, and NapH1 and NapH2 are mixed in a 5/5 ratio, the color coordinate is (0.30, 0.33), closest to white light CIE (0.33, 0.33).

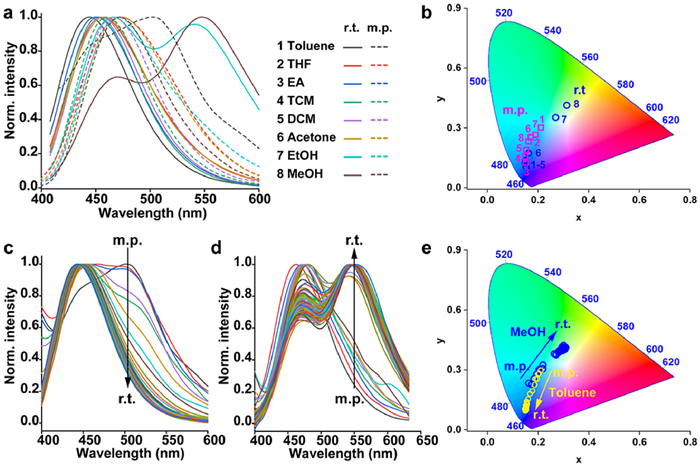

The deprotonation reaction of conjugated hydroxyl groups in aromatic systems is not only affected by hydrogen bond donors and acceptors but also affected by temperature. We detected the fluorescence emission spectra changes of NapH1 in eight solvents from melting point temperature (m.p.) to room temperature (r.t.) (Fig. 4, Figs. S5–S9 in Supporting information). In solvents such as methanol and ethanol to form intermolecular hydrogen bonds with NapH1 at room temperature, as the temperature decreases, the long-wavelength fluorescence gradually weakens and finally disappears, while the short-wavelength fluorescence intensity gradually increases. The fluorescence color changes from white light at room temperature to blue at melting point temperature. This indicates that at a lower temperature, the ESPT process no longer occurs. However, the opposite trend appeared in apolar solvents. With toluene as a typical sample, although there was no intermolecular hydrogen bond formed with NapH1, as the temperature decreased, the short-wavelength fluorescence weakened, and the long-wavelength fluorescence appeared and increased. This may be due to the stable existence of the deprotonated product Nap1 at a lower temperature.
Finally, we attached NapH1 and NapH2 to the papers. Due to the existence of oxygen-containing functional groups on the paper surface, NapH1 and NapH2 can still undergo ESPT on the paper surface after being excited by light, and emitting two-color mixed fluorescence. The difference in the mixing ratio of the two shows different luminescence on the two kinds of paper, which implies the different environment of the paper (Fig. 5a). The acidity and alkalinity of paper are related to the writing quality and aging life of the paper, and the acidity and alkalinity of different papers are different. As shown in Fig. 5b, NapH1 sprayed onto the filter paper and writing paper emits different fluorescence colors. And the filter paper is easily changed by the alkali vapor, which changes the luminous color of NapH1; while the writing paper is easily affected by the acid vapor so that the sprayed NapH1 has no color on the paper and emits almost white light. These results indicate that NapH1 can be used to identify the acidity and alkalinity of paper, and it can also be used as a test strip for detecting acidity and alkalinity vapor.
It should be noted here that since the absorption of the deprotonated products Nap1 and Nap2 is significantly different from that of NapH1 and NapH2, most of the long-wavelength fluorescence obtained when using 380 nm as the excitation light comes from the deprotonation of NapH1 and NapH2 in the excited state, instead of Nap1 and Nap2 produced in the ground state (Fig. S10 in Supporting information). Therefore, the acidity and alkalinity of the environment can be judged by the absorption color of the solution, that is, whether there is a stable existence of Nap1 and Nap2 in the ground state, and ESPT is used to judge the intermolecular hydrogen bond. Meanwhile, NapH1 and NapH2 exhibit good photostability (Fig. S11 in Supporting information), which makes this environmentally sensitive multicolor luminescence system potential for further applications.
In this paper, we found that the 4- and 3–hydroxyl substituted naphthalimides NapH1 and NapH2 have similar absorption and emission spectra, but the fluorescence wavelengths of the deprotonated products Nap1 and Nap2 have significant differences, thus obtaining the blue and yellow emission of NapH1, and three-color emission of blue, yellow and red in which NapH1 and NapH2 are mixed. Ideal white light can be obtained through proper deployment. The dual-channel emission of NapH1 and NapH2 is generated by proton transfer between excited state molecules, which makes the white light emission be affected by environmental factors and can recognize polarity, temperature, and pH.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
This work is supported by the National Natural Science Foundation of China (Nos. 22225806, 22078314, 22278394) and Dalian Institute of Chemical Physics (Nos. DICPI202227, DICPI202142).
Supplementary materials
Less
Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2023.108348.
References
Less
[1]
H. Lin, Z. Xu, Chin. Chem. Lett. 33 (2022) 573–574.
[2]
J. Zhang, X. Zhao, H. Shen, et al., Adv. Photonics 4 (2022) 014001.
[3]
V. Anand, R. Mishra, Y. Barot, Dyes Pigm. 191 (2021) 109390.
[4]
Q. Song, S. Goia, J. Yang, et al., J. Am. Chem. Soc. 143 (2021) 382–389.
[5]
D. Li, W. Hu, J. Wang, et al., Chem. Sci. 9 (2018) 5709–5715.
[6]
Z. He, W. Zhao, J.W.Y. Lam, et al., Nat. Commun. 8 (2017) 416.
[7]
K.C. Tang, M.J. Chang, T.Y. Lin, et al., J. Am. Chem. Soc. 133 (2011) 17738–17745.
[8]
Y. Yang, M. Lowry, C.M. Schowalter, et al., J. Am. Chem. Soc. 128 (2006) 14081–14092.
[9]
J. Chen, W. Liu, X. Fang, Q. Qiao, Z. Xu, Chin. Chem. Lett. 33 (2022) 5042–5046.
[10]
W. Liu, J. Chen, Q. Qiao, X. Liu, Z. Xu, Chin. Chem. Lett. 33 (2022) 4943–4947.
[11]
W. Zhou, X. Fang, Q. Qiao, et al., Chin. Chem. Lett. 32 (2021) 943–946.
