Synergism of Light-Induced [4 + 4] Cycloaddition and Electron Transfer Toward Switchable Photoluminescence and Single-Molecule Magnet Behavior in a Dy4 Cubane
收藏切换
PDF
Yu-Han Wang1, †, Zhen-Ni Gao1, †, Shuai Liang1, Jie Li1, Wu-Ji Wei1, Song-De Han1, Yi-Quan Zhang2, *, Ji-Xiang Hu1, *, Guo-Ming Wang1, *
Research. Vol 7 Article ID 0411
Less
收藏切换
Research. Vol 7 Article ID 0411
• Research Article •
Synergism of Light-Induced [4 + 4] Cycloaddition and Electron Transfer Toward Switchable Photoluminescence and Single-Molecule Magnet Behavior in a Dy4 Cubane
Full
Yu-Han Wang1, †, Zhen-Ni Gao1, †, Shuai Liang1, Jie Li1, Wu-Ji Wei1, Song-De Han1, Yi-Quan Zhang2, *, Ji-Xiang Hu1, *, Guo-Ming Wang1, *
Affiliations
  • 1College of Chemistry and Chemical Engineering, Qingdao University, Qingdao 266071, China.
  • 2Jiangsu Key Laboratory for NSLSCS, School of Physical Science and Technology, Nanjing Normal University, Nanjing 210023, China.
Published: 2024-07-05 doi: 10.34133/research.0411
Outline
收藏切换

Molecular materials possessing switchable magneto-optical properties are of great interest due to their potential applications in spintronics and molecular devices. However, switching their photoluminescence (PL) and single-molecule magnet (SMM) behavior via light-induced structural changes still constitutes a formidable challenge. Here, a series of cubane structures were synthesized via self-assembly of 9-anthracene carboxylic acid (HAC) and rare-earth ions. All complexes exhibited obvious photochromic phenomena and complete PL quenching upon Xe lamp irradiation, which were realized via the synergistic effect of photogenerated radicals and [4 + 4] photocycloaddition of the AC components. The quenched PL showed the largest fluorescence intensity change (99.72%) in electron-transfer photochromic materials. A reversible decoloration process was realized via mechanical grinding, which is unexpectedly in the electron-transfer photochromic materials. Importantly, an SMM behavior of the Dy analog was observed after room-temperature irradiation due to the photocycloaddition of AC ligands and the photogenerated stable radicals changed the electrostatic ligand field and magnetic coupling. Moreover, based on the remarkably photochromic and photoluminescent properties of these compounds, 2 demos were applied to support their application in information anti-counterfeiting and inkless printing. This work, for the first time utilizing the simultaneous modulation of photocycloaddition and photogenerated radicals in one system, realizes complete PL quenching and light-induced SMM behavior, providing a dynamical switch for the construction of multifunctional polymorphic materials with optical response and optical storage devices.

Yu-Han Wang, Zhen-Ni Gao, Shuai Liang, Jie Li, Wu-Ji Wei, Song-De Han, Yi-Quan Zhang, Ji-Xiang Hu, Guo-Ming Wang. Synergism of Light-Induced [4 + 4] Cycloaddition and Electron Transfer Toward Switchable Photoluminescence and Single-Molecule Magnet Behavior in a Dy4 Cubane[J]. Research, 2024 , 7 (7) : 0411 . DOI: 10.34133/research.0411
Full Text
Less
Introduction
Less
Light-switchable single-molecule magnets (SMMs), with slow relaxation of magnetization at a specific temperature and under light, have received considerable attention in recent years owing to their potential application in switches, sensors, and magnetic data storage devices at the molecular level [1–4]. Tremendous efforts have been devoted to the synthesis and characterization of light-switchable SMMs, especially using transition-metal complexes with light-induced spin transition [5–10]. In particular, lanthanide-based SMMs (Ln-SMMs) with light-switchable properties have recently attracted increasing attention as switchable bistable magnetic materials [11–14] due to their large magnetic moments, high single-ion magnetic anisotropy, and bistable ground states originating from their strong spin–orbit coupling and the crystal field effect of the Ln ions [15–19].
In general, modulating the light-switchable SMM behavior at room temperature is essential for practical applications. To obtain Ln-SMMs with tunable magnetic and optical properties induced by light, promoting structural changes by introducing photoresponsive organic ligands has emerged as a promising approach [13,20–23]. For example, the use of diarylethene and anthracene derivatives as ligands can enable controlled reversible SMM behavior via photoisomerization [24,25]. Anthracene and its derivatives are typically used for this purpose because they undergo light-induced [4 + 4] cycloaddition reactions, which render them good candidates for reversibly photoresponsive smart materials exhibiting photoluminescence (PL) [26,27], photochromism, and photomagnetism [28,29]. However, the cycloaddition reactions proceed only when the π–π stacking of the anthracene groups adopts a face-to-face arrangement, which is particularly challenging to achieve in polynuclear complexes. Furthermore, most cycloaddition reactions can only induce slight variations in the effective energy barrier and magnetic relaxation time; therefore, switching the SMM behavior remains a formidable task. Meanwhile, photomagnetic phenomena, including light-switchable SMM behavior, have been achieved in electron-transfer photochromic complexes in which photogenerated radicals tune the electrostatic ligand field, couple with paramagnetic metal ions, and change the magnetic behavior [30–32]. In this context, numerous photomagnetic compounds with tunable magnetic properties have been reported [33–36]. However, due to the weak magnetic coupling between photogenerated radicals and metal ions, the light-induced tunable SMM behavior remains restricted to a few examples [30–32].
Upon room-temperature irradiation, electron-transfer photochromic complexes and anthracycline derivatives quickly generate stable radicals and undergo structural changes due to photocycloaddition [37,38], respectively, thereby showing magnetic properties that are changed to a certain degree. Therefore, simultaneously, incorporating photocycloaddition and photogenerated radicals into one system is expected to substantially affect the electrostatic ligand field and magnetic coupling of Ln ions, enabling the switching of the SMM behavior in a single-component complex. However, utilizing the synergism of photogenerated radicals and cycloaddition to achieve switchable SMMs is still confronted with huge challenges and has not been realized for now. Recently, we confirmed that 9-anthracenecarboxylic acid (HAC) and its complexes can produce stable radicals upon irradiation, showing enhanced photochromic and photomagnetic properties [39]. Therefore, when HAC is used as a ligand with anisotropic Ln ions and the anthracene groups adopt a face-to-face π–π stacking, photogenerated radicals and photocycloaddition can be synchronously coupled in one complex upon Xe lamp irradiation, resulting in an obvious alteration in the exchange interaction between 4f ions and the concomitant SMM behavior.
Furthermore, photocontrollable luminescent Ln-SMMs are attractive not only because light can be conveniently and precisely controlled but also owing to the changes in their optical properties [40–42]. However, the synergistic modulation of the PL and magnetism of Ln-SMMs via irradiation is extremely difficult. In anthracene-containing Ln complexes, the electron-transfer process and photocycloaddition reactions give rise to remarkable structural changes, leading to drastic variations in the physical properties of the materials. Considering that both the PL and magnetic behavior can be substantially altered via structural changes originating from photochemical reactions, Ln complexes containing photoresponsive anthracene components are promising candidates to realize light-induced tunable optical and SMM bifunctions.
In this work, a series of cubane structures [Ln4(HAC)2(H2O)(OH)4(AC)7(NO3)]·3H2O (Ln = Dy for 1, Gd for 2, and Y for 3) were synthesized via the self-assembly of HAC and Ln ions under hydrothermal conditions. Upon irradiation with a Xe lamp at room temperature, all structures exhibited remarkable photochromic phenomena, as confirmed by ultraviolet-visible (UV-vis), infrared radiation (IR), and electron spin resonance (ESR) spectra as well as single-crystal structure analyses. Concomitantly, complete PL quenching was observed in all structures due to the synergistic effect of photogenerated radicals and [4 + 4] photocycloaddition. Furthermore, a reversible color change was unexpectedly achieved by subjecting the compounds to mechanical grinding due to the quenching of photogenerated radicals. Importantly, the photocycloaddition of AC ligands and photogenerated stable radicals accelerated the change in the electrostatic ligand field and magnetic coupling and triggered the SMM behavior for the Dy analog upon Xe lamp irradiation. Thus, light-induced PL quenching and SMM behavior are realized for the first time by simultaneously regulating photocycloaddition and light-induced electron transfer in one system, providing a new approach for preparing materials with optical response and optical storage devices.
Results and Discussion
Less

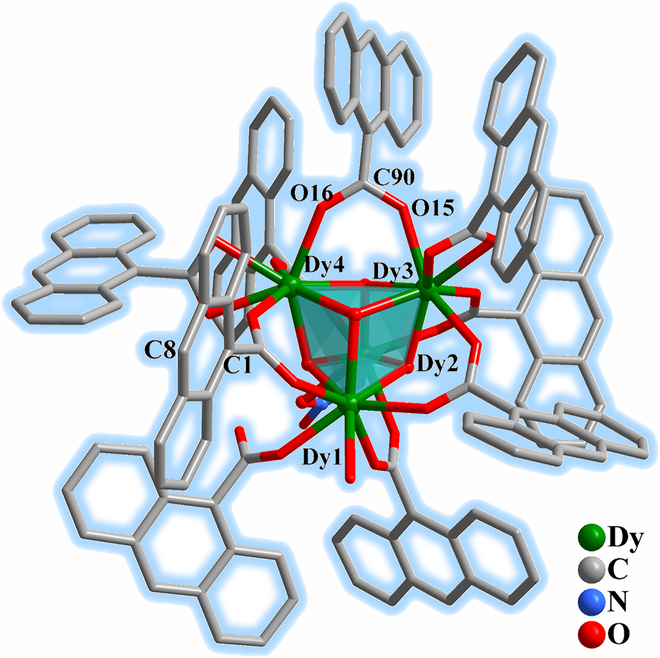

Single-crystal x-ray diffraction (XRD) results revealed that all the compounds crystallized in the monoclinic P21/c space group (Tables S1 and S2). The presence of lattice water molecules and the thermal stability of the compounds were confirmed via thermogravimetric (TG) analyses (Figs. S1 to S3). The phase purities were checked by powder x-ray diffraction (PXRD; Figs. S4 to S6) and elemental analysis. Owing to the similarity of the crystal structures, only that of 1 is discussed here. As shown in Fig. 1, the molecular skeleton of 1 contains a cubane [Dy4(μ3-OH)4] structure with 4 DyIII centers, 4 OH− groups, 9 AC units, one NO3− groups, and one coordinated water molecule. In the tetranuclear structure, 4 DyIII centers and 4 μ3-OH− moieties occupied the vertices of the cubane core. All Dy atoms formed an 8-coordinated [DyO8] polyhedral coordination geometry. The coordination sites of a Dy atom were occupied by one water molecule, one monodentated AC ligand, 3 bridged AC ligands, and 3 OH− groups. Another Dy atom was surrounded by one chelating NO3− group, 3 bridged AC ligands, and 3 OH− groups. The remaining 2 Dy atoms were coordinated by 3 bridged and one chelating AC ligands and 3 OH− groups. The coordination configuration of the DyIII ions was confirmed to be a triangular dodecahedron via continuous shape measurements (Table S3). The Dy–O bond lengths were in the range of 2.290(5) to 2.475(6) Å, and the O–Dy–O angles were in the range of 53.80(18) to 147.66(19)° (Table S10). The Dy···Dy distances within the cubane structure were similar within a range of 3.7108(8) to 3.8326(7) Å, while the shortest intermolecular Dy···Dy distance was 11.962(1) Å. An anthracene ring in the cubane structure was oriented almost face-to-face to an anthracene ring of the adjacent tetranuclear structure, exhibiting π···π interactions with a centroid-to-centroid distance of 3.6809(2) Å. For 2 and 3, the Gd–O and Y–O bond lengths were in the range of 2.318(5) to 2.499(6) and 2.267(2) to 2.465(3) Å (Tables S12 to S16), and π···π interactions were also formed between the adjacent anthracene rings with a centroid-to-centroid distance of 3.6724(1) and 3.7581(0) Å for 2 and 3, respectively (Figs. S7 and S8). Owing to the π···π interactions between the anthracene rings, all the compounds were prone to undergo [4 + 4] photocycloaddition reactions, which enable solid-state switchable photochromism, PL, and photomagnetism [43,44].
The photochromic electron-transfer and [4 + 4] photocycloaddition properties of the AC ligand prompted us to explore the photoresponsive behavior of this series of compounds under ambient conditions. For 1, the light yellow color of the powder sample intensified deeper upon Xe lamp (320 to 780 nm; 300 W) irradiation and progressively became brown after 60 min of irradiation (inset of Fig. 2A and Fig. S9). The colored samples are hereinafter referred to as 1a. The UV-vis spectra of 1 in the solid state were obtained to verify this light-induced phenomenon. As shown in Fig. 2A, a new and broad absorption band centered at 530 nm appeared and gradually intensified with increasing irradiation time of the Xe lamp, indicating the formation of stable radical species, aligning with most existing reports on the electron-transfer photochromic materials [30]. Furthermore, the intensity of the peaks at ~380 nm decreased upon light irradiation, whereas that of the peaks at ~260 nm increased, indicating the formation of dimer structure via photocycloaddition [23,45]. Because the photocycloaddition reaction is detected below 400 nm in the UV-vis spectra, the photochromic behavior is mainly attributed to the formation of stable radicals triggered by photonic stimuli. The room-temperature in situ PL behavior of 1 was subsequently studied in the solid state. The PL spectra of 1 showed a maximum emission at 445 nm when the samples were excited at 360 nm, which can be attributed to intraligand π–π* or n–π* transitions in the AC components [46]. Compared with the initial state, the intensity of the fluorescence peak drastically decreased by 98.10% after irradiation using a 360-nm laser for 150 min (Fig. 2B). Furthermore, the pristine light yellow crystalline powder of 1 emitted blue fluorescence when excited at 360 nm. After irradiation, the luminous color disappeared with the apparent color changed to brown, which was consistent with the obtained PL spectra (inset of Fig. 2B). The Gd and Y analogs exhibited similar photochromic and PL behaviors (Figs. S10 to S15), with the intensity of the fluorescence peak drastically decreasing by 99.72% and 99.67%, respectively. Thus, the PL quenching showed the largest intensity decrease in the electron-transfer photochromic materials. This rare phenomenon involving complete PL quenching of photochromic materials stems from the synergic effect of the light-induced electron transfer and cycloaddition of the AC components. The drastic intensity decreases in the PL spectra indicate the occurrence of structural changes after irradiation.

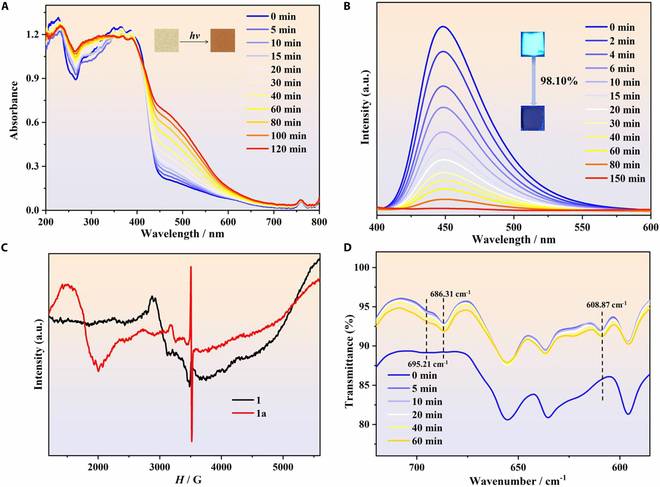

To explore the photochromic and photoluminescent phenomena, the solid-state ESR spectra of all the compounds were obtained before and after irradiation. As shown in Fig. 2C, multiple resonances belonging to DyIII ions were observed for the as-prepared samples. After irradiation, a sharp and strong peak at g = 2.008 appeared, confirming the photogeneration of radicals in 1a. Moreover, a change occurred in the DyIII signals after irradiation, most likely resulting from the generation of radicals or structural changes. A similar result was observed in the ESR spectra of the YIII analog 3, which showed a sharp radical signal at g = 2.003 (Fig. S16). For 2, due to the half-filled electronic configuration f7 of the GdIII centers, a broad resonance peak at g = 2.004 appeared in the ESR spectra (Fig. S17), while the characteristic radical signal was not observed after irradiation probably because it was obscured by the strong GdIII signal [47]. However, the intensity of the metal signal changed after irradiation, suggesting the generation of radicals or the occurrence of structural changes. Furthermore, IR spectra were obtained to explore chemical reactions occurring during the photochromic process. As shown in Fig. 2D and Fig. S18, new peaks at 609, 686, and 695 cm−1 appeared in the spectra of 1 after irradiation, which can be attributed to the C–H out-of-plane deformation vibration of dianthracenes caused by photocycloaddition [48]. The Gd and Y analogs showed similar IR spectral changes, suggesting the occurrence of a photocycloaddition reaction after irradiation (Figs. S19 and S20). These results indicate that both the photocycloaddition reaction and radicals were generated after irradiation for all the compounds.

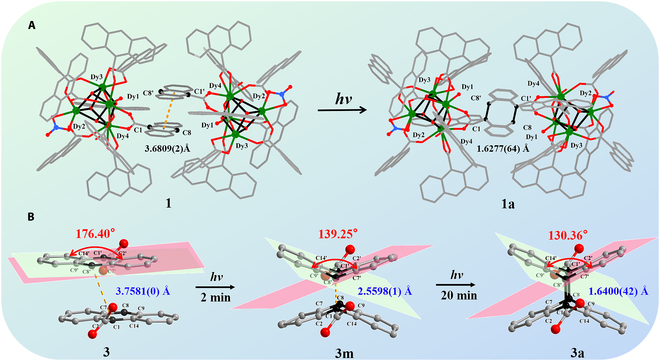

To further confirm the photoresponsive behavior, the crystal structures of the compounds were analyzed in detail. As shown in Fig. 3A, the C1···C8′ distance between the peripheral anthracene moieties in 1 was 3.6809(2) Å (<4.2 Å), suggesting that a solid-state photocycloaddition reaction could occur during the color-change process [49,50]. In fact, dimerization appeared via photocycloaddition on the central benzene rings of adjacent anthracenes (C1–C8′ and C1′–C8 = 1.6277(64) Å) after Xe lamp irradiation. Furthermore, the C1–C8′ distance was shorter than that of reported dianthracene derivatives (1.66 Å) [51], indicating fully completed photocycloaddition process. Photocycloaddition also occurred in the Gd and Y analogs, with the distance between photocycloaddition rings being 1.6351(91) and 1.6400(42) Å for 2 and 3, respectively (Figs. S7 and S8). In addition to the obvious variations in the cycloaddition components, other AC components in the 3 structures showed detectable changes before and after irradiation. The structure of 1 is discussed here as a representative example. The anthracene carboxylate group containing the C90 atom also showed considerable changes after irradiation. In this carboxylate moiety, the C90–O15 and C90–O16 bond lengths changed from 1.2611(116) and 1.3036(111) to 1.2484(64) and 1.2597(67) Å, respectively. Concomitantly, remarkable changes were observed for the middle benzene ring after irradiation, with C77–C82, C82–C83, C76–C77, and C84–C89 bond lengths changing from 1.3890(106), 1.3810(79), 1.4499(128), and 1.3905(106) to 1.4630(99), 1.4052(108), 1.3948(81), and 1.4464(88) Å, respectively. As a result, the structure showed electron transfer from the carboxylate group to the anthracene ring after irradiation, leading to the generation of free radicals and the occurrence of photochromism [36,39]. Based on the changes in the bond lengths, we propose a schematic (Fig. S21) for the structural changes after irradiation.
Surprisingly, an intermediate state was detected in the [4 + 4] photocycloaddition reaction of the Y analog. Upon irradiating the crystals of 3 for 2 min, the dimerization of neighboring anthracene rings began, forming an intermediate state 3m (Fig. 3B), in which one of the AC ligands was bent in the middle benzene ring and moved closer upon irradiation, with the dihedral angle between the plane (C1, C2, C7, and C8) and the plane (C8, C9, C14, and C1) decreasing from 176.40° to 139.25° and C1–C8′ distance decreasing from 3.7581(0) to 2.5598(1) Å. Upon further irradiation, the C1–C8' distance decreased to 1.6400(42) Å, while the dihedral angle slightly decreased to 130.36°. As a result, the adjacent molecules moved closer as the photodimerized AC ligands changed from the slip-stacked manner to face-to-face mode, while the anthracene rings first bent and then shifted closer to form C–C bonds.
In general, photogenerated radicals and ligand photocycloaddition products can be relaxed to the initial state via thermal treatment or irradiation or by keeping in the dark for days [52,53]. Due to the large π-conjugated anthracene components [39,54] as well as strong crystal rigidity and steric hindrance effects between the molecules [29,41], the light-induced phenomena simultaneously caused by the photogeneration of radicals and photocycloaddition in the developed compounds were extremely stable under ambient conditions and could not be reversed even by irradiation or heating. However, the compounds showed reversed discoloration behavior induced by mechanical grinding. For 1, a reversible color change was detected with naked eyes after grinding the colored powder 1a with a pestle (the ground samples are hereinafter referred to as 1b; Fig. 4A and Fig. S22). In particular, the quenched fluorescence returned to the origin state (blue emission) after grinding. Samples 1b were subjected to UV-vis, fluorescence, ESR, and IR spectra measurements after irradiation. As shown in Fig. 4B and C, the intensity of the photogenerated absorption peak substantially decreased, with the emission partially relaxing to the initial state. Furthermore, the ESR spectra of 1b showed a drastic weakening in the intensity of the radical peak (Fig. 4D), whereas the peaks ascribed to the C–H out-of-plane vibration of dianthracenes remained almost unchanged after grinding (Fig. S18), indicating that radical quenching was the main reason for the reversible coloration behavior. Furthermore, the mutable transition between 1a and 1b was achieved by alternating irradiation and grinding process, as confirmed by UV-vis, PL, and ESR spectra (Fig. 4). A similarly reversible coloration behavior was observed in the Gd and Y analogs (Figs. S23 to S28). These unexpected results indicated that the reversible color-change property of these compounds could be activated on by irradiation and partially deactivated by mechanical grinding. In the as-prepared crystal structures, the tetranuclear molecules were orderly arranged with face-to-face π···π interactions as well as C–H···O and C–H···π bonding interactions between them. After irradiation, the photogeneration of radicals mainly elicited the photochromic behavior. In 1, the C–H···O bond lengths were 3.184(5) and 2.5098(54) Å and the C–H···π bond lengths were 2.5875(2) Å (Fig. 29). These weak intermolecular noncovalent interactions between anthracene rings effectively stabilized the delocalized radicals in the anthracene rings. Upon grinding, these intermolecular interactions became weak, which increased the contact between free radicals and O2, leading to radical quenching and partially reversible coloration process in these compounds. In addition, grinding did not destroy the crystal structures (Figs. S4 to S6), which allowed excluding the loss of crystallinity as the reason for the discoloration [55,56]. Thus, the dynamically switchable photochromism and PL render the compounds promising as optical storage materials [57].
The photogeneration of radicals and photocycloaddition in the structures probably caused the photomagnetic behavior for these compounds. Therefore, the magnetic susceptibilities of 1 before and after irradiation were first measured under a direct current (dc) magnetic field of 1,000 Oe between 2 and 300 K (Fig. 5A). The χT value, where T is the temperature in kelvin and χ is the molar magnetic susceptibility, was 55.15 cm3 mol−1 K at 300 K, slightly lower than the expected value for 4 DyIII centers (56.68 cm3 mol−1 K). Upon cooling, the χT value gradually decreased to 37.35 cm3 mol−1 K at 2 K, which can be attributed to the depopulation of the Stark levels of the DyIII center with crystal field splitting [58]. After coloration, the χT value increased to 58.37 cm3 mol−1 K at 300 K, and larger than the as-prepared samples in the entire temperature range. This result indicated that the photogeneration of radicals and photocycloaddition induced the observed changes in the magnetic coupling of the cubane structure. To further explore the magnetic coupling between the photogenerated radicals and DyIII ions, the temperature-dependent magnetic susceptibilities of 2 and 3 were measured under the same conditions. The χT–T curve of the YIII analog exhibited a linear decrease (Fig. S30), while the GdIII analog and 1 showed similar χT–T curves (Fig. S31). The magnetic-field (H) dependence of magnetization (M) was evaluated before and after irradiation at 2 K. The M values of 1 at 50 kOe gradually reached 21.13 Nβ before irradiation. After irradiation, the M value gradually increased to 22. 39 Nβ at 50 kOe (Fig. S32). For the GdIII analog, the M values at 50 kOe reached 25.09 and 26.48 Nβ before and after irradiation, respectively (Fig. S33). The results confirmed that the photomagnetic behaviors originated from variations in the ligand fields and magnetic couplings of DyIII ions due to light-induced electron transfer and structure changes.

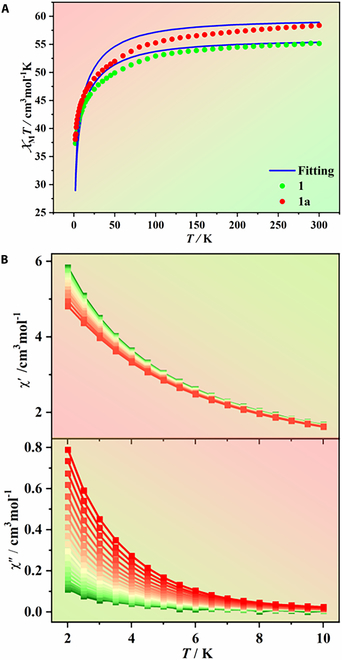

To comprehensively explore the effect of the photogenerated radicals and photocycloaddition on the dynamic magnetic properties of 1, the magnetic susceptibilities were measured under alternating current (ac) magnetic field of 5 Oe ac field. Before irradiation, no frequency-dependent behavior was observed in the temperature-dependent magnetic susceptibilities (Fig. S34). However, both the in-phase (χ') and out-of-phase (χ”) components of 1a exhibited frequency dependence under a zero dc and 5 Oe ac magnetic field (Fig. S35), showing slow magnetic relaxation. Due to fast quantum tunneling of the magnetization (QTM), no peaks for the χ' and χ” components were observed in the measured temperature range. To suppress the QTM process, the optimum dc magnetic field was determined by performing variable-field ac measurements between 0 and 5,000 Oe at 2 K (Fig. S36) and used in the external field-influenced ac magnetic susceptibility measurements. As shown in Fig. 5B and Figs. S37 and S38, under the optimum dc magnetic field of 1,200 Oe, the χ' and χ” components decreased while the corresponding peaks were still not observed. Due to the fast QTM, the fitting result of the relaxation energy barrier failed. However, this relaxation phenomenon was similar with other compounds with relaxation dynamics, thus confirming the SMM behavior of the compounds prepared in this work [59].

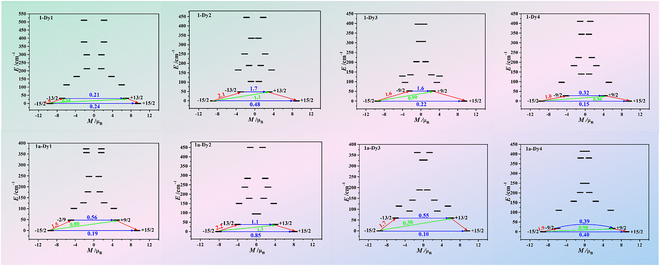

To gain insights into the magneto-structural relationship of the compounds, complete-active-space self-consistent field (CASSCF) calculations were performed on 8 individual DyIII fragments, namely, 1-Dy1, 1-Dy2, 1-Dy3, 1-Dy4, 1a-Dy1, 1a-Dy2, 1a-Dy3, and 1a-Dy4 (Fig. S39), based on the x-ray-determined geometries using the OpenMolcas [60] and SINGLE_ANISO [61–63] programs (see the “computational details”). The energy levels (cm−1), g (gx, gy, and gz) tensors, and predominant mJ values of the 8 lowest Kramers doublets (KDs) are shown in Table S17. All the mJ values were found to be ±15/2 in their ground KDs with gx,y ≈ 0.000 and gz ≈ 20.000, indicating a nearly perfect axial anisotropy. The mixed mJ components for the 2 lowest KDs of the individual DyIII fragments in 1 and 1a are shown in Table S18. KD0 in 1 and 1a are almost composed of mJ = ±15/2, while KD1 comprises several mJ. As depicted in Fig. 6, the transversal magnetic moments in the ground KDs are all larger than 10−1 μB in the magnetization blocking barriers of the 8 individual DyIII fragments, thus allowing a fast QTM in their KD0 level. Thus, the energy barriers of 1 and 1a must be zero according to the calculated results of the 8 individual DyIII fragments.
However, the weak DyIII–DyIII and DyIII–radical interactions may exert a nonnegligible influence on their slow magnetic relaxation processes. For 1 and 1a, the calculated ground gz values of the 8 individual DyIII fragments were all close to 20.000; thus, the DyIII–DyIII and DyIII–radical interactions can be regarded to belong to the Ising type. The POLY_ANISO program [61–62] was used to fit the Lines [64] exchange coupling constants (J; effective coupling constant J~1=25J1cosθfor the DyIII–DyIII interactions and J~2=5J2 for the DyIII–radical interactions) and the intermolecular interaction parameter (zJ′) by comparing the computed and measured magnetic susceptibilities for 1 and 1a. During the fitting, the DyIII–DyIII interactions were simply considered equal due to similar coordination environments and proximity between the DyIII centers (Fig. S40).
The parameters J~1and J~2 were calculated with respect to the pseudospin S~ = 1/2 for the DyIII ion. The calculated plots of χT versus T for 1 and 1a are displayed in Fig. 5A, which show a good agreement between the calculated and experimental curves. The fitted negative values of J~ for 1 (J~1 = −0.75 cm−1) and 1a (J~1 = −0.90 cm−1 and J~2 = −1.00 cm−1) indicate that the total interactions between DyIII–DyIII and DyIII–radical are antiferromagnetic. Moreover, the radical–radical interaction in 1a is very weak due to the large distance between them (Fig. S21); thus, it was not fitted. The exchange energies (E; cm−1), energy difference between each exchange doublet (Δt; cm−1), and predominant gz values for the lowest 8 and 24 exchange doublets arising from the exchange interactions on the magnetic centers 1 and 1a are shown in Table S19. The gz values of the ground exchange states of 1 and 1a were 11.352 and 11.712, respectively, confirming that the interactions in 1 and 1a are antiferromagnetic. According to the exchange energy levels shown in Table S19, the energy barrier of 1a cannot be associated with the exchange states because the highest of these states (2.9 cm−1; Table S19) lies lower than the value of the extracted barrier (8.4 cm−1), indicating that this regime must be related to relaxation through the excited KDs of individual metal ions. The calculated orientations of the local main magnetic axes on the DyIII ions of 1 and 1a in the ground state are depicted in Fig. S41, which shows that the magnetic axes have an arbitrary discrete distribution.

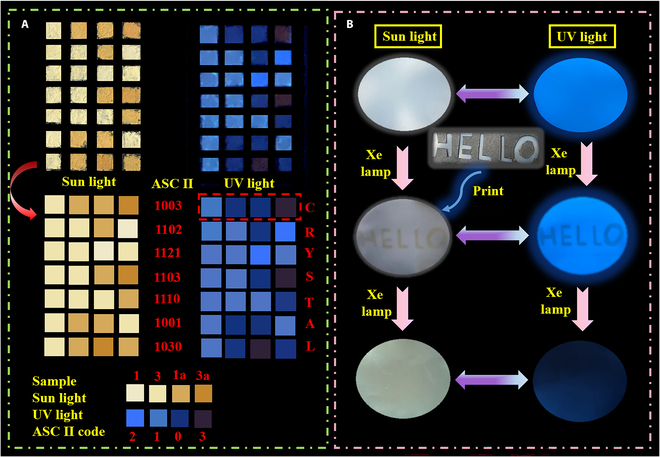

Derived from the remarkably photochromic and PL properties, these compounds show great potential in the applications of information storage and encryption. Therefore, an anti-counterfeit encryption system was firstly designed according to the changes of photochromism and PL by ASCII encryption algorithm (American Standard Code for Information Exchange). As shown in Fig. 7A, owing to the distinction of apparent and luminous color between compounds 1 and 3, the samples were defined as different information codes in the note and uniformly placed in a square matrix of 4 × 7. Under the irradiation with a 365-nm UV light, the samples of 1 and 3 in the square matrix exhibited blue emission and output information was defined as “2” and “1.” Samples 1a and 3a without emission was “0” and “3” in the output information. Based on the changes under UV light, each line code was interpreted as a different digital code, converting ASCII algorithm to obtain effective information “CRYSTAL.” In addition, a writable material with compound 1 was successfully developed utilizing inkless printing technology. The fabricated film still showed excellent luminescence characteristics under UV light, indicating effective integration with the polymer. The mask with hollow-out “HELLO” letters was covered on the film and illuminated by Xe lamp for 30 min at room temperature. Originated from the electron-transfer photochromic behavior, the “HELLO” word was then printed on the film after removing the mask. The printed word became more obvious under UV light but further disappeared after persistent Xe lamp light irradiation. Therefore, the synthesized compounds can enhance the application potential in information anti-counterfeiting and inkless printing.
Conclusion
Here, a series of tetranuclear cubane complexes with switchable optical and magnetic properties were synthesized. The cubane complexes underwent light-induced dual structural changes, involving the photogeneration of radicals and [4 + 4] photocycloaddition, which elicited photochromic behavior and complete PL quenching. The quenched PL showed the largest fluorescence intensity change (99.72%) observed in electron-transfer photochromic materials. A reversible decoloration process unexpectedly occurred upon mechanical grinding, which stemmed from partial radical quenching, as confirmed by UV-vis, PL, IR, and ESR spectra. This study provides a novel approach to realize reversible properties of electron-transfer photochromic compounds triggered by mechanical force. Importantly, the photocycloaddition of AC ligands and photogenerated stable radicals unexpectedly changed the electrostatic ligand field and magnetic coupling, triggering the SMM behavior for the Dy analog after Xe lamp irradiation. The ab initio calculations of magnetization relaxations were performed to confirm the light-induced SMM behavior. Furthermore, these compounds were successfully applied in information anti-counterfeiting and inkless printing. This work for the first time achieved the totally quenched luminescence and SMM behavior via the synergy of dual photoactive response originated from photogenerated radicals and cycloaddition, providing an innovative strategy for the development of multifunctional polymorphic materials with optical response and optical storage devices.
Materials and Methods
Less
Materials and syntheses
All chemicals were reagent grade and used as purchased without further purification.
Synthesis of 1
A mixture of Dy(NO3)3·6H2O (0.2 mmol, 0.09 g) and 9-anthracenecarboxylic acid (HAC; 0.45 mmol, 0.10 g) was dissolved in 5 ml of CH3OH and 5 ml of CH3CN. The resultant solution with 0.20 ml CH3NH2 was added in a Teflon-lined autoclave (20 ml) and placed in an oven at 120 °C to react for 5 days. Orange x-ray-quality crystals were obtained and dried in air. Yield: ca. 64% based on Dy(NO3)3·6H2O. Compound 1a was obtained by irradiating 1 with a Xe lamp at room temperature for 150 min: Elemental analysis for compound 1 (%): calcd for C135H95NO29Dy4 (2,845.11): C, 56.99; H, 3.37; N, 0.49. Found: C, 56.68; H, 3.31; N, 0.52. IR (KBr pellet, cm−1): 3,417(m), 3,043(w), 2,919(w), 2,852(w), 1,660(w), 1,575(s), 1,490(m), 1,434(s), 1,386(s), 1,315(s), 1,272(m), 1,012(w), 952(w), 889(m), 854(w), 786(w), 738(s), 651(m), 595(w), 563(w), 526(w). For 1a (%): calcd for C135H95NO29Dy4 (2,845.11): C, 56.99; H, 3.37; N, 0.49. Found: C, 57.19; H, 3.16; N, 0.55. IR (KBr pellet, cm−1): 3,423(w), 3,054(w), 2,921(w), 1,660(w), 1,575(s), 1,486(w), 1,436(s), 1,386(s), 1,319(s), 1,272(m), 1,020(w), 867(w), 775(w), 730(s), 684(w), 649(m), 595(s), 551(w), 522(w).
Synthesis of 2
The crystals of 2 were prepared in a similar way with compound 1 by replacing Dy(NO3)3·6H2O with Gd(NO3)3·6H2O (0.09 g, 0.2 mmol). Yield: ca. 42% based on Gd(NO3)3·6H2O. Compound 2a was obtained by irradiating 2 with a Xe lamp at room temperature for 150 min: Elemental analysis for compound 2 (%): calcd for C135H95NO29Gd4 (2,824.11): C, 57.41; H, 3.39; N, 0.50. Found: C, 57.52; H, 3.23; N, 0.41. IR (KBr pellet, cm−1): 3,430(m), 3,046(w), 2,925(m), 2,364(w), 1,660(w), 1,577(s), 1,490(w), 1,442(s), 1,386(s), 1,321(s), 1,274(m), 1,012(w), 881(w), 850(w), 730(m), 653(w), 595(w), 563(w), 518(w). For 2a (%): calcd for C135H95NO29Gd4 (2,824.11): C, 57.41; H, 3.39; N, 0.50. Found: C, 57.24; H, 3.22; N, 0.47. IR (KBr pellet, cm−1): 3,426(w), 3,039(w), 2,923(w), 2,358(w), 1,666(w), 1,571(s), 1,490(w), 1,442(s), 1,384(s), 1,321(s), 1,276(m), 1,043(w), 875(w), 754(w), 730(m), 692(w), 649(w), 597(w), 558(w), 514(w).
Synthesis of 3
Crystals of 3 were prepared in a similar way by using Y(NO3)3·6H2O (0.09 g, 0.2 mmol) instead of Dy(NO3)3·6H2O. Yield: ca. 48% based on Y(NO3)3·6H2O. Compound 3a was obtained upon irradiation of 3 by the Xe lamp at room temperature for 150 min: Elemental analysis for compound 3 (%): calcd for C135H95NO29Y4 (2,550.75): C, 63.57; H, 3.75; N, 0.55. Found: C, 63.44; H, 3.61; N, 0.52. IR (KBr pellet, cm−1): 3,427(m), 3,043(w), 2,928(w), 2,355(w), 1,670(w), 1,582(s), 1,485(m), 1,436(s), 1,385(s), 1,317(s), 1,277(m), 1,170(w), 1,017(w), 950(w), 889(w), 787(w), 730(s), 646(m), 598(m), 558(w), 518(w). For 3a (%): calcd for C135H95NO29Y4 (2,550.75): C, 63.57; H, 3.75; N, 0.55. Found: C, 63.36; H, 3.45; N, 0.61. IR (KBr pellet, cm−1): 3,423(m), 3,045(w), 2,928(w), 2,354(w), 1,670(w), 1,581(s), 1,483(m), 1,434(s), 1,387(s), 1,310(s), 1,276(m), 1,170(w), 1,015(w), 955(w), 889(w), 787(w), 733(s), 648(m), 598(m), 558(w), 520(w).
Preparation of inkless printing
Compound 1 (0.02 g) was blended with poly(butylene adipate-co-terephthalate) at a ratio of 1:100 and dissolved in CH2Cl2 (12 ml). The obtained solution was poured into a petri dish to form a film after CH2Cl2 slowly evaporated.
Physical measurements
Elemental, TG, magnetic, and optical analyses
Elemental analyses (for C, H, and N) were performed on a Perkin-Elmer 240C analyzer (Perkin-Elmer, USA). TG analyses were performed under a N2 atmosphere on a Rigaku standard TG-DTA (differential thermal analysis) analyzer. IR spectra were obtained via a MAGNA-560 (Nicolet) FT-IR spectrometer with KBr pellets. Luminescence data were measured by a Hitachi F-7000 fluorescence spectrometer (150 W, 360-nm UV light). UV-vis spectra were analyzed by a Puxi Tu-1901 spectrophotometer (using BaSO4 as a reference). ESR spectra were carried out by a CIQTEK EPR200-Plus spectrometer at room temperature. Magnetic measurements of polycrystalline samples were performed on a Quantum Design SQUID magnetometer. PXRD patterns were recorded on a Rigaku diffractometer with a Cu-target tube and a graphite monochromator. Simulation of the PXRD curves was conducted by the single-crystal data and diffraction-crystal module of the mercury (Hg) program with free of charge on the internet at http://www.iucr.org. For irradiation experiments, a Perfect Light PLS-SXE 300 Xe lamp (320 to 780 nm, 300 W, used for at least 150 min) was equipped to prepare the colored samples for elemental analysis, PXRD, ESR, and magnetic studies.
X-ray crystallography
The single-crystal XRD data of 1, 1a, 2, 2a, 3, 3m, and 3a were collected on a Rigaku XtaLAB MM007 CCD diffractometer with Mo-Kα radiation (λ = 0.71073 Å). The SHELX-2016 software was used to solve the structures. For all compounds, solvent molecules were largely disordered, and the diffraction data were treated by the “SQUEEZE” method. Detailed crystallographic data for 1, 1a, 2, 2a, 3, 3m, and 3a were summarized in Tables S1 and S2, and the selected bond lengths and angles were listed in Tables S10 to S16. Full crystallographic data for all compounds have been deposited in the Cambridge Crystallographic Data Center (CCDC).
Computational details
Considering the large sizes of 1 and 1a, all the ring ligands except for the radical in 1a were simplified to C6H5 (Fig. S39). CASSCF calculations for 8 individual DyIII fragments, namely, 1-Dy1, 1-Dy2, 1-Dy3, 1-Dy4, 1a-Dy1, 1a-Dy2, 1a-Dy3, and 1a-Dy4 (Fig. S39), were performed using the OpenMolcas [61] program package based on the single-crystal x-ray-determined geometries. All the 8 individual DyIII fragments were studied keeping the experimentally determined structures of the corresponding compounds while replacing the other 3 DyIII ions with diamagnetic LuIII.
Atomic natural orbitals from the ANO-RCC library were used as the basis sets for all atoms, i.e., ANO-RCC-VTZP for DyIII and the O close to it and ANO-dk3 for distant atoms. The second-order Douglas–Kroll–Hess Hamiltonian was employed for the calculations, where scalar relativistic contractions were considered in the basis set and spin–orbit couplings coupling was handled separately by following the restricted active space state interaction (RASSI-SO) procedure. For the 8 individual DyIII fragments, 9 active electrons in 7 active orbitals included all f electrons [CAS (9 in 7)] in the CASSCF calculations. To exclude all the doubts, all the roots in the active space were calculated. Only the maximum number of spin-free states that were possible with our hardware were mixed (all 21 sextets, 128 from 224 quadruplets, and 130 from 490 doublets). The SINGLE_ANISO [61–62] program was used to obtain the energy levels, g tensors, mJ values, and magnetic axes based on the above CASSCF/RASSI-SO calculations.
Funding
Less
  • National Natural Science Foundation of China (22171155)
  • National Natural Science Foundation of China (22071126)
  • National Natural Science Foundation of China (21973046)
  • Natural Science Foundation of Shandong Province (ZR2022YQ07)
  • Taishan Scholar Program(tsqn202306166)
  • Qingdao University discipline cluster interdisciplinary joint research project(FZ2024201)
References
Less
1.
Mathonière C, Lin HJ, Siretanu D, Clérac R, Smith JM. Photoinduced single-molecule magnet properties in a four-coordinate iron(II) spin crossover complex. J Am Chem Soc. 2013;135(51):19083–19086.
2.
Morimot M, Miyasaka H, Yamashita M, Irie M. Coordination assemblies of [Mn4] single-molecule magnets linked by photochromic ligands: Photochemical control of the magnetic properties. J Am Chem Soc. 2009;131(28):9823–9835.
3.
Wolfgang K. Edge atoms do all the work. Nat Mater. 2003;2:505–506.
4.
Aguilà D, Prado Y, Koumousi ES, Mathonière C, Clérac R. Switchable Fe/co Prussian blue networks and molecular analogues. Chem Soc Rev. 2016;45(1):203–224.
5.
Meng YS, Sato O, Liu T. Manipulating metal-to-metal charge transfer for materials with switchable functionality. Angew Chem Int Ed. 2018;57(38):12216–12226.
6.
Garnier D, Jiménez JR, Li Y, Bardeleben J, Journaux Y, Augenstein T, Moos EMB, Gamer MT, Breher F, Lescouëzec R. K⊂{[FeII(Tp)(CN)3]4[CoIII(pzTp)]3[CoII(pzTp)]}: A neutral soluble model complex of photomagnetic Prussian blue analogues. Chem Sci. 2016;7(1):4825–4831.
7.
Nihei M, Okamoto Y, Sekine Y, Hoshino N, Shiga T, Liu IPC, Oshio H. A light-induced phase exhibiting slow magnetic relaxation in a cyanide-bridged [Fe4Co2] complex. Angew Chem Int Ed. 2012;51(26):6361–6364.
8.
Ababei R, Pichon C, Roubeau O, Li YG, Bréfuel N, Buisson L, Guionneau P, Mathonière C, Clérac R. Rational design of a photomagnetic chain: Bridging single-molecule magnets with a spin-crossover complex. J Am Chem Soc. 2013;135(39):14840–14853.
9.
Zhao L, Meng YS, Liu Q, Sato O, Shi Q, Oshio H, Liu T. Switching the magnetic hysteresis of an [FeII–NC–WV]-based coordination polymer by photoinduced reversible spin crossover. Nat Chem. 2021;13:698–704.
10.
Feng XW, Mathonière C, Jeon IR, Rouzières M, Ozarowski A, Aubrey ML, Gonzalez MI, Clérac R, Long JR. Tristability in a light-actuated single-molecule magnet. J Am Chem Soc. 2013;135(42):15880–15884.
11.
Tian H, Yang SJ. Recent progresses on diarylethene based photochromic switches. Chem Soc Rev. 2004;33(2):85–97.
12.
Cosquer G, Morimoto M, Irie M, Fetoh A, Breedlove BK, Yamashita M. Photo-control of the magnetic properties of Dy(III) and ho(III) homometal coordination polymers bridged by a diarylethene ligand. Dalton Trans. 2015;44(13):5996–6002.
13.
Wang LF, Qiu JZ, Chen YC, Liu JL, Li QW, Jia JH, Tong ML. [2+2] photochemical modulation of the Dy(III) single-molecule magnet: Opposite influence on the energy barrier and relaxation time. Inorg Chem Front. 2017;4:1311–1318.
14.
Pinkowicz D, Ren M, Zheng LM, Sato S, Hasegawa M, Morimoto M, Irie M, Breedlove BK, Cosquer G, Katoh K, et al. Control of the single-molecule magnet behavior of lanthanide-Diarylethene photochromic assemblies by irradiation with light. Chem Eur J. 2014;20(39):12502–12513.
15.
Meng YS, Jiang SD, Wang BW, Gao S. Understanding the magnetic anisotropy toward single-ion magnets. Acc Chem Res. 2016;49(11):2381–2389.
16.
Liu JL, Chen YC, Tong ML. Symmetry strategies for high performance lanthanide-based single-molecule magnets. Chem Soc Rev. 2018;47(7):2431–2453.
17.
Collins R, Ojea MJH, Mansikkamäki A, Tang J, Layfield RA. Carbonyl back-bonding influencing the rate of quantum tunnelling in a dysprosium metallocene single-molecule magnet. Inorg Chem. 2020;59(1):642–647.
18.
Zhang P, Luo QC, Zhu ZH, He WR, Song N, Lv JT, Wang XN, Zhai QG, Zheng YZ, Tang JK. Radical-bridged heterometallic single-molecule magnets incorporating four lanthanoceniums. Angew Chem Int Ed Engl. 2023;62(12): Article e202218540.
19.
Jin PB, Yu KX, Luo QC, Liu YY, Zhai QG, Zheng YZ. Tetraanionic arachno-carboranyl ligand imparts strong axiality to terbium(III) single-molecule magnets. Angew Chem Int Ed. 2022;61(29): Article e202203285.
20.
Wang LF, Qiu JZ, Liu JL, Chen YC, Jia JH, Jover J, Ruiz E, Tong ML. Modulation of single-molecule magnet behaviour via photochemical [2+2] cycloaddition. Chem Commun. 2015;51(84):15358–15361.
21.
Selvanathan P, Dorcet V, Roisnel T, Bernot K, Huang G, Guennic BL, Norel L, Rigaut S. Trans to cis photo-isomerization in merocyanine dysprosium and yttrium complexes. Dalton Trans. 2018;47(12):4139–4148.
22.
Li J, Kong M, Yin L, Zhang J, Yu F, Ouyang ZW, Wang ZX, Zhang YQ, Song Y. Photochemically tuned magnetic properties in an erbium(III)-based easy-plane single-molecule magnet. Inorg Chem. 2019;58(21):14440–14448.
23.
Huang XD, Wen GH, Bao SS, Jia JG, Zheng LM. Thermo- and light-triggered reversible interconversion of dysprosium–anthracene complexes and their responsive optical, magnetic and dielectric properties. Chem Sci. 2021;12(3):929–937.
24.
Hojorat M, Sabea HA, Norel L, Roisnel T, Gendron F, Guennic BL, Trzop E, Collect E, Long JR, Rigaut S. Photomodulation via single-crystal-to-single-crystal isomerization of a photochromic chain of dysprosium single-molecule magnets. J Am Chem Soc. 2020;142(2):931–936.
25.
Tian HQ, Su JB, Bao SS, Kurmoo M, Huang XD, Zhang YQ, Zheng LM. Reversible ON–OFF switching of single-molecule-magnetism associated with single-crystal-to-single-crystal structural transformation of a decanuclear dysprosium phosphonate. Chem Sci. 2018;9(30):6424–6433.
26.
Li QY, Deng YH, Cao C, Hong YX, Xue XR, Zhang MJ, Ge Y, Abrahams BF, Lang JP. Visible light and microwave-mediated rapid trapping and release of singlet oxygen using a coordination polymer. Angew Chem Int Ed. 2023;62(33): Article e202306719.
27.
Zhang QQ, Wang Y, Braunstein P, Lang JP. Construction of olefinic coordination polymer single crystal platforms: Precise organic synthesis, in situ exploration of reaction mechanisms and beyond. Chem Soc Rev. 2024;53.
28.
Huang C, Huang R, Zhang S, Sun H, Wang H, Du B, Xiao Y, Yu T, Huang W. Recent development of photodeformable crystals: From materials to mechanisms. Research. 2021;2021:9816535.
29.
Huang XD, Jia JG, Kurmoo M, Bao SS, Zheng LM. Interplay of anthracene luminescence and dysprosium magnetism by steric control of photodimerization. Dalton Trans. 2019;48(36):13769–13779.
30.
Ma YJ, Hu JX, Han SD, Pan J, Li JH, Wang GM. Manipulating on/off single-molecule magnet behavior in a Dy(III)-based photochromic complex. J Am Chem Soc. 2020;142(5):2682–2689.
31.
Zhang Q, Han SD, Li Q, Hu JX, Wang GM. Electron transfer photochromism of ln-based (ln = Dy, Tb) coordinated polymers for reversibly switching off/on single-molecule magnetic behavior. Sci China Mater. 2022;65:788–794.
32.
Cai LZ, Guo PY, Wang MS, Guo GC. Photoinduced magnetic phase transition and remarkable enhancement of magnetization for a photochromic single-molecule magnet. J Mater Chem C. 2021;9:2231–2235.
33.
Cai LZ, Chen QS, Zhang CJ, Li PX, Wang MS, Guo GC. Photochromism and photomagnetism of a 3d–4f hexacyanoferrate at room temperature. J Am Chem Soc. 2015;137(34):10882–10885.
34.
Zhang Q, Wei WJ, Li Q, Pan J, Han SD, Hu JX, Wang GM. Light enhanced proton conductivity in a terbium phosphonate photochromic chain complex. Sci China Chem. 2021;64:1170–1176.
35.
Xia B, Gao Q, Hu ZP, Wang QL, Cao XW, Li W, Song Y, Bu XH. Concomitant photoresponsive chiroptics and magnetism in metal-organic frameworks at room temperature. Research. 2021;2021:5490482.
36.
Hu JX, Li Q, Zhu HL, Gao ZN, Zhang Q, Liu T, Wang GM. Achieving large thermal hysteresis in an anthracene-based manganese(II) complex via photo-induced electron transfer. Nat Commun. 2022;13:2426.
37.
Han SD, Hu JX, Wang GM. Recent advances in crystalline hybrid photochromic materials driven by electron transfer. Coord Chem Rev. 2022;452: Article 214304.
38.
Liu L, Liu Q, Li R, Wang MS, Guo GC. Controlled photoinduced generation of “visual” partially and fully charge separated states in viologen analogues. J Am Chem Soc. 2021;143(5):2232–2238.
39.
Li Q, Zhang Q, Wei WJ, Wang AN, Hu JX, Wang GM. Light actuated stable radicals of the 9-anthracene carboxylic acid for designing new photochromic complexes. Chem Commun. 2021;57(35):4295–4298.
40.
Jia JH, Li QW, Chen YC, Liu JL, Tong ML. Luminescent single-molecule magnets based on lanthanides: Design strategies, recent advances and magneto-luminescent studies. Coord Chem Rev. 2019;378:365–381.
41.
Huang XD, Hong BK, Wen GH, Li SH, Zheng LM. Photo-controllable heterostructured crystals of metal–organic frameworks via reversible photocycloaddition. Chem Sci. 2023;14(7):1852–1860.
42.
Huang XD, Ma XF, Zheng LM. Photo-responsive single-molecule magnet showing 0D to 1D single-crystal-to-single-crystal structural transition and hysteresis modulation. Angew Chem Int Ed Engl. 2023;62(15): Article e202300088.
43.
Zhang ZL, Yao DD, Zhou TL, Zhang HY, Wang Y. Reversible piezo- and photochromic behaviors accompanied by emission color switching of two anthracene-containing organic molecules. Chem Commun. 2011;47:7782–7784.
44.
Chen JF, Gong DP, Wen J, Ma HB, Cao DK. 2-(Anthracenyl)-4,5-bis(2,5-dimethyl(3-thienyl))-1H-imidazole: Regulatable stacking structures, reversible grinding- and heating-induced emission switching, and solid-state photodimerization behavior. Chem Sci. 2016;7:451–456.
45.
Huang N, Ding X, Kim J, Ihee H, Jiang D. A Photoresponsive smart covalent organic framework. Angew Chem Int Ed. 2015;54(30):8704–8707.
46.
Yutaka T, Obara S, Ogawa S, Nozaki K, Ikeda N, Ohno T, Ishii Y, Sakai K, Haga MA. Syntheses and properties of emissive iridium(III) complexes with tridentate benzimidazole derivatives. Inorg Chem. 2005;44(13):4737–4746.
47.
Cai LZ, Chen XY, Wang MS, Guo GC. Photochromic lanthanide(III) materials with ion sensing based on pyridinium tetrazolate zwitterion. ACS Omega. 2019;4(4):7492–7497.
48.
Xu PX, Yu Q, Chen Y, Cheng P, Zhang ZJ. Protective coating with crystalline shells to fabricate dual-stimuli responsive actuators. CCS Chem. 2022;4(1):205–213.
49.
Hu FL, Mi Y, Zhu C, Abrahams BF, Braunstein P, Lang JP. Stereoselective solid-state synthesis of substituted cyclobutanes assisted by pseudorotaxane-like MOFs. Angew Chem Int Ed Engl. 2018;57(39):12696–12701.
50.
Wang MF, Yan M, Hu FL, Hirao H, Niu Z, Braunstein P, Lang JP. Controllable multiple-step configuration transformations in a thermal/photoinduced reaction. Nat Commun. 2022;13:2847.
51.
Harada J, Ogawa K, Tomoda SJ. The central C–C bond length in the bi(anthracene-9,10-dimethylene) photoisomer: Unusual elongation and crystalline state reaction. Chem Lett. 1995;24(8):751–752.
52.
Li SL, Han M, Zhang Y, Li GP, Li M, He G, Zhang XM. X-ray and UV dual photochromism, thermochromism, electrochromism, and amine-selective chemochromism in an Anderson-like Zn7 cluster-based 7-fold interpenetrated framework. J Am Chem Soc. 2019;141(32):12663–12672.
53.
Bhola R, Payamyar P, Murray DJ, Kumar B, Teator AJ, Schmidt MU, Hammer SM, Saha A, Sakamoto JJ, Schlüter AD, et al. A two-dimensional polymer from the anthracene dimer and triptycene motifs. J Am Chem Soc. 2013;135(38):14134–14141.
54.
Zhang NN, Sa RJ, Sun SS, Li MD, Wang MS, Guo GC. Photoresponsive triazole-based donor–acceptor molecules: Color change and heat/air-stable diradicals. J Mater Chem C. 2019;7:3100–3104.
55.
Yang YS, Yang XG, Fang XY, Wang KZ, Yan DP. Reversible mechanochromic delayed fluorescence in 2d metal–organic micro/nanosheets: Switching singlet–triplet states through transformation between exciplex and excimer. Adv Sci. 2018;5(11):1801187.
56.
Ma YJ, Xiao GW, Fang XY, Chen TH, Yan DP. Leveraging crystalline and amorphous metal-organic complex for transformation of photosalient effect and positive-negative photochromism. Angew Chem Int Ed Engl. 2023;62(11): Article e202217054.
57.
Zhao JQ, Ma YY, Zhao XJ, Gao YJ, Xu ZY, Xiao PC, Yue CY, Lei XW. Stepwise crystalline structural transformation in 0D hybrid antimony halides with triplet turn-on and color-adjustable luminescence switching. Research. 2023;6:0094.
58.
Liu J, Chen YC, Liu JL, Vieru V, Ungur L, Jia JH, Chibotaru LF, Lan YH, Wernsdorfer W, Gao S, et al. A stable pentagonal bipyramidal Dy(III) single-ion magnet with a record magnetization reversal barrier over 1000 K. J Am Chem Soc. 2016;138(16):5441–5450.
59.
Zhang P, Perfetti M, Kern M, Hallmen PP, Ungur L, Lenz S, Ringenberg MR, Frey W, Stoll H, Rauhut G, et al. Exchange coupling and single molecule magnetism in redox-active tetraoxolene-bridged dilanthanide complexes. Chem Sci. 2018;9(5):1221–1230.
60.
Galván IF, Vacher M, Alavi A, Angeli C, Aquilante F, Autschbach J, Bao JJ, Bokarev SI, Bogdanov NA, Carlson RK, et al. OpenMolcas: From source code to insight. J Chem Theory Comput. 2019;15(11):5925–5964.
61.
Chibotaru LF, Ungur L, Soncini A. The origin of nonmagnetic Kramers doublets in the ground state of dysprosium triangles: Evidence for a toroidal magnetic moment. Angew Chem Int Ed Engl. 2008;47(22):4126–4129.
62.
Ungur L, Van den Heuvel W, Chibotaru LF. Ab initio investigation of the non-collinear magnetic structure and the lowest magnetic excitations in dysprosium triangles. New J Chem. 2009;33(6):1224–1230.
63.
Chibotaru LF, Ungur L, Aronica C, Elmoll H, Pilet G, Luneau D. Structure, magnetism, and theoretical study of a mixed-valence CoII3CoIII4 heptanuclear wheel: Lack of SMM behavior despite negative magnetic anisotropy. J Am Chem Soc. 2008;130(37):12445–12455.
64.
Lines ME. Orbital angular momentum in the theory of paramagnetic clusters. Orbital angular momentum in the theory of paramagnetic clusters. J Chem Phys. 1971;55:2977–2984.
