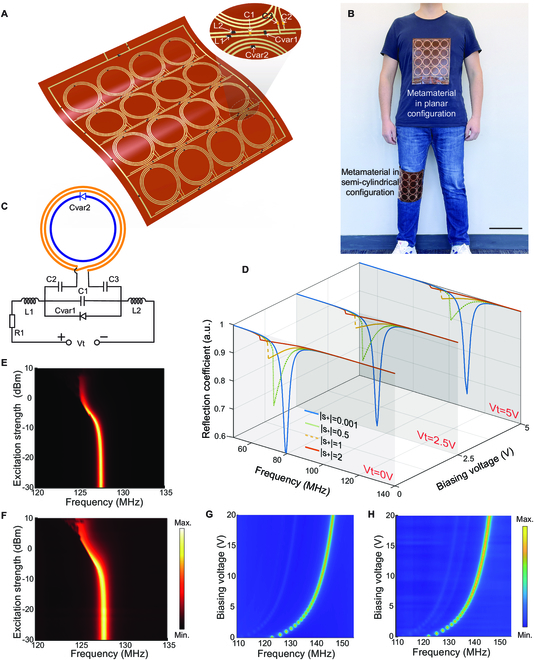

To address the aforementioned general and inherent limitations of conventional metamaterials, we fabricated a conformal metamaterial with frequency tunability and self-adaptivity for MRI applications (Text S1, Fig. S1, and Table S1). The ultra-thin, flexible structure serves to ensure a conformal approximation between the metamaterial and the surface of the object of interest as well as alleviates potential patient discomfort due to inherently rigid, bulky structures. The designed metamaterial consists of a unit cell array arranged in a 4 × 4 fashion, fabricated on an ultra-thin flexible polyimide substrate, as depicted in Fig. 1A and B. The unit cells feature a controlling circuit loaded spiral resonator (CCLSR) inductively coupled with a varactor loaded ring resonator (VLRR), whose equivalent circuit diagram is plotted in Fig. 1C. In the controlling circuit, capacitors C₂ and C₃ isolate the 2-turn spiral coil from the biasing voltage. Capacitor C₁ is used to roughly adjust the resonance frequency of the CCLSR to match the Larmor frequency, while resistor R₁ limits the current in the circuit. Since the unit cells in the metamaterial are electrically connected through the biasing voltage lines, inductors L₁ and L₂ are employed to provide isolation between them. The varactor C_var1 offers variable capacitance controlled by the biasing voltage V_t. The resonance frequency of the CCLSR may be expressed as \omega =1/\sqrt{\mathit{LC}} , in which the inductance L is predominantly attributed to the inductance of the spiral coil, while the effective capacitance C may be expressed by:in which C_s is the distributed capacitance in the spiral coil, C₀ is the initial capacitance of varactor C_var1, M is a fitting exponent, and V_P is the intrinsic potential of the varactor obtained from the data sheet. V_t is the voltage across the varactor applied by the controlling circuit. As for the VLRR component, its effective inductance mainly results from the inductance of the ring loop, with its capacitance being expressed by [27,32]:in which V_D is the voltage across the varactor C_var2. Unlike the driving voltage V_t across the varactor C_var1, which could be adjusted at will by the controlling circuit, the voltage across the varactor C_var2 results from the rectifying effect of the diode junction when excited by an RF wave. Consequently, the discrepancy in excitation field strength will automatically trigger the adaptive behavior. When excited by an RF wave with relatively low power, the induced voltage V_D is much smaller than V_P, resulting in an effective capacitance of the VLRR close to the initial capacitance of the varactor C₀. However, when excited by an RF wave of high power, the oscillation strength of the VLRR becomes stronger, inducing a higher driving voltage across the varactor C_var2, which, in turn, increases the capacitance of the varactor, thereby shifting the resonance frequency to a lower value. Simultaneously, the bistable nonlinear behavior in the amplitude response will result in an attenuation of the oscillating strength when the excitation strength reaches a sufficiently high level. This excitation-dependent response endows the VLRR with the desired self-adaptivity to the power strength of the incident excitation. Of note, the integrated electronic components employed in the metamaterial will introduce series resistance, which inevitably introduces loss and reduces the Q value of the metamaterial. To achieve the optimal performance of the metamaterial, we investigated and evaluated the impact of the series inner resistance on the SNR enhancement performance in Text S2, Fig. S2, and Table S2. When these 2 resonators, i.e., the tunable CCLSR and the self-adaptive VLRR, are placed in close proximity to one another, they strongly interact with one another, which may be expressed by the coupling factor k. Their resonance response may be mathematically described using the coupled-mode theory (CMT) [41,42]. Assuming that the external excitation signal is a harmonic function with frequency ω (i.e., s₊ = |s₊|e^jωt), the oscillating amplitude of the 2 resonators may be calculated by numerically solving the matrix equations:In the expression, the subscripts “1” and “2” denote the resonator CCLSR and the VLRR, respectively. a_n (where n = 1 or 2) is the mode amplitude of the resonator, ω_n represents the self-resonance frequency, and 1/τ_en and 1/τ_0n are the decay rates due to radiation and intrinsic losses, respectively. s+ is the excitation signal, and \sqrt{2/{\tau }_{\mathit{en}}} is the coefficient representing the degree of coupling between the resonator and the excitation wave. ω₁ is a function of the biasing voltage V_t applied in the CCLSR, and ω₂ depends on the oscillation strength of the VLRR. Consequently, the overall response of the unit cell (when considering the CCLSR and VLRR components as a whole) is not only modulated by the biasing voltage V_t, but also dependent on the excitation power strength. The reflection coefficient of the unit cell may be expressed by [41]:The reflection spectra as a function of incident wave s₊ with varying power levels and biasing voltages V_t are plotted in Fig. 1D. Details of the calculations can be found in Text S3 and Table S3. The dips in the curves indicate the resonance frequency and the oscillation strength of the unit cell. At a given biasing voltage (e.g., V_t = 0 V), when the excitation power strength is low (e.g., |s₊| = 0.001), the unit cell resonates at the designated resonance frequency with a strong oscillation amplitude, which yields a marked magnetic field enhancement in the vicinity of the unit cell. As the excitation power increases, the resonance of the unit cell shifts to a lower frequency. Additionally, the peak oscillation amplitude at the resonance frequency decreases along with the frequency shift, which results from the bistable nonlinear behavior in the amplitude response of the VLRR [32]. The attenuation of the peak amplitude resulting from the strong excitation field ensures that the unit cell will not enhance the magnetic field and will not interfere with the incident RF wave. Another notable property of the unit cell is the frequency tunability introduced by the controlling circuit. When the biasing voltage is adjusted to 2.5 or 5 V, as shown in Fig. 1D, the resonance frequency shifts to a higher value, and this variation in biasing voltage does not impact the self-adaptive response to the incident power. In this manner, the resonance frequency can be precisely tuned to ensure a frequency match without disrupting the self-adaptive response to the excitation power strength.

With the aforementioned fundamental mechanism of the unit cells within the metamaterial, we sought to experimentally validate the resultant advanced properties through the assembly of the meta-atoms. Initially, the metamaterial was configured in a planar shape (Fig. S3A), with the resonance frequency tuned to ~127 MHz. The self-adaptive response to the excitation power strength was verified using a network analyzer with adjustable excitation power. The reflection spectra S11 were measured across a range of excitation power strengths, with the results plotted in Fig. 1E. Initially, the resonance frequency of the metamaterial remained constant at ~127 MHz, with minimal change in oscillation amplitude for excitation power level within −8 dBm. As the excitation power strength increased, the resonance frequency shifted to a lower value, accompanied by an attenuation of the oscillation amplitude. When the excitation power strength reached a sufficiently high level (e.g., >7 dBm), an abrupt transition in the spectrum occurred, and oscillation in the metamaterial ceased. In the case of MRI, the RF power during the reception phase is in the μW range, while the power during the transmission phase reaches the kW range [43]. This marked difference in power levels between the reception and transmission phases in MRI is sufficiently large to cause the metamaterial to exhibit its self-adaptive response as a function of excitation power strength. A comparative schematic illustration of the proposed metamaterial and a conventional nonadaptive metamaterial, showing how they interact with the transmission and reception fields in an MRI system, is depicted in Fig. S4. Next, in an effort to mirror more optimal geometries for imaging nonplanar portions of the human anatomy (wrist, knee, or neck, for example) in a conformal fashion, we measured the S11 of the curved, semi-cylindrical metamaterial (Fig. S3B). In this case, as plotted in Fig. 1F, an identical response was observed, indicating that the deformation of the metamaterial has no impact on its self-adaptivity. Compared to previous methods that achieved self-adaptivity by integrating a linear metamaterial with a nonlinear ring, introducing nonlinearity to every unit cell within the metamaterial ensures robust self-adaptivity and effective passive detuning. This approach remains effective under large deformations of the metamaterial and allows for arbitrary extensions of the number of unit cells, enabling diverse configurations. Besides the nonlinearity of the metamaterial, the S11 were measured using a sweep of the biasing voltage to verify its frequency tunability. As the applied biasing voltage changes, the effective capacitance of the varactor C_var1 adjusts accordingly. Since the metamaterial's resonance frequency depends on the effective capacitance of this varactor, the resonance frequency can be actively tuned by controlling the applied biasing voltage. From the experimental results plotted in Fig. 1G, as the biasing voltage increases from 0 to 20 V, the resonance frequency of the metamaterial could be adjusted from 123.5 to 147.0 MHz. Subsequently, a similar experiment was performed with the metamaterial in its semi-cylindrical configuration, with the test results plotted in Fig. 1H. As shown, a resonance frequency tuning range (122.8 to 146.5 MHz) is achieved with the adjustment of the biasing voltage from 0 to 20 V, demonstrating that the curvature of the metamaterial has a negligible effect on its frequency tuning range. Importantly, the ~23-MHz frequency tuning range is sufficient to compensate for detuning effects arising from load variations or structural deformations, which lead to frequency shifts of less than 1.5 MHz (Text S4 and Fig. S5). In comparison to the existing mechanical frequency tunability of previously reported metamaterials, the voltage-driven tunability demonstrates superior precision and responsiveness, allowing for more refined control of the resonance frequency, enabling a simplified, faster workflow while maintaining excellent image quality. These EM characterizations for the metamaterial in different configurations further validate its advanced properties for real-world clinical MRI applications.

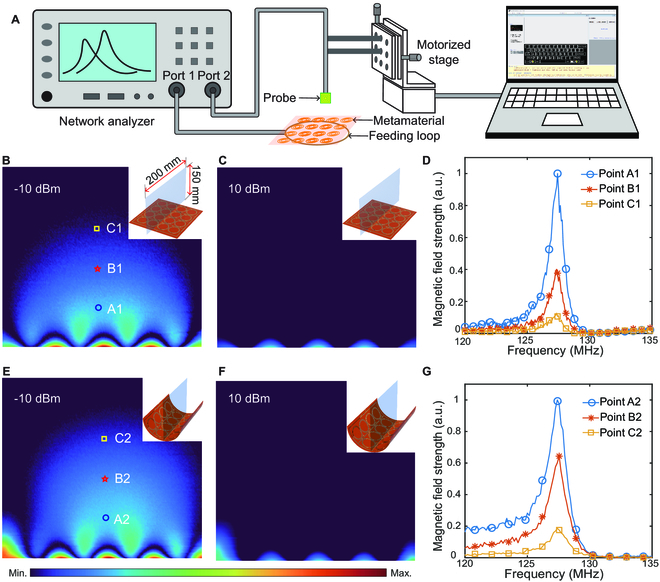

To experimentally demonstrate magnetic field confinement and enhancement by the metamaterial, a near-field mapping setup was built to measure the magnetic field patterns in the space (Fig. 2A and Fig. S6). First, the planar metamaterial was excited by an RF power of −10 dBm. The normalized magnetic field distribution on the cutting plane (indicated by the blue plane shown in the inset of Fig. 2B) was measured and depicted in Fig. 2B. In the vicinity of the metamaterial, the resonant oscillating currents within the unit cells collectively boost the original excitation magnetic field. This enhanced magnetic field pattern identifies the optimal region for placing samples to be imaged in MRI. Using the same experimental setup, the magnetic field was also mapped under a higher excitation power of 10 dBm, as shown in Fig. 2C. In contrast, the magnetic field strength approximates 0, validating that the metamaterial effectively turned “off” under high power excitation. The absence of an appreciable magnetic field in this case further demonstrates its self-adaptive response to the transmitting field B1+ when applied to MRI. In addition, the spectra of the magnetic field strength at 3 distinct locations 30, 70, and 110 mm away from the metamaterial surface (labeled as points A1, B1, and C1 in Fig. 2B) are plotted in Fig. 2D. The magnetic field is maximized at the resonance frequency regardless of the measured location. However, any shift from the resonance frequency substantially reduces the magnetic field strength. For instance, a 2-MHz shift from the resonance frequency results in a 70% decrease in field strength, highlighting the importance of precise frequency matching between the metamaterial and the MRI system. Next, magnetic field distributions were mapped for the metamaterial configured in a semi-cylindrical shape. The magnetic field patterns under excitation powers of −10 and 10 dBm are plotted in Fig. 2E and F, respectively, and the spectra of the magnetic field strength at the same locations are presented in Fig. 2G. Similar conclusions may be drawn from these results for the semi-cylindrical metamaterial. Furthermore, by comparing the spectra of the magnetic field strength in Fig. 2D and G, it is evident that the semi-cylindrical configuration of the metamaterial has a notable advantage: The field strength decays more slowly than with the planar metamaterial, resulting in a greater penetration depth of the field enhancement. This increased penetration depth has important practical implications for clinical MRI, where imaging deeper anatomical structures may be of interest. In addition to the experimental results, we also built a numerical simulation model to investigate the magnetic field distribution, including both magnitude and phase information (Text S5 and Figs. S7 and S8). The experimental near-field mapping results closely align with the simulated magnetic field patterns, confirming the accuracy of the experimental findings. Moreover, the simulated phase information of the magnetic field in regions distant from the metamaterial indicates that there are no phase transition regions where the original and induced magnetic fields cancel each other. This prevents RF artifacts in the imaging area due to magnetic field cancellation when the metamaterial is applied to the MRI system.

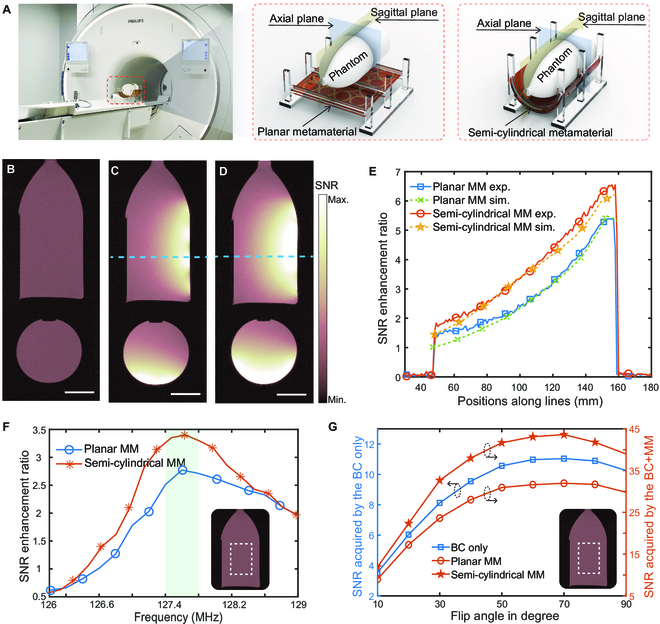

To evaluate the performance of this metamaterial when incorporating with the body coil (BC) in MRI, experimental validations of the SNR enhancement were conducted using a clinical 3T MRI system (Philips Healthcare), as shown in Fig. 3A. The SNR evaluations were performed using the 2-image method (Fig. S9) [18,23,29,31,44], which adheres to the standards set by the National Electrical Manufacturers Association (NEMA) for SNR determination in diagnostic MRI [45]. To validate this approach, we employed another 2 alternative SNR assessment methods recommended by NEMA. The close agreement among these 3 distinct methods confirms the reliability of the 2-image method (Text S6 and Fig. S10). A bottle-shaped phantom filled with mineral oil was initially scanned by the BC in the absence of the metamaterial, which was completely removed from the MRI scanner, serving as a reference standard. The SNR image in the sagittal and axial planes (indicated as the rectangular cutting plane in yellow and the square cutting plane in blue in Fig. 3A) are depicted in Fig. 3B. Next, the phantom was placed on top of the finely tuned metamaterial, with a separation distance of approximately 20 mm. Using the same imaging sequences as the reference, the phantom was scanned by the BC with the planar and semi-cylindrical metamaterials, and the corresponding SNR images are depicted in Fig. 3C and D, respectively. In contrast to the uniform pattern observed in the reference image, the SNR images enhanced by the metamaterials exhibit patterns similar to those in the near-field mapping results in Fig. 2B and E. This further supports the direct correlation between the degree of magnetic field enhancement and resulting SNR enhancement during image acquisition. Moreover, the SNR enhanced by the metamaterials along the dashed lines in the image (shown in Fig. 3C and D) were extracted and normalized to the reference, as plotted in Fig. 3E. This analysis reveals a substantial overall SNR enhancement, up to 6.5-fold compared to the acquisition without the metamaterial. The SNR enhancement ratio by the semi-cylindrical metamaterial was higher at its maximum and decayed at a slower rate compared to the planar configuration, due to the superimposition effects noted above. The mechanism of SNR enhancement by the metamaterial was further explored by deriving the governing equation for SNR, originally formulated by [46]:in which B_c is the magnetic field strength generated with unit current in the receiving coil and ω is the Larmor frequency. According to Eq. 5, there are 3 principal dissipative elements contributing to noise sources in MRI. The first is the series resistance of the receive coil R_BC, which results from conductive loss in the receive coil. The second is the equivalent series resistor R_sample, representing power loss in the sample or patient due to induced eddy currents. The third is the equivalent series resistance R_mm, which accounts for conductive power dissipation in the metamaterial. Since the Larmor frequency ω is directly proportional to the static field strength B₀, it is a constant value for the experimental setup described here. Thus, the analytical SNR enhancement ratio could be calculated by dividing the simulated magnetic field strength by the square root of the total power dissipation in the BC, metamaterial, and phantom, with all these parameters readily to be extracted from the simulation results (Text S7 and Fig. S11). The analytical results, plotted in Fig. 3E, show a high degree of agreement with the MRI experimental results.

To obtain a comprehensive understanding of the correlation between metamaterial enhancement performance and its resonance frequency, we conducted a series of scans of the phantom across a range of resonance frequencies, spanning from 126 to 129 MHz with increments of 0.25 MHz. We extracted the mean SNR values from the outlined regions (as depicted in the inset figure of Fig. 3F) and plotted them as a function of resonance frequency in Fig. 3F. Based on the curve, it can be inferred that the optimal resonance frequency for the metamaterials lies at approximately 127.6 MHz. The optimal frequency for the proposed metamaterials slightly offsets from the Larmor frequency in the 3T MRI system, primarily due to the coupling phenomenon between the metamaterial and the BC. Additionally, for conventional metamaterials without self-adaptivity, their introduction would enhance not only the RF reception field B1− but also transmission field B1+, potentially causing marked image artifacts or even imaging failure. Consequently, to counteract the enhancement of B1+ caused by conventional metamaterials, the transmission energy is generally reduced by decreasing the FA accordingly. To demonstrate the superiority of this self-adaptive metamaterial in this work, another set of MRI validations was performed by imaging the phantom with a sweep in FA from 10° to 90°. The mean value of SNR in the area of interest (outlined by the dashed white rectangle shown in the inset figure of Fig. 3G) as a function of FA is plotted in Fig. 3G. The SNR variations with the sweep of FAs exhibit the same trend, regardless of the absence or presence of the metamaterial. The results further demonstrate that the metamaterial shows an excellent passive detuning and self-adaptive response to B1+ and B1− during the transmission and reception phases.

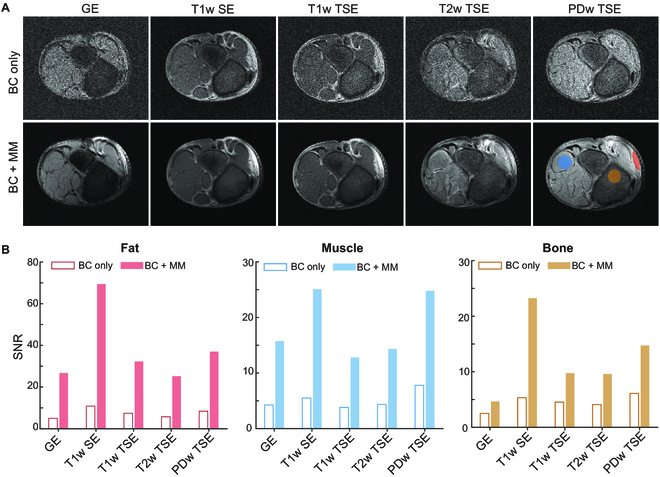

In addition to the mineral oil phantom, an ex vivo porcine leg sample was employed in the experimental MRI validations with the BC to preliminarily demonstrate the performance of the metamaterial in biomedically relevant imaging. As opposed to the gradient echo (GE) imaging employed for the mineral oil phantom, T1-weighted turbo spin echo (T1w TSE) imaging featuring a series of 180° refocusing pulses following a single 90° excitations pulse was used for this validation. The porcine leg was wrapped with the metamaterial (Fig. S12), and 8 slices (images) on the axial plane were scanned in the absence and presence of the metamaterial (Fig. S13). These images provide a preliminary demonstration of the potential of the metamaterial to enhance SNR in complex anatomical settings. From the multiple slices obtained with T1w TSE, we selected the cutting plane position for slice #5 in Fig. S13 and conducted scans on the same plane using 4 mainstay pulse sequences commonly used in clinical MRI: GE, T1-weighted spin echo (T1w SE), T2-weighted turbo spin echo (T2w TSE), and proton density-weighted turbo spin echo (PDw TSE). The slices (images) scanned in the absence and presence of metamaterials are depicted in Fig. 4A. Notably, compared to images acquired using the BC only, images with enhanced SNR were achieved in the presence of the metamaterial, although different tissues (fat, muscle, bones, and bone marrow) were included in the leg. Additionally, the result proves that the metamaterial is readily compatible with a variety of clinical RF pulse sequences frequently used in clinical MRI. For quantitative analysis of SNR enhancement in specific tissues, we plotted bar graphs of SNR mean values for muscle, fat, and bone in Fig. 4B. The results reveal substantial SNR gains attributed to the introduction of the metamaterial. Moreover, a larger biological sample, a pineapple, was scanned with the metamaterial in an arc shape between the planar and semi-cylindrical shapes (Text S8 and Fig. S14), further highlighting the potential utility of metamaterial-enhanced MRI.

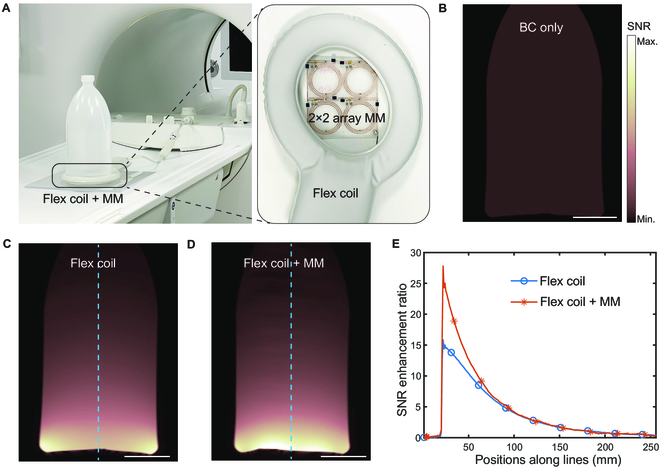

In this work, our primary objective was to design an advanced metamaterial to enhance the SNR of MRI as an auxiliary device. The metamaterial is not intended to replace current commercial surface coils but rather to augment the imaging capabilities of existing receive coils, including both the BC and surface coils, through their integration. We have demonstrated that the metamaterial may be combined with the BC to boost the imaging power of MRI. More importantly, the metamaterial presented here has the potential to be integrated with surface coils to further enhance their imaging capabilities. To this end, we investigated the performance of the metamaterial when incorporating with the commercial surface coils. We constructed a metamaterial in a 2 × 2 array and integrated it into the dStream Flex M surface coil (Philips Healthcare), as shown in Fig. 5A. Initially, the phantom was scanned separately using the BC and the Flex surface coil only, without the integration of the metamaterial, as shown in Fig. 5B and C. Subsequently, we conducted another scan using the Flex surface coil with the metamaterial integrated. The resulting SNR image is presented in Fig. 5D. For quantitative comparisons, we extracted the SNR enhancement ratio along dashed lines in Fig. 5C and D by normalizing to the BC-only image, as shown in Fig. 5E. The switch from the BC to the Flex coil resulted in a dramatic improvement in SNR. Specifically, there was an approximately 15-fold increase in SNR at the bottom of the phantom near the Flex coil. More importantly, the integration of the metamaterial into the Flex coil led to a nearly 2-fold increase in SNR compared to the Flex coil only image. These MRI validations demonstrate that metamaterials have the potential to not only enhance the imaging capabilities of the BC but also substantially improve the performance of surface coils. This opens up new possibilities for the application of metamaterials in MRI across a wide range of scenarios.

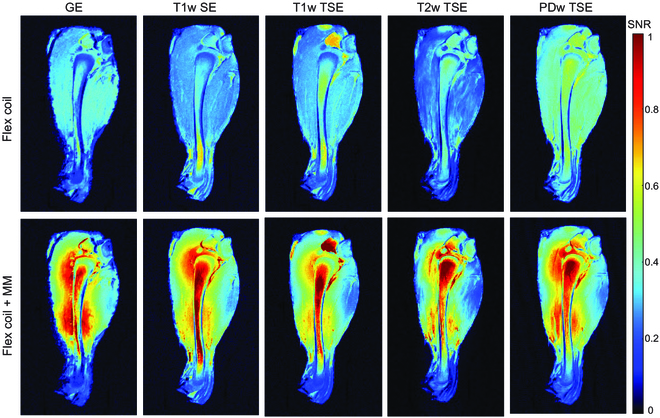

Finally, we sought to validate the performance of surface coil enhanced by the metamaterial with an ex vivo chicken leg. We placed the chicken leg on top of the Flex coil and employed the same scanning sequences previously used with the porcine leg. SNR maps of the chicken leg were generated by normalizing to the background noise level, as shown in Fig. 6. By comparing the images acquired using the Flex coil with and without the integrated metamaterial, we observed that the metamaterial has the potential to enhance not only the performance of the BC but also that of surface coils. This suggests its applicability for improving the imaging capabilities of MRI across various clinical RF transmission pulse sequences commonly used in MRI.

The reported metamaterial was fabricated using 0.089-mm-thick copper foil tape, supported on a flexible polyimide film (Kapton) dielectric layer with dimensions of 305 × 305 mm and a thickness of 0.013 mm. The CCLSR had an inner radius of 20.4 mm, a strip width of 0.8 mm, and an inter-strip spacing of 0.8 mm. The VLRR, sharing the same concentric point with the CCLSR, had an inner radius of 18.8 mm and a strip width of 0.8 mm. The metamaterial was realized by assembling 4 × 4 and 2 × 2 arrays, with the column separation distance of neighboring unit cells being 45.6 mm, and the row separation distance being 48.8 mm. Biasing voltage lines were inserted between the neighboring rows for applying biasing voltage to the controlling circuits of each unit cell.

A vector network analyzer (VNA; E5071C, Keysight Inc.) with a feeding loop was employed to excite the magnetic resonance of the metamaterial. To precisely measure the resonance frequency of the metamaterial, we moved the feeding loop from a distance and gradually approached the metamaterial. When the reflection spectrum began to show a dip, we stabilized the feeding loop to record the spectrum. This method avoids excessive coupling between the feeding loop and the metamaterial, as over-coupling could slightly shift the self-resonance frequency. The reflection spectra were measured with a biasing voltage sweep from 0 to 20 V in steps of 0.5 V. For characterizing the metamaterial's self-adaptivity to excitation power strength, the biasing voltage was adjusted to tune the resonance frequency to ~127 MHz. The reflection spectra were measured with an excitation power sweep from −30 to 10 dBm in steps of 1 dBm.

Numerical simulations were performed using CST Microwave Studio software. The simulation model's dimensions were identical to the fabricated sample described above. The mineral oil phantom was modeled with a relative permittivity of 2.1, electric conductivity of 0.175 S/m, and material density of 800 kg/m³.

In this setup, a feeding loop with a diameter of 250 mm was connected to port 1 of the VNA. The RF signal fed into the coupling loop served as the excitation wave. A small circular loop with a diameter of 10 mm served as the probe, connected to port 2 of the VNA via a coaxial cable. The judiciously designed probe size was small enough to minimize its impact on the field distribution of the metamaterial, ensuring a high spatial resolution of the magnetic field mapping. Simultaneously, it was large enough to detect the magnetic field near the metamaterial when excited by low power. The probe was mounted on a 2-dimensional motorized stage controlled by a computer, allowing for data collection across a wide array of locations surrounding the metamaterial. Measurements were taken at 200 × 150 data points over an area of 200 × 150 mm. The transmission coefficient (S21) was measured to indicate the magnetic field strength.

For MRI validations with a phantom, a GE imaging sequence was employed using a repetition time (TR) of 100 ms and an echo time (TE) of 4.6 ms. GE imaging was first performed to capture a phantom image (Fig. S9A), followed by capturing a noise image by shutting down the transmission RF coil (Fig. S9B). The SNR images of the phantom were calculated by taking the ratio between the mean value of the magnitude phantom image and the standard deviation of the noise image. The ex vivo samples of porcine and chicken legs used in this work were obtained from a local butcher shop.
