Commentary
Photoelectrochemical High-Value-Added Chemical Production with Improved Selectivity
Full
Yingzhe Li2, Tao Chen1, *, Yihuang Chen3, *
Affiliations
  • 1Hubei Key Laboratory of Radiation Chemistry and Functional Materials, Hubei University of Science and Technology, Xianning, Hubei 437100, China.
  • 2State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences, Wuhan 430074, China.
  • 3College of Chemistry and Materials Engineering, Wenzhou University, Wenzhou, Zhejiang 325035, China.
Published: 2024-12-23 doi: 10.34133/research.0557
Outline
收藏切换

Photoelectrochemistry provides an important application in the production of high-value-added chemicals. However, photoelectrochemical organic transformation with high product selectivity remains a challenge. Until now, various technologies have been developed to promote the selectivity of photoelectrochemical high-value-added chemical production. Herein, a novel ion-shielding heterogeneous photoelectrocatalysis strategy for the production of trifluoromethyl group (CF3)-containing compounds with high selectivity is described.

Yingzhe Li, Tao Chen, Yihuang Chen. Photoelectrochemical High-Value-Added Chemical Production with Improved Selectivity[J]. Research, 2024 , 7 (12) : 0557 . DOI: 10.34133/research.0557
To date, a variety of organic transformations have been achieved by electrochemically driven oxidation, which needs a large amount of electrical power. In contrast, photoelectrochemical (PEC) technology is highly attractive due to its reduced energy consumption with solar light assistance [1]. Nevertheless, undesired by-products are generated on the photoanodes due to the robust oxidizing capability of photoanodes and overoxidation of products, leading to a low product selectivity [2]. Thus, the development of PEC-selective oxidation of small molecules to target high-value-added chemicals is a highly demanding undertaking.
Trifluoromethyl group (CF3)-containing compounds are important in pharmaceuticals, agrochemicals, and organic materials due to their unique electronic structure and reactivity. As a consequence, the incorporation of CF3 into organic molecules has received intensive attention, as naturally occurring CF3-containing molecules are rare [3]. A traditional method for trifluoromethylation is metal-catalyzed direct C–H trifluoromethylation, mostly dominated by expensive trifluoromethylating reagents. Recently, trifluoroacetate salts and trifluoroacetic acid (TFA) have emerged as promising sources of trifluoromethyl groups (CF3) for their abundant and cost-effective properties [4]. In spite of remarkable advances, this decarboxylative pathway is hampered by the high oxidation potential of CF3COO (2.28 V versus a saturated calomel electrode), which needs harsh reaction conditions, such as stoichiometric amounts of external oxidants and highly oxidizing electrochemical conditions. More recently, in a Science paper, Chen et al. [5] from Zhejiang University realized highly efficient trifluoromethylation of (hetero)arenes via ion-shielding heterogeneous photoelectrocatalysis (IonShield-hPEC) under mild conditions. During the PEC trifluoromethylation of mesitylene, TFA is oxidized by photogenerated holes in the valence band of WO3 to generate the trifluoromethyl radical via decarboxylation. The trifluoromethyl reacts with the arene substrate to produce the trifluoromethyl arene radical, which is converted to the desired trifluoromethylated arene through a single-electron transfer process and subsequent deprotonation.

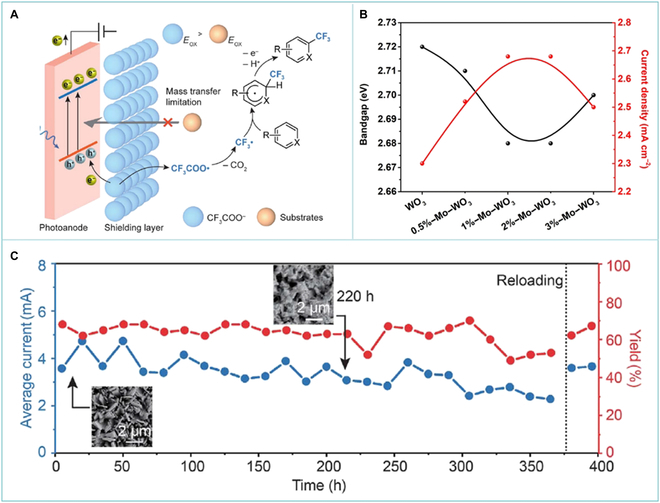

More importantly, negatively charged CF3COO was absorbed on the surface of WO3 photoanodes via electrostatic attraction, forming an ion-shielding layer. The absorbed CF3COO restricted the direct contact between the photoanode and the easier-to-oxidize mesitylene and thus prevented undesired mesitylene oxidation (Figure). During the PEC process, the current density did not show obvious change along with the increase in the concentration of the substrate mesitylene, confirming that the oxidation of CF3COO was favored over that of mesitylene under the IonShield-hPEC system. In contrast, mesityl trifluoroacetate was the main product via the direct oxidation of mesitylene without an ion-shielding layer due to its low oxidation potential (1.88 V versus a saturated calomel electrode). To improve PEC performance, Mo was doped into the WO3 photoanode in the range of 0.5% to 3.0% (Figure). After modification, over 69% yield of trifluoromethylated product was detected under mild conditions. Moreover, the stability of photoanodes is also important to PEC performance. In order to improve the stability of photoanodes, HCl was replaced by TFA during the preparation of Mo-doped WO3 photoanodes via the hydrothermal method. The photocurrent density of Mo-doped WO3 photoanodes remained a constant value throughout an around 380-h reaction with acceptable yield after modification (Figure). Furthermore, the original activity could be restored after reloading the used fluorinated tin oxide with new photoanodes, leading to a substantial reduction in the cost of photoanodes. Ultimately, large-scale PEC trifluoromethylation was achieved by numbering up modular photoanodes.
PEC oxidation of small molecules is crucial for alleviating the dependence on fossil fuels. IonShield-hPEC decarboxylative trifluoromethylation provides a distinct strategy for highly effective and selective PEC high-value-added chemical production. The directions of further research are stated below. PEC efficiency could be further enhanced via the modification of photoanodes, such as defect engineering, crystal facet modulation, heterojunction construction, and cocatalyst deposition. Employing single-atom noble metals with well-defined active centers for surface modification of photoanodes is expected to achieve PEC value-added chemicals with high selectivity.
  • the National Natural Science Foundation of China(51902297, 12175200 and 22109120)
  • Science Development Foundation of Hubei University of Science and Technology(no.2022T03)
  • State Key Laboratory of New Textile Materials and Advanced Processing Technologies(FZ2023005)
1.
Balog Á, Kecsenovity E, Samu GF, He J, Fekete D, Janáky C. Paired photoelectrochemical conversion of CO2/H2O and glycerol at high rate. Nat Catal. 2024;7(5):1–14.
2.
Zhao Y, Deng C, Tang D, Ding L, Zhang Y, Sheng H, Ji H, Song W, Ma W, Chen C, et al. α-Fe2O3 as a versatile and efficient oxygen atom transfer catalyst in combination with H2O as the oxygen source. Nat Catal. 2021;4(8):684–691.
3.
Furuya T, Kamlet AS, Ritter T. Catalysis for fluorination and trifluoromethylation. Nature. 2011;473(7348):470–477.
4.
Lin J, Li Z, Kan J, Huang S, Su W, Li Y. Photo-driven redox-neutral decarboxylative carbon-hydrogen trifluoromethylation of (hetero)arenes with trifluoroacetic acid. Nat Commun. 2014;8(1): Article 14353.
5.
Chen Y, He Y, Gao Y, Xue J, Qu W, Xuan J, Mo Y. Scalable decarboxylative trifluoromethylation by ion-shielding heterogeneous photoelectrocatalysis. Science. 2024;384(6696):670–676.
