Home Journals Articles Updates About
CN
收藏切换
Bioinspired Wet Adhesive Proanthocyanidins Microneedles for Ocular Wound Healing
收藏切换
PDF
Bin Kong1, 2, 3, Rui Liu2, Tiantian Kong1, 3, *, Yuanjin Zhao2, *
Research. Vol 7 Article ID 0485
Less
收藏切换
Research. Vol 7 Article ID 0485
• Research Article •
Bioinspired Wet Adhesive Proanthocyanidins Microneedles for Ocular Wound Healing
Full
Bin Kong1, 2, 3, Rui Liu2, Tiantian Kong1, 3, *, Yuanjin Zhao2, *
Affiliations
  • 1School of Biomedical Engineering, Shenzhen University Medical School, Shenzhen University, Shenzhen 518060, China.
  • 2Department of Rheumatology and Immunology, Nanjing Drum Tower Hospital, School of Biological Science and Medical Engineering, Southeast University, Nanjing 210096, China.
  • 3Department of Urology, The First Affiliated Hospital of Shenzhen University, Shenzhen Second People's Hospital, Shenzhen 518000, China.
  • 4Shenzhen Research Institute, Southeast University, Shenzhen 518071, China
Published: 2024-09-24 doi: 10.34133/research.0485
Outline
收藏切换

Microneedles have shown considerable potential in treating ocular diseases, yet enhancing their architecture and functionality to improve therapeutic efficacy poses marked challenges. Here, inspired by the antioxidant strategy of blueberries and the wet adhesive mechanism of clingfish, we construct hierarchical and multifunctional microneedles. These microneedles possess both wet adhesive and antioxidant properties, making them highly effective for ocular wound healing. Constructed using polyacrylic acid-N-hydroxysuccinimide-based hydrogel with hexagonal structures, these generated microneedles ensure strong adhesion in wet environments. Furthermore, by incorporating proanthocyanidins (pAc) into the tips, the microneedle is imparted with excellent competence to scavenge reactive oxygen species (ROS). In the rat model of ocular alkali burns, the designed microneedle not only exhibited robust adhesion and desirable antioxidant properties in the moist ocular environment but also facilitated sustained drug release and effective treatment. These results suggest that our bioinspired microneedles with multifunctional properties offer substantial advancement over conventional approaches, positioning them as promising candidates for versatile wound healing applications.

Bin Kong, Rui Liu, Tiantian Kong, Yuanjin Zhao. Bioinspired Wet Adhesive Proanthocyanidins Microneedles for Ocular Wound Healing[J]. Research, 2024 , 7 (9) : 0485 . DOI: 10.34133/research.0485
Full Text
Less
Introduction
Less
Ocular chemical injuries, particularly alkali burns, represent a critical emergency in ophthalmology, necessitating immediate assessment and treatment [1,2]. Failure to effectively address these injuries may result in severe complications, including dry eye, inflammation, corneal opacity, neovascularization, and even damage to retinal and optic nerve [3]. Notably, oxidative stress plays a crucial role in the progression of alkali burns [4]. Inflammation can cause the production of large amounts of reactive oxygen species (ROS), leading to a virulent cycle of inflammation after alkali burns [5]. Therefore, sustained delivery of a highly efficient antioxidant agent to the ocular surface becomes an essential strategy for treating ocular alkali burns. Traditionally, a protective membrane embedded with drugs has been applied to the damaged area. However, the efficacy of this approach is challenged by the diluting effect of tears, complicating effective drug delivery to ocular tissues [6,7]. Microneedles (MNs) have emerged as an innovative solution, as they are extensively employed for penetrating the epidermis to achieve painless, noninvasive, and effective transdermal drug delivery [8–13]. However, the efficacy of most MNs is often compromised in highly mobile or moist tissues, where they may not adhere well and are prone to detachment [14–17]. Thus, a novel MN system with ROS scavenging ability is highly desirable for treating ocular alkali burns.

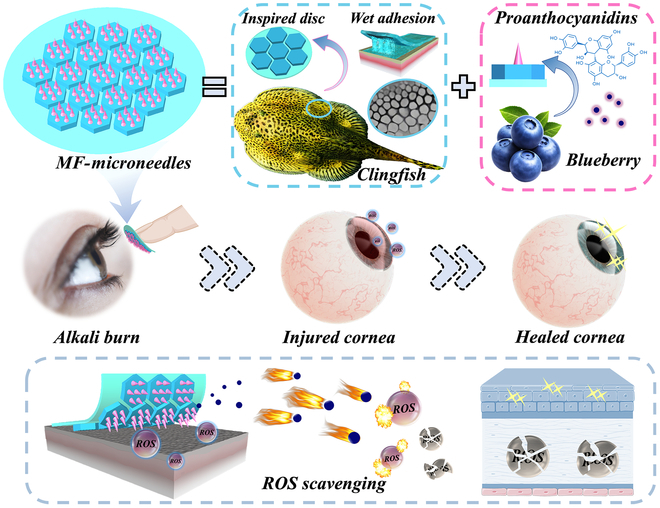

In this paper, inspired by the antioxidant mechanism of blueberry, together with the adhesive features of clingfish, we present novel wet adhesive proanthocyanidins (pAc) MNs with desirable functionality for ocular wound healing (Fig. 1). In nature, various plants, such as blueberries [18,19], grapes [20], Solanum tuberosum [21], and strawberries [22], exhibit antioxidant properties due to the existence of pAc. Recently, pAc has been demonstrated with anti-inflammatory, antioxidant, antibacterial, and anti-allergic abilities, which has attracted broad interest in healthcare and biomedical field [23–26]. Besides, pAc facilitates the production of rhodopsin in retinal cells, thus preventing serious myopia and retinal detachments, and improving visions [27]. Additionally, many natural creatures exhibit exceptional adhesive abilities, attributed to the molecular attraction and/or surface microstructure [28–31]. As a typical instance, clingfish can adhere strongly to almost any substrate underwater through their suctions facilitated by hexagonal microstructure and chemical interactions between their adhesive proteins [32–34]. The hexagonal structures are interconnected by small grooves that expedite the drainage of interfacial water during adsorption, thus allowing for rapid adhesion between the 2 interfaces. Therefore, we conceive that integrating these bioinspired properties into the MNs is expected to develop a new system with both adhesive and therapeutic abilities for treating ophthalmic diseases.
Herein, by adopting the adhesive mechanism of clingfish and the antioxidant property of blueberry, we present the desired multifunctional MNs (MF-MNs) for ocular wound healing. The MNs are constructed using polyacrylic acid, acrylate N-hydroxysuccinimide, and gelatin-based hydrogels [PAAc-NHS/gelatin (PNH)] as the flexible base, featuring hexagonal structures. When in contact with wet tissues, PAAc can absorb the liquid at the interface, while excess liquid is drained through the small grooves between hexagonal structures. Simultaneously, NHS can easily crosslink with amino groups in tissues to achieve strong adhesion. Besides, the MN tips, made from gelatin loaded with pAc, impart the system antioxidant properties that effectively scavenge ROS. The developed MNs not only demonstrated great adhesion and desirable antioxidant properties when employed in the wet ocular tissue but also behaved effectively in terms of sustained drug release and treatment in the rat ocular alkali burn model. These results indicated that our MN system can overcome the restrictions of conventional approaches, which often struggle to perform effectively on wet tissues, thus providing a promising perspective for transdermal drug delivery anywhere in the body.
Results and Discussion
Less

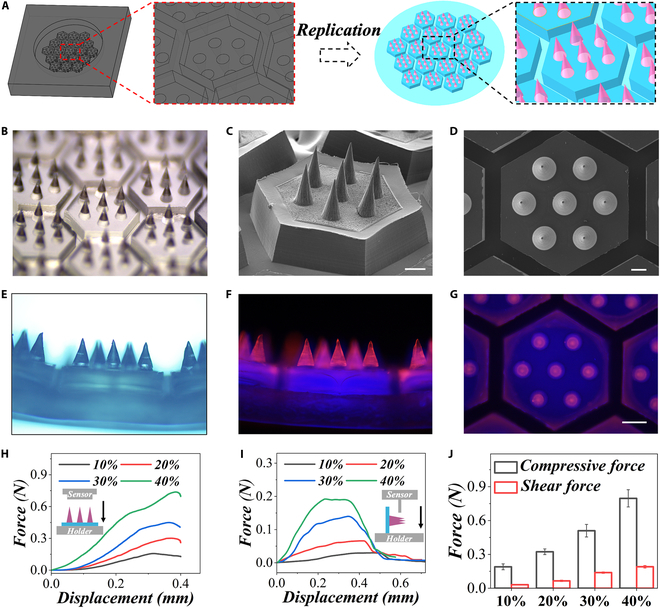

Generally, the MF-MNs were constructed through the replication of a customized negative mold (Fig. 2A). The mold featured a precise arrangement of hexagons, each containing 7 conical cavities. Gelatin (from porcine skin, with the gel strength of 300 g of Bloom) was used in the whole system since it is a natural biopolymer material obtained by moderate hydrolysis and thermal denaturation of collagen, which has an amino acid sequence similar to that of collagen. After adding gelatin solution into the mold as the MN tip and PNH pregel solution as the MN base, MNs with desirable structures and adhesive properties can be prepared through the photocrosslinking process under ultraviolet (UV) light, as shown in Fig. 2B. The fabricated MNs nicely replicated the architecture of the mold, displaying ordered hexagons and conical needles (Fig. 2C and D). Besides, the structure can also be visualized distinctly in the brightfield and fluorescent images (Fig. 2E to G). Remarkably, such structures could closely resemble the suctions on the clingfish, which also feature hexagonal microstructures. To realize transdermal drug delivery, the MNs require sufficient mechanical properties for penetrating tissues; therefore, the compressive and shearing forces of the MF-MNs were determined using a mechanical testing machine (Fig. 2H to J). To explore the impact of gelatin concentration on these forces, MF-MNs were prepared with tip concentrations of 10%, 20%, 30%, and 40% gelatin. The results indicated that the higher concentration led to increased compression/shearing force. Besides, the MF-MNs with 30% concentration can attain ~0.4-N compressive force, which was sufficient for the penetration of ocular surface [35,36].

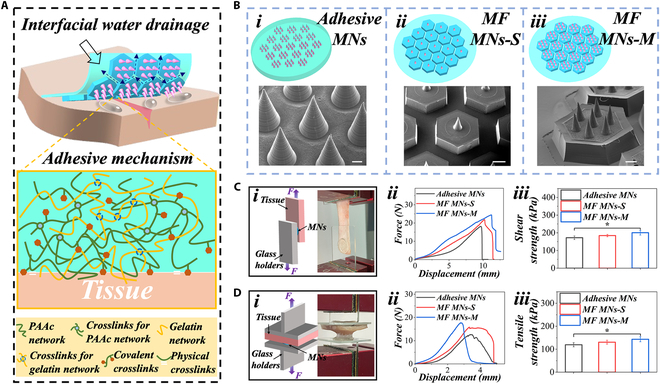

As shown in Fig. 3A, after the MF-MNs were inserted into the wet tissue, the carboxylic acid group in the PNH could quickly absorb the interfacial water between MNs and tissue. The hexagonal structures, interconnected by small grooves, further facilitated the drainage of excess water during this process. Subsequently, the NHS group in the PNH could rapidly crosslink with the amino group in the tissue. Besides, the carboxylic acid group in the PNH could form electrostatic interactions and hydrogen bondings with the tissue [37,38]. These combined effects of interfacial water absorption and removal, along with the chemical and physical interactions, enabled the MF-MNs to adhere strongly to various types of wet tissues. We first measured the tissue adhesive ability of the MF-MNs using the porcine skin, which was brought from the local food market and freshly prepared. A scalpel was used to scrape off the surface oil, and a tweezer was used to pull out the sweaty hairs on the epidermis before use. The final porcine skin used consists of the epidermis, dermis, and part of the subcutaneous fat. From Fig. S1, the MF-MNs can maintain tight adhesion to the skin under various conditions, including suspending, bending, stretching, and submersion underwater. Besides, weights were used to further exhibit the adhesive ability and bearing force of the MNs. After the MNs were inserted into the porcine skin, weights were attached to the opposite side of the MNs. The results indicated that the MF-MNs can easily support loads of over 260 g, and over 20 g underwater (Fig. S2).
The designed MNs demonstrated superior adhesive properties in a variety of situations in comparison to their counterparts. For the evaluation of this, 3 various MNs were fabricated for lap shear and tensile tests. They were MNs with PNH hydrogels as the base but without hexagonal structures (adhesive MNs), MNs with PNH hydrogels as base, and 1 tip in each hexagonal structure [multifunctional MNs-single (MF MNs-S)], and MNs with PNH hydrogel as the base, and 7 tips in each hexagonal structure [multifunctional MNs-multi (MF MNs-M)] (Fig. 3B). We first determined and recorded the variation of shearing force with increasing displacement (Fig. 3C). The results demonstrated a sequential increase in shearing strength from adhesive MNs to MF MNs-S, and finally to MF MNs-M. For the tensile test, MF MNs-M exhibited a maximum tensile strength of 130 ± 1.9 kPa, which was higher than that of MF MNs-S (120.2 ± 2.3 kPa), and significantly higher than that of adhesive MNs (110 ± 3.5 kPa) (Fig. 3D). Therefore, with the integration of PNH hydrogels and hexagonal structures as the base, the resultant bioinspired MF-MNs could not only inherit their merits but also eliminate their disadvantages, providing tightly adhesive abilities and a wide range of application conditions.
To impart MNs with antioxidant properties, pAc was incorporated in MN tips. First, the biocompatibility of pAc was evaluated. Human keratocytes (HKs) and human corneal epithelial cells (HCECs) were cultured with varying concentrations of pAc (0 to 100 μg/ml). Cellular viability and Live/Dead assay were carried out after 1, 2, and 3 d of culture. From Figs. S3 to S5, HKs and HCECs maintained high viability during the culture time, and the presence of pAc could promote the proliferation of the HKs. Because of the presence of phenolic hydroxyl structures in pAc, it could readily liberate protons. The catechol structure at the 3′, 4′ positions on the B ring of pAc forms a stable conjugated semiquinone or o-quinone structure with ROS through 2 consecutive single-electron transfer reactions, evenly distributing the electron cloud and reducing intramolecular energy. The phenolic hydroxyl group at the 5-position of the A ring can easily oxidize and release H+, which has a strong ability to scavenge ROS. Additionally, the phenolic hydroxyl groups at the 3, 5, and 7 positions further interact with ROS to form a pseudo-semiquinone structure, enhancing stability through keto-enol tautomerism. Therefore, pAc has been widely used as an antioxidant for scavenging free radicals. Therefore, pAc has been broadly used for scavenging free radicals as an antioxidant [26,39,40].

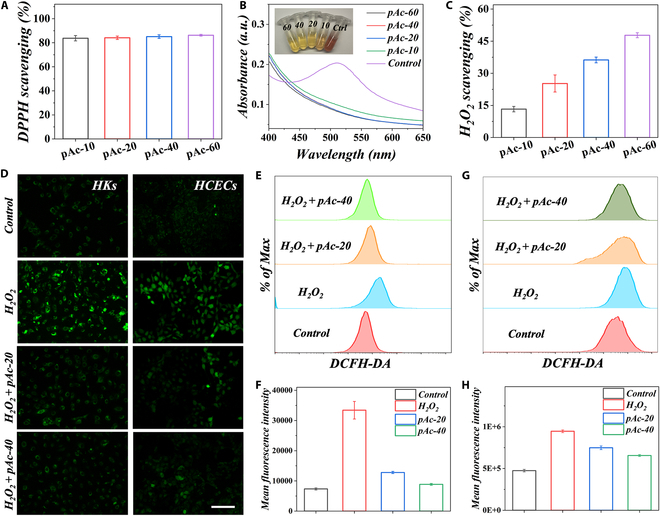

We further determined the antioxidant ability of pAc. It is evident that pAc could substantially improve the scavenging efficiency of 1,1-diphenyl-2-picryl hydrazyl (DPPH) radicals with a corresponding reduction of the characteristic absorption peak at 517 nm in the UV-visible spectrum, as shown in Fig. 4A and B. In addition, pAc also endowed the MNs with the ability to decompose H2O2 (Fig. 4C). Furthermore, we investigated the cytoprotective ability of pAc to inhibit ROS-induced injury in vitro using HKs and HCECs. First, the green fluorescence probe 2′,7′-dichlorofluorescein diacetate (DCFH-DA) was used to label the ROS in the cells. From Fig. 4D, the ROS level in HKs and HCECs elevated remarkably under the stimulation of 250 μM H2O2. However, the presence of pAc could decrease the influence of H2O2 on the cells. In addition, flow cytometry was performed to further evaluate the antioxidant ability of pAc. As shown in Fig. 4E to H, the fluorescent intensity decreased with the addition of pAc, and a higher concentration of pAc resulted in a greater reduction in the intensity. These results collectively demonstrate that pAc possessed strong antioxidant properties.
Since MF-MNs showed high cell survival and excellent antioxidant properties in vitro, they were further employed in a rat model of alkali burns. First, MF-MNs were inserted into the normal corneas of rats, and the resulting corneal structure variation was determined by performing the hematoxylin-eosin (HE) staining. As shown in Fig. S6A, the epithelium of the cornea was readily penetrated by the MNs. In addition, the immunofluorescent staining of the apoptosis marker terminal deoxynucleotidyl transferase–mediated deoxyuridine triphosphate nick end labeling (TUNEL) was performed to evaluate the influence of the penetration process on the corneal cells. Figure S6B indicated that the insertion of MNs had no influence on the corneal cells. We further determined the biocompatibility of MNs in vivo by embedding them into subcutaneous tissue. HE staining was performed to observe the main tissues of the rats, and there was no apparent variation between the normal tissue and the embedded one (Fig. S7).
After confirming biocompatibility in vivo, we verified the therapeutic potential of the MF-MNs in an alkali burn model induced by sodium hydroxide (NaOH) in Sprague–Dawley (SD) rats. Adhesive MNs without pAc and MF-MNs were subsequently inserted into the burned cornea. In the control group, the cornea was untreated after burns. These rats received no additional treatment afterward. Ocular variations in the rats were evaluated by a clinician and recorded with a surgical microscope.

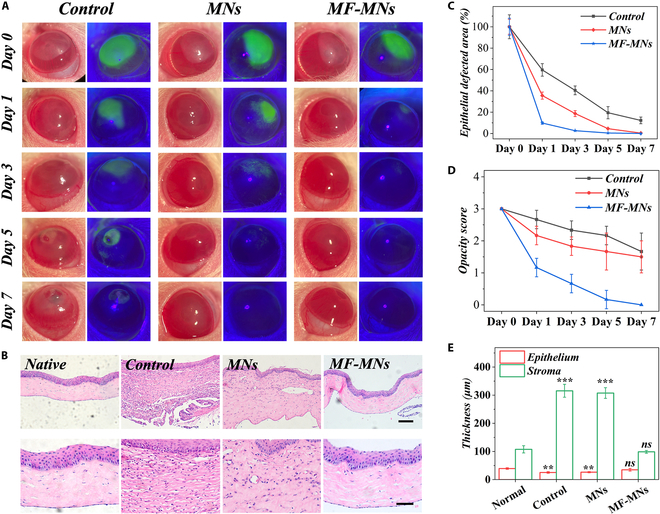

On day 1, fluorescein staining revealed obvious epithelial defects in both untreated and MN-treated eyes (Fig. 5A). These defects persisted in the control group, with a 12% defected area still present on day 7. However, there was no staining in the MF-MN group on day 5, indicating the repair of the epithelium (Fig. 5C). Besides, the opacity score was recorded (Fig. 5D). The opacity in MF-MN-treated eyes markedly decreased on day 1, with gradual clarity restored over the 7-d treatment period.
Corneas were collected after 7 d of treatment, and HE staining was performed to evaluate the corneal epithelium and stroma. From Fig. 5B and E, the corneas in the control and MN-treated groups exhibited obviously reduced thickness of epithelium and increased thickness of the stromal layer compared to native cornea, indicating that they were still in the state of edema. However, the corneas in the MF-MN-treated groups showed similar thickness to that of native cornea. In addition, prominent inflammatory cells were present in the control and MN-treated groups, whereas few could be observed in the MF-MN-treated group.

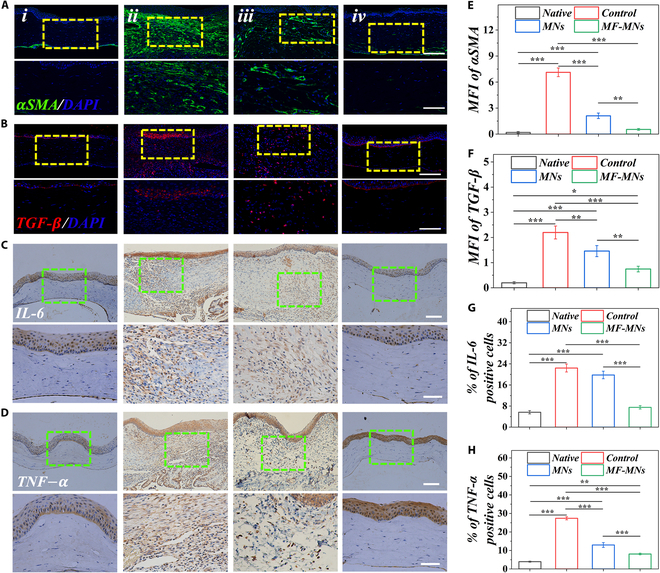

To further investigate the molecular mechanisms underlying corneal healing after treatment with MF-MNs, we performed the immunofluorescent staining of α-smooth muscle actin (αSMA), specifically expressed in the myofibroblast, and transforming growth factor-β (TGF-β), the inductive cytokine of myofibroblast, which highlighted fibrosis of tissues and formation of scars [1,2]. In the control and MN-treated groups, strong αSMA and TGF-β staining were observed in the whole corneas. In contrast, sparse αSMA and TGF-β staining were present in the MF-MN-treated corneas (Fig. 6A, B, E, and F). Besides, alkali burns led to significant infiltration of CD45+ leukocytes in the corneas, whereas this was markedly reduced in the MF-MN-treated group (Fig. S8A and C). Furthermore, it was observed that alkali burns could increase the expression of inflammatory cytokines interleukin-6 (IL-6), tumor necrosis factor-α (TNF-α), and inflammatory mediator matrix metalloprotein 9 (MMP9), respectively (Fig. 6C, D, G, and H and Fig. S8B and D), in the cornea after burn. MF-MN treatment could dramatically reduce the levels of these factors. All the results indicate that our designed MF-MNs have great potential for the treatment of ocular wound healing.
Conclusion
Less
In summary, by integrating the adhesive mechanism of clingfish and the antioxidant property of blueberry, we constructed desirable MF-MNs for ocular wound healing. The MNs feature PNH hydrogels as a base with hexagonal structures. When contacting with wet tissue, PAAc can absorb liquid in the interface, while excess liquid is efficiently drained through the small grooves between hexagonal structures. Simultaneously, NHS can easily crosslink with amino groups in tissues to achieve strong adhesion. Besides, gelatin was selected as the material for MN tips, which were loaded with pAc to endow the MNs with antioxidant properties to scavenge ROS. It was verified that the developed MNs not only exhibited great adhesion and desirable antioxidant properties when employed in the wet ocular tissue but also behaved effectively in terms of sustained drug release and treatment in the rat ocular alkali burn model. These results suggest that bioinspired MNs with multifunctions can overcome the restrictions of conventional approaches and become promising candidates for versatile wound healing systems.
Materials and Methods
Less
Details about the methods used in this research are available in the Supplementary Materials.
Funding
Less
  • National Key Research and Development Program of China(2020YFA0908200)
  • National Natural Science Foundation of China (82101184)
  • Guangdong Basic and Applied Basic Research Foundation(2024A1515010457)
  • Shenzhen Science and Technology Program(JCYJ20210324102809024)
  • Shenzhen Medical Research Fund(A2303017)
References
Less
1.
Yao G, Mo X, Liu S, Wang Q, Xie M, Lou W, Chen S, Pan T, Chen K, Yao D, et al. Snowflake-inspired and blink-driven flexible piezoelectric contact lenses for effective corneal injury repair. Nat Commun. 2023;14(1):3604.
2.
Li S, Pang K, Zhu S, Pate K, Yin J. Perfluorodecalin-based oxygenated emulsion as a topical treatment for chemical burn to the eye. Nat Commun. 2022;13(1):7371.
3.
Qin Q, Chen M, Yu N, Yao K, Liu X, Zhang Q, Wang Y, Ji J, Wang K, Jia F. Macromolecular carrier with long retention and body-temperature triggered nitric oxide release for corneal alkali burn therapy via leptin-related signaling. Nano Today. 2024;54: Article 102108.
4.
Sun X, Song W, Teng L, Huang Y, Liu J, Peng Y, Lu X, Yuan J, Zhao X, Zhao Q, et al. MiRNA 24-3p-rich exosomes functionalized DEGMA-modified hyaluronic acid hydrogels for corneal epithelial healing. Bioact Mater. 2023;25:640–656.
5.
Long L, Ge Z, Zhang F, Dong R, Yang L, Chen Z, Tang S, Wang Y. Development of injectable hyaluronic acid-based hydrogels with antioxidant activity for the treatment of corneal neovascularization. Chem Eng J. 2023;478: Article 147147.
6.
Park W, Nguyen VP, Jeon Y, Kim B, Li Y, Yi J, Kim H, Leem JW, Kim YL, Kim DR, et al. Biodegradable silicon nanoneedles for ocular drug delivery. Sci Adv. 2022;8(13):eabn1772.
7.
Kong B, Liu R, Hu X, Li M, Zhou X, Zhao Y, Kong T. Cornea-inspired ultrasound-responsive adhesive hydrogel patches for keratitis treatment. Adv Funct Mater. 2023;34(12):2310544.
8.
Tran KTM, Gavitt TD, Farrell NJ, Curry EJ, Mara AB, Patel A, Brown L, Kilpatrick S, Piotrowska R, Mishra N, et al. Transdermal microneedles for the programmable burst release of multiple vaccine payloads. Nat Biomed Eng. 2021;5(9):998–1007.
9.
Edwards C, Shah SA, Gebhardt T, Jewell CM. Exploiting unique features of microneedles to modulate immunity. Adv Mater. 2023;35(52): Article e2302410.
10.
Caudill C, Perry JL, Iliadis K, Tessema AT, Lee BJ, Mecham BS, Tian S, DeSimone JM. Transdermal vaccination via 3D-printed microneedles induces potent humoral and cellular immunity. Proc Natl Acad Sci USA. 2021;118(39): Article e2102595118.
11.
Bauleth-Ramos T, El-Sayed N, Fontana F, Lobita M, Shahbazi M-A, Santos HA. Recent approaches for enhancing the performance of dissolving microneedles in drug delivery applications. Mater Today. 2023;63:239–287.
12.
Lu Z, Du S, Li J, Zhang M, Nie H, Zhou X, Li F, Wei X, Wang J, Liu F, et al. Langmuir-Blodgett-mediated formation of antibacterial microneedles for long-term transdermal drug delivery. Adv Mater. 2023;35(38): Article e2303388.
13.
Yang Y, Luo R, Chao S, Xue J, Jiang D, Feng YH, Guo XD, Luo D, Zhang J, Li Z, et al. Improved pharmacodynamics of epidermal growth factor via microneedles-based self-powered transcutaneous electrical stimulation. Nat Commun. 2022;13(1):6908.
14.
Zhang X, Chen G, Yu Y, Sun L, Zhao Y. Bioinspired adhesive and antibacterial microneedles for versatile transdermal drug delivery. Research. 2020;2020:3672120.
15.
Chen W, Wainer J, Ryoo SW, Qi X, Chang R, Li J, Lee SH, Min S, Wentworth A, Collins JE, et al. Dynamic omnidirectional adhesive microneedle system for oral macromolecular drug delivery. Sci Adv. 2022;8(1):eabk1792.
16.
Han D, Morde RS, Mariani S, La Mattina AA, Vignali E, Yang C, Barillaro G, Lee H. 4D printing of a bioinspired microneedle array with backward-facing barbs for enhanced tissue adhesion. Adv Funct Mater. 2020;30(11):1909197.
17.
Zhu Z, Wang J, Pei X, Chen J, Wei X, Liu Y, Xia P, Wan Q, Gu Z, He Y. Blue-ringed octopus-inspired microneedle patch for robust tissue surface adhesion and active injection drug delivery. Sci Adv. 2023;9(25):eadh2213.
18.
Abudula T, Colombani T, Alade T, Bencherif SA, Memic A. Injectable lignin-co-gelatin cryogels with antioxidant and antibacterial properties for biomedical applications. Biomacromolecules. 2021;22(10):4110–4121.
19.
Wang J, Sun Y, Liu X, Kang Y, Cao W, Ye J, Gao C. An antibacterial and anti-oxidant hydrogel containing hyperbranched poly-l-lysine and tea polyphenols accelerates healing of infected wound. Biomater Adv. 2024;157: Article 213755.
20.
Wang T, Fan Q, Hong J, Chen Z, Zhou X, Zhang J, Dai Y, Jiang H, Gu Z, Cheng Y, et al. Therapeutic nanoparticles from grape seed for modulating oxidative stress. Small. 2021;17(45): Article e2102485.
21.
Ruiz-Sáenz DR, López-Delgado HA, Ayala Hernández DD, Trejo C, Mora-Herrera ME, Uscanga Mortera E. Induction of tolerance to cryogenic protocols in Solanum tuberosum by salicylic acid is mediated by enzymatic antioxidant activity and hydrogen peroxide. J Hortic Sci Biotechnol. 2021;97(1):86–95.
22.
Zhang H, Li K, Zhang X, Dong C, Ji H, Ke R, Ban Z, Hu Y, Lin S, Chen C. Effects of ozone treatment on the antioxidant capacity of postharvest strawberry. RSC Adv. 2020;10(63):38142–38157.
23.
Borges-Vilches J, Figueroa T, Guajardo S, Aguayo C, Fernandez K. Improved hemocompatibility for gelatin-graphene oxide composite aerogels reinforced with proanthocyanidins for wound dressing applications. Colloids Surf B Biointerfaces. 2021;206: Article 111941.
24.
Xu C, Wang Y, Yu H, Tian H, Chen X. Multifunctional theranostic nanoparticles derived from fruit-extracted anthocyanins with dynamic disassembly and elimination abilities. ACS Nano. 2018;12(8):8255.
25.
Li Z, Huang X, Lin L, Jiao Y, Zhou C, Liu Z. Polyphenol and Cu2+ surface-modified chitin sponge synergizes with antibacterial, antioxidant and pro-vascularization activities for effective scarless regeneration of burned skin. Chem Eng J. 2021;419: Article 129488.
26.
Zhu L, Yu T, Wang W, Xu T, Geng W, Li N, Zan X. Responsively degradable nanoarmor-assisted super resistance and stable colonization of probiotics for enhanced inflammation-targeted delivery. Adv Mater. 2024;36(18):2308728.
27.
Zhao Y, Jiang C, Lu J, Sun Y, Cui Y. Research progress of proanthocyanidins and anthocyanidins. Phytother Res. 2023;37(6):2552–2577.
28.
Lee H, Dellatore SM, Miller WM, Messersmith PB. Mussel-inspired surface chemistry for multifunctional coatings. Science. 2007;318(5849):426–430.
29.
Liu L, Tian X, Ma Y, Duan Y, Zhao X, Pan G. A versatile dynamic mussel-inspired biointerface: From specific cell behavior modulation to selective cell isolation. Angew Chem Int Ed Engl. 2018;57(26):7878–7882.
30.
Baik S, Kim DW, Park Y, Lee TJ, Ho Bhang S, Pang C. A wet-tolerant adhesive patch inspired by protuberances in suction cups of octopi. Nature. 2017;546(7658):396–400.
31.
Kim DW, Baik S, Min H, Chun S, Lee HJ, Kim KH, Lee JY, Pang C. Highly permeable skin patch with conductive hierarchical architectures inspired by amphibians and octopi for omnidirectionally enhanced wet adhesion. Adv Funct Mater. 2019;29(13):1807614.
32.
Wainwright DK, Kleinteich T, Kleinteich A, Gorb SN, Summers AP. Stick tight: Suction adhesion on irregular surfaces in the northern clingfish. Biol Lett. 2013;9(3):20130234.
33.
Sandoval JA, Jadhav S, Quan H, Deheyn DD, Tolley MT. Reversible adhesion to rough surfaces both in and out of water, inspired by the clingfish suction disc. Bioinspir Biomim. 2019;14(6): Article 066016.
34.
Rao P, Sun TL, Chen L, Takahashi R, Shinohara G, Guo H, King DR, Kurokawa T, Gong JP. Tough hydrogels with fast, strong, and reversible underwater adhesion based on a multiscale design. Adv Mater. 2018;30(32):1801884.
35.
Than A, Liu C, Chang H, Duong PK, Cheung CMG, Xu C, Wang X, Chen P. Self-implantable double-layered micro-drug-reservoirs for efficient and controlled ocular drug delivery. Nat Commun. 2018;9(1):4433.
36.
Kong B, Liu R, Shan J, Li M, Zhou X, Zhao Y. Frozen reinforced microneedles loaded with NIR-photothermal nanozyme for keratitis treatment. Nano Today. 2023;52: Article 102000.
37.
Kong B, Liu R, Cheng Y, Shang Y, Zhang D, Gu H, Zhao Y, Xu W. Structural color medical patch with surface dual-properties of wet bioadhesion and slipperiness. Adv Sci. 2022;9(31):2203096.
38.
Yuk H, Varela CE, Nabzdyk CS, Mao X, Padera RF, Roche ET, Zhao X. Dry double-sided tape for adhesion of wet tissues and devices. Nature. 2019;575(7781):169–174.
39.
Zhou L, Pi W, Cheng S, Gu Z, Zhang K, Min T, Zhang W, Du H, Zhang P, Wen Y. Multifunctional DNA hydrogels with hydrocolloid-cotton structure for regeneration of diabetic infectious wounds. Adv Funct Mater. 2021;31(48):2106167.
40.
Li J, Ke H, Lei X, Zhang J, Wen Z, Xiao Z, Chen H, Yao J, Wang X, Wei Z, et al. Controlled-release hydrogel loaded with magnesium-based nanoflowers synergize immunomodulation and cartilage regeneration in tendon-bone healing. Bioact Mater. 2024;36:62–82.
Appendix
Less
Year 2024 volume 7 Issue 9
PDF
98
53
Cite this Article
BibTeX
Article Info
doi: 10.34133/research.0485
  • Receive Date：2024-08-02
  • Online Date：2025-07-24
  • Published：2024-09-24
Article Data
Affiliations
History
  • Received：2024-08-02
  • Revised：2024-09-05
  • Accepted：2024-09-06
Funding
National Key Research and Development Program of China(2020YFA0908200)
National Natural Science Foundation of China (82101184)
Guangdong Basic and Applied Basic Research Foundation(2024A1515010457)
Shenzhen Science and Technology Program(JCYJ20210324102809024)
Shenzhen Medical Research Fund(A2303017)
Affiliations
    1School of Biomedical Engineering, Shenzhen University Medical School, Shenzhen University, Shenzhen 518060, China.
    2Department of Rheumatology and Immunology, Nanjing Drum Tower Hospital, School of Biological Science and Medical Engineering, Southeast University, Nanjing 210096, China.
    3Department of Urology, The First Affiliated Hospital of Shenzhen University, Shenzhen Second People's Hospital, Shenzhen 518000, China.
    4Shenzhen Research Institute, Southeast University, Shenzhen 518071, China

Corresponding:

* Address correspondence to: (Y.Z.); (T.K.)
References
Share
https://castjournals.cast.org.cn/joweb/research/EN/10.34133/research.0485
Share to
QR

Scan QR to access full text

Cite this article
BibTeX
Citations
表12种不同金属材料的力学参数
科
Family		 属数
Number of
genus		 种数
Number of
species		 占总种数比例
Percentage of
total species (%)		 属
Genus		 种数
Number of
species		 占总种数比例
Percentage of total
species (%)
鹅膏菌科Amanitaceae 2 11 5.26 鹅膏菌属 Amanita 10 4.78
小菇科 Mycenaceae 2 12 5.74 丝盖伞属 Inocybe 5 2.39
多孔菌科 Polyporaceae 8 14 6.70 蜡蘑属 Laccaria 5 2.39
红菇科 Russulaceae 3 23 11.00 小皮伞属 Marasmius 6 2.87
小菇属 Mycena 11 5.26
光柄菇属 Pluteus 5 2.39
红菇属 Russula 17 8.13
栓菌属 Trametes 5 2.39
关闭全屏
  • BibTeX
  • EndNote
  • RefWorks
  • TxT
Links
Articles
Latest Articles
Most Read
Collections
Updates
Events
News
Multimedia
About
About Us
Contact
No. 86 Xueyuan South Road, Haidian District, Beijing
100081
010-62199257
qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
