Fast and Adaptive Multi-Agent Planning under Collaborative Temporal Logic Tasks via Poset Products
收藏切换
PDF
Zesen Liu1, Meng Guo1, Weimin Bao2, Zhongkui Li1, *
Research. Vol 7 Article ID 0337
Less
收藏切换
Research. Vol 7 Article ID 0337
• Research Article •
Fast and Adaptive Multi-Agent Planning under Collaborative Temporal Logic Tasks via Poset Products
Full
Zesen Liu1, Meng Guo1, Weimin Bao2, Zhongkui Li1, *
Affiliations
  • 1Department of Mechanics and Engineering Science, College of Engineering, Peking University, Beijing 100871, China.
  • 2 Science and Technology Commission of China Aerospace Science and Technology Corporation, Beijing 100048, China.
Published: 2024-03-20 doi: 10.34133/research.0337
Outline
收藏切换

Efficient coordination and planning is essential for large-scale multi-agent systems that collaborate in a shared dynamic environment. Heuristic search methods or learning-based approaches often lack the guarantee on correctness and performance. Moreover, when the collaborative tasks contain both spatial and temporal requirements, e.g., as linear temporal logic (LTL) formulas, formal methods provide a verifiable framework for task planning. However, since the planning complexity grows exponentially with the number of agents and the length of the task formula, existing studies are mostly limited to small artificial cases. To address this issue, a new planning paradigm is proposed in this work for system-wide temporal task formulas that are released online and continually. It avoids two common bottlenecks in the traditional methods, i.e., (a) the direct translation of the complete task formula to the associated Büchi automaton and (b) the synchronized product between the Büchi automaton and the transition models of all agents. Instead, an adaptive planning algorithm is proposed, which computes the product of relaxed partially ordered sets (R-posets) on-the-fly and assigns these subtasks to the agents subject to the ordering constraints. It is shown that the first valid plan can be derived with a polynomial time and memory complexity with respect to the system size and the formula length. Our method can take into account task formulas with a length of more than 400 and a fleet with more than 400 agents, while most existing methods fail at the formula length of 25 within a reasonable duration. The proposed method is validated on large fleets of service robots in both simulation and hardware experiments.

Zesen Liu, Meng Guo, Weimin Bao, Zhongkui Li. Fast and Adaptive Multi-Agent Planning under Collaborative Temporal Logic Tasks via Poset Products[J]. Research, 2024 , 7 (3) : 0337 . DOI: 10.34133/research.0337
Full Text
Less
Introduction
Less
Recent advances in computation, perception, and communication allow the deployment of autonomous robots in large, remote, and hazardous environments, e.g., to assist service staff in hospitals [1], to maintain offshore drilling platforms [2], and to monitor and assist construction sites [3]. Furthermore, fleets of heterogeneous robots, such as unmanned ground vehicles and unmanned aerial vehicles, are deployed to accomplish tasks that are otherwise too inefficient or even infeasible for a single robot [4]. Not only the overall efficiency of the team can be largely improved by allowing the robots to move and act concurrently [5] but also the capabilities of the team can be greatly extended by enabling multiple robots to directly collaborate on a task [6]. Recent works have demonstrated such potentials preliminary for simple tasks such as collaborative exploration [7], formation control [8], object transportation [9], and pursuer–evader games [10]. The task planning problem for multi-robot systems is in general NP-hard [11], due to the inherent combinatorial nature of robot-task assignment and various constraints such as capabilities and deadlines. The standard approach is to formulate a mixed integer linear programs (MILPs) over the integer variables and constraints [12]. While being sound and optimal, these methods are applicable to only small-scale systems. Thus, extensive work can be found on designing meta-heuristic algorithms for finding sufficiently good solutions in a reasonable time, e.g., genetic algorithms [13], colony optimization [14,15], particle swarm optimization [16,17], learning-based algorithms [18–20], or large language models [21,22]. However, these methods often lack a formal guarantee on the correctness and quality of the planning results.
Moreover, to specify more complex tasks, many recent works propose to use formal languages such as linear temporal logic (LTL) [23], computation tree logic (CTL) [24], and signal temporal logic (STL) [25] as an intuitive yet powerful way to describe both spatial and temporal requirements on global [26] or local [27] behaviors. Notably, the works in [28–30] formulate MILP by a central planning unit given different system models and task constraints; the works in [31–35] instead propose various search algorithms over the state or solution space of the whole system. However, the aforementioned planning methods are often executed offline for a set of predefined static tasks. A particularly challenging scenario is when the system operates indefinitely, i.e., new tasks are released or canceled dynamically and continually by external demand [36], or certain target features related to the tasks can change location during run time [10]. This would require the fleet to adaptively change their task plans online to modify existing assignments and incorporate new tasks. Thus, the aforementioned methods become inadequate as the sequence of tasks is infinite and their specifications are unknown beforehand. Recursive application of the centralized methods in a naive way leads to not only intractable computation complexity but also inconsistent or even oscillatory assignments. Thus, an efficient and adaptive planning scheme is essential for multi-robot systems that collaborate in a dynamic environment [37–39] or an unknown environment [40].
Related work
The standard framework for planning under temporal tasks is based on the model-checking algorithm [23]: First, the task formulas are converted to a deterministic Robin automaton (DRA) or nondeterministic Büchi automaton (NBA) via off-the-shelf tools such as SPIN [41] and LTL2BA [42]. Second, a product automaton is created between the automaton of formula and the models of all agents, such as weighted finite transition systems (wFTSs) [23], Markov decision processes (MDPs) [43], or petri nets [44]. Last, certain graph search or optimization procedures are applied to find a valid and accepting plan within the product automaton, such as nested-Dijkstra search [32], integer programs [45], auction [46], or sampling-based [33,47].
Thus, the fundamental step of all aforementioned methods is to translate the task formula into the associated automaton. This translation may lead a double-exponential size w.r.t. the formula length as shown in [42]. The only exceptions are GR(1) formulas [48], of which the associated automaton can be derived in polynomial time but only for limited cases. In fact, for general LTL formulas with length more than 25, it takes more than 2 h and 13 GB memory to compute the associated NBA via LTL2BA. Although recent methods have greatly reduced the planning complexity in other aspects, the length of considered task specifications remains limited due to this translation process. For instance, the sampling-based method [33,47] avoids creating the complete product automaton via rapidly exploring random tree (RRT) sampling, of which the largest simulated case has 400 agents and the task formula has a maximum length of 14. The planning method [32] decomposes the resulting task automaton into independent subtasks for parallel execution. The simulated case scales up to 100 robots and a task formula of maximum length 18. Moreover, other existing works such as [49–52] mostly consider task formulas of length around 6 to 10. This limitation hinders its application to more complex robotic missions.
This drawback becomes even more apparent for dynamic scenes, where contingent tasks specified as LTL formulas are triggered by external observations and released to the whole team online. In such cases, most existing approaches compute the automaton associated with the new task, of which the synchronized product with the current automaton is derived, see, e.g., [51,52]. Thus, the size of the resulting automaton equals to the product of all automata associated with the contingent tasks, which is clearly a combinatorial blow-up. Consequently, the amount of contingent tasks that can be handled by the aforementioned approaches is limited to handpicked examples.
Our contribution
To overcome this curse of dimensionality in the size of tasks and agents, we propose a new paradigm that is fundamentally different from the model checking-based methods. First, for a syntactically co-safe LTL (sc-LTL) formula that is a conjunction of numerous subformulas, we calculate the R-posets of each subformula as a set of subtasks and their partial temporal constraints. Then, an efficient algorithm is proposed to compute the product of R-posets associated with each subformula. The resulting product of R-posets is complete in the sense that it retains all subtasks from each R-poset along with their partial orderings and resolves potential conflicts. Given this product, a task assignment algorithm called the time-bound contract net (TBCN) is proposed to assign collaborative subtasks to the agents, subject to the partial ordering constraints. Last but not least, the same algorithm is applied online to dynamic scenes where contingent tasks are triggered and released by online observations. It is shown formally that the proposed method has a polynomial time and memory complexity to derive the first valid plan w.r.t. the system size and formula length. Extensive large-scale simulations and experiments are conducted for a hospital environment where service robots react to online requests such as collaborative transportation, cleaning, and monitoring.
The main contribution of this work is threefold: (a) a systematic method is proposed to tackle task formulas with length more than 400, which overcomes the limitation of existing translation tools that can only process formulas of length less than 25 in reasonable time; (b) an efficient algorithm is proposed to decompose and integrate contingent tasks that are released online, which not only avoids a complete re-computation of the task automaton but also ensures a polynomial complexity to derive the first valid plan; (c) the proposed task assignment algorithm is fully compatible with both static and dynamic scenarios with interactive objects.
Problem statement
Consider a multi-agent system with heterogeneous capabilities, a series of sc-LTL task formulas that are released online, and a set of interactive objects in the dynamic environment. The objective is to generate a task plan for the system online such that these tasks are satisfied with high efficiency.
For instance, as shown in the “Numerical simulation” section, a fleet of heterogeneous service robots is deployed in the hospital environment. Different tasks such as transportation of goods or patients, cleaning, and maintenance are released online continuously. Many of such tasks contain numerous subtasks with ordering constraints that require direct collaboration of different robots. An efficient coordination algorithm is proposed such that these subtasks are assigned and fulfilled online in a timely manner.
Results
Less
In this section, we present the proposed solution briefly, where we first give a definition of task specification and introduce the core method of computing the R-poset product. Then, an efficient assignment algorithm is introduced under these posets with temporal and spatial constraints. The simulation and hardware experiment results are presented against several strong baselines for different sizes of fleets and task complexities. Technical details and derivations can be found in Materials and Methods.
Task specification and R-poset product
We briefly introduce the syntax of LTL used for task specifications. The basic ingredients of LTL formulas are a set of atomic propositions AP in addition to several Boolean and temporal operators. Atomic propositions are Boolean variables that can be either true or false. The syntax of LTL is defined as φ ≜ ⊤  ∣ p ∣ φ1 ∨ φ2 ∣ φ1 ∧ φ2 ∣ ¬ φ ∣ ◯ φ ∣ φ1  Uφ2 ∣ ◻ φ ∣ ⋄ φ, where ⊤ ≜ True; p ∈ AP is the alphabet; ∨ (conjunction), ∧ (disjunction), and ¬ (negation) are the logical operators; ⋄ (eventually), ◯ (next), and U (until) are the temporal operators; and ◻ (always) and ⇒ (implication) are the derived operators. A special class of LTL formula called sc-LTL [23,53] only contains the temporal operators ◯, U, and ⋄. A complete description of the semantics and syntax of LTL can be found in [23].
Given a series of sc-LTL formulas that are released online, most existing methods would combine the formulas with ∧ (conjunction) and convert them into an NBA. It results in a graph structure that consists of states, transitions, guards, inital states, and final states. However, since its size is double exponential to the length of formula φ as proven in [42], it quickly becomes intractable with more task formulas. Instead, we compute the product of R-posets associated with these formulas, called the Poset-prod (denoted by ⊗). The R-poset P = (Ω,  ⪯ , ≠) is a high-level abstraction of NBA, proposed in our earlier work [54], which consists of a set of subtasks Ω and their partial relations as less equal ⪯ and conflict ≠. It has been proven therein that if the subtasks are executed under the partial relations, the resulting traces satisfy the NBA. Once a new task formula is released, it is transformed into a new R-poset P2 and its product with the current R-poset P1 is computed. More specifically, given P1, P2, the Poset-prod returns a new set of R-posets P=P1⊗P2 that satisfies both P1 and P2, which is computed by iterating the following two procedures: Task composition and Relation update. The first procedure is to create a group of subtasks as a combination between the subtasks in P2 and the subtasks of P1 that have not been executed. A depth-first-search (DFS) algorithm is proposed to gradually add the subtasks along with the corresponding mapping function. The second procedure is to calculate the partial relations between the subtasks such that the ordering constraints among the subtasks in the composed product are consistent without conflicts. Consequently, the overall poset is given by Pfinal = (Ωf , ⪯f , ≠f), which is iteratively computed each time a new poset is added.

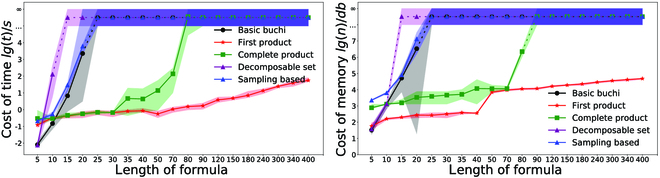

The proposed Poset-prod method outperforms the traditional method in both computational efficiency and performance. This improvement becomes even more pronounced when the number and length of subformulas increase. This is because the time of generating NBAs of φ1, φ2, ⋯ grows linearly, while the time of converting φ1 ∧ φ2 ∧ ⋯ into NBA grows exponentially. Moreover, for a new added formula, the algorithm updates the final R-poset based on the previous result, which ensures the performance for online cases. Finally, it is an anytime algorithm that the algorithm can calculate an R-poset within linear complexity for multiple subformulas at the expense of optimality. The concrete complexity analysis of Poset-pord is shown in Discussion, and the definition of R-poset and label is shown in Materials and Methods.

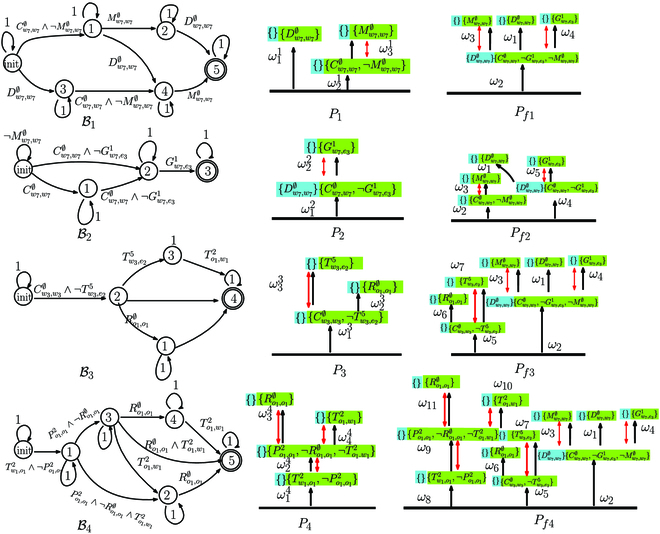

To give an example, consider four subformulas φ1, φ2, φ3, φ4 as shown in Fig. 1. Their NBAs B1,⋯,B4 can be transformed into four R-posets P1, ⋯, P4. The first round of Poset-prod is between P1 and P2 as P1 ⊗ P2 = {Pf1,  Pf2}. Then, the following rounds of Poset-prod are performed between the results of the previous round and the next R-poset as Pf1 ⊗ P3, of which the first solution is denoted by Pf3. At the expense of some optimality, the algorithm can go to next round before all results of Pf2 ⊗ P3 are generated, as it is an anytime algorithm. Finally, we can derive Pf4 by computing Pf3 ⊗ P4 as the final R-poset, which satisfies P1, ⋯, P4. Note that the time to generate the NBA associated with φ1, ∧i=12φi, ∧i=13φi, and ∧i=14φi grows significantly with a duration of 0.058 s, 0.076 s, 1.56 s, and 25.56 s via LTL2BA [42]. By contrast, the time to compute these products P1 ⊗ P2, P1 ⊗ P2 ⊗ P3, P1 ⊗ P2 ⊗ P3 ⊗ P4 grows slower with a duration of 0.199 s, 0.279 s, and 0.385 s. Thus, our method can deal with a much larger number of tasks online. Detailed comparisons between our method and traditional methods can be found in the “Scalability analysis and comparisons” section.
Online subtask assignment under complexity constraints
Once the set of R-posets that satisfies all subformulas is generated, a series of subtasks in the R-poset should be assigned to the agents under several complexity constraints, including temporal constraints from R-poset, objects constraints, and cooperative constraints. Similar to the classical contract net method [55], we propose an efficient and suboptimal assignment algorithm called time bound contract net (TBCN). The main difference is that all these constraints are represented uniformly by time bounds in our methods, and an example is shown in Fig. 2. The final assignment is a group of timed sequence of robot actions J=J1 , ⋯ , Jn, where Jn = [(tk,  ωk,  ak), ⋯] indicates that agent n will execute action ak at time tk to satisfy subtask ωk such that the newly released tasks are fulfilled.
TBCN consists of three steps: initialization, computation of feasible subtasks, and online bidding. As the partial constraints of final R-poset Pfinal might be changed after computing the product, the subtasks that are conflicting with the updated partial orders are removed in initialization. Then, the last two steps are iterated: the set of subtasks whose partial orders are satisfied given the current assignment J in computation of feasible subtasks. Consequently, a linear program is formulated and solved in the online bidding, to choose one subtask from the feasible set. Thus, the resulting execution time and action plans are added to J.
Numerical simulation

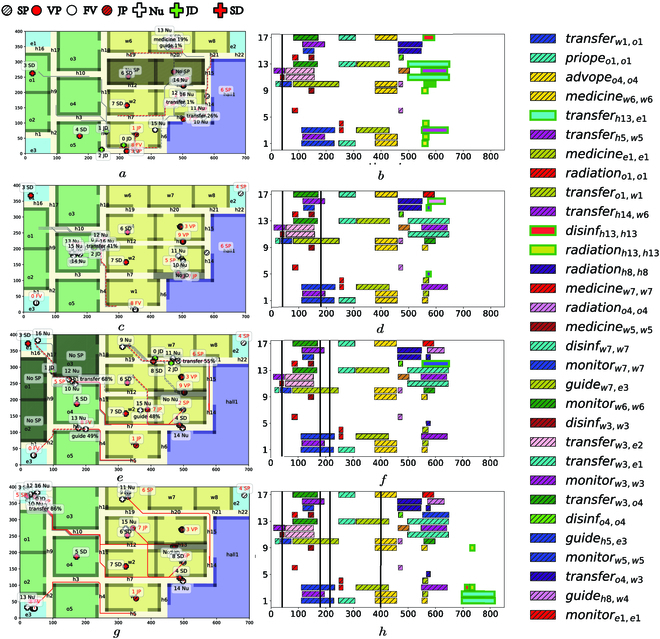

As shown in Fig. 4, the hospital environment consists of the wards, the operating rooms, the hall, the exits, and the hallways. The multi-agent system is employed with three junior doctors, six senior doctors, and eight nurses, and four types of patients are treated as interactive objects including family visitors, vomiting patients, senior patients, and junior patients. The detailed mappings between agents, action, objects, and their labels are shown in Table S1. Furthermore, various types of tasks are considered, such as “Go the rounds of the wards and provide medicine,” “Check and record the patient status,” and “Prepare and perform an operation on a patient.” Some tasks are released online under certain conditions, for instance, when a patient vomits at a region, the task “Take the patient into ward and check his status. Meanwhile, the doctors should not enter this region until it has been cleaned.” The sc-LTL formula associated with the complete task is given by φ=φb1∧⋯φb6∧φVP∧φJP∧φSP1∧φSP2∧φFV, which has a total length of 62. Detailed description of formulas are shown in Table S2.
As shown in Fig. 3, each subtask ωi consists of the constraints before execution (in blue) and during execution (in green). The directed black arrows denote the ordering constraints, while the bidirectional red arrows for the conflicting constraints. The mapping from the subtasks within the input R-posets to the subtasks within the final R-poset is shown in brackets as ω1′(ω1′):ω1′ → ω1. Note that most of R-posets on the right are directly incorporated into the final R-posets on the left, such as Pb1,⋯,Pb6,Pu1,⋯,Pu5. This is due to the fact that their subtasks are independent without ordering constraints, which allows for parallel execution. Additionally, some subtasks on the left represent the same subtasks on the right. For example, ω1′ of Pb2 and ω1′ of Pb2 representing both ω5, since their ordering constraints (in green) are identical. The same action can be performed to satisfy multiple subtasks on the left, which improves the overall efficiency. Furthermore, all subtasks on the right satisfy the partial relations between the corresponding subtasks on the left, while additional constraints are added if there are conflicts among the ordering constraints. For instance, action Dw7,w7∅ ∅ of ω15 should not be executed before the subtask ω14. Thus, an additional ordering constraint is added such that subtask ω15 should be executed after ω14. These properties guarantee that each subtask within the R-posets on the left can be executed, as their partial relations are satisfied. Consequently, the final R-poset satisfies all R-posets on the left. Note that the complete formula has a total length of 62, of which the NBA takes more than 1 h to compute. On the contrary, the first final R-poset is computed within 10.96 s.
The results of task assignment are shown in Fig. 4, which include the updates at 40, 180, 215, and 400 s with five additional objects added. Then, after modifying the current R-posets to accommodate these formulas, the method TBCN is executed to assign the new subtasks within the final R-poset. The trajectories of agents and objects are shown, with certain regions that are not allowed to enter. For instance, when a patient vomits at region h13 in Fig. 4C, the nurses cannot enter until other agents have cleaned this region. These constraints ensure that both their actions and their trajectories satisfy the R-poset. In addition, once a new object is added, a new formula is released and then the R-poset is updated. All subtasks satisfy the ordering constraints in the R-posets. For instances, as shown in Fig. 4D, although agents 6, 14 have arrived in region w7 before 100 s to collaborate on the subtask σ16=Mw7,w7∅ ∅ (in blue), they have to wait until that agent 10 has fulfilled the subtask σ14=Cw7,w7 ∅ ∅, due to the ordering constraints that (ω14,  ω16) ∈  ⪯ , {ω14,  ω16} ∈ ≠. The constraints introduced by objects are also satisfied, e.g., task ω7 (in green) cannot be executed at 380 s before subtask ω6 (in purple) has been finished, since the required object 3 has not been transferred to region o4. Last but not least, most tasks are executed in parallel mostly with a total completion time of 815 s, which is much shorter than 2013.5 s if the subtasks are executed sequentially.
Scalability analysis and comparisons

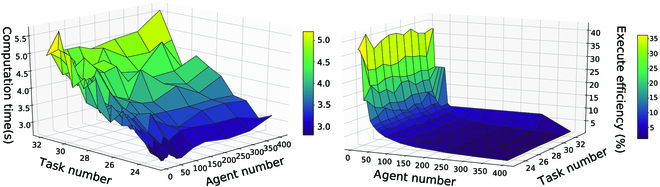

First, we show how the computation time of the proposed task assignment method TBCN varies under different numbers of agents and subtasks. Since the number of subtasks cannot be directly determined, we run the TBCN with a large number of formulas, of which the length ranges from 20 to 80. The number of subtasks and the associated computation time are recorded. As shown in Fig. 5, the average computation time only increases slightly as the number of agents is increased from 12 to 400, while the computation time increases considerably if the number of subtasks is increased from 22 to 34. This is due to the fact that new subtasks would introduce additional temporal constraints in the assignment procedure. The execution efficiency η from Eq. 6 decreases as the number of agent increases, while η increases slightly as the number of subtasks grows. The highest η is about 39% where most subtasks are executed in parallel with only minimum waiting time for task synchronization.
Second, to further validate the scalability of the proposed method against existing methods, we evaluate the time and memory cost to compute both the first R-poset and the complete R-posets by the proposed Poset-prod, given the task formulas of different lengths. The conversion from an LTL formula to NBA is via LTL2BA. The following three baselines are considered: (a) the direct translation from the complete formula to NBA [42], in which the complete formula is the conjunction of all subformulas; (b) the decomposition set-based algorithm [56], which decomposes the NBA into independent subtasks; (c) the sampling-based method [33,47], which generates a product automaton much smaller than the complete one by sampling the product states of NBA and weighted transition systems (WTS) via RRT. Each method is tested three times with five formulas of the same length ranging from 5 to 400. As shown in Fig. 6, both the time and memory cost increase drastically with the formula length for all methods except the proposed Poset-prod to compute the first R-poset. In particular, when the formula length exceeds 15, the decomposition algorithm runs out of memory or time. The sampling-based method cannot generate a solution when the formula length exceeds 20. Since all the baseline methods require the translation to NBA first, it becomes intractable as the formula length exceeds 25. In contrast, the proposed method of Poset-prod can generate all R-posets with a formula length of 70 and the first R-poset even when the length reaches 400, which is consistent with our analyses in Discussion.
Hardware experiment

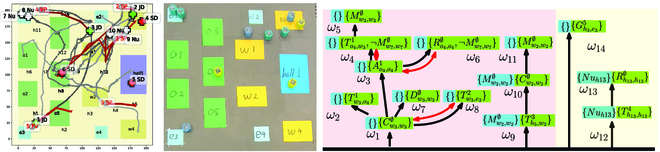

We further tested the proposed method on hardware within a simplified hospital environment. The multi-agent system consists of 10 differential-driven mobile robots, with 3 JD in green, 3 SD in yellow, and 4 Nu in blue. The required tasks include “prepare and execute an advanced operation for patient 1 at operating room o4.” Similar to the “Numerical simulation” section, there are event-triggered tasks released online such as “when a patient vomits, take him to the ward, do not enter this region until it is cleaned.” The exact task description and formulas are shown in Table S3.

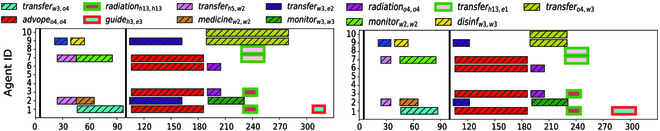

In summary, the system is required with six subformulas, and the final formula is φ = φb1 ∧ ⋯ ∧φb4 φFV ∧ φJP, with the total length 27; thus, it cannot be translated into an NBA directly. The agent trajectories within 185 s are shown in Fig. 7. As shown in the right of Fig. 7, the final R-poset consists of 14 subtasks, where the part in red is calculated offline and the part in yellow is generated online. Most subtasks are executed in parallel, meaning that the R-posets can be satisfied with a high efficiency. The complete R-poset product is derived in 3.1 s, and the task assignment method TBCN is activated three times, of which the average planing time is 2.7 s. As shown in the left of Fig. 8, the Gantt graph is updated twice at 5 and 100 s during execution, and subtasks that are released online are marked by green boxes. It is worth noting that the agent movement during real execution requires more time due to motion uncertainty, communication delay, drifting, and collision avoidance. Nonetheless, the proposed method can adapt to these fluctuations and still satisfy the specified tasks, as shown in the Gantt graph of the overall execution in Fig. 8. Experiment videos are provided in the Supplementary Materials.
Discussion
Less
In this work, we propose Poset-prod, an efficient online task planning algorithm for multi-agent systems where tasks are released dynamically and constantly online. It consists of a systematic method to convert the temporal tasks into their equivalent R-posets, of which their products are computed online. Given these R-posets, an anytime task assignment algorithm is proposed to adapt the local plans of robots online such that the overall safety and correctness are ensured. The overall framework is shown to be fast and efficient, thus particularly suitable for large-scale multi-agent systems collaborating in dynamic environments.
The most significant advantage of Poset-prod is that the complexity of obtaining the first solution only grows linearly with the length of formulas. Given a set of formulas {φi,  i ≤ m} and maxi ∣ φi ∣  = n, deriving the first solution has a polynomial complexity of O(m2n3). Despite that the overall complexity to compute the complete R-posets of {φi} is O(n5m), it is still much smaller than the complexity of calculating the NBA of the conjunction φ via LTL2BA [42], which is O(mn · 2mn). Thus, our method can plan for task formulas with a length of about 400 within about 50 s, while most existing methods fail at the formula length of 25.
Future work involves two directions: (a) extending the sc-LTL task formulas to general LTL and other languages such as CTL [24] and STL [25]. It remains unclear how general LTL formulas with always operators can be incorporated in the R-poset, especially with the prefix–suffix structure, and (b) considering unknown and uncertain environments that are modeled as MDPs. In this case, a reactive high-level plan is essential to take into account all possible environment behaviors.
Materials and Methods
Less
In this section, we provide the knowledge of LTL in the “Preliminaries” section, the definition of alphabets and objective function in the “Problem formulation” section, and algorithm details in the “Approach” section.
Preliminaries
As mentioned in the “Task specification and R-poset product” section of Results, the basic ingredients of LTL formulas are a set of atomic propositions AP in addition to several Boolean and temporal operators. For a given LTL formula φ, there exists an NBA as follows:
Definition 1 An NBA A≜S,Σ,δ,S0,SF is a four-tuple, where S are the states; Σ = AP; δ : S × Σ → 2S are transition relations; S0, SF ⊆ S are initial and accepting states.
An infinite word w over the alphabet 2AP is defined as an infinite sequence W = σ1σ2⋯, σi ∈ 2AP. The language of φ is defined as the set of words that satisfy φ, namely, Lφ=Wordsφ=W|W⊨φ and ⊨ is the satisfaction relation. Additionally, the resulting run of w within A is an infinite sequence ρ = s0s1s2⋯ such that s0 ∈ S0, and si ∈ S, si+1 ∈ δ(si,   σi) hold for all index i ≥ 0. A run is called accepting if it holds that inf(ρ) ∩ SF ≠ ∅, where inf(ρ) is the set of states that appear in ρ infinitely often. A special class of LTL formula is called sc-LTL [23,53], which can be satisfied by a set of finite sequence of words. They only contain the temporal operators ◯, U, and ⋄ and are written in positive normal form where the negation operator ¬ is not allowed before the temporal operators. A relaxed partially ordered set (R-poset) over an NBA Bφ is defined as follows:
Definition 2 (R-poset) [54] R-poset is a three-tuple: Pφ = (Ωφ, ⪯φ, ≠φ): Ωφ=ℓ,σℓ,σℓs,∀ℓ=0,…,L is the set of subtasks, where ℓ is the index of subtask ωℓ; σℓ ⊆ Σ are the transition labels; σℓs⊆Σ are the self-loop labels from Definition 1.
⪯φ ⊆ Ωφ × Ωφ is the “less equal” relation: If (ωh,  ωℓ) ∈ ⪯φ or equivalently ωh⪯φωℓ, then ωℓ can only be started after ωh is started. ≠φ ⊆ 2Ωφ is the “opposed” relation: If {ωh, ⋯,  ωℓ} ∈ ≠φ or equivalently ωh≠φ⋯≠φωℓ, subtasks in ωh, ⋯, ωℓ cannot all be executed simultaneously.
A word is accepting if it satisfies all the constraints imposed by Pφ. Additionally, the word of R-poset will satisfy the NBA as Words(Pφ) ⊂ Words(φ).
Definition 3 (Language of R-poset) [54] Given a word w = σ′1σ′2⋯ satisfying R-poset Pφ = (Ωφ, ⪯φ, ≠φ), denoted as w ⊨ Pφ, it holds that (a) given ωi1=ii,σi1,σi1s∈Ωφ, there exist j1 with σi1⊆σj1′and σj1s∩σm1′=∅ ,∀m1<j1; (b) ∀ωi1,ωi2∈ ⪯φ,∃j1≤j2,σi2⊆σ′j2,∀m2<j2,σj2s⊆σ′m2=∅; (c) ∀ωi1,…,ωin ∈≠φ,∃ℓ≤n,σiℓ⊆σ′j1. Language of R-poset Pφ is the set of all word w that satisfies Pφ, denoted by LPφ≜w|w⊨Pφ.
Assuming that Pbi=P1bi,P2bi,⋯ is the set of all possible R-posets of NBA Bbi, it is shown in Lemma 3 of our previous work [54] that (a) LPjbi⊆LBbi,Pjbi∈Pφbi and (b) ⋃Pjbi∈Pφbi‍LPi=LBbi. In other words, the R-posets contain the necessary information for subsequent steps.
Problem formulation
Collaborative multi-agent systems
Consider a workspace W⊂ℝ2 with M regions of interest denoted as W ≜ {W1, ⋯,WM} , where Wm ∈ W. Furthermore, there is a group of agents denoted by N ≜ {1, ⋯,  N} with different types L ≜ {1, ⋯,  L}. More specifically, each agent n∈N belongs to only one type l = Mtype(n), where Mtype:N→L. Each type of agents l ∈ L is capable of providing a set of different actions denoted by Al. The set of all actions is denoted as Aa=∪l∈L‍Al=a1,⋯ ,anC. Without loss of generality, the agents can navigate between each region via the same transition graph, i.e., G=W,→G,dG, where →⊆W×W represents the allowed transitions and dG:→G→ℝ+ maps each transition to its duration.
Moreover, there is a set of interactive objects O  ≜ {o1, ⋯,oU}with several types T  ≜ {T1, ⋯,TH} scattered across the workspace W. These objects are interactive and can be transported by the agents from one region to another. An interactive object ou∈O is described by a three-tuple:
ou≜Thu,tu,WuP,
where Thu∈T is the type of object; tu ∈ R+ is the time when ou appears in workspace W; Wup:R+→W is a function that Wupt returns the region of ou at time t ≥ tu; and Wuptu⊆W is the initial region. Additionally, new objects appear in W over time and are then added to the set O. With a slightly abusive notation, we denote the set of initial objects Oin that already exist in W and the set of online objects Oon that are added during execution, i.e., O=Oin∪Oon.
To interact with the objects, the agents can provide a series of collaborative behaviors C≜C1,⋯,CK. A collaborative behavior Ck∈C is a tuple defined as follows:
Ck≜ouk,(ai,ni),i∈Lk
where ouk∈O∪∅ ∅ is the interactive object if any; ai∈Aa is the set of cooperative actions required; 0 < ni ≤ N is the number of agents to provide the action ai; and Lk is the set of action indices associated with the behavior Ck. Also, dk denotes the execution time of Ck.
A behavior can only be executed if the required object is at the desired region. Since objects can only be transported by the agents, it is essential for the planning process to find the correct order of these transportation behaviors. Related works [50,57] build a transition system to model the interaction between objects and agents, the size of which grows exponentially with the number of agents and objects.
Task specifications
Consider the following two types of atomic propositions: (a) pml is true when any agent of type l ∈ L is in region Wm∈W; pmr is true when any object of type r∈T is in region Wm∈W. Let p≜pml,∀Wm∈W,l∈L‍⋃‍pmr,∀Wm∈W,r∈R. (b) Ckk1,k2uk is true when the collaborative behavior Ck in Eq. 2 is executed with object ouk, starting from region Wk1 and ending in region Wk2. Let c≜{Ckk1,k2uk,∀Ck∈C, ouk∈O,∀Wk1,Wk2∈W}. Given these propositions, the team-wise task specification is specified as an sc-LTL formula over {p,  c}:
φ=∧i∈Iφbi∧∧ou∈Oonφeu,
where φbi, i=1,…, I, φeu, ou ∈Oon are two sets of sc-LTL formulas over {p,  c}. φbi is specified in advance, while φeu is generated online when a new object ou is added to Oon.
To satisfy the LTL formula φ, the complete action sequence of all agents is defined as
J=J1, J2, ⋯ , JN,
where Jn∈J is the sequence of tk, Ck, ak, which means that agent n executes behavior Ck by providing the collaborative service ak∈Aa at time tk. In turn, the sequences of actions for an interactive object is defined as:
Jo=J1o , J2o , ⋯ , JUo,
where Juo=tk, Ck⋯ is the sequence of tasks associated with object ou∈O. The task pair (tk, Ck) is added to Juo if object ou joins behavior Ck at time tk. Assuming that the duration of formula φbi, φei from being published to being satisfied is given by Di, the average efficiency is defined as
η≜∑Ck∈J‍∣Lk∣dkDi,
which is the percentage of time when actions are performed.
Problem 1 Given the sc-LTL formula φ defined in Eq. 3, synthesize and update the motion and action sequence of agents J and objects Jo for each agent n∈N to satisfy φ and maximize execution efficient η.
Although maximizing the task efficiency of a multi-agent system is a classical problem, the combination of interactive objects, long formulas, and contingent tasks imposes new challenges in terms of exponential complexity [42,50] and online adaptation [51].
Approach

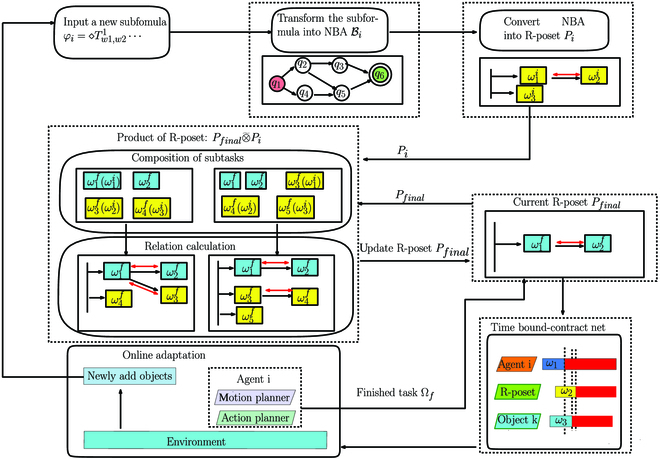

As shown in Fig. 9, when a new R-poset is generated, the proposed solution realizes the requirement through two main components: (a) product of R-posets, where the product of existing R-posets is computed incrementally, and (b) task assignment, where subtasks are assigned to the agents given the temporal and spatial constraints specified in the R-poset.
Product of R-posets
As the first two steps shown in Fig. 9, when a new formula φi ∈ Φb, Φu is added, it will be transformed into NBA first. Then, an R-poset Pi is generated by the method proposed in our previous work [54]. The other R-poset Pfinal involved in calculation is the previous result of Poset-prod, which will be updated after this round calculation. With Pfinal as P1 = (Ω1, ⪯1, ≠1), Pi as P2 = (Ω2, ⪯2, ≠2), we define product of R-posets as follows:
Definition 4 (Product of R-posets) Given a finite word w0, the product of two R-posets P1, P2 is defined as a set of R-posets Pr={P1′,P2′,⋯}, denoted as Pr=P1⊗P2 where Pi′ satisfies two conditions: (a) if w0w∈LP1,w∈LP2, then w0w∈⋃P′i∈Pr‍LP′; (b) if w0w∈LP′i, P′i∈Pr, then w0w∈LP1,w∈LP2.
The word w0 is already executed, containing the finished subtasks Ωfinish1 of P1. Thus, w0 can not influence P2 whose subtasks will be executed in the future. Specially, if the new formula is offline as φi ∈ Φb and the agents have not started to execute subtasks, w0 will be set as empty. As shown in Fig. 9, Poset-prod consists of the following two steps.
(a) Task composition. In this step, we generate all possible combinations of subtasks that can satisfy both Ω1 and Ω2. Namely, a set of subtasks Ω′  = {ω1′, ⋯,ωn′} satisfies Ω1 if for each ωi1=(i,σi1,σis1)∈Ω1, there is a subtask ωj′=j,σj′,σjs′∈Ω′ satisfying σi1⊆σ′j and σis1⊆σjs′, or ω′j⊨ωi1 for brevity. Thus, we set Ω′ = Ω1 first and Ω′ clearly satisfies Ω1 with ∀ωi1∈Ω1,ω′i⊨ωi1. Then, a mapping function MΩ : Ω2 → Ω′ is defined to store the satisfying relationship from Ω2 to Ω′, and DMΩ∈Ω2 is the domain of MΩ and RMΩ is the range of MΩ. As all relations are unknown, MΩ, DMΩ, and RMΩ are initially set to empty. Namely, if ω′j⊨ωi2, we will store MΩωi2=ω′j and MΩ−1ω′j=ωi2, and add ωi2 into DMΩ, and ωj′ into R(MΩ), where MΩ−1 is the inverse function of MΩ.
DFS [58] is used to add the subtasks of Ω2 to Ω′ in order, and these mapping relations will be recorded in MΩ. The search sequences of DFS can be initialized as que = [(Ω′ = Ω1,  MΩ = ∅)]. Then, during the circle, we will fetch the first node of que as (Ω′,  MΩ′). The next unmixed subtasks in Ω2 are ωi2,i=∣M′Ω∣+1. Any subtask ωj1∈Ω1/RM′Ω/Ωfinish1 with ωj1⊨ωi2 or ωi2⊨ωj1 can create a new combination based on (Ω′,  MΩ′):
Ω̂′=Ω′,ω̂′j=j,σj1∪σi2,σjs1∪σis2,M̂′Ω=M′Ω,M̂′Ωωi2=ω′j,
which means that the subtask ωj′ in Ω′ can satisfy both ωj1,ωi2. Moreover, for the subtask ωi2, we can always create a set of subtasks Ω̂′ and the corresponding mapping function M̂′Ω by appending ωi2 into Ω̂′ as ω̂′j such that ω̂′j⊨ωi2 holds, i.e.,
Ω̂′=Ω′,j=∣Ω′∣+1,ω̂′j=ωi2;M̂′Ω=M′Ω,M̂′Ωωi2=ω′j,
which means the subtask ωj′ can be executed to satisfy ωi2. This step ends if the time budget tb or the search sequence que exhausted. Once ∣D(MΩ′) ∣  =  ∣ Ω2∣, a Ω′ satisfying Ω1, Ω2 is already found. In this case, the next step is triggered. As shown in Fig. 9, one of found combination is MΩ11=1,MΩ12=3,MΩ13=4, ω1f is created by (7), and ω3f,ω4f is created by (8).
(b) Relation update. Given the set of subtasks Ω′ and the mapping function MΩ, we calculate the partial relations among them and build a product R-poset P. First, we construct the “less-equal” constraint ⪯ as follows:
⪯=⪯1∪MΩωℓ12,MΩωℓ22|ωℓ12,ωℓ22∈⪯2,
which inherits both less equal relations ⪯1 in P1 and ⪯2 in P2. Then, we update Ω′ to consider the constraints imposed by the self-loop labels in other subtasks. Specifically, if a new relation (ωi,  ωj) is added to ⪯ by (MΩ−1(ωi) , MΩ−1(ωj))∈⪯2 while (ωi1,ωj1)∈⪯1 holds, ωi is required to be executed before ωj, although (ωi1, ωj1) does not belong to ⪯1 of P1. In this case, σi and σis are updated to guarantee the satisfaction of the self-loop labels σjs before executing σj. For each subtask ωi, the newly added suf-subtasks from ⪯1, ⪯2 are defined as Sp1,Sp2, i.e.,
Sp1=ωj|ωi,ωj∈⪯,ωi1,ωj1∈⪯1,Sp2=MΩ−1ωj|ωi,ωj∈⪯,MΩ−1ωi2,MΩ−1ωj2∈⪯2,
where S1p, S2p are the subtasks that should be executed after ωi. Thus, the action labels σi and self-loop labels σis in ωi=(i, σi, σis) are updated accordingly as follows:
σ̂=⋃ωℓ1∈Sp1‍σℓs1∪⋃ωℓ2∈Sp2‍σℓs2,σis=σ̂∪σis,σi=σ̂∪σi,
in which σis and σi should be executed under the additional labels σ̂; thus, the self-loop labels of Sp1,Sp2 are satisfied.
Finally, we find the potential ordering by checking whether a subtask σis is in conflict with another subtask while (ωi1, ωj1)∈⪯1. If so, an additional ordering will be added to ⪯ as:
⪯=⪯∪(ωi, ωj)|σj⊨σis
Then, Ω will be updated following Eqs. 10 and 11. Regarding the set of subtasks Ω that have no conflicts in ⪯, its “not-equal” relations ≠ are generated by a simple combination as:
≠=≠1∪MΩωℓi|ωℓi∈≠2.
The resulting poset Pi = (Ω,  ⪯ , ≠) is added to Pfinal.
As shown in Fig. 9, Relation update gets two R-posets and the partial relations of each R-poset are succeeded from Pi, Pfinal. Due to the anytime property, the two-step procedure can be repeated until all possible R-posets are found or just ended when the first R-poset is found.
Task assignment
To satisfy the final R-poset Pfinal = (Ωf, ⪯f, ≠f), the subtasks Ωf should be executed under the partial orders of ⪯f, ≠f. Each subtask ωi ∈ Ωc represents a collaborative behavior Cj. Thus, we can redefine the action sequence of each agent Juo∈Jo as Juo=[(tk, ωk,ak),⋯] and the action sequence of each object Juo∈Jo as Juo=[(tk, ωk, ak), ⋯], in which we replace the cooperative behavior Ck with ωk since Ck ∈ σk.

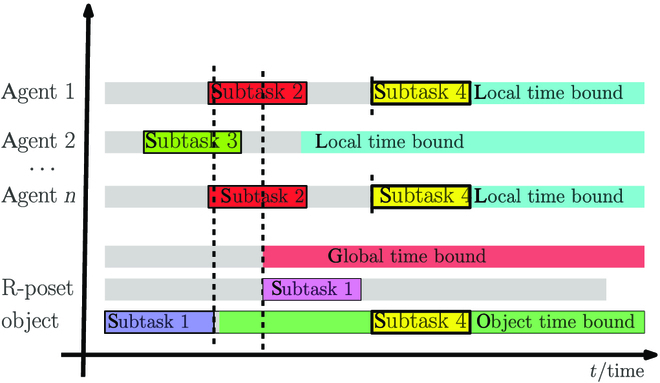

We propose a suboptimal algorithm called time bound contract net (TBCN) to generate and adapt the action sequence of agents and objects. Compared with the classical contract net method [55], the main differences are as follows: (a) the partial order ⪯f, ≠f of R-poset might be changed when new formula is added, (b) the assigned subtasks should satisfy the partial orders in ⪯f, ≠f, (c) the cooperative task should be fulfilled by multiple agents, and (d) interactive objects should be considered as an additional constraints. TBCN solves these differences with three steps: First, we design a cancellation mechanism in the initialization to adapt to the changes of R-poset mentioned in (a). Second, the partial orders in (b) are guaranteed by only assigning feasible subtasks but not all unassigned subtasks in each loop. Third, the constraints mentioned in (c) and (d) are considered as a time bound t1 ∈ ℝ+ in the bidding process.
(a) Initialization: Once the R-poset Pfinal is updated by Poset-prod, we first collect the action sequence J,Jo of previous solution and the set of finished subtasks Ωfinish from executing word w0. Specially, all of them will be empty if it is the first round. Then, a set of essential conflict subtasks Ωec is defined to collect the subtasks that might conflict the updated partial orders ⪯f, ≠f:
Ωec=ωi|ωi⪯fωj,ti≥tj,∀ωi,ωj∈Ω1/Ωfinish∪{ωi∣ωi≠fωj,tj≤ti≤tj+dj,∀ωi,ωj∈Ω1/Ωfinish}.
Then, we compute the set of subtasks Ωconf that should be removed from J,Jo:
Ωconf={ωj∣ωi ⪯f ωj,∀ωi∈Ω1/Ωfinish,∀ωj∈Ωec}∪Ωec,
in which Ωconf are the subtasks in Ωec and the subtasks whose pre-subtasks will be removed. With the action sequences J,Jo removing all the subtasks in Ωconf, we can initialize the set of assigned subtasks Ωas={ωi|∀(ti, ωi, ai)∈J} and the set of unassigned subtasks Ωu = Ωf/Ωas.
(b) Computation of feasible subtasks: After initialization, the algorithm starts a loop to assigned the subtasks in Ωu: getting a set of feasible subtasks Ωfe; calculating their time bounds; choosing the best subtask. For the ordering constraints ⪯c, if (ωj,  ωi) ∈ ⪯c, assigning (tkj,  ωj,  akj) to a task sequence Ji = ⋯(tki,  ωi,  aki) will violate such constraints. Thus, Ωfe based on current Ωas is defined as:
Ωfe=ωi|ωi∈Ωu,∀ωj,ωi∈⪯f,ωj∈Ωas,
in which the subtasks may lead to unfeasible action sequences being eliminated.
(c) Online bidding: Then, we will try assigning each subtask in Ωfe and only choose the one with the best result. Without loss of generality, we assume that subtask ωi ∈ Ωfe requires a label Ckk1,k2uk, which means that the agents need to execute the behavior Ck from region Wk1 to region Wk2 using object uk. Any constraint mentioned in (b), (c), and (d) can be considered as a time bound t1 ∈ ℝ+, which means that such constraint can be satisfied after t1. Here, we use three kinds of time bounds: the global time bound tiω, the object time bound tuko, and the set of local time bounds Ts. The global time bound tiω is the time instance that the ordering constraints ⪯f and conflict constraints ≠f will be satisfied if behavior Ckk1,k2uk is executed after tiω:
tiω≥tj,∀j,i∈⪯f,ωj∈Ωas,tiω≥tℓ+dℓ,∀ωi,ωℓ,⋯∈≠f,ωℓ∈Ωas.
For the required object uk, assuming its participated last task is Juko−1=tℓ,ωℓ, the object time bound tuko should satisfy that:
Wupt=Wk1,t≥tℓ+dℓ,,∀t≥tuko,
which means that the object uk will be at the starting region Wk1 of the current behavior Ckk1,k2uk and ready for it after tuko. Additionally, we set tuko=∞ =∞ if the object is not at Wk1 after the action sequence Juko, and we set tuko=0 if the behavior Ckk1,k2uk does not require object as uk = ∅. The set of local time bound is defined as
Ts={An,tna∣An=AMtypen∩ACk,tna=tℓ+dℓ+dGkℓ,k1,∀n∈N},
where An is the set of actions that agent n can provide for behavior Ck, tna is the earliest time agent n can arrive region Wk1, tℓ + dℓ is the time when the last subtask ωℓ ∈ Jn−[1] has finished, dGkℓ,k1 is the cost of moving, and Wkℓ is the goal region of ωℓ. (An, tna) means agent n can begin behavior Ckk1,k2uk after time tna by providing one of action aℓ∈An. Using these time bounds, we can determine the agents and their providing actions and generate a new party assignment Ji,Joi to minimize the ending time of subtask ωi. The efficiency η of each assignment Ji,Joi,ωi∈Ωu is calculated, and the subtask with maximum efficiency will be chosen. Afterward, the chosen subtask is removed from Ωun and added to Ωas. The action sequences J,Jo are updated accordingly as J=Ji,Jo=Joi for the next iteration.
Correctness and completeness analysis
Theorem 1 (Correctness) Given two R-posets P1 = (Ω1, ⪯1, ≠1), P2 = (Ω2, ⪯2, ≠2) generated from B1,B2, we have LPj⊆LP1∩LP2, where Pj∈Pfinal, Pfinal=P1⊗P2.
Proof 1 If a word w = σ′1σ′2⋯ satisfies Pj=Ωj,⪯j,≠j,Pj∈Pfinal it satisfies the three conditions mentioned in Definition 3. In first condition, due to the step Task composition of Poset-prod, we can infer that for any ωn1=n,σn1,σns1∈Ω1, there exists ωn=n,σn,σns∈Ωj with σn1⊆σn,σns1⊆σns. Thus, we have σi11⊆σi1⊆σ′ℓ1 and σi1s1∩σ′m1=∅,∀m1<ℓ1, which indicates that w satisfies P1 for condition 1. For the second condition, due to Eq. 9 in step Relation update, we have ⪯i ⊆ ⪯j. Thus, we can infer that w satisfies P1 for the second condition: Any σi1s1∩σ′m1=∅,∀m1<ℓ1, we have (ωi1,  ωi2) ∈ ⪯j, thus ∃ℓ1≤ℓ2,σi21⊆σi2⊆σ′ℓ2, and ∀m2<ℓ2,σℓ2s1⊆σℓ2s⊆σ′m2. Additionally, for the last condition, as the word w satisfied the ≠j order of Pj. We have ≠1 ⊆ ≠j due to Eq. 13. Thus, the word w also satisfied the third condition. In the end, we can conclude that w satisfies P1. In the same way, we can proof the w also satisfies P2. Thus, LPj⊆LP1∩LP2.
Theorem 2 (Completeness) Given two R-posets P1, P2 getting from B1,B2, with enough time budget, Poset-prod returns a set Pfinal consisting of all final product, and its language LPfinal=⋃Pi∈Pfinal‍LPi is equal to LPfinal=LP1⋂‍LP2.
Proof 2 Due to Theorem 1, it holds that LPfinal⊆LP1⋂‍LP2. Thus, we only need to show that LP1⋂‍LP2⊆LPfinal. Given a word w = σ′1σ′2⋯ and w∈LP1⋂‍LP2, w satisfies the first condition in Definition 3 for both P1 and P2 that: ∀ωi11=i1,σi11,σi1s1∈Ω1, there exists σ′j1 with σi11⊆σ′j1 and σj1s1⊆σ′m1,∀m1<j1; ∀ωi22=i2,σi22,σi2s2∈Ω2, there exists σ′j2 with σi22⊆σ′j2 and σj2s2⊆σ′m2,∀m2<j2. If j1 = j2, the step in Eq. 8 of Task composition will generate a subtask ωi1 ∈ Ωj with ωi1⊨ωi11,ωi22, and σi1⊆σ′j1,∀m3<j1,σj1s⊆σ′m3. If j1 ≠ j2, the (7) will generate ωMΩi2⊨ωi22, with σMΩi2⊆σ′j2,∀m4<j2,σMΩi2s⊆σ′m4. Thus, there exists Pj∈Pfinal that satisfies the first condition. For the second condition, ⪯j consisting of two parts generated by Eqs. 9 and 12 guarantees that w∈LP1∩LP2. Moreover, Eqs. 10 and 11 guarantee that w does not conflict the self-loop constraints of P1, P2. Thus, the second condition is satisfied. Regarding the third condition, since ≠j = ≠1 ∩ MΩ(≠2) holds in Eq. 13, ≠j is naturally satisfied by w. In conclusion, for any w∈LP1∩LP2, w∈LPfinal holds and vice versa. Thus, LPfinal is equal to LP1⋂‍LP2.
