Traceable Lactate-Fueled Self-Acting Photodynamic Therapy against Triple-Negative Breast Cancer
收藏切换
PDF
Yifan Zhang†, Guangle Feng†, Ting He, Min Yang, Jing Lin, Peng Huang*
Research. Vol 7 Article ID 0277
Less
收藏切换
Research. Vol 7 Article ID 0277
• Research Article •
Traceable Lactate-Fueled Self-Acting Photodynamic Therapy against Triple-Negative Breast Cancer
Full
Yifan Zhang†, Guangle Feng†, Ting He, Min Yang, Jing Lin, Peng Huang*
Affiliations
  • Marshall Laboratory of Biomedical Engineering, International Cancer Center, Shenzhen Key Laboratory of Tumor Visualization Molecular Medicine, Laboratory of Evolutionary Theranostics (LET), School of Biomedical Engineering, Shenzhen University Medical School, Shenzhen University, Shenzhen, 518055, China.
Published: 2024-01-17 doi: 10.34133/research.0277
Outline
收藏切换

The depth of light penetration and tumor hypoxia restrict the efficacy of photodynamic therapy (PDT) in triple-negative breast cancer (TNBC), while the overproduction of lactate (LA) facilitates the development, aggressiveness, and therapy resistance of TNBC. To address these issues, a self-acting PDT nanosystem (HL@hMnO2-LOx@HA) is fabricated by loading 2-(1-hexyloxyethyl)-2-devinyl pyropheophorbide-alpha (HPPH), luminol, and LA oxidase (LOx) in a hyaluronic acid (HA)-coated hollow manganese dioxide (hMnO2) nanoparticle. LOx catalyzes the oxidation of LA into pyruvate and hydrogen peroxide (H2O2), thus depleting the overproduced intratumoral LA. In the acidic tumor microenvironment, H2O2 reacts with luminol and hMnO2 to yield blue luminescence as well as O2 and Mn2+, respectively. Mn2+ could further enhance this chemiluminescence. HPPH is then excited by the chemiluminescence through chemiluminescence resonance energy transfer for self-illuminated PDT. The generated O2 alleviates the hypoxia state of the TNBC tumor to produce sufficient 1O2 for self-oxygenation PDT. The Mn2+ performs T1 magnetic resonance imaging to trace the self-acting PDT process. This work provides a biocompatible strategy to conquer the limits of light penetration and tumor hypoxia on PDT against TNBC as well as LA overproduction.

Yifan Zhang, Guangle Feng, Ting He, Min Yang, Jing Lin, Peng Huang. Traceable Lactate-Fueled Self-Acting Photodynamic Therapy against Triple-Negative Breast Cancer[J]. Research, 2024 , 7 (1) : 0277 . DOI: 10.34133/research.0277
Full Text
Less
Introduction
Less
Triple-negative breast cancer (TNBC) is a subtype of breast cancer with the poorest prognosis mainly because of the paucity of effective therapies other than systemic chemotherapy and its aggressive behavior [1,2]. Photodynamic therapy (PDT) enables targeted cancer therapy through spatiotemporally controlled light illumination and can eradicate tumor cells as sufficient singlet oxygen (1O2) is generated [3,4]. Moreover, PDT has several distinct advantages over conventional chemotherapy and radiotherapy including noninvasiveness and repeatability without cumulative toxicity [5]. Nevertheless, the hypoxic condition of TNBC tumors severely hampers an adequate supply of oxygen for PDT [6–8]. Moreover, the penetration depth of light in the TNBC tumor is limited because of the surface reflection, tissue scattering, tissue autofluorescence, and absorption by endogenous chromophoric biomolecules (e.g., heme groups, various forms of melanins, and aromatic amino acid residues in proteins) [9,10]. To avoid the tissue penetration process, direct activation of photosensitizers using a coadministered or coloaded energy source via chemi-/bioluminescence resonance energy transfer (CRET/BRET) [11–13], chemically initiated electron exchange luminescence [14], or Cherenkov radiation energy transfer [15] represents an intriguing avenue for effective PDT in deep solid tumors including TNBC [16]. Nevertheless, the efficacy of self-excited PDT in TNBC is still limited with the hypoxic tumor microenvironment. The research on oxygen supply for self-excited PDT is still in its fancy [17,18].
The overproduction of lactate (LA) [19,20] in TNBC tumors is associated with rapid progression, aggressiveness, and resistance to conventional chem/radio/immunotherapy [21–24]. Several approaches have been reported to modulate the reprogrammed LA metabolism in TNBC cells [25], including inhibition of LA dehydrogenase [26], monocarboxylate transporters [27,28], and the LA receptor GPR81 [29]. For example, Shao et al. [26] found that the LA dehydrogenase inhibitor FX-11 could effectively sensitize the 4T1 xenograft tumors to anti–programmed cell death protein 1 treatment and showed a markedly increased tumor infiltration of CD8+ T cells and natural killer cells. As a natural enzyme, LA oxidase (LOx) could consume intratumoral LA by catalyzing its oxidation into pyruvate [30,31]. Moreover, this reaction produces H2O2, which triggers the subsequent treatment modalities by chain reactions such as chemotherapy [32,33] and chemodynamic therapy [34,35]. However, it lacks feasible approaches to monitor the chain reactions in vivo.

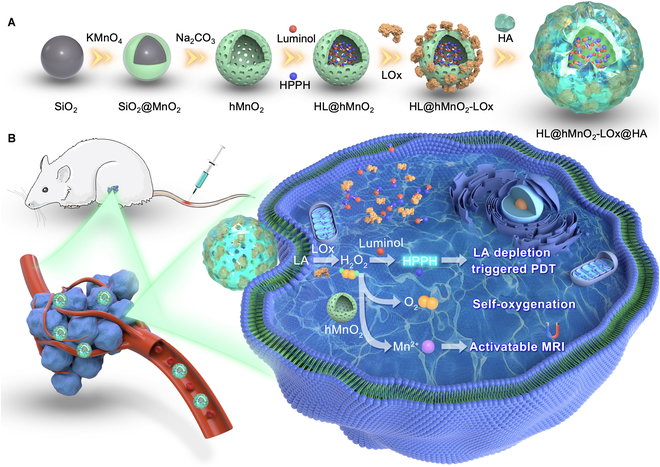

Herein, a traceable LA-fueled self-acting PDT nanosystem was fabricated by coloading 2-(1-hexyloxyethyl)-2-devinyl pyropheophorbide-alpha (HPPH or Photochlor), luminol, and LOx in a hollow manganese dioxide (hMnO2) nanoparticle. To enhance the tumor-targeting capability and protect the LOx from hydrolysis, the as-prepared nanoparticle was decorated with hyaluronic acid (HA) (HL@hMnO2-LOx@HA, HLMLH). HPPH is a second-generation photosensitizer already in Phase II human clinical trials [36]. Initially, LOx consumed the intratumoral LA and generated H2O2. Afterward, the produced H2O2 oxidized luminol to yield an aminophthalate ion and emitted blue luminescence which peaked at about 440 nm (Fig. 1) [11,37]. The chemiluminescence then activates HPPH via CRET between luminol and HPPH for fluorescence imaging (FLI)-guided PDT [38]. Simultaneously, the nanocarrier hMnO2 was degraded by H2O2 in the acidic tumor microenvironment and generated O2 to improve the hypoxia of TNBC tumors as the source of PDT. This process was accompanied by the generation of Mn2+, which not only acted as a T1 contrast agent for activatable magnetic resonance imaging (MRI) [39] but also catalyzed the decomposition of H2O2 to produce •OH and enhanced the chemiluminescence [40]. As a result, the HLMLH nanosystem was expected to perform MRI/FLI traceable self-illuminated/-oxygenated PDT against TNBC.
Results
Less

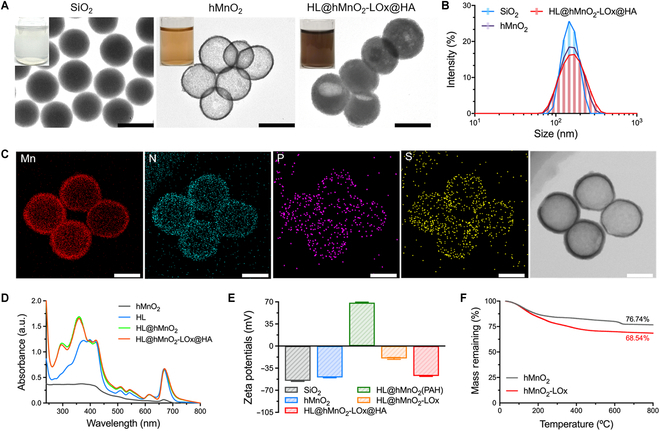

Preparation and characterizations of the self-acting PDT system
To fabricate the HLMLH nanosystem, the hMnO2 nanoparticle was first synthesized according to the previously reported method [41]. Transmission electron microscope (TEM) images showed that the monodispersed silica nanoparticles are spheric and smooth (Fig. 2A), while the coating of MnO2 was relatively coarse (Fig. S1). After being etched with Na2CO3, the as-prepared hMnO2 nanoparticles had a uniform hollow and spheric morphology. The modification of LOx and HA had negligible influence on its morphology, but the cavity of hMnO2 turned nontransparent due to the encapsulation of HPPH and luminol. Dynamic light scattering measurement showed that the average diameter of the hMnO2 nanoparticle was about 165 nm, and the polydispersity index was 0.2841 (Fig. 2B). The decoration of LOx and HA increased its diameter to about 172 nm. The element mapping data indicated the existence of Mn in the shell and the loading of LOx on its surface (Fig. 2C). Ultraviolet (UV)-visible (vis)-near-infrared (NIR) spectra showed that HL@hMnO2- LOx@HA had a peak absorption at about 360 nm, indicating the effective encapsulation of HPPH (Fig. 2D). The LOx was loaded in the HLMLH nanosystem by electrostatic adsorption between an electronegative enzyme and electropositive poly(allylamine hydrochloride) (PAH) [42]. After loading LOx, the surface charge of the obtained HL@hMnO2-LOx returned negative (−23 mV) (Fig. 2E). After coating HA, the surface zeta potential further decreased to −47.3 mV. The optimized mass ratio of HPPH and hMnO2 was 7:2 (Fig. S2A). As calculated by the thermogravimetric (TG) analysis of hMnO2-LOx, the loading efficiency of LOx was about 8.2 wt% (Fig. 2F). The as-prepared HL@hMnO2-LOx@HA could be stable at 4°C within 7 d, indicating good stability (Fig. S2B).

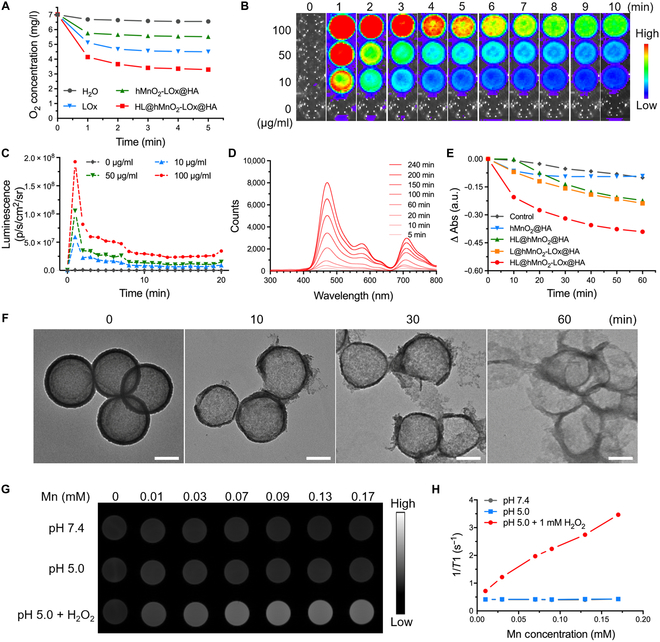

Chain reactions for the self-illuminated/-oxygenated PDT system
The chain reactions between LA and HL@hMnO2-LOx@HA were then investigated in vitro. After adding LA to both the H@hMnO2-LOx@HA (without luminol) and HL@hMnO2-LOx@HA aqueous solutions, H2O2 was continuously generated within 70 min owing to the catalytic reaction mediated by LOx (Fig. S3). However, the H2O2 amount was relatively lower in the HL@hMnO2-LOx@HA group, indicating that luminol in the nanosystem could also react with the generated H2O2. Theoretically, the generated H2O2 will then react with hMnO2 to produce O2 and improve the hypoxic state of TNBC. To verify this assumption, the O2 content of LA aqueous solutions was measured using a dissolved oxygen meter. Results showed that in the absence of LA and luminol, 100 μM H2O2 reacted with hMnO2 and largely increased the O2 concentration within 1 min from 3.32 mg/ml to higher than 10 mg/ml. In the presence of luminol, the O2 concentration rose in the first 30 s and then dropped slowly and maintained higher than 7 mg/ml within 6 min, indicating that the generated O2 is enough for chemiluminescence-excited PDT. Comparatively, the LOx-LA reaction only decreased the O2 concentration within 1 min from 7.01 to 4.15 mg/ml (Fig. 3A), significantly lower than that generated from the reaction between endogenous H2O2 and hMnO2 (the HL@hMnO2-LOx@HA + H2O2 group in Fig. S4).
In the presence of H2O2 at a physiological concentration (100 μM), luminol immediately emitted strong blue luminescence in 1 min and lasted for more than 5 min, guaranteeing sufficient excitation of surrounding HPPH (Fig. 3B to C). During the reaction, the typical FL emission of HPPH at about 707 nm rapidly increased as the characteristic luminescent emission of luminol at about 460 nm gradually decreased as the reactants were exhausted (Fig. S5). Similarly, in the presence of 11 mM LA (close to physiological concentration), luminol emitted moderate blue luminescence, slighter than that emitted from the mixture of nanoparticles at a similar concentration (50 μg/ml) and 100 μM H2O2. The luminescence intensity peaked in 2 min and lasted for about 10 min (Fig. S6). Characteristic luminescent emissions of luminol and HPPH were also observed in the mixed solution of HL@hMnO2-LOx@HA and LA at a physiological concentration (10 mM) (Fig. 3D). Together, these results indicated that both intratumoral LA and H2O2 could trigger the self-acting PDT process.
Then, 1,3-diphenylisobenzofuran (DPBF) was used to assess the production of 1O2. As shown in Fig. 3E, while HL@hMnO2@HA could also produce a moderate amount of 1O2 when incubated with LA for 60 min, the HL@hMnO2-LOx@HA group produced the most amount of 1O2, indicated by the sharp absorption decrease of DPBF (Fig. S7). As mentioned before, the H2O2 generated from LA-LOx catalytic reaction could degrade the hMnO2 nanoparticle. TEM images in Fig. 3F consolidated the gradual degradation of the hMnO2 nanoparticle within 60 min of incubation with H2O2. This reaction could produce Mn2+ ions, an effective T1 contrast agent for MRI. The lighter T1-weighted MR images of HL@hMnO2-LOx@HA ([Mn] = 0, 0.01, 0.03, 0.07, 0.09, and 0.17 mM) incubated with H2O2 at pH 5.0 were then captured (Fig. 3G). The slope, as given by the r1 value, was evaluated to be 16.53 mM−1s−1, higher than that of pH 7.4 group (0.076 mM−1s−1) and pH 5.0 group (0.069 mM−1s−1) (Fig. 3H). The degradation rate of the hMnO2 shell was slower in 10 mM LA than in 1 mM H2O2. The complete degradation of nanoparticles took about 4 h (Fig. S8A). Without LA and H2O2, hMnO2 hardly decomposed into Mn ions (Fig. S8B), and the r1 value of the control group was only 0.080 mM−1s−1 (Fig. S8C), lower than that of the LA group (5.856 mM−1s−1). These results indicate that an H2O2-activated MRI could be performed to instruct the self-acting PDT process by revealing the generation of H2O2.

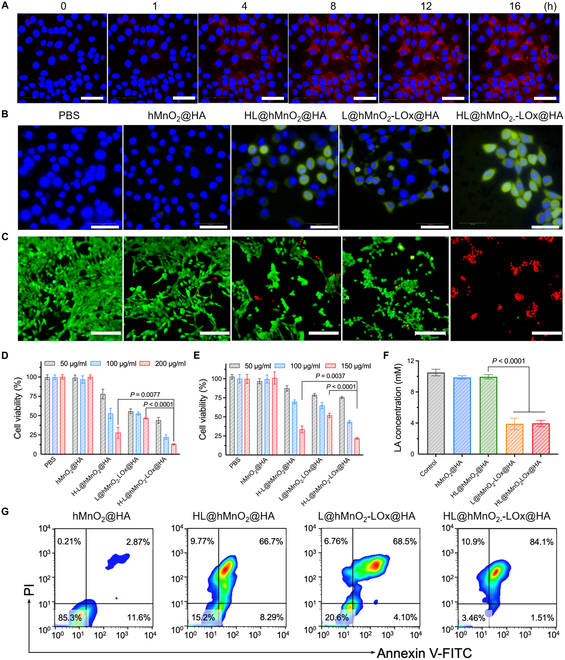

Self-acting PDT in vitro
The above results demonstrated the efficient chain reactions among HL@hMnO2-LOx@HA and LA that produced O2 and exciting HPPH without extra fiber. Subsequently, this self-illuminated/-oxygenated PDT process mediated by HL@hMnO2-LOx@HA was investigated in vitro. The significantly increased fluorescence (FL) intensity of HPPH in 4T1 tumor cells under an FL microscope confirmed the intracellular incorporation of HL@hMnO2-LOx@HA (Fig. 4A). The semiquantitative analysis showed that most of the nanoparticles were incorporated in cells within 10 h of incubation (Fig. S9). Bio-TEM images further demonstrated the efficient cellular uptake of HL@hMnO2-LOx@HA (Fig. S10). Uptake blocking experiment using free HA demonstrated the active targeting capability of HA-decorated HL@hMnO2-LOx@HA nanoparticles toward 4T1 cells (Fig. S11). To predict the efficacy of self-acting PDT in vitro, a commercial probe of reactive oxygen species (ROS), H2DCFDA, was used to detect the intracellular generation of ROS including 1O2, the main ROS for PDT. Once encountering ROS in the cytoplasm, the probe would emit strong green FL. Without HPPH, cells treated with L@hMnO2-LOx@HA also emitted slight green FL because H2O2 generated from LA-LOx catalytic reaction could also be detected by the ROS probe (Fig. 4B). Without LOx, cells treated with HL@hMnO2@HA also emitted moderate green FL because intracellular H2O2 could also excite the luminol and produce 1O2 via CRET. After being treated with HL@hMnO2-LOx@HA, every 4T1 cell exhibited intense green FL, indicating that a large amount of 1O2 was produced (Fig. S12A). Strong green FL was also observed in HL@hMnO2-LOx@HA-treated 4T1 cells under hypoxic conditions (Fig. S12B and C).
The PDT efficacy of HL@hMnO2-LOx@HA was then semiquantified by staining the live/dead cells using calcium AM/propidium iodide (PI) (Fig. 4C). Similar to the results of ROS staining, cells treated with both HL@hMnO2@HA and L@hMnO2-LOx@HA only exhibited slight red FL (dead cells), while almost no live cell remained after treatment with HL@hMnO2-LOx@HA. Then, [3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide] (MTT) assay was conducted to quantitatively evaluate the efficacy of self-acting PDT. Both phosphate buffer solution (PBS) and hMnO2@HA caused negligible cell death, indicating good biosafety of the nanocarrier. The treatment of HL@hMnO2-LOx@HA killed 83.4% of 4T1 cells, while that of HL@hMnO2@HA and L@hMnO2-LOx@HA killed 77.7% and 67.8%, respectively (Fig. 4D). To confirm the self-oxygenation mediated by HL@hMnO2-LOx@HA, cells were treated with different groups in a hypoxic incubator. Although the pO2 decreased to approximately 5%, self-oxygenated PDT maintained high PDT efficacy and killed more than 87% of 4T1 cells (Fig. 4E). These results consolidated the oxygen-supplementing capability of HL@hMnO2-LOx@HA during the PDT process. In addition to PDT, the depletion of LA also contributed to the excellent cell-killing effect. Both L@hMnO2-LOx@HA and HL@hMnO2-LOx@HA groups showed a obviously decreased LA content from about 10 to 4 mM in 4T1 cells (Fig. 4F). Annexin V-PI costaining assay showed that self-acting PDT mainly caused late-stage cell apoptosis (84.1%) (Fig. 4G).

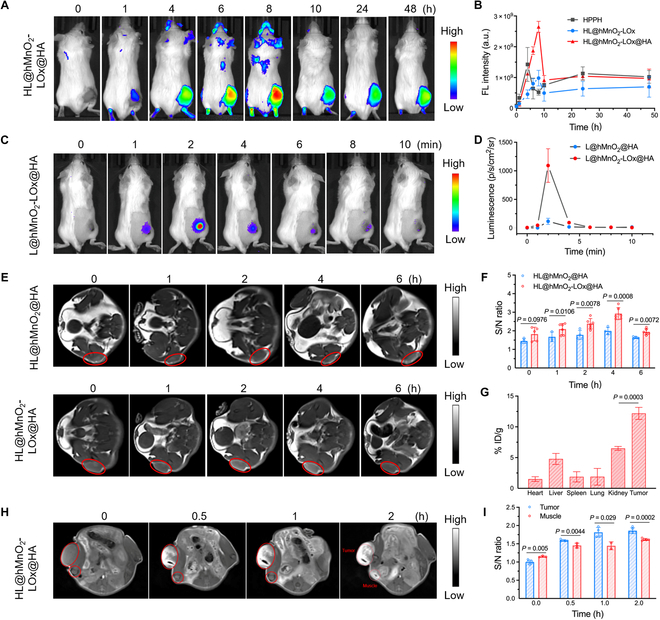

Multimodal imaging in vivo
Next, the FL/MR dual-modal imaging performance of HL@hMnO2-LOx@HA was evaluated on the subcutaneous 4T1 tumor-bearing mice. The maximum diameter of HL@hMnO2-LOx@HA was less than 200 nm (Fig. 2A and B), a suitable size for the enhanced permeation and retention effect [43]. While free HPPH was distributed all over the body, HL@hMn2-LOx passively targeted the 4T1 tumor via the enhanced permeation and retention effect and its FL signal peaked at 8 h after intravenous injection (Fig. S13). HA could selectively bind with CD44 highly expressed on the cell membrane of TNBC cells [44]. HA coating endowed the HL@hMnO2-LOx@HA nanoparticle with active targeting capability, which achieved markedly higher tumor accumulation than L@hMn2-LOx (Fig. 5A and B). Once intratumorally injected with HL@hMnO2-LOx@HA, luminol emitted more intense luminescence than that with L@hMnO2-LOx, further indicating the higher tumor accumulation (Fig. 5C and Fig. S14). Although the luminescence signal turned weak quickly due to the interference from tissues (e.g., blood, skin, fur), the ex vivo luminescence signals in the tumors remained visible 60 min after injection, indicating sufficient excitation of HPPH for in vivo PDT (Fig. S15). As mentioned before, the hMnO2 nanoparticle would be degraded by H2O2 in an acidic environment and generated Mn2+ for T1-weighted MRI (Fig. 3G and H). After intravenous injection, the tumor T1-MR signals from both HL@hMnO2-LOx@HA and HL@hMnO2@HA increased and peaked at ~4 h (Fig. 5E). The existence of LOx enhanced the MR signal due to the generation of extra H2O2 from LOx-catalyzed LA oxidation (Fig. 5F). The quantitative analysis of the tissue distribution of HL@hMnO2-LOx@HA was performed using inductively coupled plasma–mass spectrometry (ICP-MS). The content of Mn2+ in the tumor was observably higher than that in the other major organs, further indicating the high tumor accumulation of HL@hMnO2-LOx@HA (Fig. 5G). Comparatively, the muscle T1-MR signals of HL@hMnO2-LOx@HA were markedly lower than that in the tumor, because intratumoral LA and H2O2 as well as the acidic tumor microenvironment contributed to the generation of Mn2+ (Fig. 5H and I). The 3 factors also contributed to the chemiluminescence of luminol that excited HPPH for PDT, so activatable T1-MRI could be used to monitor the efficacy of self-acting PDT.

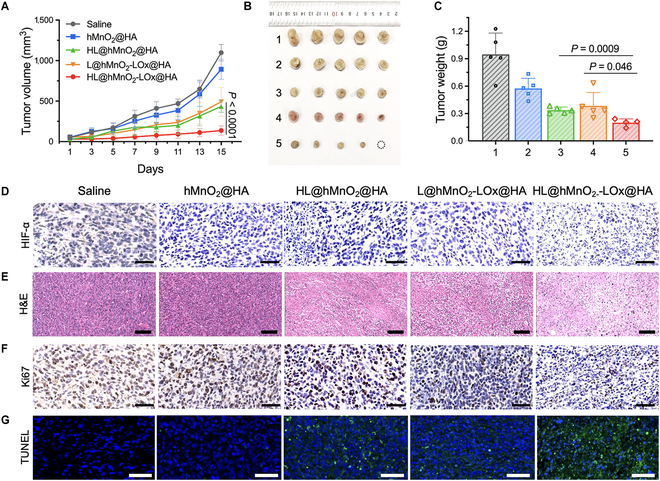

Self-acting PDT in vivo
The prerequisite of effective PDT on TNBC tumors is to conquer the limits of light penetration and tumor hypoxia. With the guidance of dual-modal MRI/FLI, HL@hMnO2-LOx@HA-mediated self-illuminated/-oxygenated PDT represents a promising strategy to treat TNBC. To investigate the in vivo efficacy of self-acting PDT, HL@hMnO2-LOx@HA was intravenously injected into a 4T1 TNBC xenograft model with a tumor volume of ≈ 70 mm3. Since HPPH was excited by blue chemiluminescence emitted from luminol, there was no laser irradiation of the traditional PDT process. The tumor growth was then monitored for 15 d, and the tumor growth inhibition (TGI) rates of each treatment group were calculated following a reported method [45]. Tumors in the mice treated with the pure carrier hMnO2@HA grew slightly lower than that of the saline group, and the average TGI rate was 23.1% (Fig. 6A). The tumor inhibition effect of the carrier was probably because that hMnO2 could react with H+ and H2O2 to improve the acidic and oxidative tumor microenvironment. The HL@hMnO2@HA group (without LOx) and the L@hMnO2-LOx@HA group (without HPPH) showed similar tumor suppression efficacy, and their TGI rates were 62.4% and 61.3%, respectively. The antitumor effect of HL@hMnO2@HA was mainly attributed to the intratumoral H2O2-triggered chemiluminescence excited PDT, and that of L@hMnO2-LOx@HA was mainly because of the LOx-mediated LA depletion and production of biotoxic H2O2. Among all these groups, HL@hMnO2-LOx@HA achieved the most significant tumor inhibition efficacy with a TGI rate of 80.2% owing to the LA/LOx-triggered self-illuminated/-oxygenated PDT. Compared to HL@hMnO2@HA, HL@hMnO2-LOx@HA provided more H2O2 required for chemiluminescence via LOx-catalyzed LA oxidization. Compared to L@hMnO2-LOx@HA, HL@hMnO2-LOx@HA introduced HPPH to achieve chemiluminescence-excited PDT. Digital photos showed that one tumor was eliminated (Fig. 6B) and most of the tumors in this group remained at the original size (Fig. S16), only about one-eighth the weight of the saline group at day 15 (Fig. 6C). Hypoxia induces the expression of hypoxia-inducible factor 1α (HIF-1α) [46]. Immunohistochemical (IHC) analysis indicated that HIF-1α expression was markedly down-regulated in the tumors of mice treated with hMnO2-contained nanoparticles (Fig. 6D and Fig. S17). Eight hours after the treatment, intratumoral LA concentration decreased from 19.7 to 15.4 μmol/g, demonstrating the significant LA consumption (Fig. S18).
To assess the morphological changes of tumor tissues, hematoxylin and eosin (H&E) staining was performed on tumor slices collected 15 d after different treatments. Among the 4 treatment groups, the tumor tissue of the HL@hMnO2-LOx@HA group exhibited the most severe plasmatorrhexis, nucleus shrinkage, karyorrhexis, and the largest intercellular spaces (Fig. 6E). IHC analysis also showed that the expression of Ki67, a marker of tumor proliferation, was markedly down-regulated 15 d after the treatment of HL@hMnO2-LOx@HA (Fig. 6F). Terminal deoxytransferase digoxigenin-dUTP nick end labeling (TUNEL) staining showed that tumor cells in the HL@hMnO2-LOx@HA group exhibited the highest level of cell apoptosis, the main cell death type caused by PDT and excessive H2O2 (Fig. 6G). No obvious decrease in body weight was observed within 15 d after various treatments, indicating that HL@hMnO2-LOx@HA did not cause acute systemic toxicity (Fig. S19). The serum chemistry results further confirmed that HL@hMnO2-LOx@HA had no acute toxicity to the liver or kidney (Fig. S20). The tissue morphology of major organs in all these treatment groups remained normal (Fig. S21). In addition, no obvious hemolysis was in the blood containing 400 μg/ml HL@hMnO2-LOx@HA (Fig. S22). These results indicate good biosafety of this self-acting PDT nanosystem.
Discussion
Less
In summary, an LA-fueled self-acting PDT nanosystem was fabricated to perform self-illuminated/-oxygenated PDT against TNBC. The as-prepared hMnO2-LOx@HA nanoparticle could selectively accumulate in the tumor and deplete intratumoral LA via a LOx-catalyzed oxidation reaction. Meanwhile, the generated H2O2 reacted with luminol and emitted blue luminescence, which could last for 60 min to guarantee the sufficient excitation of HPPH for PDT. H2O2 degraded the hMnO2 nanoparticle in the acidic microenvironment and produced O2 to supplement the source of 1O2 for PDT. Moreover, the hMnO2 was degraded to Mn2+ and generated strong T1-MR signals 4 h after intravenous injection in the 4T1 tumors, thereby monitoring the PDT process. Mn2+ catalyzed the decomposition of H2O2 to produce •OH and enhanced the chemiluminescence. More than 87% of 4T1 cells were killed by self-acting PDT in vitro, and the TGI rate was 80.2% in a 4T1 TNBC xenograft model. Therefore, this nanosystem is promising to simultaneously conquer the limits of light penetration and tumor hypoxia for traceable PDT against TNBC tumors as well as LA overproduction.
Materials and Methods
Less
Materials
2-(l-hexoxy)-2-ethyl derivative of pyromellitic chloride-&-(HPPH) was supplied by MedChemExpress (Shanghai, China). Ethyl orthosilicate, diphenyl benzofuran (DPBF), penicillin-streptomycin, trypsin, phosphate buffer (PBS), fetal bovine serum, and 4′,6-diamidino-2-phenylindole were from ThermoFisher Scientific (Shanghai, China). LOx, Dulbecco's modified Eagle's medium (DMEM), thiazole blue (MTT), and 2′,7′-dichlorodihydrofluorescein diacetate (DCFH-DA) were from Sigma-Aldrich (Shanghai, China). Polyallylamine salt (PAH) and HA were provided by Macklin (Shanghai, China). Calcein-AM and PI was from Biolegend (USA).
Preparation of HL@hMnO2-LOx@HA
The mass ratios of HPPH, Luminol, and hMnO2 were 7:5:2. Seventy milligrams of HPPH and 50 mg of Luminol in 0.5 ml of dimethyl sulfoxide buffer was dispersed in 2 ml of hMnO2 nanoparticle aqueous solution (1 mg/ml) and stirred for 24 h at 4 °C. The HL@hMnO2 nanoparticles were then collected by centrifugation (12,000 rpm, 25 min) and dispersed in ultrapure water. Afterward, the HL@hMnO2 nanoparticles were added to 2 ml of PAH solution (10 mg/ml), stirred for 30 min, and washed with ultrapure water to obtain positively charged nanoparticles. A certain amount of LOx (500 μg for animal experiments and 35 μg for cell experiments) was mixed with the PAH-modified nanoparticles and shaken for 15 min. HA solution (10 mg/ml of 1 ml) was added to the above solution, and shaking was continued for 15 min to stabilize the nanoparticles (HL@hMnO2-LOx@HA) before being washed with ultrapure water.
Characterization of HL@hMnO2-LOx@HA
The morphology of the HL@hMnO2-LOx@HA was observed by transmission electron microscopy (HT7700 TEM; Hitachi, Japan). The constituent elements were analyzed by an inductively coupled plasma mass spectrometer (NexION 300X; PerkinElmer, USA). A Malvern Zetasizer Nano ZS Particle and Zeta Potential Analyzer (DTS 1060, Malvern, UK) examined its hydrated particle size and zeta potential. Its absorption spectrum was detected by an Agilent Cary 60 UV-vis-NIR spectrophotometer (Agilent Technologies, Santa Clara, USA). The encapsulation efficiency and drug loading of HPPH and LOx were measured according to the formula as follows: Encapsulation efficiency (%) = Mass of drugs in the nanoparticles (g)/Mass of nanoparticles × 100%. Drug loading (%) = Mass of drugs in the nanoparticles (g)/Mass of drug added in the nanoparticles × 100%. For in vitro imaging, the concentration of Mn was measured using the inductively coupled plasma mass spectrometer.
Acid-responsive degradation of HL@hMnO2-LOx@HA
HL@hMnO2-LOx@HA aqueous solution (2 ml) (0.5 mg/ml) was placed in a dialysis bag (molecular weight cutoff = 3,500 Da), and dialyzed against PBS buffer (pH 7.4) or citric acid buffer (pH 5.0) at 37 °C. Dialysis buffer (2 ml) was removed at regular intervals to detect Mn2+ by inductively coupled plasma. After dialysis, the morphology of the remained HL@hMnO2-LOx@HA nanoparticles was observed by a TEM.
Cellular uptake
4T1 cells were inoculated in 96-well plates at a density of 5 × 103 per well and incubated overnight. Different concentrations of HPPH, HL@hMnO2-LOx@HA, and HL@hMnO2-LOx@HA plus HA were added to the DMEM, respectively. The cells were then incubated for 24 h, followed by measurement of intracellular fluorescence intensity after uptake in each group using a high-throughput imaging system (Operetta CLS; PerkinElmer, Hamburg, Germany).
Intracellular ROS detection
Intracellular ROS was detected using the ROS green fluorescent dye DCFH-DA (Ex/Em: 495/529 nm). 4T1 cells were inoculated at a density of 7 × 104 per well in 12-well plates and incubated overnight. The medium was then changed to a serum-free medium containing hMnO2, HL@hMnO2, L@hMnO2-LOx@HA, and HL@hMnO2-LOx@HA. Then, the DCFH-DA was added and incubated for 30 min. The cells were washed 3 times with PBS, and a serum-free medium was added to monitor green fluorescence within the cells under an inverted fluorescent microscope (Eclipse Ti2 Series-Nikon, Japan).
Cytotoxicity
The 4T1 cells were inoculated in 96-well plates at a density of 5 × 103 per well and incubated overnight. Afterward, HPPH, hMnO2, HL@hMnO2, L@hMnO2-LOx@HA, and HL@hMnO2-LOx@HA at various concentrations were added and incubated for 12 h, respectively. To measure the cell viability, the DMEM was replaced with 100 μl of fresh medium containing MTT (1 mg/ml). After incubation for 4 h, the medium containing MTT was replaced with 150 μl of dimethyl sulfoxide. The absorbance at 490 nm of the cell plate was measured using an enzyme marker. Cell viability (%) = (OD490 nm of sample/OD490 nm of control) * 100%. To visualize the dead/live tumor cells, calcein-AM (4 μM, green) and PI (4 μM, red) were added and incubated for 30 min, respectively. A Nikon Eclipse Ti inverted fluorescence microscope (Nikon Canada, Mississauga, Canada) was used to observe the fluorescence of cells. To evaluate the cell apoptosis and necrosis, the cells were digested by trypsin and collected for the staining of Annexin V-fluorescein isothiocyanate and PI before analysis using flow cytometry (FACSAria III; BD Biosciences, San Jose, CA, USA).
In vivo FLI
When the tumor volume reached 200 mm3, HPPH, HL@hMnO2-LOx, and HL@hMnO2-LOx@HA (HPPH: 10 mg/kg) were intravenously injected in the 4T1 tumor-bearing mice. Fluorescence images of mice were collected by using an IVIS Spectrum system (Caliper Life Sciences, Hopkinton, MA) 0, 1, 2, 4, 6, 8, 10, 12, 24, 48, and 72 h after injection, respectively.
In vivo MRI
After tail vein injection of HL@hMnO2@HA and HL@hMnO2-LOx@HA (HPPH: 10 mg/kg) in mice, MRI images of mice were collected by a 3.0-T magnetic resonance system (MAGNETOM Skyra, Siemens Healthcare, Forccheim, Germany) 0, 1, 2, 4, and 6 h after injection.
In vivo PDT
Once the tumor volume reached approximately 70 mm3, the tumor-bearing mice were randomized into 5 groups: (a) saline, (b) MnO2, (c) HL@hMnO2@HA, (d) L@hMnO2-LOx@HA, and (e) HL@hMnO2-LOx@HA. For photodynamic treatment, saline, MnO2, HL@hMnO2@HA, L@hMnO2-LOx@HA, and HL@hMnO2-LOx@HA (HPPH: 10 mg/kg) were intravenously injected into the tumor-bearing mice twice every week, respectively. The tumor length and width of the mice were measured using a vernier caliper to calculate the tumor volume until the tumor volume exceeded 2,000 mm3. The tumor volume was calculated according to the following formula: volume = width2 × (length/2). If the tumor volume of mice exceeds 2,000 mm3, they will be euthanized by an overdose of chloral hydrate, and their survival time will be recorded. Tumor growth inhibition rate (%TGI) was calculated according to the following equation: %TGI = {1 − (Vt15/Vt0)/ (Vc15/Vc0)} × 100. Vc15 and Vt15 are the mean volumes of the saline and treated groups at day 15, respectively. Vc0 and Vt0 are the mean volumes of saline and treated groups at day 0, respectively.
Histological analysis
Fourteen days after various treatments, all mice were executed and the major organs (heart, liver, spleen, lung, and kidney) and tumors of representative mice were collected and fixed in 4% paraformaldehyde solution; then, tissue paraffin sections were made and stained for H&E. Ki67, HIF-1α, and TUNEL staining was also performed on tumor sections. Histological changes were observed using TEKSQRAY Slide Scan System SQS1000 (Shengqiang Technology Co., Ltd., Shenzhen, China).
Statistical analysis
The data were shown as mean ± SD. Statistical differences were established using an unpaired 2-tailed Student t test or one-way analysis of variance (ANOVA) followed by Fisher's LSD test in GraphPad Prism 8.2. *P < 0.05, **P < 0.01, ***P < 0.001.
Funding
Less
  • National Key R&D Program of China(2018YFA0704000, 2020YFA0908800)
  • National Natural Science Foundation of China (82071985, 22104094)
  • Basic Research Program of Shenzhen(JCYJ20200109105620482, JCYJ20220818095806014, KQTD20190929172538530)
References
Less
1.
Bianchini G, Balko JM, Mayer IA, Sanders ME, Gianni L. Triple-negative breast cancer: challenges and opportunities of a heterogeneous disease. Nat Rev Clin Oncol. 2016;13(11):674–690.
2.
Bianchini G, De Angelis C, Licata L, Gianni L. Treatment landscape of triple-negative breast cancer - expanded options, evolving needs. Nat Rev Clin Oncol. 2022;19(2):91–113.
3.
Li X, Lovell JF, Yoon J, Chen X. Clinical development and potential of photothermal and photodynamic therapies for cancer. Nat Rev Clin Oncol. 2020;17(11):657–674.
4.
Zhang Y, Bo S, Feng T, Qin X, Wan Y, Jiang S, Li C, Lin J, Wang T, Zhou X, et al. A versatile theranostic nanoemulsion for architecture-dependent multimodal imaging and dually augmented photodynamic therapy. Adv Mater. 2019;31(21): Article e1806444.
5.
Lucky SS, Soo KC, Zhang Y. Nanoparticles in photodynamic therapy. Chem Rev. 2015;115(4):1990–2042.
6.
Chen X, Iliopoulos D, Zhang Q, Tang Q, Greenblatt MB, Hatziapostolou M, Lim E, Tam WL, Ni M, Chen Y, et al. XBP1 promotes triple-negative breast cancer by controlling the HIF1α pathway. Nature. 2014;508(7494):103–107.
7.
Gilkes DM, Semenza GL, Wirtz D. Hypoxia and the extracellular matrix: drivers of tumour metastasis. Nat Rev Cancer. 2014;14(6):430–439.
8.
Li G, Zhou R, Zhao W, Yu B, Zhou J, Liu S, Huang W, Zhao Q. Photothermally responsive conjugated polymeric singlet oxygen carrier for phase change-controlled and sustainable phototherapy for hypoxic tumor. Research. 2020;2020: Article 5351848.
9.
Fan W, Huang P, Chen X. Overcoming the Achilles' heel of photodynamic therapy. Chem Soc Rev. 2016;45(23):6488–6519.
10.
Hong G, Antaris AL, Dai H. Near-infrared fluorophores for biomedical imaging. Nat. Biomed. Eng. 2017;1(1): Article 0010.
11.
Xu X, An H, Zhang D, Tao H, Dou Y, Li X, Huang J, Zhang J. A self-illuminating nanoparticle for inflammation imaging and cancer therapy. Sci Adv. 2019;5(1): Article eaat2953.
12.
Jeon J, You DG, Um W, Lee J, Kim CH, Shin S, Kwon S, Park JH. Chemiluminescence resonance energy transfer-based nanoparticles for quantum yield-enhanced cancer phototheranostics. Sci Adv. 2020;6(21): Article eaaz8400.
13.
Yang Z, Zhu Y, Dong Z, Hao Y, Wang C, Li Q, Wu Y, Feng L, Liu Z. Engineering bioluminescent bacteria to boost photodynamic therapy and systemic anti-tumor immunity for synergistic cancer treatment. Biomaterials. 2022;281: Article 121332.
14.
Mao D, Wu W, Ji S, Chen C, Hu F, Kong D, Ding D, Liu B. Chemiluminescence-guided cancer therapy using a chemiexcited photosensitizer. Chem. 2017;3(6):991–1007.
15.
Kotagiri N, Sudlow GP, Akers WJ, Achilefu S. Breaking the depth dependency of phototherapy with cerenkov radiation and low-radiance-responsive nanophotosensitizers. Nat Nanotechnol. 2015;10(4):370–379.
16.
Blum NT, Zhang Y, Qu J, Lin J, Huang P. Recent advances in self-exciting photodynamic therapy. Front Bioeng Biotechnol. 2020;8: Article 594491.
17.
Hu L, Xiong C, Zou J-J, Chen J, Lin H, Dalgarno SJ, Zhou H-C, Tian J. Engineered mof-enzyme nanocomposites for tumor microenvironment-activated photodynamic therapy with self-luminescence and oxygen self-supply. ACS Appl Mater Interfaces. 2023;15(21):25369–25381.
18.
Lu G, Wang X, Li F, Wang S, Zhao J, Wang J, Liu J, Lyu C, Ye P, Tan H, et al. Engineered biomimetic nanoparticles achieve targeted delivery and efficient metabolism-based synergistic therapy against glioblastoma. Nat Commun. 2022;13(1): Article 4214.
19.
Ghergurovich JM, Lang JD, Levin MK, Briones N, Facista SJ, Mueller C, Cowan AJ, McBride MJ, San Roman Rodriguez E, Killian A, et al. Local production of lactate, ribose phosphate, and amino acids by human triple-negative breast cancer. Med. 2021;2(6):736–754.e6.
20.
Choi J, Kim DH, Jung WH, Koo JS. Metabolic interaction between cancer cells and stromal cells according to breast cancer molecular subtype. Breast Cancer Res. 2013;15(5): Article R78.
21.
Hirschhaeuser F, Sattler UG, Mueller-Klieser W. Lactate: A metabolic key player in cancer. Cancer Res. 2011;71(22):6921–6925.
22.
Colegio OR, Chu NQ, Szabo AL, Chu T, Rhebergen AM, Jairam V, Cyrus N, Brokowski CE, Eisenbarth SC, Phillips GM, et al. Functional polarization of tumour-associated macrophages by tumour-derived lactic acid. Nature. 2014;513(7519):559–563.
23.
Chen P, Zuo H, Xiong H, Kolar MJ, Chu Q, Saghatelian A, Siegwart DJ, Wan Y. GPR132 sensing of lactate mediates tumor-macrophage interplay to promote breast cancer metastasis. Proc Natl Acad Sci USA. 2017;114(3):580–585.
24.
Zhao K, Wang X, Zhao D, Lin Q, Zhang Y, Hu Y. LncRNA hitt inhibits lactate production by repressing PKM2 oligomerization to reduce tumor growth and macrophage polarization. Research. 2022;2022: Article 9854904.
25.
Luengo A, Gui DY, Vander Heiden MG. Targeting metabolism for cancer therapy. Cell Chem Biol. 2017;24(9):1161–1180.
26.
Gong Y, Ji P, Yang YS, Xie S, Yu TJ, Xiao Y, Jin ML, Ma D, Guo LW, Pei YC, et al. Metabolic-pathway-based subtyping of triple-negative breast cancer reveals potential therapeutic targets. Cell Metab. 2021;33(1):51–64.e9.
27.
Padilla J, Lee B-S, Zhai K, Rentz B, Bobo T, Dowling NM, Lee J. A heme-binding transcription factor bach1 regulates lactate catabolism suggesting a combined therapy for triple-negative breast cancer. Cell. 2022;11(7): Article 1177.
28.
Wang N, Jiang X, Zhang S, Zhu A, Yuan Y, Xu H, Lei J, Yan C. Structural basis of human monocarboxylate transporter 1 inhibition by anti-cancer drug candidates. Cell. 2021;184(2):370–383.
29.
Naik A, Decock J. Lactate metabolism and immune modulation in breast cancer: a focused review on triple negative breast tumors. Front Oncol. 2020;10: Article 598626.
30.
Jiang S, Chen X, Lin J, Huang P. Lactate oxidase-instructed cancer diagnosis and therapy. Adv Mater. 2023;35(19):2207951.
31.
Wang W, Zhang L, Deng Q, Liu Z, Ren J, Qu X. Yeast@MOF bioreactor as a tumor metabolic symbiosis disruptor for the potent inhibition of metabolically heterogeneous tumors. Nano Today. 2022;42: Article 101331.
32.
Wu W, Pu Y, Yao H, Lin H, Shi J. Microbiotic nanomedicine for tumor-specific chemotherapy-synergized innate/adaptive antitumor immunity. Nano Today. 2022;42: Article 101377.
33.
Tang J, Meka AK, Theivendran S, Wang Y, Yang Y, Song H, Fu J, Ban W, Gu Z, Lei C, et al. Openwork@dendritic mesoporous silica nanoparticles for lactate depletion and tumor microenvironment regulation. Angew Chem Int Ed Engl. 2020;59(49):22054–22062.
34.
Qin X, Wu C, Niu D, Qin L, Wang X, Wang Q, Li Y. Peroxisome inspired hybrid enzyme nanogels for chemodynamic and photodynamic therapy. Nat Commun. 2021;12(1): Article 5243.
35.
Tian F, Wang S, Shi K, Zhong X, Gu Y, Fan Y, Zhang Y, Yang M. Dual-depletion of intratumoral lactate and ATP with radicals generation for cascade metabolic-chemodynamic therapy. Adv Sci. 2021;8(24):2102595.
36.
Rong P, Yang K, Srivastan A, Kiesewetter DO, Yue X, Wang F, Nie L, Bhirde A, Wang Z, Liu Z, et al. Photosensitizer loaded nano-graphene for multimodality imaging guided tumor photodynamic therapy. Theranostics. 2014;4(3):229–239.
37.
Merényi G, Lind J, Eriksen TE. Luminol chemiluminescence: chemistry, excitation, emitter. J Biolumin Chemilumin. 1990;5(1):53–56.
38.
An H, Guo C, Li D, Liu R, Xu X, Guo J, Ding J, Li J, Chen W, Zhang J. Hydrogen peroxide-activatable nanoparticles for luminescence imaging and in situ triggerable photodynamic therapy of cancer. ACS Appl Mater Interfaces. 2020;12(15):17230–17243.
39.
He T, Xu H, Zhang Y, Yi S, Cui R, Xing S, Wei C, Lin J, Huang P. Glucose oxidase-instructed traceable self-oxygenation/hyperthermia dually enhanced cancer starvation therapy. Theranostics. 2020;10(4):1544–1554.
40.
Si X, Song X, Xu K, Zhao C, Wang J, Liu Y, He S, Jin M, Li H. Bovine serum albumin-templated MnO2 nanoparticles are peroxidase mimics for glucose determination by luminol chemiluminescence. Microchem J. 2019;149: Article 104050.
41.
Yang G, Xu L, Chao Y, Xu J, Sun X, Wu Y, Peng R, Liu Z. Hollow MnO2 as a tumor-microenvironment-responsive biodegradable nano-platform for combination therapy favoring antitumor immune responses. Nat Commun. 2017;8(1):902.
42.
Gao F, Tang Y, Liu WL, Zou MZ, Huang C, Liu CJ, Zhang XZ. Intra/extracellular lactic acid exhaustion for synergistic metabolic therapy and immunotherapy of tumors. Adv Mater. 2019;31(51): Article e1904639.
43.
Iyer AK, Khaled G, Fang J, Maeda H. Exploiting the enhanced permeability and retention effect for tumor targeting. Drug Discov Today. 2006;11(17-18):812–818.
44.
Müller S, Sindikubwabo F, Cañeque T, Lafon A, Versini A, Lombard B, Loew D, Wu T-D, Ginestier C, Charafe-Jauffret E, et al. CD44 regulates epigenetic plasticity by mediating iron endocytosis. Nat Chem. 2020;12(10):929–938.
45.
Zhang Y, Wan Y, Chen Y, Blum NT, Lin J, Huang P. Ultrasound-enhanced chemo-photodynamic combination therapy by using albumin “nanoglue”-based nanotheranostics. ACS Nano. 2020;14(5):5560–5569.
46.
Hutchison GJ, Valentine HR, Loncaster JA, Davidson SE, Hunter RD, Roberts SA, Harris AL, Stratford IJ, Price PM, West CML. Hypoxia-inducible factor 1α expression as an intrinsic marker of hypoxia: correlation with tumor oxygen, pimonidazole measurements, and outcome in locally advanced carcinoma of the cervix. Clin Cancer Res. 2004;10(24):8405–8412.
