• Research Article •

Creating Ferroelectricity and Ultrahigh-Density Polar Skyrmion in Paraelectric Perovskite Oxide Monolayers by Moiré Engineering

Full

Tao Xu¹^,^*, Tao Qian², Jiafei Pang¹, Jingtong Zhang³, Sheng Li⁴, Ri He²^,^*, Jie Wang³, Takahiro Shimada¹^,^*

Affiliations

¹ Department of Mechanical Engineering and Science, Kyoto University, Nishikyo-ku, Kyoto 615-8540, Japan.

² Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo 315201, China.

³ Department of Engineering Mechanics, School of Aeronautics and Astronautics, Zhejiang University, Hangzhou 310027, China.

⁴ Department of Civil and Earth Resources Engineering, Kyoto University, Nishikyo-ku, Kyoto 615-8540, Japan.

Published: 2025-02-17 doi: 10.34133/research.0621

Outline

Abstract

Less

Atomic-scale polar topologies such as skyrmions offer important potential as technological paradigms for future electronic devices. Despite recent advances in the exploration of topological domains in complicated perovskite oxide superlattices, these exotic ferroic orders are unavoidably disrupted at the atomic scale due to intrinsic size effects. Here, based on first-principles calculations, we propose a new strategy to design robust ferroelectricity in atomically thin films by properly twisting 2 monolayers of centrosymmetric SrTiO₃. Surprisingly, the emerged polarization vectors curl in the plane, forming a polar skyrmion lattice with each skyrmion as small as 1 nm, representing the highest polar skyrmion density to date. The emergent ferroelectricity originates from strong interlayer coupling effects and the resulting unique strain fields with obvious ion displacements, contributing to electric polarization comparable to that of PbTiO₃. Moreover, we observe ultraflat bands (band width of less than 5 meV) at the valence band edge across a wide range of twist angles, which show widths that are smaller than those of common twisted bilayers of 2-dimensional materials. The present study not only overcomes the critical size limitation for ferroelectricity but also reveals a novel approach for achieving atomic-scale polar topologies, with important potential for applications in skyrmion-based ultrahigh-density memory technologies.

Cite this Article

Tao Xu, Tao Qian, Jiafei Pang, Jingtong Zhang, Sheng Li, Ri He, Jie Wang, Takahiro Shimada. Creating Ferroelectricity and Ultrahigh-Density Polar Skyrmion in Paraelectric Perovskite Oxide Monolayers by Moiré Engineering[J]. Research, 2025 , 8 (2) : 0621 . DOI: 10.34133/research.0621

Full Text

Less

Introduction

Less

Topological entities exhibiting skyrmionic textures have been a topic of intense research due to their rich emerging physical phenomena and potential for enabling innovative applications, such as racetrack memories [1,2]. A variety of exotic polar topological domains, such as the flux-closure domain [3], polar vortex [4–7], polar skyrmion [8,9], polar meron [10,11], and periodic polar wave [12], have gradually been discovered in ferroelectric nanostructures and superlattices in recent years. The creation of these ferroelectric topological textures relies strongly on the geometrically induced extrinsic chiral interactions arising from the delicate interplay among ferroelectric ordering, electrostatics, strain, and related gradients. With the rapid increase in data volume, minimizing the size of these topological domains is crucial for enhancing the speed and capacity of integrated devices in future ultrahigh-density data storage devices. However, because of the robust coupling between the lattice and polarization in ferroelectrics, polarization rotation in these topological structures results in considerable energy expenditure, involving substantial elastic and polarization gradient energies. These energy costs increase markedly with decreasing size of polar skyrmions. Consequently, creating ultrasmall skyrmions is challenging, typically with their sizes exceeding 10 nm [8] in ferroelectric systems. Furthermore, it is also widely recognized that ferroelectricity completely disappears below a critical thickness of several nanometers in ferroelectrics due to the effect of the depolarization field [13,14], although the precise value of the critical thickness is affected by mechanical and electrical conditions. Therefore, devising an innovative approach that transcends conventional geometric confinement is highly desirable and timely for advancing the miniaturization of polar skyrmions and systems that accommodate them.

Strain engineering through heteroepitaxy is a promising technique for the modulation of various structural [15,16], ferroelectric [17,18], and electric properties [19] of perovskite oxides due to the intrinsic pronounced electromechanical coupling effect. Furthermore, recent research has innovatively proposed the use of strain gradients alone in nanofilms with different mechanical wrinkles, such as a bulge and checkboard morphology, to create diverse polar topologies and phase transitions [20]. Nevertheless, these mechanical deformations largely depend on the elastic properties of the material and structural dimensions, and precise control of the required regular deformation patterns has been elusive in practice. On the other hand, the moiré superlattices formed by various twisted bilayers have been created, becoming versatile platforms for exploring a myriad of intriguing properties [21–23], in which lattice distortions and local strain play the key role. In addition to 2-dimensional (2D) atomic layers, artificial twisted stacks of freestanding perovskite oxide thin films with arbitrary twist angles have also been fabricated recently [24–26], opening up the possibility of exploring conventionally unavailable moiré-related strain patterns and associated exotic domain configurations. However, due to the experimental challenges in directly mapping the reconstruction mechanics and characterizing the displacement fields of these moiré materials, the discovery of novel emergent phenomena and exotic domain configurations in these twisted perovskite oxides remains largely unexplored.

In this study, we perform atomic simulations of twisted perovskite oxide bilayers to investigate the lattice reconstruction, translational symmetry breaking, and consequential ferroelectric properties in SrTiO₃ moiré superlattices. Our findings reveal that pronounced interfacial charge transfer and the resulting large structural reconstruction, featuring unique displacement patterns that are difficult to observe in traditional experiments, contribute to atomic-thin ferroelectricity characterized by polar skyrmions. We also obtain ultra-flat bands at the valence band edge in the SrTiO₃ moiré superlattices. Our results demonstrate that “moiré engineering” offers an unprecedented platform for overcoming the critical thickness limitation and creating atomic-scale ferroelectricity characterized by exotic polar topologies in perovskite oxides.

Method

Less

All first-principles calculations were carried out within the density functional theory (DFT) framework using the VASP code [27,28]. The electronic wave function was expanded in a plane-wave basis set, with a plane-wave cutoff energy set to 500 eV. We utilized the projector-augmented wave (PAW) pseudopotential method [29], treating the valence electrons as follows: the 4s, 4p, and 5s electrons for Sr; the 3s, 3p, 3d, and 4s electrons for Ti; and the 2s and 2p electrons for O. The exchange-correlation energy was handled using the generalized gradient approximation (GGA) with the Perdew–Burke–Ernzerhof (PBE) functional [30]. The Brillouin zone for both bulk and bilayer SrTiO₃ was sampled using a Monkhorst–Pack k-point mesh of 8 × 8 × 1, whereas for moiré superlattices, a 3 × 3 × 1 k-point mesh was employed. A large vacuum space (>15 Å) normal to the layer plane was applied to the bilayer and moiré superlattices to avoid spurious interactions. Relaxations of the atomic positions were iterated until both the energy change per unit cell and the Hellmann–Feynman force on each atom were below the thresholds of 10⁻⁶ eV and 0.01 eV Å⁻¹, respectively.

Results and Discussion

Less

SrTiO₃ is a benchmark oxide perovskite with a cubic structure and a calculated lattice parameter of a _c = 3.89 Å (Fig. 1A). Inspired by recent experimental progress in the fabrication of freestanding SrTiO₃ thin films down to the monolayer limit [31] and twisted stacks of SrTiO₃ nanomembranes [25,26], here we theoretically investigate twisted bilayer SrTiO₃ with the thickness of each layer N ranging from 1 to 6 formula units (f.u.). The initial configurations of thin films with cubic lattice coordinates are cleaved along the (001) crystallographic plane from the bulk SrTiO₃. There are 2 different terminations for the (001) surfaces of the films, i.e., the SrO and TiO₂ terminations. As a result, bilayer structures with 3 different terminations can be constructed, with their relative stabilities discussed in detail in the Supplementary Materials. Our preliminary DFT computational assessments indicate that TiO₂–TiO₂ termination forms complicated chemical bonds between the interfaces after relaxation (Fig. S1), whereas the SrO–SrO interface results in van der Waals-type interlayer interactions with an interlayer spacing of approximately 3.32 Å. The fabrication of SrO–SrO interfacial structures has also been experimentally realized [32,33]. Therefore, we focused on the stacking of SrTiO₃ thin films with SrO–SrO interface. Figure 1B illustrates 3 high-symmetry stacking configurations in this bilayer SrTiO₃: In the AA stacking arrangement, the upper and lower layers are perfectly aligned. The AB/BA stacking pattern results from shifting the upper layer by (0.5a, 0) or (0, 0.5a) along the x and y directions, respectively. The AC stacking corresponds to moving the upper layer by (0.5a, 0.5a), known as the well-studied Ruddlesden–Popper interface [32–35]. The stacking energy of the SrTiO₃ bilayer is calculated as the upper layer slides with respect to the lower layer, and the results are depicted in Fig. 1D. It is evident that the AC stacking exhibits the lowest energy, whereas the AB/BA stacking and AA stacking configurations have higher energy due to remarkable repulsion between the same elements across the interfaces.

We follow previously reported procedures [34] to construct square-shaped twisted supercell structures with commensurate twist angles. Given the ability to fabricate twisted structures with arbitrary twist angles in experiments and considering the availability of computational resources, we specifically focus on large-angle models (i.e., small supercells) with twisting angles θ > 10° in the present study, as listed in Table S1. For the moiré structure with the largest twist angle of 36.87°, we investigate the thickness-dependent properties by building a series of STO _N/STO _N (N = 1 to 6 unit cells) superlattices, where N indicates the thickness of each sublayer. The unit cells of the moiré superlattice (N = 1) with the twist angles of θ = 36.87° and 22.62° are illustrated in Fig. 1C and Fig. S2, which exhibit moiré periodicity λ values of 8.7 and 14.0 Å, respectively. The rigidly twisted SrTiO₃ thin films are then relaxed utilizing DFT simulations to capture their intralayer and interlayer interactions.

We begin by investigating the moiré superlattice with N = 1 and θ = 36.87°. As illustrated in Fig. 1E, the twisted SrTiO₃ bilayers after full relaxation exhibit considerable local lattice distortions and atomic displacements relative to the thin-film structure. The center and boundary atoms exhibit pure out-of-plane displacements. The atoms in the transition zone exhibit a complex 3D displacement configuration, which is primarily composed of in-plane torsional displacements and unequal out-of-plane displacements. These notable off-centered displacements cause the centers of positive and negative charges in the local unit cell to deviate from the original centrosymmetric structure, giving rise to local electric polarization in the otherwise paraelectric SrTiO₃ ultrathin films. The polarization properties of the twisted layers are investigated by using the site-specific local electric polarization p_i (Note S3), calculated using the Born effective charge tensors as

p i = e Ω c ω j Z j u j

[36,37]. Note that the local polarizations are defined continuously on different atoms by using atom-centered unit cells, as illustrated in Fig. S16. The local polarization, defined based on different choices of unit cells, is illustrated in Fig. S17A to C, showing sharp variations at the atomic scale. These large variations arise from the considerable differences in charge redistribution within a unit-cell region and at the atomic scale (see Fig. 2C), which will be discussed latter. To clearly capture the dramatic spatial variation of the local polarization without losing the polarization information due to the different choices of unit cells, we integrate the obtained local polarization from different unit cell-based dipoles and present them in the same image (Fig. S17D). This approach enables a more accurate capture of spatial variations in local polarization at the atomic scale. Similar subunit-cell-level local polarization information has also been widely used in the investigation of polar topological structures, both experimentally and theoretically [38–42]. The obtained 3D ferroelectric polarization patterns on the upper layer are shown by bold arrows in Fig. 2A, with the length and color reflecting the magnitude and direction of polarization, respectively. For clarity, the in-plane and out-of-plane directions are also shown separately in Fig. S3, which depicts an in-plane vortex-like polarization and an out-of-plane antiparallel polarization. The emergence of these local polarizations in SrTiO₃ indicates that we have indeed developed ferroelectricity in nonferroelectric materials with atomic-scale thickness. It is important to note that this is not feasible even in intrinsically ferroelectric perovskite oxides, such as PbTiO₃ and BaTiO₃, because of the constraints imposed by the critical size. More interestingly, the local electric dipoles gradually transition from a downward orientation to an upward orientation as they extend from the core to the periphery. The polarization distribution on the lower layer exhibits inverse complex textures. These unique outward polarization vector arrangements, characterized by the radial reversal of the out-of-plane component from the center to the periphery, are reminiscent of the quasi-2D topological order known as a skyrmion.

The mathematical characterization of the topological nature of the polarization pattern can be evaluated through the introduction of the topological charge n defined as

n = ∬ 1 4 π u · ∂ u ∂ x × ∂ u ∂ y dxdy,

(1)

where u is a normalized electric polarization vector continuously defined across the entire integrated plane. Given that the current atomic-scale ferroelectric polarization caused by “moiré engineering” is restricted to such a small area and lacks perfect spatial continuity, the direct application of this definition may lead to inaccuracies. Hence, the discrete polarization vector field in the moiré superlattice is interpolated to assess the topological charge. As illustrated in the right panel of Fig. 2A, the resulting interpolated local electric polarization, represented by thin arrows, aligns with the original discrete polarization (bold arrows) and preserves the topological characteristics. The polar configuration clearly exhibits a hedgehog-like structure, with the polarization direction (indicated by the colors) smoothly rotating from downward to upward and from the center to the edge of the moiré superlattice. The resulting topological number is approximately –1.0 (with a value of –1.06 calculated without interpolated local electric polarization), confirming that the polarization pattern in the SrTiO₃ moiré superlattice is truly an electric equivalent of a magnetic skyrmion, with dimensions smaller than 1 nm. The corresponding topological charge density distribution is also plotted in Fig. 2B and shows topological charge density accumulation primarily at the periphery of the skyrmion, resulting in a star-like shape with 4 rounded arms. We also investigated the effect of PBESol pseudopotentials on the polarization distribution and found no pronounced change in the emerging polar skyrmion patterns (see Fig. S4). Notably, the lower layer also has a skyrmion configuration with a topological number of 1.0, in which the out-of-plane polarizations are opposite to those in the upper layer. The whole polar configuration (see Fig. S5) is analogous to that of a pair of antiferromagnetic-coupled magnetic skyrmions observed in magnetics [43] and can be referred to as polar bilayer-skyrmion. Moreover, both skyrmions exhibit right-handed chirality. In contrast, when the twist occurs in the opposite direction with θ = –36.87°, a polar bilayer-skyrmion still forms but with left-handed chirality (see Fig. S6). This observation indicates that the direction of the twisting angle can influence the chirality of the resulting skyrmion.

Previous studies have suggested that specific stacking of nonferroelectric van der Waals layers with honeycomb lattices may break symmetry and induce vertical polarization, known as sliding ferroelectricity. However, a recent general theory of bilayer stacking ferroelectricity indicates that sliding ferroelectricity is not permitted when 2 monolayers with the D _4h point group (e.g., SrTiO₃) are stacked [44]. Our first-principles calculations indeed confirm that bilayer SrTiO₃ exhibits negligible sliding-induced ferroelectricity across all stacking configurations, as illustrated in Fig. 1B. Instead, the underlying mechanism for the formation of twisting-induced skyrmion, characterized by an in-plane vortex-like polarization and an out-of-plane polarized core, is attributed to the varying energetics of different stacking domains and robust interaction between the 2 layers. In the central region of the moiré superlattice, where the local atomic structure resembles the high-energy AA stacking domains, the O atoms of the 2 layers align vertically, resulting in strong repulsion between them. These 2 O atoms strongly repel each other, i.e., the center O atom in the upper layer shifts upward, while the other in the lower layer shifts downward, giving rise to downward and upward polarization, respectively, for the central region of the upper and lower layers. By contrast, in the middle transition regions of the AC stacking domain, the interfacial O anions (or Sr cations) in the upper layer are located approximately above the Sr cations (or O anions) in the lower layer and will tend to create Sr–O bonds. The bonding characteristics induced by the interface interaction can be discerned from the charge density difference as illustrated in Fig. 2C, in which oxygen anions gain electrons and Sr cations lose electrons. The downward movement of oxygen atoms in the upper layer breaks the out-of-plane symmetry and contributes to the upward polarization in the AC stacking region of the upper layer. As a result, the out-of-plane polarization component in the upper layer points downward at the center, gradually decreases, and then changes to the outward direction. The strong interfacial attraction of O anions and Sr cations also induces a torsion-like displacement field, as illustrated in Fig. 1E, contributing to the in-plane vortex polarization. This in-plane vortex pattern is superimposed on the antiparallel out-of-plane polarization, forming a polar skyrmion in SrTiO₃ with a single unit cell thickness.

Furthermore, we investigated the effects of increased bilayer thickness on the ferroelectricity and stability of polar topological structures in twisted bilayers. For a thickness of N = 2 f.u., the local polarization of the center unit cell in the interfacial sublayer decreases from 0.68 C/m² at N = 1 to 0.44 C/m². As the thickness further increases, the local polarization magnitude continues to decrease (see Fig. S7) but remains comparable to that observed in barium titanate [45]. Emerging ferroelectricity and polar skyrmions also persist in twisted structures at all thicknesses investigated. As illustrated in Fig. 3A, for the layer-by-layer polarization in the twisted bilayer with N = 6, the out-of-plane polarization points downward at the center, with antiparallel polarization and polarization rotations at the periphery; this pattern is consistent across all sublayers. The central local polarization in layer1 (the interfacial layer) exhibits the highest value due to strong interfacial effects, while the polarization values decrease sharply in the subsequent upper layers (Fig. 3B). Moreover, the in-plane polarization has either a vortex or center-convergent configuration (Fig. 3C) arising from the complex relative displacements of cations and anions (Fig. S8) due to both the inter- and intralayer effects. The superposition of in-plane and out-of-plane polarizations forms the skyrmions in all the sublayers (Fig. 3D). Since twisted bilayer SrTiO₃ films have already been successfully fabricated in experiments [25,26], polar skyrmions could potentially be observed at the proposed twisting angle using advanced techniques such as 4D scanning transmission electron microscopy diffraction imaging [42] and multislice electron ptychography [46]. On the other hand, the twisting angles also influence the resulting polarization pattern in the otherwise nonferroelectric SrTiO₃. For the SrTiO₃ moiré bilayers with a twisting angle of 22.62°, the polar skyrmions with a topological charge of –1 also appear, as illustrated in Fig. S2B. However, at smaller twist angles with larger supercells, while ferroelectricity continues to manifest, the skyrmion is supplanted by a more complex 3D polarization configuration, characterized by a combination of multiple in-plane clockwise vortices and out-of-plane antiparallel polarization (see Fig. S9).

In addition to stabilizing polar topological structures, twisting engineering simultaneously induces noticeable variations in the electronic structure of SrTiO₃, as depicted in Figs. S10 and S11 and Fig. 4. For bulk SrTiO₃, both the conduction and valence bands exhibit notable dispersion (see Fig. S12). Upon twisting the bilayer at an angle of 36.87°, the top of the valence band tends to become flat. Its bandwidth decreases substantially with decreasing thickness N of the twisted bilayers (see the blue line in Fig. 4C) and reaches as low as 22.13 meV for N = 1. Furthermore, different twist angles also strongly affect the bandwidth. As shown by the red line in Fig. 4C (with the corresponding band structures illustrated in Fig. S10), for the twisted SrTiO₃ bilayer with a thickness of N = 1, the bandwidth decreases as the twist angle decreases within the range of large angles investigated. It is interesting that flat bands less than 5 meV appear for a wide range of these large twist angles. The minimum value, with an exceptionally narrow bandwidth of 0.24 meV along the high-symmetry lines of the first Brillouin zone (see Fig. 4A), is observed at a twist angle of 12.68°. The emergence of flat bands has drawn considerable research attention because of their link to strong-coupling superconductivity and correlated electron behavior [47,48]. The present result is notably different from previous findings on 2D materials with hexagonal or triangular moiré superlattices [22,47,49], where flat bands appear only at small twist angles and require larger unit cells, which leads to lower electron density. The bandwidth obtained in the present work is also smaller than that of twisted bilayer graphene and other common twisted bilayers of 2D materials. The corresponding charge density distribution for the flat band is plotted in Fig. 4B. The states are well localized at the center of the supercell and are dominated by the O p_z orbitals, which is consistent with the narrow bandwidth.

Based on the findings discussed above, we propose the potential to design ultra-small polar topological structures and achieve their high-density integration through twisting engineering, going beyond the common mechanism of geometric confinement for polar topologies. Polar skyrmions emerge in the SrTiO₃ moiré superlattice at large twisting angles of 36.87° and 22.62°, with each layer down to the monolayer limit, which is even thinner than the minimum thickness required to sustain ferroelectricity in ferroelectric PbTiO₃ thin films (~3 unit cells) [13,50], indicating the absence of critical thickness restrictions for ferroelectricity and polar skyrmion in moiré superlattices. Although SrTiO₃ is a nonferroelectric material, the polarization in the twisted SrTiO₃ structure is on the same order as that in ferroelectric BaTiO₃ and PbTiO₃ due to the strong interlayer coupling effects. Thus, twisting engineering of perovskite oxides overcomes the critical size limitation for ferroelectricity and provides a novel mechanism to achieve atomic-scale topological structures with large polarizations. In addition to the ultrathin dimension, the in-plane modulation period of skyrmions can contribute to achieving record-breaking high-density data storage. Specifically, the moiré superlattices with twist angles of 36.87° and 22.62° host densities of 1.3 × 10¹⁸ m⁻² and 5.1 × 10¹⁷ m⁻² polar skyrmion array elements, with each skyrmion measuring approximately 0.87 and 1.40 nm in size, respectively. This contributes to a theoretical data storage density of up to 776.1 and 299.7 terabits per square inch theoretically, assuming that each skyrmion stores 1-bit data. To the best of our knowledge, the current miniaturization and high integration of polar skyrmions surpass all previous reports of domain density in the state-of-the-art ferroelectric structures. For instance, the vortex domain has been theoretically predicted to be stable at a minimum size of 3.2 nm in nanostructures [51], whereas the smallest period of polar skyrmions has been observed to be approximately 5 to 6 nm in the PbTiO₃/SrTiO₃ superlattice [52] and bilayer [53].

It is worth noting that twist engineering in bilayer structures causes nonlocal modulation of the resulting polar skyrmions, while the individual manipulation of polar configurations remains a challenge. A very recent study [42] proposed that polar vortices in twisted bilayer MoS₂ can be locally modulated through subtle interlayer displacement and strain induced by the introduction of an electron-beam-mediated crack. This approach may also be applied to twisted bilayer SrTiO₃ for the local modulation of polar skyrmions, as the polarization in SrTiO₃ is highly sensitive to strain. Moreover, the polar skyrmions in the twisted structure can be manipulated using a local electric field. To demonstrate this, we constructed a machine-learning potential to perform large-scale atomistic simulations (see the Supplementary Materials for details on the methodology). We apply a local vertical electric field of 10³ kV/cm to one moiré superlattice (the central square area) in the 5 × 5 × 1 unit cells of the moiré superlattice with θ = 36.87°. Figure S13 shows the corresponding polarization distribution under the local electric field, revealing the disappearance of the skyrmion at the center of the film, while the neighboring skyrmion remains intact. Thus, the skyrmions can also be manipulated individually by applying a local electric field using techniques such as atomic force microscopy (AFM) in practice. Note that the actual local modulation area in experiments depends on the size of the AFM tip. Tips with radii ranging from 5 to 10 nm are commonly used, while the smallest available tip currently has a radius of 2 nm [54]. Using this AFM tip, we can achieve local modulation of skyrmions within a 5 × 5 unit cell region of the moiré superlattice (4.35 nm × 4.35 nm) in experiments. With the advancement of tip-based and other related technologies, it will be possible to manipulate even smaller regions. Therefore, ultrahigh-density polar skyrmions, which overcome the critical size limitation, along with the novel mechanism proposed in this study, have important implications both from a fundamental science perspective and for practical applications in high-density information storage.

Conclusion

Less

In summary, a new strategy for moiré engineering of the perovskite oxide SrTiO₃ has been proposed to create atomic-scale ferroelectricity characterized by exotic domain structures, although SrTiO₃ is an intrinsically nonferroelectric material. The electric polarization is maintained in SrTiO₃ materials with extremely thin monolayer thickness, breaking the critical size limitation for ferroelectricity in traditional perovskite oxides. The emergent ferroelectricity, characterized by a polar skyrmion lattice, originates from the interlayer bonding effect, which contributes to remarkable ion displacement. Furthermore, we investigate the twist angle-dependent bandwidth of the valence band maximum and find the formation of an ultraflat band at a large angle of 12.68°, with a bandwidth smaller than that of twisted bilayer graphene. Our findings not only overcome the detrimental critical thickness limitation of ferroelectricity in traditional perovskite oxides but also present opportunities for developing ultrahigh-density polar skyrmion-based memories.

Funding

Less

National Natural Science Foundation of China(12172370, 12272338, 12192214, 12204496)
Natural Science Foundation of Ningbo City(2022J295, 2023J360)
JSPS KAKENHI(JP23H00159, JP23K17720, JP20H05653)
JST FOREST Program(JPMJFR222H)
JSPS International Research Fellow(P22065)

References

Less

Hirohata

, Yamada

, Nakatani

, Prejbeanu

, Diény

, Pirro

, Hillebrands

. Review on spintronics: Principles and device applications. J Magn Magn Mater. 2020;509: Article 166711.

Tomasello

, Martinez

, Zivieri

, Torres

, Carpentieri

, Finocchio

. A strategy for the design of skyrmion racetrack memories. Sci Rep. 2014;4:6784.

Tang

, Zhu

, Ma

, Borisevich

, Morozovska

, Eliseev

, Wang

, Xu

, Zhang

, et al. Observation of a periodic array of flux-closure quadrants in strained ferroelectric PbTiO₃ films. Science. 2015;348(6234):547–551.

Yadav

, Nelson

, Hsu

, Hong

, Clarkson

, Schlepütz

, Damodaran

, Shafer

, Arenholz

, Dedon

, et al. Observation of polar vortices in oxide superlattices. Nature. 2016;530(7589):198–201.

Shimada

, Xu

, Uratani

, Wang

, Kitamura

. Unusual multiferroic phase transitions in PbTiO₃ nanowires. Nano Lett. 2016;16(11):6774–6779.

Zhou

, Dai

, Meisenheimer

, das

, Wu

, Gómez-Ortiz

, García-Fernández

, Huang

, Junquera

, Chen

, et al. Order–disorder transitions in a polar vortex lattice. Adv Funct Mater. 2022;32(22):2111392.

Das

, Carter

MRM

, Gómez-Ortiz

, Tang

Y-L

, Hong

, Ghosh

, Shafer

, García-Fernández

, Junquera

, Martin

, et al. Pure chiral polar vortex phase in PbTiO₃/SrTiO₃ Superlattices with tunable circular dichroism. Nano Lett. 2023;23(14):6602–6609.

Das

, Tang

, Hong

, Gonçalves

MAP

, Carter

MRM

, Klewe

, Nguyen

, Gómez-Ortiz

, Shafer

, Arenholz

, et al. Observation of room-temperature polar skyrmions. Nature. 2019;568(7752):368–372.

, Ichiki

, Masuda

, Wang

, Hirakata

, Shimada

. Ultrasmall polar Skyrmions and Merons in SrTiO₃ Heterostructures by polaron engineering. ACS Nano. 2023;17(11):10836–10843.

10.

Wang

, Feng

, Zhu

, Tang

, Yang

, Zou

, Geng

, Han

, Guo

, Wu

, et al. Polar meron lattice in strained oxide ferroelectrics. Nat Mater. 2020;19:881–886.

11.

, Qian

, Wang

, Hirakata

, Shimada

, Kitamura

. Discovery of Ultrasmall polar Merons and rich topological phase transitions: Defects make 2D Lead chalcogenides flexible topological materials. Adv Funct Mater. 2023;34(10):2311141.

12.

Gong

F-H

, Tang

Y-L

, Zhu

Y-L

, Zhang

, Wang

Y-J

, Chen

Y-T

, Feng

Y-P

, Zou

M-J

, Wu

, Geng

W-R

, et al. Atomic mapping of periodic dipole waves in ferroelectric oxide. Sci Adv. 2021;7(28):eabg5503.

13.

Fong

, Stephenson

, Streiffer

, Eastman

, Auciello

, Fuoss

, Thompson

. Ferroelectricity in ultrathin perovskite films. Science. 2004;304(5677):1650–1653.

14.

Wen

, Li

, Wu

, Li

, Ming

. Ferroelectric-field-effect-enhanced electroresistance in metal/ferroelectric/semiconductor tunnel junctions. Nat Mater. 2013;12(7):617–621.

15.

, Shimada

, Araki

, Wang

, Kitamura

. Defect-strain engineering for multiferroic and magnetoelectric properties in epitaxial (110) ferroelectric lead titanate. Phys Rev B. 2015;92(10): Article 104106.

16.

, Shimada

, Wang

, Kitamura

. Antiferroelectric and antiferrodistortive phase transitions in Ruddlesden-Popper Pb2TiO₄ from first-principles. Coupled Syst Mech. 2017;6(1):29–40.

17.

Fernandez

, Acharya

, Lee

, Schimpf

, Jiang

, Lou

, Tian

, Martin

. Thin-film ferroelectrics. Adv Mater. 2022;34(30):2108841.

18.

Sarott

, Bucheli

, Lochmann

, Fiebig

, Trassin

. Controlling the polarization in ferroelectric PZT films via the epitaxial growth conditions. Adv Funct Mater. 2023;33(28):2214849.

19.

, Shimada

, Araki

, Mori

, Fujimoto

, Wang

, Zhang

T-Y

, Kitamura

. Electron engineering of metallic multiferroic polarons in epitaxial BaTiO₃. npj Comput Mater. 2019;5:23.

20.

, Wu

, Zheng

, Wang

, Hirakata

, Kitamura

, Shimada

. Mechanical rippling for diverse ferroelectric topologies in otherwise nonferroelectric SrTiO₃ Nanofilms. Phys Rev Lett. 2024;132(8): Article 086801.

21.

Bennett

, Chaudhary

, Slager

R-J

, Bousquet

, Ghosez

. Polar meron-antimeron networks in strained and twisted bilayers. Nat Commun. 2023;14:1629.

22.

Xian

, Kennes

, Tancogne-Dejean

, Altarelli

, Rubio

. Multiflat bands and strong correlations in twisted bilayer boron nitride: Doping-induced correlated insulator and superconductor. Nano Lett. 2019;19(8):4934–4940.

23.

Naik

, Jain

. Ultraflatbands and shear solitons in Moiré patterns of twisted bilayer transition metal Dichalcogenides. Phys Rev Lett. 2018;121(26): Article 266401.

24.

Sánchez-Santolino

, Rouco

, Puebla

, Aramberri

, Zamora

, Cabero

, Cuellar

, Munuera

, Mompean

, Garcia-Hernandez

, et al. A 2D ferroelectric vortex pattern in twisted BaTiO₃ freestanding layers. Nature. 2024;626(7999):529–534.

25.

Shen

, Dong

, Qi

, Zhang

, Zhu

, Wu

, Li

. Observation of Moiré patterns in twisted stacks of bilayer perovskite oxide Nanomembranes with various lattice symmetries. ACS Appl Mater Interfaces. 2022;14(44):50386–50392.

26.

, Xiang

, Chiabrera

, Yun

, Zhang

, Kelly

, Dahm

, Kirchert

CKR

, Cozannet

TEL

, Trier

, et al. Stacking and twisting of freestanding complex oxide thin films. Adv Mater. 2022;34(38):e2203187.

27.

Kresse

, Hafner

. Ab initio molecular dynamics for liquid metals. Phys Rev B. 1993;47(1):558–561.

28.

Kresse

, Furthmu

. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys Rev B. 1996;54(16):11169–11186.

29.

Blöchl

. Projector augmented-wave method. Phys Rev B. 1994;50(24):17953–17979.

30.

Perdew

, Burke

, Ernzerhof

. Generalized gradient approximation made simple. Phys Rev Lett. 1996;77(18):3865–3868.

31.

, Cai

, Paudel

, Sun

, Zhang

, Han

, Wei

, Zang

, Gu

, Zhang

, et al. Freestanding crystalline oxide perovskites down to the monolayer limit. Nature. 2019;570(7759):87–90.

32.

Huang

, Koocher

, Gu

, Rondinelli

. Structure dependent phase stability and thermal expansion of Ruddlesden−popper strontium titanate. Chem Mater. 2018;30(20):7100–7110.

33.

Kwak

, Do

, Park

N-K

, Kang

. Surface modification of layered perovskite Sr₂TiO₄ for improved CO₂ photoreduction with H₂O to CH₄. Sci Rep. 2017;7(1):16370.

34.

Naik

, Naik

, Maity

, Jain

. Twister: Construction and structural relaxation of commensurate moiré superlattice. Comput Phys Commun. 2022;271: Article 108184.

35.

Lee

, Kim

, Ohta

, Koumoto

. Ruddlesden-Popper phases as thermoelectric oxides: Nb-doped Sr O (SrTiO₃) _n (n = 1, 2). J Appl Phys. 2006;100(6): Article 063717.

36.

, Wang

, Shimada

, Kitamura

. Direct approach for flexoelectricity from first-principles calculations: Cases for SrTiO₃ and BaTiO₃. J Phys Condens Matter. 2013;25(41): Article 415901.

37.

Zhong

, King-Smith

, Vanderbilt

. Giant LO-TO splittings in perovskite ferroelectrics. Phys Rev Lett. 1994;72(22):3618–3621.

38.

Samanta

, Yadav

, Gu

, Meyers

CJG

, Wu

, Chen

, Pandya

, York

, Martin

, Spanier

, et al. A predictive theory for domain walls in oxide ferroelectrics based on interatomic interactions and its implications for collective material properties. Adv Mater. 2022;34(7):e2106021.

39.

Sun

, Abid

, Tan

, Ren

, Li

, Chen

, Li

, Zhang

, Zhong

, et al. Subunit cell-level measurement of polarization in an individual polar vortex. Sci Adv. 2019;5(11):eaav4355.

40.

Minami

, Ikeda

, Shimada

. Spontaneous atomic-scale polar skyrmions and merons on a SrTiO₃ (001) surface: Defect engineering for emerging topological orders. Nano Lett. 2024;24(12):3686–3693.

41.

Shimada

, Minaguro

, Xu

, Wang

, Kitamura

. Ab initio study of ferroelectric critical size of SnTe low-dimensional nanostructures. Nano. 2020;10(4):732.

42.

Tsang

, Zheng

, Yang

, Yan

, Han

, Wong

, Liu

, Gao

, Leung

, Lee

, et al. Polar and quasicrystal vortex observed in twisted-bilayer molybdenum disulfide. Science. 2024;386(6718):198–205.

43.

Zhang

, Zhou

, Ezawa

. Magnetic bilayer-skyrmions without skyrmion hall effect. Nat Commun. 2016;7:10293.

44.

, Yu

, Xu

, Xiang

. General theory for bilayer stacking ferroelectricity. Phys Rev Lett. 2023;130(14): Article 146801.

45.

Seo

Y-S

, Ahn

. First-principles investigations on polytypes of BaTiO₃: Hybrid calculations and pressure dependences. J Korean Phys Soc. 2013;62:1629–1635.

46.

Sha

, Ma

, Cao

, Cui

, Yang

, Li

, Yu

. Sub-nanometer-scale mapping of crystal orientation and depth-dependent structure of dislocation cores in SrTiO₃. Nat Commun. 2023;14(1):162.

47.

Cao

, Fatemi

, Demir

, Fang

, Tomarken

, Luo

, Sanchez-Yamagishi

, Watanabe

, Taniguchi

, Kaxiras

, et al. Correlated insulator behaviour at half-filling in magic-angle graphene superlattices. Nature. 2018;556(7699):80–84.

48.

Bistritzer

, MacDonald

. Moire bands in twisted double-layer graphene. Proc Natl Acad Sci USA. 2011;108(30):12233–12237.

49.

Suárez Morell

, Correa

, Vargas

, Pacheco

, Barticevic

. Flat bands in slightly twisted bilayer graphene: Tight-binding calculations. Phys Rev B. 2010;82(12):121407(R).

50.

Fong

, Kolpak

, Eastman

, Streiffer

, Fuoss

, Stephenson

, Thompson

, Kim

, Choi

, Eom

, et al. Stabilization of monodomain polarization in ultrathin PbTiO₃ films. Phys Rev Lett. 2006;96(12): Article 127601.

51.

Naumov

, Bellaiche

, Fu

. Unusual phase transitions in ferroelectric nanodisks and nanorods. Nature. 2004;432(7018):737–740.

52.

Gong

F-H

, Tang

, Wang

, Chen

, Wu

, Yang

, Zhu

, Ma

. Absence of critical thickness for polar skyrmions with breaking the Kittel's law. Nat Commun. 2023;14(1):3376.

53.

Han

, Addiego

, Prokhorenko

, Wang

, Fu

, Nahas

, Yan

, Cai

, Wei

, Fang

, et al. High-density switchable skyrmion-like polar nanodomains integrated on silicon. Nature. 2022;603(7899):63–67.

54.

Cohen

, Shavit

, Zalevsky

. Observing optical plasmons on a single nanometer scale. Sci Rep. 2024;4:4096.

Appendix

Less

Year 2025 volume 8 Issue 2

PDF

197

111

Cite this Article

BibTeX

Article Info

doi: 10.34133/research.0621

Receive Date：2024-09-06
Online Date：2025-07-23
Published：2025-02-17

Article Data

Affiliations

History

Received：2024-09-06
Revised：2025-01-21
Accepted：2025-01-29

Funding

National Natural Science Foundation of China(12172370, 12272338, 12192214, 12204496)

Natural Science Foundation of Ningbo City(2022J295, 2023J360)

JSPS KAKENHI(JP23H00159, JP23K17720, JP20H05653)

JST FOREST Program(JPMJFR222H)

JSPS International Research Fellow(P22065)

Affiliations

¹ Department of Mechanical Engineering and Science, Kyoto University, Nishikyo-ku, Kyoto 615-8540, Japan.

² Ningbo Institute of Materials Technology and Engineering, Chinese Academy of Sciences, Ningbo 315201, China.

³ Department of Engineering Mechanics, School of Aeronautics and Astronautics, Zhejiang University, Hangzhou 310027, China.

⁴ Department of Civil and Earth Resources Engineering, Kyoto University, Nishikyo-ku, Kyoto 615-8540, Japan.

Corresponding:

^* Address correspondence to: xu.tao.44a@st.kyoto-u.ac.jp (T.X.); heri@nimte.ac.cn (R.H.); shimada.takahiro.8u@kyoto-u.ac.jp (T.S.)

References

Share

https://castjournals.cast.org.cn/joweb/research/EN/10.34133/research.0621

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Fig. 1. Simulation model. (A) Bulk SrTiO₃ structure. (B) Different stackings for SrTiO₃ bilayer. (C) Moiré unit cell with θ = 36.87°. (D) Energy landscape for the bilayer sliding in the xy plane. (E) Atomic displacements in the upper layer of moiré unit cell.

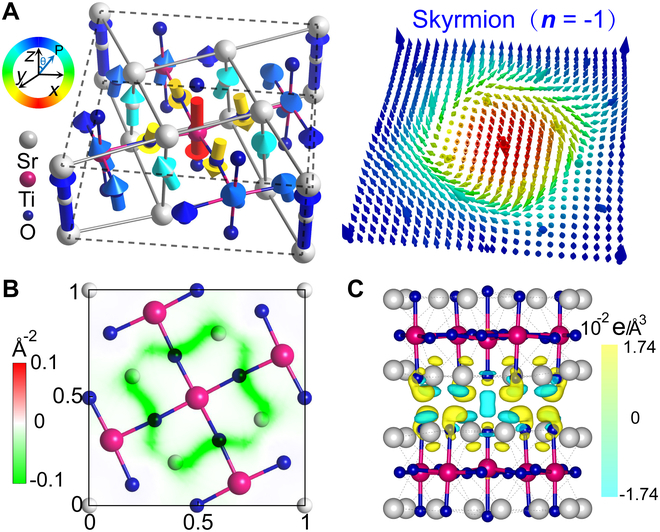

Fig. 2. (A) Polarization distribution in the upper layer of moiré unit cell with θ = 36.87°. Color denotes the angle from the z direction. The right panel shows an interpolated and normalized vector field of local polarization. (B) Distribution of topological charge density. (C) Difference charge density plots. The isosurfaces are 2.5 × 10⁻³ e/bohr³.

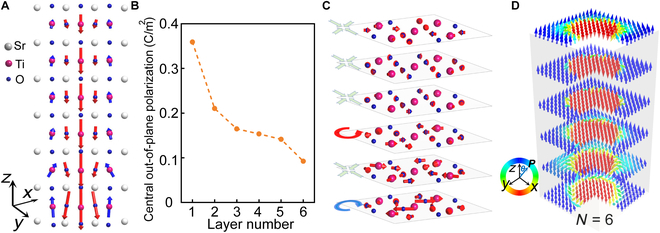

Fig. 3. Ferroelectric properties in twisted SrTiO₃ bilayer at θ = 36.87° and N = 6. (A) Out-of-plane polarization distribution in each TiO₂-centered unit cell of the upper layer. (B) Central out-of-plane polarization in each unit cell of the upper layer. (C) In-plane polarization distribution in each TiO₂-centered unit cell of the upper layer. (D) Interpolated and normalized vector field of local polarization in each unit cell of the upper layer.

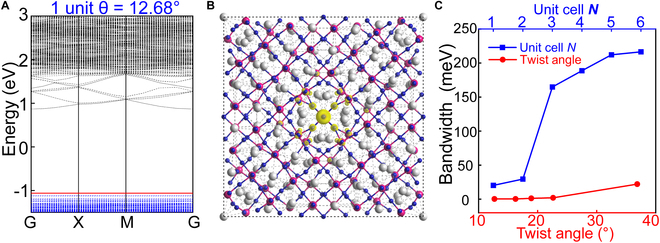

Fig. 4. Electronic properties of twisted SrTiO₃ bilayer. (A) Band structure of twisted SrTiO₃ bilayer with twist angles of 12.68° and N = 1. (B) Charge density of the valence band maximum, in which the isosurfaces are 2 × 10⁻³ e/bohr³. (C) Thickness- and twist-angle-dependent bandwidth of the valence band maximum at θ = 36.87° and N = 1, respectively.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
