Essential Regulation of Spermatogonial Stem Cell Fate Decisions and Male Fertility by APBB1 via Interaction with KAT5 and GDF15 in Humans and Mice

Full

Dai Zhou¹^,²^,³^,⁴^,⁵, Bang Liu¹, Lvjun Liu¹, Guangmin Liu²^,⁵, Fang Zhu²^,⁵, Zenghui Huang²^,⁵, Shusheng Zhang¹, Zuping He³^,⁴^,^*, Liqing Fan²^,⁵^,^*

Affiliations

¹ Hunan Provincial Key Laboratory of Regional Hereditary Birth Defect Prevention and Control, Changsha Hospital for Maternal and Child Health Care Affiliated to Hunan Normal University, Changsha, Hunan 410000, China.

² Institute of Reproduction and Stem Cell Engineering, School of Basic Medicine Science, Central South University, Changsha, Hunan 410000, China.

³ Key Laboratory of Model Animals and Stem Cell Biology in Hunan Province; Engineering Research Center of Reproduction and Translational Medicine of Hunan Province, Institute of Interdisciplinary Studies, Hunan Normal University, Hunan 410013, China.

⁴Hainan Academy of Medical Sciences, Hainan Medical University, Hainan 570311, China.

⁵ Reproductive and Genetic Hospital of CITIC-Xiangya, Changsha, Hunan 410000, China.

Published: 2025-03-27 doi: 10.34133/research.0647

Outline

Abstract

Less

Spermatogonial stem cells (SSCs) are essential for initiating and maintaining normal spermatogenesis, and notably, they have important applications in both reproduction and regenerative medicine. Nevertheless, the molecular mechanisms controlling the fate determinations of human SSCs remain elusive. In this study, we identified a selective expression of APBB1 in dormant human SSCs. We demonstrated for the first time that APBB1 interacted with KAT5, which led to the suppression of GDF15 expression and consequent inhibition of human SSC proliferation. Intriguingly, Apbb1^−/− mice assumed the disrupted spermatogenesis and markedly reduced fertility. SSC transplantation assays revealed that Apbb1 silencing enhanced SSC colonization and impeded their differentiation, which resulted in the impaired spermatogenesis. Notably, 4 deleterious APBB1 mutation sites were identified in 2,047 patients with non-obstructive azoospermia (NOA), and patients with the c.1940C>G mutation had a similar testicular phenotype with Apbb1^−/− mice. Additionally, we observed lower expression levels of APBB1 in NOA patients with spermatogenic arrest than in obstructive azoospermia patients with normal spermatogenesis. Collectively, our findings highlight an essential role of APBB1/KAT5/GDF15 in governing human SSC fate decisions and maintaining normal spermatogenesis and underscore them as therapeutic targets for treating male infertility.

Cite this Article

Dai Zhou, Bang Liu, Lvjun Liu, Guangmin Liu, Fang Zhu, Zenghui Huang, Shusheng Zhang, Zuping He, Liqing Fan. Essential Regulation of Spermatogonial Stem Cell Fate Decisions and Male Fertility by APBB1 via Interaction with KAT5 and GDF15 in Humans and Mice[J]. Research, 2025 , 8 (3) : 0647 . DOI: 10.34133/research.0647

Full Text

Less

Introduction

Less

Infertility has been recognized as a global health concern, and it affects approximately 15% of couples of reproductive age worldwide [1]. Approximately half of the infertile cases are attributed to male factors [2]. Non-obstructive azoospermia (NOA) represents the most severe form of male infertility [3]. While a minority of NOA patients may have their genetic children through microsurgical testicular sperm extraction and the assisted reproductive technologies, there is not yet effective solution for these patients to meet their reproduction requirement [4]. Spermatogonial stem cells (SSCs) are essential for initialing and maintaining normal spermatogenesis [5]. Nevertheless, due to the differences in cell types and phenotypes of SSCs between rodents and humans SSC classification [6], the regulatory mechanisms governing human SSCs remain largely elusive. As a result, the regulatory mechanisms governing human SSCs remain largely unknown. Therefore, it is crucial to uncover the molecular mechanisms underlying the fate decisions of human SSCs for their applications in reproductive and regenerative medicine because of remarkable plasticity of these cells.

The fate determinations of SSCs in vivo include self-renewal to retain stem cell pool, differentiation into spermatocytes, and apoptosis to maintain the numbers of male germ cells, which are regulated by genetic and epigenetic factors. Glial cell line-derived neurotrophic factor (GDNF) has been shown to play a crucial role in the self-renewal of mouse SSCs [7,8]. The combination of GDNF with fibroblast growth factor 2 (FGF2) and leukemia inhibitory factor (LIF) has enabled the long-term culture of mouse SSCs [9]. Furthermore, other growth factors, including fibroblast growth factor 9 (FGF9) [10], vascular endothelial growth factor (VEGF) [11], and Wnt [12], have been demonstrated to enhance SSC self-renewal. However, Wnt proteins have also been found to induce SSC differentiation in mice [13]. Several intrinsic factors, including Plzf [14], Foxo1 [15], Nedd4 [16], Carf [17], and Spocd1 [18], have been reported to be involved in SSC self-renewal. On the other hand, several molecules, including retinoic acid (RA) [19], bone morphogenetic protein 4 (Bmp4) [20], and Stra8 [21], have been identified to be associated with SSC differentiation.

Research on the regulation of human SSCs is still in its infancy, due to the limited availability of human testicular tissues and lacking of long-term culture and expansion of human SSCs in vitro. FGF5 has been shown to stimulate human SSC proliferation by activating AKT and extracellular signal–regulated kinase (ERK) pathways [22]. Recently, we have demonstrated that OIP5 interaction with NCK2 is required for regulating the self-renewal and apoptosis of SSCs via modulation of cell cyclins and cell cycle progression [23]. Despite these findings, the underlying regulatory mechanisms of human SSCs remain largely unknown.

The advent of single-cell RNA sequencing (scRNA-seq) technology enables the analysis of cellular development dynamics and RNA expression profiles at the individual cell level. This technology facilitates the identification of SSCs from complex germ cell populations and allows for the characterization of SSC-specific transcriptional profiles. By integrating 6 testis single-cell sequencing data, we identified a number of genes that are differentially expressed in SSCs, including APBB1 (amyloid β precursor protein binding family B member 1), ASB9 [24], and TCF3 [25]. APBB1 has a distinctive expression pattern, since it is only expressed in SSCs at early developmental stages and its level is decreased as differentiation progresses, implicating that APBB1 may be involved in regulating the fate determinations of SSCs.

APBB1 is a scaffolding protein first identified in the mouse brain, and it is involved in neural development [26]. This protein has been shown to interact with signaling proteins and transcription factors that control cell proliferation [27]. APBB1 enhances the interaction of the E3 ubiquitin ligase Itch with Notch1 to increase the degradation of Notch1 [27] and control neuronal cell differentiation [28]. Knockdown of the 97-kDa isoform of APBB1 results in abnormal developmental dynamics of Gn-RH1 neurons in mice, with a 25% increase in the number of Gn-RH1 neurons and the prolonged neurogenesis [28]. Notably, APBB1 interacts with TAG1-APP signaling to inhibit neurogenesis [29]. The APP intracellular structural domain (AICD) of APBB1 forms a transcriptional regulatory complex with KAT5, which regulates the expression of stathmin and KAI1 to affect neurogenesis [30]. However, the role of this complex in controlling KAI1 is controversial. APBB1 can interact with the nucleosome assembly factor SET through its WW structural domain to activate KAI1 transcription [30]. On the other hand, APBB1 down-regulates KAI1 expression by interacting with estrogen receptor α [31]. These findings highlight the pivotal roles of APBB1 in neurogenesis and cell fate regulation. Nevertheless, the function and mechanisms of APBB1 in regulating SSC fate determinations remain to be explored.

In this study, we explored the specific expression of APBB1 in human SSCs through scRNA-seq analysis and immunohistochemistry. APBB1 silencing stimulated cellular proliferation of human SSCs and suppressed their apoptosis. Intriguingly, we uncovered a novel interaction between APBB1 and KAT5, which modulated the MAPK (mitogen-activated protein kinase) and WNT signaling pathways and repressed the expression of growth differentiation factor 15 (GDF15). Furthermore, our conditional knockout of Apbb1 in mouse testes led to the disrupted spermatogenesis and a notable decrease in fertility. SSC transplantation indicated that the silencing of Apbb1 augmented SSC colonization and hindered their differentiation. Notably, a significantly lower level of APBB1 was observed in patients with NOA compared to obstructive azoospermia (OA) patients with normal spermatogenesis. Collectively, our findings delineate the roles and regulatory mechanisms of APBB1 in the fate decisions of human SSCs. This study is thus of unusual importance since it provides novel insights into the molecular mechanisms of human spermatogenesis and may offer new targets for gene therapy of male infertility.

Results

Less

Single-cell transcriptomic analysis of normal human testicular cells

To elucidate the developmental trajectory of human SSCs, we retrieved and analyzed scRNA-seq data from 9 normal adult human testicular tissues, which were obtained from the Gene Expression Omnibus (GEO) datasets (GSE112013, GSE109037, and GSE153947). The messenger RNA (mRNA) profiling of human testicular cells was conducted after filtering and integrating the data using the Seurat program in R. We obtained 25,999 testicular cells and 45,748 genes, which were classified into 14 clusters (Fig. 1A). These clusters were identified by assessing the levels of various testicular cell markers, e.g., DDX4 for germ cells, UCHL1 for spermatogonia, ID4 and DMRT1 for undifferentiated and differentiating spermatogonia, respectively, SYCP3 for spermatocytes, PRM1 for spermatids, WT1 for Sertoli cells, MYH11 for peritubular myoid cells, HSD17B3 for Leydig cells, VWF for endothelial cells, and CD14 for macrophages (Fig. 1B).

To gain insights into the mRNA changes of SSCs during development, we extracted data for spermatogonial clusters and further subdivided them into 7 subgroups using the Seurat R package. We then imported the data into the Monocle 3 R package to construct a developmental trajectory (Fig. 1C). We projected the expression of known markers along with spermatogonia at various phases, including UCHL1 for spermatogonia, ID4 for SSCs, PIWIL4 for early SSCs, and DMRT1, SOHLH2, and STRA8 for differentiating spermatogonia. This allowed us to identify 4 SSC clusters (SSC-1 to SSC-4) and 3 Diffing.spg clusters (Diffing.spg-1 to Diffing.spg-3) (Fig. 1D).

We further analyzed the DEGs of spermatogonia at different stages and used Gene Ontology (GO) to analyze the biological processes enriched in each group of cells (Fig. 1E). Notably, we obtained the top 10 DEGs of SSCs onto the developmental trajectory and found that gene APBB1 was characterized by a distinct expression pattern, since it was only abundantly expressed in the early developmental stages of SSCs and its expression level was gradually decreased along with the differentiation process (Fig. 1F). These results imply that APBB1 might be involved in the fate decisions of SSCs.

The expression pattern of APBB1 in normal adult testes

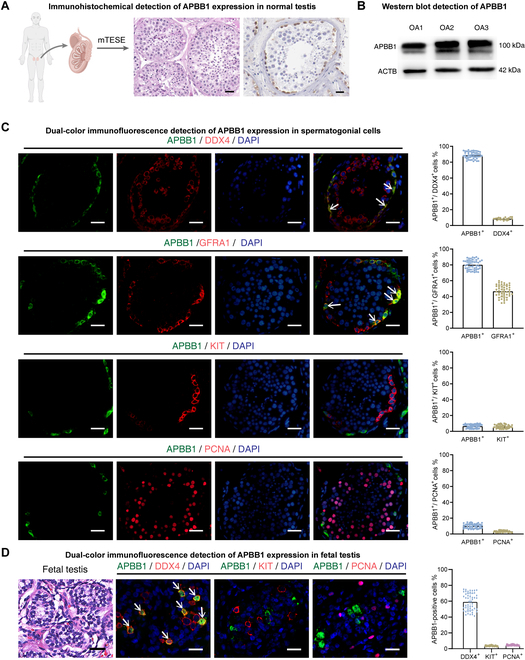

To seek cellular localization of APBB1 in human testes, we obtained testicular tissues from 3 OA patients who underwent micro-testicular sperm extraction (mTESE) surgery. Hematoxylin and eosin (H&E) staining indicated normal spermatogenesis of OA patients (Fig. 2A, middle panel). Immunohistochemistry revealed that APBB1 was primarily present in spermatogonia adjacent to the basement of the seminiferous tubules (Fig. 2A, left panel). Western blot showed the presence of APBB1 in the testes (Fig. 2B). We utilized double immunostaining to observe the cellular localization of APBB1 in human testes with various SSC and spermatogonial markers. Immunohistochemistry demonstrated that 93.15 ± 3.89% (n = 50) of APBB1-positive cells were colocalized with DDX4 (a germ cell marker) (Fig. 2C), while 85.58 ± 3.91% (n = 50) of APBB1-positive cells coexpressed GFRA1 (an SSC marker) (Fig. 2C). Only 4.93 ± 2.51% (n = 50) of APBB1-positive cells were colocalized with KIT (a hallmark for differentiating spermatogonia) (Fig. 2C). Notably, 9.27 ± 3.19% (n = 50) of APBB1-positive cells weakly coexpressed PCNA (a cell proliferation marker) (Fig. 2C), which reflects that APBB1 may negatively regulate proliferation of human SSCs (Fig. 2C). Furthermore, we examined the expression of APBB1 in human fetal testes, and we found that APBB1 was predominantly expressed in DDX4⁺ primordial germ cells rather than KIT⁺ gonocytes (Fig. 2D). Interestingly, there was no colocalization of APBB1 with PCNA (Fig. 2D). Together, these findings were consistent with scRNA-seq analysis, suggesting that APBB1 is mainly expressed in human SSCs and may negatively regulate their proliferation.

The effect of APBB1 on human SSC proliferation and apoptosis

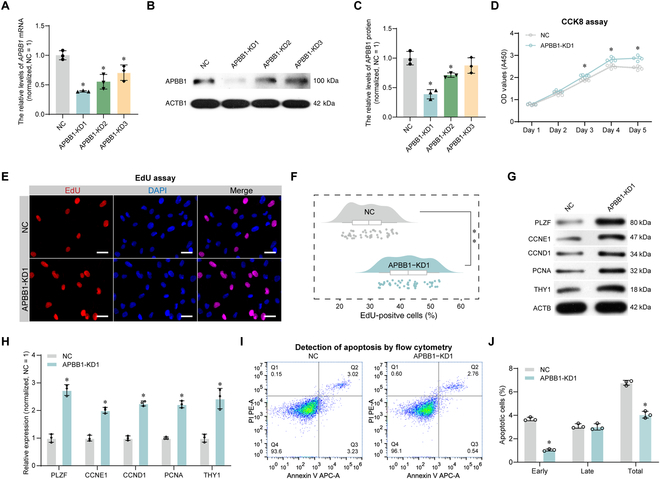

To unveil the roles of APBB1 in regulating the proliferation and apoptosis of human SSCs, we utilized the human SSC line that exhibits biochemical characteristics of primary human SSCs [25,32]. APBB1 silencing in human SSC line was achieved as shown by quantitative polymerase chain reaction (qPCR) (Fig. 3A) and Western blot (Fig. 3B and C) analyses using 3 short hairpin RNAs (shRNAs) targeting APBB1, and APBB1-KD1 shRNA exhibited the highest inhibitory effect (APBB1 protein, mean ± SD: 1.00 ± 0.08 versus 0.39 ± 0.02; P < 0.05, t test). Cellular proliferation was monitored from day 1 to day 5 post-transfection using the Cell Counting Kit-8 (CCK8) assay, and notable enhancement was observed in proliferation of human SSCs by APBB1 knockdown from day 3 to day 5 (n = 3; t test, P < 0.05) (Fig. 3D). The 5-ethynyl-2′-deoxyuridine (EdU) assay was used to evaluate DNA synthesis showing a remarkable increase of human SSCs following APBB1 shRNA1 (KD1) compared to the negative control (NC) group (n = 50, mean ± SD: 35.45 ± 2.99% versus 25.48 ± 2.93%; P < 0.05, t test) (Fig. 3E and F). Additionally, the expression levels of several proteins associated with SSC proliferation and self-renewal, including PLZF, CCNE1, CCND1, PCNA, and THY1, were examined using Western blot analysis. Our results indicated that the APBB1 shRNA1 (KD1) led to an up-regulation of these proteins in human SSCs (n = 3; t test, P < 0.05) (Fig. 3G and H), which implies potential enhancement of self-renewal and proliferation by knockdown. Apoptosis was detected using flow cytometry, which illustrated that APBB1 shRNA1 (KD1) resulted in a notable decrease in early apoptosis (n = 3, mean ± SD: 1.04 ± 0.08% versus 3.68 ± 0.15%; P < 0.05, t test) (Fig. 3I and J). Collectively, these data implicate that APBB1 knockdown enhances the proliferation and suppresses the apoptosis of human SSCs.

Screening of APBB1 downstream genes

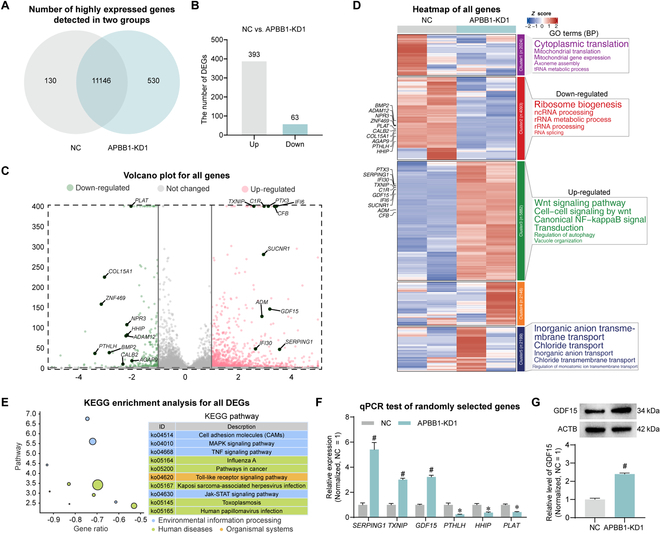

To elucidate the molecular mechanisms underlying APBB1's regulation of human SSC proliferation, we conducted RNA sequencing to seek the genes influenced by APBB1. Post-filtering to eliminate genes with very low expression levels, 11,276 genes were seen in the NC group, and 11,676 genes were present in the APBB1-KD1 group (Fig. 4A). The silencing of APBB1 led to a notable up-regulation of 393 genes and down-regulation of 63 genes relative to the NC group (Fig. 4B). A volcano plot was used to visualize the distribution of all genes, and the top 20 DEGs were highlighted and annotated (Fig. 4C). An analysis of gene expression trends generated the categorization of genes into 5 clusters, with cluster 2 genes experiencing significant down-regulation and cluster 3 genes experiencing remarkable up-regulation by APBB1 knockdown. A GO (biological process) analysis across all clusters revealed that APBB1 knockdown significantly reduced the biogenesis of ribosomes, whereas the WNT signaling pathway was markedly enhanced (Fig. 4D). Additionally, a Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis of all DEGs indicated that the knockdown of APBB1 induced substantial alterations in signaling pathways, e.g., the MAPK pathway (Fig. 4E). The qPCR was employed to quantify the expression levels of a subset of randomly chosen DEGs following APBB1 knockdown, such as GDF15, SERPING1, TXNIP, PTHLH, HHIP, and PLAT (n = 3; t test, P < 0.05) (Fig. 4F). The qPCR results were consistent with our RNA sequencing data. Using the STRING database, we conducted a protein–protein interaction (PPI) analysis on the top 50 genes up-regulated by APBB1 knockdown. These genes were categorized into 5 distinct clusters. Based upon differential expression folds, the top 5 hub genes identified were GDF15, C1S, CIR, SERPING1, and IFI6 (Fig. S2A). Subsequent projection of these genes onto the testicular single-cell atlas revealed that GDF15 was highly expressed in SSCs (Fig. S2B). Western blot showed that APBB1 knockdown resulted in significant up-regulation of GDF15 (n = 3; t test, P < 0.05) (Fig. 4G). Among the genes up-regulated by APBB1 knockdown, GDF15 has been known to participate in both the MAPK and WNT signaling cascades. Considered together, we propose that GDF15 may serve as a downstream target of APBB1.

GDF15 attenuates phenotypic changes caused by APBB1 knockdown

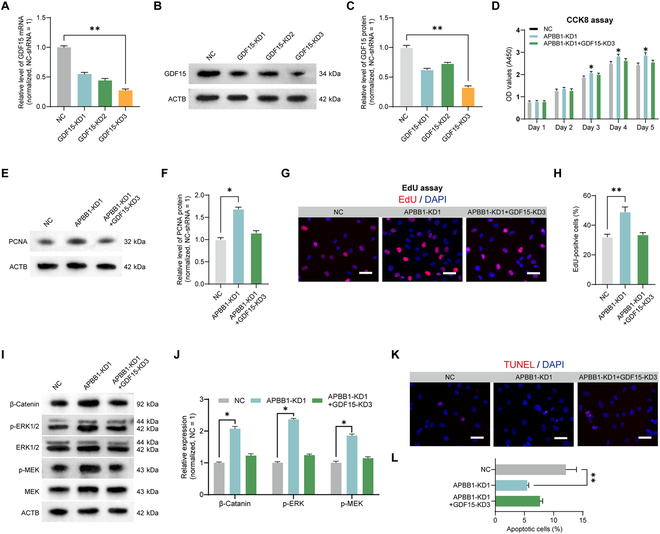

To validate our hypothesis, we employed shRNA to silence GDF15 expression. As demonstrated by qPCR and Western blot analysis, the GDF15-KD3 shRNA exhibited the highest inhibitory effect of GDF15 mRNA (n = 3; t test, P < 0.01) (Fig. 5A) and protein (Fig. 5B and C) compared to GDF15-KD1-2 shRNAs (n = 3; t test, P < 0.01). We then transfected both APBB1-KD1 and GDF15-KD3 shRNAs to observe phenotypic changes in human SSCs. CCK8 assay showed that APBB1 knockdown significantly increased cell proliferation of human SSCs. However, this increase was blocked in human SSCs by GDF15 knockdown (n = 3; t test, P < 0.05) (Fig. 5D). Similar effect was observed in PCNA expression (n = 3; t test, P < 0.05) (Fig. 5E and F) and EdU incorporation (n = 20; t test, P < 0.05) (Fig. 5G and H) in human SSCs by APBB1 and GDF15 knockdown. RNA sequencing revealed that APBB1 knockdown activated the WNT and MAPK signaling pathways, which are known to promote SSC self-renewal and proliferation [33]. Consequently, we examined the expression levels of key molecules in these pathways. Western blot results indicated that APBB1 knockdown up-regulated β-catenin, a pivotal component of the WNT pathway, as well as the phosphorylation of MAPK kinase (MEK) and ERK1/2 in the MAPK pathway (n = 3; t test, P < 0.05) (Fig. 5I and J). Notably, GDF15 knockdown also counteracted the increased protein levels in human SSCs induced by APBB1 knockdown (n = 3; t test, P < 0.05) (Fig. 6I and J). Furthermore, we detected alterations in apoptosis, and we found that APBB1 knockdown reduced human SSC apoptosis, while GDF15 knockdown diminished the apoptotic effects elicited by APBB1 knockdown (n = 3; t test, P < 0.05) (Fig. 5K and L). Taken together, these findings implicate that GDF15 functions as a downstream of APBB1 and it is involved in the regulation of human SSC fate decisions.

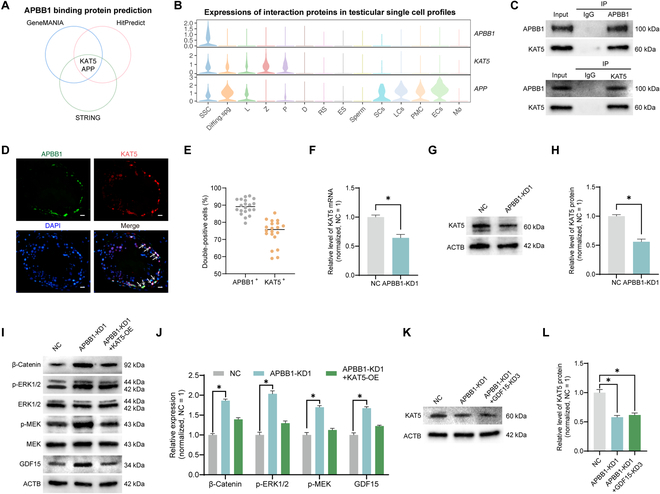

Prediction and validation of APBB1-interacting proteins

APBB1 has been reported to form complexes with other proteins to regulate gene transcription [34]. To seek the partner of APBB1, we employed GeneMANIA, STRING, and HitPredict databases, and the intersection of the predictions from these platforms indicated potential interactions between APBB1 and KAT5 as well as APP (Fig. 6A). Analysis of scRNA-seq data revealed that both APP and KAT5 were expressed in SSCs, with KAT5 showing higher expression levels in male germ cells compared to somatic cells (Fig. 6B). Protein co-immunoprecipitation (Co-IP) assays were subsequently conducted to assess whether APBB1 indeed binds to APP and KAT5. Our Co-IP assays demonstrated a specific interaction between APBB1 and KAT5 within the human SSCs (Fig. 6C), whereas no binding of APBB1 to APP was observed in these cells (data not shown). Double immunostaining illustrated that nearly 90% of APBB1-expressing cells in human testicular tissues also expressed KAT5 (Fig. 6D and E). Our qPCR and Western blots showed that APBB1 knockdown caused a significant decrease in KAT5 at both mRNA and protein levels (n = 3; t test, P < 0.05) (Fig. 6F to H). Furthermore, we examined the effect of KAT5 on WNT and MAPK signaling pathways. Western blots revealed that KAT5 overexpression notably antagonized the up-regulation of β-catenin, p-ERK1/2, and p-MEK induced by APBB1 knockdown, reflecting that the up-regulation of KAT5 inhibits the activation of WNT and MAPK signaling caused by APBB1 deficiency (n = 3; t test, P < 0.05) (Fig. 6I and J). In addition, we found that KAT5 overexpression suppressed GDF15 up-regulation caused by APBB1 knockdown (n = 3; t test, P < 0.05) (Fig. 6I and J). However, GDF15 down-regulation did not alter the APBB1 knockdown-induced decrease in KAT5 levels (n = 3; t test, P < 0.05) (Fig. 6K and L), suggesting that KAT5 is an upstream molecule of GDF15. These results implicate that APBB1 interacts with KAT5 to regulate GDF15 expression and further modulate WNT and MAPK signaling to affect human SSC proliferation.

Conditional deletion of Apbb1 impairs spermatogenesis in mice

To elucidate whether Apbb1 influences spermatogenesis in vivo via the regulation of SSC function, we generated Apbb1 knockout mice. Briefly, LoxP sequences were inserted into the flanking regions of exons 7 to 12 within the mouse Apbb1 gene and followed by mating with Stra8-GFP-Cre mice to obtain the conditioned Apbb1^−/− mice (Fig. S3A). Genotypes were conducted to show Apbb1 deletion using reverse transcription PCR (RT-PCR) (Fig. S3B), and Apbb1 protein levels were assessed by Western blot and immunofluorescence. Western blot revealed a truncated Apbb1 protein with no expression (Fig. S3C), while immunofluorescence did not detect any signal of Apbb1 (Fig. S3C and D) in the spermatogonia of mouse testes, indicating successful Apbb1 protein knockout.

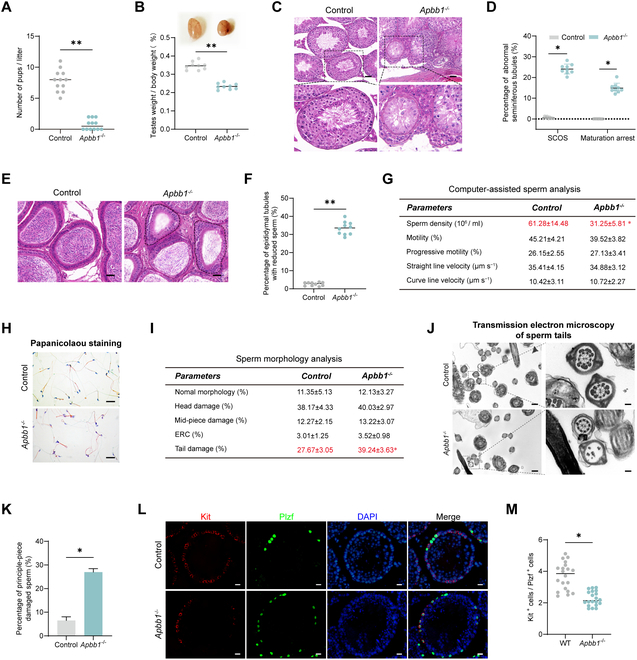

We next determined the impact of Apbb1 deletion on male fertility using the mating experiments with six 8-week-old Apbb1^−/− males and control floxed males, housing one male with 2 wild-type females. All control males successfully sired litters (7.83 ± 1.75 offspring per litter, n = 12). However, only 3 Apbb1^−/− males produced offspring 21 d after copulatory plug detection (1 or 2 offspring per litter), leaving 3 without progeny (n = 12; t test, P < 0.01) (Fig. 7A). The ratio of testis to body weight was significantly lower in Apbb1^−/− mice compared to the controls (n = 9; t test, P < 0.01) (Fig. 7B). H&E staining of 16-week-old Apbb1^−/− mouse testes revealed an abnormal phenotype of seminiferous tubules, as characterized by a high proportion of Sertoli cells-only symptom (SCOS) (24.25%) and maturation-impaired tubules (16.17%) (n = 9; t test, P < 0.01) (Fig. 7C and D). H&E staining of caudal epididymal sections also showed a significant reduction in sperm concentration by over 30% of tubules (n = 10; t test, P < 0.01) (Fig. 7E and F). Subsequent analysis using computer-assisted semen analysis (CASA) demonstrated that Apbb1^−/− mice had significantly reduced sperm concentration and mildly impaired motility (n = 5; t test, P < 0.01) (Fig. 7G). Sperm morphology assays (Papanicolaou staining) indicated that Apbb1 knockout resulted in an increased rate of sperm tail abnormalities, particularly a significant rise in tail curling (n = 5; t test, P < 0.01) (Fig. 7H and I). Transmission electron microscopy further revealed significant impairment of the “9+2” structure in the principal piece of the sperm tails in Apbb1^−/− mice (n = 3; t test, P < 0.01) (Fig. 7J and K).

To further characterize alterations in the spermatogonia of Apbb1^−/− mice, various antibodies against spermatogonial and Sertoli cell markers were employed for immunostaining, which included Sertoli cells (Sox9⁺), spermatogonia (Uchl1⁺), undifferentiated spermatogonia including SSCs (Plzf⁺), differentiating spermatogonia (Kit⁺), and a proliferation marker (Ki67⁺). Double immunostaining for spermatogonia (Uchl1⁺) and Sertoli cells (Sox9⁺) revealed a significant increase in the ratio of spermatogonia to Sertoli cells in Apbb1^−/− mice compared to controls, suggesting that Apbb1 knockout promotes spermatogonial proliferation (n = 20, mean ± SD: 0.77 ± 0.15 versus 1.18 ± 0.19; t test, P < 0.05) (Fig. S4A). Proliferative spermatogonia were further examined by double immunostaining with Uchl1 and Ki67, which showed a significant increase in their proportion (n = 20, mean ± SD: 62.64 ± 7.34% versus 84.78 ± 5.06; t test, P < 0.05) (Fig. S4B). These findings were consistent with our in vitro cell experiments demonstrating that Apbb1 knockdown enhanced spermatogonial proliferation. Notably, double immunostaining of the SSC marker Plzf and differentiating spermatogonial hallmark Kit indicated a significant reduction in the ratio of differentiating to undifferentiated spermatogonia in Apbb1^−/− mice compared to controls (n = 20, mean ± SD: 3.69 ± 0.87 versus 2.27 ± 0.46; t test, P < 0.05) (Fig. 7L and M), suggesting that Apbb1 knockout inhibits spermatogonial or SSC differentiation. Collectively, these data suggest that Apbb1 knockout severely impairs mouse fertility, promotes spermatogonial proliferation, and inhibits SSC differentiation.

Apbb1 knockdown increases SSC self-renewal and inhibits their differentiation in mice

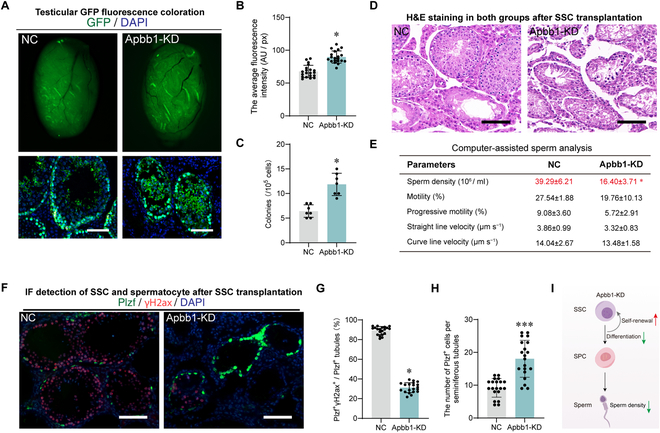

To assess the impact of Apbb1 deficiency on mouse SSC fate decisions in vivo, we conducted transplantation experiments. Mouse SSCs, expressing GFP green fluorescence, were obtained from P. Zhang of Nanjing Medical University. Recipient mice were treated with busulfan to remove endogenous male germ cells. Approximately 90% of the seminiferous tubules in the recipient mice were filled with donor SSCs (5 to 6 μl, 8 × 10⁵ to 10 × 10⁵ cells) via the efferent duct (Fig. 8A). Two months post-transplantation, the testes were collected for spermatogenesis analysis. The overall green fluorescence intensity in the Apbb1 knockdown mice was higher than that in the NC group (n = 20, mean ± SD: 67.68 ± 9.34 versus 89.64 ± 9.35; t test, P < 0.05) (Fig. 8A and B). Apbb1 deficiency enhanced SSC colonization in the recipient testes (n = 5, mean ± SD: 6.43 ± 1.27 versus 11.86 ± 2.69; t test, P < 0.05) (Fig. 8C). H&E staining also indicated that Apbb1 knockdown impaired the ability of SSCs to reconstruct spermatogenesis, with a significantly reduced number of tubules containing intact spermatogenic epithelium compared to the NC group (Fig. 8D). Nevertheless, many seminiferous tubules appeared to have an abundance of SSCs (Fig. 8D). Sperm CASA further revealed a significantly lower sperm concentration in the Apbb1 knockdown group compared to the NC group (n = 5; t test, P < 0.05) (Fig. 8E). To further investigate the phenotypic defects of Apbb1 knockdown tubules, immunostaining was used to detect undifferentiated spermatogonia (Plzf⁺) and spermatocytes (γH2ax⁺). Our results showed a significant reduction in the percentage of γH2ax⁺ spermatocytes in seminiferous tubules (n = 20, mean ± SD: 89.19 ± 4.07 versus 31.18 ± 5.04; t test, P < 0.05) (Fig. 8F and G), while the number of Plzf⁺ undifferentiated spermatogonia was increased significantly in the Apbb1 knockdown group (n = 20, mean ± SD: 9.20 ± 2.84 versus 18.05 ± 5.63; t test, P < 0.001) (Fig. 8F and H). These data suggest that Apbb1 knockdown promotes SSC self-renewal (colonization and proliferation) but inhibits differentiation, ultimately leading to a reduction in spermatozoa production and impairing the ability for initialing spermatogenesis (Fig. 8I).

Screening of signaling pathways affected by Apbb1 deletion in mouse testes

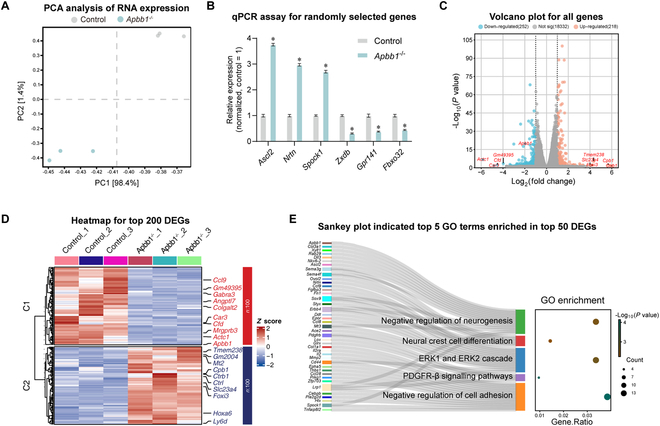

To find the signal pathways that are involved in abnormal spermatogenesis in vivo due to Apbb1 deletion, RNA sequencing was conducted with Apbb1^−/− testes. After filtering out lowly expressed genes, 19,796 genes were identified. Principal components analysis (PCA) of the top 1,000 genes from both the control and Apbb1^−/− mouse testes displayed the substantial transcriptomic difference between these 2 groups (Fig. 9A). The qPCR was used to randomly verify the expression levels of several genes, including Ascl2, Nrtn, Spock1, Zxdb, Gpr141, and Fbxo32 (n = 3; t test, P < 0.05) (Fig. 9B), which were consistent with the RNA sequencing results, confirming their reliability. The expression distribution of all genes was illustrated in a volcano plot, where Apbb1 knockdown led to the up-regulation of 218 genes (represented in red) and down-regulation of 252 genes (indicated in blue) (Fig. 9C). Differential gene expression across each sample was depicted by a heatmap (Fig. 9D). Additionally, GO analysis was performed on all DEGs, revealing that Apbb1 knockdown affected the pathways related to differentiation, e.g., negative regulation of gametogenesis and neural crest cell differentiation (Fig. 9E), which was in agreement with our findings from animal models and transplantation experiments. Furthermore, Apbb1 knockdown influenced the ERK1 and ERK2 pathways (Fig. 9E), which was consistent with our RNA sequencing results from human SSCs. Together, these results suggest that Apbb1 knockdown may disrupt the fate decisions of SSCs and spermatogenesis through ERK1/2 signaling pathway.

Mutation screening and expression levels of the APBB1 in patients with NOA

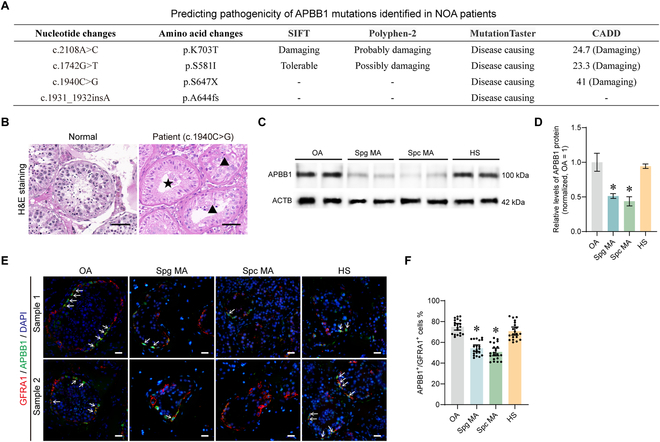

To evaluate the potential importance of APBB1 in male fertility, we conducted a mutation screening using whole-exome sequencing (WES) data from NOA patients. The detailed results were presented in Fig. 10A and Tables S4 and S5. In 2,047 NOA patients, we identified 9 individuals with 8 heterozygous variants of APBB1 (Table S4). The pathogenicity of these APBB1 mutations was predicted using bioinformatics tools, e.g., SIFT and CADD, revealing 4 notable mutations, namely, c.2108A>C, c.1742G>T, c.1940C>G, and c.1931_1932insA (Fig. 10A). Notably, the testicular pathology observed in NOA patients with the c.1940C>G mutation resembled that of Apbb1^−/− mice, as characterized by male germ cell loss (labeled with pentagram) or impaired maturation of spermatogenic cells (labeled with triangles) in some seminiferous tubules (Fig. 10B). Furthermore, testicular tissues were obtained from patients diagnosed with NOA who underwent micro-sperm retrieval surgery. These tissues were subsequently categorized based on the outcomes of H&E staining and Johnsen scores encompassing categories, including OA (normal spermatogenesis), maturation at spermatogonia (Spg MA), maturation at spermatocytes (Spc MA), and hypospermatogenesis (HS) (Fig. S5). Western blot analysis showed that APBB1 expression level was notably diminished in seminiferous tubules exhibiting abnormal spermatogenesis, with a particularly pronounced down-regulation in Spg MA and Spc MA testes (n = 3; t test, P < 0.05) (Fig. 10C and D), which was similar to the phenotype of Apbb1^−/− mice. Furthermore, immunofluorescence of the distribution of APBB1 in SSCs (GFRA1⁺) revealed a substantially decreased positive rate of APBB1 in SSCs of seminiferous tubules with Spg MA and Spc MA (n = 20; t test, P < 0.05) (Fig. 10E and F). Collectively, these findings imply that APBB1 may be implicated in abnormalities associated with human spermatogenesis, particularly those related to germ cell differentiation disorders.

Discussion

Less

Within the testis, SSCs maintain the balance between self-renewal and differentiation to maintain the stem cell pool and persistently generate progenitor cells necessary for normal spermatogenesis [35]. Numerous molecules regulating the fate decisions of SSCs have been identified in mice using in vitro culture and transplantation techniques [36]. However, molecular mechanisms governing human SSC self-renewal and differentiation remain largely elusive. Human primary SSCs exhibit a diminished proliferative capacity during culture, and they are difficult to be expanded in vitro [37]. Furthermore, limited sources of human testicular tissues impede comprehensive studies of human SSCs. To elucidate the regulatory mechanisms underlying fate determinations of human SSCs, we analyzed scRNA-seq data and discovered that APBB1 is selectively expressed in human SSCs, which is consistent with the data by our immunohistological staining. We further elucidated the roles of APBB1 in regulation of SSCs and spermatogenesis through cellular and molecular assays and APBB1 knockout mouse models. Interestingly, we found that APBB1 was associated with KAT5 and inhibited human SSC proliferation by modulating GDF15. In mice, Apbb1 deletion led to an enhancement in self-renewal of SSCs and reduction in their differentiation, which obviously decreased fertility.

APBB1, also known as FE65, was initially identified as a molecule integral to brain development [26]. It can activate or repress gene transcription independently or in conjunction with other molecules, e.g., KAT5, Notch intracellular domain (NICD), and the APP intracellular domain (AICD) [34]. The AICD-APBB1 complex, in conjunction with KAT5, constitutes a transcriptional regulatory module. This complex has been demonstrated to modulate the expression of genes critical for neurogenesis, e.g., Stathmin [26]. Our findings suggest that APBB1 has an interaction with KAT5, potentially binding to KAT5 and functioning independently in SSCs.

Upon APBB1 knockdown in human SSCs, we observed a notable increase in cell proliferation. Similarly, in the testes of Apbb1 knockout mice, we revealed an abnormal surge in SSC self-renewal (proliferation and colonization). The total number of SSCs was significantly elevated in Apbb1^−/− mice, as evidenced by our observations that the ratio of Plzf-positive SSCs to Kit-positive differentiating spermatogonia was markedly increased by Apbb1 knockout. It has been reported that AICD/APBB1 double transgenic mice exhibit a reduced number of immature neurons and the decrease in the proliferation of hippocampal progenitor cells [38]. This study indicates that Apbb1 overexpression conversely reduces the number of undifferentiated neurons [38], which is consistent with our findings that Apbb1 negatively regulates the self-renewal of human SSCs.

After knocking out the Apbb1 gene in mouse testes, the maintenance of the SSC pool is disrupted. SSCs became more self-renewing to hinder their differentiation, leading to spermatogenesis disorder. Most seminiferous tubules showed loss of male germ cells, while few spermatids were observed in other tubules. This finding suggests that the function of Apbb1 in regulating spermatogenesis may be partially compensated by other signaling pathways. Apbb1 belongs to the Apbb protein family, which includes 3 members, namely, Apbb1, Apbb2, and Apbb3 [26]. These 3 members share a conserved structure featuring a tryptophan–tryptophan (WW) domain and 2 successive phosphor-tyrosine-binding (PTB) domains [39]. The scRNA-seq analysis indicates that all 3 genes are expressed in the human testis, with APBB1 primarily expressed in SSCs, APBB2 mainly in peritubular myoid-like cells, and APBB3 predominantly in spermatocytes. Notably, APBB2 and APBB3 were also expressed in spermatogonia at low levels (data not shown). It has been reported that all 3 APBB proteins can bind to AICD through the PTB2 domain and to KAT5 through the PTB1 domain [40]. Knockout of either Apbb1 or Apbb2 alone in mice does not significantly affect neural development; however, simultaneous knockout of both genes leads to significant neural developmental defect [41]. These results implicate that there is functional compensation among the Apbb protein family, which may explain why Apbb1^−/− mice still have certain spermatogenesis. Future studies would further elucidate the specific roles of APBB proteins and their interaction in controlling spermatogenesis and human SSC development.

Using human SSC line, we observed that APBB1 knockdown promoted cell proliferation. RNA sequencing revealed that APBB1 knockdown activated WNT and ERK1/2 signaling pathways, which is essential for SSC self-renewal [33]. Among the up-regulated genes by APBB1 knockdown, GDF15 has been shown to stimulate cell growth and it is involved in the regulatory processes of WNT [42] and MAPK signaling [43]. Although we have demonstrated an important role of GDF15 in APBB1-mediated SSC self-renewal and apoptosis, there are other hub genes that may participate in the PPI network of up-regulated genes. For instance, EPAS1, also known as HIF-2α, is involved in the regulation of hypoxia-inducible factor (HIF) signaling, and it is essential for SSC regeneration conditions [44]. The ubiquitin-like protein ISG15 has been thought to be a central player in the host antiviral response [45], and it is highly expressed in cancer stem cells and promotes tumor growth [46]; however, whether ISG15 controls SSC proliferation remains to be investigated. Additionally, we observed that PTN [47] and EGR1 [48] were up-regulated by APBB1 knockdown.

Through protein interaction prediction and Co-IP experiments, we have identified that APBB1 interacted with KAT5 and they participated in regulation of human SSCs. Nevertheless, it remains to be explored systematically and unbiasedly the molecular mechanisms of APBB1 in regulating the fate decisions of human SSCs. In addition to the interaction with KAT5, it has been suggested that APBB1 can bind to APP, APLP1, CP2, LSF, LBP1, and SET, which contributes to transcriptional processes [40]. Moreover, APBB1 has been reported to form complexes with Mena and Evl, participating in cytoskeletal regulation and cell migration activities [49]. Despite these findings, further investigation is required to determine whether APBB1 influences human SSC development through the aforementioned or unknown mechanisms. For instance, immunoprecipitation mass spectrometry (IP-MS) may be employed to conduct a thorough screening of potential molecular partners of APBB1, which could provide deeper insights into the functions and mechanisms of APBB1 in controlling the fate determinations of human SSCs.

Notably, Apbb1 knockout resulted in remarkably reduced fertility in mice. The pathological features in the testes were characterized by impaired germ cell maturation or germ cell loss in part of the seminiferous tubules, resembling the pathological features of human azoospermia. Our findings indicate that overall expression levels and positivity of Apbb1 in testicular tissues from patients with NOA were significantly down-regulated. We have also conducted genetic testing on 2,047 patients with NOA and have identified 4 meaningful APBB1 mutations. In particular, the testicular pathologic features of NOA patients with the C.2108A>C mutation were similar to those of Apbb1^−/− mice, which implicates that the C.2108A>C mutation may lead to spermatogenesis disorder. It would be interesting to further determinate whether APBB1 mutations lead to abnormal development of human SSCs or spermatogenesis failure.

In summary, we have delineated for the first time the specific expression of APBB1 in human SSCs. We have further demonstrated that APBB1 in concert with KAT5 forms a complex that suppresses GDF15 expression, thereby modulating the WNT and MAPK signaling pathways to negatively control SSC self-renewal, which is essential for retaining the homeostasis of the SSC pool. Notably, the deletion of Apbb1 in mice results in profound spermatogenic failure and male infertility. Furthermore, we identified several pathogenic mutations of APBB1 in patients with NOA and a down-regulation of APBB1 expression level in these patients, highlighting an association of APBB1 abnormality with NOA. As such, this study offers substantial insights into the complex regulatory mechanisms of SSC fate decisions and spermatogenesis and it may provide a scientific basis for gene therapy of male infertility.

Materials and Methods

Less

Experimental design and procedures

This study design comprised 4 distinct sections, as we illustrated in Fig. S1. Employing scRNA-seq analysis and immunohistochemistry, we observed differential expression of APBB1 in human SSCs. Through a combination of in vitro cell culture experiments, mouse SSC transplantation, and Apbb1 knockout mouse model, we elucidated the function of APBB1 in both SSC development and spermatogenesis. Utilizing Co-IP and RNA sequencing, we discovered that APBB1 interacted with KAT5 to modulate GDF15 expression. In NOA patients, APBB1 was markedly down-regulated, and its association with pathogenic mutations was detected, suggesting a potential link between APBB1 dysregulation and NOA.

Ethics statement and human testicular tissues' collection

Human testicular tissues from OA and NOA patients utilized in this study were approved by the Ethics Committee of the School of Basic Medical Science at Central South University (no. 2022-KT25). All participants provided their informed consent through a signed statement. Human testicular samples were obtained from 18 NOA patients at 28 to 48 years old undergoing mTESE surgery. The animal experimental study was authorized by the Experimental Animal Welfare Ethics Committee of Central South University (XMSB-2022-0053) in terms of the principles of animal protection, welfare, ethics, and the relevant national guidelines on experimental animal welfare ethics.

Acquisition and analysis of scRNA-seq data of human testicular tissues

The normal testicular cell scRNA-seq datasets (GSE112013 [50], GSE109037 [51], and GSE153947 [52]) were obtained from the GEO dataset repository (https://www.ncbi.nlm.nih.gov/gds). The Seurat 4.4 R package was utilized for the analysis of these scRNA-seq data [53]. Initially, the expression matrix data were imported using the Read10X and read.table functions, and Seurat objects were created for each matrix. Subsequently, the data within these objects were filtered and normalized. Cells with gene numbers between 500 and 8,000 and with a proportion of mitochondrial genes less than 20% were retained, and ribosomal genes were manually eliminated. The Find Integration Anchors function was utilized to remove batch effect between different datasets, and 2,000 characterized genes were acquired. Following this process, the IntegrateData function was applied to merge the data. Subsequent clustering parameters were set to the default values of the seurat R package. The integrated Seurat object was subjected to downscaling and clustering analysis utilizing the uniform manifold approximation and projection (UMAP), and each cluster was identified by marker genes. Furthermore, developmental trajectory analysis of SSCs was performed using Monocle 3 (https://cole-trapnell-lab.github.io/monocle3/). The ClusterGvis R package (https://github.com/junjunlab/ClusterGVis) was employed for the generation of heatmaps and conducting GO analyses. All the point and line plots were optimized using ggplot2 (https://www.rdocumentation.org/packages/ggplot2, version 3.4.0).

Source and culture of human SSCs

The human SSC line was established previously by our research team [32]. The culture medium for human SSC line consisted of Dulbecco's modified Eagle's medium (DMEM)/F12 (Gibco, Grand Island, NY, USA) supplemented with 10% fetal bovine serum (FBS; Gibco), while the addition of antibiotics was optional. The human SSC line was subcultured every 2 to 3 d at 34 °C and 5% CO₂.

RNA extraction and qPCR

RNA was harvested from the cells with the RNAiso Plus reagent (Takara, Tokyo, Japan). The purity and quantity of the isolated RNA were determined using a NanoDrop spectrophotometer (Thermo Fisher Scientific). Subsequently, complementary DNA (cDNA) was synthesized using commercial kits (Roche, Basel, Switzerland) for RT. The qPCR was conducted following the manufacturer's protocol on the ABI Prism 7700 system (Applied Biosystems). To quantify the relative mRNA levels, the 2^−ΔΔ(Ct) method was employed with beta-actin (ACTB) serving as an internal reference. After comprehensive analysis of each sample, 3 replicates were conducted, and the average results were calculated. The primers of genes were sourced from PrimerBank (https://pga.mgh.harvard.edu/primerbank), and their sequences were listed in Table S1.

Immunohistochemistry

For immunohistochemistry, testis sections were deparaffinized using xylene and rehydrated with a series of graded ethanol solutions. Subsequently, the sections were heated for 18 min at 98 °C in 0.01 M sodium citrate buffer. Endogenous peroxidase activities were blocked by 3% hydrogen peroxide (Zsbio, Beijing, China). The tissues were then incubated with 0.25% Triton X-100 for 15 min at room temperature to increase tissue permeability. Afterward, tissues were blocked for 1 h at room temperature with 5% bovine serum albumin (BSA). Tissue sections were incubated with the primary antibodies (Table S2) for at least 16 h at 4 °C. Following 3 washes with phosphate-buffered saline (PBS), tissue sections were incubated with a secondary antibody for 1 h at room temperature. The Diaminobenzidine (DAB) kit (Zsbio, Beijing, China) was used to develop the immunostaining. For immunofluorescence, Alexa Fluor-conjugated secondary antibodies were incubated at room temperature for 1 h and followed by nuclear counterstaining with 4′,6-diamidino-2-phenylindole (DAPI). At the end of the process, image capture and analysis of tissue sections were performed using a Zeiss microscope (Carl Zeiss, Germany).

Transfection of plasmids and shRNAs

The shRNAs were designed and synthesized by Zorin (Shanghai, China) and RiboBio (Guangzhou, China). In accordance with the manufacture's manual, human SSCs were transfected with shRNA and plasmids at a concentration of 3 μg/ml by Lipofectamine 3000 (Life Technologies). Gene and protein expression levels were assessed at 48 h post-transfection.

CCK8 assay

The proliferation of human SSCs was assessed by the CCK8 according to the manufacturer's protocol (Dojindo, Kumamoto, Japan). Specifically, 10% CCK8 reagent was added into the culture medium of human SSCs and incubated for 3 h. Subsequently, the absorbance at 450 nm was measured using a microplate reader (Thermo Fisher Scientific).

The EdU incorporation assay

Human SSCs were cultured with DMEM/F12 without FBS, and 50 μM EdU (RiboBio) reagent was added into the cell culture medium and incubated for 12 h. Cells were then rinsed with DMEM and fixed by 4% paraformaldehyde. Subsequently, after neutralization with glycine (2 mg/ml), the cells were permeabilized with 0.5% Triton X-100 for 10 min at room temperature. Color development was facilitated using Apollo, while cell nuclei were counterstained with DAPI. Image capture and analysis were conducted utilizing fluorescence microscopy (Zeiss). A minimum of 500 cells were evaluated for statistical analysis.

Flow cytometry for apoptosis detection

After 48 h of shRNA transfection, human SSCs were collected and washed twice with ice-cold PBS. Following centrifugation, at least 1 million cells were resuspended in Annexin V binding buffer (BD Biosciences, San Jose, CA, USA) according to the manufacturer's instructions. The cells were then incubated with 10 μl of propidium iodide (PI) and 5 μl of allophycocyanin-labeled Annexin V reagent for 15 min at room temperature to prevent from light. The cells' apoptosis was subsequently analyzed using a C6 flow cytometer (BD Biosciences).

Terminal deoxynucleotidyl transferase-mediated deoxyuridine triphosphate nick end labeling assay

After 48 h of shRNA transfection, the cells were assayed for DNA breaks and cell apoptosis using an in situ cell death detection kit (Roche, Mannheim, Germany). Briefly, human SSCs were incubated at room temperature for 15 min with proteinase K (20 mg/ml). Following 3 washes with PBS, the cells were incubated with deoxyuridine triphosphate labeling/terminal deoxynucleotidyl transferase enzyme buffer for 1 h to protect from light. DAPI was used to counterstain cell nuclei. Image capture and analysis were conducted using a fluorescence microscope (Zeiss). At least 500 cells were counted for statistical analysis.

Western blots and IP assays

Cells and testicular tissues were homogenized and lysed with radioimmunoprecipitation assay (RIPA) lysis buffer (Thermo Fisher Scientific) for 30 min on ice. Subsequently, they were centrifuged at 12,000g to obtain clear lysates. Protein concentrations in the lysates were determined by the BCA kit (Thermo Fisher Scientific). The cell lysate was treated with either control rabbit immunoglobulin G or primary antibodies and incubated overnight at 4 °C. On the following day, protein G magnetic beads were added to the supernatants and incubated for 2 h at 4 °C. Samples were then washed 3 times using a washing buffer. After washing, the beads were magnetically separated, resuspended, and boiled for 5 min at 95 °C. For every sample, total protein extracts (30 μg) were subjected to sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS-PAGE) (Bio-Rad), and Western blotting was conducted. The antibodies used in this assay and their dilution ratios were listed in Table S2. The intensities of immunoreactive protein bands were visualized using chemiluminescence (Bio-Rad).

RNA sequencing

Total RNA was extracted from cells using the Trizol reagent kit (Invitrogen, Carlsbad, CA, USA). The integrity of the RNA was evaluated using the Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA). Eukaryotic mRNA was enriched using Oligo (dT) beads, and ribosomal RNA (rRNA) was removed by a Magnetic Kit (Epicentre, Madison, WI, USA). The enriched mRNA was fragmented using a fragmentation buffer and subsequently reverse-transcribed with random hexamers. The cDNA was then synthesized and purified using a Qiagen purification kit. The cDNA underwent end repair, addition of poly (A), and ligation. The ligated products were amplified via PCR and separated using agarose gel electrophoresis before being sequenced on the Illumina HiSeq2500 platform. Sequencing reads were filtered using Fastp (version 0.18.0), and reads aligning to rRNA were removed by Bowtie2 (version 2.2.8). Transcript assembly, gene expression quantification, and alignment to the reference genome were performed utilizing the filtered reads. The mapped reads were assembled using a reference-based approach with StringTie (version 1.3.1). DEGs were identified using DESeq2 software. Enrichment analysis of DEGs was conducted in R using the ClusterProfiler package (available at https://github.com/YuLab-SMU/clusterProfiler), which employed GO and KEGG.

Culturing and transplanting mouse SSCs

Mouse SSCs with GFP (green fluorescence protein) were a gift from P. Zhang of Nanjing Medical University. Cell mixture was isolated from testicular tissues of mice with GFP at postnatal day 6 mice using a 2-step enzymatic digestion at 34 °C. Following centrifugation, the cells are resuspended in DMEM supplemented with 10% FBS, 1% penicillin, and 1% streptomycin. To enrich for SSCs, type A spermatogonia were separated using a differential plating technique. Subsequently, SSCs are isolated using magnetic-activated cell sorting (MACS) with SSC markers Thy1 and α6-integrin.

The isolated SSCs were plated onto mitotically inactivated mouse embryonic fibroblasts (MEFs) or extracellular matrix-coated dishes and maintained in a culture medium designed for SSC propagation. This medium typically included DMEM/F12 with knockout serum replacement (KSR), glutamine, β-mercaptoethanol, and necessary growth factors, e.g., GDNF, LIF, epidermal growth factor (EGF), and basic fibroblast growth factor (bFGF). SSCs were cultured in an incubator with humidified atmosphere at 34 °C and 5% CO₂. When cells reached approximately 80% confluency, they were passaged using trypsin-EDTA or non-enzymatic dissociation methods to maintain SSC self-renewal and prevent differentiation.

Prior to transplantation, recipient mice were treated with 40 mg/kg busulfan to eliminate endogenous male germ cells. The cultured SSCs are dissociated enzymatically or mechanically, counted, and resuspended in a transplant buffer containing FBS. Using a micropipette under a stereomicroscope, mouse SSCs were transplanted into the seminiferous tubules of the recipient mouse testes. Two months after transplantation, the function of the transplanted SSCs was assessed by histological analysis to evaluate spermatogenesis and the potential production of offspring. Strict aseptic techniques were employed throughout these procedures to maintain cell viability and prevent contamination. The use of all experimental animals was approved by the Experimental Animal Welfare Ethics Committee of Central South University, and it was in accordance with the principles of experimental animal welfare ethics.

Construction of Apbb1 conditional knockout mice

The Stra8-GFP-Cre and Apbb1^flox/flox mice were obtained from Cyagen (Suzhou, China). The Apbb1^flox/flox mouse lines were developed using CRISPR-Cas9 technology, which involved the insertion of 2 loxP sites: one before exon 7 and another after exon 12 of the Apbb1 gene. Genotyping of Apbb1^flox/flox mice was performed via PCR with tail genomic DNA. The primers used for PCR genotyping of Apbb1^flox/flox mice were listed in Table S1.

WES of NOA patients

Genomic DNA was extracted from peripheral blood of NOA patients with a DNA extraction kit (QIAGEN) according to the manufacturer's instructions. After determining concentrations and purity of DNA, the whole exome library was constructed and sequenced on the Illumina HiSeq 2000 or NovaSeq 6000 sequencing platforms (Illumina). The raw reads were aligned to GRCh37/hg19 with Burrows-Wheeler Aligner. Genetic variations, e.g., single-nucleotide variants (SNVs), deletions, and small insertions, were analyzed, and they were annotated and filtered by various public databases and silico tools, including 1000G, gnomAD, ExAC, SIFT, PolyPhen-2, and MutationTaster.

Statistical analysis

The R programming language employed the dplyr package (https://dplyr.tidyverse.org) for data analysis. Each experiment was replicated a minimum of 3 times, and the results were presented as the mean ± SD. The t test was utilized to evaluate the differences in variances among the groups, and statistical significance was set at P < 0.05.

Funding

Less

National Outstanding Youth Science Fund Project of National Natural Science Foundation of China(32170862)
