Structural Insights into Isovaleryl-Coenzyme A Dehydrogenase: Mechanisms of Substrate Specificity and Implications of Isovaleric Acidemia-Associated Mutations
收藏切换
PDF
Kaide Ju1, †, Fang Bai2, †, Youwei Xu3, †, Qingao Li2, Gengchen Su1, Ye Jin4, Houzao Chen5, *, Shuyang Zhang1, 2, 4, 6, *, Xiaodong Luan4, 7, *
Research. Vol 8 Article ID 0661
Less
收藏切换
Research. Vol 8 Article ID 0661
• Research Article •
Structural Insights into Isovaleryl-Coenzyme A Dehydrogenase: Mechanisms of Substrate Specificity and Implications of Isovaleric Acidemia-Associated Mutations
Full
Kaide Ju1, †, Fang Bai2, †, Youwei Xu3, †, Qingao Li2, Gengchen Su1, Ye Jin4, Houzao Chen5, *, Shuyang Zhang1, 2, 4, 6, *, Xiaodong Luan4, 7, *
Affiliations
  • 1 School of Basic Medical Sciences, Tsinghua University, Beijing 100084, China.
  • 2 Department of Cardiology, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing 100730, China.
  • 3 The CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China.
  • 4 Department of Rare Diseases, Peking Union Medical College Hospital, Peking Union Medical College and Chinese Academy of Medical Science, Beijing 100730, China.
  • 5 Department of Biochemistry and Molecular Biology, State Key Laboratory of Medical Molecular Biology, Institute of Basic Medical Sciences, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing 100730, China.
  • 6 Tsinghua-Peking Center for Life Sciences, Tsinghua University, Beijing 100084, China.
  • 7 Center for Drug Research and Evaluation, Institute of Clinical Medicine, Peking Union Medical College Hospital, Beijing 100730, China.
Published: 2025-05-28 doi: 10.34133/research.0661
Outline
收藏切换

Isovaleryl-CoA (coenzyme A) dehydrogenase (IVD) plays a pivotal role in the catabolism of leucine, converting isovaleryl-CoA to 3-methylcrotonyl-CoA. Dysfunction of IVD is linked to isovaleric acidemia (IVA), a rare metabolic disorder characterized by the accumulation of toxic metabolites. In this study, we present the cryo-electron microscopy structures of human IVD, resolved both in its apo form and in complex with its substrates, isovaleryl-CoA and butyryl-CoA. Our findings reveal a tetrameric architecture with distinct substrate-binding pockets that facilitate the enzyme's preference for short branched-chain acyl-CoAs. Key residues involved in FAD binding and substrate interaction were identified, elucidating the catalytic mechanism of IVD. Additionally, we investigated the impact of various disease-associated hotspot mutations derived from different regions, demonstrating their effects on enzyme stability and activity. Notably, mutations such as A314V, S281G/F382V, and E411K resulted in substantial loss of function, while others exhibited milder effects, which is consistent with our structural analyses. These insights enhance our understanding of IVD's enzymatic properties and provide a foundation for developing targeted therapies for IVA.

Kaide Ju, Fang Bai, Youwei Xu, Qingao Li, Gengchen Su, Ye Jin, Houzao Chen, Shuyang Zhang, Xiaodong Luan. Structural Insights into Isovaleryl-Coenzyme A Dehydrogenase: Mechanisms of Substrate Specificity and Implications of Isovaleric Acidemia-Associated Mutations[J]. Research, 2025 , 8 (5) : 0661 . DOI: 10.34133/research.0661
Full Text
Less
Introduction
Less
Isovaleryl-CoA (coenzyme A) dehydrogenase (IVD) is an intramitochondrial flavoenzyme that catalyzes the conversion of isovaleryl-CoA (3-methylbutyryl-CoA) into 3-methylcrotonyl-CoA in the leucine catabolism pathway, transferring electrons to the electron-transferring flavoprotein (ETF) [1,2]. IVD belongs to a vital family comprising diversity of acyl-CoA dehydrogenases (ACADs), which share considerable sequence and tertiary structure homology and employ a similar enzymatic mechanism for the α, β-dehydrogenation of acyl-CoA substrates [2,3]. Among these, 3 ACADs including IVD, isobutyryl-CoA dehydrogenase, and short branched-chain ACAD, are involved in amino acid catabolism, while 4 others with straight-chain substrate specificities including short, medium, long, and very long ACADs are involved in β-oxidation of fatty acids [2,4]. All of these enzymes except for very long-chain acyl-CoA dehydrogenase (VLCAD), a homodimer associated with the inner mitochondrial membrane, are soluble homotetramers with a subunit mass of approximately 43 kDa, residing in the mitochondrial matrix [5,6]. IVD is particularly crucial in the degradation of leucine, a process vital for maintaining metabolic homeostasis, fatty acid oxidation, neurological energy demands, and immune function [7].
The enzymatic reaction catalyzed by IVD is initiated by the binding of acyl-CoA substrates [8]. The mechanism of ACADs can be divided into 2 half-reactions: a reductive and an oxidative phase. In the reductive half-reaction, a catalytic glutamate residue extracts the Cα-H hydrogen, while the Cβ-H hydrogen is transferred as a hydride to the N5 position of the flavin. Each subunit of IVD contains one noncovalently attached FAD molecule, imparting a characteristic yellow color to the purified enzyme [9]. The subsequent oxidative half-reaction is necessary to regenerate oxidized FAD by transferring electrons from FADH2 to ETF [10,11].
Deficiency in human IVD is responsible for isovaleric acidemia (IVA; OMIM #243500), a serious metabolic disorder with an autosomal recessive inheritance [12,13]. IVA is characterized by the accumulation of isovaleric acid and its derivatives, including 3-hydroxyisovaleric acid, isovalerylcarnitine, and isovalerylglycine, in cells, blood, and urine [14–17]. This metabolite accumulation leads to severe organ damage. Clinical manifestations of IVA include poor feeding, vomiting, lethargy, seizures, developmental delays, metabolic acidosis, and sweaty feet odor [18,19]. Over 60 disease-causing mutations in the IVD gene have been documented, primarily point mutations, along with splice site mutations, nonsense mutations, missense mutations, deletions, and insertions [20–24]. However, an increasing number of IVD variants with unknown functional effects are being reported across diverse ethnicities [18]. Thus, a deeper comprehension of the functional implications of IVD mutations is essential for improving diagnostic and therapeutic strategies.
Previous study has reported the crystal structure of human IVD, identifying E286 as a key catalytic residue [1,25]. However, limitations exist in the research; substrate or substrate analogs were not added during purification or crystallization. Notably, isovaleryl-CoA was modeled into the active site of IVD using density observed for CoA persulfide, but the clear tracing of isovaleryl-CoA density was lacking, resulting in an incomplete structural understanding of the IVD–substrate complex. Comprehensive structural investigations of the complete IVD–substrate complex are essential for elucidating the dynamics and catalytic mechanisms of IVD, thereby enhancing our understanding of the pathophysiology underlying IVA.
In this study, we presented the cryo-electron microscopy (cryo-EM) structures of human IVD both in its apo form and in complex with its substrates, isovaleryl-CoA and butyryl-CoA. These structures reveal a tetrameric architecture with distinct substrate-binding pocket that facilitates the enzyme's preference for branched-chain acyl-CoAs. We have further investigated critical residues involved in the onset of IVA, which provides valuable insights into their effects on the biochemical and structural properties of IVD.
Results
Less
Cryo-EM structure of IVD
As a critical enzyme in the catabolic breakdown of leucine, IVD catalyzes the conversion of isovaleryl-CoA into 3-methylcrotonyl-CoA. Dysfunction of IVD can lead to the accumulation of isovaleric acid, 3-hydroxyisovaleric acid, isovalerylglycine, and isovalerylcarnitine, ultimately resulting in IVA (Fig. 1A). Thus, cryo-EM structural analysis on IVD was conducted to provide valuable insights into the enzyme and the related disease.
The IVD sample prepared for cryo-EM was obtained through heterologous expression of human IVD in Escherichia coli BL21 (DE3) and characterized with size exclusion chromatography as well as sodium dodecyl sulfate–polyacrylamide gel electrophoresis (Fig. S1). During purification, the protein sample exhibited a conspicuous yellow color, indicative of its interaction with FAD, a cofactor that accepts electrons and stabilizes the conformation of IVD. Thus, the original structure of IVD was resolved in the form of only combining with FAD molecules, achieving a resolution of 2.55 Å. Consistent with other ACADs, including short-, medium-, and long-chain ACADs [6,26,27], IVD is characterized by a tetrameric architecture composed of 4 identical subunits (Fig. 1B). Each pair of monomers forms a centrally symmetric arrangement with the remaining subunits, twisting tightly together. A pocket-like space exists between adjacent monomer attachment surfaces, providing a binding site for catalytic substrates and cofactors.
Analysis of the secondary structure of IVD reveals a well-organized domain distribution, broadly categorized into 3 regions: 2 α-helical domains and 1 β-sheet domain (Fig. 1C). The 2 α-helical domains are situated at the N-terminal and C-terminal regions, while the central region comprises the β-sheet domain, which are composed of 5 α-helices, 7 β-strands, and 7 α-helices, respectively (Fig. 1D). These domains are arranged in a “U” shape, with the 2 α-helical domains in close proximity (Fig. 1E). Furthermore, the C-terminal α-helical domain and the β-sheet domain from one subunit create an exposed pocket, which, together with the C-terminal α-helical domain of the adjacent monomer, provides a structural basis for binding and catalytic functions. To enhance protein stability for cryo-EM analysis, additional FAD was incorporated into the sample buffer. Each tetramer of IVD can bind 4 FAD molecules. The base of the binding pocket, where the isoalloxazine ring of FAD resides, is predominantly composed of hydrophobic amino acids, while the opening toward the neighboring monomer accommodates the adenosine portion (Fig. 1F). The cryo-EM structure reveals that each FAD molecule is coordinated by residues from 2 adjacent monomers within the IVD tetramer. Specifically, T200 from one monomer forms hydrogen bonds with the isoalloxazine group of FAD, while Q323 from the neighboring monomer stabilizes the adenosine moiety. Other residues including R312, G384, T409, and E411, which interact with the ribose and pyrophosphate group, arise from bordering monomers as well. This inter-subunit binding mode implies that FAD not only participates in catalysis but also bridges monomers to facilitate tetramer assembly.

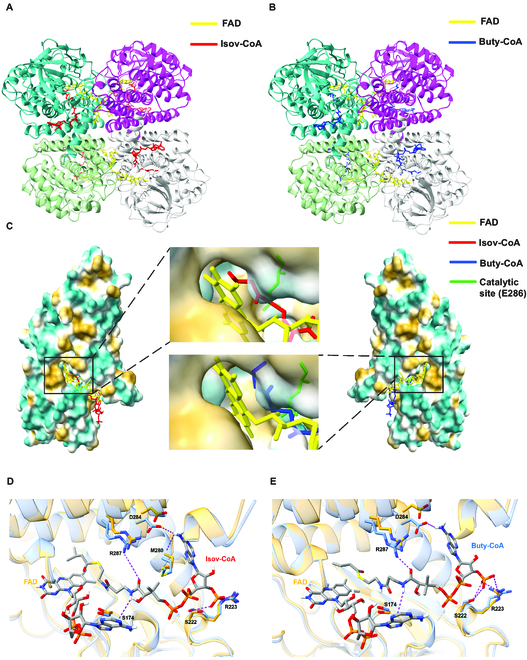

Structural insights into the substrate-binding pocket of IVD
IVD is classified as a short-branched chain ACAD, exhibiting the highest activity for isovaleryl-CoA. Glutamate 286, identified as the catalytic base of IVD, is situated at the bottom of the active pocket. This glutamate functions as a proton acceptor during the dehydrogenation reaction and abstracts the α-hydrogen from substrates [1]. To elucidate the complex structure with its substrates, an IVD construct with the E286A mutation was expressed and purified for cryo-EM preparation to minimize conformational instability caused by the process of enzymatic reaction. Upon incubation with isovaleryl-CoA and butyryl-CoA, complexes of IVD with both substrates were resolved at resolutions of 3.35 and 2.91 Å, respectively.
Following the addition of the 2 acyl-CoAs, the refinement process revealed additional tubular densities in the active site that ran partially parallel to the riboflavin portion of FAD, which were well-modeled as isovaleryl- and butyryl-CoA (Fig. 2A and B). FAD enters the pocket through a space formed at the junction of neighboring monomers, while the acyl-CoAs adhere to the surface of one monomer and enter through an opening on the opposite side, allowing their fatty acyl portions to interact with the FAD ring deep in the pocket. The residues surrounding the active site create a relatively hydrophobic environment, facilitating the binding of both acyl-CoAs in a similar orientation (Fig. 2C). Comparison of the 2 acyl-CoAs in terms of binding revealed a twist alternation at the fatty acyl portion, potentially attributed to the additional side-chain methyl constraining space within the pocket.
The residues involved in binding with 2 acyl-CoAs are predominantly identical (Fig. 2D and E). D284 and M280 form hydrogen bond interactions with adenosine at N6, while S222 and R223 contribute to interactions with the 3′-phosphate. These interactions confirm that the CoA on the outer part of the pocket is close to the monomer, while the remaining portion extends into the pocket, riveted by S174 and R287 from opposing directions. The elongated acyl-CoAs are stabilized around the active site by participating residues, contributing to a more compact and stable structure of IVD.

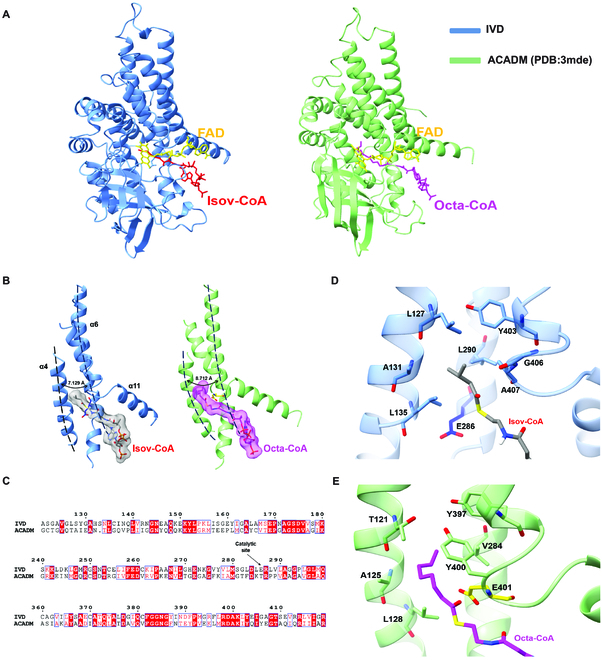

Structural basis for the substrate specificity of IVD
The ACAD family utilizes a diverse range of acyl-CoAs, differing in carbon chain length as substrates [28]. IVD differs from other ACADs in 2 primary features: the varying chain lengths and the presence of an additional branched moiety in its substrates. Although IVD can catalyze dehydrogenation of substrates ranging from C4 to C6, it exhibits the highest activity for isovaleryl-CoA, a C4 straight chain with a methyl group at the Cβ position. In comparison, the activity of IVD for butyryl-CoA, which lacks a branched group, is no more than 30% of that for its optimal substrate. ACADM, another member of the ACAD family, exhibits broader substrate specificity, accommodating CoAs with straight chains ranging from C6 to C12 [29]. Architectural comparison between IVD and ACADM reveals distinguishing features that elucidate their substrate specificity.
Although IVD and ACADM share overall structural conservation to maintain similar catalytic abilities (Fig. 3A), subtle differences in the pocket region play a crucial role in determining substrate specificity. The helices α4, α6, and α11 from different domains constitute the main portion of the catalytic pocket, with 2 parallel helices α4 and α6 forming the depth-determining bottom, while the remaining helix α11 acts as a barrier that restricts the extension of branched chain from substrates (Fig. 3B). Although residues surrounding the pocket, such as A131 and L135 (A125 and L128 in ACADM), show considerable conservation between IVD and ACADM (Fig. 3C), they exhibit shorter distances between side chains at the corresponding positions and make the pathway narrower. Notably, T121 and V284 reside at the bottom of the pocket in ACADM, while the corresponding residues in IVD are L127 and L290, which possess more compact side chains and provide wider space (Fig. 3D and E). These residues, located in the helices adjacent to the substrate side, contribute to differences in conformation, resulting in a narrower pocket in IVD to prevent it from accommodating substrates with longer carbon chains.
Differences in the horizontal helices (α11) between IVD and ACADM, as illustrated in Fig. 3B, are noted to be responsible for matching branched-chain acyl-CoAs in IVD. Indeed, conserved residues are positioned in the helix between the 2 enzymes, including Y403 and I405 (Y397 and I399 in ACADM), to ensure basic common function. G406 and A407, located at a critical loop position in the middle of the helix, provide suitable space for the insertion of branched chains from substrates (Fig. 3D). In contrast, Y400 and E401 occupy the corresponding positions in ACADM, presenting greater spatial hindrance that prevents the insertion of branched chains (Fig. 3E). Furthermore, the catalytic base of IVD, glutamate E286, is situated at the bottom of the binding pocket, nearly 120 amino acids away from the corresponding position of the ACADM catalytic base (E401). The 2 catalytic bases are separated by distinct domains, and the differences in their distance as well as angle relative to the substrate Cα may influence their proton-accepting capacity, thereby affecting the enzyme's catalytic efficiency for various substrates.

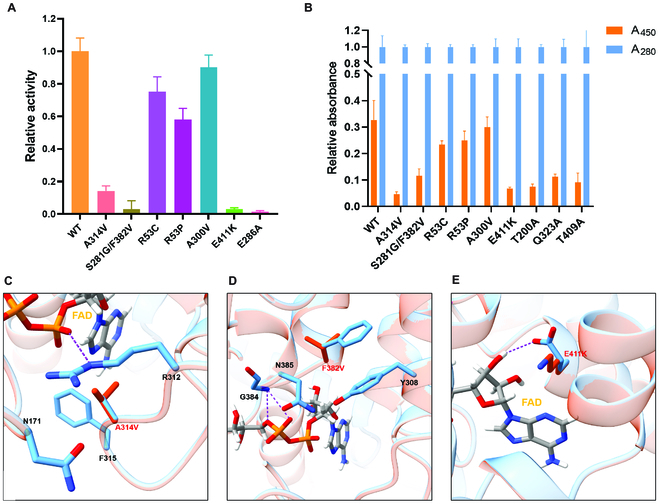

Functional roles of IVA disease-associated mutations
IVA, resulting from the dysfunction of IVD, is a rare autosomal recessive disorder. Due to the disruption of normal metabolism of leucine, the excess intermediate isovaleryl-CoA is converted to isovaleric acid, 3-hydroxyisovaleric acid, isovalerylglycine, and isovalerylcarnitine, leading to organic acidemia. Although IVA is a rare disease, patients are spread all over the world, with individuals from different regions carrying distinct key missense mutations. Based on molecular analysis of these patients from diverse areas, we constructed mutants including A314V (United States and Germany), S281G/F382V (Korea), R53P (Mexico), R53C (China), and A300V and E411K (Turkey) [13,24,30–33]. To dig into the underlying mechanisms of these mutations associated with IVA, we conducted biochemical and structural analysis on the IVD mutants.
Results of size exclusion chromatography (SEC) confirmed successful expression and purification of all mutants. Under identical heterologous expression conditions, the peak protein concentrations after SEC elution were quantified as follows: wild type (WT) (6.5 mg/ml), A314V (3.2 mg/ml), S281G/F382V (2.8 mg/ml), R53P (0.9 mg/ml), R53C (0.7 mg/ml), A300V (5.7 mg/ml), and E411K (3.3 mg/ml). Notably, R53P and R53C exhibited a more than 80% reduction in yield. The melting temperature (T m) of the mutants, compared to the WT, presented varying degrees of decrease, with A300V maintaining its original level, which indicated the interference with IVD thermostability caused by mutations (Fig. S3). The results of activity assays demonstrated that A314V, S281G/F382V, and E411K led to a severe loss of function, with no more than 20% of enzyme activity remaining, while R53C, R53P, and A300V exhibited relatively milder decreases in enzyme activity (Fig. 4A). Additionally, the purified proteins displayed a distinct yellow color, attributed to their interaction with FAD. The amount of FAD bound to IVD was quantified by measuring the absorbance at 450 nm [34]. It is notable that A314V, S281G/F382V, and E411K, which exhibited a sharp decrease in enzyme activity, also demonstrated a more pronounced reduction in FAD binding capacity, whereas R53C, R53P, and A300V showed a smaller decrease (Fig. 4B).
To further elucidate the role of these mutations in IVA, we located them within the corresponding regions of IVD and examined their effects on the protein architecture. As anticipated, the mutants A314V, S281G/F382V, and E411K, which have displayed a sharp decline in enzyme activity, also play crucial roles in FAD binding according to structure analysis. A314 and F382 are located at the loop positions between helices approaching FAD from different directions, where R312 and G384 forming hydrogen bond interactions with FAD exist nearby (Fig. 4C and D). Their transition to the branched amino acid valine may have disrupted the stability of the loop structure, thereby affecting the relative positions of R312 and G384 in the structure and breaking their interaction with FAD. A314V makes greater clashes with surrounding residues including N171, F315, and R312, while F382V disturbs its interactions with N385 and Y308. Besides, E411 directly interacts with FAD through hydrogen bond, and its mutation makes a transition from negatively charged glutamate to positively charged lysine, critically disrupting this interaction. In contrast, R53, A300, and S281 are positioned far from the binding pocket and pose milder effects on the structure of IVD. These findings are consistent with the previously mentioned biochemical results.
Discussion
Less
IVD acts as a vital enzyme involved in the catabolic breakdown of leucine, converting isovaleryl-CoA into 3-methylcrotonyl-CoA. Previous study has elucidated the crystal structure of IVD, but their samples were purified and prepared without any addition of relevant acyl-CoA. However, the density of CoA persulfide was discovered within the binding pocket during structural refinement, ultimately determining a structural model that binds an undecided CoA. In our study, the cryo-EM structure of IVD and its complexes with isovaleryl-CoA and butyryl-CoA were clearly elucidated at resolutions of 2.55, 3.35, and 2.91 Å, respectively. Detailed cryo-EM statistics are shown in Table S2. Subsequent analyses on the detailed structures, along with further biochemical experiments, accurately demonstrate the mechanisms underlying enzymatic catalysis and substrate selectivity of IVD.
The overall structure of IVD uncovers a tetramer composed of 4 identical subunits, with each pair twisting tightly into a centrally symmetric arrangement, which is consistent with structural features observed in the ACAD family. Each monomer is organized into 3 neatly aligned domains: 2 α-helical domains positioned at the N-terminal and C-terminal regions, and 1 β-sheet domain occupying the central area. The 3 domains are arranged like a “U” shape, with partial invagination forming an opening pocket for substrate and cofactor binding. Notably, FAD serves as a cofactor in the reaction to accept electrons; when combined with the active pocket, the external portion forms hydrogen bonds with the adjacent monomer (Fig. 1F). Therefore, the binding of FAD also plays a critical role in stabilizing the protein structure, as validated by the modifications to the buffer system, where its addition reduced the protein's propensity for precipitation. Residues T200, G384, R312, T409, E411, and Q323 participate in hydrogen bond interactions with FAD, with some mutations linked to the onset of IVA.
The complex structures of IVD with isovaleryl-CoA and butyryl-CoA were determined to investigate underlying mechanisms of catalysis. Binding experiments between WT IVD and its substrates did not yield accurate fitting results, leading us to speculate that the intense enzymatic reaction has affected the determination of binding parameters and may impact subsequent cryo-EM preparations. Thus, a mutant on the active site, E286A, was constructed and exhibited a stable combination with isovaleryl-CoA and butyryl-CoA, with apparent dissociation constant (KDapp) of 848 and 494 nM measured by surface plasmon resonance (SPR) (Fig. S2), which was utilized for cryo-EM sampling. At the bottom of the active pocket, where the fatty acyl portion and the FAD ring reside, E286 extends its carboxyl group to approach the Cα–Cβ bond of the substrate to abstract proton. Comparison of the 2 acyl-CoAs in terms of binding revealed that butyryl-CoA exhibits a twist alternation in the fatty acyl portion, resulting in a longer distance and a less favorable angle between E286 and the Cα–Cβ bond of the substrate, which may contribute to its markedly lower catalytic efficiency compared to isovaleryl-CoA.
The ACAD family comprises various ACADs, among which IVD differs from the other ACADs in 2 primary features regarding substrate specificity: a shorter acyl chain length (C4 to C6) and a branched-chain preference for its substrates. A detailed structural comparison around the active pocket between IVD and ACADM, which accommodates acyl-CoAs with straight chains ranging from C6 to C12, reveals distinguishing characteristics in substrate specificity. L127 and L290 are located at restricted position deep within the IVD pocket, and compared to T121 and V284 at the corresponding position of ACADM, they exhibit a closer side-chain distance that narrows the pocket. When the carbon chain length of substrate increases to C7 or even more, this critical bottleneck will prevent longer carbon chains from extending inward, thereby conferring specificity for shorter chain substrates. On the other hand, Y400 and E401, located on the side of the ACADM pocket, are responsible for greatly limiting the degree of freedom in lateral space. In contrast, the corresponding positions in IVD are occupied by glycine and alanine, which have smaller steric hindrance, providing greater room for the accommodation of branched chains.
Deficiency of IVD leads to IVA, a rare autosomal recessive disorder, with symptoms including feeding intolerance, developmental delay, metabolic acidosis, and pancytopenia. The construction of mutants based on hotspot mutations from various regions, including A314V (United States and Germany), S281G/F382V (Korea), R53P (Mexico), R53C (China), and A300V and E411K (Turkey), was undertaken to investigate their effects on the disease. Based on purification results and biochemical experiments, these mutations can be classified into three categories regarding their impact on disease manifestation. A314V, S281G/F382V, and E411K led to a severe loss of function, with enzyme activity remaining below 20%. R53P and R53C exhibited reduced enzyme activity to a lesser extent, but showed lower expression levels during purification. A300V displayed enzyme activity and purification performance closest to the WT, with relatively mild symptoms in cases, including vomiting and tachypnea [24].
Our structural analysis of IVD mutations reveals that destabilization of FAD binding directly impairs enzymatic activity, which correlates with severe neonatal-onset IVA cases presenting with life-threatening metabolic acidosis. Conversely, mutations retaining partial activity are associated with milder phenotypes, such as episodic vomiting triggered by metabolic stress. These findings highlight the importance of FAD-dependent structural integrity for IVD function and suggest that pharmacological chaperones targeting cofactor binding could mitigate enzyme instability in specific mutations. Furthermore, the distinct substrate-binding geometry of IVD, particularly the G406/A407 motif, provides a structural blueprint for designing substrate analogs to competitively inhibit toxic metabolite accumulation in IVA patients.
In summary, our study provides comprehensive insights into the structural and functional characteristics of IVD, highlighting its critical role in leucine metabolism and the implications of specific mutations associated with IVA. Through cryo-EM analysis, we elucidated the enzyme's tetrameric structure, substrate-binding mechanisms, and the importance of FAD in stabilizing the protein. The comparative analysis of IVD and other ACADs revealed distinct features that govern substrate specificity, particularly the preference for short and branched-chain acyl-CoAs. Furthermore, our investigation into disease-associated mutations underscores the functional consequences of these alterations on enzyme activity and stability, contributing to the understanding of the molecular basis of IVA. These findings not only enhance our understanding of IVD's enzymatic properties but also pave the way for potential therapeutic strategies targeting this rare metabolic disorder.
Materials and Methods
Less
Cloning, expression, and purification of IVD
The gene coding IVD was chemically synthesized based on the codon-optimization cDNA sequence of human IVD. The fragment encoding residues 33 to 426 dragging an 8×His tag at the N terminus was cloned into the pET-28a vector (GenScript). Mutants were constructed based on the WT plasmid by polymerase chain reaction using 2× Phanta Flash Master Mix (Vazyme). The constructed plasmid was transformed into the E. coli BL21 (DE3) grown in LB medium with 0.05 mg/ml kanamycin. When the bacteria proliferated to an OD600nm ranging from 0.6 to 0.8 cultured at 37 °C, 500 μM isopropyl-β-d-thiogalactopyranoside was added to induce cultivation for 16 h at 16 °C. Cells were harvested by centrifugation at 4,000 rpm and resuspended with lysis buffer containing 50 mM tris-HCl, pH 7.4, 500 mM NaCl, and 5% glycerol. Collected cells were then lysed with high-pressure machine and centrifugated at 12,000 rpm for separating cell debris from proteins. The supernatant was prepared for subsequent purification with affinity chromatography using Ni-NTA (Qianchun Bio) beads followed by size exclusion chromatography using a Superdex 200 10/300 GL column (GE Healthcare). The finally purified protein was saved in the SEC buffer containing 50 mM tris-HCl, pH 7.4, 150 mM NaCl, and 20 mΜ FAD.
Cryo-EM sample preparation
Purified proteins from size exclusion chromatography were used for cryo-EM analysis. The complex sample is obtained by incubating protein with substrates at 37 °C for 15 min. Each sample (3 μl) was applied onto an R 1.2/1.3 holey carbon film Au grids and then blotted for 5 s with a blot force of 2. After blotting, samples were plunge frozen by liquid ethane and stored for cryo-EM data collection.
Cryo-EM data collection and processing
Data collection was conducted at a 300-kV Titan Krios electron microscope (Thermo Fisher Scientific). Raw images were recorded by a K3 electron detector with GIF BioContinuum HD energy filter (Gatan) at a magnification of 105,000×, which equals a physical pixel size of 0.824 Å [35]. Initial image collections were delt with motion correction using MotionCor2. The CTFFIND4 in CryoSPARC V4.3.1 [36] was used to estimate the contrast transfer function. Subsequently, particles were picked and sorted with 2-dimensional (2D) classification to be organized by structure features. These particles were then grouped by ab initio classification to form primary 3D models, based on which refinement was conducted to filter heterogeneous structures and generate refined 3D models. Final maps were obtained from nonuniform refinement. Model building and further refinement was preformed using Coot V0.9.6 [37]. Finally, constructed models were refined in real space carried by PHENIX V1.17.1 [38].
Enzyme activity assay
The activity assay of IVD was carried out by the method of phenazine methosulfate/2,6-dichlorophenolindophenol (PMS/DCPIP) coupled color reaction, as described previously [39]. Phenazine methosulfate and 2,6-dichloroindophenol serve as substitute intermediate and terminal electron acceptor, with reduced DCPIP reacting as blue color and being measured spectrophotometrically following the decreased absorbance at 600 nm. A standard assay mixture is composed of 20 mM phosphate buffer, pH 7.4, 1.5 mM PMS, 100 μM DCPIP, 30 μM EDTA, and gradient concentrations of corresponding acyl-CoAs. Diluted protein (10 μg) was added to start the reaction with a final volume of 200 μl. The reaction mixture was incubated at 37 °C using a 96-well plate for 3 min, and A 600nm was timely recorded every 30 s. Output absorbance values were used to calculate velocity of enzymatic reactions and derive kinetic parameters by fitting into the Michaelis–Menten equation. All the values were obtained from 3 repeated measurements.
Thermostability assay
WT and all mutants were diluted into a concentration of 1 mg/ml before measurement except for R53C and R53P with a lower concentration from purification. An appropriate amount of sample was inhaled into the capillaries and loaded onto the Prometheus NT.48 instrument (NanoTemper Technologies) with sequential arrangement. A linear ramp of 1 °C per min was set at a range of 35 to 85 °C, and the fluorescence variations at 300 and 350 nm were measured. Data were processed to draw the thermal stability curve and calculate the T m values. Every point represents the averages from 3 repeated measurements with standard errors.
Funding
Less
  • National Key Research and Development Program of China(2022YFC2703100 and 2023YFC3605504)
  • Chinese Academy of Medical Sciences Initiative for Innovative Medicine(2021-I2M-1-003)
  • National High Level Hospital Clinical Research Funding(2022-PUMCH-D-002 and 2022-PUMCH-B-098)
  • National Natural Science Foundation of China(82225007, 92149305 and 82030017)
References
Less
1.
Mohsen AW, Vockley J. Identification of the active site catalytic residue in human isovaleryl-CoA dehydrogenase. Biochemistry. 1995;34(32):10146–10152.
2.
Mohsen AW, Navarette B, Vockley J. Identification of Caenorhabditis elegans isovaleryl-CoA dehydrogenase and structural comparison with other acyl-CoA dehydrogenases. Mol Genet Metab. 2001;73(2):126–137.
3.
Luís PBM, Ruiter JPN, Ijlst L, Almeida de Tavares I, Duran M, Mohsen A-W, Vockley J, Wanders RJA, Silva MFB. Role of isovaleryl-CoA dehydrogenase and short branched-chain acyl-CoA dehydrogenase in the metabolism of valproic acid: Implications for the branched-chain amino acid oxidation pathway. Drug Metab Dispos. 2011;39(7):1155–1160.
4.
Matsubara Y, Kraus JP, Yang-Feng TL, Francke U, Rosenberg LE, Tanaka K. Molecular cloning of cDNAs encoding rat and human medium-chain acyl-CoA dehydrogenase and assignment of the gene to human chromosome 1. Proc Natl Acad Sci USA. 1986;83(17):6543–6547.
5.
Naito E, Ozasa H, Ikeda Y, Tanaka K. Molecular cloning and nucleotide sequence of complementary DNAs encoding human short chain acyl-coenzyme A dehydrogenase and the study of the molecular basis of human short chain acyl-coenzyme A dehydrogenase deficiency. J Clin Invest. 1989;83(5):1605–1613.
6.
Battaile KP, Molin-Case J, Paschke R, Wang M, Bennett D, Vockley J, Kim JJP. Crystal structure of rat short chain acyl-CoA dehydrogenase complexed with acetoacetyl-CoA: Comparison with other acyl-CoA dehydrogenases. J Biol Chem. 2002;277(14):12200–12207.
7.
McCalley S, Pirman D, Clasquin M, Johnson K, Jin S, Vockley J. Metabolic analysis reveals evidence for branched chain amino acid catabolism crosstalk and the potential for improved treatment of organic acidurias. Mol Genet Metab. 2019;128(1-2):57–61.
8.
Mohsen AW, Vockley J. Kinetic and spectral properties of isovaleryl-CoA dehydrogenase and interaction with ligands. Biochimie. 2015;108:108–119.
9.
Williamson G, Engel PC. Butyryl-CoA dehydrogenase from Megasphaera elsdenii. Specificity of the catalytic reaction. Biochem J. 1984;218(2):521–529.
10.
Narayanan B, Xia C, McAndrew R, Shen AL, Kim JP. Structural basis for expanded substrate specificities of human long chain acyl-CoA dehydrogenase and related acyl-CoA dehydrogenases. Sci Rep. 2024;14(1):12976.
11.
Schürmann M, Demming RM, Krewing M, Rose J, Wübbeler JH, Steinbüchel A. Identification of 3-sulfinopropionyl coenzyme A (CoA) desulfinases within the acyl-CoA dehydrogenase superfamily. J Bacteriol. 2014;196(4):882–893.
12.
Sakamoto O, Arai-Ichinoi N, Mitsubuchi H, Chinen Y, Haruna H, Maruyama H, Sugawara H, Kure S. Phenotypic variability and newly identified mutations of the IVD gene in Japanese patients with isovaleric acidemia. Tohoku J Exp Med. 2015;236(2):103–106.
13.
Li Y, Shen M, Jin Y, Liu Y, Kang L, He R, Song J, Luo L, Yang Y. Eight novel mutations detected from eight Chinese patients with isovaleric acidemia. Clin Chim Acta. 2019;498:116–121.
14.
Tanaka K, Budd MA, Efron ML, Isselbacher KJ. Isovaleric acidemia: A new genetic defect of leucine metabolism. Proc Natl Acad Sci USA. 1966;56(1):236–242.
15.
Tanaka K. Isovaleric acidemia: Personal history, clinical survey and study of the molecular basis. Prog Clin Biol Res. 1990;321:273–290.
16.
Vockley J, Ensenauer R. Isovaleric acidemia: New aspects of genetic and phenotypic heterogeneity. Am J Med Genet C Semin Med Genet. 2006;142C(2):95–103.
17.
Szymańska E, Jezela-Stanek A, Bogdańska A, Rokicki D, Ehmke vel Emczyńska-Seliga E, Pajdowska M, Ciara E, Tylki-Szymańska A. Long term follow-up of polish patients with isovaleric aciduria. Clinical and molecular delineation of isovaleric aciduria. Diagnostics. 2020;10(10):738.
18.
D'Annibale OM, Koppes EA, Alodaib AN, Kochersperger C, Karunanidhi A, Mohsen AW, Vockley J. Characterization of variants of uncertain significance in isovaleryl-CoA dehydrogenase identified through newborn screening: An approach for faster analysis. Mol Genet Metab. 2021;134(1-2):29–36.
19.
Khan A, Zahid B, Khan S, Ahmad SA. Isovaleric acidemia: A rare case of an inborn error of metabolism. Cureus. 2020;12(2): Article e7150.
20.
Schlune A, Riederer A, Mayatepek E, Ensenauer R. Aspects of newborn screening in isovaleric acidemia. Int J Neonatal Screen. 2018;4(1):7.
21.
Mohsen AW, Anderson BD, Volchenboum SL, Battaile KP, Tiffany K, Roberts D, Kim JJP, Vockley J. Characterization of molecular defects in isovaleryl-CoA dehydrogenase in patients with isovaleric acidemia. Biochemistry. 1998;37(28):10325–10335.
22.
Vatanavicharn N, Liammongkolkul S, Sakamoto O, Sathienkijkanchai A, Wasant P. Phenotypic and mutation spectrums of Thai patients with isovaleric acidemia. Pediatr Int. 2011;53(6):990–994.
23.
Vockley J, Parimoo B, Nagao M, Tanaka K. Identification of the molecular defects responsible for the various genotypes of isovaleric acidemia. Prog Clin Biol Res. 1992;375:533–540.
24.
Ozgul RK, Karaca M, Kilic M, Kucuk O, Yucel-Yilmaz D, Unal O, Hismi B, Aliefendioglu D, Sivri S, Tokatli A, et al. Phenotypic and genotypic spectrum of Turkish patients with isovaleric acidemia. Eur J Med Genet. 2014;57(10):596–601.
25.
Tiffany KA, Roberts DL, Wang M, Paschke R, Mohsen AWA, Vockley J, Kim JJP. Structure of human isovaleryl-CoA dehydrogenase at 2.6 angstrom resolution: Basis for substrate specificity. Biochemistry. 1997;36(28):8455–8464.
26.
Kim JJP, Wu J. Structure of the medium-chain acyl-COA dehydrogenase from pig-liver mitochondria at 3-A resolution. Proc Natl Acad Sci USA. 1988;85(18):6677–6681.
27.
Djordjevic S, Dong Y, Paschke R, Frerman FE, Strauss AW, Kim JJP. Identification of the catalytic base in long-chain acyl-COA dehydrogenase. Biochemistry. 1994;33(14):4258–4264.
28.
Ghisla S, Thorpe C. Acyl-CoA dehydrogenases—A mechanistic overview. Eur J Biochem. 2004;271(3):494–508.
29.
Bross P, Engst S, Strauss AW, Kelly DP, Rasched I, Ghisla S. Characterization of wild-type and an active-site mutant of human medium chain acyl-COA dehydrogenase after expression in Escherichia coli. J Biol Chem. 1990;265(13):7116–7119.
30.
Ensenauer R, Vockley J, Willard JM, Huey JC, Sass JO, Edland SD, Burton BK, Berry SA, Santer R, Grünert S, et al. A common mutation is associated with a mild, potentially asymptomatic phenotype in patients with isovaleric acidemia diagnosed by newborn screening. Am J Hum Genet. 2004;75(6):1136–1142.
31.
Lee YW, Lee DH, Vockley J, Kim ND, Lee YK, Ki CS. Different spectrum of mutations of isovaleryl-CoA dehydrogenase (IVD) gene in Korean patients with isovaleric acidemia. Mol Genet Metab. 2007;92(1-2):71–77.
32.
Ibarra-González I, Fernández-Lainez C, Guillén-López S, López-Mejía L, Belmont-Matínez L, Sokolsky TD, Amin VR, Kitchener RL, Vela-Amieva M, Naylor EW, et al. Molecular analysis using targeted next generation DNA sequencing and clinical spectrum of Mexican patients with isovaleric acidemia. Clin Chim Acta. 2020;501:216–221.
33.
Kucuk O, Ozgul RK, Karaca M, Sivri HS, Coskun T, Tokatli A. Six novel mutations in Turkish patients with isovaleric acidemia. J Inherit Metab Dis. 2010;33:S44.
34.
Jin S, Chen XC, Yang J, Ding JP. Lactate dehydrogenase D is a general dehydrogenase for D-2-hydroxyacids and is associated with D-lactic acidosis. Nat Commun. 2023;14(1):6638.
35.
Thompson RF, Iadanza MG, Hesketh EL, Rawson S, Ranson NA. Collection, pre-processing and on-the-fly analysis of data for high-resolution, single-particle cryo-electron microscopy. Nat Protoc. 2019;14(1):100–118.
36.
Punjani A, Rubinstein JL, Fleet DJ, Brubaker MA. cryoSPARC: Algorithms for rapid unsupervised cryo-EM structure determination. Nat Methods. 2017;14(3):290–296.
37.
Emsley P, Cowtan K. Coot: Model-building tools for molecular graphics. Acta Crystallogr D Biol Crystallogr. 2004;60:2126–2132.
38.
Adams PD, Afonine PV, Bunkóczi G, Chen VB, Davis IW, Echols N, Headd JJ, Hung LW, Kapral GJ, Grosse-Kunstleve RW, et al. PHENIX: A comprehensive python-based system for macromolecular structure solution. Acta Crystallogr D Biol Crystallogr. 2010;66(Pt 2):213–221.
39.
Thorpe C, Matthews RG, Williams CH. Acyl-coenzyme A dehydrogenase from pig kidney—Purification and properties. Biochemistry. 1979;18(2):331–337.
