Leveraging the unique phase separation dynamics of PVA-Cn-DS, we have developed a novel direct ink writing 3D printing technology called immersion phase separation 3D printing (IPS 3DP). The innovation lies in the strategic modulation of solvent exchange kinetics (i.e., the rate at which the solvent [e.g., dimethyl sulfoxide (DMSO)] in the polymer ink diffuses into the coagulation bath [nonsolvent, e.g., water], driving phase separation and gelation) through the optimization of the coagulation bath composition. This enables precise control over gelation rates and microstructure evolution during extrusion-based printing. Building on our prior work, high-molecular-weight PVA (M _w 146,000 to 186,000) hydrogels grafted with n-pentylamine (C5) side chains were selected as the base material. As shown in Fig. S1, ¹H nuclear magnetic resonance analysis revealed a side-chain substitution degree of 25% to 35%, and this polymer was named PVA-C5-30. The IPS 3DP ink is prepared by dissolving PVA-C5-30 at specific ratios in anhydrous DMSO (Fig. 1B). As demonstrated in Fig. S2, while IPS 3DP inks can be extruded in air, their slow solvent exchange with water vapor leads to structural collapse during multilayer deposition, precluding compatibility with VIPS-like printing methodologies. Conversely, direct extrusion into aqueous environments induces rapid solvent exchange, causing localized phase separation heterogeneity and viscosity spikes that compromise printing fidelity. Therefore, precise modulation of solvent exchange kinetics and consequent in situ gelation rates—through strategic adjustment of ink concentration, filament diameter, and nozzle translation speed—is paramount for achieving high-fidelity IPS 3DP. For PVA-C5-30, DMSO serves as a good solvent, while water acts as a nonsolvent, with DMSO and water being fully miscible in all proportions. Therefore, we selected DMSO/water mixtures as the coagulation bath for IPS 3DP ink extrusion. By adjusting their ratio, the solvent exchange kinetics can be precisely controlled, enabling high-fidelity IPS 3DP (Fig. 1A). The detailed IPS 3DP process is shown in Fig. 1C and Movie S1. Through systematic analysis of ternary phase diagrams (Fig. 1D), we established printing protocols that decouple shape retention from mechanical performance—overcoming the structural limitations of conventional phase separation methods. Notably, by controlling the diffusion kinetics, IPS 3DP creates hierarchical pore architectures (5 to 200 μm) and anisotropic microchannels. The process also preserves J-shaped stress–strain curves (fracture stress: ~0.7 MPa; elongation: >1,000%), ensuring material integrity and reliability. The physical cross-linking mechanism enables closed-loop recyclability (>95% material recovery) and functional augmentation via inorganic fillers (Fig. 1E). This achieves electrical conductivity enhancements of 2 orders of magnitude for real-time motion sensing applications. Physical cross-linking is defined herein as the reversible formation of dynamic hydrophobic interactions between alkyl side chains. This differs fundamentally from static cross-linking mechanisms, such as hydrogen bonding or ionic interactions. These transient hydrophobic associations give the hydrogel network self-healing capacity and closed-loop recyclability. Moreover, these associations enable strain stiffening through the stress-induced reorganization of cross-linking domains under mechanical loading. It is important to note that the fully physical cross-linking mechanism endows IPS 3DP scaffolds with exceptional recyclability, demonstrating that a closed-loop reprocessing protocol achieves >95% material recovery without performance degradation. Systematic material characterization revealed that the retained strain-stiffening behavior was comparable to that of cast hydrogels.

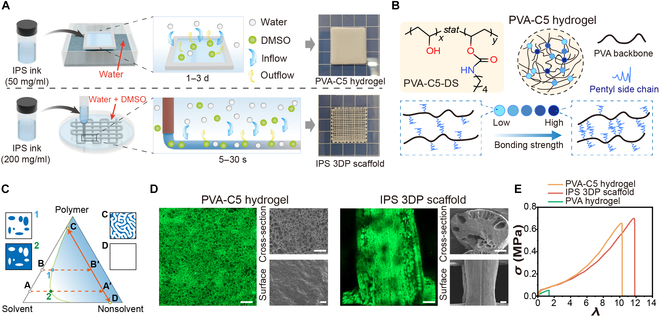

As schematically illustrated in Fig. 2A, our previous hydrogel fabrication strategy relied on template-based casting, where a 50 mg/ml PVA-C5-DMSO solution was poured into polytetrafluoroethylene (PTFE) molds (≤2-mm thickness) and subjected to slow solvent exchange with saturated water vapor in sealed chambers at 25 °C for 1 to 3 d to induce phase separation, followed by thorough deionized (DI) water immersion to complete cross-linking. This method allows microstructural modulation by controlling solvent exchange rates through humidity adjustment, but the prolonged process fundamentally limits the fabrication of complex 3D architectures, only enabling the production of hydrogel films. To achieve high-fidelity 3D printing of PVA-C5 hydrogels, we developed a strategy to modulate the coagulation bath composition, enabling precisely timed phase separation of the extruded ink within an optimal timeframe. This methodology, termed IPS 3DP, synergizes controlled solvent exchange kinetics with additive manufacturing principles. The ternary phase diagram of the polymer/solvent/nonsolvent (PVA-C5-30/DMSO/water) system (Fig. 2C) reveals distinct gelation pathways for the 2 fabrication methods. The template-cast samples (path A → A′) started from lower polymer concentrations (50 mg/ml) and gradually entered the metastable 2-phase region through controlled vapor absorption. Conversely, IPS inks (path B → B′) utilize higher initial polymer concentrations (200 mg/ml) to maintain extrudability, achieving rapid phase separation upon immersion in aqueous baths. In both cases, solvent depletion drove the system from the single-phase region to the phase-separated state, yielding a continuous porous hydrogel matrix (point C, polymer-rich phase) coexisting with a dilute DMSO/water solution (point D). This fundamental understanding of phase separation guided our design of time-dependent gelation protocols for IPS 3DP, as detailed in the next section.

The microstructural characteristics of the PVA-C5 hydrogels and ice-templated 3D-printed (IPS 3DP) scaffolds were systematically characterized via laser scanning confocal microscopy and scanning electron microscopy (SEM) (Fig. 2D). The PVA-C5 hydrogel exhibited a smooth surface with abundant microchannels formed during slow solvent exchange, whereas cross-sectional analysis revealed a homogeneous porous architecture with pore diameters ranging from 10 to 60 μm. In contrast, the IPS 3DP scaffold displayed hierarchical porosity due to its differential gelation kinetics. The outer layer formed a relatively dense structure through rapid solvent exchange, whereas the intermediate layer was influenced by hindered solvent exchange from the outer shell and outward diffusion of residual DMSO, resulting in larger bubble-like cavities. Importantly, the innermost region of the printed structure remained in a sol state during deposition and achieved complete gelation only via a prolonged postprinting solvent exchange process [26]. This sequential phase separation ultimately resulted in a triphasic architecture featuring a dense exterior, a macroporous intermediate layer, and a microporous core (Fig. S3), suggesting the potential for postfabrication microstructural modulation through controlled solvent exchange protocols—a subject to be further explored in subsequent sections.

Uniaxial tensile testing (Fig. 2E) was used to compare the mechanical behaviors of the PVA-C5 hydrogels and IPS 3DP scaffolds against that of physically cross-linked PVA hydrogels prepared by freeze–thaw cycling. Both the PVA-C5 and IPS 3DP samples demonstrated comparable stress–strain profiles and markedly outperformed conventional physically cross-linked hydrogels (the PVA solution undergoes multiple freeze–dissolve cycle gels) in both elongation at break (1,020% to 1,187%) and fracture strength (0.65 to 0.71 MPa). Notably, after an initial yielding phase, these materials exhibited a characteristic J-shaped stress–strain curve indicative of strain-stiffening behavior. As demonstrated in our previous work [14], this mechanical enhancement originates from the energy dissipation-reinforcement mechanism enabled by gradient-distributed hydrophobic clusters. Short alkyl chains randomly grafted on PVA backbones create dynamic cross-linked networks with a strength hierarchy: weak clusters (low bonding energy) preferentially rupture at low strains to release folded chains for energy dissipation, whereas surviving strong clusters (high bonding energy) progressively align and dominate load bearing at elevated strains, thereby increasing the effective modulus (Fig. 2B).

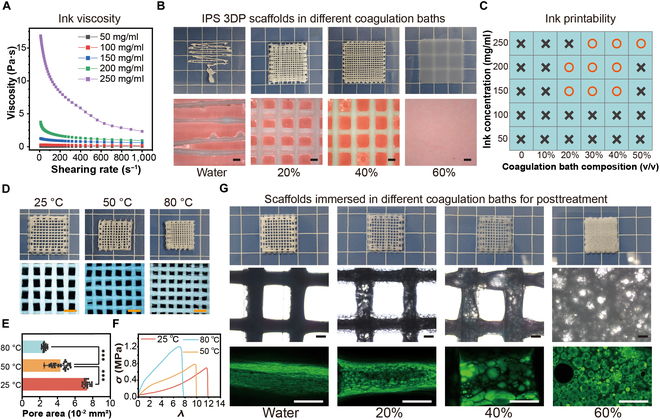

The IPS 3DP ink system has a notably simple composition, comprising solely PVA-C5-30 dissolved in DMSO. We first investigated the rheological dependence on the polymer concentration (Fig. 3A). All formulations demonstrated pronounced shear-thinning behavior with increasing shear rates (0.1 to 100 s⁻¹), a critical prerequisite for extrusion-based 3D printing. Quantitative analysis revealed a strong positive correlation between zero-shear viscosity (η ₀) and polymer loading: η ₀ increased from 0.5 ± 0.1 mPa·s (50 mg/ml) to 15.2 ± 0.8 mPa·s (250 mg/ml) at 10 s⁻¹. The 200 mg/ml IPS ink was selected as the standard ink for subsequent experiments because of its superior balance between extrudability and shape retention.

As previously discussed, achieving smooth ink extrusion followed by rapid in situ solidification is critical for high shape fidelity in direct ink writing 3D printing. In IPS 3DP, the phase separation rate is governed by solvent exchange kinetics. Due to the substantially larger mass of the coagulation bath (over 50 times that of the ink) used during IPS 3DP, its composition can be approximately considered invariant. A greater initial DMSO concentration in the ink (approximately 80% for a 200 mg/ml formulation) and a steeper concentration gradient between the ink and coagulation bath may lead to faster solvent exchange rates and earlier phase separation. Notably, DMSO–water solvent exchange is not only influenced by the concentration gradient but also substantially modulated by strong hydrogen bonding interactions between the PVA-C5-30 polymer and DMSO, as well as the dense surface structure formed on the scaffold after gelation. Using a simplified IPS 3DP model, we monitored temporal changes in DMSO concentration within the ink, with results shown in Fig. S4. At varying concentrations, the solvent exchange rates exhibit a distinct 3-stage pattern: (a) an initial rapid decline, (b) steady-state diffusion, and (c) equilibrium approaching. However, for typical IPS 3DP processes (lasting ~2 to 10 min), the focus remains primarily on the first stage. Based on fitted curves, the time required to achieve initial phase separation for self-supporting structures is prolonged by approximately 3-fold and 10-fold in coagulation baths containing 20% and 40% DMSO solutions, respectively, compared to that for pure water.

The precise modulation of the coagulation bath composition enables the precise control of the solvent exchange rate, thereby facilitating the fabrication of high-fidelity scaffolds (Fig. 3B and Movie S2). Pure aqueous baths induce rapid solvent exchange, resulting in inhomogeneous phase separation and poor platform adhesion. Introducing 20% DMSO (v/v) moderated the exchange kinetics, enabling basic lattice formation, albeit with residual defects (~15% strut discontinuity). The 40% DMSO bath achieved ideal gelation dynamics, producing scaffolds with 92.3% ± 2.1% dimensional accuracy versus digital models. Excessive DMSO (60%) suppressed phase separation, delaying gelation beyond the critical time window (>120 s) and causing structural collapse. Combinatorial analysis of the ink concentration and DMSO content (Fig. 3C) revealed a concentration-dependent bath adaptation rule: Lower polymer concentrations (50 to 150 mg/ml) in IPS inks exhibited slower phase separation kinetics, necessitating reduced DMSO concentrations (20% to 30% v/v) in coagulation baths to accelerate solvent exchange rates and ensure appropriate gelation timeframes postextrusion. This empirical relationship provides a universal guide for parameter optimization in solvent-exchange-assisted 3D printing systems.

During IPS 3DP, the solvent exchange kinetics are additionally modulated by the outer shell gel network, which hinders complete solvent exchange throughout the entire scaffold within standard printing timeframes. This inherent kinetic limitation necessitates rigorous postprocessing optimization to regulate scaffold macroscale dimensions, microstructural morphology, and mechanical properties. For example, following IPS 3DP completion, postprocessing at different temperatures markedly modulates the solvent exchange kinetics and the macroscale/microscale structures of the scaffolds, as shown in Fig. 3D. Scaffolds immersed in DI water at elevated temperatures (50 and 80 °C, with 25 °C as control) for 1 h exhibited accelerated solvent exchange kinetics. This rapid phase separation promoted denser polymer network formation—macroscopically manifested as marked volumetric shrinkage—while reducing the water content from 74.76% ± 2.3% (25 °C) to 67.73% ± 1.9% (50 °C) and 61.80% ± 1.6% (80 °C) (Fig. S5). Crucially, this thermal posttreatment not only enhances printing accuracy while maintaining shape fidelity but also imparts improved mechanical properties to the IPS 3DP scaffolds, enhancing dimensional accuracy by 32.4% (Fig. 3E) and elevating the ultimate tensile strength from 0.85 ± 0.12 to 1.43 ± 0.15 MPa (Fig. 3F).

Multiple studies have demonstrated that hierarchical multiscale hydrogels with identical compositions but distinct properties can be fabricated through tunable phase separation [27–30], and this strategy can also be leveraged in IPS 3DP to achieve comparable effects. Postprinting immersion protocols were systematically investigated through 6-h treatments in ethanol/water coagulation baths (Fig. 3G). Macroscopically, the IPS 3DP scaffolds maintained structural integrity except for the 60% ethanol group, where marked collapse occurred due to hindered DMSO diffusion from the core region disrupting the established surface cross-links. Confocal laser microscopy analysis revealed a positive correlation between porosity and ethanol concentration in the coagulation baths (Fig. S6): aqueous-treated scaffolds exhibited dense matrices (porosity 17.3% ± 3.4%), while 40% v/v ethanol baths induced hierarchical pore architectures (porosity 68.7% ± 7.4%, pore size 50 to 200 μm). This solvent–gradient strategy enables precise pore engineering while preserving global geometry—a critical advancement for tissue engineering applications requiring spatially controlled permeability.

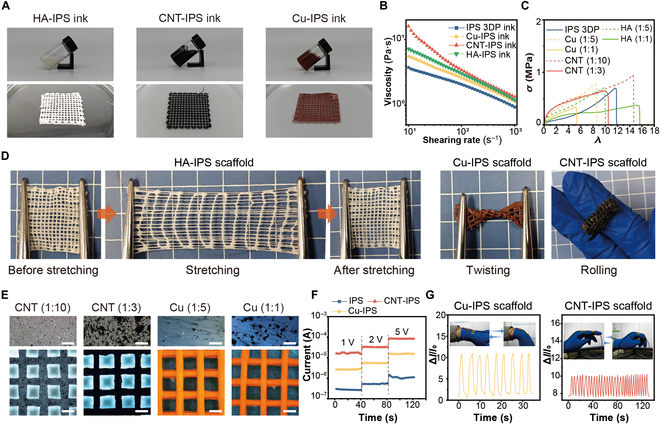

The bioinert properties of PVA-C5-30 may limit the application scope of IPS 3DP scaffolds. However, the IPS 3DP ink system serves as a versatile platform for functional augmentation through doping with one or multiple inorganic fillers (e.g., hydroxyapatite [HA], carbon nanotubes [CNTs], or copper powder), endowing the scaffolds with distinct functionalities tailored to diverse biomedical applications such as osteogenic induction, electrical conductivity enhancement, or dynamic sensing capabilities [26,31–33]. HA (particle size: 200 nm), copper powder (200 to 300 nm), and CNTs (outer diameter 60 to 100 nm, length 5 to 15 μm) were introduced as representative inorganic fillers into the polymer matrix (Fig. 4). All nanoscale fillers formed stable composite inks, designated HA-IPS, CNT-IPS, and Cu-IPS inks, which retained printability in the coagulation bath when the standard IPS 3DP protocol was used (Fig. 4A and Movie S3). Rheological characterization revealed that all of the modified inks maintained a pronounced shear-thinning behavior comparable to that of the unmodified IPS 3DP ink, albeit with elevated viscosities (Fig. 4B). Notably, the viscosity of the CNT-IPS ink increased the most dramatically, which was likely attributable to extensive hydrogen bonding between the CNTs and PVA chains [34,35].

The mechanical effects of filler loading ratios were systematically investigated through 2 distinct formulations: high-loading (HA/polymer = 1:1; Cu/polymer = 1:1; CNT/polymer = 1:3) and low-loading systems (HA/polymer = 1:5; Cu/polymer = 1:5; CNT/polymer = 1:10). Uniaxial tensile testing revealed that low-loading scaffolds maintained the characteristic J-shaped stress–strain curves of the original IPS 3DP scaffolds while demonstrating increased fracture strength (Fig. 4C), suggesting preserved polymer network integrity. In contrast, high-loading scaffolds exhibited reduced fracture strength and diminished strain-stiffening behavior, indicative of mechanical degradation caused by excessive filler content. This deterioration likely originates from the inhomogeneous dispersion of inorganic particles within the high-viscosity ink, resulting in structural defects, a hypothesis supported by optical microscopy observations (Fig. 4E). Microscopic analysis revealed a uniform filler distribution with minimal agglomeration in the low-loading CNT-IPS and Cu-IPS formulations compared with pronounced particle clustering in their high-loading counterparts. These aggregates not only impair mechanical integrity but also increase susceptibility to nozzle clogging during printing. While advanced processing techniques (e.g., ball milling) might address dispersion challenges, such approaches remain beyond the scope of current experimental methods. Notably, despite these microstructural limitations, high-loading composites maintained macroscopic mechanical functionality, demonstrating flexibility through stretching, twisting, and rolling motions (Fig. 4D), confirming the broad application potential of the IPS 3DP system.

While PVA-C5-DSs exhibit bioinert properties, their limited functionality can be augmented through inorganic filler integration. The incorporated additives serve as functional components, endowing 3D-printed scaffolds with tailored properties such as enhanced electrical conductivity[36,37]. As illustrated in Fig. 4F, electrical conductivity measurements revealed distinct performance differences among IPS 3DP scaffolds (9.1 × 10⁻⁴ ± 2.1 × 10⁻⁴ S/m), CNT (1:3)-IPS scaffolds (6.64 × 10⁻² ± 3.5 × 10⁻³ S/m), and Cu (1:1)-IPS scaffolds (1.06 × 10⁻² ± 0.4 × 10⁻³ S/m) under a 1- to 5-V bias. These results confirm that the incorporation of CNTs and Cu drastically improved the conductivity by 2 orders of magnitude. Further exploration demonstrated the sensing capabilities of the CNT (1:3)-IPS and Cu (1:1)-IPS scaffolds (Fig. 4G). The modified scaffolds exhibited sensitive real-time responses to wrist and finger flexion movements, highlighting their potential for wearable health monitoring or implantable medical devices requiring dynamic biomechanical sensing.

In conventional hydrogel 3D printing, widely used ink systems (e.g., gelatin methacryloyl, hyaluronic acid methacrylate, and polyethylene glycol diacrylate) predominantly rely on irreversible covalent cross-linking [38]. This inherent limitation inevitably leads to complete structural failure and material waste when printing defects occur during layer-by-layer deposition. Although physically cross-linked hydrogels with reversible bonds (e.g., hydrogen bonds or ionic interactions) demonstrate recyclability to circumvent this issue, their compromised mechanical strength severely restricts practical applications, particularly in load-bearing scenarios [22,39]. We present an innovative IPS 3DP ink system that strategically leverages hydrophobic interactions to form physical cross-linking networks, achieving an optimal balance between mechanical robustness and closed-loop recyclability. This design effectively addresses sustainability challenges in additive manufacturing. As systematically validated in Fig. 5A and Fig. S7, the recycling protocol involves 3 streamlined steps: (a) freeze-drying printed scaffolds at −80 °C for 24 h to remove residual DMSO; (b) homogenizing lyophilized scaffolds with DMSO at a 1:5 mass ratio, followed by 24-h dissolution at room temperature to regenerate printable ink; and (c) reprinting the regenerated ink under identical conditions to fabricate recycled scaffolds. Notably, CNT-IPS inks can directly undergo the same printing–regeneration–reprinting cycle. Alternatively, CNT fillers can be removed via centrifugation and filtration during ink regeneration, yielding pristine IPS 3DP ink for reuse.

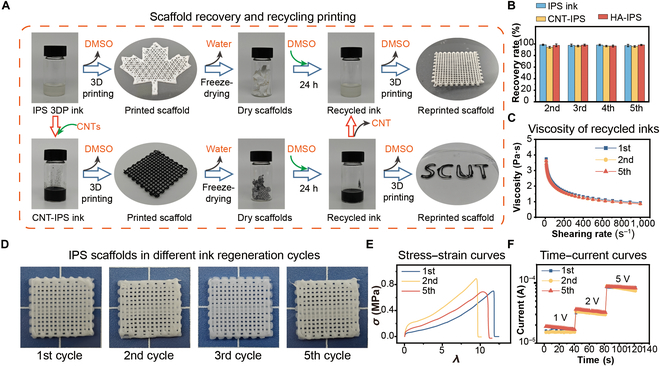

The recyclability of regenerated IPS inks and 3D-printed scaffolds was systematically evaluated through 5 consecutive printing–recycling–regeneration–reprinting cycles (designated the 1st to 5th cycles, with virgin IPS ink serving as the initial reference). Notably, the Cu-IPS ink was excluded from cycling tests because its stable cross-linked network formation fundamentally impedes regeneration. Recovery rates for IPS, CNT-IPS, and HA-IPS inks were calculated on the basis of mass ratios between recycled scaffold dry weights and original polymer/filler components (Fig. 5B). All systems exhibited exceptional retention values exceeding 95% across cycles, with observed mass losses (<5%) primarily attributable to residual material retention in printing cartridges and nozzles during extrusion processes. Rheological characterization revealed preserved shear-thinning behavior of the cycled IPS inks (Fig. 5C), with negligible viscosity variations observed between the 1st, 2nd, and 5th cycle samples (P > 0.05). Macroscopic evaluation of the orthogonal grid scaffolds (Fig. 5D) confirmed that shape fidelity was maintained throughout 5 regeneration cycles under identical printing parameters. Crucially, the mechanical integrity (Fig. 5E) and electrical conductivity (Fig. 5F) of the recycled scaffolds were not notably lower than those of the initial samples. These results collectively validate the robust recyclability of IPS 3DP systems, effectively mitigating material waste from high-cost functional inks while maintaining critical performance metrics.

Since IPS 3DP enables underwater printing that mimics physiological wet environments, we simulated direct tissue printing through in vitro experiments using porcine skin substrates. By employing an ink formulation containing 150 mg/ml polymer and 30 mg/ml CNTs with 20% DMSO as the coagulation bath and porcine skin mounted on plastic culture dishes, we successfully achieved direct on-tissue deposition (Fig. S8). However, practical implementation revealed suboptimal scaffold–tissue adhesion due to lipid interference, suggesting that in vivo applications would require supplemental fixation methods such as sutures or bioadhesives.

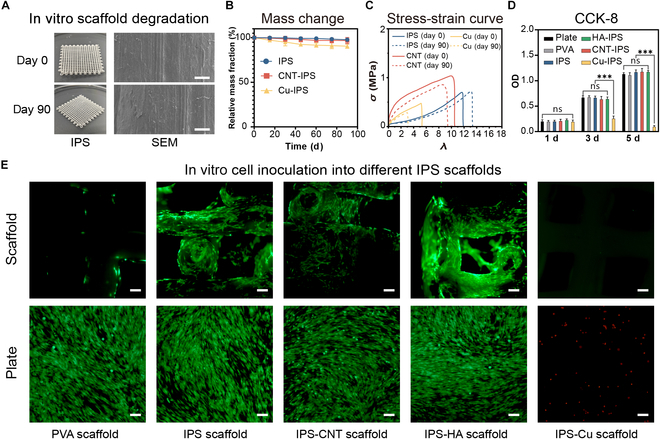

In our prior work, we systematically evaluated the in vitro and in vivo long-term biocompatibility of PVA-Cn-DS materials [1,15]. The results confirmed their nature as stable bioinert materials, demonstrating sustained mechanical stability in physiological environments without substantial biological toxicity or immune rejection. For IPS 3DP scaffolds, degradation studies comparing pure IPS, CNT-IPS, and Cu-IPS scaffolds under simulated physiological conditions (37 °C, enzymatic environment) revealed exceptional stability. After 90 d of in vitro degradation, the macroscopic morphology and microstructure remained unchanged (Fig. 6A and B and Fig. S9), with all scaffolds maintaining structural integrity and exhibiting negligible mass loss (Fig. 6C). These results align with our previous findings on the biostability of IPS scaffolds.

While the nondegradable nature of IPS 3DP scaffolds limits their application in transient tissue regeneration, their long-term mechanical stability makes them ideal for bioelectronic sensors or as functional replacements for load-bearing tissues (e.g., cornea, tunica albuginea, and blood vessels), where durable mechanical support is critical. The scaffolds' resistance to degradation stems from 2 key features: (a) the inherent chemical inertness of the PVA-C5 backbone, which, structurally analogous to polyethylene with hydrophilic hydroxyl groups, lacks enzymatic cleavage sites for common proteases (e.g., collagenase and hyaluronidase) and (b) the noncovalent dynamic physical cross-linking via transient hydrophobic interactions of n-pentyl side chains. Unlike hydrolyzable covalent networks, these entropy-driven molecular associations are not susceptible to enzymatic attack. This structural design explains the negligible mass loss (<5%) and preserved mechanical properties over 90 d (Fig. 6A to C). While advantageous for long-term applications, the nondegradability necessitates future modifications—such as introducing enzymatically responsive moieties (e.g., ester linkages) into the PVA backbone or side chains—to enable tunable degradation kinetics while retaining the strain-stiffening behavior and printability of the IPS 3DP platform.

Given the complex composition of IPS 3DP inks containing residual organic solvents and inorganic fillers, comprehensive in vitro biocompatibility assessments were conducted. Bone marrow mesenchymal stem cells (BMSCs) were selected for Cell Counting Kit-8 proliferation assays to evaluate cellular responses to scaffold extracts in complete culture medium. As shown in Fig. 6D, the experimental groups (IPS, CNT-IPS, and HA-IPS scaffolds) exhibited growth patterns comparable to those of the control groups (blank wells and noncytotoxic PVA hydrogels), indicating minimal cytotoxicity. The observed growth inhibition in Cu-IPS groups likely resulted from copper ion leaching, a hypothesis corroborated by live/dead staining revealing predominantly dead cell populations in Cu-IPS cultures (Fig. S10). Direct cell–scaffold interaction studies using L-929 fibroblasts further validated these findings (Fig. 6E). Despite the inherent biocompatibility of the hyperhydrophilic PVA hydrogel matrix, its lack of adhesion motifs prevented cellular attachment. In contrast, IPS, CNT-IPS, and HA-IPS scaffolds supported robust cell adhesion, attributed to hydrophobic interactions between PVA-C5-30 side chains and cellular components. The complete absence of viable cells on Cu-IPS surfaces, coupled with pronounced peripheral apoptosis, reinforced our conclusions regarding the cytotoxicity of copper ions. This phenomenon is attributed to Cu²⁺ ion leaching, a well-documented limitation of copper-based materials in biological systems. In the context of biomedical applications, it is important to note that, while copper doping demonstrates potential for electrical conductivity, its cytotoxicity underscores the necessity of carefully selecting functional fillers for specific applications. As a modular platform, IPS 3DP allows flexible substitution of fillers. Copper can be replaced with biocompatible alternatives, such as CNTs (at low loading ratios), bioactive glass, or graphene oxide, that can provide similar properties (e.g., conductivity and mechanical reinforcement) without compromising safety. This adaptability highlights the technology's potential to balance functionality and biocompatibility for various biomedical applications, ranging from wearable sensors to tissue engineering constructs. While CNTs are reported to exhibit potential cytotoxicity [40], the stable hydrogen bonding between CNTs and PVA-C5-30 in our system likely minimized nonspecific cellular interactions, thereby reducing cytotoxic effects. These results underscore the necessity for cautious selection of functional fillers in future biomedical applications of IPS 3DP scaffolds, with careful consideration of their bio-toxicological profiles.

PVA (M _w 146,000 to 186,000, 99%+ hydrolyzed) and 1,1′-carbonyldiimidazole (≥90.0%, for peptide synthesis) were purchased from Sigma-Aldrich (Shanghai, China). DMSO (99.7%, with molecular sieves, water ≤50 ppm), amylamine (AR, 98%), nano-HA (particle size: 200 nm), copper (99.9% metal basis, 200 to 300 nm), and CNTs (compound walled, ≥95%, outer diameter 60 to 100 nm, length 5 to 15 μm) were purchased from Shanghai Macklin Biochemical Co., Ltd. (Shanghai, China). Cell Counting Kit-8 and calcein AM/propidium iodide double-staining kits were purchased from Beijing Solarbio Technology Co., Ltd. (Beijing, China). L-929 mouse fibroblasts were purchased from Wuhan Pricella Biotechnology Co, Ltd. (Wuhan, China). All reagents were used without further purification.

PVA-C5-DS was synthesized via a one-pot multistep method, as described in our previous work [14]. PVA (5 g, 0.1135 mol of hydroxyl groups) was first dissolved in 100 ml of DMSO at 90 °C for 2 h, followed by natural cooling to ambient temperature. Under controlled thermostatic conditions (20 to 24 °C), 6.5 g of 1,1′-carbonyldiimidazole was added incrementally with continuous agitation for 1.5 h. Subsequently, 7 ml of n-pentylamine (diluted in 40 ml of DMSO to prevent localized concentration gradients) was introduced via a pressure-equalizing dropping funnel for 30 min, and the substitution reaction proceeded for 24 h under an inert atmosphere, with the substitution efficiency monitored by ¹H nuclear magnetic resonance spectroscopy. The reaction was terminated by adding 20 ml of ammonium hydroxide (28% w/w). The resulting polymer was precipitated in diluted HCl (pH 5 to 6, 40 °C) under high-dilution conditions, yielding a white precipitate that was collected by vacuum filtration. Residual low-molecular-weight impurities were removed through 72 h of dialysis against DI water, followed by lyophilization to obtain PVA-C5-DS.

Prior to ink formulation, the PVA-C5-DS precursor underwent a drying process in a vacuum oven maintained at 40 °C for a duration of 24 h. Subsequently, the ink was prepared at various concentrations (50 to 250 mg/ml) by combining the dried precursor with anhydrous DMSO under continuous magnetic agitation at room temperature. Following 24 h of dissolution, homogeneous colloidal systems exhibiting optical clarity to slight turbidity, which are IPS 3DP inks, were obtained. The PVA-C5-0.3 ink (200 mg/ml) served as the base matrix for preparing doped IPS 3DP inks through modification. Copper powder, CNTs, and HA were incorporated into the base ink at concentrations ranging from 20 to 400, 20 to 80, and 20 to 200 mg/ml, respectively. Following homogenization, the powder–matrix mixture underwent centrifugal mixing (5 min) to achieve uniform dispersion, yielding 3 modified ink formulations designated Cu-IPS, CNT-IPS, and HA-IPS inks. All modified inks required immediate use after preparation and were loaded into disposable syringes equipped with 150-μm-inner-diameter stainless steel needles. Extrusion filtration through these needles effectively removed larger particulate components prior to printing.

IPS 3DP was carried out via the Bio-Architect SR 3D manufacturing system (Regenovo Biotechnology Co., Ltd., Hangzhou, China). To ensure the optimal printability of the high-viscosity IPS inks, all formulations underwent a 6- to 12-h static degassing protocol prior to deposition to eliminate entrapped air bubbles. The homogenized bubble-free ink was subsequently loaded into 5-ml pneumatic cartridges equipped with conical plastic nozzles (210-μm inner diameter), where precise extrusion control (0.001-MPa resolution) was achieved through a digitally regulated air compressor system. The applied extrusion pressure was systematically varied between 0.01 and 0.2 MPa according to the specific rheological properties of each ink formulation. Owing to the deposition fidelity, the printing stage underwent meticulous levelling calibration, and disposable polystyrene Petri dishes serving as coagulation baths were horizontally secured on the platform to facilitate direct adhesion of 3D-printed scaffolds to the substrate. Postprint processing involved a sequential protocol: the scaffolds were first subjected to immersion in DI water for 6 h under ambient conditions with periodic solvent exchange (≥3 cycles) to completely leach residual DMSO, followed by delicate detachment from the substrate via tweezers. The harvested scaffolds were finally stored in a phosphate-buffered saline (PBS) solution at 4 °C to maintain structural integrity and biological compatibility until subsequent experimental utilization.

A DMSO solution of PVA-C5 for slow solvent exchange molding was prepared using the same method as that for the IPS ink, with a concentration of 50 mg/ml. The solution was slowly poured into a PTFE mold, ensuring that the liquid level height did not exceed 2 mm. The entire mold was placed into a storage box filled with water at the bottom, sealed, and kept at 25 °C. It is noted that the mold was positioned such that its height remained above the water level. Solvent exchange was induced by saturated water vapor in the sealed environment to trigger phase separation and molding. Depending on the amount of solution added, the process was sustained for 1 to 3 d, after which a preliminarily cross-linked PVA-C5 hydrogel was obtained. The hydrogel was then removed and immersed in abundant DI water to complete the solvent exchange thoroughly, yielding the PVA-C5 hydrogel.

Following IPS 3DP completion, all samples were immersed in DI water for 24 h to extract soluble components. Cryogenic fracture preparation was subsequently conducted by quenching the hydrated scaffolds in liquid nitrogen until they reached thermal equilibrium, followed by manual fracturing via precooled forceps. The fractured samples were lyophilized in a freeze dryer at −80 °C for 48 h under 0.01 mbar vacuum. For SEM analysis, freeze-dried scaffolds were secured onto aluminum stubs via conductive carbon tape. A 5-nm platinum layer was deposited for 60 s to increase the surface conductivity. Microstructural evaluation of both the intact surfaces and fracture morphologies was performed via field-emission SEM (Gemini SEM 500, ZEISS, Germany) operated at an accelerating voltage of 5 kV and a working distance of 8 mm. All samples were fluorescently labeled with 5-(4,6-dichlorotriazinyl) aminofluorescein through covalent conjugation under dark conditions, following the standardized protocol established in our prior research.[9] High-resolution z-stack imaging was performed via a confocal laser scanning microscope (LSM 980, ZEISS, Germany). Consistent methodological parameters were used for PVA-C5 hydrogel characterization to ensure cross-sample comparability. Three-dimensional reconstructions were generated via the ZEN 3.2 software with optimized surface rendering algorithms.

Different modifications of the IPS 3DP scaffolds were achieved by soaking them in various solutions immediately after printing. Upon completion of the printing process, the coagulation bath was promptly removed, and the scaffolds were placed in Petri dishes containing 15 ml of DI water or 20%, 40%, or 60% (v/v) alcohol solutions. After soaking for 12 h, the scaffolds were carefully removed, rinsed under running water for 3 min, and then gently transferred with tweezers into fresh DI water for an additional 24 h of immersion.

All IPS 3DP scaffold tensile samples were fabricated via a 3D bioprinter. The bioink at a concentration of 200 mg/ml was extruded through a 22G conical nozzle (inner diameter: 410 μm) to construct specimens measuring 40 mm in length, 10 mm in width, and 2 mm in thickness. The printing pattern consisted of 10 parallel filaments per layer along the longitudinal axis, with 5 stacked layers in total. Following printing, the scaffolds were immersed in DI water for 24 h to eliminate soluble impurities prior to subsequent characterization. For comparative analysis, PVA-C5 hydrogel control samples were fabricated via PTFE molds. Hydrogels with a 50 mg/ml polymer concentration were prepared as 4 cm × 4 cm square sheets, which were then sectioned into 4 cm × 1 cm rectangular strips for uniaxial tensile testing (Instron 5967, Instron Corporation, USA). Mechanical properties, including elongation at break and break strength, were determined through analysis of stress–strain curves, with triplicate measurements (n = 3) performed for each sample type.

All IPS 3DP scaffolds were fabricated via a 3D bioprinter with 200 mg/ml bioink. The specimens were architecturally designed with nominal dimensions of 40 mm (length) × 10 mm (width) × 2 mm (thickness), employing a 22G conical extrusion nozzle (inner diameter: 410 μm). Postprinting protocols included 24 h of immersion in DI water to remove residual solutes, followed by vacuum drying until mass stabilization. Electrochemical characterization was performed in a Squidstat Plus workstation (Admiral Instruments, USA) under linear sweep voltammetry mode. A controlled potential of 1 V was applied during the measurements, with simultaneous recording of chronoamperometric curves capturing time–voltage–current triaxial responses. Triplicate tests (n = 3) were conducted for each scaffold configuration.

The rheological properties of the IPS 3DP ink were evaluated via an MCR-302 rotational rheometer (Anton Paar GmbH, Austria). The sample was clamped between 25-mm parallel plates with a gap distance of 400 μm. Viscosity measurements were conducted at a constant temperature of 25 °C under various shear rates (10 to 1,000 s⁻¹).

To achieve ink regeneration and recycling of IPS 3DP, the scaffolds were initially freeze-dried at −80 °C for 2 to 3 d to remove water and residual DMSO. The dried scaffolds were subsequently weighed and mixed with anhydrous DMSO at a predetermined mass ratio. After 24 h of dissolution at ambient temperature, regenerated IPS 3DP ink was obtained for subsequent 3D printing operations. This complete process from initial printing to ink regeneration was defined as one recycling cycle. Modified IPS 3DP inks underwent identical printing–recycling procedures via the same methodology. Notably, for regenerated modified IPS 3DP inks, inorganic components introduced during modification could be removed through additional centrifugation and filtration processes, yielding regenerated unmodified ink. The entire recycling protocol enabled repeated utilization of both pristine and modified IPS 3DP materials while maintaining printability.

Cytotoxicity and scaffold biosafety assessments were conducted by coculturing rat BMSCs with 3D-printed scaffold extracts for 1, 3, and 5 d, following established protocols from previous literature [9]. For the cell seeding experiments, L-929 cells at passages 6 and 7 were suspended in complete medium to prepare a cell suspension at a density of 10,000 cells/ml. The sterilized scaffold samples and control samples were placed in 24-well plates, with 1 ml of cell suspension added to each well. After 48 h of incubation at 37 °C in a 5% CO₂ atmosphere, the culture medium was removed, and the samples were subjected to vital staining with calcein AM/propidium iodide fluorescent dyes. The cell distribution patterns on and around the scaffolds were subsequently captured via an inverted fluorescence microscope.

Following IPS 3DP completion, all scaffold samples were subjected to solvent purification through 48 h of immersion in excess DI water at ambient temperature with 6-h interval medium replacement. Vacuum drying was subsequently performed at 60 °C until constant mass attainment, with initial dry weights (W ₀) recorded via an analytical balance (±0.1 mg). The in vitro degradation study was conducted under physiological simulation conditions using enzyme-supplemented PBS (pH 7.4) at a 1:50 mass-to-volume ratio (1 g scaffold:50 ml medium). Each degradation system contained 2 U/ml collagenase type I and 100 U/ml hyaluronidase to mimic the enzymatic microenvironment. The samples were incubated in orbital shakers maintained at 37 °C. At 15-d intervals, triplicate samples were retrieved, gently rinsed with DI water, and vacuum-dried to a constant mass (W_t) for quantitative mass loss percentage calculation [(W ₀ − W_t)/W ₀ × 100%]. Fresh enzyme-buffered saline (PBS) was added after each sampling to maintain enzymatic activity. Following 90 d of incubation, macrostructural changes were documented through optical imaging. Mechanical integrity assessment was performed through uniaxial tensile testing according to a previously established protocol, with a minimum of triplicate samples per group (n ≥ 3).

All experiments were replicated at least 3 times. Statistics are presented as mean ± standard deviation (n ≥ 3) and were analyzed via the GraphPad Prism 8 software. **P < 0.01 and ***P < 0.001.
