RIG-I, a novel DAMPs sensor for myoglobin, activates NF-κB/caspase-3 signaling in CS-AKI model
收藏切换
PDF
Peng-Tao Wang1, †, Ning Li2, 3, 4, 5, †, Xin-Yue Wang2, 4, Jia-Le Chen2, 4, Chen-Hao Geng2, 4, Zi-Quan Liu2, 4, 5, Hao-Jun Fan2, 4, 5, Qi Lv2, 4, 5, Shi-Ke Hou2, 4, 5, *, Yan-Hua Gong2, 4, 5, *
Military Medical Research | 2022, 9(1) : 40 - 52
Less
收藏切换
Military Medical Research | 2022, 9(1): 40-52
• RESEARCH •
RIG-I, a novel DAMPs sensor for myoglobin, activates NF-κB/caspase-3 signaling in CS-AKI model
Full
Peng-Tao Wang1, †, Ning Li2, 3, 4, 5, †, Xin-Yue Wang2, 4, Jia-Le Chen2, 4, Chen-Hao Geng2, 4, Zi-Quan Liu2, 4, 5, Hao-Jun Fan2, 4, 5, Qi Lv2, 4, 5, Shi-Ke Hou2, 4, 5, *, Yan-Hua Gong2, 4, 5, *
Affiliations
  • 1General Hospital of Tianjin Medical University, Tianjin 300052, China
  • 2Institute of Disaster Medicine, Tianjin University, Tianjin 300072, China
  • 3State Key Laboratory of Medicinal Chemical Biology, Nankai University, Tianjin 300350, China
  • 4Tianjin Key Laboratory of Disaster Medicine Technology, Tianjin 300072, China
  • 5Wenzhou Safety (Emergency) Institute, Tianjin University, Wenzhou 325000, Zhejiang China
Published: 2022-02-10 doi: 10.1186/s40779-021-00333-4
Outline
收藏切换

Background: Acute kidney injury (AKI) is the main life-threatening complication of crush syndrome (CS), and myoglobin is accepted as the main pathogenic factor. The pattern recognition receptor retinoicacid-inducible gene I (RIG-I) has been reported to exert anti-viral effects function in the innate immune response. However, it is not clear whether RIG-I plays a role in CS-AKI. The present research was carried out to explore the role of RIG-I in CS-AKI.

Methods: Sprague-Dawley rats were randomly divided into two groups: the sham and CS groups (n=12). After administration of anesthesia, the double hind limbs of rats in the CS group were put under a pressure of 3 kg for 16 h to mimic crush conditions. The rats in both groups were denied access to food and water. Rats were sacrificed at 12 h or 36 h after pressure was relieved. The successful establishment of the CS-AKI model was confirmed by serum biochemical analysis and renal histological examination. In addition, RNA sequencing was performed on rat kidney tissue to identify molecular pathways involved in CS-AKI. Furthermore, NRK-52E cells were treated with 200 μmol/L ferrous myoglobin to mimic CS-AKI at the cellular level. The cells and cell supernatant samples were collected at 6 h or 24 h. Small interfering RNAs (siRNA) was used to knock down RIG-I expression. The relative expression levels of molecules involved in the RIG-I pathway in rat kidney or cells samples were measured by quantitative real-time PCR (qPCR), Western blotting analysis, and immunohistochemistry (IHC) staining. Tumor necrosis factor-α (TNF-α) was detected by ELISA. Co-immunoprecipitation (Co-IP) assays were used to detect the interaction between RIG-I and myoglobin.

Results: RNA sequencing of CS-AKI rat kidney tissue revealed that the different expression of RIG-I signaling pathway. qPCR, Western blotting, and IHC assays showed that RIG-I, nuclear factor kappa-B (NF-κB) P65, p-P65, and the apoptotic marker caspase-3 and cleaved caspase-3 were up-regulated in the CS group (P<0.05). However, the levels of interferon regulatory factor 3 (IRF3), p-IRF3 and the antiviral factor interferon-beta (IFN-β) showed no significant changes between the sham and CS groups. Co-IP assays showed the interaction between RIG-I and myoglobin in the kidneys of the CS group. Depletion of RIG-I could alleviate the myoglobin induced expression of apoptosis-associated molecules via the NF-κB/caspase-3 axis.

Conclusions: RIG-I is a novel damage-associated molecular patterns (DAMPs) sensor for myoglobin and participates in the NF-κB/caspase-3 signaling pathway in CS-AKI. In the development of CS-AKI, specific intervention in the RIG-I pathway might be a potential therapeutic strategy for CS-AKI.

CS-AKI model. Mil Med Res, 2021, 8: 37.

Crush syndrome  /  Acute kidney injury  /  Retinoic acid-inducible gene I  /  Myoglobin  /  Nuclear factor kappa-B/caspase-3  /  Damage-associated molecular patterns
Peng-Tao Wang, Ning Li, Xin-Yue Wang, Jia-Le Chen, Chen-Hao Geng, Zi-Quan Liu, Hao-Jun Fan, Qi Lv, Shi-Ke Hou, Yan-Hua Gong. RIG-I, a novel DAMPs sensor for myoglobin, activates NF-κB/caspase-3 signaling in CS-AKI model[J]. Military Medical Research, 2022 , 9 (1) : 40 -52 . DOI: 10.1186/s40779-021-00333-4
Full Text
Less
Background
Less
Crush syndrome (CS), also known as traumatic rhabdomyolysis syndrome, is an acute clinical syndrome characterized by acute kidney injury (AKI), hyperkalemia, myoglobinuria, hypovolemic shock, etc., and is caused by the release of muscle breakdown products into the blood circulation after prolonged compression of skeletal muscles[1,2]. It often occurs in natural disasters such as earthquakes, tsunamis, and mudslides and human-made disasters such as wars and terrorism[3,4]. In modern warfare, suddenly produced ruins can lead to large numbers of CS patients. For example, the incidence rates of CS and AKI were 8.2% and 3.3%, respectively, and 41.6% of patients with CS developed AKI after the Wenchuan earthquake in China in 2008[5]. Therefore, AKI is a main life-threatening complication of CS, and CS-AKI has high morbidity and mortality. At present, myoglobin is well accepted as the main pathogenic factor, as it exerts direct toxic effects and causes tubular obstruction in the kidney[2,6]. Fluid resuscitation and hemodialysis are the most effective strategies to prevent and treat CS-AKI[7,8], but they are merely symptomatic treatments. The pathogenesis of CS-AKI is not entirely clear.
Retinoic acid-inducible gene I (RIG-I, also known as RIG-1 or Ddx58) serves as a cytoplasmic RNA sensor and is one of the most important RIG-I-like receptors (RLRs) that regulate innate immunity via recognition of pathogen-associated molecular patterns[9-11]. Upon recognition of various viral RNAs (mainly doublestranded RNA), the RIG-I signaling pathway triggers multiple signaling cascades and induces the overexpression of type I interferons (IFNs) and inflammatory cytokines, which are also generated in various inflammatory diseases such as sepsis, hepatocellular carcinoma and chronic kidney disease[12-14]. The association of RIG-I with traumatic diseases such as irradiation- and immune-mediated gut injury, liver ischemia/reperfusion injury, and spinal cord injury has been reported[15-17]. However, the precise mechanisms underlying this association have not yet been clearly elucidated, especially in CS-AKI. Investigating the relationship between the RIG-I signaling pathway and CS-AKI might provide a molecular target for CS-AKI treatment.
Thus, in the present study, we tested the hypothesis that RIG-I serves as a damage-associated molecular patterns (DAMPs) sensor, recognizing myoglobin and activating the NF-κB/ caspase-3 signaling pathway in the development of CS-AKI.
Methods
Less
Ethics statement
The experiments involving animals were approved by the Animal Care and Use Ethical Committee of General Hospital of Tianjin Medical University (IRB2021-DW-19) and complied with the Guide for the Care and Use of Laboratory Animals approved by the National Institutes of Health.
Animals and experimental design
A total of 24 male Sprague-Dawley rats weighing 180–200 g were maintained under standard laboratory conditions (constant temperature of 25 ℃ and humidity at 50%–60% with a 12 h light and 12 h dark cycle) and had free access to food and water. The CS-AKI model was prepared using a crush injury platform[18,19]. The rats were randomly divided into two groups, including the sham group and the CS group (n=12). After administration of anesthesia, the double hind limbs of rats in the CS group were put under a pressure of 3 kg for 16 h. The rats in both groups were denied access to food and water. After relieving the pressure, all rats were allowed free access to food and water, and no deaths events were observed. Rats in each group were sacrificed at 12 h or 36 h (n=6) after pressure was relieved. Blood was extracted by aorta ventralis puncture. The kidney tissue was quickly removed and stored until quantitative real-time PCR (qPCR), Western blotting, and immunohistochemistry (IHC) analyses.
RNA sequencing
Total RNA was extracted from rat kidneys in both sham and CS groups at 12 h using RNAiso Plus Total RNA extraction reagent (TAKARA #9109) following the manufacturer’s instructions. RNA integrity was analysed by an Agilent Bioanalyzer 2100 (Agilent technologies). Total RNA was further purified by the RNA Clean XP Kit (Beckman #A63987) and RNase-Free DNase Set (QIAG EN #79254). Shanghai Biotechnology Corporation (Shanghai, China) conducted the RNA library construction and sequencing.
Serum biochemistry
The blood in both sham and CS groups at 12 h or 36 h was coagulated at 4 ℃ for 30 min and centrifuged at 3000 r/min for 15 min. The serum was gently collected in a 1.5 ml Eppendorf tube. The levels of creatine kinase (CK), serum creatinine (Scr), blood urea nitrogen (BUN), and myoglobin (Mb) (iMagic, Icubio) were examined by an automatic biochemical analysis instrument (iMagic-V7, Icubio) according to the manufacturer’s instructions. The serum concentrations of IFN-β and TNF-α were determined using a commercial enzyme-linked immunosorbent assay (ELISA) kit (Nanjing Jin Yibai JEB-13712/13718) according to the manufacturer’s protocol.
Renal histology and IHC
The kidney tissues in both sham and CS groups at 12 h or 36 h were washed and fixed in 4% paraformaldehyde for 24 h, dehydrated, and embedded in paraffin (Leica #39601006). Then, the fixed kidney tissues were cut into 4 μm-thick sections and treated with hematoxylin-eosin (HE) and periodic acid-schiff (PAS) stains. Renal tubular injuries were scored by calculating the percentage of tubules that displayed tubular dilation, cast formation and tubular necrosis according to Paller’s method[20]. The sections were also rehydrated and labeled with primary antibodies against RIG-I (1:100, #3743, CST), interferon regulatory factor 3 (IRF3, 1:100, #A11373, Affinity), phospho IRF3 (p-IRF3, 1:100, #AF3438, Affinity), P65 (1:100, #AF5006, Affinity), p-P65(ser536) (1:100, #AF2006, Affinity), caspase-3 (1:200, #DF6879, Affinity) and cleaved caspase-3 (1:100, #AF7022, Affinity). Then, the sections were incubated with peroxidaseconjugated secondary antibodies at 37 ℃ for 1 h. DAB staining was performed, nuclei were counterstained using hematoxylin, and samples were observed by optical microscopy.
Cell culture and RNA interference
Rat kidney epithelial-like NRK-52E cells (ATCC) were cultured in DMEM-High Glucose (Sparkjade #CA0004) containing 5% fetal bovine serum (Biological Industries #1928703) and 1% Penicillin streptomycin solution (Hyclone #SV30010) at 37 ℃ and 5% CO2. Cells in the exponential growth phase were harvested for experiments. Cells were treated with ferrous myoglobin to mimic the CS-AKI model in vitro[21,22]. Ascorbic acid (Solarbio #S9490) can reduce myoglobin to a ferrous status[20,23]. The final concentration of myoglobin was 200 μmol/L while that of ascorbic acid was 2 mmol/L. Small interfering RNAs (siRNAs) were synthesized by GenePharma (China). The sense sequence for siRNARIG-I (rat) was 5′-GCCCAUUGAAACCAAGAAAUU-3′[24]. SiRIG-I was transfected using GP-Transfect-Mate RNAiMAX reagent (GenePharma #201028) following the manufacturer’s protocol. Silencing efficiency of the target gene was verified by PCR and Western blotting analysis.
Cell viability
NRK-52E cells were cultured in 96 well plates at a concentration of 5×103 cells per well and treated with different concentrations of ferrous myoglobin (50, 100, 200, 300, 400, 500, 600, 700, and 800 μmol/L) for 24 h. Then the cells were washed with phosphate-buffered saline (PBS) and cell viability was assessed using a cell counting kit-8 (CCK-8) assay (YEASEN #40203ES60) by measuring absorbance at 450 nm using a Thermo Scientific Microplate Reader.
qPCR
For rat kidneys in both groups at 12 h or 36 h and cells samples at 6 h or 24 h, the total RNA was extracted using RNAiso Plus Total RNA extraction reagent (TAKARA #9109). The purity and concentration of RNA were determined using a Nanodrop One. Reverse transcription and qPCR were carried out using a Hifair® III 1st Strand cDNA Synthesis Kit (gDNA digester plus) (YEASEN #11139ES60) and Hieff® qPCR SYBR® Green Master Mix (No Rox) (YEASEN #11201ES03) on a realtime PCR system (LightCycler® 96 Instrument, Roche). The 2−ΔΔCt method was used to calculate the relative expression levels. Primers are listed in Table 1.
Western blotting
Proteins were extracted from kidney tissue in both groups at 12 h or 36 h and NRK-52E cells at 6 h or 24 h with ice-cold RIPA lysis buffer containing protease inhibitor and phosphatase inhibitor. Samples were centrifuged at 12,000 r/min for 20 min at 4 ℃, and the supernatants were immediately collected. Total protein (30 μg) was subjected to SDS-PAGE and subsequently transferred onto polyvinylidene difluoride membranes. After blocking with 5% skimmed milk for 2 h at room temperature, membranes were incubated overnight with anti-RIG-I (1:1000, #3743, CST), anti-IRF3 (1:1000, #A11373, Affinity), anti-p-IRF3 (1:1000, #AF3438, Affinity), anti-p65 (1:1000, #AF3438, Affinity), anti-pp65(ser536) (1:1000, #AF3438, Affinity), anti-caspase-3 (1:1000, #AF3438, Affinity), anti-cleaved-caspase-3 (1:1000, #AF3438, Affinity) and anti-GAPDH (1:5000, #KM9002, Sungene Biotech) at 4 ℃. The membranes were washed with PBS containing Tween 20 and incubated with HRP-conjugated secondary antibodies (1:5000, #LK2001, Sungene Biotech) for 1 h at room temperature. Protein bands were visualized using ECL chemiluminescence reagent (Tanon #180–501) and imaged by a Tanon 5200 Multi detection system. The intensity of each band was assessed using the Tanon Gel-Pro Analyser system.
Co-immunoprecipitation (Co-IP)
Kidneys from the sham and CS groups at 12 h were lysed using IP lysis buffer (Beyotime #P0013) and incubated with 40 μl protein-A magnetic beads (Bimake #B23201) and 1 μg monoclonal anti-myoglobin antibody at 4 ℃ under shaking overnight. The magnetic beads were adsorbed with a magnet, and the samples were washed three times with binding buffer and analysed by Western blotting using anti-RIG-I.
Statistical analysis
Continuous variables with a normal distribution are presented as the mean ± standard deviation (SD). Continuous variables were compared between two groups in siRNA knockdown experiment using the unpaired t test, for more groups in the animal experiments using two way analysis of variance (ANOVA) followed by the Bonferroni’s multiple comparisons test, for more groups in the RIG-I expression by different concentrations of myoglobin or poly (I:C) and the RNA interference experiment using one-way ANOVA followed by the Brown-Forsythe multiple comparisons test. The analyses and figures were implemented with GraphPad Prism 8.0 software. P-values below 0.05 were considered to indicate statistical significance.
Results
Less

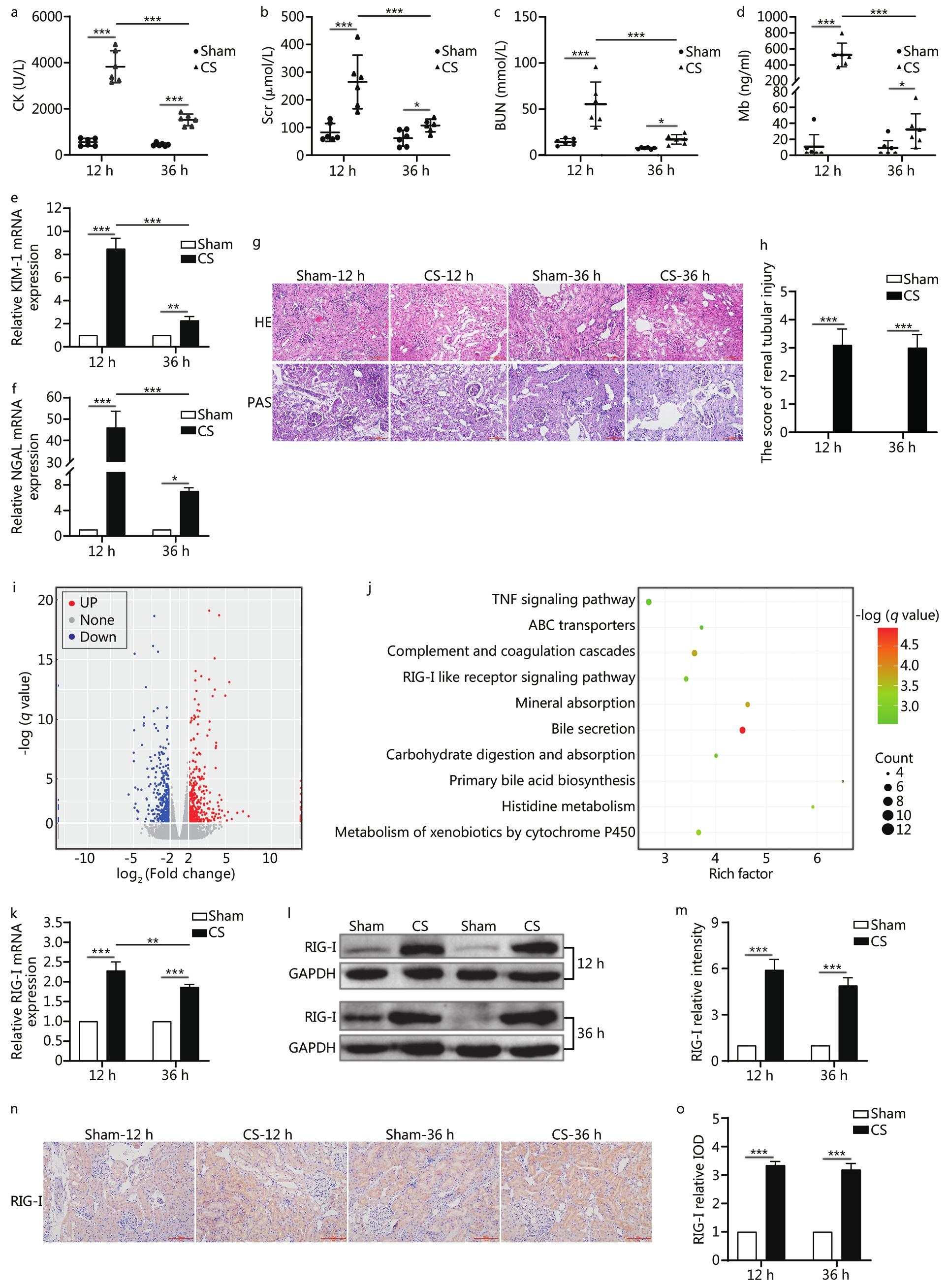

Up-regulated RIG-I expression in kidneys of CS-AKI rats
Serum biochemistry analysis results showed that CK levels in the CS group were significantly increased compared with the sham group at 12 h [(3828.2±692.4) U/L vs. (555.5±164.2) U/L, P<0.001] and 36 h [(1520.8±253.9) U/L vs. (451.5±64.1) U/L, P=0.0005] (Fig. 1a). Scr levels were higher in the CS group compared with the sham group at 12 h [(264.7±88.4) μmol/L vs. (82.3±29.6) μmol/L, P<0.001] and 36 h [(107.3±20.9) μmol/L vs. (61.3±26.4) μmol/L, P<0.05] (Fig. 1b). The BUN values in the CS group were still higher than those in the sham group at 12 h [(55.4±21.9) μmol/L vs. (14.4±3.3) μmol/L, P<0.001] and 36 h [(17.2±4.7) μmol/L vs. (7.6±0.9) μmol/L, P<0.05] (Fig. 1c). Meanwhile, the concentration of Mb was also higher in the CS group at 12 h and 36 h (P<0.05, Fig. 1d). Although, the concentrations of CK, Scr, BUN and Mb in the CS group were lower at 36 h compared with 12 h (P<0.001), they were still higher than those in the sham group (Fig. 1a–d). qPCR results showed that renal kidney injury molecule-1 (KIM-1) expression 8.5-fold higher (P<0.001) at 12 h and 2.3-fold higher (P=0.0027) at 36 h (Fig. 1e) in the CS group compared with the sham group. Neutrophil gelatinaseassociated lipocalin (NGAL) mRNA expression showed a similar trend (P<0.05, Fig. 1f). Next, we analysed the histological differences between the sham and CS groups through HE and PAS staining. The CS group presented extensive erythrocyte aggregation in the capillaries, congestion, swelling of the glomerulus, and tubular injury (Fig. 1g). The tubular injury score was about 3 points at 12 h and 36 h in the CS group (P<0.001, Fig. 1h).
mRNA was extracted at 12 h from the kidneys of rats from the sham and CS groups, and RNA sequencing was performed. Differentially expressed genes (DEGs) were identified with a threshold of q≤0.05 and Fold-change ≥2. A total of 19,800 genes were identified. According to their expression patterns, they were clustered into two groups by hierarchical clustering. Between the sham group and CS group, 749 DEGs were identified (P<0.05), including 386 down-regulated and 363 upregulated genes (Fig. 1i). Furthermore, kyoto encyclopedia of genes and genomes (KEGG) analysis was performed to identify the main enriched molecular and biological functions of the DEGs. Five classifications were involved in CS-AKI. The top category is organismal systems (Fig. S1a). The number of DEGs involved in the immune system is the highest in the organismal systems (Fig. S1b). KEGG pathway analysis indicated that 170 pathways were involved, and 10 pathways were significantly enriched (q<0.05) (Fig. 1j). Based on the above analysis, the RLR signaling pathway belonged to both the immune system and top 10 pathways. However, the role of the RIG-I signaling pathway in CS-AKI has not been researched.
Therefore, we investigated RIG-I expression in the sham and CS groups. qPCR results showed that renal RIG-I expression was 2.3-fold higher at 12 h and 1.9-fold higher at 36 h (P<0.001, Fig. 1k), while Western blotting analysis revealed that RIG-I expression was 5.9-fold higher at 12 h and 4.9-fold higher at 36 h (P<0.001) in the CS group compared with the sham group (Fig. 1l and m). Tissue IHC analysis confirmed that RIG-I protein expression was higher at 12 h and 36 h in the CS group than those in the sham group (Fig. 1n). Quantification of our IHC results revealed the same changes (P<0.001, Fig. 1o).

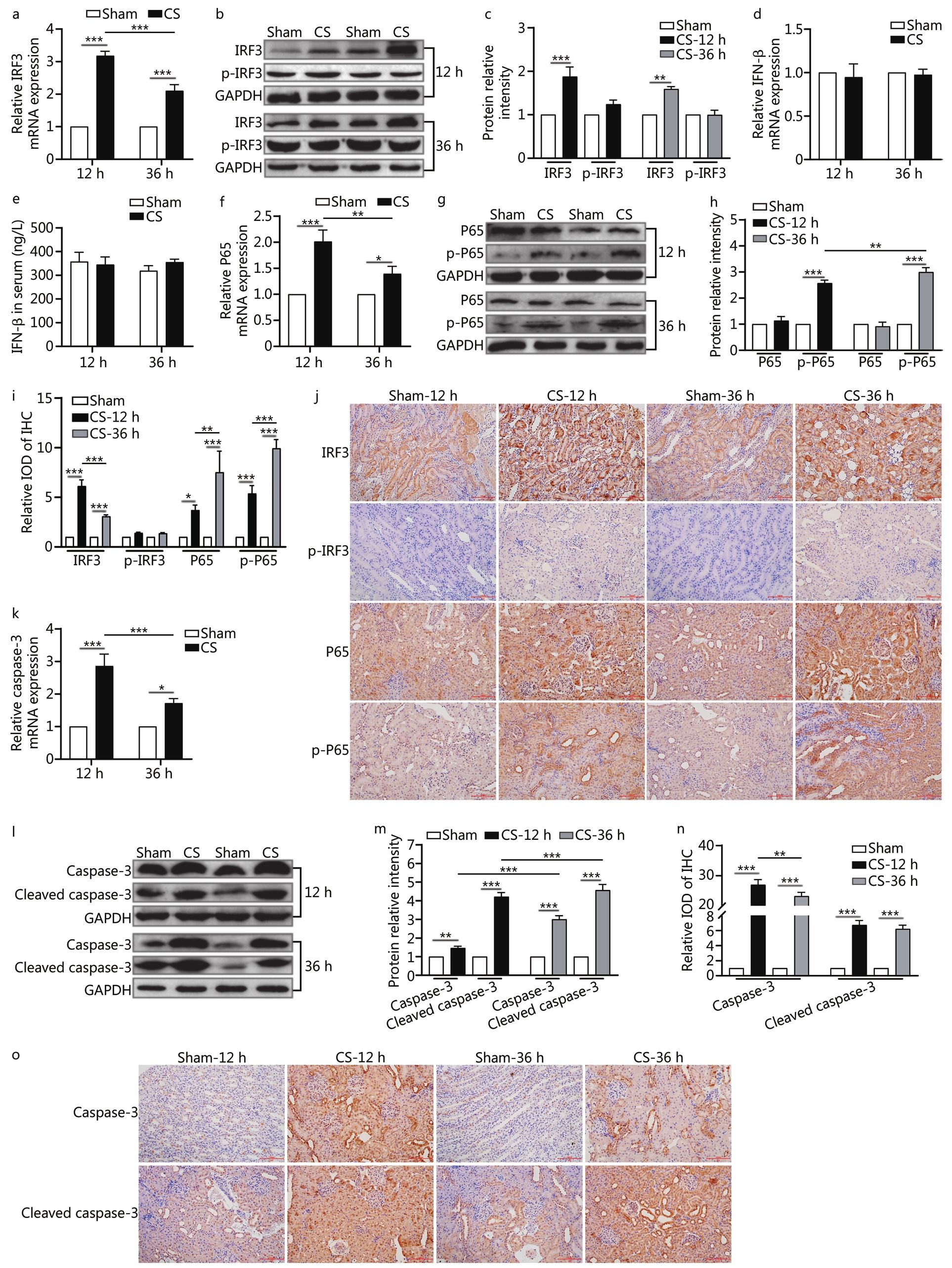

NF-κB/caspase-3 not IRF-3/ IFN-β signaling activated in CS-AKI rat kidney
Next, we investigated which downstream molecules were involved in the RIG-I signaling pathway. IRF3 is the classic downstream molecule of RIG-I during viral infection. Hence, we detected the expression of IRF3 in the kidney. qPCR results indicated that the expression levels of IRF3 were increased at 12 h and 36 h in the kidneys of the CS group compared with the sham group (P<0.001, Fig. 2a). Western blotting results demonstrated that the protein levels of IRF3 were higher at 12 h and 36 h in the kidneys of the CS group than that in the sham group (P<0.01), but renal p-IRF3 levels showed no significant differences between the sham and CS groups at 12 h and 36 h (Fig. 2b and c). qPCR and ELISA results revealed that the expression of IRF3’s effector molecule IFN-β was not significantly different between the sham and CS groups (Fig. 2d and e). Since NF-κB signaling is another downstream branch of RIG-I, we detected the expression of P65, one of the main components of NF-κB. qPCR results indicated that the mRNA levels of P65 were increased at 12 h (P<0.001) and 36 h (P=0.0391) in the kidneys of the CS group (Fig. 2f). Although Western blotting showed that there was no significant difference in P65 protein levels, the levels of the functional form p-P65 were significant increase at 12 h and 36 h in the kidneys of the CS group (P<0.001, Fig. 2g and h). IHC results confirmed that the renal IRF3 expression in the CS group was higher than that in the sham group at 12 h (P<0.001) and at 36 h (P<0.001). Although, p-IRF3 did not show a significant difference, the expression levels of P65 and p-P65 were significantly increased at 12 h and 36 h in the kidney tissue sections of the CS group (P<0.05, Fig. 2i and j). qPCR indicated that the mRNA levels of the pro-inflammatory cytokines interleukin-6 (IL-6) and TNF-α were up-regulated (Fig. S2a and b). ELISA results confirmed that TNF-α levels were increased (Fig. S2b). Caspase-3 acts as an apoptosis-related protein downstream of the NF-κB signaling pathway. qPCR results indicated that the mRNA expression levels of caspase-3 in the CS group were about 2.9-fold higher at 12 h (P<0.001) and 1.7-fold at 36 h (P=0.0136) than in the sham group (Fig. 2k). Western blotting results indicated that renal caspase-3 and cleaved caspase-3 expression levels were higher in the CS group than those in the sham group (P<0.01, Fig. 2l and m). Meanwhile, tissue IHC results also showed that the protein expression levels of caspase-3 and cleaved caspase-3 were significantly higher in the kidneys of the CS group at 12 h and 36 h (P<0.001, Fig. 2n and o), which is in agreement with the qPCR and Western blotting results.

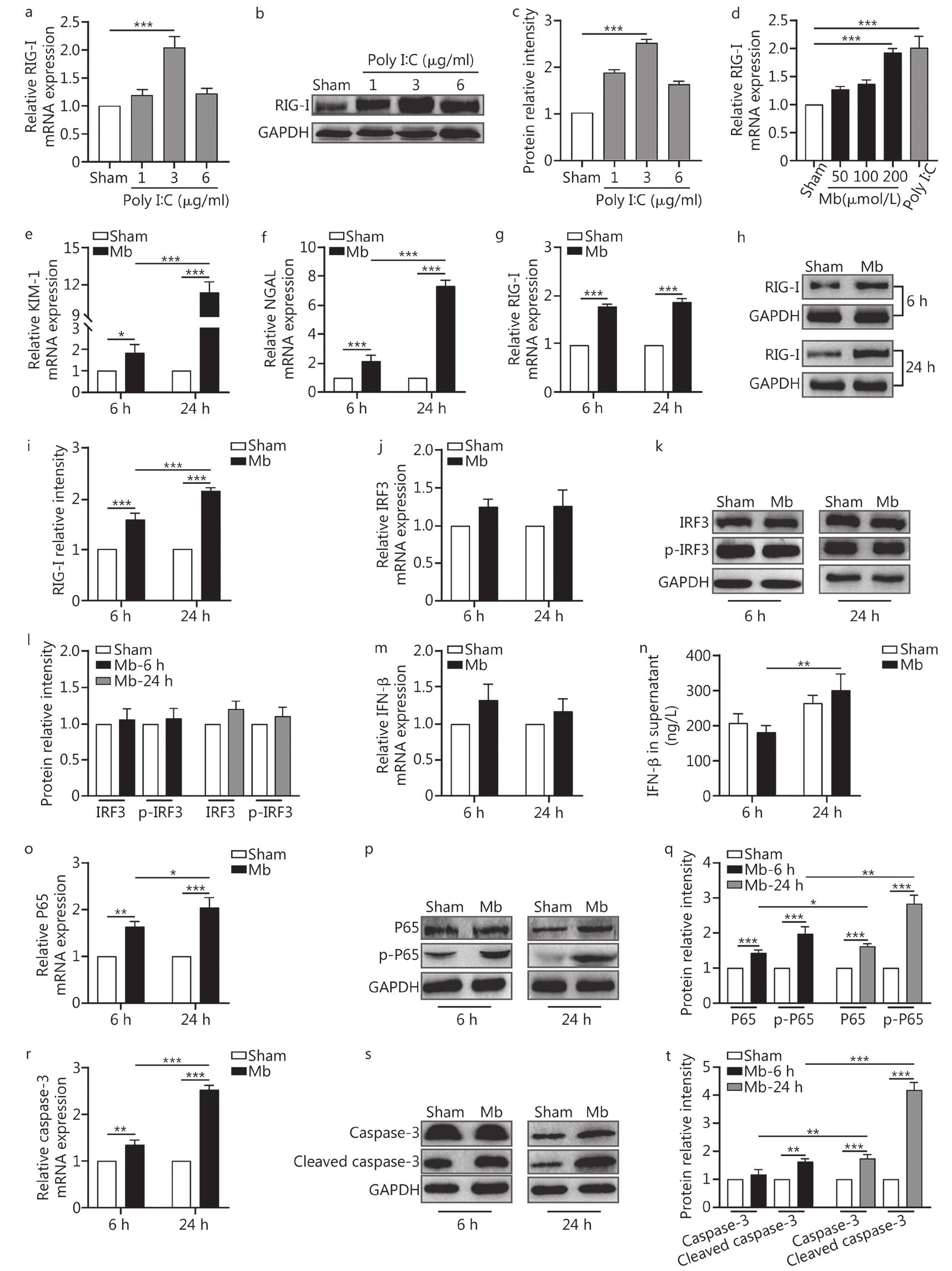

RIG-I/NF-κB/caspase-3 axis activated by myoglobin in vitro
Myoglobin is well accepted as the main pathogenic factor for CS-AKI. However, the relationship between myoglobin and RIG-I in CS-AKI is unknown. We used myoglobin to treat rat kidney epithelial-like NRK-52E cells to mimic CS-AKI at the cellular level in vitro to further confirm the molecular mechanisms. Polyinosinic: polycytidylic acid [poly (I:C)], a synthetic RNA analog, could induce RIG-I expression[25]. As shown in Fig. 3a–c, 3 μg/ml poly I:C had the most significant effect on the expression of RIG-I after treating NRK-52E cells for 24 h (P<0.001). The CCK-8 assay results indicated that with increasing myoglobin concentrations, the inhibitory effects on NRK-52E cells increased in a concentration-dependent manner, the IC50 was 313 μmol/L (Fig. S3a). Next, we chose different myoglobin concentrations (50, 100 and 200 μmol/L) to treat NRK-52E cells for 24 h. qPCR results indicated that 200 μmol/L ferrous myoglobin was the most suitable dose to activate RIG-I expression, in line with the positive control (P<0.001, Fig. 3d). In addition, qPCR data showed that the mRNA levels of KIM-1 and NGAL strongly increased upon treatment with 200 μmol/L ferrous myoglobin for 6 h (P<0.05) and 24 h (P<0.001) (Fig. 3e and f). As shown in Fig. 3g, when NRK-52E cells were treated with 200 μmol/L ferrous myoglobin, the mRNA expression levels of RIG-I were about 1.8-fold higher (P<0.001) at 6 h and 1.9-fold higher (P<0.001) at 24 h higher than the sham group. Western blotting showed the same trend (P<0.001) (Fig. 3h and i).
Then, we investigated the expression of molecules involved in the RIG-I signaling pathway. After treatment with 200 μmol/L ferrous myoglobin for 6 h and 24 h, qPCR and Western blotting revealed that the expression of IRF3 showed no significant difference (Fig. 3j–l). Moreover, the expression of p-IRF3 did not change significantly compared with the sham group (Fig. 3k–l). qPCR results showed that compared with the sham group, the expression of IFN-β (an effector molecule of IRF3) did not change after treatment with ferrous myoglobin (Fig. 3m). ELISA results indicated that IFN-β expression decreased only a little after treatment with ferrous myoglobin at 6 h, but it did not affect IFN-β expression at 24 h (Fig. 3n). These results basically matched the in vivo results.
Next, we investigated the expression of molecules involved in the RIG-I/NF-κB/caspase-3 signaling pathway. qPCR results showed that the mRNA levels of NF-κB family member P65 were increased about 1.6-fold (P=0.0013) at 6 h and 2.0-fold (P<0.001) at 24 h in the CS group (Fig. 3o). Western blotting showed the protein levels of P65 and p-P65 were also up-regulated after treatment with ferrous myoglobin (P<0.001) (Fig. 3p and q). The mRNA and protein levels of caspase-3 showed the similar trend (P<0.01) (Fig. 3r–t). Protein levels of the functional form of cleaved caspase-3 were significantly up-regulated after incubation with 200 μmol/L ferrous myoglobin for 6 h (P=0.0049) and 24 h (P<0.001) (Fig. 3s and t). qPCR showed that IL-6 and TNF-α were up-regulated in the CS group (P<0.05) (Fig. S3b and c). ELISA results indicated that TNF-α expression was increased in the CS group (Fig. S3d). Pro-inflammatory cytokines were involved in this process.

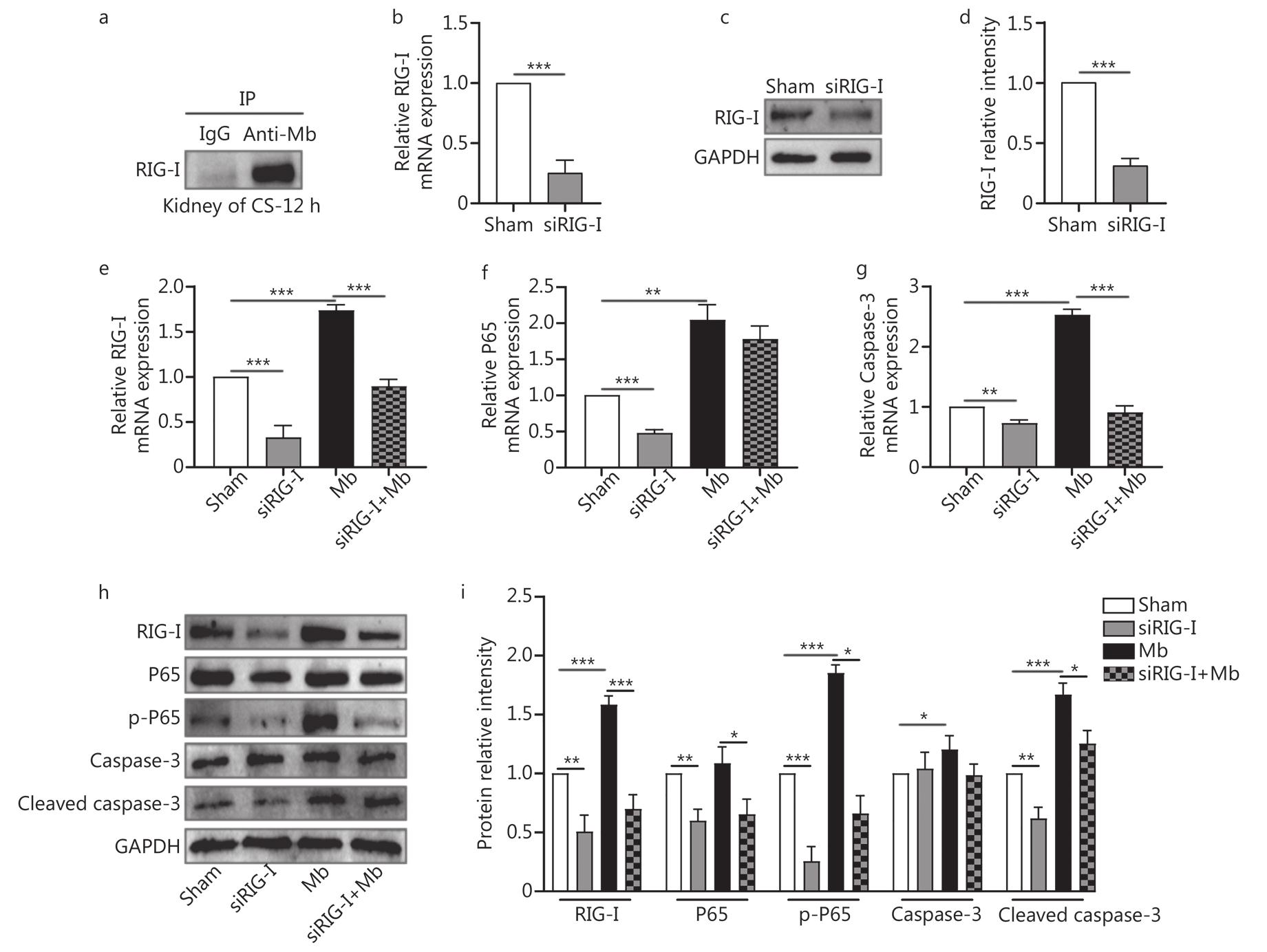

RIG-I bound to myoglobin in vivo and knockdown of RIG-I expression alleviate the myoglobin-induced NF-κB/caspase-3 axis activation
The Co-IP experiment confirmed that RIG-I binds to myoglobin in the rat kidney of the CS group (Fig. 4a). An RNA interference experiment was performed to investigate the role of RIG-I in a CS-AKI cell model. The semi-quantitative RT-PCR, qPCR, and Western blotting results showed that the knockdown efficiency was about 70% (P<0.001) (Fig. 4b–d, Fig. S4a). After depletion of RIG-I, the mRNA levels of P65 (P<0.001) and caspase-3 (P<0.01) were decreased (Fig. 4e-i). The protein levels of p-P65 (P<0.001) and cleaved caspase-3 (active forms) (P<0.01) were also decreased (Fig. 4h and i). qPCR results showed that knockdown of RIG-I alleviated the effects of myoglobin on the expression of RIG-I and caspase-3 at mRNA level (P<0.001, Fig. 4e and g). Western blotting showed that the protein expression levels of RIG-I (P<0.001), p-P65 (P<0.05), and cleaved caspase-3 (P<0.05) showed a similar trend (Fig. 4h and i). Furthermore, qPCR showed that the expression of IL-6 and TNF-α were in good agreement with the above results (Fig. S4b and c). The protein level of TNF-α showed the same trend (Fig. S4d).
Discussion
Less
Myoglobin acts as a DAMPs and is the primary cause of CS-AKI. The pathogenic mechanism of CS is similar to that of ordinary rhabdomyolysis[26,27]. Myoglobin triggers multiple nephrotoxic pathways by tubular precipitation and obstruction, vasoconstriction of renal afferent arterioles, and oxidative stress at the tubular level[28,29]. Unfortunately, the exact mechanisms underlying the toxicity of myoglobin to renal cells are not clear in CS-AKI (or RM-AKI). Thus, we performed in vivo and in vitro experiments to clarify the mechanisms of underlying CS-AKI. RNA sequencing analysis revealed differentially expressed genes involved in the RLR signaling pathway between the sham and CS groups, shedding light on the role of the RIG-I/NF-κB/caspase-3 signaling pathway in the CS-AKI model. Therefore, RIG-I is a novel sensor for myoglobin in the CS-AKI model, and myoglobin-induced RIG-I/NF-κB/caspase-3 axis activation may contribute to the development of CS or rhabdomyolysis nephrotoxicity.
Usually, KIM-1, NGAL, and CK are used to assess the degree of kidney damage[30,31] and the prognosis of AKI[32-34]. Myoglobin has a weaker positive correlation with the severity of CS and the prognosis of AKI compared with the level of CK (5-fold higher than normal or CK cut-off value more than 1000 U/L) in clinical applications[32-34]. In the present study, the serum level of myoglobin was still significantly increased in the CS-AKI rat model.
Based on our previous research, the state of CS rats is the most severe at 12 h after decompression[18,19]. Therefore, we chose the time point at 12 h for RNA sequencing analysis. KEGG pathway analysis indicated that DEGs were highly enriched in 10 pathways, such as the RLR signaling pathway. Most studies on RIG-I focus on viral infections, and there are few related studies to explore the role of RIG-I in traumatic AKI. Our RNA sequencing results indicate the role of RIG-I in CS-AKI.
Previous research indicated that RIG-I activates IRF3 through the RIG-I/MAVS/TRAF3/TBK-1 signaling pathway, and then induces the production of IFNs to perform antiviral functions. RIG-I can also activate the NF-κB signaling pathway through the RIG-I/MAVS/CARD/Bcl-10 pathway, to induce apoptosis and eliminate viral particles. However, it is unknown which signaling pathway plays a major role in CS-AKI. Our research indicated that RIG-I/NF-κB/caspase-3 is the main activation pathway, while the classic virus-activated RIG-I/IRF3/IFN-β signaling pathway was not activated in CS-AKI. IL-6 and TNF-α are considered to be inflammation mediators in various injuries[35,36], and have adverse impacts on the development of CS-AKI. The levels of TNF-α and IL-6 were notably elevated in the CS group.
To underpin the above finding, we incubated NRK-52E cells with ferrous myoglobin to mimic CS-AKI at the cellular level in vitro[21,37]. After treatment with 200 μmol/L ferrous myoglobin, the mRNA and protein levels of RIG-I, P65, p-P65, caspase-3 and cleaved caspase-3 were increased. The expression decreased after knockdown of RIG-I in NRK-52E cells. Because negative control siRNA can act as exogenous RNA to influence the expression of RIG-I[38], we did not treat control cells with negative control siRNA, but used normal NRK-52E cells as the control group. The results indicated that myoglobin upregulates the levels of the apoptosis-related proteins NF-κB and caspase-3. We thus show that RIG-I is a novel DAMPs sensor (recognizing myoglobin) in CS-AKI, and myoglobin can activate the RIG-I/NF-κB/caspase-3 signaling pathway. The functional mechanism of RIG-I in CSAKI differs from the classical innate immunity activated by viral nucleic acid (Fig. 5).
Recent research indicated that in the absence of viral infection, RIG-I could also be activated by a pattern recognition receptor in kidney-related inflammatory diseases[14,39,40]. Simultaneously, the relationship between RIG-I and traumatic diseases has been reported. de Rivero Vaccari et al.[17] revealed that spinal cord injury promotes gliosis via an RIG-like signaling pathway. Fischer et al.[15] suggested that RIG-I signaling rescues gut integrity in irradiation- and immune-mediated intestinal tissue injury. However, there is no research about the role of RIG-I signaling pathway in traumatic kidney injury. RIG-I is ubiquitously expressed in epithelial cells and myeloid cells[41] and our results revealed that myoglobin, after absorption by renal tubular epithelial cells could induce RIG-I activation. Therefore, our results suggest that RIG-I is a potential therapeutic target for CS-AKI.
The present work has limitations. We need to explore in-depth how myoglobin triggers the cytoplasmic pattern recognition receptor RIG-I. We need additional animal studies to confirm the therapeutic effect of RIG-I in CSAKI, for example using RIG-I knockout mice. In addition, clinical studies need to be performed to confirm the role of RIG-I in patient samples.
Conclusions
Less

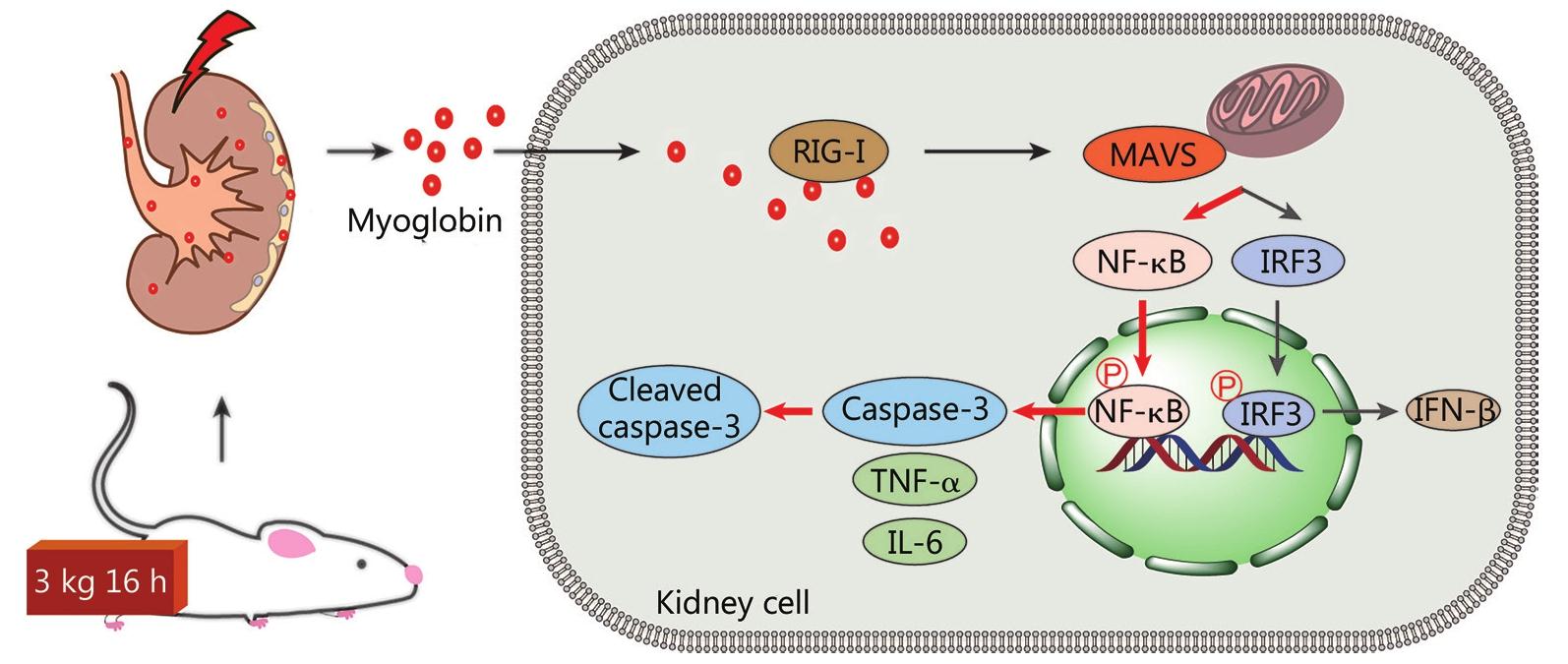

In summary, our results demonstrate that RIG-I is activated upon interaction with myoglobin in the CS-AKI model. Knockdown of RIG-I in a CS-AKI cell model attenuated myoglobin toxicity in NRK-52E cells through the NK-κB/caspase-3 axis. This is the first investigation of the relationship between CS and the RIG-I signaling pathway, and our results indicate that RIG-I is a novel DAMPs sensor, recognizing myoglobin and activating the NK-κB/caspase-3 axis in CS-AKI (Fig. 5). Our study suggested that RIG-I may serve as a therapeutic target for the prevention or treatment of CS-AKI or RM-AKI.
Supplementary information
Less
The online version contains supplementary material available at https://doi.org/10.1186/s40779-021-00333-4.
Additional file 1: Fig. S1. KEGG analysis identifies the main enriched molecular and biological functions of the DEGs. a. KEGG classification analyses DEGs between the sham and CS groups. The involved five classifications are organismal systems, environmental information processing, metabolism, cellular processes and genetic information processing. b. The detail information of organismal systems.
Additional file 2: Fig. S2. The expressions of inflammation mediators involved in RIG-I signaling in CS-AKI rat model. a–b. qPCR analyses the renal IL-6 and TNF-αexpression after relieving the pressure at 12 h and 36 h. c. Serum levels of TNF-α by ELISA after relieving the pressure at 12 h and 36 h between the sham and CS groups. Data are expressed as the mean ± SD. *P<0.05, **P<0.01, ***P<0.001, two-way ANOVA followed by the Bonferroni’s multiple comparisons test.
Additional file 3: Fig. S3. The inhibitory effects on NRK-52E cells and inflammation meditators expression between the sham and ferrous myoglobin treatment groups. a. CCK8 assays analyses the inhibitor effects on NEK-52E cells after treatment with ferrous myoglobin. The ferrous myoglobin concentration is 50, 100, 200, 300, 400, 500, 600, 700, 800 μmol/L. b-c. qPCR analyses IL-6 and TNF-α expression in the NRK-52E cells after treatment with 200 μmol/L ferrous myoglobin at 6 h and 24 h separately. d. Cell supernatant levels of TNF-α by ELISA between the sham and ferrous myoglobin treatment groups. Data are expressed as the mean ± SD. *P<0.05, **P<0.01, ***P<0.001, two-way ANOVA followed by the Bonferroni’s multiple comparisons test.
Additional file 4: Fig. S4. Inflammation meditators expression after knockdown RIG-I gene in NRK-52E cells. a. Agarose gel verified the knockdown efficiency after siRIG-I treatment. b-c. NRK-52E cells treatment with 200 μmol/L ferrous myoglobin at 6 h, or using siRNA to knockdown RIG-I gene before treatment with ferrous myoglobin. qPCR analyses the IL-6 and TNF-α expression. d. Cells supernatant levels of TNF-α by ELISA after different treatment. Data are expressed as the mean ± SD. *P<0.05, **P<0.01, ***P<0.001, one-way ANOVA followed by the Brown-Forsythe multiple comparisons test.
Abbreviations
Less
AKI: Acute kidney injury; BUN: Blood urea nitrogen; CCK-8: Cell counting kit 8; CK: Creatine kinase; CKD: Chronic kidney disease; CS: Crush syndrome; DAMPs: Damage-associated molecular patterns; DEGs: Differentially expressed genes; ELISA: Enzyme-linked immunosorbent assay; HE: Hematoxylin-eosin; IFN: Interferons; IHC: Immunohistochemistry; IL-6: Interleukin-6; IRF3: Interferon regulatory factor 3; KIM-1: Kidney injury molecule-1; KEGG: Keto encyclopedia of genes and genomes; Mb: Myoglobin; NGAL: Neutrophil gelatinase-associated lipocalin; PAMPs: Pathogen-associated molecular patterns; PAS: Periodic acid-schif; Poly(I: C): Polyinosinic:polycytidylic acid; PVDF: Polyvinylidene difluoride; PS: Penicillin-Streptomycin Solution; qPCR: Quantitative Real-time PCR; RIG-I: Retinoic acid-inducible gene I; RLRs: RIG-I-like receptors ; RMAKI: Rhabdomyolysis syndrome related AKI; Scr: Serum creatinine; SD: Sprague-Dawley; TNF-α: Tumor necrosis factor-alpha.
Acknowledgements
Less
The authors thank Dr. Hong-Chao Guo and Dr. Xing-Wang Han for participating in the discussion of the manuscript.
Authors’ contributions
Less
YHG, SKH and NL conceived and designed the experiments; PTW and NL performed the experiments; XYW, JLC and CHG contributed reagents/materials; ZQL, HJF and QL contributed data analysed; PTW, NL wrote the manuscript and YHG revised it. All authors read and approved the final manuscript.
Availability of data and materials
Less
The data and materials used in the current study are all available from the corresponding author upon reasonable request.
Declarations
Less
Ethics approval and consent to participate
The experiments involving animals were approved by the animal care and use ethical committee of General Hospital of Tianjin Medical University (No. IRB2021-DW-19) and complied with the Guide for the Care and Use of Laboratory Animals approved by the National Institutes of Health.
Consent for publication
Less
Not applicable.
Competing interests
Less
The authors declare that there are no competing interests.
Author details
Less
1General Hospital of Tianjin Medical University, Tianjin 300052, China. 2Institute of Disaster Medicine, Tianjin University, Tianjin 300072, China. 3State Key Laboratory of Medicinal Chemical Biology, Nankai University, Tianjin 300350, China. 4Tianjin Key Laboratory of Disaster Medicine Technology, Tianjin 300072, China. 5Wenzhou Safety (Emergency) Institute, Tianjin University, Wenzhou 325000, Zhejiang China.
Funding
Less
  • Tianjin University "Double First Class" construction talent start-up fund to Dr. Yan-Hua Gong
  • grants awarded to Shi-Ke Hou by Science and Technology Commission of the CMC(c12019048)
  • Ning Li by Open Fund of State Key Laboratory of Medicinal Chemical Biology (Nankai University)(2020010)
References
Less
1.
Zhou XL, Ni SZ, Xiong D, Cheng XQ, Xu P, Zhao Y. Fluid resuscitation with preventive peritoneal dialysis attenuates crush injury-related acute kidney injury and improves survival outcome. Scand J Trauma Resusc Emerg Med. 2019;27(1):68. https://doi.org/10.1186/s13049-019-0644-0.
2.
Kadıoğlu E, Tekşen Y, Koçak C, Koçak FE. Beneficial effects of bardoxolone methyl, an Nrf2 activator, on crush-related acute kidney injury in rats. Eur J Trauma Emerg Surg. 2021;47(1):241-50. https://doi.org/10.1007/s00068-019-01216-z.
3.
Scapellato S, Maria S, Castorina G, Sciuto G. Crush syndrome. Minerva Chir. 2007;62(4):285-92 [Article in Italian].
4.
Li N, Wang X, Wang P, Fan H, Hou S, Gong Y. Emerging medical therapies in crush syndrome - progress report from basic sciences and potential future avenues. Ren Fail. 2020;42(1):656-66. https://doi.org/10.1080/0886022X.2020.1792928.
5.
Omrani H, Najafi I, Bahrami K, Najafi F, Safari S. Acute kidney injury following traumatic rhabdomyolysis in Kermanshah earthquake victims; a cross-sectional study. Am J Emerg Med. 2021;40:127-32. https://doi.org/10.1016/j.ajem.2020.01.043.
6.
Zager RA, Burkhart K. Myoglobin toxicity in proximal human kidney cells: roles of Fe, Ca2+, H2O2, and terminal mitochondrial electron transport. Kidney Int. 1997;51(3):728-38. https://doi.org/10.1038/ki.1997.104.
7.
Sever MS, Vanholder R. Management of crush victims in mass disasters: highlights from recently published recommendations. Clin J Am Soc Nephrol. 2013;8(2):328-35. https://doi.org/10.2215/CJN.07340712.
8.
Gibney RT, Sever MS, Vanholder RC. Disaster nephrology: crush injury and beyond. Kidney Int. 2014;85(5):1049-57. https://doi.org/10.1038/ki.2013.392.
9.
Liu Z, Wu C, Pan Y, Liu H, Wang X, Yang Y, et al. NDR2 promotes the antiviral immune response via facilitating TRIM25-mediated RIG-I activation in macrophages. Sci Adv. 2019;5(2):eaav0163.
10.
Brisse M, Ly H. Comparative structure and function analysis of the RIG-I-like receptors: RIG-I and MDA5. Front Immunol. 2019;10:1586. https://doi.org/10.3389/fimmu.2019.01586.
11.
Such L, Zhao F, Liu D, Thier B, Le-Trilling VTK, Sucker A, et al. Targeting the innate immunoreceptor RIG-I overcomes melanoma-intrinsic resistance to T cell immunotherapy. J Clin Invest. 2020;130(8):4266-81. https://doi.org/10.1172/JCI131572.
12.
Moser J, Heeringa P, Jongman RM, Zwiers PJ, Niemarkt AE, Yan R, et al. Intracellular RIG-I signaling regulates TLR4-independent endothelial inflammatory responses to endotoxin. J Immunol. 2016;196(11):4681-91. https://doi.org/10.4049/jimmunol.1501819.
13.
Zhou B, Li C, Yang Y, Wang Z. RIG-I promotes cell death in hepatocellular carcinoma by inducing M1 polarization of perineal macrophages through the RIG-I/MAVS/NF-κB pathway. Onco Targets Ther. 2020;13:8783-94. https://doi.org/10.2147/OTT.S258450.
14.
Zhou Z, Ni J, Li J, Huo C, Miao N, Yin F, et al. RIG-I aggravates interstitial fibrosis via c-Myc-mediated fibroblast activation in UUO mice. J Mol Med (Berl). 2020;98(4):527-40. https://doi.org/10.1007/s00109-020-01879-x.
15.
Fischer JC, Bscheider M, Eisenkolb G, Lin CC, Wintges A, Otten V, et al. RIG-I/MAVS and STING signaling promote gut integrity during irradiation- and immune-mediated tissue injury. Sci Transl Med. 2017;9(386):eaag2513. https://doi.org/10.1126/scitranslmed.aag2513.
16.
Wang H, Wang G, Zhang L, Zhang J, Zhang J, Wang Q, et al. ADAR1 suppresses the activation of cytosolic RNA-sensing signaling pathways to protect the liver from ischemia/reperfusion injury. Sci Rep. 2016;6(1):20248. https://doi.org/10.1038/srep20248.
17.
de Rivero Vaccari JP, Minkiewicz J, Wang X, De Rivero Vaccari JC, German R, Marcillo AE, et al. Astrogliosis involves activation of retinoic acid-inducible gene-like signaling in the innate immune response after spinal cord injury. Glia. 2012;60(3):414-21. https://doi.org/10.1002/glia.22275.
18.
Yang XY, Song J, Hou SK, Fan HJ, Lv Q, Liu ZQ, et al. Ulinastatin ameliorates acute kidney injury induced by crush syndrome inflammation by modulating Th17/Treg cells. Int Immunopharmacol. 2020;81:106265. https://doi.org/10.1016/j.intimp.2020.106265.
19.
Wang J, Chen Z, Hou S, Liu Z, Lv Q. TAK-242 attenuates crush injury induced acute kidney injury through inhibiting TLR4/NF-κB signaling pathways in rats. Prehosp Disaster Med. 2020;35(6):619-28. https://doi.org/10.1017/S1049023X20001132.
20.
Paller MS, Hoidal JR, Ferris TF. Oxygen free radicals in ischemic acute renal failure in the rat. J Clin Invest. 1984;74(4):1156-64. https://doi.org/10.1172/JCI111524.
21.
Zhou J, Kong D, Zhang X, Wang Y, Feng Z, Zhang X, et al. Myoglobin induced apoptosis: two pathways related to endoplasmic reticulum stress. Ther Apher Dial. 2012;16(3):272-80. https://doi.org/10.1111/j.1744-9987.2011.01057.x.
22.
Zager RA. Intracellular myoglobin loading worsens H2O2-induced, but not hypoxia/reoxygenation-induced, in vitro proximal tubular injury. Circ Res. 1993;73(5):926-34. https://doi.org/10.1161/01.RES.73.5.926.
23.
Iwata M, Zager RA. Myoglobin inhibits proliferation of cultured human proximal tubular (HK-2) cells. Kidney Int. 1996;50(3):796-804. https://doi.org/10.1038/ki.1996.378.
24.
Wang F, Xia W, Liu F, Li J, Wang G, Gu J. Interferon regulator factor 1/retinoic inducible gene I (IRF1/RIG-I) axis mediates 25-hydroxycholesterolinduced interleukin-8 production in atherosclerosis. Cardiovasc Res. 2012; 93(1):190-9. https://doi.org/10.1093/cvr/cvr260.
25.
Vats A, Gautam D, Maharana J, Singh Chera J, Kumar S, Rout PK, et al. Poly I: C stimulation in-vitro as a marker for an antiviral response in different cell types generated from Buffalo (Bubalus bubalis). Mol Immunol. 2020;121:136-43. https://doi.org/10.1016/j.molimm.2020.03.004.
26.
Cervellin G, Comelli I, Benatti M, Sanchis-Gomar F, Bassi A, Lippi G. Nontraumatic rhabdomyolysis: background, laboratory features, and acute clinical management. Clin Biochem. 2017;50(12):656-62. https://doi.org/10.1016/j.clinbiochem.2017.02.016.
27.
Chavez LO, Leon M, Einav S, Varon J. Beyond muscle destruction: a systematic review of rhabdomyolysis for clinical practice. Crit Care. 2016; 20(1):135. https://doi.org/10.1186/s13054-016-1314-5.
28.
Zorova LD, Pevzner IB, Chupyrkina AA, Zorov SD, Silachev DN, Plotnikov EY, et al. The role of myoglobin degradation in nephrotoxicity after rhabdomyolysis. Chem Biol Interact. 2016;256:64-70. https://doi.org/10.1016/j.cbi.2016.06.020.
29.
Zhang XM, Tang Y, Yang YY, Zhang L, Feng YY, Liu LF, et al. Preliminary study on the pathogenic mechanism of myoglobin-induced endoplasmic reticulum stress and apoptosis in crush syndrome. Sichuan Da Xue Xue Bao Yi Xue Ban. 2015;46(1):22-6 [Article in China].
30.
Srisawat N, Kellum JA. The role of biomarkers in acute kidney injury. Crit Care Clin. 2020;36(1):125-40. https://doi.org/10.1016/j.ccc.2019.08.010..
31.
Bakal ü, Sarac M, Tartar T, Kaman D, Kazez A. A study of the utility of novel non-invasive urinary and serum biomarkers of blunt kidney injury in a rat model: NGAL, KIM-1, and IL-18. Cent Eur J Immunol. 2019;44(3):219–25. https://doi.org/10.5114/ceji.2019.89592.
32.
Stahl K, Rastelli E, Schoser B. A systematic review on the definition of rhabdomyolysis. J Neurol. 2020;267(4):877-82. https://doi.org/10.1007/s00415-019-09185-4.
33.
Cabral BMI, Edding SN, Portocarrero JP, Lerma EV. Rhabdomyolysis. Dis Mon. 2020;66(8):101015. https://doi.org/10.1016/j.disamonth.2020.101015.
34.
Elterman J, Zonies D, Stewart I, Fang R, Schreiber M. Rhabdomyolysis and acute kidney injury in the injured war fighter. J Trauma Acute Care Surg. 2015;79(4 Suppl 2):S171-4. https://doi.org/10.1097/TA.0000000000000572.
35.
Han AA, Currie HN, Loos MS, Scardoni G, Miller JV, Prince N, et al. The impact of cytokine responses in the intra- and extracellular signaling network of a traumatic injury. Cytokine. 2018;106:136-47. https://doi.org/10.1016/j.cyto.2017.10.027.
36.
Zhang BF, Wang PF, Cong YX, Lei JL, Wang H, Huang H, et al. Anti-high mobility group box-1 (HMGB1) antibody attenuates kidney damage following experimental crush injury and the possible role of the tumor necrosis factor-α and c-Jun N-terminal kinase pathway. J Orthop Surg Res. 2017;12(1):110. https://doi.org/10.1186/s13018-017-0614-z.
37.
Chen Z, Wang J, He J, Fan H, Hou S, Lv Q. Myoglobin mediates autophagy of NRK-52E in rat renal tubular epithelial cells via the Pink1/parkin signaling pathway. Med Sci Monit. 2020;26:e923045.
38.
Rehwinkel J, Gack MU. RIG-I-like receptors: their regulation and roles in RNA sensing. Nat Rev Immunol. 2020;20(9):537-51. https://doi.org/10.1038/s41577-020-0288-3.
39.
He T, Xiong J, Huang Y, Zheng C, Liu Y, Bi X, et al. Klotho restrain RIG-1/NF-κB signaling activation and monocyte inflammatory factor release under uremic condition. Life Sci. 2019;231:116570. https://doi.org/10.1016/j.lfs.2019.116570.
40.
Fang J, Yao X, Hou M, Duan M, Xing L, Huang J, et al. ApoL1 induces kidney inflammation through RIG-I/NF-κB activation. Biochem Biophys Res Commun. 2020;527(2):466-73. https://doi.org/10.1016/j.bbrc.2020.04.054.
41.
Gong T, Liu L, Jiang W, Zhou R. DAMP-sensing receptors in sterile inflammation and inflammatory diseases. Nat Rev Immunol. 2020;20(2):95-112. https://doi.org/10.1038/s41577-019-0215-7.
