Three dimensional (3D) bioprinted extracellular matrix (ECM) can be used to provide both biochemical and biophysical cues to direct mesenchymal stem cells (MSCs) differentiation, and then differentiated cells were isolated for implantation
in vivo using surgical procedures. However, the reduced cell activity after cell isolation from 3D constructs and low cell retention in injured sites limit its application[
1]. Methacrylated gelatin (GelMA) hydrogel has the advantage of fast crosslinking, which could resemble complex architectures of tissue construct
in vivo[
2]. Here, we adopted a noninvasive bioprinting procedure to imitate the regenerative microenvironment that could simultaneously direct the sweat gland (SG) and vascular differentiation from MSCs and ultimately promote the replacement of glandular tissue
in situ (

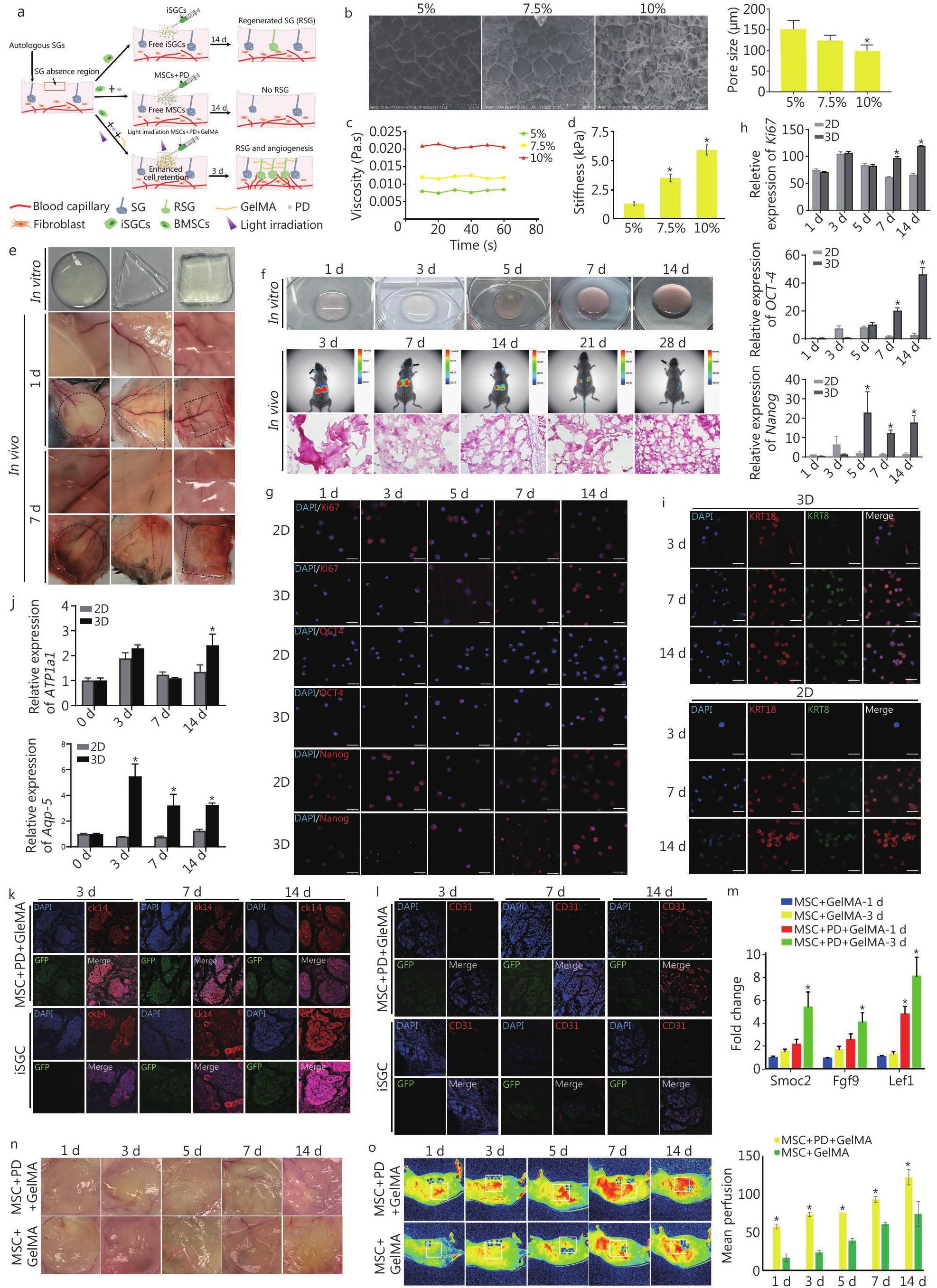

Fig. 1a).
We first investigated the physical characteristics of GelMA hydrogel with different concentrations. Scanning electron microscope (SEM) images revealed that GelMA possessed a highly porous structure and the pore size of GelMA decreased with increasing concentration (
Fig. 1b). Rheological testing showed that the viscosity of the GelMA didn’t show significant change with increasing time at a shear rate of 10 rad/s, and the viscosity were gradually increased with the GelMA concentration. The Young’s modulus of GelMA bioinks ranged from 1.1 kPa (5% GelMA) to 5.6 kPa (10% GelMA) (
Fig. 1c, d). According to a previous study, uniform pores with around 125 μm could maintain the stemness of MSCs[
3]. Without the sacrifice of suitable printibility, 7.5% GelMA was chosen for the following test. Three bioprinted microconstructs were fabricated and the integrity of bioprinted constructs could be successfully maintained
in vitro and
in vivo (
Fig. 1e).
In vivo degradation assay showed that the distribution of DiI-labeled cells was extensive and hematoxylin-eosin staining showed few bioink debris and infiltration of cells (
Fig. 1f). Low inflammatory response indicating the good histocompatibility of the hydrogel, which is suitable for clinical noninvasive treatment (Additional file 1: Fig. S1).
For further investigation of the biological functions of the GelMA bioink, cell proliferation and differentiation of MSCs encapsulated in the bioink were measured under the regeneration microenvironment of SG
in vitro. In our previous study, MSCs could differentiate into SG-like cells in 3D bioprinted construct with SG specific ECM-plantar dermis (PD)[
1]. Therefore, PD was introduced into GelMA to direct SG cell fate
in vitro. After the identification of MSCs by differentiation experiment (Additional file 1: Fig. S2), we confirmed that PD retains mainly extracellular components of the specific microenvironment, excluding the influence of pre-existing SG cells. The DNA concentration of PD, which laterally reflects the cellular content, was reduced by 90%, while the ECM contents such as collagen and GAGs were well preserved (Additional file 1: Fig. S3). When MSCs were added into the PD containing GelMA, the expression of
Ki67,
Oct-4 and
Nanog in the 3D (MSCs+PD+GelMA) construct was increased with culture while decreased in the 2D (MSCs+PD) condition with culture at both the protein and gene level (
Fig. 1g, h). For
in vitro differentiation, the expression level of SG markers KRT18 and KRT8 elevated at day 3 in 3D group increased with culture (
Fig. 1i). The expression of functional sweating marker
Atp1a1 for ion transport and
Aqp5 for water transport in 3D group was higher than those of MSCs+PD culture in 2D condition (
Fig. 1j). These results fully demonstrated the excellent role of GelMA in promoting the proliferation and directed differentiation of MSCs.
Next, GelMA-based noninvasive
in vivo 3D bioprinting was performed. To better trace the injected cells, we used Green fluorescent protein (GFP)-labeled cells MSCs here. In the MSCs+PD+GelMA group, chimerism was shown in SG tissue 3 d after injection and GFP-labeled cells were increased with time, while traditional induced SG cells (iSGCs-MSC+PD) in our previous study[
1] were incorporated into SG tissue until 7 d after injection (
Fig. 1k). There was no chimerism observed in MSCs+PD group (Additional file 1: Fig. S4). GFP-labeled cells also showed the expression of SG specific marker KRT18, which demonstrated that MSCs could differentiate into SG cells
in vivo (Additional file 1: Fig. S5). Taken the positive role of vascular networks on tissue development and regeneration into account, we further measured the expression of CD31 in the chimeric sites. Interestingly, the expression of CD31 was higher in the MSCs+PD+GelMA group than the iSGCs group
in vivo (
Fig. 1l), which may indicate the vascular-promoting effects of PD besides its differentiation-inducing effect on MSCs.
In order to figure out the potential role of PD for angiogenesis, we further investigated whether MSC-loaded GelMA combined with PD or not is responsible for the new formation of the blood vessels
in vivo and
in vitro. Blood vessel formation assay showed that there were increased numbers of vessels that migrated the gels with PD than gels without PD
in vivo (
Fig. 1m). Analysis using laser speckle imaging revealed increased perfusion in the skin over the gels of PD (
Fig. 1n). And the expression of vascular genes significantly increased in the MSCs+PD+GelMA group compared with the MSCs+GelMA group
in vitro (
Fig. 1o).
