Military Medical Research | 2024, 11(6): 863-886
• REVIEW •
Targeting the epigenome to reinvigorate T cells for cancer immunotherapy
Full
Dian Xiong1, Lu Zhang1, *, Zhi-Jun Sun1, 2, *
Affiliations
  • 1State Key Laboratory of Oral and Maxillofacial Reconstruction and Regeneration, Key Laboratory of Oral Biomedicine Ministry of Education, Hubei Key Laboratory of Stomatology, School & Hospital of Stomatology, Frontier Science Center for Immunology and Metabolism, Wuhan University, Wuhan 430079, China
  • 2Department of Oral Maxillofacial-Head Neck Oncology, School and and Hospital of Stomatology, Wuhan University, Wuhan 430079, China
Published: 2024-12-10 doi: 10.1186/s40779-023-00496-2
Outline
收藏切换

Cancer immunotherapy using immune-checkpoint inhibitors (ICIs) has revolutionized the field of cancer treatment; however, ICI efficacy is constrained by progressive dysfunction of CD8+ tumor-infiltrating lymphocytes (TILs), which is termed T cell exhaustion. This process is driven by diverse extrinsic factors across heterogeneous tumor immune microenvironment (TIME). Simultaneously, tumorigenesis entails robust reshaping of the epigenetic landscape, potentially instigating T cell exhaustion. In this review, we summarize the epigenetic mechanisms governing tumor microenvironmental cues leading to T cell exhaustion, and discuss therapeutic potential of targeting epigenetic regulators for immunotherapies. Finally, we outline conceptual and technical advances in developing potential treatment paradigms involving immunostimulatory agents and epigenetic therapies.

Epigenetic therapy  /  Immune checkpoint blockade  /  Combination therapy  /  T cell exhaustion  /  Immune macroenvironment  /  Spatial immune contexture  /  Immunometabolism  /  Cancer microbiome
Dian Xiong, Lu Zhang, Zhi-Jun Sun. Targeting the epigenome to reinvigorate T cells for cancer immunotherapy[J]. Military Medical Research, 2024 , 11 (6) : 863 -886 . DOI: 10.1186/s40779-023-00496-2
Full Text
Less
Background
Less
The success of immune checkpoint blockade (ICB), now established as the fourth pillar of anticancer therapy, hinges on the concept that immune tolerance of cancer is orchestrated through immune checkpoint-mediated T cell exhaustion. Thus, the removal of such restraint promises to activate cytolytic tumor-specific T cells (TSTs) and bolster anticancer immunity. T cell exhaustion is characterized by transcriptional[1,2], metabolic[3] and epigenetic programs[4], along with thymocyte selection-associated HMG box (TOX)-dependency[5,6] and sustained expression of inhibitory receptors [e.g., programmed death-1 (PD-1)[7] and T cell immunoglobulin domain and mucin domain-3 (TIM-3)[8,9]]. This state is also marked by a hierarchical loss of effector function and proliferative potential, compromising immune surveillance efficacy. Therefore, T cell exhaustion may be exploited by cancer cells for immune evasion, with PD-1 expression on tumor-infiltrating lymphocytes (TILs) indicating poor patient survival in diverse tumor types[10-15]. While T cell-based immunotherapies such as ICB, show clinical successes, disparities in patient outcomes underscore the imperative for investigating ICB resistance mechanisms[16].
The intricate mechanisms of T cell exhaustion in cancer immunotherapy, including emerging roles of epigenetic reprogramming, have been discussed in recent seminal reviews[17-19]. Epigenetic therapy, also known as epitherapy, utilizes epigenetic-modifying compounds (EMCs) (Fig. 1) or CRISPR-based epigenome editing[20-22] to modulate epigenetic machineries, including DNA methylation, histone methylation, acetylation and acylation [collectively known as post-translational modifications (PTMs)], as well as chromatin-remodelers and non-coding RNAs (ncRNAs). This regulates the activity of epigenetic enzymes termed “writers”, “readers”, and “erasers” that deposit, remove, or bind to epigenetic marks, respectively. Thus far, certain inhibitors of DNA methyltransferases (DNMTs) and histone deacetylases (HDACs), either alone or in combination, have been approved by the Food and Drug Adminstration (FDA) for the treatment of various malignancies[23], while selective inhibitors of the acetyl-lysine reader-bromodomain and extra-terminal domain (BET) proteins are being tested in clinical trials[24]. Fully understanding the epigenetic regulatory mechanisms underlying T cell exhaustion is critical to harness the potential of epitherapies.
Recent studies on ICB mechanisms identify tumor-draining lymph node (TdLN) as the primary site of action for immune-checkpoint inhibitors (ICIs)[25-27], which refocuses attention on the role of systemic T cells and the immune macroenvironment[28,29]. Meanwhile, epitherapy could reshape both the tumor immune microenvironment (TIME) and the immune macroenvironment through modulating spatial immune organization, tumor immunogenicity, immunosuppressive cell populations, cancer microbiome, and immunometabolism. This approach offers potential in reinstating endogenous antitumor immunity as validated by pre-clinical and clinical studies[26-33]. Therefore, elucidating how epigenetic mechanisms modulate the TIME and immune macroenvironment is pivotal for advancing ICI-based combinational therapeutic paradigms.
In this review, we summarize the epigenetic regulation of environmental cues driving T cell exhaustion and their therapeutic targeting through ICI-epigenetic therapies. We integrate findings from the latest studies on the spatiotemporal dynamics of T cell exhaustion during ICI treatment, demonstrating that the main site of action for ICIs extends beyond the TIME. Consequently, targeting potent immunosuppressive factors in both the immune macroenvironment and the TIME is critical to surmounting ICI resistance. Building on this, we detail the epigenetic machineries involved in resistance mechanisms. Finally, we discuss recent clinical trial advancements and offer perspectives for guiding the development of combinatorial strategies that include epigenetic modulators, ICIs, and other immunostimulatory agents.
Exhausted T cells in cancer immunity
Less
Subsets of TILs with an “exhaustion profile” have been recognized, akin to those in chronic lymphocytic choriomeningitis virus (LCMV) infection models[34-38], positioning T cell exhaustion as a significant concern in the field of onco-immunology. Immune checkpoint proteins programmed death-ligand 1 (PD-L1), cytotoxic T lymphocyte-associated antigen-4 (CTLA-4), alongside arginase 1 (ARG1), TIM-3, and estrogen receptor-binding fragment-associated antigen 9 (EBAG9), potentially encapsulated in exosomes, mediate systemic immune suppression and local tumor progression[39]. The lineage relationship between T cell populations induced by viral infection or cancer is being revealed by single-cell technologies pairing transcriptomics and epigenomics with T cell receptor (TCR) sequencing and clonotyping analysis[40,41]. A plethora of studies have characterized several TST subtypes, each with a varying degree of resemblance to memory T (TMEM) cells, effector T (TEFF) cells, and terminally exhausted T (TEX) cells[42-44], present both inside and outside the TIME.
Adding to the complexity, migration of fresh TSTs external to the TIME in response to ICB could replace exhausted TILs. This process, termed “clonal replacement”, is supported by the clinical observation that only a minimal overlap of TCR clonotypes exists between TILs derived from pre- and post-ICI treatment tumor samples: 84% TCRs in the post-treatment group are clonotypes highlighting the expansion of systemic TSTs responding to ICB[40]. This replenishment of ICBresponsive TIME CD8+ T-cell pool from the periphery (i.e., normal adjacent tissue, peripheral blood[45], and TdLN[26]) has been observed in multiple tumors[46-48] and credited with the successful prediction of ICI clinical response for PD-L1 inhibitors[31]. A subset of T cell factor 1 (TCF1)+TOX− TSTs in TdLNs (accounting for around 40% of total TSTs in TdLNs at 8 weeks posttumor induction) displays an epigenome distinct from their TCF1+TOX+ precursor exhausted T (TPEX) cells[27]. These TCF1+TOX− TSTs are featured with accessible chromatin regions (ACRs) in binding sites of several members of the E26 transformation-specific (ETS) and runt-related (Runx) transcription factors (TFs) families, mirroring canonical TMEM; hence this subset is termed TdLN-derived tumor-specific memory cells or TdLNTTSM. This TdLN-TTSM cell population exhibits a more memory-like phenotype with about 150-fold expansion vs. 40-fold for TPEX cells upon antigen re-encounter and heightened responsiveness to ICB, hence being regarded as bona fide responders to ICB.
Therefore, within the immune macroenvironment, TdLN-TTSM cells undergo ICB-induced differentiation into TdLN-TPEX cells, which subsequently clonally supplant the terminally exhausted CD69+Ly108− TEX cells in the TIME[27,43]. This model highlights the role of both the systemic and local immune environment in fostering and deploying ICB-induced cytolytic TSTs.
Epigenetic machineries and T cell exhaustion
Less

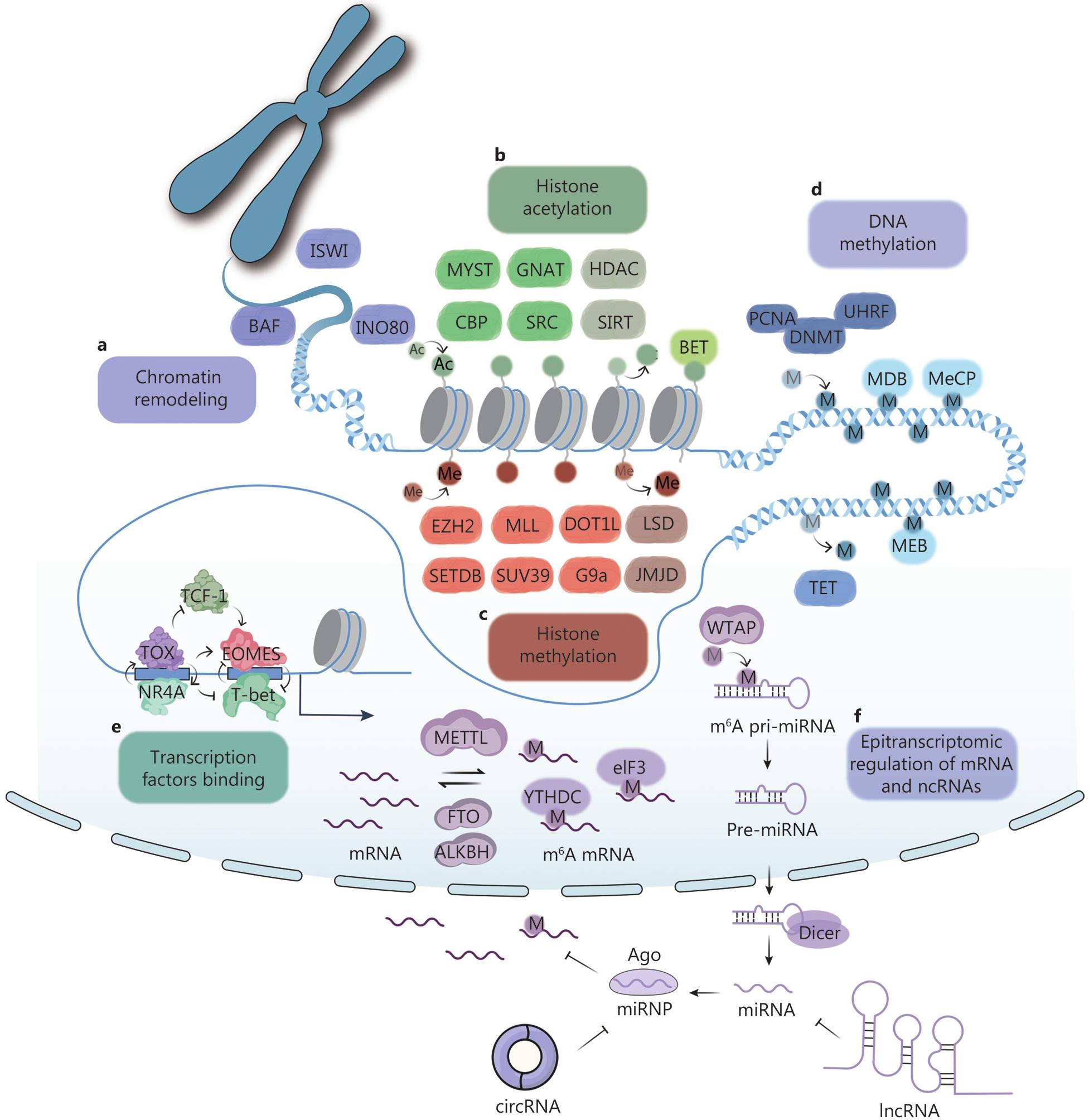

We have outlined the cellular and molecular progression of T cell exhaustion programs in the context of cancer immunotherapy. T cell exhaustion is both established and maintained by finely tuned transcriptional programs that are governed by the “epigenetic landscape” (Fig. 2).

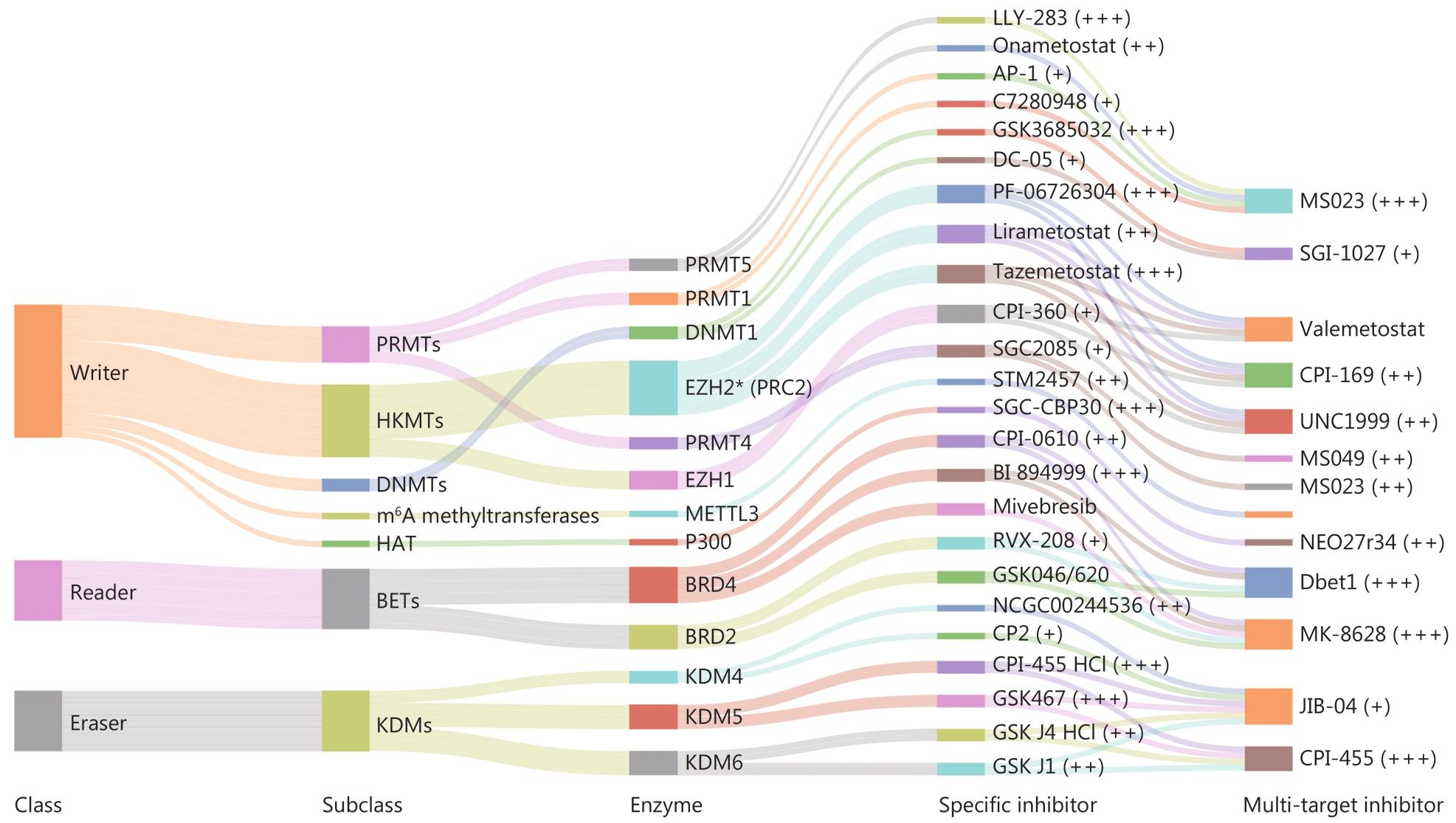

To establish a cell-state specific epigenetic landscape, a DNA sequence-specific deployment of TFs is regulated by their physical access to chromatinized DNA—the chromatin accessibility[49]. The accessibility to chromatin (the core structural component of which is the nucleosome) is further modulated by epigenetic modifications such as DNA methylation, histones PTMs, the composition (e.g., the acidic patch[50]) of nucleosomes, and the competition between TFs and nucleosomes for open DNA sequences (i.e., nucleosome occupancy[51]). Moreover, higher-order chromatin conformations, molded by chromatin remodelers[52], provide an extra level of epigenetic control beyond chromatin accessibility, as certain DNA regulatory elements are positioned hundreds of kilobases away from their target genes and require three-dimensional (3D) chromatin folding to be brought together[53]. Additional epigenetic control can be introduced by the presence of multiple PTMs within one nucleosome, and when both activating (e.g., H3K27ac and H3K4me3) and repressive PTMs (e.g., H3K27me3 and H3K9me3) are present, such an epigenetic mark is called “bivalent”. Bivalent gene loci signify a transcriptionally poised state[54], accounting for the rapid initiation of gene expression in naïve T cell activation and TMEM cells upon antigen re-encounter. Multivalent histone marks also exist, and together with all forms of PTMs constitute the “histone code”[50], as part of the larger “epigenetic code”[55,56]. This genetic model reflects how epigenetic information can be encoded in the form of epigenetic modifications that can be maintained and recognized by reader enzymes.
DNA methylation
DNA methylation at the promoter region represents one of the best-understood epigenetic silencing pathways, involving the transfer of a methyl group from S-adenosyl methionine to the cytosine residue of DNA, particularly at CpG dinucleotides. Its maintenance is dependent upon “writer” DNMTs, “eraser” TETs, and “reader” methyl-CpG binding domain proteins (MBDs).
Small molecule inhibitors targeting enzymes regulating DNA methylation are widely available, with azacitidine (AZA) and decitabine (DAC) being FDA-approved DNMT inhibitors (DNMTi) for treating myelodysplastic syndromes (MDS)[57]. Other DNMTis include RG108 and SGI-1027 which block DNMT’s binding to DNA. As for TET inhibitors, 5-carboxy-8-hydroxyquinoline (5-CHQ), corticosterone methyl oxidase-like protein 1 (CMO1) inhibitors, and pyridine-2,4-dicarboxylic acid derivatives are in development, targeting the TET enzymatic site or inhibiting the conversion of 5-methylcytosine to 5-hydroxymethylcytosine (5hmC). Optimizing TET inhibitors for clinical efficacy and safety remains a research focus. Notably, isocitrate dehydrogenase 1 (IDH1) and IDH2 mutations could lead to α-ketoglutarate (α-KG)-derived oncometabolite two-hydroxyglutarate (2HG) which antagonizes the TET and the Jumanji family of histone demethylases. Therefore, IDH1 and IDH2 inhibitors (ivosidenib and enasidenib) would regulate both DNA and histone demethylation, and have been approved by the FDA for the treatment of relapsed or refractory acute myeloid leukemia (AML)[58].
Histone acetylation
Histone acetylation, entails adding an acetyl group to lysine residues on histone tails, a key mechanism for regulating gene expression in eukaryotic cells. The balance between histone acetyltransferases (HATs) “writers” and HDACs “erasers” plays a critical role in maintaining proper gene expression levels and cellular function, modulating chromatin structure by neutralizing histone charges and opening the chromatin structure, making the DNA more accessible for TFs as the cis-acting effects of histone PTMs. On the other hand, HDACs extract acetyl groups from lysine residues on histone tails, leading to compact chromatin structure and decreased gene expression. There are several HAT families, including general control non-repressed 5 protein-related N-acetyltransferases (GNAT), MYST (MOZ, Ybf2/Sas3, Sas2, and TIP60) and p300/cAMP-response element binding protein-binding proteins (CBP). For HDACs, they are classified into four classes based on phylogenetic relationship, protein structure, and subcellular localization: Class Ⅰ (HDAC1, 2, 3, and 8), Class Ⅱ [Class Ⅱa (HDAC4, 5, 7, and 9) and Class Ⅱb (HDAC6 and 10)], Class Ⅲ (also known as sirtuins), and Class Ⅳ (HDAC11)[59].
Several small molecule inhibitors of histone deacetylases (HDACi) have been approved by the FDA for the treatment of various blood malignancies, such as cutaneous and peripheral T-cell lymphoma and multiple myeloma. These HDACis are vorinostat, romidepsin, belinostat, and panobinostat[60]. Other potent HDACis, including entinostat (MS-275), mocetinostat (MGCD0103), abexinostat (PCI-24781), and resminostat (4SC-201), are currently undergoing clinical trials for the treatment of breast cancer, Hodgkin’s lymphoma, lymphoma, hepatocellular carcinoma (HCC), and colorectal cancer[60]. Furthermore, trichostatin A and valproic acid (VPA) are also utilized for treating other diseases. CUDCs are a class of bifunctional inhibitors that target HDAC and other proteins, and they have shown promising antitumor effects in preclinical models and clinical trials for various solid tumors and hematologic malignancies. Examples include CUDC-101, which inhibits HDAC1, epidermal growth factor receptor (EGFR), and human epidermal growth factor receptor 2 (HER2) and has been effective in preclinical models of lymphoma and solid tumors, and CUDC-907, which has demonstrated a significant response rate in relapsed/refractory diffuse large B-cell lymphoma patients[61,62].
The use of proteolysis-targeting chimeras (PROTACs) represents promising avenue for achieving sustained inhibition and degradation of HDACs. PROTACs comprise a ligand that binds to the target protein, an E3 ligase recognition moiety, and a connecting linker. Once the ligand binds to the target protein, the E3 ligase mediates ubiquitination and subsequent degradation of the target protein. Several HDAC-targeted PROTACs have been developed, including those targeting HDAC6, which utilizes a selective HDAC6 inhibitor, nexturastat A, conjugated to pomalidomide as cereblon (CRBN)128[63]. Notably, the PROTACs NP8 and NH2 degraded HDAC6 without impacting other HDAC types. The reversible degradation of HDAC6 by PROTACs was demonstrated by the recovery of HDAC6 three hours after removal of the PROTACs[64].
Histone methylation
Histone methylation on lysine and arginine residues in the N-terminal tails is regulated by histone methylation transferases (HMTs) and “eraser” lysine demethylases (KDMs), similar to histone acetylation. HMTs, which acquire methyl groups from S-adenosylmethionine (SAM) like DNMTs, could be classified into several families including the SET domain-containing proteins [e.g., enhancer of zeste homolog 2 (EZH2), SET domain bifurcated histone lysine methyltransferase 1 (SETDB1), and Su(Var)3–9 homolog 1 (SUV39H1)], DOT1L, and PR domain-containing proteins (e.g., PRMT1-8 and G9a[65]). These enzymes may target different sites and catalyze distinct methylation modification patterns, either activating [e.g., H3K4me1/2/3 by SET1A/B, H3K36me2/3 by SET domain containing 2 (SETD2), and H3K79me1/2/3 by DOT1L] or repressive (e.g., H3K9me1/2/3 by SUV39H1/2, G9a and SETDB1, and H3K27me1/2/3 by EZH1/2 and MLL2/3). On the other hand, lysine-specific KDMs are epigenetic enzymes that catalyze the removal of methylation marks from histone lysine and arginine residue respectively. Different subfamilies of KDMs (KDM1-7) can be categorized into flavin adenine dinucleotide (FAD)-dependent lysine-specific demethylases (LSDs) and α-KG-dependent Jumonji C domain-containing (JMJD) families[66]. Selective KDM small molecule inhibitors including KDM1A (LSD1) inhibitor ORY-1001 for acute lymphoblastic leukemia (ALL) and small-cell lung cancer, KDM4 inhibitor IOX1 for glioblastoma, KDM5 inhibitor CPI-455 for ALL, and KDM6 inhibitor GSK-J4 for various malignancies, are under clinical evaluation.
Chromatin binding factors
The differentiation of cell types (e.g., TEFF and TMEM) and cell states (e.g., exhaustion) hinges on the complex interactions between chromatin-binding factors and nucleosomes that cooperatively regulate chromatin accessibility and 3D conformation. An in vivo Perturbseq study revealed that chromatin remodeling complexes INO80 and brahma-associated factor (BAF) are crucial to an early commitment to exhaustion in T cells[67]. In exhausted chimeric antigen receptor (CAR)-T cells, chromatin conformation capture coupled with Hi-C chromatin immunoprecipitation (HiChIP) revealed that chromatin loopings are anchored at the promoter region of key exhaustion genes (i.e., PDCD1, HAVCR2, LAG3, TIGIT, and TOX), suggesting that extensive chromatin remodeling may occur in the development of CAR TEX cells[68].
Targeting strategies against chromatin remodeling complexes include PROTACs developed as degraders of the BAF adenosine triphosphatase (ATPase) subunits SMARCA2 (SWI/SNF-related matrix-associated actindependent regulator of chromatin subfamily A, member 2) and SMARCA4. Detailed biophysical investigation and high-resolution ternary complex crystal structures enabled rational and optimized design of ACBI1, a potent and cooperative degrader of SMARCA2, SMARCA4 and PBRM1[69]. ACBI1 demonstrated anti-proliferative effects and induced cell death caused by SMARCA2 depletion in SMARCA4 mutant cancer cells, along with impacts in AML cells reliant on SMARCA4 ATPase activity.
Additional approaches include macrolactams like BD-98 that dissociate AT-rich interaction domain 1A (ARID1A)-containing BAF complexes from chromatin and inhibitors like BI-9564 that disrupt the bromodomain-containing protein 9 (BRD9) subunit[70,71]. Targeting strategies have also been identified against other chromatin remodeling complexes. For example, the imitation switch (ISWI) ATPase can be inhibited by flavonol ignorin to disrupt nucleosome spacing[72]. Clinically available inhibitors exist against chromatin reader proteins like BET bromodomains (JQ1, iBET, CPI-0610) and plant homeodomain (PHD) fingers (I-CBP112). Overall, major advances have been made in targeting chromatin remodeling complexes to subtly yet precisely manipulate the regulatory chromatin landscape.
ncRNAs
Small ncRNAs and long ncRNAs (lncRNAs) have emerged as key contributors to genome stability and epigenetic memory[73]. RNA-mediated gene silencing involves an RNA scaffold, serving as platform for recruiting histone lysine methyltransferase (HKMT) and DNMT complexes [i.e., polycomb and ubiquitin-like with PHD and RING finger domains 1 (UHRF1)-DNMT1] to mediate heterochromatin formation. In particular, small ncRNAs such as the endogenous miRNA or exogenous small interfering RNA (siRNA) assemble with the Argonaute (Ago) protein to form an RNA-protein complex (RISC) central to RNA interference (RNAi) mechanisms[74]. RNAi has been shown to perform gene silencing both on the translational level (TGS) targeting histones or on the post-translational level (PTGS), targeting mRNAs[75]. Specific miRNAs facilitate PTGS in T cell exhaustion: miR-31 enforces a sustained expression of type Ⅰ interferon by antagonizing mRNA Ppp6c which is a negative regulator of interferon signaling, thereby increasing PD-1 surface expression on T cells[76]; miR-155 promotes the expansion of TEX subset through inhibiting AP-1 family TF FOS-like antigen 2 (FOSL2)[77]; further, miR-29a ameliorates T cell exhaustion by inhibiting translational circuits including inflammatory and TCR signaling, as well as ribosomal biogenesis[78]. Apart from small ncRNAs and lncRNAs, circular RNAs (circRNAs) represent another class of ncRNAs capable of post-translational gene regulation[79,80], through modulating the alternative splicing of pre-mRNAs or “sponging” certain families of miRNAs. circRNAs including circHMGB2, circ_0020710, and circTRPS1 have been identified as mediators of T cell exhaustion via respective sponging of miR-181a-5p, miR-370-3p, and miR-141-3p, leading to TEX biology[81-88] (Table 1).
Similar to the covalent modifications of histones and DNA, RNA modifications such as N6-methyladenosine (m6A), N1-methyladenosine (m1A), pseudouridine (Ψ) and adenosine-to-inosine (A-to-I) editing have regulatory roles in immune and cancer cell biology, as excellently reviewed in these articles[89,90]. T cell activation is accompanied by the upregulation of tRNA methyltransferase 6 (TRMT6), which modifies a specific subset of early-expressed transfer RNAs (tRNAs) to enhance translation efficiency and synthesis of MYC and other functional proteins that promote T cell activation and proliferation[91].
Strategies for targeting ncRNAs include direct oligonucleotide-based inhibitors and miRNA mimics[92]. Antisense oligonucleotides (ASOs) can redirect splicing by binding intronic regulatory sequences, while also targeting expanded repetitive sequences in diseases like myotonic dystrophy[93]. lncRNAs present challenges for small molecule targeting due to poor conservation and unknown mechanisms, however they can be targeted by ASOs and RNAi[94]. Recent advances demonstrate targeting miRNA precursors, including a neomycinnucleobase-amino acid conjugate inhibiting pre-miR-21 processing[95]. Likewise, a ribonuclease targeting chimera (RIBOTAC) recruiting RNase L achieved selective degradation of pre-miR-21, inhibiting breast cancer metastasis in mice[96]. Conjugating the RNA-binding drug dovitinib to this RIBOTAC scaffold enhanced inherent RNA-targeting activity while decreasing protein target effects[97]. Overall, these oligonucleotide-centered techniques and conjugates demonstrate potential for modulating regulatory ncRNAs.
Taken together, the establishment and maintenance of an epigenetic landscape that define the cellular state and identity of exhausted CD8+ T cells are enforced by specialized epigenetic regulators such as writers, erasers and readers of PTMs, DNMTs, chromatin remodelers, heterochromatin-associated complexes as well as ncRNAs. Fueled by technological advancements in single-cell transcriptomics, clonotyping, and epigenomics, further discoveries regarding the role of epigenetics in the diverse array of T cell states and subtypes hold great potential for the development of epitherapies aimed at preventing or reversing T cell exhaustion.
Epigenetic regulation of T cell exhaustion drivers
Less

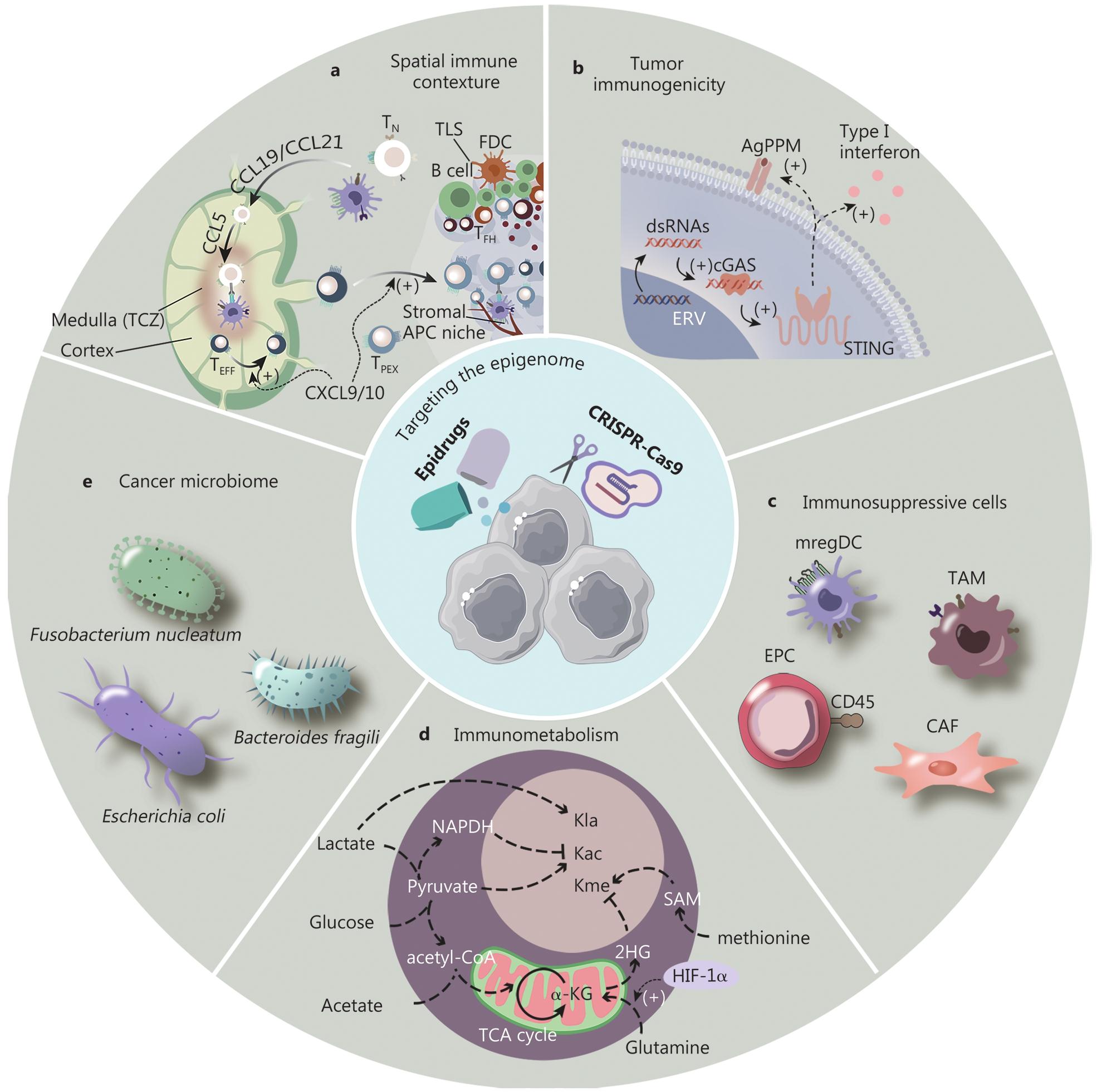

Cancer has been increasingly recognized as a systemic disease with global immune ramifications[28,98]. In tumor-burdened host, extensive reorganization of the “immune macroenvironment” is observed, with a peripheral expansion of immunosuppressive cell types such as myeloid-derived suppressor cells (MDSCs), tolerogenic dendritic cells (DCs) and Treg cells[29,99,100]. This further leads to intratumoral accumulation of immunosuppressive cells in the TIME, exacerbating the TIL exhaustion and conferring resistance to T cell-based immunotherapies[101].
Moreover, tumor-induced perturbations in TdLNDCs could hamper cross-presentation of tumor antigen and CD28 co-stimulation of T cells[102]. This has profound implications for ICB therapies, as the systemic nature of ICI-elicited anticancer response has been unveiled by mass spectrometry-based profiling of global immune dynamics[103,104]. The critical interaction of PD-1+ TSTs and PD-L1+CD103+cDC1 in the TdLNs is both a mediator and indicator of ICB efficacy[17], and the enhancement of TdLN-T cell priming with CD40 agonist also enhances ICB-driven de novo TSTs response in pre-clinical studies and clinical trials[105]. Therefore, the simultaneous reversal of tumor-driven systemic immune perturbations is critical to unleashing ICI-induced anticancer immunity. This section will delve into how epitherapies might address this need, with a summary on the epigenetic regulation of systemic immune macroenvironment and the spatial coordination of antitumor immunity between TIME and TdLNs. Further, we summarize other factors contributing to TIL exhaustion, from dampened tumor immunogenicity to immunosuppressive cells in the systemic immune environment and the TIME, and consider the role of epigenetic reprogramming in conferring the effects of immunometabolism and microbiome on anticancer immunity (Fig. 3).
Epigenetic modulation of the immune macro-environment
Chemokines
Stimulator of interferon genes (STING) upregulation in tumor APCs triggers chemokine expression, notably C-X-C motif chemokine ligand 9 (CXCL9) and CXCL10 by DCs, and CXCL10 and CXCL11 by tumor-associated macrophages (TAMs), folstering intratumoral T cell trafficking[106,107]. Chemokines orchestrates immune cell migration and localization in tissues. In the cancerimmunity cycle, the C–C motif chemokine receptor 7 (CCR7)-CCL19/CCL21 axis governs the entry of cDC1 and TN into the TdLN, while the C-X-C motif chemokine receptor 3 (CXCR3)-CXCL9/CXCL10 axis regulates the egress of T helper 1 (Th1) cells and CD8+ TSTs from the TdLN into the TIME. The Th1-type chemokines CXCL9/CXCL10 can be silenced by DNMT and EZH2 via increased methylation at the promoter region[32].
This silencing leads to T cell exclusion and immune evasion, echoing similar findings[108,109]. Moreover, other subunits of the polycomb complex apart from EZH2 [i.e., suz12 polycomb repressive complex 2 subunit (SUZ12), and embryonic ectoderm development (EED)] are also inversely associated with Th1-type chemokines and patient survival in colon cancer[110], and similarly HDAC in lung adenocarcinoma[111]. The recruitment of CD8+ TSTs can be further mediated by the CCR5-CCL5 axis, which can be increased by sequential use of DNMTi and HDACi which result in MYC depletion[112]. As MYC is a key TF regulating early T cell exhaustion, its inhibition improves T cell trafficking into the TIME and augment tumor immunogenicity by promoting endogenous retroviruse (ERV) transcription[113]. In parallel, circMET and circ_0020710 contribute to T cell exhaustion by upregulating CXCL10 and CXCL12 respectively via sponging tumor suppressive miRNAs[82,97]. Therefore, targeting regulatory circRNAs along with modulation of MYC hold promise for relieving T cell exhaustion by tuning chemokine-mediated cell trafficking and immunosuppression.
Immune contexture
The “immune contexture” within tumors is characterized by the chemokine milieu which regulates the phenotype and function of immune cells by dictating their localization and cellular communications in the TIME[114]. Advances in spatial transcriptomics and imaging technologies have highlighted the dynamic interplay of immune cells in the tumor setting[115,116]. Chemokines have emerged as important cues for the establishment of intratumoral immune niches and TLSs, which contribute to the housing of stem-like TCF1+ TSTs and the recruitment of functional TSTs. In particular, a group of CXCL13+CD8+ T cell subset could initiate TLS formation through CXCL13-dependent recruitment of B cells and follicular helper T cells (TFH). This subset is further correlated with effective responses to PD-1/PD-L1 ICB therapies[117]. The expression of CXCL13 can also be epigenetically tuned by the combined application of the HDACi entinostat with tumor-targeted delivery of interleukin-12 (IL-12), which achieved an elevated level of CXCL13 and CXCL9. This strategy succeeded in overcoming resistance to PD-1/PD-L1 ICB in tumors harboring MHC-Ⅰ and interferon γ (IFN-γ) deficiencies[118]. Nonetheless, the role of epigenetic mechanism in the formation of TLS is less well understood, arguing for the design of precise single-cell transcriptomic and epigenomic studies to elucidate TLS biology[119].
In addition to TLS, other immune niches are observed in both tumors and TdLNs. In tumor tissue, perivascular niches[120] and intra-epithelial niches[121] have been identified, sharing the common characteristic of a clustering of stem-like or effector TSTs with APCs. Such localization of TSTs in close proximity with APCs benefits T cell response to ICB and is regulated by the CCR5-CCL5 axis, which recruits naïve CD8+ TSTs to tumor antigen-loading cDC1s. Epigenetic regulation of the CCR5-CCL5 axis is mediated by ATP-dependent chromatin remodeling complexes, including SWI/SNF and HATs such as p300 and CBP[101]. Furthermore, the CXCR3-CXCL9/CXCL10 axis regulates the spatial partitioning of CCR7+ stem-like T cells vs. CXCR3+ TEFF cells. In head and neck tumor tissues, CCR7+TCF1+ stem-like TSTs preferentially occupy stomal areas, while the CXCR3+PD1+ intermediate TST subsets with effector function and dysfunctional TSTs infiltrate the tumor parenchyma[122]. Conversely, in draining lymph nodes (dLNs) CXCR3+ TEFF cells chemotaxis to the peripheral cortex while CCR7+ stem-like TSTs home to the T cell zone (TCZ) in dLN medulla[123]. Therefore, the interactions between chemokines and their cognate receptors coordinate effective systemic antitumor immunity at the spatial and cellular level, presenting therapeutic targets for epigenetic interventions.
Epigenetic modulation of tumor immunogenicity
While PD-1/PD-L1 inhibitors do not exclusively target the TIME, their reactivation effects on resident TSTs occur alongside the emergence of TST clones. Clinically, the dual contribution of TSTs is unique per individual[43], explaining the variability in ICI treatment responses. For patients with severe intratumoral T cell exhaustion, ICI therapy likely depends on systemic immune responses for tumor elimination[27]. To initiate a systemic antitumor response, a cancer-immunity cycle is essential: tumor APCs, such as cDC1 cells, must present tumor neoantigens in the dLNs, where TST priming and activation occur[28]. Activated TSTs then infiltrate the TIME, leading to tumor destruction by effective TILs. Epigenetic modulation dynamically regulates this cycle, offering chances for EMCs to enhance immune response and tumor targeting in combination with various therapies. Mechanistic studies suggest that DNMTi, EZH2i, and HDACi upregulate tumor antigens and antigen presentation pathways[124,125], enhancing the synergy between ICIs, cancer vaccines[126], and CAR T/NK cells[127,128]. Furthermore, tumor cell surface receptor expression, like elevated PD-L1 and reduced Fas—which modulate immune suppression and resistance to T cell cytotoxicity—is epigenetically alterable[129]. Specific circular RNAs in various cancers are known to upregulate PD-L1, thereby reducing tumor immunogenicity[93-96]. Intracellularly, the cyclic guanosine monophosphate-adenosine monophosphate (cGAS)-STING signaling pathway is repressed via promoter hypermethylation of the cGAS and STING genes, and can be rescued by KDM5i and AZA, leading to pro-inflammatory cytokine production, enhanced antigen presentation and tumor immunogenicity[130-132].
Epigenetic modulation of immunosuppressive cells
In addition to chronic stimulation of TCR signaling, stems from the immunosuppression within the TIME, enforced by cell populations such as TAMs, MDSCs, regulatory DCs, Treg cells, as well as cancer-associated fibroblasts (CAFs) and erythroid progenitor cells (EPCs). These cells diminish T cell function and confer resistance to ICIs, characterized by high surface expression of inhibitory molecules, including PD-L1 for myeloid cells (i.e., TAMs, MDSCs) and CTLA-4 for Treg cells, along with suppressive cytokines including IL-10 and transforming growth factor-beta (TGF-β)[133,134]. Epigenetic mechanisms are key in determining the differentiation and activity of these immunosuppressive groups.
Myeloid suppressive cells: MDSCs, TAMs, and mature DC enriched in immunoregulatory molecules (mregDCs)
The cyclooxygenase-2 (COX2)/microsomal prostaglandin E synthase-1 (mPGES1)/prostaglandin E2 (PGE2) signaling pathway influences PD-L1 expression via DNMT3A[135]. Moreover, signal transducer and activator of transcription (STAT)-dependent expression of the enzymes arginase 1 and inducible nitric oxide synthase (iNOS) as MDSC hallmarks can be attenuated by inhibition of BET-H3K27 acetylation[136]. Transcriptomic profiling of MDSCs indicates DNMT and polycomb gene silencing machineries contribute to immunosuppression[137]. However, the EZH2i GSK126 drives MDSC differentiation in the TIME and resistance to EZH2i treatment in lymphoma, highlighting the need for developing targeted EZH2i, potentially conjugated with cell-specific antibodies[138]. Obesity-related cancer study showed that adipose tissue macrophages, central to obesity-linked inflammation and tumor progression, are reprogrammed in an obesity-associated milieu through altered metabolite exchange, cytokine production, extracellular vesicle content, and gut microbiota metabolites[139]. In TAMs, M1/M2 polarization is regulated by a lineage-determining TF PU.1 which displaces nucleosomes to establish the activating H3K4me1 marks on DNA sequences that guide macrophage polarization[140].
Another recently characterized group of mregDCs, along with immature DCs in the TIME, contribute to immune tolerance and TIL exhaustion[141,142]. This group of CCR7+PD-L1+ DCs exhibit dual functionality: they are immunosuppressive through PD-L1 expression and pro-inflammatory via IL-12 secretion, although IL-4 signaling can inhibit the latter mechanism. Notably, blocking IL-4 augments IL-12 production by mregDCs and enlarges the TIL repertoire[141]. The impact of IL-4 on DCs is mediated by TET-dependent DNA demethylation. Consequently, TET enzymes, together with SETD1A—an H3K4 methylation “writer”—are regulators of DC differentiation. The TF early growth response 2 (EGR2) could recruit and interact with TET, triggering the differentiation of monocyte-derived DCs[143]. Interestingly, time-course data on DNA methylation and gene expression patterns in DCs in response to infection suggested that gene expression level changes prior to the demethylation programs[144]. This suggests that DNA demethylation may not be imperative to establishing DC-specific transcriptional programs; instead, the role of TF binding to cis-acting elements might be more predominant.
Treg cells
The ratio between PD-1+ TEFF and CD4+CD25+ Treg cells could predict clinical efficacy of ICB therapy[145], with Treg cells expanded upon PD-1 inhibitor treatment[146]. Similar to TEX subsets, the development and function of Treg cells are programmed by key TF forkhead box P3 (FOXP3) with sustained expression through the demethylation of Foxp3 locus[147]. Accessibility of the Treg cell-specific demethylation region (TSDR) can be abolished during CRISPR-based Foxp3 silencing, indicating the essential role of Foxp3 in regulating TSDR genes[148,149]. In an in vitro setup, 5-azacytidine mediates the demethylation of TSDR and upregulates FOXP3 expression, abolishing the immunosuppressive function of Treg cells, even resulting in an increase of IL-17+FOXP3+ “effector” Treg cells[150]. However, contrasting results are reported elsewhere[151] and the net effect of 5-azacytidine on Treg requires more research, considering the important role of 5-azacytidine in the treatment of hematological malignancies and autoimmune disorders[152,153]. Likewise, the overall activating effect of several HDACis (e.g., inhibitors for HDAC6/9/11 and SIRT1) on Treg is documented[154,155], while HDAC5 alone may inhibit the suppressive functions of Treg cells[156]. These studies demonstrate the need to develop isoform-specific HDACis for clinical application. CBP/p300, another set of transcriptional co-activators, are known to drive the differentiation of regulatory T cells through both transcriptional and nontranscriptional mechanisms, underscoring the complexity of TREG regulation[157]. The BET-H3K27 acetylation transcriptional activating pathway also contributes to stable expression of FOXP3, and its abrogation suppresses TREG functions[158]. In contrast, the chromatin-modifying enzyme EZH2, critical for the maintenance of TREG identity post-activation, presents a different mechanism of action, with its inhibition leading to a reprogramming of intratumoral TREG cells and enhanced cancer immunity[159,160]. Notably, unlike its pro-tumor effects on MDSCs, EZH2i disrupt TREG biology and synergizes with anti-CTLA4 ICB in murine models[161].
CAFs
In the TIME, apart from immune constituents, CAFs constitute another class of immunosuppressive agents. Originating from normal fibroblasts and mesenchymal precursors such as pericytes and adipocytes, CAFs emerge in response to oncogenic signals within TIME. Similar to TEX subsets, the heterogeneity and plasticity in CAF cell types have been revealed by single-cell RNA-sequencing (scRNA-seq), under the transcriptional regulation by CAF-associated TFs such as STAT3. A combined array analysis of DNA methylation and gene expression in human mesenchymal stem cells (MSCs) pre- and post-tumor co-culture reveals that tumor-induced methylation of STAT3 are pivotal for CAF activation and tumor growth, an effect reversible by 5-azacytidine[162]. Moreover, a STAT3-dependent reprogramming of normal fibroblast into invasive CAFs is driven by leukemia inducible factor (LIF)-induced DNA methylation. In parallel, LIF-induced histone acetylation upregulates DNMT3b-dependent DNA methylation, reinforcing STAT3 signaling[163]. HDAC6-mediated deacetylation also upregulates STAT3 and PGE2/COX2, which worsens the immunosuppressive effects of CAFs[164]. Furthermore, overexpressing high mobility group at-hook 2 (Hmga2) in prostate stromal cells induces CAF formation within the TIME[165]. Taken together, these findings underscore the intricate network of epigenetic modifications, encompassing DNA methylation, PTMs, and chromatin remodeling, that govern CAF development and modulate the TIME. Intriguingly, it has been shown that increased lactate production within the TIME has been linked to elevated α-KG levels in MSCs, initiating their transformation into CAFs[166], highlighting an epigenetic link between metabolic shifts and anticancer immunity.
EPCs
EPCs, as immature erythroid progenitors and precursors of red blood cells, proliferate within the immune macroenvironment including dLNs and the spleen, and in the TIME[167]. By generating suppressive cytokines like TGF-β and IL-10, alongside reactive oxygen species (ROS) and PD-L1 expression, EPCs attenuate T cell activity[168-170]. These suppressive pathways parallel those utilized by MDSCs, suggesting that they may be similarly amenable to epigenetic interventions. EPCs are further segregated into CD45+ and CD45− subsets; the CD45+ EPCs, marking an earlier erythroid differentiation stage, comprise over 40% of the EPC population in tumor-bearing mice and are chiefly accountable for immunosuppression[169,171]. Thus, enhancing erythropoiesis could potentially alleviate T cell suppression in both the macroenvironment and the TIME.
Erythroid differentiation arrest and the resultant EPC accumulation might stem from epigenetic misregulation. Erythroblasts exhibit stage-specific phenotypes, transcriptomes, and epigenetic profiles[172,173]. EPC maturation is marked by TET-mediated demethylation and chromatin restructuring, which facilitate enhancer-promoter interactions[174,175]. In one study, VPA was found to drive the differentiation of stem-like CD34+ cord blood cells by increasing H3 acetylation of promoters for erythroid-specific genes[176]. Additionally, Dnmt1 and Ezh2 are identified among genes associated with erythropoiesis[176], and it’s been shown that EZH2-mediated epigenetic silencing of the pro-apoptotic Bim contributes to erythropoiesis[177]. However, in the terminal stage of erythropoiesis, the accumulation of repressive histone marks (e.g., H3K9me3, H3K27me3, and H4K20me1) mediated by LSD1[178] and Setd8[179] as well as the decrease of activating histone mark (e.g., H3K27ac) mediated by HDAC2[180] and HDAC5[181] are involved in the terminal maturation of human erythroblasts. These insights underline the potential of epigenetic modulation in erythropoiesis. Approaches to epigenetic therapy should be tailored, with treatment regimens timed to target epigenetic dynamics active at specific erythropoiesis stages, employing agents like selective HDACi, EZH2i, and DNMTi for early-stage intervention.
Epigenetic reprogramming and immunometabolism
Epigenetic reprogramming significantly influences T cell immunometabolism, a key determinant of their functionality within the TIME. Growing evidence has shown that exhausted T cells exhibit metabolic insufficiency with suppressed mitochondrial respiration and glycolysis[182,183]. Both inefficient nutrients (e.g., glucose and methionine) and detrimental metabolites (e.g., lactate and glutamine) may contribute to the commitment to the exhaustion phenotype by altering the epigenetic mechanisms regulating T cell development[184]. Specifically, glucose scarcity impedes glycolytic flux, leading to a shortfall in acetyl coenzyme A (acetyl-CoA), which is the acetyl source for histone acetylation. This deficiency is evidenced by reduced H3K9ac at the Ifng locus in T cells, correlating with diminished IFN-γ production, whereas acetate supplementation restores IFN-γ production even in glucose-restricted conditions[185]. Similarly, elevated extracellular lactate level can disrupt cellular redox balance[186], as indicated by an increased NADH/NAD+ ratio, which in turn can stifle T cell activity by inhibiting aerobic glycolysis and the function of the NAD+-dependent HDAC, SIRT1—a key enzyme supporting the development of T cells capable of enhanced tumor control[187]. Nonetheless, the role of SIRT1 within the TIME is complex, as it also influences the function of Treg cells and MDSCs[188].
Methylation also has an essential role in conferring the effects of immunometabolism. The activity of TET and JMJD3 is dependent on α-KG, a product of glutamine catabolism, and α-KG-dependent H3K27 demethylation is involved in the dysfunction of TSTs[189]. In addition, the hypoxia-inducible factor 1α (HIF-1α)-dependent accumulation of the α-KG-derived oncometabolite 2HG antagonizes the α-KG-dependent TET functions and leads to global histone and DNA methylation in adoptively transferred CD8+ T cells, promoting their in vivo persistence[190]. Conversely, increased methionine uptake leads to the accumulation of SAM as the methyl donor for all methylation programs, including histones and nucleic acids. The downregulation of SAM is associated with loss of the H3K79me2 mark at STAT5 promoter and impaired T cell immunity[191]. Likewise, methionine restriction resulted in reduced SAM level and demethylation of H3K4me3, thereby disrupting the differentiation of inflammatory Th17 cells[192]. Furthermore, increased methionine uptake permits histone and nucleic methylation programs, including the methylation of the m6A nucleotide in RNA mediated by the methyltransferase like-3 (METTL3) methyltransferase. Such methylation schemes participate in the regulation of T-cell differentiation programs and the TIME[193]. Interestingly, high level of extracellular potassium, despite suppressing TEFF programs by restricting nutrient uptake, induces histone deacetylation at the exhaustion loci and promote T cell stemness in the TIME[194]. Therefore, epigenetic mechanisms including PTMs and nucleic acid methylation underpin the modulatory effects of cell metabolism on the phenotypes and function of TIME-TSTs. Future research is needed to elucidate possible epigenetic regulation on certain exhaustion-related immunometabolic pathways such as mitochondrial stress, endoplasmic reticulum stress, and hypoxia[195,196].
Epigenetic reprogramming and cancer microbiome
The human microbiome has been acknowledged as a hallmark of cancer[197], plays a pivotal role in carcinogenesis, therapeutic responses, and antitumor immunity[198]. The gut and intratumoral microbiota specific to tumor types and individuals may tailor individual’s response to ICIs, highlighting the microbiota-mediated modulation of antitumor immunity. Evidence suggests a correlation between microbiota composition and positive responses to ICIs, with unique microbial signatures differentiating responders from non-responders in ICB treatments, as revealed by integrated 16S rRNA and metagenomic shotgun sequencing[199]. Mechanistically, the effector function of CD8+ TSTs and DC activation is stimulated by oral administration of Bifidobacterium alone or in combination with anti-PD-L1[200]. Similarly, a consortium of 11 strains of bacteria from healthy human gut was capable of inducing IFN-γ production in CD8+ T cells and MHC-I expression in CD103+ DCs[201]. A relative abundance of Akkermansia muciniphila (A. muciniphila) was associated with improved ICI efficacy in the patients of non-small-cell lung cancer (NSCLC), renal cell carcinoma, and urothelial carcinoma[202]. Correspondingly germ-free (GF) mice receiving fecal microbiota transplant (FMT) from non-responder FMT displayed resistance to ICB and was reversed by supplementation of A. muciniphila which increased CXCR3+CD4+ T cells and decreased Treg cells in the TIME[202]. Additional immune-activating mechanisms for microbiota include activation of pro-inflammatory bioactive molecules [e.g., Toll-like receptors (TLRs)[203] and STING], facilitating the formation of intratumoral TLS[204], and increasing tumor immunogenicity through coating tumor cells with microbial peptides[205].
However, microbial-TLR interactions can also encourage the infiltration of immunosuppressive cells in pancreatic cancer (PC), enhancing tumor immunosuppression. Microbiome dysbiosis could drive cancer progression through epigenetic modulation[206]. Genome-wide bisulfite sequencing of GF and conventionally raised mice revealed that exposure to microbiota-induced TET2/3-dependent aberrant methylation programs in response to acute inflammation, underlying the carcinogenesis of colon tumor in colitis. Consequently, genetic depletion of TET2/3 restores intestinal homeostasis[207]. In addition, oncometabolites produced by microbes are critical to conferring the epigenetic-modifying effects of microbiota. For instance, colonization of butyrate-producing bacteria strains leads to elevated histone acetylation levels in colorectal adenocarcinomas. In immune cells, microbe-derived short-chain fatty acids (SCFAs) butyrate and propionate could potentiate the generation of Treg cells by inhibiting HDAC activity[208]. Nonetheless, the direct effects of microbiota on modifying the epigenetic landscape of T cell exhaustion are less well documented. This gap in understanding may explain the challenges in using microbiota composition as reliable ICI response biomarkers, further complicated by the variability of the human microbiome[209].
Insights from clinical trials combining epitherapies and immunotherapies
Less
As T cell exhaustion is increasingly recognized as both a cause and consequence of high tumor burden[210], the concurrent use of epigenetic modulators and tumor burden-reducing immunotherapies may potentiate therapeutic synergy. While DNMTi AZA and DAC upregulate tumor antigens and antigen presentation components[57,125], HDACi vorinostat and romidepsin promote immunostimulation of TAMs[140]. Additionally, the EZH2i tazemetostat is being evaluated for enhancing T cell responses by curtailing Treg cells[161]. Emerging BET inhibitors may also mitigate exhaustion by downregulating immunosuppressive pathways in MDSCs[136]. Combinational epi-immunotherapy approach could relieve tumor-imposed immunosuppression and reinvigorate endogenous antitumor immunity. Carefully designed clinical trials will be critical to validate and optimize synergistic combinations tailored to specific cancer types and immune contexts.
Since 2002, several small molecule EMCs alone or in combination have been approved by the FDA for the treatment of various hematological malignancies such as AML, MDS, and T-cell lymphomas[23]. However, their combinational schemes with immunotherapies have failed on average to demonstrate improved clinical efficacies in the setting of hematological cancers[211,212]. Nonetheless, their performances in solid tumors are more promising and have been investigated in numerous phase Ⅱ and Ⅰ/Ⅱ trials[213-215]. This disparity could be due to the following reasons. First, intrinsic and extrinsic mechanisms of resistance in T-cell and non-T-cell compartments contribute to a diminished response to ICIs in patients with leukemia[216]. Second, leukemic blasts could interact with circulating T cells through direct contact and bystander effects[216]. In this way, leukemic blasts rather than localized solid tumor cells are more proximate to circulating TSTs, thereby promoting exhaustion and senescence. Given the importance of circulating TSTs in the replacement of intratumoral TSTs and ICI response, this suppressive effect could particularly undermine the benefits of combination ICI therapies.
The integration of epigenetic therapy with adoptive cell modalities, such as CAR T cells, encountered a setback with the cessation of a phase Ⅰ trial combining azacytidine and NKR-2 (NCT03612739) at the behest of the sponsor. However, clustered regularly interspaced short palindromic repeats and clustered regularly interspaced short palindromic repeats (CRISPR)-associated protein 9 (CRISPR-Cas9) genome editing has facilitated direct modifications to the T cell epigenome, enabling the deletion of epigenetic regulators like TET2 or the insertion of TFs such as c-Jun and basic leucine zipper ATF-Like transcription factor (BATF)[217–219]. A critical role of exhaustion for CAR T cell persistence has been established in CAR T cell therapy[220–222]. Study suggests that when challenged by the same immunosuppressive TIME, both adoptive CAR and endogenous CD8+ T cells display similar patterns of exhaustion with comparable transcriptional and epigenetic rewiring[68]. Notably, CAR T cells display an increased propensity to exhaustion, due to tonic signaling from the synthetic TCR even in the absence of antigen. In line, a transient cessation of such signaling could phenotypically revive exhausted CAR T cells through EZH2-dependent epigenetic remodeling[222]. This reflects the need for applying a molecular “brake” in the design of CARs, mimicking how the low expression of PD-1 helps to maintain TCF-1+ TPEX identity[7] and how TOX promotes intratumoral persistence of TSTs[6]. An alternative approach could be to target the specific epigenetic landscape of exhaustion through either direct epigenetic therapies or modifications in CAR T cell engineering to bolster function before reinfusion[223]. Additionally, the application of other immunostimulatory agents, such as oncolytic viruses (OVs) and immunogenic chemotherapy regimens, has been explored alongside epigenetic therapies, as detailed in recent reviews[224, 225].
Conclusions and perspectives
Less
The exhaustion of tumor-reactive CD8+ TILs confers resistance to cancer immunotherapies, underscoring the need to elucidate the developmental cues driving T cell exhaustion for therapeutic targeting. Elements in the immune macroenvironment and the TIME are recognized as mediators of ICB-induced T cell rejuvenation, with the discovery of ICB-responding TST subsets in both peripheral and intratumoral immune niches[27,28]. Among them, the TdLN-TTSM subset is being recognized as the bona fide responder to ICB[27], aligning with clonal replacement model[40,48] and dual origins for ICB-induced TST expansion within the TIME[48].
Epigenetic regulators orchestrate programs that modulate chromatin dynamics, acting as intrinsic switches for cellular fate and functional state at the molecular level. DNMTs and TETs control DNA methylation, whereas PTM-associated writers, erasers, and readers alter chromatin structure and accessibility[54]. ncRNAs, modulated by RNA modifications like m6A and m5C, regulate gene expression and interact with epigenetic modifiers to effect gene silencing[84]. Chromatin remodelers manipulate 3D interactions between promoters and distal regulatory elements[49], and metabolites serve as cofactors or substrates for epigenetic enzymes, conferring immunometabolic effects[187]. The intricate synergy between TFs and epigenetic machinery intrinsically shapes T cell fates and responds to environmental cues sustaining T cell functionality. Thus, a strategy targeting intrinsic and extrinsic factors of T cell exhaustion may enhance ICB-induced T cell revitalization.

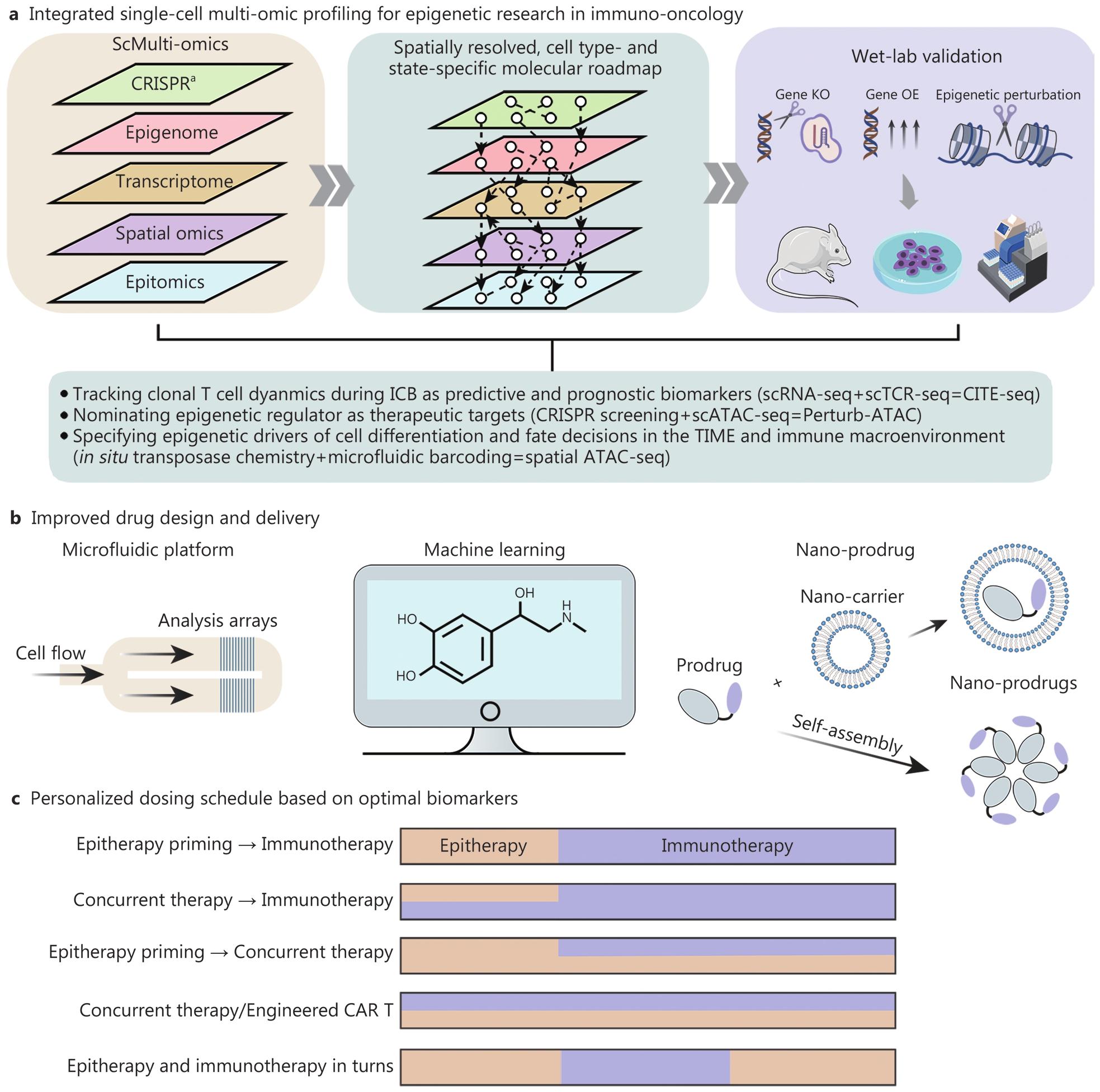

However, the clinical performance of such combinational strategy in hematological malignancies is so far insufficient to warrant further design of phase Ⅲ trials, while in solid tumors a number of phase Ⅱ trials are ongoing. Addressing specific challenges is paramount before these combinational treatments can meet the demands posed by current immunotherapies (Fig. 4).
First, limited spatiotemporal resolution in tracking heterogeneous T cell epigenome dynamics during immunotherapy constrains our understanding of their cell fate decisions. However, recent advancements such as spatial ATAC-seq have begun to address these limitations[226-230]. Studies that analyze the spatial organization of diverse CD8+ T cell subtypes with unique epigenomic landscapes could significantly enhance our comprehension of the orchestration and establishment of systemic antitumor immunity at both cellular and tissue levels. Single-cell sequencing technologies have provided deep insights into disease pathogenesis, paving the way for accurate diagnostic and therapeutic approaches[226]. Techniques like single-cell cleavage under targets and tagmentation (scCUT&Tag) and the related spatial-CUT&Tag enable high-resolution, genome-wide mapping of chromatin modifications and TFs, unraveling potential epigenetic drivers of immune cell differentiation and tumorigenesis[227-229]. Spatial-CUT&Tag has been successfully benchmarked in the profiling of spatially resolved (i.e., with spatial coordinates) chromatin accessibility for tissue sections including mouse embryos, human central nervous systems, and tonsils[230]. The selection of these tissues highlights the power of spatial epigenomics in deciphering developmental biologies, encompassing organogenesis, immunogenesis and tumorigenesis[230]. Given that epigenetic mechanisms are intrinsic regulators for cell identity, cell state, and fate decisions, insights gained from spatial epigenomic mapping would help us elucidate mechanisms underlying the mobilization of antitumor immunity by immunotherapies at both molecular and cellular level, in both the TIME (harboring TLSs) and TdLNs.
Second, the profound heterogeneity of the TIME across tumor types poses challenges to the identification of overriding regulatory mechanisms for therapeutic targeting. Within each tumor niche, T cells are influenced by a milieu of diverse immunosuppressive factors with overlapping and distinct effects. Though epigenetic modulators may reinvigorate T cell reactivity, their pleiotropic impacts on the TIME remain poorly defined. This is exemplified by the debated net effect of 5-azacytidine on Treg cells[150,151], where the same epigenetic drug could unpredictably augment certain immunosuppressive mediators while alleviating others. Furthermore, significant knowledge gaps exist regarding T cell extrinsic cues, exhaustion phenotypes, and their interplay. Therefore, deciphering precise immunosuppressive mechanisms in a customized, patient- and tumor-specific manner is integral before rational application of epigenetic or other immunomodulators. The characterization of predictive biomarkers that allows swift identification of TSTs from bystander T cells[231] ex vivo would benefit such studies and their clinical translation. These markers should simultaneously correlate with antitumor immunity and not themselves targeted by ICBs (hence excludes exhaustion-specific markers), so as to reflect the temporal dynamics of TST response throughout ICB treatment. Liu et al.[48] recently identified CXCL13 as biomarker on both treatment-naïve and treatment-induced TSTs, signifying robust T cell response to ICB. These CXCL13+ TSTs can be further divided into one functional KI67highSTMN1high subset, as well as three dysfunctional subsets including two TPEX (IL7R+HAVCR2−/GZMK+HAVCR2−) and one TEX (HAVCR2+TOX+). Comprehensive integration of highdimensional single-cell profiling with multiplexed spatial imaging and epigenomic assays could illuminate cell-cell interactions driving T cell dysfunction within the TIME topography[232]. Unraveling these interactions promises to reveal prognostic biomarkers and avenues for enhancing immunotherapy on a mechanistic level.
Finally, although FDA-approved small molecule inhibitors of DNMT, HDAC, and EZH2 are available clinically, their extensive application is limited by poor bioavailability, specificity, and systemic toxicity. Promising avenues for addressing these challenges include advanced drug development platforms that integrate microfluidics and machine learning[233,234]. These platforms could improve drug specificity and reduce toxicity, enhancing the efficacy of epigenetic drugs. Another promising strategy for enhancing the bioavailability of small molecule compounds is the use of prodrug-based nano-delivery systems. These systems can improve drug solubility, stability, and circulation time, resulting in increased drug delivery to the target site and reduced off-target effects[235,236]. Well-established predictive markers for therapeutic response and commercially available high-throughput epigenome mapping would also assist the sensitivity and toxicity testing of epidrugs and tailoring of dosing schedule on a personalized basis.
Abbreviations
Less
5-CHQ: 5-Carboxy-8-hydroxyquinoline; 5hmC: 5-Hydroxymethyl-cytosine; ACR: Accessible chromatin region; AgPPM: Antigen processing and presentation; α-KG: α-Ketoglutarate; APC: Antigen presenting cells; ARG1: Arginase 1; ATPase: Adenosine triphosphatase; BAF: Brahma-associated factor; BCa: Bladder cancer; BET: Bromodomain and extra-terminal domain; BRD: Bromodomain-containing protein; CAFs: Cancer-associated fibroblasts; CCL19: C-C motif chemokine ligand 19; CCR7: C-C motif chemokine receptor 7; CITE-Seq: Cellular indexing of transcriptomes and epitopes by sequencing; circRNAs: Circular RNAs; COX2: Cyclooxygenase-2; COMPASS: Complex proteins associated with Set1; cGAS: Cyclic guanosine monophosphate-adenosine monophosphate synthase; CMO1: Corticosterone methyl oxidase-like protein 1; CRBN128: Cereblon; CRISPR: Clustered regularly interspaced short palindromic repeats; CTA: Cancer/testis antigen; CXCL10: C-X-C motif chemokine ligand 10; dLNs: Draining lymph nodes; DOT1L: Disruptor of telomeric silencing 1-like; DNMT: DNA methyltransferases; EED: Embryonic ectoderm development; EGFR: Epidermal growth factor receptor; EPCs: Erythroid progenitor cells; ETS: E26 transformation-specific; EBAG9: Estrogen receptor-binding fragment-associated antigen 9; ERV: Endogenous retrovirus; EZH1: Enhancer of zeste homolog 1; EZH2: Enhancer of zeste homolog 2; FDA: Food and Drug Administration; FDC: Follicular dendritic cell; FOXP3: Forkhead box P3; GC: Gastric cancer; GF: Germ-free; GLS1: Glutaminase 1; GNAT: General control non-repressed 5 protein-related N-acetyltransferases; HKMTs: Histone lysine methyltransferases; HAT: Histone acetyltransferase; HCC: Hepatocellular carcinoma; Hmga2: High mobility group at-hook 2; HDACs: Histone deacetylases; HER2: Human epidermal growth factor receptor 2; HiChIP: Hi-C chromatin immunoprecipitation; HP1α: Heterochromatin protein 1α; ICB: Immune checkpoint blockade; ICIs: Immune checkpoint inhibitors; IDH1: Isocitrate dehydrogenase 1;IFN-γ: Interferon γ; iNOS: Inducible nitric oxide synthase; INO80: Inositol requiring 80; IRF3: Interferon regulatory factor 3; ISWI: Imitation switch; JMJD: Jumonji C domain-containing; KDMs: Lysine demethylases; LCMV: Lymphocytic choriomeningitis virus; LIF: Leukemia inducible factor; lncRNAs: Long ncRNAs; LSD: Lysine-specific demethylase; LSD1: Lysine-specific demethylase 1; MDSC: Myeloid-derived suppressor cell; METTL3: Methyltransferase like-3; MDS: Myelodysplastic syndromes; MeCP: Methyl CpG binding protein; MSC: Mesenchymal stem cell; MS: Mass spectrometry; MDB: Methyl-CpG-binding domain protein; NF-κB: Nuclear factor kappa-B; NPC: Nasopharyngeal carcinoma; ncRNAs: Non-coding RNAs; NSCLC: Nonsmall-cell lung cancer; OV: Oncolytic virus; PC: Pancreatic cancer; Perturb-seq: CRISPR-mediated genetic perturbations with singlecell RNA sequencing; PHD: Plant homeodomain; PKP3: Plakophilin 3; PRMTs: Protein arginine methyltransferases; PRC2: Polycomb repressive complex 2; PTMs: Post-translational modifications; RIG I: Retinoic acid-inducible gene I; Runx: Runt-related; SCFA: Short-chain fatty acids; scATAC-seq: Single-cell assay for transposase-accessible chromatin by sequencing; scMulti-Omics: Single-cell multi-omics; scRNA-seq: Single cell rna-sequencing; scTCR-seq: Single-cell T cell receptor sequencing; SETD2: SET domain containing 2; SETDB1: SET domain bifurcated histone lysine methyltransferase 1; SGC: Salivary gland carcinoma; SMARCA2: SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily A, member 2; SRC: Proto-oncogene tyrosine-protein kinase Src; STAT: Signal transducer and activator of transcription; STING: Stimulator of interferon genes; SUZ12: Suz12 polycomb repressive complex 2 subunit; SUV39H1: Su(Var)3–9 homolog 1; TAM: Tumour-associated macrophages; TdLN: Tumor-draining lymph node; TFs: Transcription factors; TGF-β: Transforming growth factor-beta; TIL: Tumour-infiltrating lymphocyte; TIME: Tumor immune microenvironment; TLS: Tertiary lymphoid structure; TSTs: Tumor-specific T cells; TNBC: Triple-negative breast cancer; TET: Ten-eleven translocation; UHRF1: Polycomb and ubiquitin-like with PHD and RING finger domains 1; VPA: Valproic acid.
Acknowledgements
Less
Not applicable.
Authors’ contributions
Less
ZJS and LZ provided direction and guidance throughout the preparation of this manuscript. DX drafted the manuscript and prepared the figures and tables. ZJS and LZ reviewed and revised the manuscript in great-depth. All authors read and approved the final manuscript.
Availability of data and materials
Less
Not applicable.
Declarations
Less
Ethics approval and consent to participate
Not applicable.
Consent for publication
Less
Not applicable.
Competing interests
Less
The authors declare that they have no competing interests.
Author details
Less
1State Key Laboratory of Oral and Maxillofacial Reconstruction and Regeneration, Key Laboratory of Oral Biomedicine Ministry of Education, Hubei Key Laboratory of Stomatology, School & Hospital of Stomatology, Frontier Science Center for Immunology and Metabolism, Wuhan University, Wuhan 430079, China. 2Department of Oral Maxillofacial-Head Neck Oncology, School and and Hospital of Stomatology, Wuhan University, Wuhan 430079, China.
Funding
Less
  • National Natural Science Foundation of China(82273202)
  • National Natural Science Foundation of China(82370948)
  • National Natural Science Foundation of China(82072996)
  • National Natural Science Foundation of China(82170941)
  • Fundamental Research Funds for the Central Universities(2042022dx0003)
  • Hubei Province International Science and Technology Cooperation Project(2021EHB027)
  • National Key Research and Development Program(2022YFC2504200)
