Ultrasensitive determination of mercury by solution anode glow discharge atomic emission spectrometry coupled with hydride generation

Ultrasensitive determination of mercury by solution anode glow discharge atomic emission spectrometry coupled with hydride generation

PDF

Mingli Yuan^a^,^c, Xiaoxu Peng^a, Fen Ge^a^,^c, Mingyue Zhao^a, Qing Li^a, Zheng Wang^a^,^b^,^*

Chinese Chemical Letters | 2020, 31(10) : 2814 - 2818

Less

Chinese Chemical Letters | 2020, 31(10): 2814-2818

• Communication •

Ultrasensitive determination of mercury by solution anode glow discharge atomic emission spectrometry coupled with hydride generation

Full

Mingli Yuan^a^,^c, Xiaoxu Peng^a, Fen Ge^a^,^c, Mingyue Zhao^a, Qing Li^a, Zheng Wang^a^,^b^,^*

Affiliations

^a Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China

^b Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China

^c School of Material Science and Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China

Published: 2020-10-15 doi: 10.1016/j.cclet.2020.03.055

Outline

Abstract

Less

An innovative method for the ultrasensitive detection of mercury by solution anode glow discharge atomic emission spectroscopy (SAGD-AES) coupled with hydride generation (HG) was first investigated. In this method, the mercury vapor generated by the HG was transmitted to the SAGD through the miniature hollow tungsten tube for excitation and detected by a miniaturized spectrograph. A thorough parametric evaluation of the HG and SAGD system was performed, including the type and concentration of carrier acid, He flow rate, concentrations of NaBH₄, discharge current and discharge gap. Under optimal operating conditions, the detection limit for Hg²⁺ achieved 0.03 μg/L, with a relative standard deviation of 1.1% at the Hg²⁺ concentration of 5 μg/L. Moreover, the correlation coefficient of the calibration curve was 0.9996 in the range between 0.1 and 10 μg/L. The accuracy and practicability of HG-SAGD-AES were verified by measuring GBW09101b (human hair), GBW10029 (fish), soil and rice samples. The results showed good agreement with the certified values and values from direct mercury analyzer (DMA).

Key words

Solution anode glow discharge / Hydride generation / Atomic emission spectroscopy / Mercury

Cite this Article

Mingli Yuan, Xiaoxu Peng, Fen Ge, Mingyue Zhao, Qing Li, Zheng Wang. Ultrasensitive determination of mercury by solution anode glow discharge atomic emission spectrometry coupled with hydride generation[J]. Chinese Chemical Letters, 2020 , 31 (10) : 2814 -2818 . DOI: 10.1016/j.cclet.2020.03.055

Full Text

Less

Mercury (Hg) is an extremely high toxicity element, and Hg pollution has become a global environmental problem that has caused great damage to human health [1-4]. It has been reported that long-term consumption of foods contaminated with Hg could cause various neurodegenerative diseases such as amyotrophic lateral sclerosis, Alzheimer's disease, Parkinson's disease, and even death [5, 6]. The WHO guidelines state that the health limit for Hg in drinking water is 1 μg/L [7, 8]. Therefore, it is extremely important to quantify the Hg content in food and related environmental samples due to the significant toxicity and biomagnification factors of Hg (up to 10⁶) [8].

At present, there are various large and mature instruments on the market for the determination of Hg, such as atomic absorption spectrometry (AAS), atomic fluorescence spectrometry (AFS), inductively coupled plasma atomic emission spectrometry (ICP-AES), inductively coupled plasma mass spectrometry (ICP-MS), etc. These instruments have a series of advantages such as high accuracy and multi-element analysis. However, these instruments are usually cumbersome, expensive, high power consumption, and typically used in the laboratory. Thus, the development of inexpensive but reliable miniaturized instruments has aroused great interest.

Currently, miniaturized plasma technology has been rapidly developed and applied, due to its small size, low gas, low cost, and low power consumption. For instance, but not limited to, electrolyte cathode glow discharge (ELCAD) [9, 10], solution cathode glow discharge (SCGD) [11, 12], atmospheric pressure glow discharge (APGD) [13, 14], dielectric barrier discharge (DBD)[15, 16]. Nevertheless, these methods have low sensitivity for the detection of Hg²⁺. Recently, Pohl and Zhu et al. [17-23] presented a successful use of solution anode glow discharge (SAGD) as an efficient excitation source for trace element analysis by AES/AFS, and the sensitivity of some elements was incomparably better than that of SCGD, APGD and DBD. In particular, the (DL) of Hg²⁺ can reach 0.163 μg/L when helium was introduced from the cathode tube (with cooling device) of SAGD [21]. However, the direct introduction of sample solutions into these miniaturized microplasmas often results in high matrix interference and low transfer efficiency [21, 24]. Accordingly, chemical vapor generation is a widely used sample introduction method in spectral analysis, because it can effectively separate the analyte from the condensed phase, and produce efficient on-line matrix separation, high transmission efficiency and selectivity. In order to achieve high sensitive determination performance for elements, different chemical vapor generation (CVG) techniques are coupled to the above mentioned radiation sources, such as CVG-APGD-AES [25, 26], HG-APGD-AES [27, 28], HG-SCGD-AES [29], PVG (photochemical vapor generation)-SCGD-AES [24], which can be used for high sensitivity detection of As, Hg, Pb, Se and Sb. In addition, due to the main excitation region (negative glow region) of the element is close to the cathode, the analyte had a higher emission intensity when introduced from the cathode [30]. Therefore, the target element was transferred to the cathode end of the glow discharge by HG, which not only further increased the emission line of the element, but also reduced the matrix interference of SAGD-AES during sample analysis [21].

Hence, here we described an innovative HG-SAGD-AES combination technology, which has the advantages of small, low cost and ultrasensitive determination for Hg²⁺. In addition, the precision, accuracy, linear range, and DL of Hg²⁺ were also determined after the SAGD and HG system parameters were comprehensively optimized. Moreover, the accuracy of the developed HG-SAGD-AES was demonstrated by analysis of certified reference materials (CRMs).

The schematic diagram of HG-SAGD-AES is shown in Fig. 1. It consists of HG unit for sample introduction, SAGD source for Hg²⁺ excitation and a low-resolution compact microspectrometer for detection. For the HG device (Agilent HG Accessory 77), the sample, acid carrier and sodium borohydride solution were transferred to the gas-liquid separator via a peristaltic pump. A tungsten tube (i. d. = 2 mm, o.d. = 4 mm) was used as the cathode of the SAGD excitation source, and the electrolyte acid was transported through a quartz tube (i.d. = 2 mm, o.d. = 4 mm) to the excitation region of SAGD at a certain flow rate using a peristaltic pump (BT100-1 L, Baoding Langer Constant Flow Pump Co., Ltd., China). The graphite electrode (length 50 mm, diameter = 10 mm) passed horizontally through the waste cell wall, the quartz tube passed vertically through the graphite electrode and the bottom of the waste cell, and the quartz tube was 2 mm above the graphite rod. In order to adjust the distance between the tungsten tube and the quartz tube, the tungsten tube electrode was fixed on the three-dimensional platform with an accuracy of 2 μm in the X, Y and Z directions (APFP-XYZ, Zolix Instruments Co., Ltd., China). The high voltage power supply (HSPY-600, Beijing Hansheng Puyuan Technology Co., Ltd., China) was used in constant current mode, and a 10 kΩ resistor was connected in the whole loop.

A portable charge coupled device (CCD) spectrometer (Maya 2000 Pro, Ocean Optical Instruments Co., Ltd., U. S. A.) with a groove density of 1200 line mm^-1, an entrance slit width of 25 mm, a resolution of 0.35 nm, and a detection spectrum range of 190-409 nm. Adjust the position of the microplasma, lens, and fiber probe to ensure that the emission spectra produced by SAGD were all collected and focused into the entrance slit.

The detailed experimental reagents as well as samples are given in Text S1 (Supporting information). A sample of fish meat GBW10029 (0.1 g) was placed in a 30 mL polytetrafluoroethylene (PTFE) digestion vessel and dissolved in a mixture of HNO₃ (5 mL) and H₂O (1 mL). Subsequently, PTFE digestion vessel was placed in a stainless steel container and heated to 100 ℃ in a thermostatic oven for 10 h. The process blank was prepared and similarly processed. Finally, the acidic sample was placed on a hot plate, heated to near dryness at 80 ℃, and diluted to a volume of 20 mL. The human hair sample GBW09101b (0.05 g) and rice sample (0.05 g) digestion process were consistent with the fish digestion step, and finally diluted to a volume of 10 mL. A 0.2 g soil sample was weighed into PTFE digestion vessel, and HF (10 mL) and HClO₄(2 mL) were added to a PTFE sealed digestion vessel, and heated in a constant temperature oven at 230 ℃ for 10 h. Subsequently, the sample was placed on a hot plate, heated to near dry state at 80 ℃, and diluted to a volume of 20 mL. Blank samples were processed as well. All samples were prepared in triplicate.

The sample, carrier acid, and reducing agent were transferred to the gas-liquid separator by a peristaltic pump in the hydride generating zone. When a direct-current voltage was applied to the SAGD electrode, the tungsten tube was in direct contact with the overflowing electrolyte (1 mol/L HNO₃) of the quartz tube, and a stable plasma was formed. Then, the discharge distance between the tungsten tube and the quartz tube was adjusted to an appropriate distance, and the introduced carrier gas (He) transported the hydride to the SAGD discharge generation area for excitation. The optical radiation signal generated by the HG-SAGD was focused by a plano-convex lens, and the optical fiber probe coupled the focused optical radiation signal to the entrance slit of the spectrometer for detection and amplification. The results were processed and recorded using the SpectraSuite software of the computer. Each sample used an average of 11 spectra with an integration time of 300 ms. Detection limit was defined as DL = 3SD × k^-1, where SD is the standard deviation (n = 11) of the blank samples (deionized water acidified with HNO₃) and k is the slope of the calibration curve. The direct mercury analyzer (Milletone DMA-80, Italy) was used to analyze the actual rice and soil to verify the reliability of the HG-SAGD-AES.

The HG system was used as the sample introduction device of SAGD, and the amount of hydride and H₂ generated from HG directly determined the sensitivity of the corresponding element. To ensure high sensitivity of element detection, the operating parameters (type and concentration of carrier acid, He flow rate and NaBH₄ concentration) of the HG connected to the SAGD were optimized. The effects of HG experimental conditions on analyte response are shown in Fig. 2. The four acid carriers of HCl, H₃PO₄, H₂SO₄ and HNO₃ were selected to investigate the effects on the DL of Hg²⁺ (253.7 nm). As shown in Fig. 2a, the DL of Hg²⁺ was lowest with HNO₃ as the carrier acid. Therefore, HNO₃ was employed as the carrying solution in subsequent experiments.

Figs. 2b and c reveal that the effects of the concentration of HNO₃ and NaBH₄ on the DL of Hg²⁺. When the concentration of NaBH₄ was < 0.05 wt%, the emission of NO was significantly increased due to the small amount of H₂ cogenerated and introduced to SAGD, thereby interfering with elemental detection, and when the concentration of NaBH₄ was > 0.5 wt%, an excessive amount of H₂ was generated, thereby weakening the intensity of the Hg emission line [27]. In addition, when the HNO₃ concentration was low, the Hg element cannot be absolutely translated to a hydride, resulting in the weakened signal intensity. On the other hand, with the increase of reduced hydrogen in hydride gas, the target hydride was diluted, which will also lead to the increase of detection limit of Hg²⁺. Therefore, the effects of NaBH₄ and HNO₃ concentrations of 0.05-0.5 wt% and 0.005-0.08 mol/L on the DL of Hg²⁺ were studied. When the concentrations of NaBH₄ and HNO₃ were 0.3 wt% and 0.02 mol/L, respectively, a lowest DL of Hg²⁺ was obtained.

Preliminary experiments showed that the use of He as carrier gas could minimize most of the background spectral emission, thus obtaining more analytical spectral lines available for analyte elements with less background interference. Thus, He was selected as the carrier gas for all subsequent experiments. He was also employed as a carrier gas to separate volatile analytes from the liquid phase and transported them to SAGD. Therefore, the excitation ability of SAGD, the gas-liquid separation efficiency, and the concentration of the analyte were greatly affected by the He flow rate. The effects of the He flow rate on the analyte response are shown in Fig. 2d. It showed that the DL of Hg²⁺ was the lowest when the He flow rate was 350 mL/min. This was because the low He flow rate reduced the efficiency of analyte separation from the liquid phase and the excitation ability of SAGD, while the high flow rate diluted the analyte concentration and increased the instability of the emission line. Thus, Hg²⁺ was measured at a He flow rate of 350 mL/min and utilized in all subsequent experiments.

In order to improve the analytical performance of the HG-SAGD-AES, the operating parameters (discharge gap, discharge current, solution flow rate) of SAGD were optimized in detail.

The excitation ability of microplasma was directly related to the discharge current. As shown in Fig. 3a, the influence of discharge current on the DL of Hg²⁺ was studied, ranging from 20 mA to 60 mA. At the discharge current < 20 mA, SAGD plasma was unstable and even quenched. When the discharge current increased from 20 mA to 40 mA, the DL of Hg²⁺ decreased. But when the discharge current was 40-60 mA, the higher saturation of the discharge phase deteriorated the excitation conditions together with the water vapor, and the DL of Hg²⁺ increased gradually [21]. While when the discharge current > 60 mA, it caused overheating and sputtering of cathode materials, which may shorten the service life of SAGD system. Therefore, the discharge current of 40 mA was utilized in the subsequent study.

The discharge distance had significant effect on the intensity and stability of analyte signal. As can be seen from Fig. 3b, with the increase of discharge distance from 2 mm to 3 mm, an apparent increase of Hg (253.7 nm) line intensity resulted in lower DL for Hg²⁺ in SAGD-AES. A further discharge distance increases to values above 3 mm led to a slight increase of the DL of Hg²⁺. Moreover, it should be noted that a further increase of discharge distance to 5 mm or more resulted in a rapid elevation of plasma volatility and reduction of emission intensity, which led to a rapid increase of DL for Hg²⁺ in SAGD-AES. As the discharge distance increased, more NO and N₂ enter the plasma, and the excitation of these diatomic molecules and elements was a competitive process, resulting in a higher DL of the element. Besides, more water evaporated to quench the excited state of the analyte [21]. On the basis of these results, the discharge distance of 3 mm was selected for all subsequent experiments.

In this experiment, 1 mol/L HNO₃ was utilized as the electrolyte solution. When the solution flow rate was < 2.0 mL/min, the solution overflow was discontinuous and resulting in destabilization of the discharge. As shown in Fig. 3c, it was found that when the solution flow rate increased from 2.0 mL/min to 3.5 mL/min, the DL of Hg²⁺ decreased, which due to the increase in conductivity [29]. However, when the solution flow rate was > 3.5 mL/min, the plasma became unstable and the DL of Hg²⁺ increased. In all subsequent experiments the solution flow rate of 3.5 mL/min was selected.

As shown in Fig. 4, to evaluate the susceptibility of HG-SAGD-AES to matrix-induced interference, the recovery of Hg²⁺ was determined in the presence of Ca²⁺, Cd²⁺, Co²⁺, Cr³⁺, Cu²⁺, Fe³⁺, K⁺, Mg²⁺, Mn²⁺, Na+ and Zn²⁺. These potential interfering ions were added to the single element standard solution (5 μg/L) of Hg²⁺ at a concentration of 1 mg/L. The recovery of Hg²⁺ was between 90% and 110% for most interfering ions, while the recovery of Hg²⁺ was 61% for Co²⁺. The cause and mechanism of Co interference are not fully understood. However, when the concentration of Co²⁺ was 200 μg/L, the recovery of Hg²⁺ (5 μg/L Hg²⁺) was 92%. Therefore, the method developed in this experiment was not affected by the existence of these foreign ions to a certain extent.

The analytical performance of HG-SAGD-AES was evaluated under the optimized operating parameters (HNO₃ = 0.02 mol/L, He flow rate of 350 mL/min, NaBH₄ = 0.3 wt%, discharge current of 40 mA, discharge gap of 3 mm). The Hg²⁺ concentration ranged from 0.1 μg/L to 10 μg/L, and the calibration curve had an excellent linear correlation coefficient (R² > 0.999) (Fig. S1 in Supporting information). As shown in Table 1, the DL of Hg²⁺ reached 0.03 μg/L, while the relative standard deviation (RSD) obtained for 5 μg/L Hg²⁺ was 1.1%. Table 1 compares the DL of Hg²⁺ of the HG-SAGD-AES technique with other methods. The DL of Hg²⁺ obtained using the HG-SAGD-AES approach was 2500–3000 times lower than that obtained via SCGD-OES [12], and CLEP-OES [35]. Moreover, the DL of Hg²⁺ obtained using the HG-SAGD-AES approach was 2–80 times lower than that of SAGD-OES [18, 21], CVG-mAPGD-OES [26], HG-HEPD-OES [31], and PVG-SCGD-AES [24]. Although not as good as HG-AFS [32] or HPLC-CVAFS [33], this method is currently the most optimized result of miniaturized microplasma detection of Hg²⁺. Notably, the proposed HG-SAGD-AES method not only retains the advantages of miniaturized plasma, such as simplicity, compactness, low power consumption, but also significantly improves sensitivity and stability.

In order to verify the accuracy of the HG-SAGD-AES method, GBW09101b (human hair) and GBW10029 (fish) were determined by standard curve method. The results obtained (Table 2) agreed well with the certified reference values. The actual rice and soil samples were analyzed to verify the feasibility of the method. The results in Table 3 showed that the results obtained by the proposed HG-SAGD-AES technique were in good agreement with the values obtained by using the DMA method and the reference values.

In summary, the HG-SAGD-AES proposed in present work was found to allow the determination of Hg²⁺ with excellent sensitivity, precision, and low interference from the matrix, in addition to providing the advantages of low power consumption and low gas consumption. However, only the research on the determination of Hg²⁺ by HG-SAGD-AES was performed and the systematic sensitization mechanism for Hg in SAGD is still not fully understood, which needs further research and exploration. Therefore, future work will focus on the systematic sensitization mechanism research of the SAGD developed in present work. Besides, expanding the elemental analysis range of the developed technique and its application in analyzing the valence states of elements will be expected. In addition, coupling of the SAGD with other vapor generation methods (e.g., photochemical vapor generation or electrothermal evaporation) will also be considered.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by the Instrument Development Project of the Chinese Academy of Sciences (No. YZ201539), the National Natural Science Foundation of China (No. 21175145), and Shanghai Technical Platform for Testing on Inorganic Materials (No. 19DZ2290700).

Appendix A. Supplementary data

Less

Supplementary material related to this article canbefound, in the online version, at doi:https://doi.org/10.1016/j.cclet.2020.03.055.

References

Less

[1]

L. Chen, J. Meng, S. Liang, et al., Environ. Sci. Technol. 52(2018) 2036-2045.

[2]

N. Lubick, Nature 459(2009) 620-621.

[3]

M. Beldowska, A. Jedruch, L. Leczynski, D. Saniewska, U. Kwasigroch, Environ. Sci. Pollut. Res. 23(2016) 16372-16382.

[4]

Y. Wu, G. Xu, F. Wei, et al., Microporous Mesoporous Mater. 235(2016) 204-210.

[5]

J. Wang, X. Feng, C.W. Anderson, Y. Xing, L. Shang, J. Hazard. Mater. 221-222(2012) 1-18.

[6]

P.B. Tchounwou, W.K. Ayensu, N. Ninashvili, D. Sutton, Environ. Toxicol. 18(2003) 149-175.

[7]

K. Leopold, M. Foulkes, P.J. Worsfold, TrAC Trends Anal. Chem. 28(2009) 426-435.

[8]

M. Yeganeh, M. Afyuni, A.H. Khoshgoftarmanesh, et al., J. Hazard. Mater. 244-245(2013) 225-239.

[9]

T. Cserfalvi, P. Mezei, P. Apai, J. Phys. D: Appl. Phys. 26(1993) 2184-2188.

[10]

T. Cserfalvi, P. Mezei, J. Anal. At. Spectrom. 9(1994) 345-349.

[11]

Z. Wang, R. Gai, L. Zhou, Z. Zhang, J. Anal. At. Spectrom. 29(2014) 2042-2049.

[12]

X. Peng, X. Guo, F. Ge, Z. Wang, J. Anal. At. Spectrom. 34(2019) 394-400.

[13]

P. Jamroz, A. Dzimitrowicz, P. Pohl, Plasma Process Polym. 15(2018) e1700083.

[14]

J.C.T. Eijkel, H. Stoeri, A. Manz, J. Anal. At. Spectrom. 15(2018) 297-300.

[15]

M. Miclea, K. Kunze, G. Musa, J. Franzkea, K. Niemax, Spectrochim. Acta Part B 56(2001) 37-43.

[16]

S. Brandt, F.D. Klute, A. Schütz, J. Franzke, Anal. Chim. Acta 951(2017) 16-31.

[17]

X. Liu, Z. Zhu, D. He, et al., J. Anal. At. Spectrom. 31(2016) 1089-1096.

[18]

K. Greda, K. Swiderski, P. Jamroz, P. Pohl, Anal. Chem. 88(2016) 8812-8820.

[19]

K. Swiderski, A. Dzimitrowicz, P. Jamroz, P. Pohl, J. Anal. At. Spectrom. 33(2018) 437-451.

[20]

K. Greda, S. Burhenn, P. Pohl, J. Franzke, Talanta 204(2019) 304-309.

[21]

K. Greda, M. Gorska, M. Welna, P. Jamroz, P. Pohl, Talanta 199(2019) 107-115.

[22]

P. Jamroz, K. Greda, A. Dzimitrowicz, K. Swiderski, P. Pohl, Anal. Chem. 89(2017) 5729-5733.

[23]

X. Liu, Z. Liu, Z. Zhu, et al., Anal. Chem. 89(2017) 3739-3746.

[24]

J. Mo, Q. Li, X. Guo, G. Zhang, Z. Wang, Anal. Chem. 89(2017) 10353-10360.

[25]

K. Greda, P. Jamroz, P. Pohl, J. Anal. At. Spectrom. 29(2014) 893-902.

[26]

K. Greda, K. Kurcbach, K. Ochromowicz, et al., J. Anal. At. Spectrom. 30(2015) 1743-1751.

[27]

X. Peng, Z. Wang, Anal. Chem. 91(2019) 10073-10080.

[28]

Z. Zhu, C. Yang, P. Yu, et al., J. Anal. At. Spectrom. 34(2019) 331-337.

[29]

J. Cheng, Q. Li, M. Zhao, Z. Wang, Anal. Chim. Acta 1077(2019) 107-115.

[30]

A.J. Schwartz, S.J. Ray, G.C.Y. Chan, G.M. Hieftje, Spectrochim. Acta Part B 125(2016) 168-176.

[31]

M. Li, K. Li, L. He, et al., Anal. Chem. 91(2019) 7001-7006.

[32]

H. Zheng, J. Hong, X. Luo, et al., Microchem. J. 145(2019) 806-812.

[33]

Y.M. Liu, F.P. Zhang, B.Y. Jiao, J.Y. Rao, G. Leng, J. Chromatogr. A 1493(2017) 1-9.

[34]

Y. Cai, Y.L. Yu, J.H. Wang, Anal. Chem. 90(2018) 10607-10613.

[35]

A. Leng, Y. Lin, Y. Tian, et al., Anal. Chem. 89(2017) 703-710.

[36]

P. Hu, X. Wang, L. Yang, et al., Microchem. J. 143(2018) 228-233.

[37]

B. Wang, L. Feng, X. Mao, et al., J. Anal. At. Spectrom. 33(2018) 1209-1216.

Appendix

Less

Year 2020 volume 31 Issue 10

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2020.03.055

Receive Date：2020-01-16
Online Date：2026-01-31
Published：2020-10-15

Article Data

Affiliations

History

Received：2020-01-16
Revised：2020-03-06
Accepted：2020-03-16

Affiliations

^a Shanghai Institute of Ceramics, Chinese Academy of Sciences, Shanghai 200050, China

^b Center of Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences, Beijing 100049, China

^c School of Material Science and Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2020.03.055

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

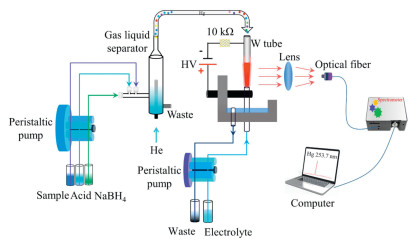

Fig. 1 Schematic diagram of the HG-SAGD-AES system.

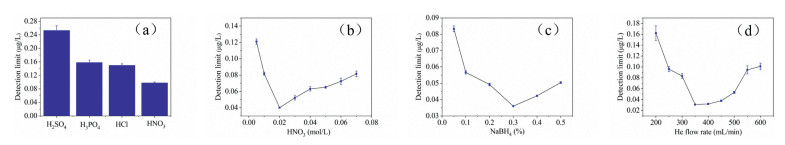

Fig. 2 Effects of (a) acid type (HCl, H₃PO₄, H₂SO₄, HNO₃ = 0.1 mol/L, NaBH₄ = 0.3 wt%, He flow rate = 350 mL/min, discharge current = 40 mA, discharge gap = 3 mm, solution flow rate = 3.5 mL/min), (b) HNO₃ concentration (NaBH₄ = 0.3 wt%, He flow rate = 350 mL/min, discharge current = 40 mA, discharge gap = 3 mm, solution flow rate = 3.5 mL/min), (c) Concentration of NaBH₄ (HNO₃ = 0.02 mol/L, He flow rate = 350 mL/min, discharge current = 40 mA, discharge gap = 3 mm, solution flow rate = 3.5 mL/min), (d) He flow rate (HNO₃ = 0.02 mol/L, NaBH₄ = 0.3 wt%, discharge current = 40 mA, discharge gap = 3 mm, solution flow rate = 3.5 mL/min) on Hg²⁺ DL.

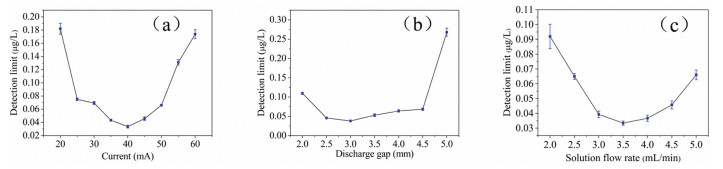

Fig. 3 Effects of (a) discharge current (HNO₃ = 0.02 mol/L, He flow rate = 350 mL/min, NaBH₄ = 0.3 wt%, discharge gap = 3 mm, solution flow rate = 3.5 mL/min); (b) Discharge gap (HNO₃ = 0.02 mol/L, NaBH₄ = 0.3 wt%, discharge current = 40 mA, He flow rate = 350 mL/min, solution flow rate = 3.5 mL/min); (c) Solution flow rate (HNO₃ = 0.02 mol/L, NaBH₄ = 0.3 wt%, discharge current = 40 mA, He flow rate = 350 mL/min, discharge gap = 3 mm) on DL of Hg²⁺.
