Supercapacitors have got extensive concerns in recent decades because of the advantages of ultrahigh power density, fast charge and discharge response, long cycling life and environmentalfriendly [1, 2]. Carbon materials, especially activated carbons (ACs) play an important role in double-layer capacitors (EDLCs) owing to the high specific surface area, low cost and excellent electrochemical stabilization [3-5]. ACs usually can be obtained by carbonization of carbon precursors and followed by activation in inert gas. However, such porous carbons are faced with poor conductivity, large ion-transport resistance and long ion-diffusion distance caused by their amorphous microporous structure, resulting in unsatisfactory supercapacitive performance [6, 7].

Three-dimensional (3D) interconnected hierarchical porous carbon with high specific surface area displays excellent electrochemical performance has drawn numerous attentions in recent years [6, 8]. Micropores (< 2 nm) can provide a larger specific surface area to absorb electrolyte ions, mesopores (2-50 nm) can be used as rapid channels for diffusion of ions, and macropores (> 50 nm) can be used as ion buffer pools to shorten the diffusion distance of ions. Thus, 3D interconnected hierarchical porous carbon can not only offer high specific surface area to store energy, but also shorten ion diffuse route, which can greatly enhance the supercapacitive performance [9]. Template method is the main method to prepare 3D hierarchical porous carbon, which contains complex preparation process with template preparation, removal, and post-activation [10, 11]. Apart from adjusting pore structure, another effective method to enhance the electrochemical property of carbon materials is doping heteroatoms (e.g., N, O and S atoms) in carbon framework [12-15]. Especially, N/O heteroatom doping is considered as a promising method for enhancing the electrochemical performance of carbon materials. The oxygen and nitrogen functional groups can not only improve wettability, but also offer extra pseudocapacitance during charging and discharging process [16-18]. Therefore, developing a convenient method to prepare 3D interconnected hierarchical porous carbon with suitable heteroatom functional groups is highly desirable for high-performance supercapacitor.

Herein, we develop a simple strategy to prepare nitrogen and oxygen codoped hierarchical porous carbon through one-step pyrolysis of the mixture of KHCO₃, urea and alginic acid. Benefiting from KHCO₃ and urea synergistic effect, the obtained O, N-codoped hierarchical porous materials possess a well-developed hierarchical porous framework with ultrahigh specific surface area and rich heteroatoms functional groups. As a result, such porous carbon displays high specific capacitance and good electrochemical stabilization in 6 mol/L KOH solution. More importantly, the constructed NPC-700//NPC-700 symmetrical supercapacitor shows high energy density and good cycling stability in 1 mol/L Na₂SO₄ solution.

The micromorphology of the prepared materials was tested through scanning electron microscopy (SEM) and transmission electron microscopy (TEM). As presented in Fig. S1a (Supporting information), the CC-700 materials show an irregular block structure without obvious pore structure. The PC-700 exhibits 3D interconnected porous structure, indicating that the KHCO₃ can significantly affect the formation of the interconnected porous structure. As presented in Figs. 1a and b, similar with PC-700, the NPC-700 samples exhibit 3D highly interconnected porous framework with sub-micrometer sized macropores. This unique structure can greatly shorten the ion transport distance to the interior surfaces and enhance the availability of active materials. Moreover, the corresponding element mapping images (Fig. 1d) exhibit the uniform distribution of C (Fig. 1e), O (Fig. 1f) and N (Fig. 1g) atoms. The TEM image of NPC-700 (Fig. 1c) further confirms 3D interconnected porous framework with the sizes of macropores ranging from 1 μm to 2 μm. The high-resolution TEM image of NPC-700 displays rich micropores in the carbon framework (Fig. S2 in Supporting information), which is in favor of energy storage.

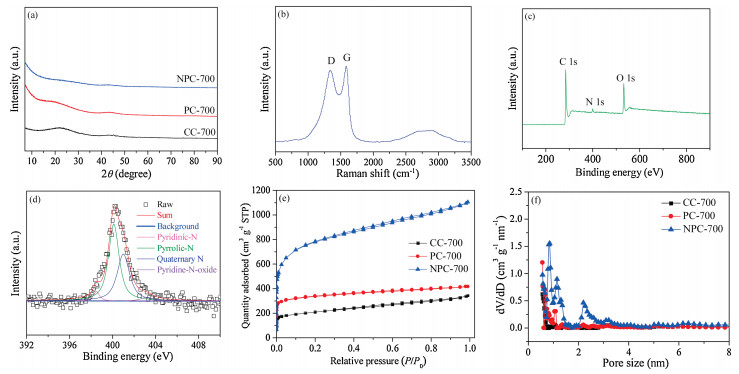

From X-ray power diffraction patterns (Fig. 2a), all materials show two wide characteristic peaks at about 2θ = 23° and 2θ = 43.6°, corresponding to the (002) and (100) crystal planes of carbon materials, which reveal the disorder nature and partial graphitized character [19]. The (002) peak of NPC-700 sample is broader and weaker compared with CC-700 and PC-700, indicating the increase of disordered structure and presence of high-density micropores. Raman spectra further investigate the disordered structure of NPC-700. Two feature peaks at 1340 and 1580 cm^-1 are observed, corresponding to D band (disordered carbon) and G band (graphite phase), respectively (Fig. 2b) [20]. The I_D/I_G ratio of NPC-700 is 0.95, indicating the existence of disordered structure. The surface element of NPC-700 was measured by X-ray photoelectron spectroscopy. As presented in Fig. 2c, the NPC-700samplepossesses high content of O (14.75 at%) and N(2.83 at%) species, which can provide some pseudocapacitance during charge/discharge process. The high resolution N 1s spectrum of NPC-700 (Fig. 2d) can be divided into four peaks located at 398.5 eV, 400.2 eV, 401.1 eV and 403.2 eV, corresponding to pyridinic-N (3.78%), pyrrolic-N (54.23%), quaternary-N (38.99%) and pyridine-N-oxide (3%). High content of quaternary-N can greatly enhance the conductivity of carbon materials. The pore structure of all samples was further measured through nitrogen adsorption/desorption isotherms. The detailed pore structure information is listed in Table S1 (Supporting information). As seen in Fig. 2e, all materials display typical characteristic of I type adsorption-desorption isothermal and the adsorption curves increase sharply in the low-pressure range (P/P₀ < 0.01), indicating massive micropores exist. The NPC-700 displays a high specific surface area of 2846 m²/g, which is much higher than CC-700 (752 m²/g) and PC-700 (1273 m²/g) demonstrating that KHCO₃ and urea synergistic effect can greatly enhance the specific surface area. Moreover, the specific surface area increases from 1535 m²/g (NPC-600) to 2846 m²/g and finally slightly increase to 2848 m²/g (NPC-800). The pore size distribution of NPC-700 (Fig. 2f) is mainly located at 0.6–1.8 nm and 2.0–3.5 nm, indicating hierarchical porous structure.

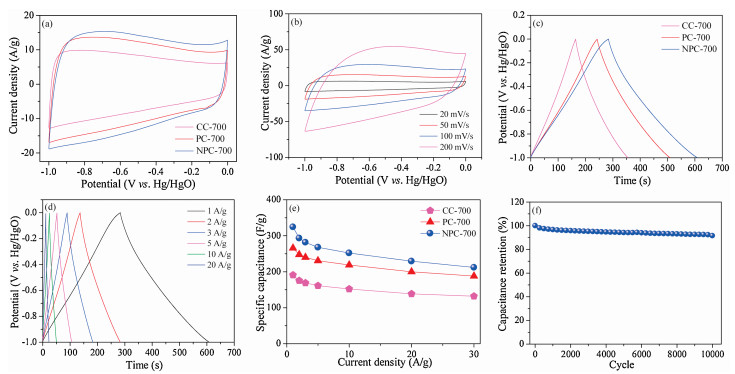

The electrochemical characteristics of the prepared samples were measured by cyclic voltammetry (CV) curve and galvanostatic charge-discharge (GCD) curve in 6 mol/L KOH. As presented in Fig. 3a, the CV curve of NPC-700 electrode displays larger integral area than CC-700 and PC-700, indicating that the NPC-700 electrode has the highest specific capacitance due to high surface area with massive heteroatoms functional groups. Moreover, the CV curve of NPC-700 electrode possesses slightly faradaic humps, indicating part contribution from pseudocapacitance. The possible surface redox reactions are as follows:

Even at 200 mV/s, the CV curves of NPC-700 electrode (Fig. 3b) can maintain rectangular-like shape without obvious distortion, demonstrating 3D hierarchical porous structure can ensure fast electron/ion transfer. Furthermore, with the increase of temperature, the redox peak of the NPC electrodes becomes weak due to high temperature is conducive to graphitization (Fig. S5a in Supporting information). Consistent with the CV results, the GCD profile of the NPC-700 electrode (Fig. 3c) also has the longest discharge time. The GCD curves of the NPC-700 electrode (Fig. 3d) show a symmetrical and nearly linear discharge character at various current densities, indicating perfect capacitive behavior. The specific capacitance of the NPC-700 electrode calculated by discharge curves is 324 F/g at 1 A/g (Fig. 3e), higher than those of CC-700 (190 F/g) and PC-700 (266 F/g). As presented in Fig. S5c (Supporting information), the NPC-700 electrode shows higher specific capacitance compared to NPC-600 (283 F/g) and NPC-800 (286 F/g) due to suitable specific surface area and heteroatom functional groups. Furthermore, the specific capacitance of NPC-700 electrode (Fig. 3e) can maintain 212 F/g at 30 A/g with the capacitance retention of 65.4%, indicating superior rate characteristic. Moreover, the NPC-700 electrode can keep 91.5% capacitance retention rate after 10000 cycles (Fig. 3f), indicating good electrochemical stabilization.

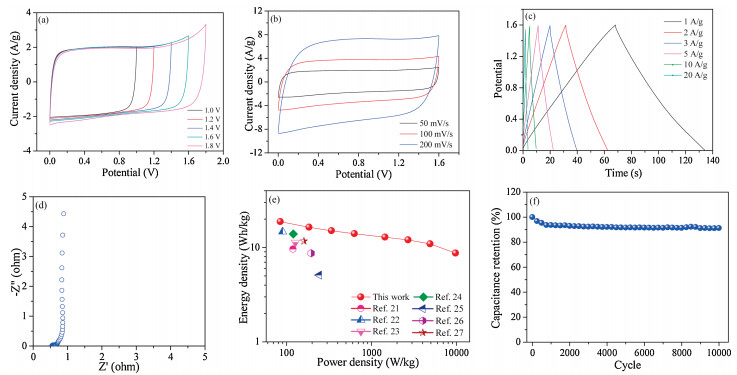

To further characterize the outstanding electrochemical characteristic of the NPC-700, a symmetrical supercapacitor (SC) using the NPC-700 as both positive and negative electrodes was constructed and tested in 1 mol/L Na₂SO₄ electrolyte. Fig. 4a displays the CV profiles of the assembled SC at 50 mV/s in various voltage ranges. The curve displays nearly rectangular-like shapes in the voltage range of 0–1.6 V, demonstrating that such SC could be stable reversibly cycled in this voltage range. Even at 200 mV/s, the CV curves of SC (Fig. 4b) can keep rectangular-like shape without obvious distortion, demonstrating fast electron/ion transfer and good rate characteristic. The GCD profiles of the SC at various current densities are presented in Fig. 4c, all curves show highly linear and almost triangular shape, confirming excellent electrochemical reversibility. Fig. 4d displays the Nyquist plot of the NPC-700//NPC-700 SC, the ohmic resistance of the electrolyte and cell components is 0.55 Ω, suggesting excellent conductivity. Moreover, the NPC-700//NPC-700 SC shows an almost vertical line at a low-frequency scope, meaning rapid electron transfer. As shown in Fig. 4e, the energy density of the assembled SC can achieve 18.8 Wh/kg, which is much higher than that of other previously reported carbon-based materials [21-27]. In addition, the capacitance retention rate of the SC can achieve 91.3% after 10000 cycles (Fig. 4f), confirming excellent electrochemical stability.

In summary, we have demonstrated a facile method to synthesize O, N-codoped hierarchical porous carbon with ultrahigh specific surface area and rich heteroatoms functional groups. Such porous carbon displays high specific capacitance, outstanding rate performance and good electrochemical stabilization. Moreover, the assembled symmetrical supercapacitor can achieve a high energy density of 18.8 Wh/kg and good electrochemical stabilization. These exciting results indicate that such porous carbon is a promising electrode material for supercapacitors.

The authors declared that they have no conflicts of interest to this work.

All authors are very grateful for the financial support of the National Natural Science Foundation of China (Nos. 51702043, 51672055 and 51972342), Heilongjiang Postdoctoral Foundation (No. LBH-Z18008).

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2019.11.023.
