Ag₂S nanoparticles as an emerging single-component theranostic agent

Full

Ruxia Han, Jinrong Peng, Yao Xiao, Ying Hao, Yanpeng Jia, Zhiyong Qian^*

Affiliations

State Key Laboratory of Biotherapy and Cancer Center, West China Hospital, West China Medical School, Sichuan University, and Collaborative Innovation Center of Biotherapy, Chengdu 610041, China

Published: 2020-07-15 doi: 10.1016/j.cclet.2020.03.038

Outline

Abstract

Less

Last two decades, with the rapid changes and development of nanotechnology and biological materials, diverse multi-functional nanomaterials emerging, which offers a novel way to treat and diagnose diseases, and therefore spawned the new biomedical technology of theranostics, which integrates the treatment and diagnosis or monitoring of diseases into one. Ag₂S as a bio-nanomaterial with low biotoxicity has attracted more and more attention due to its good photoluminescence properties and fluorescence imaging of small animals in the second near-infrared region (NIR-II). Meanwhile, Ag₂S has the ability to absorb near-infrared light strongly because of its local surface plasma resonance (LSPR) effect and had become a kind of photothermal converters with good photothermal conversion efficiency. More interestingly, both photothermal effect and fluorescence characteristics of Ag₂S nanoparticles (NPs) are closely related to their particle sizes. However, the relationship between photothermal effect and fluorescence characteristics of Ag₂S NPs and their sizes has not been reviewed so far. Herein, the synthesis methods and influencing factors of synthesize Ag₂S NPs with different sizes were compared firstly, and then the photothermal effect and fluorescence characteristics of Ag₂S NPs with different sizes were summarized. Finally, the possibilities and challenges of using Ag₂S NPs to construct theranostic agent were discussed in the end.

Key words

Ag₂S nanoparticle / Different sizes / Photothermal effect / Fluorescence characteristics / Theranostics

Cite this Article

Ruxia Han, Jinrong Peng, Yao Xiao, Ying Hao, Yanpeng Jia, Zhiyong Qian. Ag₂S nanoparticles as an emerging single-component theranostic agent[J]. Chinese Chemical Letters, 2020 , 31 (7) : 1717 -1728 . DOI: 10.1016/j.cclet.2020.03.038

Full Text

Less

1 Introduction

Less

Since John Funkhouser first proposed the concept of "theranostic" in 1998, this technology hasattracted extensive attention in the field of nano-bio materials at home and abroad, providing a new treatment strategy for personalized medicine and precision medicine [1-4]. The integration of diagnosis and treatment of cancer has shown great potential in real-time observation of the accumulation and therapeutic effect feedback of nanometer drugs. The core technology of theranostic is the rational design of therapeutic diagnostic agents. Common therapeutic diagnostic agents mainly include multi-component therapeutic diagnostic agents and singlecomponent therapeutic diagnostic agents. The former needs to combinate therapeutic agents and diagnostic agents on the same carrier particle [5-7]. Complex synthesis process, limited loading, leakage problem and effective release of therapeutic agents at the tumor site are the main challenges, which multi-component theranosticsfacing [8-10]. Meanwhile, the theranostic with multiple components will also increase the adverse effects on the humanbody and expand the production cost, so it is encouraged to use fewer components or a single component for simple and effective therapeutic diagnostic design [11, 12].

Due to the strong and tunable characteristics of local surface plasma resonance (LSPR), photothermal nanomaterials can convert the near-infrared (NIR) light (650-1000 nm) absorbed into resonant and transferred heat energy, raising the temperature of surrounding tissues, and achieving the local killing effect [13, 14]. At the same time, when these materials absorbing near-infrared light and generating thermal energy, they can also send out photoacoustic signals in the form of ultrasonic waves and pressure waves to perform photoacoustic imaging, to realize the integration of treatment and diagnosis [15-18]. At present, common photothermal nanomaterials mainly include gold nanomaterials [19, 20], carbonbased nanomaterials [21-23], chalcogenide nanoparticles [24-26], organic nanomaterials [27-30] and other particles [31-34]. Therefore, the photothermal nanomaterials mentioned above can be given priority in the design of single-component therapeutic diagnostics.

Photothermal nanomaterials can be directly used to construct theranostic agents. But single-mode imaging is not accurate enough and is susceptible to tissue penetration depth and spatial resolution compared with bimodal or multimodal imaging, which are more advantageous in disease diagnosis, real-time observing of drug enrichment and release at targeted sites [35-38]. Fortunately, most of the above-mentioned photothermal materials have other imaging capabilities on account of their unique optical characteristics. For instance, gold nanomaterials can perform CT imaging and magnetic nanoparticles can perform MRI imaging, respectively [7, 10, 39]. However, CT imaging has dangerous ionizing radiation [40], soft tissue contrast is poor, spatial resolution is limited; MRI imaging signal intensity is poor, low sensitivity. At the same time, the acquisition and post-processing time of the two is longer [41-43]. In contrast, near-infrared (NIR) fluorescence imaging, especially fluorescence imaging in the second infrared region (NIRII), is a very powerful diagnostic candidate on account of its deeper tissue penetration, higher spatial resolution, and smaller autofluorescence effects [44-47]. Nevertheless, the fluorescence quantum yield (QY) of carbon-based materials is fairly low, and the fluorescence brightness of organic small molecule dyes needs to be further improved. Therefore, sulfur quantum dots (QDs), a new class of second near-infrared (NIR-II) fluorescent nanomaterials, are receiving more and more attention and research due to their higher quantum yield and better fluorescence signal intensity [48-53]. Compared with traditional fluorescent imaging agents, they have the following advantages: 1) deeper tissue penetration and higher imaging resolution; 2) less autofluorescence, lower tissue scattering and higher signal-to-noise ratio; 3) good light stability, strong photobleaching resistance and long fluorescence lifetime [54-58]. However, the common quantum dots, such as CdS, PbS, PbSe and HgS, have been limited their medical applications due to their high toxic ions [59-61]. In contrast, Ag₂S quantum dots without hazardous ions are better choice of diagnostics in theranostics because of their advantages of better biosafety [62-64].

It has been reported that the PA signal of Ag₂S nanoparticles (NPs) in tumors is enhanced by 2.4 times (24 h after injection) for their ideal photothermal effect and better tumor targeting [65, 66]. At the same time, Ag₂S NPs has a good fluorescence quantum yield, so they can provide ultrasensitive and visualized NIR-II fluorescence imaging for tumor [67-70]. The combination of the above mentioned PA signal and NIR-IIfluorescence imaging can form a complementary imaging mode that provides deeper tissue penetration, higher spatial resolution and stronger supersensitivity for imaging, treatment guidance and postoperative detection of the disease site. However, Ag₂S NPs with different sizes have different photothermal effects and fluorescence characteristics, so the size has a significant influence on the therapeutic and diagnostic effects of Ag₂S NPs.

In this review, we sketched out the synthesis methods and influencing factors of synthesize Ag₂S NPs with different sizes firstly, and then the photothermal effects and fluorescence characteristics of Ag₂S NPs with different sizes were compared. Meanwhile, the relationship between photothermal effects and fluorescence characteristics and particle sizes of Ag₂S NPs were summarized according to the reported articles. Finally, the possibility and challenge of Ag₂S NPs for constructing a theranostic agent were discussed. This review hopes to provide some ideas for the subsequent development of Ag₂S NPs as a single-component theranostic agent or multifunctional nano-carrier to better use and exert its value.

2 Structure and synthesis of Ag₂S NPs

Less

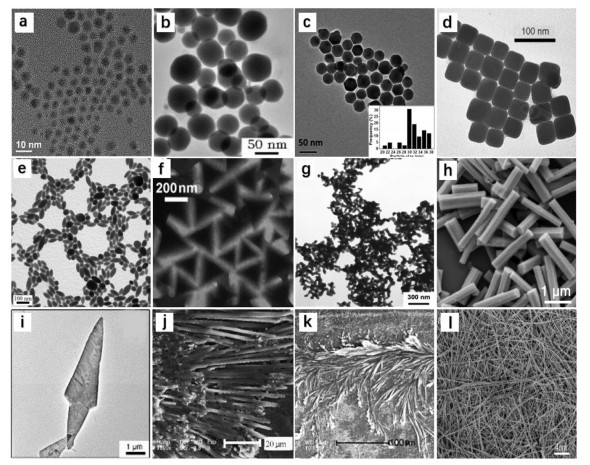

Ag₂S have three convertible crystal structures, including monoclinal Ag₂S (α-Ag₂S), body-centered cubic Ag₂S (β-Ag₂S) and face-centered cubic Ag₂S (γ-Ag₂S) [71, 72]. Compared with the cubic Ag₂S, α-Ag₂S is easier to synthesize, and its particle size is smaller, so it can be better used in biomedical applications. Here, we will focus on the Ag₂S of this crystal. With the rapid development of biological nanotechnology, the synthesis technology of Ag₂S materials has also been developing continuously, and numerous nanoparticles with different morphologies, structures, and particle sizes are emerging one after another. This part mainly summarized the structure, synthetic methods and influence factors of Ag₂S NPs with different particle sizes. Table 1 [73-94] mainly lists some Ag₂S NPs with different morphologies and structures, and Fig. 1 shows part of TEM diagram of nanoparticles.

2.1 Synthetic methods of Ag₂S NPs

In 1995, Pileni et al. [95] first reported and synthesized Ag₂S NPs with different sizes (< 10 nm) by reverse micelle method. Later, Mehra et al. [96] synthesized water-soluble Ag₂S NPs with sizes of ~9 nm by modifying cysteine and glutathione in 1999. Subsequently, Zhao [97] and Qian [98] successively prepared Ag₂S NPs with uniform particle size by using dodecythiol as surface ligand molecule and solvent in 2003 and 2004.

The synthetic solvent of Ag₂S NPs includes organic phase and aqueous phase. Organic phase synthesis mainly consists of a hightemperature thermal decomposition method [76, 99-102] and solvent thermal method [77, 79]. The nanoparticles obtained by the above methods have uniform sizes and good crystal quality. However, the organic solvent is harmful to the human body, and the prepared nanoparticles are hydrophobic, which need further modification to improve the biosafety of those nanoparticles' application in vivo. Based on the above problems, more researchers turned to the direct synthesis of Ag₂S NPs in the aqueous phase. At present, common water phase synthetic methods include chemical coprecipitation method [103-106], hydrothermal method [78, 107, 108], bionic synthesis method [109-114] and cation exchange method [94, 115] and so on. Other synthesis methods also include in situ growth method [116, 117], seed growth method [74], electrostatic spinning method [118], etc. Compared with other morphologies of Ag₂S, spherical nanoparticles have been studied more in photothermal therapy and fluorescence imaging, so we briefly summarized partial synthesis methods and applications of this kind of Ag₂S NPs with different sizes in Table 2 [74, 99, 101, 103, 107, 112, 115, 118-126].

2.2 Influence factors of different sizes

The physicochemical properties and optical characteristics of the same nanoparticle will change with its particle size, leading to different applications [127, 128]. Generally speaking, Ag₂S NPs with different sizes can be obtained by different synthesis methods. However, Ag₂S NPs with different sizes can also be obtained by controlling different conditions of the same method. Therefore, it is our ultimate goal to skillfully control different reaction conditions to form the optimal size in the synthesis of Ag₂S NPs. This section discussed different influence factors of Ag₂S NPs size.

2.2.1 Ag/S ratio

In 2008, when Li et al. was synthesizing nanowires, they found that increasing Ag/S would result in enlarging the size of reaction products. However, if the ratio of Ag/S is reduced, Ag₂S nanospheres would appear, and further decreasing would lead to smaller nanospheres [86]. In the same year, Andrew A.R. Watt et al. synthesized Ag₂S NPs with different sizes by controlling the ratio of Ag/S (as shown in Fig. 2), which has the same phenomenon as Li's group [129]. Yagci Acar et al. developed water-soluble Ag₂S QDs with high luminescence in 2012 [130]. Likewise, they also obtained a series of Ag₂S NPs with different sizes and screened out the optimized luminescent nanoparticles among them. Yu et al. [112] studied the relationship between the particle sizes and Ag/S ratios of Ag₂S NPs in detail, which proved the above conclusion once again. As described in Fig. 3, with the Ag/S molar ratios change from 3:1 to 1:10, the nanoparticle size varies from 1.5 nm to 7.5 nm.

It can be seen that the precursors' concentration of Ag⁺ and S^2- plays a significant part in the nucleation and growth of Ag₂S NPs. In the initial phase of reaction, Ag⁺ and S^2- continue to combine to form a nucleus with small particle size; In the later stage of the reaction, the nanoparticles begin to grow and the particle size becomes larger and larger. As S^2- is constantly added, Ag⁺ is consumed and nanoparticles continue to grow. The larger the Ag/S, the smaller the particle size. Conversely, the more S^2- is added, the larger the particle size is [79, 86, 120, 130, 131].

2.2.2 Reaction time

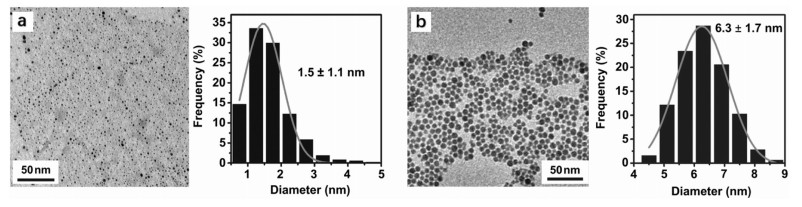

In a report, the authors prepared Ag₂S carboxyl-terminated nanocrystals by reacting silver nitrate and mercaptopropionic acid [132]. As shown in Fig. 4, two different sizes of nanoparticles were obtained by reacting for 5 min or 30 min at 145 ℃, respectively. Another study, the researchers explored the impact of longer reaction time on the size of nanoparticles [133]. Appropriate amounts of thiourea (Tu) and silver nitrate were mixed and stirred, and then transferred the mixture toTeflon stainless steel autoclave reactor for reaction with 12 h, 24 h, 48 h, 72 h, and 96 h, respectively, at 160 ℃. The results show that the size of nanoparticles increases with the reaction time. A similar pattern was confirmed in Wang's research works in 2014 [134]. With the extension of the reaction time, nanoparticles grow and mature gradually (shown in Fig. 5). Besides, prolonged the reaction time can not only obtain larger size nanoparticles but also improve the crystallinity of nanoparticles continuously, so that the quality of nanoparticles can be optimized [120, 130, 132, 134]. However, the size of particles will be increasing with the continuous extension of reaction time, and their specific surface area and surface energy change, which is easy to cause agglomeration [78, 79, 133]. Therefore, appropriate reaction time plays a crucial role in the size control of Ag₂S NPs.

2.2.3 Reaction temperature

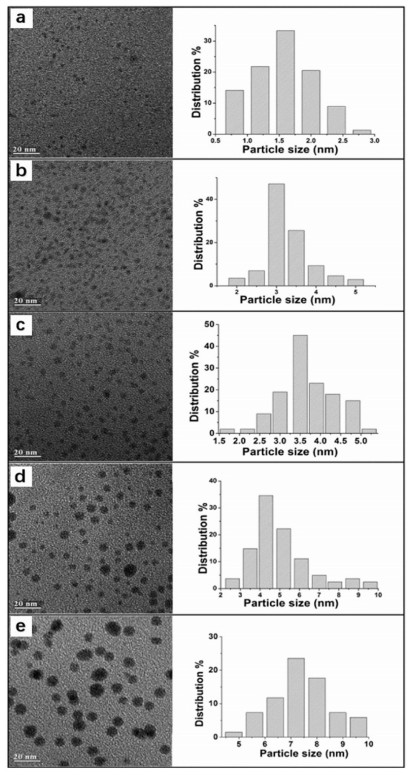

The reaction temperature has a certain influence on the size of nanoparticles. Meanwhile, the reaction temperature has a significant impact on the crystallinity of nanocrystals. Generally speaking, the higher the temperature, the better the crystallinity and the crystal quality. Some studies suggest that reaction temperature has little effect on nanoparticle size [120, 135]. While some reports suggest that the size of nanoparticles increases with the reaction temperature within a certain range [86, 129, 130]. Wang et al. prepared a series of nanoparticles with different size by controlling different reaction temperature (Fig. 5) [134]. After observation and comparison, we found that within a certain range, the higher the reaction temperature, the larger the particle size of the product. However, too high temperature will result in changes in the crystal form of nanocrystals, which lead to increase surface defects or excess, and decrease fluorescence intensity and quantum yield of nanocrystals. Choosing the right reaction temperature is also crucial.

2.2.4 The dosage of ligand

The long-term stability of nude Ag₂S NPs is not ideal. Therefore, the ligand molecules are generally added as stabilizer to modify Ag₂S NPs in the process of reaction, to enhance its stability and water solubility, which facilitate its late clinical application in vivo. Besides, the ligand molecules in the reaction also play the role of end-capping reagent, controlling the size of the product nanoparticles.

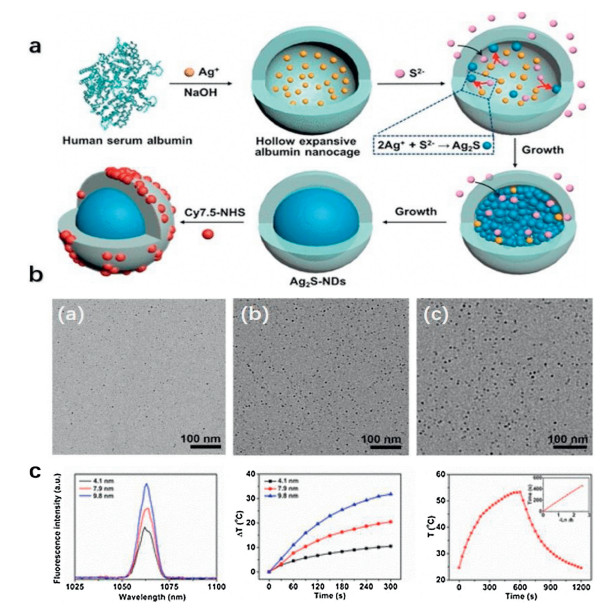

Xu et al. exploited a novel one-pot procedure to generate sizeadjustable Ag₂S NPs by pyrolyzed single precursor Ag[S₂P(OR)₂], where R = C_nH_2n+1 and n value varies from 5 to 20 [136]. In the experiment, Ag₂S NPs of different sizes were synthesized by controlling different n values (n = 8, 12, and 16). As depicted in results, the particle sizes are tunable due to alter the value of "n". According to references [137, 138], the same conclusion that particle size increases with the increase of ligand molecule dosage or concentration can be drawn. The increase of the amount of ligand molecule provides more opportunities to react with the surface groups of Ag₂S NPs, thus leading to more adsorption on the surface of nanoparticles, which not only increases the particle size of nanoparticles, but also reduces the surface defects of nanoparticles, and improves their fluorescence intensity and quantum yield. However, from the introduction of part 3, we realized that the size of nanoparticles is inversely proportional to the fluorescence intensity, so controlling the number of ligand molecules can achieve higher diagnostic value.

2.2.5 Other factors

Except for the above factors, the solvent type, pH value, the type and molecular of ligand, and the injection order of ions of the reaction system also have a certain impact on the size of the target particle [135, 139-142]. Controlling different reaction conditions can produce very different results for chemical reactions. For example, Havva Yagci Acar et al. obtained a series of Ag₂S NPs with different sizes by controlling different reaction pH values [143]. The size of the nanoparticles obtained in the weakly alkaline environment (pH 9.0)wasthe smallest, and thelargestin the acidic environment (pH 5.5).

Through the exploration of the above reaction conditions, it is not difficult to summarize the influence of each reaction condition on the size of nanoparticles. Meanwhile, some reported studies have confirmed our conclusion. Jin et al. [115] obtained a series of biocompatible Ag₂S QDs of near-infrared emission by cation exchange method, and detected photoluminescence emission spectra of Ag₂S QDs at different reaction time points. As we said above, with the passage of reaction time, the size of nanoparticles became larger, and the corresponding position of maximum emission peak experienced redshift. Similarly, Pang et al. [74] also obtained a series of Ag₂S QDs with different emission peaks, which again confirmed the relationship between reaction temperature, time and particle size. According to reference [110], the effect of the Ag/S ratio on particle sizes is also consistent with the above conclusions.

3 Nanoparticles with different sizes for photothermal therapy

Less

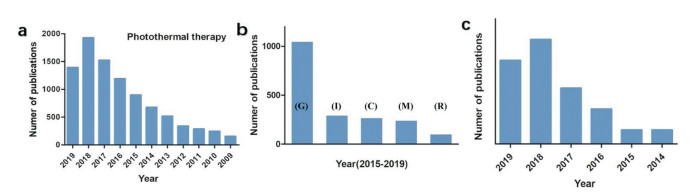

Photothermal therapy, as a novel tumor treatment method, is expected to become another tumor treatment method with great potential after surgical resection, radiotherapy and chemotherapy due to its noninvasive treatment, low level of systemic side effects, and the conquest of chemotherapy drug resistance at tumor sites [144-151]. Recently, there are more and more researches about photothermal materials, among which gold nanomaterials are the main ones (Figs. 6a and b). However, due to the high cost, poor photothermal stability and biometabolicity in vivo of gold nanomaterials, many other photothermal materials have emerged in recent years. Among them, metal-sulfur compounds, such as CuS and Ag₂S, have become the new research hotspot of photothermal materials because of their low cost, good photothermal stability, low cytotoxicity and controllability of particle size morphology [18]. While, compared with CuS materials with the higher basal heat, Ag₂S has better biocompatibility, biometabolicity, lower toxic and side effects, and higher photothermal conversion efficiency. Therefore, more and more researchers are turning their attention to the photothermal effects of Ag₂S in recent years (Fig. 6c).

3.1 Ag₂S quantum dots

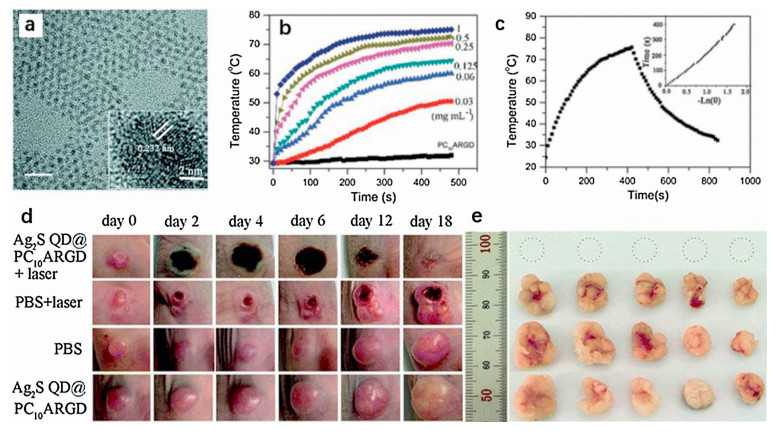

A nanoparticle is called a quantum dot when its size is no larger than twice the Bohr radius. Therefore, the Ag₂S quantum dots discussed in this section are less than 4.5 nm in size [134]. Initially, Ag₂S quantum dots were mainly used for near-infrared imaging, but with the continuous research, some Ag₂S quantum dots began to be used for photothermal treatment. In 2016, Cai et al. [109] developed a straightforward method to directly synthesize watersoluble Apt43-Ag₂S QDs with 2.5 nm. As shown in Fig. 7a, the temperature of Apt43-Ag₂S QDs solution (100 μg/mL) can be elevated by almost 30 ℃ irradiated by 808 nm laser (1.0 W/cm², 12 min). The QDs exhibited concentration-dependent and powerdependent photothermal effect, good photothermal conversion efficiency (23.8%) and excellent photothermal stability (Figs. 7b and c). After intravenously injected with 250 μL of Ag₂S QDs (400 μg/mL) for 3 h, the tumor-bearing nuked mouse were irradiated by 808 nm laser (1.5 W/cm², 10 min). As shown in Figs. 7d and e, the temperature of the tumor sites reached approximately 52 ℃. And the tumors can be effectually ablated with no longer growth (Figs. 7f–h). Later, Chen and co-workers [120] synthesized Ag₂S nanodots (4.1 nm) by biomineralization (Fig. 8a), which had good photothermal conversion efficiencies (33.7%–35.0%). In 2018, Liu et al. [65] developed a multifunctional Ag₂S QD@PC₁₀ARGD hybrid nanogel with high QY (4.3%). In this study, the temperature of nanogel solution contained 4.5 nm Ag₂S QDs (1.0 mg/mL, Ag⁺ ions) increased significantly compared with he PC₁₀ARGD aqueous solution with an 810 nm laser (2.5 W/cm², 8 min) (Figs. 9a and b), and nanogel showed good photothermal conversion efficiency (Fig. 9c). The temperature of tumor sites reach up to 60.7 ℃ rapidly under the irradiation of 810 nm laser (2.5 W/cm², 2 min), which can effectively scald tumor tissue (Figs. 9d and e). Zhu et al. [116] fabricated a versatile nano platform, inwhich Ag₂S as the diagnostic agent and photothermal agent, was synthesized on mesoporous silica by in situ growth method. The multifunctional Ag₂S@HMSs-A7R displayed a great photothermal effect. The temperature increased to roughly 54.3 ℃ in tumor sites under irradiated by 808 nm laser (1.0 W/cm², 10 min), which was enough to kill the tumor cells.

3.2 Ag₂S nanosphere

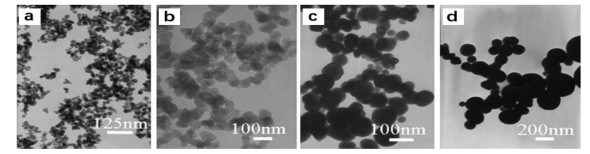

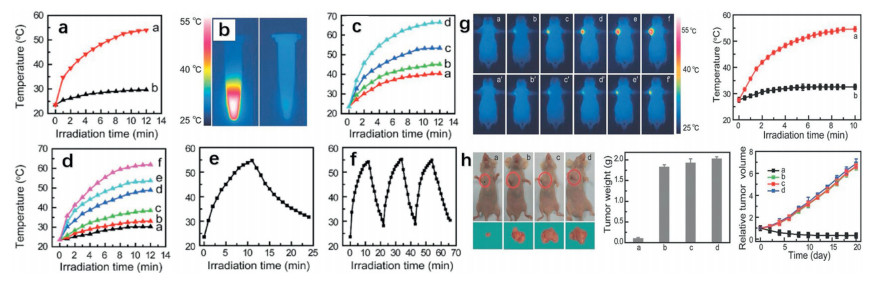

In addition to Ag₂S quantum dots, Ag₂S nanospheres of a certain size show better photothermal effects. In 2018, Zhao's group [152] constructed a multifunctional co-delivery drug and gene nanoplatform, in which Ag₂S acts as a fluorescent tracer and photothermal agent. In this work, the particle size of Ag₂S NPs is 6.5 nm, with a good photothermal effect. The nude mice bearing tumor (group V) were injected with 50 μL of nanoprobe (20 mg/mL) intratumorally and irradiated by 808 nm laser (2.0 W/cm², 10 min) at 24 h post-injection. The temperature of the tumor site reached 54.4 ℃, and the effect of anti-tumor is the most effective. What is more, Chen and co-workers [120] also synthesized Ag₂S nanodots of 7.5 nm and 9.8 nm by biomineralization (Fig. 8b), which had similar photothermal conversion efficiencies (33.7%–35.0%). Meanwhile, those nanodots have been revealed a size-dependent photothermal effect. Among them, 9.8 nm Ag₂S shows better photothermal effect, as described in Fig. 8c. Then, they studied the antitumor effect of 9.8 nm Ag₂S-NDs in vivo. Different doses of Ag⁺ (10.0, 30.0 and 50.0 μmol/kg) were injected to the tumor-bearing mice, followed by irradiated by 785 nm laser (1.5 W/cm², 5 min) at 24 h after the first injection. The temperature elevation of the maximum dose at tumor sites is about ~19.0 ℃, which resulted in completely tumor ablation without recurrence. In 2015, Chen et al. obtained Ag₂S nanomaterials with particle size of ~100 nm. The nanoparticle had an excellent photothermal conversion efficiency (reach up to 63%) and showed a great photothermal property [126].

3.3 Other morphologies of Ag₂S

So far, the photothermal effect of spherical Ag₂S NPs has been confirmed by some researchers, but the application of other morphologies of Ag₂S NPs in photothermal therapy has not been reported. Nevertheless, inspired by other photothermal nanomaterials (like Au) with different morphologies, it also reminds us that there is still a lot of work to be done to make the best use of Ag₂S materials.

4 The fluorescence characteristics of Ag₂S NPs with different sizes

Less

The early researches of Ag₂S materials are mainly focused on photo-electrochemistry, biosensor, and catalytic application [123, 153-158]. Although Ag₂S with different sizes have been synthesized and the concept of Ag₂S quantum dots has even been proposed [159], the fluorescence characteristics of Ag₂S materials were first reported until 2010 [121]. Wang et al. synthesized Ag₂S QDs with uniform sizes by thermal decompose the single precursor of Ag (DDTC) and studied its near-infrared fluorescence emission characteristics. Hence, the door for the use of Ag₂S nanomaterials in near-infrared imaging was opened. Recently, there are more and more reports on near-infrared fluorescence imaging of Ag₂S nanomaterials. Efforts have been made to prepare Ag₂S QDs with stronger fluorescence signals, higher quantum yield and better crystal quality [89, 125, 160, 161]. In this section, we summarized the fluorescence characteristics of Ag₂S NPs with different sizes.

4.1 The position of emission peak

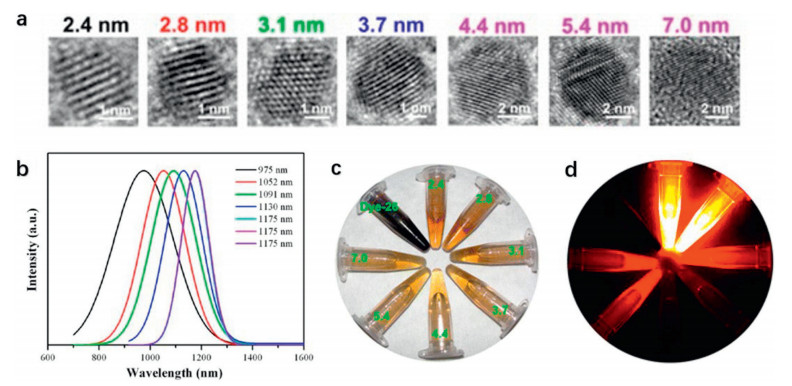

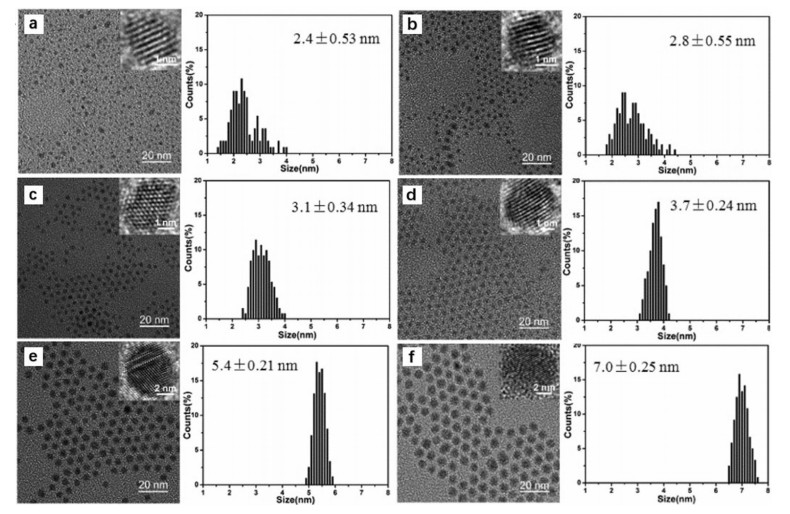

Wang's group proposed the NIR-II fluorescence of Ag₂S firstly, and they also have done a lot of work on Ag₂S nanomaterials. In 2014, Wang et al. synthesized a battery of high-quality Ag₂S QDs successfully by means of pyrolysis of single-source precursor of Ag (DDTC), as shown in Fig. 10a [134]. The particle from 2.4 nm to 7.0 nm exhibited a size-dependent for optical characteristics. The maximum emission peak of Ag₂S QDs shifted from 975 nm to 1175 nm (Fig. 10b). H. Yagci Acar et al. presented a simple, one-step method synthesis of biocompatible Ag₂S-PEG QDs in 2016 [162]. In this study, Ag₂S QDs with different particle sizes from 2.2 nm to 2.6 nm were obtained by controlling diverse reactant ratios. As described in the results, the maximum emission peak can be tuned from 775 nm to 915 nm with the increase of nanoparticles.

Cai et al. successfully synthesized Apt43-Ag₂S QDs of the sizes ~2.5, 3.1 and 4.4 nm, whose photoluminescence emission correspondingly displays symmetric emission peaks at ~978, 1072 and 1179 nm [120]. In 2017, I. Gusev et al. reviewed a series of Ag₂S NPs with different sizes and summarized their fluorescence emission spectrum. As shown in Figs. 11a and b, the photoluminescence emission peaks tunable from ~640 nm to 1176 nm with the sizes of Ag₂S QDs increase from 1.5 nm to 15± 3 nm [163, 164]. Another work, water-soluble Ag₂S QDs with different sizes were one-pot synthesized, and their emission peaks tunable from 1050 nm to 1294 nm with the sizes change from 1.6 nm to 6.8 nm [112]. In 2011, Pang et al. presented two different sizes Ag₂S QDs of 1.5 nm and 4.6 nm which have a tunable emission from690 nm to 1227 nm [74]. Subsequently, they reported a series of Ag₂S QDs with a tunable emission from 510 nm to 1221 nm by increasing the sizes of Ag₂S QDs from 1.5±1.1 nm to 6.3±1.7 nm [132]. In summary, within a certainrange(< 4.5 nm), the smaller the particle size, the shorter the wavelength of maximum emission peak. While the size of nanoparticles continues to increase (< 40 nm), the position of the maximum emission peak is no longer red shifted. The same phenomenon has been widely reported in other researchers' work [100, 102, 110, 165].

4.2 The intensity of photoluminescence

From the discussion in the previous part, we have known the relationship between the particle size and the position of emission peak. In this section, we will discuss the effect of nanoparticle size on fluorescence signal intensity.

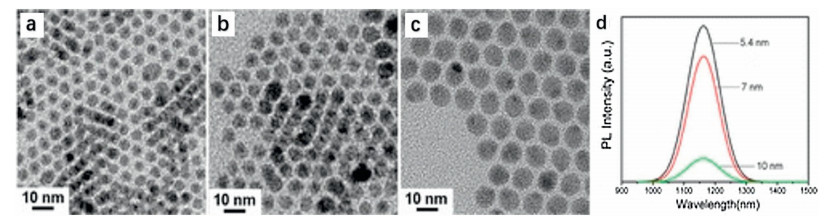

Wang et al. synthesized Ag₂S QDs with different sizes that have different fluorescence intensity, as described in Figs. 10c and d. The images appear to show that the smaller the particle size (particle size less than 4.4 nm), the stronger the intensity of photoluminescence. However, when the particle size is larger than 4.4 nm and smaller than 7.0 nm, the signal intensity of nanoparticles increases slightly. The same conclusion can be drawn from their previous work (Fig. 12) [166]. I. Gusev et al. also studied Ag₂S materials with different particle sizes, and the photoluminescence intensity showed the same trend (Fig. 11c). The fluorescence signal intensity of Ag₂S NPs with different sizes synthesized by H. Yagci Acar et al. also decreased with the increase of particle size, but the fluorescence intensity of nanoparticles with the smallest particle size was the smallest, which may be attributed to the serious surface defects. Most recently, Wang et al. proposed a new solvent tailored strategy to synthesize ultrasmall Ag₂S QDs with strong NIR-II luminescence. In their works, they prepared a number of Ag₂S QDs with different particle sizes in different reaction solvent [Oam: (a1) 8.3 + 1.8 nm, (a2) 7.8 + 1.0 nm, (a3) 6.5 + 0.7 nm; DDT: (b1) 9.0 + 1.5 nm, (b2) 5.5 + 0.7 nm, (b3) 5.0 + 0.6 nm; Glycerin: (c1) 8.1 + 1.1 nm, (c2) 5.4 + 0.9 nm, (c3) 3.7 + 0.6 nm], and compared their fluorescence spectrum [167]. It is not difficult to see from the experimental results that the intensity of the maximum emission peak has a negative correlation to the particle size.

5 Safety evaluation of Ag₂S materials

Less

As for the biosafety evaluation of Ag₂S materials, it does not contain harmful ions like other sulfur compounds, such as PdS, CdS, CdSe. Besides, it is reported that Ag₂S QDs did not show any cytotoxicity or DNA damage to V97 cells within the allowable range of the medically relevant dose [168]. Ag₂S QDs did not change the apoptosis of cells and had a good biocompatibility. Meanwhile, the solubility product constant of Ag₂S is ultralow (K_sp = 6.3×10^-50), and the amount of Ag ions released into the biological environment in the body is minimum, which also ensures its biosecurity [169, 170]. Also, Ag⁺ also has an antibacterial effect, which can inhibit bacterial infection and proliferation to a certain extent in vitro experiments, belonging to environmentally friendly materials [171, 172].

In addition to the safety guarantee of nanoparticles themselves, surface modification can further enhance their biocompatibility and biosecurity [173]. For example, some Ag₂S NPs synthesized in the organic phase have poor water solubility, which can be modified by some hydrophilic ligands, such as PEG, PVP, protein, to facilitate in vivo and in vitro experiments. What is more, modification of some active targeting ligands can improve the focus targeting of nanoparticles, thereby shortening their circulation time in vivo, reducing the release of metal ions in vivo, and avoiding their accumulation of toxic and side effects in other organs, so that they can play a faster, more and more effective therapeutic effect. Several types of functionalized Ag₂S NPs are shown in Table 3 [65, 99, 100, 104, 108-111, 113, 174-181].

6 Conclusions and challenges

Less

Theranostics integrates the functions of diagnosis and treatment, so it has obvious advantages over a single diagnosis or treatment. Ag₂S can emit fluorescence in the form of light energy and also can raise the temperature in the form of heat energy to release absorbed energy after absorbing near-infrared light. The combination of photoacoustic signal and fluorescence characteristics of Ag₂S can provide better imaging depth, spatial resolution and more accurate anatomical information. At the same time, it can also kill tumor cells by its own photothermal effect. Here, we listed some synthesis methods and influence factors of sizes of Ag₂S nanomaterials briefly. Next, we summarized and compared the photothermal effects and fluorescence characteristics of Ag₂S with different particle sizes. It can be seen that the photothermal effect and fluorescence characteristics of Ag₂S NPs are correlated with the particle size. Namely, within a certain size range (< 100 nm), the photothermal effect of Ag₂S NPs is directly proportional to the particle size, and there is a dependence of concentration, laser power and irradiation time. Meanwhile, within a certain range of particle size (< 4.5 nm), the fluorescence emission peak redshifts with the increase of particle size, and the intensity of fluorescence emission peak first increases and then decreasesin the range of particle size (< 40 nm). Currently, there are many studies on using Ag₂S QDs for NIR-II imaging, but relatively few reports on photothermal therapy of Ag₂S. Hence, the value and application of Ag₂S will be fully utilized if the above two are well combined. So it is very important to synthesize Ag₂S NPs with appropriate size, which can better play the role of single-component theranostic agents.

Although Ag₂S is a powerful single-component theranostic agent, there are still some challenges. Firstly, Ag₂S kill tumor tissue mainly through photothermal effect, which has noninvasive and good compliance. However, due to the threedimensional distribution of tumor internal temperature, it is difficult to completely eliminate tumor tissue by photothermal therapy alone, which will lead to tumor recurrence or metastasis. Therefore, it is suggested that photothermal therapy could be combined with other therapies, such as chemotherapy or immunotherapy, to achieve a thorough therapeutic effect. Secondly, small animal near-infrared imaging equipment in NIR-II is not yet common, which also brings some limitations to relevant studies, and the clinical application in the later stage will also face a long way to go. Fortunately, 3D live animal imaging technology combining NIR-II imaging and photoacoustic imaging has appeared in the market, and its application prospect is quite broad. Meanwhile, there are more and more researches on the second and third region of near-infrared, and it is believed that the equipment problem will be solved soon in the future. This means that fluorescence combined with photoacoustic imaging for clinical diagnosis is expected. In conclusion, Ag₂S NPs has great potential to become a new single-component theranostic agent and an excellent drug carriers of combination therapy.
