A DFT study of the CO adsorption and oxidation at ZnO surfaces and its implication for CO detection

Full

Zibin Ni, Shenyuan Bao, Xue-Qing Gong^*

Affiliations

Key Laboratory for Advanced Materials, Centre for Computational Chemistry and Research Institute of Industrial Catalysis, School of Chemistry & Molecular Engineering, East China University of Science and Technology, Shanghai 200237, China

Published: 2020-06-15 doi: 10.1016/j.cclet.2019.10.027

Outline

Abstract

Less

Recently, ZnO-based gas sensors have been successfully fabricated and widely studied for their excellent sensitivity and selectivity, especially in CO detection. However, detailed explorations of their mechanisms are rather limited. Herein, aiming at clarifying the sensing mechanism, we carried out density functional theory (DFT) calculations to track down the CO adsorption and oxidation on the ZnO (1010) and (1120) surfaces. The calculated results show that the lattice O of ZnO(1010) is more reactive than that of ZnO(1120) for CO oxidation. From the calculated energetics and structures, the main reaction product on both surfaces can be determined to be CO₂ rather than carbonate. Moreover, the surface conductivity changes during the adsorption and reaction processes of CO were also studied. For both ZnO (1010) and (1120), the conductivity would increase upon CO adsorption and decrease following CO oxidation, in consistence with the reported experimental results. This work can help understand the origins of ZnO-based sensors' performances and the development of novel gas sensors with higher sensitivity and selectivity.

Key words

Density functional theory / ZnO / Gas sensor / CO oxidation / Surface conductivity

Cite this Article

Zibin Ni, Shenyuan Bao, Xue-Qing Gong. A DFT study of the CO adsorption and oxidation at ZnO surfaces and its implication for CO detection[J]. Chinese Chemical Letters, 2020 , 31 (6) : 1674 -1679 . DOI: 10.1016/j.cclet.2019.10.027

Full Text

Less

Carbon monoxide (CO) is a colorless, odorless and nonirritating gas from incomplete combustion of carbon or carbonaceous materials. CO inhalation can lead to serious health problems. For humans, exposure to high concentration of CO gas would cause tissue damage or death [1]. Even under a low concentration, it can also be fatal to humans through long-term exposure [2, 3]. Since it is difficult to notice the existence of CO, real-time effective detection of CO is of paramount importance and development of sensitive gas detector is highly desired.

Among the various gas sensing materials, semiconducting metal oxides (SMO) have been widely investigated due to their high sensitivity, excellent selectivity and low cost [4-7]. In particular, zinc oxide (ZnO) is an excellent candidate for gas sensors with a wide direct bandgap of 3.37 eV, a large exciton binding energy of 60 meV, high electron mobility and excellent stability [8-12]. Recently, great efforts have been made to prepare ZnO materials with special morphologies, doped metal ions, and supported noble metal or semiconductor nanoparticles to enhance their performances as gas sensors in detecting various types of gases, such as CO [13-15], H₂ [16-19], CH₃OH [20, 21], NO₂ [22-24] and H₂S [25-28].

For CO detection, Arukumar et al. prepared a sensitive gas sensor by decorating Au nanoparticles on ZnO hierarchical architectures. The optimized operating temperature was 275 ℃ and the detection range was 5–1000 ppm. By changing the dosage of Au, the operating temperature could be reduced to room temperature with a negligible loss in detection range [13]. Moreover, during the detection process, the conductivity changes of the sensors which can be caused by the adsorption and the oxidation reaction of CO were taken as the detection signals.

Although the sensitivity and selectivity of the ZnO-based CO sensors have been carefully studied, detailed explorations of the mechanism of CO detection are rather limited. In the current work, aiming at obtaining the basic understanding of the fundamental characteristics of the CO detection process, we systematically investigated the CO adsorption and oxidation on the ZnO(1010) and (1120) surfaces via density functional theory (DFT) calculations. In addition, we also calculated the charge carrier concentrations at different stages of the surface processes to learn how the conductivities can change on both the surfaces.

All the calculations were performed on the basis of plane-wave DFT method by using the Vienna ab initio simulation package (VASP) code [29, 30] with the Perdew–Burke–Ernzerhof (PBE) Carbon monoxide (CO) is a colorless, odorless and nonirritating gas from incomplete combustion of carbon or carbonaceous materials. CO inhalation can lead to serious health problems. For humans, exposure to high concentration of CO gas would cause tissue damage or death [1]. Even under a low concentration, it can also be fatal to humans through long-term exposure [2, 3]. Since it is difficult to notice the existence of CO, real-time effective detection of CO is of paramount importance and development of sensitive gas detector is highly desired.

Moreover, during the detection process, the conductivity changes of the sensors which can be caused by the adsorption and the oxidation reaction of CO were taken as the detection signals.

All the calculations were performed on the basis of plane-wave DFT method by using the Vienna ab initio simulation package (VASP) code [29, 30] with the Perdew–Burke–Ernzerhof (PBE) functional [31]. The core–electron interactions were represented by the project-augmented wave method (PAW) [32, 33], and the valence electrons of Zn (3d, 4s), O (2s, 2p) and C (2s, 2p) were treated explicitly employing a plane-wave basis-set with the kinetic energy cutoff of 400 eV. It needs to be mentioned that higher energy cutoff (450 eV) was also tested and its effects on the calculated adsorption structures and energies of CO at ZnO(1010) and (1120) are trivial (< 1%). For structure optimization, the ionic positions were allowed to relax until the forces were less than 0.05 eV/Å. The transition states (TSs) in reactions were located using a constrained optimization scheme [34-36] and were verified when all forces on atoms vanish and the total energy is a maximum along the reaction coordinate but a minimum with respect to the rest of the degrees of freedom.

The ZnO(1010) and (1120) surfaces were modeled by 4×2 and 2×2 surface slabs, respectively. The bottom two layers of both the slabs, which have six atomic layers in total, were kept fixed in all calculations (Fig. S1 in Supporting information). The vacuum between neighboring slabs was set to 15 Å along the z axis. The Brillouin-zone integration was performed using a 2×2×1 Monkhorst–Pack grid for the surfaces. The adsorption energy (E_ads) was calculated as E_ads =-[E_{(adsorbate/slab)}-(E_slab+E_adsorbate)], where E_{(adsorbate/slab)} is the total energy of the interacting system with the surface slab and adsorbate, and E_slab and E_adsorbate are the energies of the separate slab and adsorbate, respectively. Therefore, a positive E_ads indicates that the adsorption process is exothermic, and the more positive the calculated adsorption energy, the stronger the adsorption is.

The exposed low-index surfaces known to dominate the nano-ZnO materials are (1010) and (1120) [37]. We first calculated the E_ads of O₂ at ZnO(1010) and (1120), and the results are 0.09 eV and 0.04 eV, respectively, indicating that O₂ can be hardly captured by these surfaces. Therefore, we can expect that at ZnO(1010) and (1120), the possible O source for CO oxidation should be the lattice O atoms. Then, the adsorption of CO and its further oxidation at these ZnO surfaces were carefully studied.

For the ZnO(1010) surface, as shown in Figs. S1a and b, it exposes three-fold coordinated O (O_3c) and Zn (Zn_3c). Moreover, one can also see that the exposed O_3c and Zn_3c bind with each other as a dimer which then sits side by side to form a protruding row. This provides equivalent chemical environment for each surface Zn_3c, and there is therefore only one type of adsorption site for CO. The corresponding E_ads was calculated to be 0.44 eV and the OC-Zn distance is 2.122 Å (Fig. 1). As it can be seen from Fig. 1a, two different lattice O, namely O_A and O_B from the same dimer and the dimer at the neighboring row, may react with the adsorbed CO. The distances of OC-O_A and OC-O_B were measured to be 3.537 and 2.670 Å, respectively.

Similar to ZnO(1010), the ZnO(1120) surface also exposes protruding rows of O_3c and Zn_3c, though each row exhibits a zigzag configuration rather than that with side-by-side dimers (Fig. S1c and S1d). Nevertheless, all the exposed Zn_3c at ZnO (1120) are also equivalent, and accordingly, there is only one CO adsorption structure (Fig. 1c). The E_ads was calculated to be 0.40 eV and the OC-Zn distance is 2.124 Å. It needs to be mentioned that though ZnO(1120) has only one type of exposed lattice Zn atoms, four surface O_3c with different chemical environment (O_C, O_D, O_E and O_F, Fig. 1c) exist around the adsorbed CO. The distances of OC-O_C, OC-O_D, OC-O_E and OC-O_F were calculated to be 3.414, 3.131, 2.886 and 3.283 Å, respectively. Then, the reactions between CO and these O_3c at ZnO(1010) and ZnO(1120) were systematically studied.

We took the state with CO adsorption as the initial state (IS) of the surface reaction (Fig. 2), after which the adsorbed CO can move towards O_A to combine with it for CO₂ formation. In the transition state (TS1, Fig. 2) located through calculations, the O C-O_A distance decreases from 3.537 Å to 1.808 Å. After TS1, a relatively stable intermediate CO₂ complex was determined (IM1, Fig. 2), in which the bond distance between C and O_A further decreases to 1.401 Å and the O- C-O_A angle was calculated to be 122. In addition, the O_A atom rises by about 0.03 Å in the TS1 and 0.20 Å in the IM1 along the z axis compared to its position in the IS. From the calculated energetics, we can also determine that the energy barrier for the above reaction is 0.34 eV, slightly lower than the CO adsorption energy, and the intermediate state (IM1) is about 0.04 eV more stable than the IS.

In order to form the final product of gas phase CO₂, the bent CO₂ complex of IM1 needs to leave the ZnO(1010) surface. To locate the transition state in this desorption process, a series of calculations were performed by systematically increasing and fixing the z-axis coordinate of O_A away from its position in the IM1. Interestingly, no obvious energy barrier was determined from IM1 to the final state (FS1, Fig. 2) involving gas-phase CO₂ in the typical linear configuration high above the ZnO(1010) which now contains an oxygen vacancy. Furthermore, the FS1 is remarkably stable according to the calculated energies (Fig. 2). So, one may expect that CO oxidation can readily occur through reaction with lattice O_A at ZnO(1010) via the meta-stable CO₂ complex, leaving one oxygen vacancy at the surface.

It needs to be mentioned that surface carbonate species can be observed during the CO oxidation reactions [38], which may hinder the formation of gas-phase CO₂ [39, 40]. So, we also considered the reaction of the intermediate bent CO₂ complex (IM1) with a nearby O_3c atom to form a tridentate carbonate (FS2, Fig. 2). The calculated relative stability of this state is actually 0.23 eV worse than that of IM1 (Fig. 2).

Unlike O_A, the surface O_B stays much closer to the adsorbed CO and the O C-O_B distance is only 2.670 Å in the CO adsorption state, suggesting that it may be more facile for them to combine for reaction. It is interesting that no intermediate bent CO₂ complex was located at this site and the adsorbed CO is directly oxidized to a gas-phase CO₂ (FS3, Fig. S2 in Supporting information) following its combination with O_B. From the determined transition state (TS2, Fig. S2), the corresponding energy barrier of this process was calculated to be as low as 0.09 eV. In addition, at this transition state, the OC-O_B distance was determined to be 1.653 Å and the O-C-O_B angle to be 115. Also from the calculated energetics, FS3 was measured to be 0.20 eV more stable than the CO adsorption state.

On the ZnO(1120) surface, as we have explained, four different types of surface lattice O (O_C-O_F, Fig. 1c) exist beside the adsorbed CO at a Zn_3c. We first calculated the reaction between CO and O_C (Fig. 3). By further shortening the distance between C and O_C, we obtained the transition state (TS3), after which the intermediate state IM2 occurs. At TS3, CO moves towards O_C and the distances of O C-O_C as well as CO-Zn_3c decrease. This transition state obtained for the formation of a bent CO₂ has the structure very similar to that on the ZnO(1010) surface (O_B), and the energy barrier is 0.49 eV and the OC–O_C distance is 1.781 Å. Finally, the bonds of OC-O_C and CO-Zn_3c form in IM2 and the intermediate state has nearly the same stability as the state with the adsorbed CO.

We then continued with our calculation to investigate the further reactions of the bent CO₂ at ZnO(1120). We calculated the direct CO₂ release and again found no energy barrier for the IM2 to evolve to the final state (FS4) with a gas phase CO₂. This is similar to the case at ZnO(1010) that CO₂ pull-out is a barrierless process starting from the surface CO₂ species.

We also investigated the formation of carbonate as the bent CO₂ in IM2 may approach the neighboring O_D. This step is highly exothermic with the final state (FS5) being about 0.56 eV more stable than the IM2 state. Moreover, one can also see that the FS5 state is 0.33 eV more stable than the state with CO₂ occurring in gas phase (FS4). In needs to be mentioned that we also located the transition state for this step (not shown) and obtained the corresponding energy barrier to be as high as 2.99 eV relative to IM2.

Through the same strategy, the pathways of O_D and O_E reactions with the adsorbed CO were also calculated, and the results are illustrated in the energy profiles in Figs. S3 and S4 (Supporting information), respectively. In the transition state (TS4) for the CO to react with O_D, the OC-O_D distance was determined to be 1.280 Å and the O-C-O angle to be 142. The energy barrier was estimated to be as high as 1.36 eV. Similarly, the energy barrier of CO reaction with O_E was calculated to be 1.26 eV, and the OC-O_E distance and O-C-O angle of the transition state (TS5) were determined to be 1.292 Å and 130, respectively. As the reaction of CO oxidation by O_B at ZnO(1010), we found that in both the CO reactions with O_D and O_E, the CO₂ molecule can directly form and desorb from the surface after the transition states.

For the CO oxidation through reaction with O_F, which is just behind the adsorbed CO on the same row, we actually determined the intermediate state with the energy of 0.33 eV higher than that of CO adsorption, indicating that it is hard for CO to undergo the oxidation at this site. So this reaction path was not further investigated.

The resistance (R) of gas sensors is usually taken as the detection signal in applications. During CO adsorption and oxidation, there exists electron transfer between the reactant/ product and the sensor surface, resulting in its electrical property change. In addition, conductance (G) is the reciprocal of R and can be expressed to be G=σA/l, where s is the conductivity and A and l are the cross-sectional area and length of the conductor, respectively. So, G is directly proportional to s. Furthermore, the conductivity of semiconductors can be written as σ=nqμ, where n, q and μ are the concentration, charge and mobility of carriers, respectively [41-43]. There are two types of carriers in semiconductors, which are the free electrons and holes. Specifically, ZnO is a typical n-type semiconductor, which means that its main carriers are the free electrons. Accordingly, the conductivity of the ZnO(1010) and (1120) surfaces can be estimated by σ = n_eq_eμ_e, where n_e, q_e and μ_e are the electron concentration, charge and mobility, respectively [44-47]. In addition, μ_e is the function of temperature only. Consequently, n_e can be taken as the descriptor to learn the trend of the conductivity change at ZnO(1010) and (1120) during the surface processes involving CO.

In this work, n_e in the conduction band is given by as follow:

where N(E) is the density of states for free electrons; f(E) is the probability distribution for Fermions; E is defined as the probability to be occupied by an electron; and k is the Boltzmann constant. Because it is very difficult to solve analytically for f(E), Boltzmann approximation where the denominator is purely exponential has to be used. So n_e is given as follows:

In addition, T is set as 300 K to simulate the practical state of ZnO surface in current work. As shown in Fig. 4 and Table S1 (Supporting information), at ZnO(1010), n_e increases with CO adsorption (IS) and then decreases following its oxidation by surface lattice O (IM, FS), and the same trend was also found at ZnO (1120). Moreover, we also calculated the Bader charges of C and O in CO (C_CO and O_CO), and the average ones of O and Zn in ZnO (O_ZnO and Zn_ZnO) at ZnO(1010) and (1120) (Tables S2 and S3 in Supporting information). The results show that some electrons will transfer from CO to ZnO after CO adsorption, and at IMs, these electrons will back to CO. This trend is consistent with that of n_e at ZnO(1010) and (1120).

In this work, we have performed systematic calculations on CO adsorption and oxidation at ZnO(1010) and (1120), which are the two major surfaces exposed at ZnO nanomaterials, aiming at understanding their performances as gas sensors. Firstly, our calculated results show that the adsorption of O₂ molecule can hardly occur at these clean ZnO surfaces due to the very low adsorption energies, and therefore it may not affect the CO adsorption or induce its oxidation. In fact, the adsorptions of other species like atomic O and CO₂ were also calculated and they were found to be quite weak as well. Therefore, such species will not interfere with the surface processes and detection of CO too. The relatively strong adsorptions of CO were determined with E_ads higher than 0.4 eV at the two surfaces. For ZnO(1010), two different types of O_3c (O_A and O_B, Fig. 1) exist beside the adsorbed CO, which may directly react with it. Our calculated results show that the O_3c at the neighboring ZnO row has much higher activity compared with the one forming the same ZnO dimer with the Zn where the CO sits, though the barriers for the CO reactionwith both the surface lattice O_3c are quite small (0.34 eV for O_A and 0.09 eV for O_B). We found that the O_A-Zn-C angle changes from ~123° in the CO adsorption state to ~51° in TS1, while the O_B-Zn-C angle only slightly changes from ~56° in the CO adsorption state to ~34° in TS2. These results then suggest that O_A is less active because that significant structural distortion is required for it to achieve the transition state with CO.

Compared with ZnO(1010), the ZnO(1120) surface exhibits quite different atomic configurations, though both the surfaces expose Zn_3c and O_3c. Accordingly, at ZnO(1120), there exist four types of O_3c beside the adsorbed CO. Among these O_3c atoms, the one right beside the adsorbed CO on the same side of the Zn_3c-O_3c zig-zag row (O_C) was determined to be the most active one to oxidize CO with the barrier of 0.49 eV only. For the two nearby O_3c that has almost the same chemical environment (O_D and O_E), they performed in a similar way toward CO oxidation. Particularly, for the corresponding transition states of TS4 and TS5, they both occur with the break of the Zn-C bond, which could be the reason for the rather high barriers of the CO oxidation by O_D and O_E.

From the calculated reaction barriers, we can conclude that the O_B and O_C are the most active species at the ZnO(1010) and (1120) surfaces, respectively. Moreover, the O_B species is even more active than O_C (barrier: 0.09 vs. 0.49 eV), suggesting that the ZnO(1010) surface generally exhibits higher catalytic activities than (1120). This difference can be also understood from their bonding configurations. Though both O_B and O_C are three-fold coordinated, the former binds with one unsaturated Zn_3c and two fully coordinated Zn_4c, whereas the latter binds with two unsaturated Zn_3c and one fully coordinated Zn_4c. Considering that unsaturated Zn atoms are clearly much more active than the saturated ones, one can expect that the O_3c at ZnO(1120) would be more strongly bonded by the two Zn_3c, and the relatively weakly bonded O_3c at ZnO(1010) therefore gives higher reactivity.

Additionally, the various products of CO oxidation at ZnO(1010) and (1120) were also investigated. From the calculated energy profiles in Figs. 2 and 3, we are able to tell that once the bent CO₂ species occurs at the surfaces as the intermediate, it is easy to leave the surface as a CO₂ molecule with no obvious barrier. However, it should also be noted that carbonate formation might be competing with the CO₂ desorption. At ZnO(1010), the carbonate species is thermodynamically less stable than the corresponding gas-phase CO₂. This is because that the dangling bonds of the bent CO₂ are too far away from any adjacent O_3c (~3.5 Å) in IM1. So, during the evolution process from IM1 to FS2, it has to break the original OC—O bond together with a serious surface distortion. Thus, FS2 is not so stable as FS1. By contrast, at ZnO(1120), the carbonate species is much more stable than the gas-phase CO₂, largely because that no obvious structural distortion occurs after the formation of the carbonate species (FS5) and almost all the rest of surface atoms in FS5 keep their original positions. However, because the original OC—Zn bonds still need to be broken and the new surface bonds will be formed during the formation of carbonate species, there exists a relatively high barrier (2.99 eV) from IM2 to FS5. Thus, at ZnO(1120), it is hard to form the carbonate species during the CO oxidation, and CO₂ is indeed the main product of CO oxidation at both ZnO(1010) and (1120)

Furthermore, the detection signals (resistances) of ZnO-based sensors in practical applications were studied via the calculated electron concentrations of ZnO(1010) and (1120) during CO adsorption and oxidation. First of all, the n_e of clean ZnO(1010) and (1120) were determined as zero, being consistent with previous theoretical and experimental studies [48, 49]. Then, after CO adsorption, the n_e would drastically increase to ~10²¹ cm^-3 and decrease to ~10¹⁸ cm^-3 during oxidation processes, which are also close to the determined n_e of doped ZnO materials [50, 51]. It was mainly caused by electrons transferring from CO to ZnO during adsorption processes and back to CO (to form CO₂) in oxidation reaction. As mentioned above, the resistance is inversely proportional to the electron concentration. So, in practical applications, the detection signal (R) will continuously decrease once the ZnO-based sensor are exposed to the air with some amount of CO, due to the adsorption and oxidation of CO; and when these processes reach equilibrium, the signal will become stable. Finally, after cutting off the CO source, the surface oxidation reaction by oxygen in the air would fully recover its stoichiometry so that the signal will increase. This trend is in fact consistent with the reported experiment results [6, 13-15].

In this work, we have performed DFT calculations to study the interactions between CO molecules and lattice oxygen of ZnO (1010) and (1120) surfaces. These reactions are closely related to the performance of ZnO-based materials as the CO gas sensors. Our calculations show that the surface lattice O can be directly involved in CO oxidation. We determined that the under-coordinated O_3c of ZnO(1010) is more reactive compared to that of ZnO(1120). As the direct product of this combination reaction, the surface CO₂ complex can readily leave the surfaces without any obvious barrier. The barriers of the whole reaction pathways are all relatively low, which indicates that ZnO-based CO sensors can work at relatively low temperatures. Besides, we also found that the formation of the surface carbonate species through further reaction of the CO₂ complex with the surface O is rather difficult, suggesting that the effects of carbonate formation would be insignificant at this surface in competition with gas-phase CO₂ formation. Moreover, the calculated free electron concentrations were utilized to estimate the conductivity changes of the surfaces at different stages of the surface processes, and their variation trend shows that the conductivities (or resistances) can be indeed taken as the signals for CO detection.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by National Key R & D Program of China (No. 2018YFA0208602), National Natural Science Foundation of China (Nos. 21825301, 21573067, 21421004) and Program of Shanghai Academic Research Leader (No. 17XD1401400). The authors also thank the National Super Computing Center in Jinan for the computing time.

Appendix A. Supplementary data

Less

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2019.10.027.

References

Less

[1]

P. Rodlamul, S. Tamura, N. Imanaka, J. Ceram. Soc. Jpn. 126(2018) 750-754.

[2]

World Health Organization, WHO Guidelines for Indoor Air Quality: Selected Pollutants, (2010).

[3]

K.Z. Qi, G.C. Wang, W.J. Zheng, Surf. Sci. 614(2013) 53-63.

[4]

D. Punetha, S.K. Pandey, IEEE Sens. J. 19(2019) 2450-2457.

[5]

T. Nandy, R.A. Coutu, C. Ababei, Sensors 18 (2018) 3443.

[6]

J.K. Lee, W.S. Lee, W.I. Lee, et al., Phys. Status Solidi A. 215(2018) 1700929.

[7]

M. Hjiri, L. El Mir, S.G. Leonardi, et al., Sens. Actuators B-Chem. 196(2014) 413-420.

[8]

L. Zhu, W. Zeng, Sens. Actuators A-Phys. 267(2017) 242-261.

[9]

K.Z. Qi, X.H. Xing, A. Zada, et al., Ceram. Int. 46(2020) 1494-1502.

[10]

K.Z. Qi, B. Cheng, J.G. Yu, W.K. Ho, J. Alloys. Compd. 727(2017) 792-820.

[11]

K.Z. Qi, Q. Qin, X.C. Duan, et al., Chem. Eur. J. 20(2014) 9012-9017.

[12]

K.Z. Qi, J.Q. Yang, J.Q. Fu, et al., CrystEngComm 15(2013) 6729-6735.

[13]

S. Arunkumar, T. Hou, Y. Kim, et al., Sens. Actuators B-Chem. 243(2017) 990-1001.

[14]

R. Dhahri, M. Hjiri, L. El Mir, et al., J. Phys. D Appl. Phys. 49(2016) 135502.

[15]

X. Pan, X. Zhao, Sensors 15(2015) 8919-8930.

[16]

O. Lupan, V. Cretu, V. Postica, et al., Sens. Actuators B-Chem. 223(2016) 893-903.

[17]

K. Yadav, S.K. Gahlaut, B.R. Mehta, J.P. Singh, Appl. Phys. Lett. 108 (2016) 071602.

[18]

S.M. Mohammad, Z. Hassan, R.A. Talib, et al., J. Mater. Sci. 27(2016) 9461-9469.

[19]

S.W. Fan, A.K. Srivastava, V.P. Dravid, Appl. Phys. Lett. 95(2009) 142106.

[20]

R. Paulraj, P. Shankar, G.K. Mani, L. Nallathambi, J.B.B. Rayappan, J.Mater. Sci. 28(2017) 10799-10805.

[21]

T.Y. Tiong, C.F. Dee, A.A. Hamzah, B.Y. Majlis, S.A. Rahman, Sens. Actuators BChem. 202(2014) 1322-1332.

[22]

J. Wang, X. Li, Y. Xia, et al., ACS Appl. Mater. Interfaces 8(2016) 8600-8607.

[23]

M.R. Alenezi, S.J. Henley, N.G. Emerson, S.R.P. Silva, Nanoscale 6(2014) 235-247.

[24]

L.M. Yu, F. Guo, S. Liu, et al., J. Alloys. Compd. 682(2016) 352-356.

[25]

A. Gusain, N.J. Joshi, P.V. Varde, D.K. Aswal, Sens. Actuators B-Chem. 239(2017) 734-745.

[26]

B.H. Zhang, M. Li, Z.L. Song, et al., Sens. Actuators B-Chem. 249(2017) 558-563.

[27]

Z.S. Hosseini, A. Irajizad, A. Mortezaali, Sens. Actuators B-Chem. 207(2015) 865-871.

[28]

J.F. Deng, Q.Y. Fu, W. Luo, et al., Sens. Actuators B-Chem. 224(2016) 153-158.

[29]

G. Kresse, J. Hafner, Phys. Rev. B 47(1993) 558-561.

[30]

G. Kresse, J. Hafner, Phys. Rev. B 49(1994) 14251-14269.

[31]

J.P. Perdew, K. Burke, M. Ernzerhof, Phys. Rev. Lett. 77(1996) 3865-3868.

[32]

P.E. Blochl, Phys. Rev. B 50(1994) 17953-17979.

[33]

G. Kresse, D. Joubert, Phys. Rev. B 59(1999) 1758-1775.

[34]

A. Alavi, P. Hu, T. Deutsch, P.L. Silvestrelli, J. Hutter, Phys. Rev. Lett. 80(1998) 3650-3653.

[35]

D. Wang, J. Jiang, H.F. Wang, P. Hu, ACS Catal. 6(2015) 733-741.

[36]

H.F. Wang, Z.P. Liu, J. Am. Chem. Soc. 130(2008) 10996-11004.

[37]

D.J. Cooke, A. Marmier, S.C. Parker, J. Phys. Chem. B 110(2006) 7985-7991.

[38]

T. Arai, K. Maruya, K. Domen, T. Onishi, Chem. Lett. 1(1989) 47-50.

[39]

Y. Madier, C. Descorme, A.M. Le Govic, D. Duprez, J. Phys. Chem. B 103(1999) 10999-11006.

[40]

M.Boaro, F.Giordano, S.Recchia, etal., Appl.Catal.BEnviron.52(2004)225-237.

[41]

J.M. Ziman, Principles of The Theory of Solids, World Book Inc, Beijing, 2009.

[42]

S. Mehraeen, V. Coropceanu, J.L. Bredas, Phys. Rev. B 87 (2013) 195209.

[43]

J.P. Heremans, B. Wiendlocha, A.M. Chamoire, Energ. Environ. Sci. 5(2012) 5510-5530.

[44]

M. Boujnah, M. Boumdyan, S. Naji, et al., J. Alloys. Compd. 671(2016) 560-565.

[45]

Q.Y. Hou, J.J. Li, C.W. Zhao, C. Ying, Y. Zhang, Physica B 406(2011) 1956-1960.

[46]

D. Fruchart, V.A. Romaka, Y.V. Stadnyk, et al., J. Alloys. Compd. 438(2007) 8-14.

[47]

T. Yamamoto, Phys. Status Solidi 193(2002) 423-433.

[48]

M. Saha, S. Ghosh, V.D. Ashok, S.K. De, Phys. Chem. Chem. Phys. 17(2015) 16067-16079.

[49]

A. Nakrela, N. Benramdane, A. Bouzidi, et al., Results Phys. 6(2016) 133-138.

[50]

Z.H. Wang, Z.W. Tian, D.M. Han, F.B. Gu, ACS Appl. Mater. Interfaces 8(2016) 5466-5474.

[51]

D. Gaspar, L. Pereira, K. Gehrke, et al., Sol. Energy Mater. Sol. Cells 163(2017) 255-262.

Appendix

Less

Year 2020 volume 31 Issue 6

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2019.10.027

Receive Date：2019-09-07
Online Date：2026-01-31
Published：2020-06-15

Article Data

Affiliations

History

Received：2019-09-07
Revised：2019-10-20
Accepted：2019-10-22

Affiliations

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2019.10.027

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

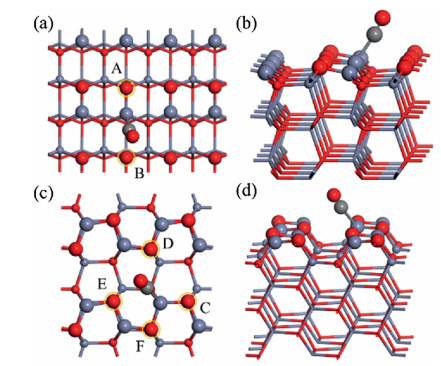

Fig. 1 Calculated structures of CO adsorption on the ZnO(1010) and (1120) surfaces from (a, c) top and (b, d) side views. The gray ball represents C. The red and purple balls represent O and Zn on the surfaces, while the atoms in the subsurface and bulk areas are plotted in small-ball and stick modes, respectively.

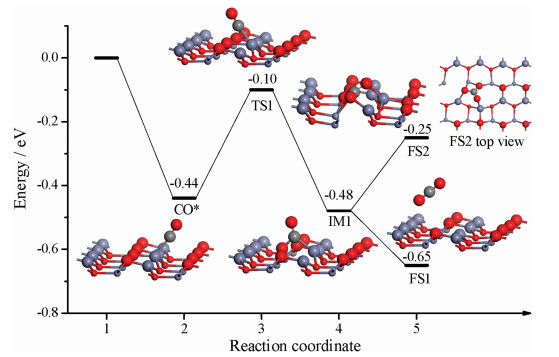

Fig. 2 Calculated energy profile of CO oxidation by OA at ZnO(1010). The system with non-interacting surface and CO is set to zero in the energy bar.

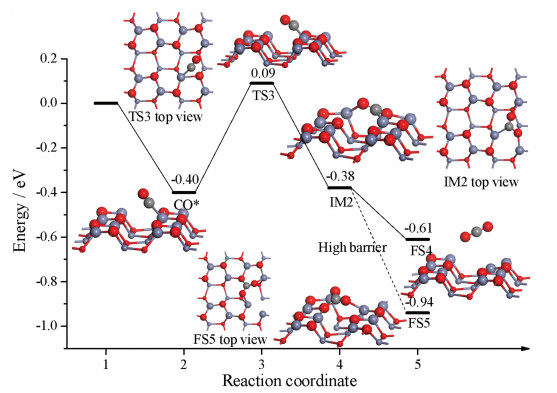

Fig. 3 Calculated energy profile of CO oxidation by OC at the ZnO(1120).

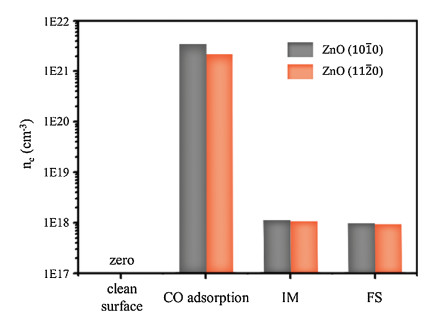

Fig. 4 Calculated n_e at ZnO(1010) and (1120) at different reaction stages.
