Palladium-catalyzed meta-C-H bond iodination of arenes with I₂

Full

Min Liu^a^,^c^,^b, Ling-Jun Li^a^,^c^,^b, Jun Zhang^d^,^b, Hui Xu^a^,^c^,^b^,^*, Hui-Xiong Dai^a^,^c^,^b^,^*

Affiliations

^a Chinese Academy of Sciences Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Shanghai 201203, China

^b State Key Laboratory of Natural and Biomimetic Drugs, Peking University, Beijing 100191, China

^c University of Chinese Academy of Sciences, Beijing 100049, China

^d School of Pharmaceutical Science, Shanxi Medical University, Taiyuan 030001, China

Published: 2020-05-15 doi: 10.1016/j.cclet.2019.09.057

Outline

Abstract

Less

Palladium-catalyzed highly meta-selective C -H iodination of phenylacetic acid, benzylphosphonate and benzylsulfonate scaffolds with molecular I₂ is developed using a pyridine-type template. The practical ester linkages enable the directing template easily installed and readily removed. The substrate scope is broad, and alkyl, methoxyl, trifluomethyl, and halo substituents are compatible with this reaction. Further transformations of ibuprofen iodide intermediates by Pd-catalyzed C -C and C-heteroatom bond formation illustrate the broad utility of this method.

Key words

Palladium catalysis / meta-C -H iodination / Pyridine-based template / Practical ester linkages / Molecular I₂

Cite this Article

Min Liu, Ling-Jun Li, Jun Zhang, Hui Xu, Hui-Xiong Dai. Palladium-catalyzed meta-C-H bond iodination of arenes with I₂[J]. Chinese Chemical Letters, 2020 , 31 (5) : 1301 -1304 . DOI: 10.1016/j.cclet.2019.09.057

Full Text

Less

Aryl iodides are widely utilized as important starting materials in organic chemistry and pharmaceutical drug syntheses [1]. Many synthetic methods have been developed for the construction of aryl iodide, and metal-catalyzed C—H iodination of arene is the most straightforward way [2]. Assisted by a directing group, Pd [3], Rh [4], Ru [5], Cu [6], Ni [7], and Co [8] have been adopted in the ortho-C—H iodination of arenes. Athough Pd-catalyzed meta-C—H chlorination using norbornene as the mediator and Ru-catalyzed meta-C—H bromination via electronic effects have been reported [9, 10], meta-C—H iodination has been less explored. The rational design of a directing group with proper distance and geometry plays an important role to recognize the remote C—H bonds [11, 12]. Recently, Yu elegantly designed pyridine-containing templates and realized the palladium-catalyzed meta-C—H iodination of benzyl and phenyl ethyl alcohols by using 1, 3- diiodo-5, 5-dimethylhydantoin (DIH) as the iodinating source [13] (Scheme 1a). Due to the high importance of the phenylacetic acid in organic synthesis and drug molecules, Yu subsequently applied this strategy to phenylacetic acid with the template anchoring into the substrates through an amide linkage [14] (Scheme 1b).

Using the inexpensive and milder molecular I₂ as iodinating reagent has become an attractable alternative in metal-catalyzed C—H iodination. In 2013, Yu reported the Pd-catalyzed ortho-C—H iodination of benzamides and phenylacetic amides using I₂ as the sole oxidant [3a]. Subsequently, Chatani and Koley realized the Nicatalyzed ortho-C—H iodination of benzamides with molecular I₂ [7]. Very recently, Chatani reported Co-catalyzed chelationassisted ortho-C—H iodination of benzamides with molecular I₂ as an iodinating reagent and Ag₂CO₃ as the oxidant [8]. Prompted by these reports and our recent achievement in meta-C—H deuteration of arenes [15], we questioned whether we could realize the meta-C—H iodination by using molecular I₂ as the iodinating source. Herein, we reported the template-directed meta-C—H iodination of phenylacetic acid, benzylphosphonate, and benzylsulfonate scaffolds by using molecular I₂ (Scheme 1c). Considering that the directing group should be easily installed and readily removed for bioactive molecules, we anchored the template into the substrates through a practical ester linkage.

We began our investigation by testing the meta-C—H iodination of phenylacetic acid containing a variety of 3-subsituted pyridine based templates (Table 1). When simple pyridyl moiety in substrate 1 is subjected to meta-C—Hiodination, only < 5%yields of iodination product could be formed (entry 1). It was possible that the coordination of pyridine with Pd(Ⅱ) was too strong to form reactive complex. Introduce a methyl group at 6 position could improve the yields slightly to 25% (entry 2). Pyrimidine-based template has been recently explored by Maiti in Pd-catalyzed meta-C–H functionalizations [12]. When we change the heterocycle from pyridine to pyrimidine, the yields improve to 60% with 54% mono and 6% di (entry 3). Tuning the coordination ability by incorporation an electron-withdrawing fluoro group at the C-2 and C-6 position of the pyridine ring lead to improved yields, and 2-fluoro-3-pyridyl template T⁶ showed the highest yield and meta-selectivity (entries 4–6). Among other silver salts, Ag₂O showed comparable results to AgOAc with 82% yields (entries 7–9). Lowering the reaction temperature lead to the decreased yield of iodinated product (entries 10–12).

With the optimized reaction conditions in hand, we turned our attention to investigate the phenylacetic acid scope (Scheme 2). meta-C—H iodination of phenylacetic acid provided the desired products 2a in 81% isolated yields (62% mono and 19% di) with high regioselectivity. Phenylacetic acid containing electron-donating methyl, methoxyl group at the 2-, 3- or 4-position position could be iodinated to give the corresponding products in moderate to good yields with excellect meta ratio (2b, 2c, 2f, 2j). It is worth noting that substrates containing electron-withdrawing fluoro, chloro, iodo and even trifluoromethyl groups could react with I₂, giving the corresponding products with good to moderate yields (2d, 2e, 2g, 2i, 2k, 2l). The halide groups in products are useful handle for further structural elaborations. For 2, 3- or 2, 4- disubstituted phenylacetic acids, C—H iodination occurred mainly at the less hindered positions with moderate to good yields (2m-2o). Furthermore, α-alkyl, cycloalkyl, heteroatom substituted phenylacetic acids were also compatible in this reaction (2p-2s, 2w, 2x). The versatility of this protocol was further validated by meta-C—H iodination of cyclic substrates (2u, 2v). Ibuprofen derivative can also be meta-iodinated to give the corresponding mono iodinated product in 60% yield with meta/others > 20/1 (2t). The regioselectivity of product 2t was determined by NOE analysis.

Benzylphosphonate and benzylsulfonate substrates are common structural motifs and useful synthons in organic chemistry [16]. To demonstrate the broad utility of this methodology, we subjected the substrates 1y and 1z to the meta-C—H iodination conditions. The corresponding product 2y and 2z could be obtained in 56% and 58% yields respectively (Scheme 3).

We also applied this protocol for gram-scale reaction using ibuprofen derivative 1t under the standard condition, giving the desired product 2t in 73% isolated yields (Scheme 4).

meta-C—H iodinated products are versatile step stone for further functionalization at meta positions of arenes. For example, iodinated ibuprofen derivative 2t could be converted to a diverse range of meta-substituted ibuprofen ester by alcoholysis and subsequently Pd-catalyzed cross-coupling reactions, illustrating the broad utility of this methodology (Scheme 5).

Finally, the template could be easily removed by hydrolysis of 2c at room temperature by using LiOH in THF/H₂O, giving the meta-iodinated phenylacetic acids 8 in good yields (Scheme 6).

In summary, we developed Pd-catalyzed highly meta-selective C—H iodination of phenylacetic acid, benzylphosphonate, and benzylsulfonate scaffolds using a pyridine-type template. The directing template was anchored to the substrates via the practical ester linkage. A variety of phenylacetic acids containing electronwithdrawing and electron-donating substituents are compatible with these reactions. Further transformations of ibuprofen iodide intermediates by Pd-catalyzed C—C and C–heteroatom bond formation demonstrated the importance of this methodology in organic synthesis and drug discovery.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

We gratefully acknowledge Shanghai Institute ofMateriaMedica, Chinese Academy of Sciences, National Natural Science Foundation of China (No. 21772211), Youth Innovation Promotion Association CAS (Nos. 2014229 and 2018293), Institutes for Drug Discovery and Development, Chinese Academy of Sciences (No. CASIMM0120163006), Science and Technology Commission of Shanghai Municipality (No. 17JC1405000), Program of Shanghai Academic Research Leader (No. 19XD1424600), National Science & Technology Major Project "Key New Drug Creation and Manufacturing Program", China (No. 2018ZX09711002-006), and the State Key Laboratory of Natural and Biomimetic Drugs for financial support.

Appendix A. Supplementary data

Less

Supplementary material related to this article canbefound, in the online version, at doi:https://doi.org/10.1016/j.cclet.2019.09.057.

References

Less

[1]

(a) P.Ruiz-Castillo, S.L.Buchwald, Chem.Rev.116 (2016)12564-12649;(b) F.S.Han, Chem.Soc.Rev.42 (2013)5270-5298; (c) G.Evano, N.Blanchard, M.Toumi, Chem.Rev.108 (2008)3054-3131;(d) D.Ma, Q.Cai, Acc.Chem.Res.41 (2008)1450-1460.

[2]

D.A.Petrone, J.Ye, M.Lautens, Chem.Rev.116(2016)8003-8104.

[3]

(a) X.C.Wang, Y.Hu, S.Bonacorsi, et al., J.Am.Chem.Soc.135 (2013)10326-10329;(b) L.Chu, X.C.Wang, C.E.Moore, A.L.Rheingold, J.Q.Yu, J.Am.Chem.Soc.135 (2013)16344-16347;(c) L.Chu, K.J.Xiao, J.Q.Yu, Science 346 (2014)451-455;(d) J.J.Li, T.S.Mei, J.Q.Yu, Angew.Chem.Int.Ed.47 (2008)6452-6455;(e) R.Giri, X.Chen, J.Q.Yu, Angew.Chem.Int.Ed.44 (2005)2112-2125;(f) D.Kalyani, A.R.Dick, W.Q.Anani, M.S.Sanford, Org.Lett.8 (2006)2523-2526.

[4]

(a) N.Schröder, F.Lied, F.Glorius, J.Am.Chem.Soc.137 (2015)1448-1451;(b) H.Hwang, J.Kim, J.Jeong, S.Chang, J.Am.Chem.Soc.136 (2014)10770-10776;(c) N.Schröder, J.Wencel-Delord, F.Glorius, J.Am.Chem.Soc.134 (2012)8298-8301.

[5]

L.Wang, L.Ackermann, Chem.Commun.50(2014)1083-1085.

[6]

(a) B.Yao, Z.L.Wang, H.Zhang, et al., J.Org.Chem.77 (2012)3336-3340;(b) B.Li, B.Liu, B.F.Shi, Chem.Commun.51 (2015)5093-5096;(c) X.Chen, X.S.Hao, C.E.Goodhue, J.Q.Yu, J.Am.Chem.Soc.128 (2006)6790-6791.

[7]

(a) Y.Aihara, N.Chatani, ACS Catal.6 (2016)4323-4329;(b) B.Khan, R.Kant, D.Koley, Adv.Synth.Catal.358 (2016)2352-2358.

[8]

(a) Y.Kommagalla, K.Yamazaki, T.Yamaguchi, N.Chatani, Chem.Commun.54 (2018)1359-1362;(b) Y.Kommagalla, N.Chatani, Org.Lett.21 (2019)5971-5976.

[9]

H.Shi, P.Wang, S.Suzuki, M.E.Farmer, J.Q.Yu, J.Am.Chem.Soc.138(2016)14876-14879.

[10]

(a) C.J.Teskey, A.Y.W.Lui, M.F.Greaney, Angew.Chem.Int.Ed.54 (2015)11677-11680;(b) Q.Yu, L.Hu, Y.Wang, S.Zheng, J.Huang, Angew.Chem.Int.Ed.54 (2015)15284-15288;(c) S.Warratz, D.J.Burns, C.Zhu, etal., Angew.Chem.Int.Ed.56 (2017)1557-1560.

[11]

(a) Y.F.Yang, X.Hong, J.Q.Yu, K.N.Houk, Acc.Chem.Res.50 (2017)2853-2860;(b) A.Dey, S.K.Sinha, T.K.Achar, D.Maiti, Angew.Chem.Int.Ed.58 (2019)10820-10843;(c) A.Dey, S.Agasti, D.Maiti, Org.Biomol.Chem.14(2016)5440-5453;(d) Y.Gao, G.Li, Aldrichimica Acta 50 (2017)61-73.

[12]

(a) D.Leow, G.Li, T.S.Mei, J.Q.Yu, Nature 486 (2012)518-522;(b) R.Jayarajan, J.Das, S.Bag, R.Chowdhury, D.Maiti, Angew.Chem.Int.Ed.57 (2018)7659-7663;(c) L.Fang, T.G.Saint-Denis, K.N.Houk, J.Q.Yu, J.Am.Chem.Soc.139 (2017)10702-10714;(d) S.Bag, R.Jayarajan, U.Dutta, et al., Angew.Chem.Int.Ed.56 (2017)12538-12542;(e) S.Li, L.Cai, H.Ji, L.Yang, G.Li, Nat.Commun.7 (2016)10443;(f) A.Modak, T.Patra, R.Chowdhury, S.Raul, D.Maiti, Organometallics 36 (2017)2418-2423;(g) S.Bag, T.Patra, A.Modak, et al., J.Am.Chem.Soc.137 (2015)11888-11891;(h) M.Bera, A.Maji, S.K.Sahoo, D.Maiti, Angew.Chem.Int.Ed.54 (2015)8515-8519;(i) R.Tang, G.Li, J.Q.Yu, Nature 507(2014)215-220;(j) S.Lee, H.Lee, K.L.Tan, J.Am.Chem.Soc.135 (2013)18778-18781;(k) L.Zhang, C.Zhao, Y.Liu, et al., Angew.Chem.Int.Ed.56 (2017)12245-11249;(l) J.Xu, J.Chen, F.Gao, et al., J.Am.Chem.Soc.141 (2019)1903-1907;(m) H.J.Xu, Y.Lu, M.E.Farmer, et al., J.Am.Chem.Soc.139 (2017)2200-2203;(n) H.J.Xu, Y.S.Kang, H.Shi, et al., J.Am.Chem.Soc.141 (2019)76-79;(o) R.J.Phipps, M.J.Gaunt, Science 329 (2009)1593-1597;(p) Y.Kuninobu, H.Ida, M.Nishi, M.Kanai, Nat.Chem.7 (2015)712-717;(q) H.L.Li, Y.Kuninobu, M.Kanai, Angew.Chem.Int.Ed.56 (2017)1495-1499;(r) R.Bisht, B.Chattopadhyay, J.Am.Chem.Soc.138 (2016)84-87;(s) H.J.Davis, M.T.Mihai, R.J.Phipps, J.Am.Chem.Soc.138 (2016)12759-12762;(t) H.J.Davis, G.R.Genov, R.J.Phipps, Angew.Chem.Int.Ed.56 (2017)13351-13355;(u) M.E.Hoque, R.Bisht, C.Haldar, B.Chattopadhyay, J.Am.Chem.Soc.139 (2017)7745-7748;(v) M.Li, M.Shang, H.Xu, et al., Org.Lett.21 (2019)540-544.

[13]

L.Chu, M.Shang, K.Tanaka, et al., ACS Cent.Sci.1(2015)394-399.

[14]

Z.Jin, L.Chu, Y.Q.Chen, J.Q.Yu, Org.Lett.20(2018)425-428.

[15]

H.Xu, M.Liu, L.J.Li, et al., Org.Lett.21(2019)4887-4891.

[16]

(a) M.Bera, S.K.Sahoo, D.Maiti, ACS Catal.6 (2016)3575-3579;(b) X.Meng, S.Kim, Org.Lett.15 (2013)1910-1913;(c) W.J.Stec, Acc.Chem.Res.16 (1983)411-417;(d) J.Boutagy, R.Thomas, Chem.Rev.74 (1974)87-99;(e) W.S.Wadsworth, W.D.Emmons, J.Am.Chem.Soc.83 (1961)1733-1738;(f) G.Cheng, P.Wang, J.Q.Yu, Angew.Chem.Int.Ed.56 (2017)8183-8186.

Appendix

Less

Year 2020 volume 31 Issue 5

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2019.09.057

Receive Date：2019-08-16
Online Date：2026-01-31
Published：2020-05-15

Article Data

Affiliations

History

Received：2019-08-16
Revised：2019-09-17
Accepted：2019-09-29

Affiliations

^a Chinese Academy of Sciences Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Shanghai 201203, China

^b State Key Laboratory of Natural and Biomimetic Drugs, Peking University, Beijing 100191, China

^c University of Chinese Academy of Sciences, Beijing 100049, China

^d School of Pharmaceutical Science, Shanxi Medical University, Taiyuan 030001, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2019.09.057

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

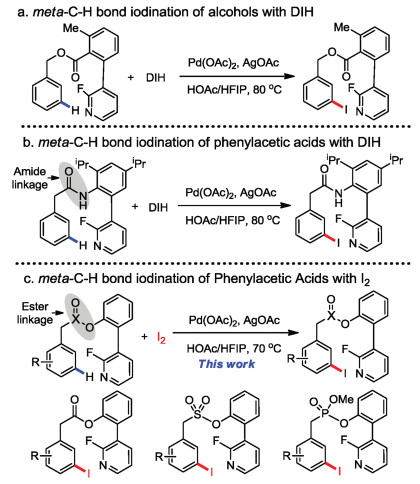

Scheme 1 Directed C—H iodinaion.

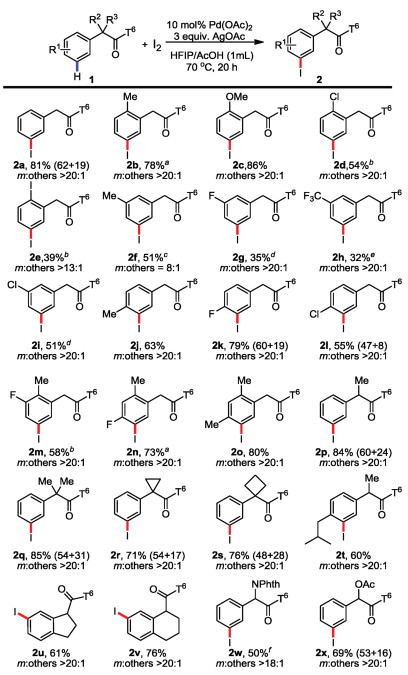

Scheme 2 Scope of phenylacetic acids for meta-C—H iodination. Reaction conditions: 1 (0.1 mmol), 0.4 mmol I₂, 10 mol% Pd(OAc)₂, 0.3 mmol AgOAc, HFIP/ AcOH = 4/1 (1 mL), 70 ℃, 20 h. Mono and di are showed in parenthesis. Regioselectivity was determined GC–MS. ^a 0.3 mmol I₂. ^b 80 ℃. ^c 0.2 mmol I₂. ^d 20 mol% N-Ac-Gly-OH was added as ligands. ^e 100 ℃. ^f Regioselectivity was determined LC–MS.

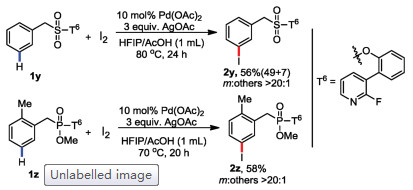

Scheme 3 meta-C—H iodination of benzylphosphonate and benzylsulfonate.

Scheme 4 Gram-scale reaction.

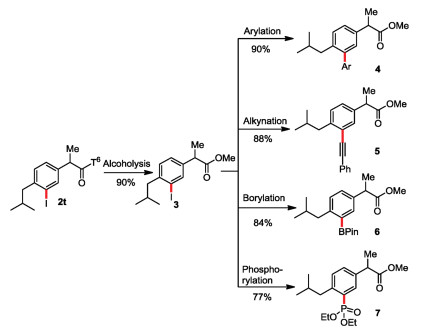

Scheme 5 Transformation of iodinated ibuprofen derivative 2t.

Scheme 6 Removal of the directing template.
