Charge storage mechanism of copper hexacyanoferrate nanocubes for supercapacitors

Full

Zhaoxia Song^a, Wei Liu^b^,^*, Xiaofei Wei^a, Quan Zhou^a, Hongda Liu^b, Zheng Zhang^b, Guichang Liu^b, Zhongfu Zhao^b^,^*

Affiliations

^a Department of Chemical Engineering, College of Life Science, Dalian Minzu University, Dalian 116600, China

^b School of Chemical Engineering, Dalian University of Technology, Dalian 116024, China

Published: 2020-05-15 doi: 10.1016/j.cclet.2019.07.022

Outline

Abstract

Less

The widely accepted theory concerning the electrochemical energy storage mechanism of copper hexacyanoferrate (CuHCF) for supercapacitors is that CuHCF stores charge by the reversible redox processes of Fe³⁺/Fe²⁺ couple and Cu cations are electrochemically inactive. In this work, CuHCF nanocubes (CuHCF-NC) were synthesized in the presence of potassium citrate and its electrochemical properties were tentatively studied in 1 mol/L Na₂SO₄ aqueous electrolyte. Good supercapacitive performance was exhibited. The combined analyses of cyclic voltammogram (CV) and X-ray photoelectron spectroscopy (XPS) disclosed that the CuHCF nanocubes underwent the redox reactions of Fe³⁺/Fe²⁺ and Cu²⁺/Cu⁺ couples to store charges. The Cu²⁺/Cu⁺ redox couple was activated due to the strong coordination interaction between the carboxylate groups of citrate ions and surface Cu cations.

Key words

Copper hexacyanoferrate / Supercapacitor / Electrode material / Charge storage mechanism / Redox couple

Cite this Article

Zhaoxia Song, Wei Liu, Xiaofei Wei, Quan Zhou, Hongda Liu, Zheng Zhang, Guichang Liu, Zhongfu Zhao. Charge storage mechanism of copper hexacyanoferrate nanocubes for supercapacitors[J]. Chinese Chemical Letters, 2020 , 31 (5) : 1213 -1216 . DOI: 10.1016/j.cclet.2019.07.022

Full Text

Less

Supercapacitors possessing high power density and long cycle life are the most promising energy storage devices, which have commercial applications such as hybrid vehicles and emergency backup powers [1-5]. Metal hexacyanoferrates (MCHFs, M = Mn, Co, Ni, Cu, etc.) are attractive alternatives to traditional super-capacitor electrode materials because of their unique structure, high capacity and excellent cyclic stability [6-12]. Its 3D open-framework channels which allow fast transport of alkali ions enable high pseudocapacitive performance. In order to achieve high electrochemical performance, the MCHF-based composites which are fabricated with porous carbon, carbon nanotube, graphene and conducting polymers have been tentatively studied [13-26]. Among the MHCFs, CuHCF possesses higher working voltage than NiHCF, CoHCF and MnHCF in neutral aqueous electrolytes [27], suggesting that CuHCF can act as a promising positive electrode material for asymmetrical supercapacitors. Senthilkumar et al. [28] reported the synthesis of CuHCF coated carbon fibers for a high voltage hybrid supercapacitor. Kim et al. [29] used CuHCF and graphitic carbon nanoparticles as positive and negative electrodes, respectively, to assemble an aqueous Li-ion hybrid capacitor with a high capacitance (63.64 F/g) and energy density (42.78 Wh/kg). Yao and coworkers [30] prepared CuHCF nanosheet arrays on carbon cloth, which delivered a capacitance of 1441.4 m F/cm². Wu et al. [31] synthesized CuHCF nanostructures on the graphene coated stainless steel sheets with a specific capacitance of 570 F/g (1 A/g). Li et al. [32] fabricated a carbon nanotubes/poly(3, 4-ethylenedioxythiophene)-poly(styrenesulfo-nate)/CuHCF hybrid film, which was employed as the positive electrode to build an asymmetrical supercapacitor with an energy density of 30.08 Wh/L (4.25 kW/L).

To date, widely accepted theory concerning the electrochemical energy storage mechanism of MHCFs is that these materials undergo the redox reaction of Fe³⁺/Fe²⁺ couple to store charge [6, 7]. And the low spin metal ions (Co²⁺, Ni²⁺, Mn²⁺, etc.) are electrochemically inactive in aqueous electrolytes because of the limited operation potential window. The charge storage of CuHCF is also supposed to be due to the same redox process [31, 32]. Very recently, it has been reported for the CuHCF/reduced graphene oxide nanocomposites that the redox reaction of Cu²⁺/Cu⁺ couple may be involved in electrochemical charge storage [33]. But the corresponding redox peaks are not observed in the CV curves of pure CuHCF sample. In the previous studies of CuHCF-related materials for supercapacitors [28-33], considerable efforts have been made to synthesize nanostructured CuHCF or fabricate nanocomposites. However, the information about electrochemical energy storage mechanism is still lacking.

In the present work, the CuHCF nanocubes were synthesized via the chemical co-precipitation method by reacting Cu²⁺ cations with [Fe(CN)₆]^3- anions in the presence of potassium citrate. For comparison, the CuHCF particles (CuHCF-P) were prepared by the same method without potassium citrate. Electrochemical proper-ties of the CuHCF-P and -NC materials are studied by CV, galvanostatic charge/discharge tests and electrochemical imped-ance spectroscopy (EIS). A charge storage mechanism is proposed for the CuHCF nanocubes that both Fe³⁺/Fe²⁺ and Cu²⁺/Cu⁺ redox couples contribute to pseudocapacitance. And it is revealed that the coordination of citrate ions with surface Cu cations plays an important role on activating the Cu²⁺/Cu⁺ redox couple.

Fig. 1a shows that the CuHCF-P and -NC materials exhibit a face-centered cubic structure, which consists well with that of Prussian blue [27]. As can be seen in the spectra, no diffraction peaks of other phases and impurities are detected, suggesting that both materials have good crystallinity and high purity. The FT-IR spectra of both materials are shown in Fig. 1b. The absorption bands at 2102 and 492 cm^-1 are assigned to the —C≡N— stretching mode and Cu-CN-Fe bending mode, respectively [34]. Furthermore, the presence of water molecules inside the CuHCF framework is verified by the absorption bands at 3429 (O—H stretching mode) and 1605 (H—O—H bending mode) cm^-1 [35]. Morphologies and particle sizes of the CuHCF-P and -NC materials are characterized by SEM and TEM. As shown in Fig. S1 (Supporting information), a nanocube morphology is observed for the CuHCF-NC sample while an irregular particle morphology for CuHCF-P. Furthermore, it is demonstrated that the Cu, Fe, C and N elements are uniformly distributed in the CuHCF nanocubes according to energy dispersive spectroscopy (EDS) element mapping. TEM images of CuHCF-P (Fig. S2 in Supporting information) and CuHCF-NC (Fig. 1c) are in good accordance with the above SEM results.

The CV curves of the CuHCF-P and -NC electrodes are shown in Fig. 2a. Both electrodes exhibit strong redox peaks, indicating the pseudocapacitive behaviors. The CuHCF-P displays a pair of redox peaks, which are in agreement with theliteratures [31, 32]. A significant difference is found between CuHCF-NC and -P, the CV curve of CuHCF-NC consists of two pairs of well-defined redox peaks. And wide working potential windows of the CuHCF-NC electrode are exhibited (Fig. S3 in Supporting information). Fig. 2b shows the CV curves of CuHCF-NC recorded at different scan rates. Significant potential shifts of redox peaks are observed with increasing scan rates, indicating that the CuHCF-NC electrode undergoes insufficient redox reaction at higher scan rates. Detailed analyses of the galvanostatic charge/discharge profiles of the CuHCF-P (Fig. S4 in Supporting information) and CuHCF-NC (Figs. 2c and d) electrodes show that the Coulombic efficiency (discharge/charge) is more than 91%. In addition, the symmetrical charge and discharge curves imply good electrochemical revers-ibility. The calculated discharge capacitances at different current densities are shown in Fig. 2e. The CuHCF nanocubes exhibit higher specific capacitance than the CuHCF particles. Its specific capaci-tance reaches 296 F/g at 0.5 A/g and retains 263 F/g at 5 A/g. EIS of the CuHCF-P and -NC electrodes are measured and their Nyquist plots are shown in Fig. 2f. In high-frequency region, the depressed semicircles are interpreted to be due to a charge-transfer resistance (R_ct) and constant phase element (Z_CPE). The straight lines in low-frequency region correspond to the Warburg resistance (Z_W). According to the equivalent circuit model shown in the figure, the values of R_ct are calculated with the use of ZSimpWin software. They are 4.3 and 2.6 Ω for the CuHCF-P and -NC electrodes, respectively. The charge-transfer resistance of the CuHCF-NC electrode is significantly smaller than that of CuHCF-P.

XPS measurement was performed to elucidate the valence change of Fe and Cu cations in the as-prepared and discharged CuHCF-NC samples. The survey spectra confirm the presence of Cu, Fe, N and C elements (Fig. 3a). The high-resolution spectra of Fe 2p_3/2 (Fig. S5 in Supporting information) display the characteristic peaks at 710.0 and 708.4 eV, which correspond to the Fe³⁺ in [Fe(CN)₆]³⁺ and Fe²⁺ in [Fe(CN)₆]⁴⁺, respectively [36, 37]. In Fig. 3b, the binding energy peaks of Cu 2p_3/2 located at 935.4 and 932.8 eV can be ascribed to the Cu²⁺ and Cu⁺ species, respectively [34]. And the peak area ratios (Cu⁺/Cu²⁺) are calculated to be 1.08 and 1.26 for the as-prepared and discharged CuHCF-NC materials, respectively. In comparison with the as-prepared CuHCF-NC material, the discharged CuHCF-NC demonstrates decreased intensity of Fe³⁺ and Cu²⁺ species as well as increased intensity of Fe²⁺ and Cu⁺ species. These results indicate that parts of Fe³⁺ and Cu²⁺ ions are reduced during the discharge process. Hence the pseudocapaci-tance of the CuHCF nanocubes can be attributed to the redox reactions of Fe³⁺/Fe²⁺ and Cu²⁺/Cu⁺ couples.

As reported in literatures [31, 32], the electrochemical reactions of CuHCF in acidic and neutral aqueous electrolytes were written as the following Eqs. (1) and (2), respectively:

(1)

(2)

The charge storage of CuHCF was discussed in terms of the reversible redox reaction of Fe³⁺/Fe²⁺ couple. Typical CV curve showed one pair of redox peaks. As for the CuHCF nanocubes, the most impressed result is that its CV curves consist of two pairs of redox peaks, which cannot simply be attributed to the Faradaic redox reaction of Fe³⁺/Fe²⁺ couple. And the capacity contributions of both Fe³⁺/Fe²⁺ and Cu²⁺/Cu⁺ redox couples are confirmed by XPS. Therefore, a new charge storage mechanism is proposed that the CuHCF nanocubes undergo the reversible electrochemical oxida-tion and reduction of both Fe³⁺/Fe²⁺ and Cu²⁺/Cu⁺ couples to store charges. Na⁺ ions are inserted/extracted into/from the CuHCF framework to maintain charge neutrality during the discharge/ charge processes. As shown in Fig. 2a, the oxidation (reduction) peaks located at 0.57 (0.44) and 0.72 (0.60) V correspond to the electrochemical reactions of Fe³⁺/Fe²⁺ and Cu²⁺/Cu⁺ redox couples, respectively. The observation of electrochemically active Cu species in the CuHCF nanocubes may be interpreted to be due to the surface-adsorbed citrate ions. During the crystallization process of CuHCF nanocubes, the citrate ions can be adsorbed onto the surfaces because the carboxylate groups (COOH) of citrate ions form strong covalent interaction with Cu cations [38]. And the strong coordination interaction between citrate ions and surface Cu cations results in activating the Cu²⁺/Cu⁺ redox couple within the electrochemical stability potential window of aqueous electro-lytes (0.0–1.0 V vs. SCE). Very recently, it has been reported that the redox transition of the Cu²⁺/Cu⁺ couple is enhanced in 2.0 mol/L H₂SO₄ electrolyte when protons instead of Na⁺ or K⁺ cations are stored in the CuHCF framework [39]. Whereas in neutral aqueous electrolytes, the coordination-induced activation of the Cu²⁺/Cu⁺ redox couple is observed for the first time.

In summary, ordered CuHCF nanocubes with a size of 150– 350 nm have been synthesized by the conventional co-precipita-tion method with using potassium citrate as a chelating agent. The CuHCF nanocubes possessing high capacitances (285 F/g at 1 A/g) exhibit two pairs of well-defined cathodic and anodic CV peaks. On basis of CV and XPS analyses, electrochemically active Cu species are verified. And a charge storage mechanism is proposed that the CuHCF nanocubes undergo the electrochemical oxidation and reduction of Cu²⁺/Cu⁺ and Fe³⁺/Fe²⁺ couples during the processes of charge and discharge. This is the first report about the activation of Cu²⁺/Cu⁺ redox couple due to the coordination of citrate ions in neutral aqueous electrolytes for CuHCF.

Acknowledgment

Less

This work is supported by the National Natural Science Foundation of China (No. 51877029).

Appendix A. Supplementary data

Less

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2019.07.022.

References

Less

[1]

[1] Y. Xu, S. Zheng, H. Tang, et al., Energy Storage Mater. 9 (2017) 11-30.

[2]

Y. Xu, Q. Li, H. Xue, H. Pang, Coord. Chem. Rev. 376 (2018) 292-318.

[3]

Y. Yan, B. Li, W. Guo, H. Pang, H. Xue, J. Power Sources 329 (2016) 148-169.

[4]

B. Li, P. Gu, Y. Feng, et al., Adv. Funct. Mater. 27 (2017) 1605784.

[5]

L. Yao, T. Cheng, X. Shen, et al., Chin. Chem. Lett. 29 (2018) 587-591.

[6]

A. Lisowska-Oleksiak, A.P. Nowak, J. Power Sources 173 (2007) 829-836.

[7]

J. Chen, K. Huang, S. Liu, Electrochem. commun. 10 (2008) 1851-1855.

[8]

L. Zhou, M. Zhang, Y. Wang, et al., Electrochim. Acta 232 (2017) 106-113.

[9]

K. Lu, D. Li, X. Gao, et al., J. Mater. Chem. A 3 (2015) 16013-16019.

[10]

H. Pang, Y. Zhang, T. Cheng, W.Y. Lai, W. Huang, Nanoscale 7 (2015) 16012-16019.

[11]

Y. Wang, H. Zhong, L. Hu, et al., J. Mater. Chem. A 1 (2013) 2621-2630.

[12]

H. Jiang, Y.T. Xu, T. Wang, et al., Electrochim. Acta 166 (2015) 157-162.

[13]

K. Krishnamoorthy, P. Pazhamalai, S. Sahoo, et al., Chem. Electro. Chem. 4 (2017) 1-8.

[14]

F. Zhao, Y. Wang, X. Xu, et al., ACS Appl. Mater. Interfaces6 (2014) 11007-11012.

[15]

K. Lu, B. Song, X. Gao, et al., J. Power Sources 303 (2016) 347-353.

[16]

N.K.A. Venugopal, J. Joseph, J. Power Sources 305 (2016) 249-258.

[17]

A.A. Ensafi, N. Ahmadi, B. Rezaei, RSC Adv. 5 (2015) 91448-91456.

[18]

Y. Zou, Q. Wang, C. Xiang, et al., Electrochim. Acta 188 (2016) 126-134.

[19]

P. Díaz, Z. González, R. Santamaría, et al., Electrochim. Acta 212 (2016) 848-855.

[20]

D. Zhang, J. Zhang, Z. Yang, et al., Chem. Commun. 53 (2017) 10556-10559.

[21]

X. Ma, X. Du, X. Li, et al., J. Alloys. Compd. 695 (2017) 294-301.

[22]

Y. Yang, Y. Hao, X. Wang, et al., Electrochim. Acta 167 (2015) 364-371.

[23]

M. Sookhakian, W.J. Basirun, M.A.M. Teridi, et al., Electrochim. Acta 230 (2017) 316-323.

[24]

Y. Yang, Y. Hao, J. yuan, L. Niu, F. Xia, Carbon 84 (2015) 174-184.

[25]

J.G. Wang, Z. Zhang, X. Liu, B. Wei, Electrochim. Acta 235 (2017) 114-121.

[26]

X. Zhang, L. Tao, P. He, et al., Electrochim. Acta 259 (2018) 793-802.

[27]

L. Niu, L. Chen, J. Zhang, P. Jiang, Z. Liu, J. Power Sources 380 (2018) 135-141.

[28]

S.T. Senthilkumar, J. Kim, Y. Wang, H. Huang, Y. Kim, J. Mater. Chem. A 4 (2016) 4934-4940.

[29]

P. Pazhamalai, K. Krishnamoorthy, S. Sahoo, S.J. Kim, J. Alloys. Compd. 765 (2018) 1041-1048.

[30]

H. Yao, F. Zhang, G. Zhang, Y. Yang, Electrochim. Acta 294 (2019) 286-296.

[31]

M.S. Wu, L.J. Lyu, J.H. Syu, J. Power Sources 297 (2015) 75-82.

[32]

J. Li, H. Li, J. Li, et al., J. Power Sources 386 (2018) 96-105.

[33]

E. Targholi, M.S. Rahmanifar, S.M. Mousavi-Khoshdel, Appl. Organomet. Chem. 32 (2018) e4615.

[34]

H. Draouil, L. Alvarez, J. Causse, et al., New J. Chem. 41 (2017) 7705-7713.

[35]

J.G. Wang, Z. Zhang, X. Zhang, et al., Nano Energy 39 (2017) 647-653.

[36]

K. Siuzdak, M. Szkoda, J. Karczewski, J. Ryl, A. Lisowska-Oleksiak, RSC Adv. 6 (2016) 76246-76250.

[37]

P. Xiong, G. Zeng, L. Zeng, M. Wei, Dalton Trans. 44 (2015) 16746-16751.

[38]

K.J. Westin, Å.C. Rasmuson, Desalination 159 (2003) 107-118.

[39]

X. Wu, J.J. Hong, W. Shin, et al., Nat. Energy 4 (2019) 123-130.

Appendix

Less

Year 2020 volume 31 Issue 5

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2019.07.022

Receive Date：2019-06-12
Online Date：2026-01-31
Published：2020-05-15

Article Data

Affiliations

History

Received：2019-06-12
Revised：2019-07-06
Accepted：2019-07-09

Affiliations

^a Department of Chemical Engineering, College of Life Science, Dalian Minzu University, Dalian 116600, China

^b School of Chemical Engineering, Dalian University of Technology, Dalian 116024, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2019.07.022

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

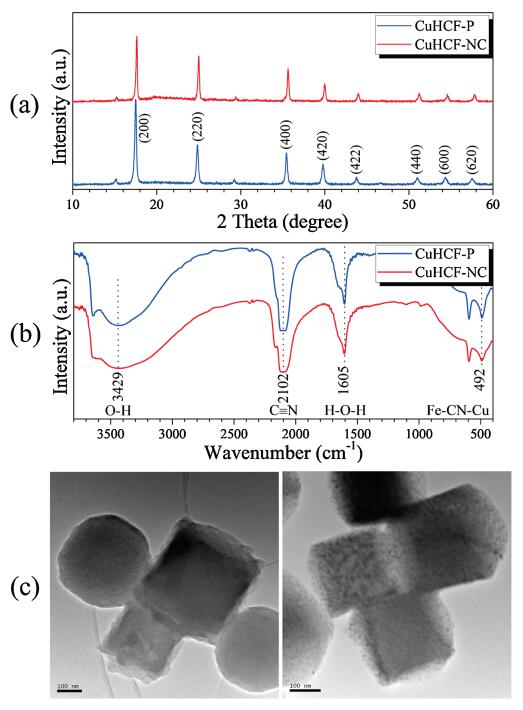

Fig. 1 (a) XRD patterns of CuHCFs. (b) FT-IR spectra of CuHCFs. (c) TEM images of CuHCF-NC.

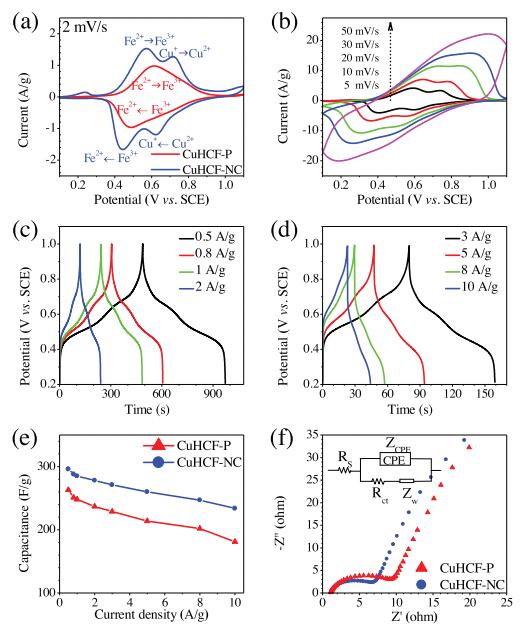

Fig. 2 (a) CV curves of the CuHCF-P and -NC electrodes. (b) CV curves of the CuHCF-NC electrode recorded at different scan rates. (c, d) Galvanostatic charge/discharge curves of the CuHCF-NC electrode recorded at 0.5–10 A/g. (e) Calculated discharge capacitances at different current densities for CuHCF-P and -NC. (f) Nyquist plots of the CuHCF-P and -NC electrodes. Inset is the equivalent circuit for modeling the measured impedance spectra.

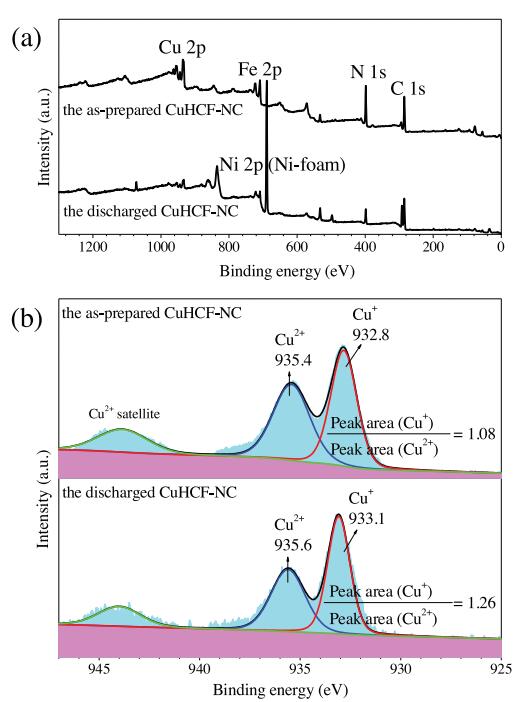

Fig. 3 XPS spectra of the as-prepared and discharged CuHCF-NC samples: (a)survey spectra, (b) Cu 2p_3/2 binding energy spectra.
