The research on gas sensing is of great significance in many fields including household environmental safety, industrial production security and respiratory test [1-5]. Semiconductor metal oxides (SMOs) have attracted considerable attention because of their low cost, high sensitivity and good stability [6-9]. Compared with the existing gas detection technology such as gas chromatography and mass spectrometry (GC–MS), protontransfer reaction mass spectrometry (PTR-MS), optical sensor and so on, a SMOs-based chemoresistive sensor is very promising for gas sensing because of its potential in real-time analysis, simple operating principle, facile device manufacture and ready miniaturization (Table S1 in Supporting information) [10, 11]. Tungsten oxide (WO₃), a kind of n-type semiconductor whose band gap is about 2.7 eV, is one of the most well-known semiconductor gas sensing materials because of its high chemical stability and environmental non-toxicity [12-15]. However, the practical application of pure WO₃ in gas sensing has suffered from its high operating temperature, low selectivity and high detection limit. Combining the WO₃ with other compounds (mostly metal oxides) is an effective way to enhance the gas sensing performance, which has been reported to be applied in detecting H₂, NH₃, NO_x [16-18], while there are few reports focusing on the detection of volatile organic compounds (VOCs). VOCs, widely existing in our inhabited environment, refer to the organic molecules that exist in the form of gas at room temperature, which usually do harm to environment and human health [19-21]. For instance, n-butanol, a kind of industrial intermediate chemical, is explosive, flammable and slightly toxic [7, 22, 23]. Therefore, it is necessary to monitor the VOCs indoor and outdoor in order to protect air quality and environment safety.

Herein, WO₃ crystallized microplates modified with CuWO₄ nanoparticles were synthesized in this study using a facile twostep hydrothermal method. The morphology, phase constitute and surface chemical state are discussed in details. The gas sensing reaction process, performance and mechanism towards n-butanol are studied. Notably, it is found that the CuWO₄-modified WO₃ microplates have quite low operating temperature (120 ℃) and short response time (21 s), and its response to 30 ppm n-butanol reaches 9.4, which indicate a remarkable enhancement of gas sensing performance, contributed by the formation of WO₃-CuWO₄ nanostructured heterojunction. A possible mechanism was proposed. This work will be conducive to the further development of high-efficiency, low-toxicity, low-cost and convenient semiconductor metal oxides-based gas sensing applications.

The WO₃-CuWO₄ nanostructured heterojunction was prepared via a two-step hydrothermal process, the procedure illustration is shown in the Fig. S1 (Supporting information). First, the WO₃ microplates were prepared using a hydrothermal method as our previous work reported [24]. Briefly, Na₂WO₄·2H₂O (1.65 g) was dissolved in 30 mL DI water, and 5 mL HCl (38 wt%) was added into the solution. After magnetically stirring for 1 h, 0.45 g H₂C₂O₄ was added into the solution. The mixture was stirred for 1 h and transferred into a 50 mL Teflon-lined stainless steel autoclave, sealed and heated at 120 ℃ for 12 h. After centrifugation and washing by DI water and ethanol, the as-prepared precipitate was dried and calcined at 400 ℃ for 2 h. Then, to obtain the WO₃-CuWO₄ nanostructured heterojunction, a mixture of as-prepared WO₃ microplates (40 mg) and Cu(NO₃)2·3H₂O (42 mg) in 20 mL deionized water was magnetically stirred at room temperature for 30 min. After that, the suspension solution was transferred to a 25 mL Teflon-lined stainless steel autoclave, sealed and heated at 120 ℃ for 1.5 h. The precipitate was washed with DI water and ethanol, and dried in air at 80 ℃.

Fig. S2 (Supporting information) shows the schematic diagram of gas sensor device and the electric circuit of the gas sensing measurement system. Side-heating gas sensors were applied to test the gas sensing properties of WO₃ microplates and WO₃-CuWO₄ nanostructured heterojunction. In a typical procedure, a Ni-Cr resistance wire used as a heater was inserted into an aluminum tube equipping with two gold electrode circles and four platinum wires. The sample powder was mixed with deionized water to form a paste, which was used to make a thin film covering the aluminum tube, the film thickness is about 20 μm (Fig. S3 in Supporting information). During the measurement, a heating current (I_heat) was supplied to the heater. A load resistor (R_L) was connected to the sensor, whose voltage (V_L) was measured for calculating the sensor resistance through a computer connected to the testing apparatus. The gas sensing properties of our samples were measured by a CGS-8 gas sensor analysis system (Beijing Elite Tech) using a static gas distribution method as our previous report [7], and the schematic diagram of measurement system is shown in Fig. S4 (Supporting information). The sensor response is defined as the ratio (R_a/R_g) of the sensor resistance in air (R_a) and that in the text gas (R_g). The response time and recovery time are defined as the time to reach 90% of the total resistance change during the response process and the recovery process. During the measurement, the indoor relative humidity is 15%–30% and the ambient temperature is 25 ℃.

The morphologies represented by scanning electron microscopy (SEM) images are shown in Fig. 1. It is found that the pure WO₃ presents a square-plate shape with the mean size of about 500 nm (Fig. 1c). By comparing Figs. 1c and d, we find that after the second hydrothermal process, the WO₃-CuWO₄ nanostructured heterojunction was obtained, and the sphere-like CuWO₄ nanoparticles grew outwards on the edges and surface of WO₃ square microplates. The crystal structures of WO₃ and WO₃-CuWO₄ were characterized by X-ray diffraction (XRD), where the diffraction peaks can be indexed with WO₃ standard card (JCPDS No. 83-0950) [25] as shown in Fig. 2. There were no visible changes in the XRD pattern with CuWO₄-loading and no peaks corresponding to CuWO₄ phase. It can be supposed that CuWO₄ nanoparticle of the WO₃-CuWO₄ nanostructured heterojunction has no obvious crystallinity, which is different with the pure CuWO₄ nanoparticle (Fig. S5 in Supporting information), which can be confirmed by the analysis of micro-morphology. Moreover, the result of BrunauerEmmett-Teller (BET) shows that the specific surface area of WO₃-CuWO₄ nanostructured heterojunction is 11.4 m²/g, which is not significantly larger than that of WO₃ microplates (6.1 m²/g) as shown in Fig. S6 (Supporting information), and the lower specific surface area can be attributed to the larger size of microplates. Figs. 3a-c display the transmission electron microscopy (TEM) images of WO₃-CuWO₄. The CuWO₄ nanoparticles are dispersed on the edges and surface of WO₃ microplates as shown in Fig. 3a. From Figs. 3b and c, it can be seen that there is close adhesion between CuWO₄ nanoparticles and WO₃ microplates. Clear lattice fringes in Fig. 3c approve that these WO₃ microplates have good crystallinity, where the lattice inter-planar spacing determined to 0.365 nm corresponds to (200) plane of monoclinic WO₃ [26, 27]. In contrast, Fig. 3c shows that the CuWO₄ nanoparticles are non-crystallized, which is consistent with the result of XRD. Meanwhile, we can find that some amorphous CuWO₄ layer is distributed unevenly on the surface of WO₃ microplate. In Fig. 3d, the energy-dispersive X-ray spectrometer (EDX) elemental mapping taken from a corner of one WO₃ plate loading with CuWO₄ particles clearly identifies the spatial distribution of W, Cu and O elements. We can find that the signals of W element not only concentrate on the square plate, but also exist in the particle area. The signals of Cu are mainly enriched in these particle area, and appear on the square plate which can be attributed to the appearance of amorphous CuWO₄ layer. Moreover, the signals of O present at these two areas. Considering the results of XRD, HRTEM (high-resolution transmission electron microscopy) and EDX, the nanoparticle can be confirmed as CuWO₄ and the microplate can be identified as WO₃.

Herein, to understand the surface nature and chemical valence state, X-ray photoelectron spectroscopy (XPS) analysis was performed for WO₃ and WO₃-CuWO₄ (Fig. S7 in Supporting information). Fig. S7a shows that the W 4f spectra of WO₃ and WO₃-CuWO₄ were similar for their binding energy and distribution. The strong peaks at ~35.6 eV and ~37.7 eV are attributed to W⁶⁺ in WO₃, while the peaks of W⁶⁺ in WO₃-CuWO₄, with a little blue shift, are at ~35.8 eV and ~37.9 eV, revealing that higher oxidation state of W element in WO₃-CuWO₄ [28, 29]. Apparently, there was no signal of Cu 2p spectra of WO₃ in Fig. S7b. Moreover, the Cu 2p spectra of WO₃-CuWO₄ displays a different spectral shape compared with the Cu²⁺ in CuO, with a lower satellite/main peak (2p_3/2) intensity ratio, which confirms the existence of CuWO₄ [30]. Fig. S7c exhibits the high resolution O 1s spectra with asymmetric shape which can be fitted by three peaks. The peaks at 530.2 eV and 530.4 eV can be regarded as typical surface lattice oxygen, while the peaks at 531.1 eV and 532.7 eV could be characterized as surface-absorbed oxygen species (i.e., O^- and O^2-) [26, 31, 32]. Comparing these two O 1s spectra in Fig. S7c, it is found that the CuWO₄ has more surface-absorbed oxygen species, which would be beneficial to the surface gas sensing reaction [33]. Furthermore, the result of Fourier transform infrared spectrometry (FTIR) shown in Fig. S8 (Supporting information) indicates the similar surface fundamental lattice vibration of WO₃.

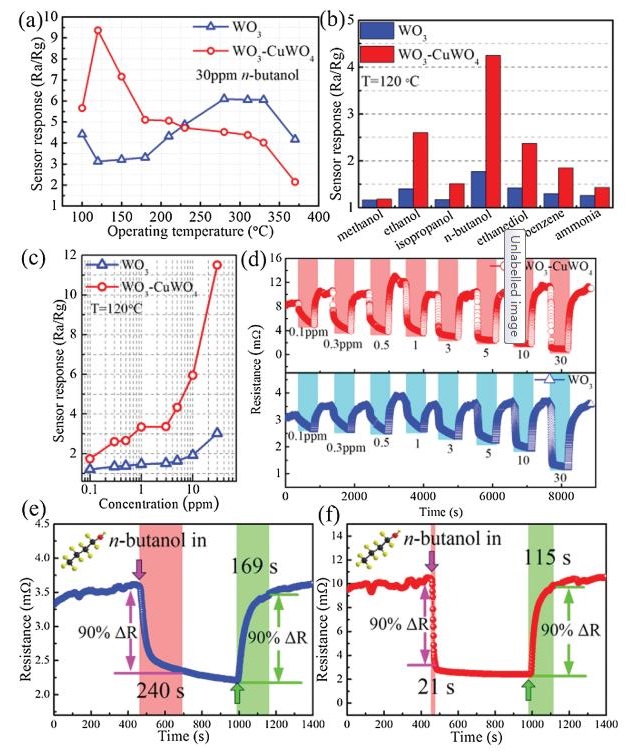

Fig. 4a shows the gas response of the pristine and the CuWO₄-functionalized WO₃ microplates, towards 30 ppm n-butanol at different operating temperature. It is depicted that the response value has a maximum value with the change of operating temperature. The maximum responses of WO₃ and WO₃-CuWO₄ sensors appear at 280 ℃ and 120 ℃, respectively, and the optimal operating temperature of the latter is much lower than the former and other WO₃-based materials. The responses of WO₃ and WO₃-CuWO₄ sensors towards 10 ppm different gases were measured at 120 ℃ as shown in Fig. 4b, and obviously the WO₃-CuWO₄ shows enhanced responses to those test gases compared with WO₃ microplates especially for n-butanol sensing, and the corresponding transient resistance curves are shown in Fig. S9 (Supporting information). Also, the response of WO₃-CuWO₄ sensor to nbutanol is significantly higher than those to other test gases. The gas responses towards different n-butanol concentration varying from 0.1 ppm to 30 ppm at 120 ℃ are shown in Fig. 4c and the corresponding transient resistance curves are given in Fig. 4d. From the transient resistance curve of WO₃-CuWO₄ sensor in Fig. 4d, one can observe that the sensor resistance decreased abruptly when n-butanol was introduced, and increased fast when the sensor was exposed in ambient air again. The sensor response were calculated and shown in Fig. 4c, which reveals that the WO₃-CuWO₄ sensor has improved responses to different concentration of n-butanol. The response time and recovery time were calculated and noted in Figs. 4e and f. The response time of WO₃ microplates sensor and WO₃-CuWO₄ sensor are 240 s and 21 s, and the recovery time of these two sensors are 169 s and 116 s respectively, which reveals a faster kinetic process of gas sensing reaction on the surface of WO₃-CuWO₄ nanostructured heterojunction [34, 35].

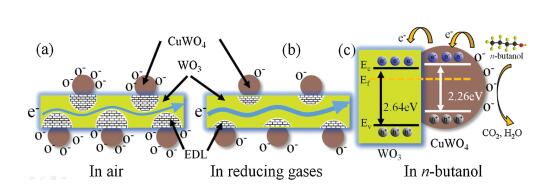

A possible model for the enhanced sensing performance of WO₃-CuWO₄ sensor is demonstrated in Fig. 5. When the CuWO₄ particles were loaded on the surface of WO₃ microplates, the WO₃-CuWO₄ heterojunction was obtained due to their energy level structure as reported in pervious literature [36, 37], resulting that the electrons transfer from the WO₃ to CuWO₄ and that the expansion of electron depletion layer (EDL) [8]. As shown in Fig. 5a, the formation and expansion of the EDL would narrow the electron transport pathway and increase the resistance. Thus, upon exposure to n-butanol, the chemisorbed oxygen species participate in the surface gas reaction and release electrons to transfer into the WO₃ microplates (Figs. 5b and c), leading to the decrease of EDL thickness, which results that the WO₃-CuWO₄ has a larger resistance change and an enhanced response [38]. The sensing reaction process is expressed through the following Eqs. 1–4 [2, 33]:

In addition to the electron transport channel modulation mentioned above, compared to the pure WO₃ microplates, the decoration of CuWO₄ particles promotes the chemisorption of oxygen species which was revealed by the result of XPS, and this leads to an enhancement in sensitivity of composite [20]. In summary, the fast response-recovery and high gas response to n-butanol of the CuWO₄ nanoparticles decorated bulky WO₃ microplates can be attributed to their synergetic effect as well as the heterojunction at their interface, leading to adequate surface adsorption of oxygen species and efficient electron transport [39].

In conclusion, a WO₃-CuWO₄ nanostructured heterojunction was manufactured through a facile two-step hydrothermal route. The morphologies of as-prepared samples investigated by SEM and TEM show that CuWO₄ nanoparticles are closely combined with the WO₃. Decorating WO₃ with CuWO₄ nanoparticles can reduce the optimum operating temperature of n-butanol, which decrease from 280 ℃ to 120 ℃. The WO₃-CuWO₄ achieved the gas sensing selectivity to n-butanol at 120 ℃, and the response value to 30 ppm n-butanol can reach 9.4. Moreover, the WO₃-CuWO₄ has shorter response time to 5 ppm n-butanol, which is only 21 s. The measured results indicate that the WO₃-CuWO₄ nanostructured heterojunction is a potential gas sensing material for monitoring the flammable and harmful volatile organic compounds.

We acknowledge the financially support by the National Natural Science Foundation of China as general projects (Nos. 21303118 and 21872102).
