2-Oxo-3, 4-dihydropyrimido[4, 5-<i>d</i>] pyrimidines as new reversible inhibitors of EGFR C797S (Cys797 to Ser797) mutant

2-Oxo-3, 4-dihydropyrimido[4, 5-d] pyrimidines as new reversible inhibitors of EGFR C797S (Cys797 to Ser797) mutant

PDF

Xianglong Hu¹^,^a, Qiuju Xun¹^,^a, Tao Zhang¹^,^b, Su-Jie Zhu¹^,^c, Qian Li^a, Linjiang Tong^b, Mengzhen Lai^b, Tao Huang^a, Cai-Hong Yun^d^,^*, Hua Xie^b^,^*, Ke Ding^a^,^*, Xiaoyun Lu^a^,^*

Chinese Chemical Letters | 2020, 31(5) : 1281 - 1287

Less

Chinese Chemical Letters | 2020, 31(5): 1281-1287

• Communication •

2-Oxo-3, 4-dihydropyrimido[4, 5-d] pyrimidines as new reversible inhibitors of EGFR C797S (Cys797 to Ser797) mutant

Full

Xianglong Hu¹^,^a, Qiuju Xun¹^,^a, Tao Zhang¹^,^b, Su-Jie Zhu¹^,^c, Qian Li^a, Linjiang Tong^b, Mengzhen Lai^b, Tao Huang^a, Cai-Hong Yun^d^,^*, Hua Xie^b^,^*, Ke Ding^a^,^*, Xiaoyun Lu^a^,^*

Affiliations

^a International Cooperative Laboratory of Traditional Chinese Medicine Modernization and Innovative Drug Development of Chinese Ministry of Education(MOE), School of Pharmacy, Jinan University, Guangzhou 510632, China

^b Division of Antitumor Pharmacology, State Key Laboratory of Drug Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China

^c Institute for Translational Medicine, College of Medicine, Qingdao University, Qingdao 266021, China

^d Department of Biochemistry and Biophysics, Institute of Systems Biomedicine, School of Basic Medical Sciences, Peking University Health Science Center, Beijing 100191, China

Published: 2020-05-15 doi: 10.1016/j.cclet.2019.09.044

Outline

Abstract

Less

Extensive structure-activity relationships (SARs) study of JND3229 was conducted to yield a series of new reversible 2-oxo-3, 4-dihydropyrimido[4, 5-d]pyrimidine privileged scaffold as EGFR^C797S inhibitors. One of the most potent compound 6i potently suppressed EGFR^{L858R/T790M/C797S} kinase with an IC₅₀ value of 3.1 nmol/L, and inhibited the proliferation of BaF3 cells harboring EGFR^{L858R/T790M/C797S} and EGFR^{19D/T790M/C797S} mutants with IC₅₀ values of 290 nmol/L and 316 nmol/L, respectively. Further, 6i dose-dependently induced suppression of the phosphorylation of EGFR^{L858R/T790M/C797S} and EGFR^{19D/T790M/C797S} in BaF3 cells. Compound 6i may serve as a promising lead compound for further drug discovery overcoming the acquired resistance of non-small cell lung cancer (NSCLC) patients.

Key words

EGFR^C797S mutant / SARs / 2-Oxo-3, 4-dihydropyrimido[4, 5-d] / pyrimidine / Clinical resistance / Fourth-generation inhibitors

Cite this Article

Xianglong Hu, Qiuju Xun, Tao Zhang, Su-Jie Zhu, Qian Li, Linjiang Tong, Mengzhen Lai, Tao Huang, Cai-Hong Yun, Hua Xie, Ke Ding, Xiaoyun Lu. 2-Oxo-3, 4-dihydropyrimido[4, 5-d] pyrimidines as new reversible inhibitors of EGFR C797S (Cys797 to Ser797) mutant[J]. Chinese Chemical Letters, 2020 , 31 (5) : 1281 -1287 . DOI: 10.1016/j.cclet.2019.09.044

Full Text

Less

Epidermal growth factor receptor-tyrosine kinase inhibitors (EGFR-TKIs) have brought great benefits in the clinic for the treatment of non-small cell lung cancer (NSCLC) patients harboring EGFR-mutation. To date, three generations of EGFR inhibitors [1, 2], e.g., gefitinib, erlotinib, afatinib, dacomitinib and osimertinib (AZD9291), have been approved by Food and Drug Administration (FDA). Particularly, the third generation EGFR Thr790 to Met790 mutant (T790 M) inhibitor osimertinib, covalently binding to Cys797, demonstrated approximately 75% overall response rate (ORR) in EGFR^T790M mutation-positive NSCLC patients and was approved as the first-line treatment for metastatic NSCLC patients in 2018 [3-5]. However, EGFR tertiary Cys797 to Ser797 (C797S) point mutation arises rapidly after treatment of osimertinib in clinic, due to the fact that the less reactive serine797 fails to form a covalent bond with osimertinib [6, 7]. EGFR^C797S mutation has become the most common acquired resistance to the third-generation EGFR-TKIs [8]. Thus, it is highly urgent to develop the fourth-generation EGFR inhibitors to overcome EGFR^C797S mutation [9].

Several fourth-generation inhibitors of EGFR with different binding types have been reported [1, 10], including the allosteric inhibitors EAI045 (1a) and JBJ-04-125-02 (1b) [11], and the ATPcompetitive inhibitors 2-4 [12-15] (Fig. 1). Among them, the (2-hydroxy)pheyl-4-substitututed quinazoline 2 and tri-substituted imidazole 3 displayed strong potency against EGFR^C797S kinase in biochemical assay, but neither cell-based activity nor in vivo efficacy of these molecules was disclosed. EAI045 (1a) and brigatinib (4) were both required to combine with EGFR antibody cetuximab or pantitumumab to demonstrate in vivo therapeutic efficacy [11, 15]. Most recently, we have identified a pyrimidopyrimidinone-based derivative JND3229 (5) as a new reversible EGFR^C797S mutant inhibitor demonstrating both in vitro and in vivo mono-drug efficacy against the proliferation of EGFR^C797S mutated cancer cells [16]. Structure analysis indicated that JND3229 bound to the ATP binding site of EGFR^C797S with a reversible "U-shaped" configuration. The 2-oxo-3, 4-dihydropyrimido[4, 5-d]pyrimidine privileged core formed a bidentate hydrogen bond interactions with Met793, the 2-chlorophenyl group was directed toward the hydrophobic back pocket, and the carbonyl in pyrido[4, 5-d] pyrimidine formed a hydrogen bond with Lys745 mediated by a water molecule. Herein, we would like to describe extensive structure-activity relationships (SARs) of this 2-oxo-3, 4-dihydropyrimido[4, 5-d]pyrimidine privileged scaffold based compounds (Fig. 2).

The synthetic routes of the designed 2-oxo-3, 4-dihydropyrimido [4, 5-d]pyrimidinyl analogues were outlined in Scheme 1. Briefly, reduction of 4-chloro-2-(methylthio)-pyrimidine-5-carboxylate (7) with diisobutyl aluminium hydride (DIBAL) gave (4-chloro-2-(methyl thio)pyrimidin-5-yl)methanol, which were subsequently oxidized by MnO₂ to yield aldehyde 9. For compounds 6a-6u and 6x, 9 then reacted with BOC-protected aliphatic amines, followed by Borch reductive amination, cyclization and oxidation to yield key pyrimidopyrimidinone 14. For compounds 6v and 6w, 9 went through Grignard reaction to give alcohol 15, which followed by chlorination, nucleophilic substitution, cyclization and oxidation to yield key pyrimidopyrimidinone 20. The intermediates 14 and 20 were respectively subjected to nucleophilic, deprotection and acylation reaction to give the title compounds 6a-6w.

The kinase inhibitory activities of the title compounds were evaluated by the enzyme-linked-immunosorbent assay (ELISA) assay (Table 1). Osimertinib, staurosporine and JND3229 were used as positive controls to validate the screening conditions. As shown in Table 1, osimertinib potently inhibits EGFR^L858R/T790M, while is less potent against EGFR^{L858R/T790M/C797S}. However, staurosporine, a broad spectrum of multi-kinase inhibitor, suppresses the enzymatic activity of the EGFR^L858R/T790M and EGFR^{L858R/T790M/C797S} mutants with low nanomolar IC₅₀ values.

We firstly investigated the SARs on the linker L (Fig. 2) and the results were summarized in Table 1. Change of trans-cyclohexanamine in JND3229 with a cis-cyclopyrrilidinamine (6a) and linear ethylamine (6b) led to 14-fold and complete potency loss against EGFR^{L858R/T790M/C797S}. When exocyclic N atom in the linker was incorporated into the cycloalkyl group, the resulting compounds (6c–6h) showed greatly decreased potency on EGFR^{L858R/T790M/C797S}. Compound 6i with cis-cyclohexanamine instead of the trans-cyclohexanamine exhibited an IC₅₀ value of 3.1 nmol/L against EGFR^{L858R/T790M/C797S}, which is comparable to that of JND3229. Moreover, this compound is 7-fold more potent than JND3229 with the inhibitory activity of EGFR^L858R/T790M double mutant. These results indicated that the cyclohexanamine group in the linker fraction was preferable for the high inhibitory activity.

After determined that the cyclohexanamine was the optimal substituent for the L part, we then turned to optimize the R1 substitution (Table 1). It was revealed that the ethyl in JND3229 could be replaced with a variety of relative small substituents (e.g., methyl (6j), isopropyl (6k), tert-butyl (6l)), without obviously affecting the EGFR inhibitory potency. However, when the ethyl was replaced with larger hydrophobic groups, including cyclopentyl (6m), or cyclohexyl (6n), and phenyl (6o), the resulting molecules displayed about 3- to 7-folds potency loss. For instance, 6o with the phenyl substituent exhibited an IC₅₀ value of 14.4 nmol/L against EGFR^{L858R/T790M/C797S}. Interestingly, introducing an N atom into this phenyl group in 6o further reduced the compound's activity (6p, IC₅₀ = 35.2 nmol/L). It was worthy to note that when the propionyl moiety in JND3229 was replaced with a propyl group, the resulting compound (6x) dramatically decreased the kinase inhibitory potency with an IC₅₀ value of 139.7 nmol/L against EGFR^{L858R/T790M/C797S}. The investigation suggested that a critical interactionmight exist between the carbonyl group and the protein.

The X-ray structure analysis of EGFR^T790M/C797S and JND3229 complex revealed that the methyl substituted phenylpiperazine moiety of JND3229 was exposed to a solvent accessible surface [16]. We then explored the preliminary SARs of 3'-methyl substituent. When the 3'-methyl group in JND3229 was replaced with 3'-CF₃ (6r) or changed to 2'-position (6u), the resulting compounds exhibited comparable activities, while replacement of 3'-methyl group with the other substituents, e.g., 3'-F (6r), 3OCH3 (6s), or removal of it (6t), yielded compounds with potency loss ranging from 2- to 3-folds.

At last, we investigated the potential steric impact of R₃ position by substitution with methyl (6v) and ethyl (6w). The compound 6v exhibited the equal activity compared to the parental compound JND3229, while the ethyl substituted compound 6w displayed about 4-folds potency loss, suggesting that the bulky moieties were not tolerated at this site.

In order to get insight into the binding mode of cys-cyclohexanamine with EGFR^T790M/C797S, a co-crystal structure of 6i complexed with EGFR^T790M/C797S was determined (Fig. 3A and Table S1 in Supporting information). It was indicated that 6i bound to EGFR^T790M/C797S with a reversible "U-shaped" configuration with the "hinge" residue Met793. The 2-chlorophenyl group was directed toward the hydrophobic back pocket composed by Lys745, Glu762, Leu788, Met766 and Met790. Different conformations of cyclohexylamine caused the different binding patterns to protein. The carbonyl of amide in 6i formed a hydrogen bond with Ser720 mediated by a water molecule, while the NH of amide in JND3229 formed a hydrogen bond with Leu718 mediated by another water molecule.

The antiproliferative activities of compounds 6a-6x were also investigated against H1975 (EGFR^L858R/T790M) and BaF3 cells stably transfected with EGFR^{L858R/T790M/C797S} and EGFR^{19D/T790M/C797S} mutants (Table 1). It was showed that 6a-6x exhibited moderate antiproliferative activities against H1975 and BaF3 cells harboring EGFR^{L858R/T790M/C797S} and EGFR^{19D/T790M/C797S} mutants, with IC₅₀ values of 0.12–3.27 μmol/L, 0.29->10μmol/L and 0.31->10 μmol/L, respectively. Compound 6i displayed the most potent antiproliferative activities against BaF3-EGFR^{L858R/T790M/C797S} and BaF3-EGFR^{19D/T790M/C797S} with IC₅₀ values of 0.29 μmol/L and 0.31 μmol/L, respectively, which is corresponding to that of biochemical kinase assay.

Further, the kinase inhibition of the most potent compounds 6i and 6s (both showed sub-micromolar activities against BaF3-EGFR^{L858R/T790M/C797S} and BaF3-EGFR^{19D/T790M/C797S}) was further validated by investigating its suppressive functions on the activation of EGFR in BaF3-EGFR^{L858R/T790M/C797S} and BaF3EGFR^{19D/T790M/C797S} mutants. As shown in Fig. 4, compounds 6i and 6s caused a dose-dependent suppression of the phosphorylation of EGFR^{L858R/T790M/C797S} and EGFR^{19D/T790M/C797S} starting from the concentration of 100 nmol/L.

In summary, an extensive SAR investigation was conducted based on our recently disclosed 2-oxo-3, 4-dihydropyrimido[4, 5-d] pyrimidine privileged scaffold-based EGFR^C797S inhibitor JND3229. One of the most potent compound 6i potently suppressed EGFR^{L858R/T790M/C797S} kinase and inhibited the proliferation of BaF3 cells harboring EGFR^{L858R/T790M/C797S} and EGFR^{19D/T790M/C797S} mutants with IC₅₀ values of 3.1 nmol/L, 290 nmol/L and 316 nmol/L, respectively. Compound 6i dose-dependently induced suppression of the phosphorylation of EGFR^{L858R/T790M/C797S} and EGFR^{19D/T790M/C797S} in BaF3 cells starting from the concentration of 100 nmol/L. Compound 6i may serve as a new generation of EGFR inhibitors for anticancer drug discovery.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

The authors appreciate the financial support from the National Natural Science Foundation of China (Nos. 81922062, 81874285 and 81673285), Guangdong International Science and Technology Cooperation Project (No. 2018A050506043), Guangzhou City Key Laboratory of Precision Chemical Drug Development (No. 201805010007) and Institutes for Drug Discovery and Development of Chinese Academy of Science (No. CASIMM0120185006).

Appendix A. Supplementary data

Less

Supplementary material related to this article can befound, in the online version, at doi:https://doi.org/10.1016/j.cclet.2019.09.044.

References

Less

[1]

X. Lu, L. Yu, Z. Zhang, et al., Med. Res. Rev. 38(2018) 1550-1581.

[2]

Z. Song, Y. Ge, C. Wang, et al., J. Med. Chem. 59(2016) 6580-6594.

[3]

D.A. Cross, S.E. Ashton, S. Ghiorghiu, et al., Cancer Discov. 4(2014) 1046-1061.

[4]

S.L. Greig, Drugs 76(2016) 263-273.

[5]

J.C. Soria, Y. Ohe, J. Vansteenkiste, et al., N. Engl. J. Med. 378(2018) 113-125.

[6]

Z. Piotrowska, M.J. Niederst, C.A. Karlovich, Cancer Discov. 5(2015) 713-722.

[7]

K.S. Thress, C.P. Paweletz, E. Felip, et al., Nat. Med. 21(2015) 560-562.

[8]

M.J. Niederst, H. Hu, H.E. Mulvey, et al., Clin. Cancer Res. 21(2015) 3924-3933.

[9]

T. Grabe, J. Lategahn, D. Rauh, et al., ACS Med. Chem. Lett. 9(2018) 779-782.

[10]

L. Chen, W. Fu, L. Zheng, et al., J. Med. Chem. 61(2018) 4290-4300.

[11]

(a) Y. Jia, C.H. Yun, E. Park, et al., Nature 534(2016) 129-132;(b) C. To, J. Jang, T. Chen, et al., Cancer Discov. 9(2019) 926-943.

[12]

(b) C. To, J. Jang, T. Chen, et al., Cancer Discov. 9(2019) 926-943.

[13]

H. Park, H.Y. Jung, S. Mah, S. Hong, Angew Chem. Int. Ed. Eng. 56(2017) 7634-7638.

[14]

M. Gunther, M. Juchum, G. Kelter, et al., Angew Chem. Int. Ed. Eng. 55(2016) 10890-10894.

[15]

K. Uchibori, N. Inase, M. Araki, Nat. Commun. 8 (2017) 14768.

[16]

M. Juchum, M. Gunther, E. Doring, et al., J. Med. Chem. 60(2017) 4636-4656.

Appendix

Less

Year 2020 volume 31 Issue 5

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2019.09.044

Receive Date：2019-07-31
Online Date：2026-01-31
Published：2020-05-15

Article Data

Affiliations

History

Received：2019-07-31
Revised：2019-09-16
Accepted：2019-09-23

Affiliations

^b Division of Antitumor Pharmacology, State Key Laboratory of Drug Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China

^c Institute for Translational Medicine, College of Medicine, Qingdao University, Qingdao 266021, China

^d Department of Biochemistry and Biophysics, Institute of Systems Biomedicine, School of Basic Medical Sciences, Peking University Health Science Center, Beijing 100191, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2019.09.044

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

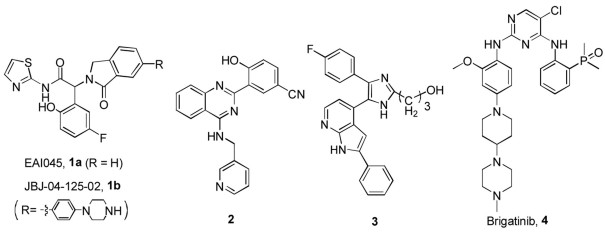

Fig. 1 The reported fourth generation EGFR inhibitors overcoming EGFR^C797S mutation.

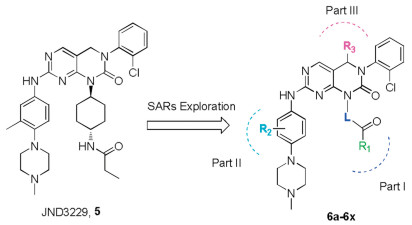

Fig. 2 The designed 2-oxo-3, 4-dihydropyrimido[4, 5-d] pyrimidines privileged scaffold based on JND3229.

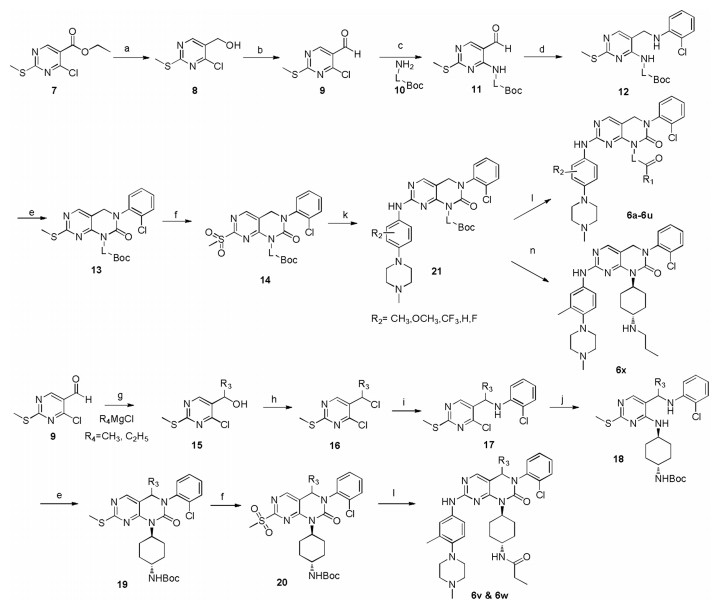

Scheme 1 General procedures for synthesis of compounds 6a-6u, 6x, 6v and 6w. Reagents and conditions: (a) DIBAL, THF, 78 ℃, 3–4 h, 88%; (b) MnO₂, DCM, r.t., overnight, 86%; (c) CH₃CN, r.t., overnight, 70%–82%. (d) ⅰ) 2-chloroaniline, AcOH, PhCH₃, 110 ℃. ⅱ) NaBH₄, THF, 70 ℃, 50%–60%; (e) Triphosgene, DIPEA, DCM, 0 ℃, 70%–80%; (f) m-CPBA, DCM, r.t., 70%–80%; (g) R₃MgCl, THF, -40 ℃, 80%–90%; (h) DIPEA, POCl₃, 0 ℃, 2 h, 70%–80%. (i) 2-chloroaniline, Acetonitrile, r.t., overnight, 80%–85%; (j) 10, CH₃CN, r.t., overnight, 80%–90%; (k) 3-methyl-4-(4-methylpiperazin-1-yl)aniline, TFA, 2-butyl alcohol, 110℃, overnight, 40%–50%; (l) ⅰ) TFA, DCM, r.t.; ⅱ) propionic acid, HATU, DIPEA, DCM, overnight, 30%–50%. (n) ⅰ) TFA, DCM, r.t.; ⅱ) iodine propane, EtOH, DCM, 80℃, 20 h; 28%–35%.

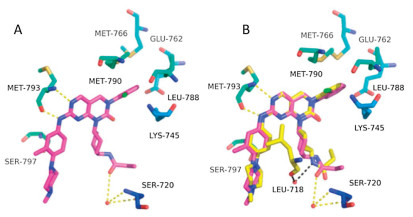

Fig. 3 (A) The X-ray crystal structure of 6i with EGFR^T790M/C797S (PDB ID: 6JRX). (B) Overlay the 6i and JND3229 in EGFR^T790M/C797S (PDB ID: 5ZTO). The EGFR kinase is shown in green and blue stick and ribbon representation. 6i and JND3229 are shown in purple and yellow stick. Hydrogen bonds are indicated by yellow and black hatched lines to key amino acids. Water is represented as red dots.

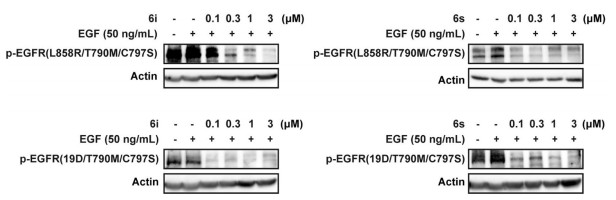

Fig. 4 Compounds 6i and 6s potently suppressed the phosphorylation of EGFR^{L858R/T790M/C797S} and EGFR^{19D/T790M/C797S} in BaF3 cells. Cells were treated with or without compounds 6i and 6s for 4 h at indicated concentration, respectively. Cells were then stimulated by 50 ng/mL EGF for 10 min and harvested for western blot analysis.
