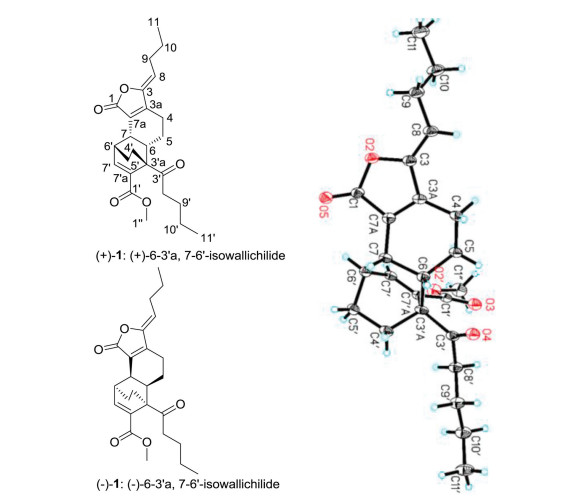

Ligusticum chuanxiong Hort. (Umbelliferae), a well-known traditional Chinese medicine, has been used to treat cardiac arrhythmia, angina pectoris, stroke, and hypertension in clinical applications for millennia [1, 2]. To date, more than 100 phthalides have been isolated and elucidated from this herb, and confirmed to possess significant pharmacological activities, such as anticoagu-lation, antiplatelet aggregation, antioxidant, anti-inflammation, antimicrobial, and antitumor effects [3-8]. Meanwhile, phthalide dimers with complex polycyclic skeletons and multiple chiral centers have become a hot research topic owing to their interesting chemical structures and significant pharmacological activities [9-15]. As part of a continuing effort to search for interesting phthalide dimers from L. chuanxiong, a pair of enantiomeric phthalide dimers with new dimerization sites, named (+)-6-3'a, 7-6'-isowallichilide and (-)-6-3'a, 7-6'-isowallichilide, were obtained (Fig. 1), and their nitric oxide inhibition, antiplatelet aggregation and antioxidant activities were screened.

6-3'a, 7-6'-Isowallichilide (1) was obtained as colorless needle-like crystals. The molecular formula was determined to be C₂₅H₃₂O₅ (m/z 435.2144 [M + Na]⁺, calcd. for 435.2147) by HR-ESI-MS, with ten degrees of unsaturation. In the IR spectrum, carbonyl groups were indicated by the strong absorption peaks at 1750 and 1702 cm^-1, while the presence of alkene bonds was shown by the absorption peaks at 1639 and 1607 cm^-1. The ¹³C and DEPT NMR data showed 25 carbon signals, including eight C, six CH, eight CH₂, and three CH₃ groups. The ¹H and ¹³C NMR spectroscopic data showed one carbonyl group [δ_C 210.5 (C-3')], two lactone groups [δ_C 169.6 (C-1) and 166.4 (C-1')], three alkene bonds [δ_H 7.15, 1H, d, J = 7.2 Hz (H-7'); δ_H 5.15, 1H, t, J = 8.0 Hz (H-8) and δ_C 111.9 (C-8), 126.8 (C-7a), 136.8 (C-7'a), 145.2 (C-7'), 148.3 (C-3), 153.7 (C-3a)], one methoxyl group [δ_H 3.72, 3H, s (H-1") and δ_C 52.1 (C-1")], and two methyl groups [δ_H 0.92, 3H, t, J = 7.2 Hz (CH₃-11), δ_C 14.0 (CH₃-11) and δ_H 0.91, 3H, t, J = 7.2 Hz (CH₃-11'), δ_C 14.0 (CH₃-11')] (Table 1). The above data characterized this compound as a phthalide dimer similar to wallichilide [16], except for the dimerization sites, which were further demonstrated by 2D-NMR. One of the dimerization sites was established by the key ¹H-¹H COSY cross peaks of H-4'/H-5'/H-6'/H-7, which was also supported by HMBC cross peaks from H-6' (δ_H 3.68) to C-4'/C-6/C-7/C-7a/C-7'/ C-7'a. The other dimerization site was confirmed by the HMBC cross peaks from H-6 (δ_H 2.71) to C-4'/C-6'/C-7'a. Therefore, the planar structure of 1 was deduced to be a phthalide dimer linked at 6-3'a, 7-6' through a Diels-Alder reaction. The relative configura-tion of 1 was inferred from the NOE correlations of H-7/H-5'a, 6' and H-6'/H-5'a, 7' (Fig. S1 in Supporting information). Single-crystal X-ray diffraction analysis unambiguously defined the relative configuration of 1 as 6β, 7α, 6'α (Fig. 1 and Table S1 in Supporting information). However, the crystal structure of 1 was found to exhibit space group P2_1/c, combined with a specific optical rotation of [α]_D²⁰: 0 (MeOH), suggesting its crystallization as a racemate. Two monomer compounds, (+)-1 and (-)-1, were separated by chromatography using a chiral column (Fig. S2 in Supporting information). The rotatory values of the two com-pounds were the inverse of each other, and the CD spectra showed the positive and negative cotton effects of the mirror-image relationship, further confirming that the compounds were enantiomers (Fig. S15 in Supporting information). Quantum chemical calculations of the electronic circular dichroism (ECD) spectra were used to determine the absolute configurations of (+)-1 and (-)-1 as 6S, 3'aS, 7S, 6'R and 6R, 3'aR, 7R, 6'S by comparing experimental and predicted ECD curves (Fig. S4 in Supporting information). Consequently, the structures of compounds (+)-1 and (-)-1 were finally identified as (+)-6-3'a, 7-6'-isowallichilide and (-)-6-3'a, 7-6'-isowallichilide, respectively. To our knowledge, this is the first example of a phthalide dimer skeleton with 6-3'a, 7-6' dimerization sites obtained from herbs. This discovery further enriches the known dimerization sites of phthalide dimers, which adds understanding of phthalide dimerization modes.

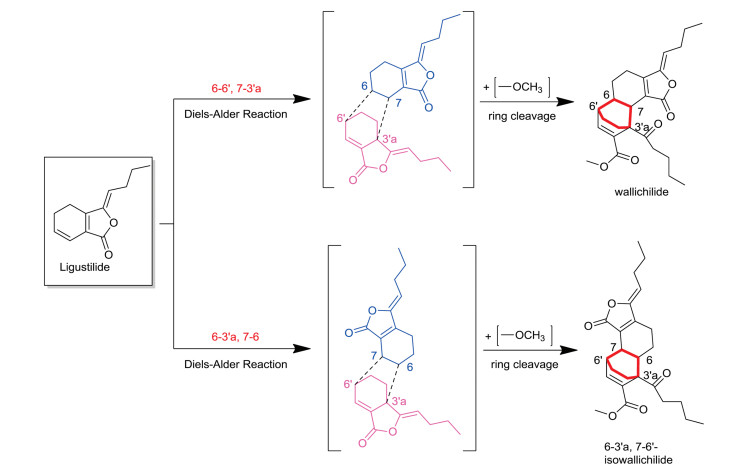

A plausible biosynthetic pathway of 6-3'a, 7-6'-isowallichilide was proposed, as shown in Scheme 1. Similar to wallichilide formation, a ligustilide was flipped in the Diels-Alder reaction process, which changed the dimerization site to form 6-3'a, 7-6'-isowallichilide.

According to the active characteristics of phthalide dimers, in vitro inhibitory effect against nitric oxide release in RAW 264.7 macrophages stimulated by lipopolysaccharides (LPS), antiplatelet aggregation induced by adenosine diphosphate (ADP) or arach-idonic acid (AA), and oxidative damage models using SH-SY5Y and PC12 cells induced by H₂O₂ were selected to investigate the activity of 1, (+)-1, and (-)-1. Among them, 1, (+)-1 and (-)-1 displayed significant inhibitory effects against LPS-stimulated NO release with EC₅₀ values of 4.76, 9.44, and 2.80 μmol/L, respectively (Table 2). Unfortunately, none showed significant antiplatelet aggregation and antioxidant activities.

Phthalide is an important active compound with an unstable structure from L. chuanxiong [17]. Previous studies have suggested that phthalide could translate into various dimers or trimers in plants and during harvesting, drying, storage, and decoction processes [18]. Compound 1 was also detected in the transforma-tion of phthalide by HPLC-MS, which further confirmed that 1 was a biotransformation or artificial compound from phthalide. Furthermore, previous research has shown that phthalide dimers not only have similar biological activities to phthalide, but also have higher stability than phthalide [19, 20]. This suggests that isolating new phthalide dimers, elucidating their structures, and evaluating their biology activity is important. Phthalide dimers are mainly polymerized through [4 + 2] or [2 + 2] cycloadditions, and usually have complex configurations with more than four chiral carbons, which makes elucidating their stereoscopic structures difficult. Our present investigation obtained optically pure phthalide dimers from the racemate by chiral column chromatog-raphy. The absolute configurations of (+)-1 and (-)-1 were established using ECD calculations, which provide reliable references for the structural elucidation of new dimers in future.

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

This work was supported by the Shanghai Municipal Commis-sion of Health and Family Planning (No. ZY3-CCCX-3-5001), the Science and Technology Commission of Shanghai Municipality (Nos. 14401901400, 15DZ2292000), the Expenditure Budget Program of Shanghai Municipal Education Commission (No. 2016YSN24) and Xinglin Young Talent Program of Shanghai University of Traditional Chinese Medicine.

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2019.12.012.
