Hydrogen is one of the most important clean energy sources with high energy density of 120–140 MJ/kg [1, 2]. Efficient and safe hydrogen production technology is the prerequisite for usage of hydrogen energy. Among the hydrogen production methods, electrocatalytic water splitting is regarded to be efficient and sustainable [3-5]. It proceeds by hydrogen evolution reaction (HER) via the reduction of protons or water [6, 7]. Up to now, considerable endeavors have been devoted to developing many types of non-noble metal catalysts for HER, such as metal sulfides, metal carbides, metal phosphides, metal oxides or hydroxides to replace the noble metal Pt [7]. Unfortunately, none of them outperforms Pt with highly efficient, low overpotential and fast kinetics in HER. Considering the low abundance of Pt on the earth [8, 9], reducing the nanostructures or even atomically distributed Pt centers supported on catalysts could significantly decrease Pt usages and maximize atom efficiency [10, 11].

MXenes are a large family of two-dimensional materials that are synthesized by selectively etching off the "A" layers from the layered ternary carbides or carbonitrides known as MAX phases [12-14]. MAX phases have a general formula of M_n+1AX_n (n = 1, 2, 3), where M represents a transition metal; A is usually an IIIA or IVA element; and X stands for C and/or N [15-17]. At the expense of the A removal in fluoride-containing acidic solution, the "MX" layers are left behind with surface functional groups [18], they are named as MXenes. Earlier studies have demonstrated that several types of MXenes themselves exhibit good catalytic activity for HER such as Ti₂CT_x [19] and Mo₂CT_x [20]. Moreover, extensive efforts have been devoted to the reduction of noble-metal ions using MXenes without external reducing agent [21]. The spontaneous redox reaction makes the noble metals firmly anchor on the surface of MXenes. These noble metals include but not limit to: Pt, Pd, Ag and Au. Noble metals/MXenes composites have shown high performance in some fields such as surfaceenhanced Raman spectroscopy [21], catalysis [22-24], electrochemical energy storage [25, 26], wastewater treatment [27, 28] and sensing applications [29, 30]. Especially, single platinum atoms can immobilize on Mo₂TiC₂T_x MXene by electrode position technique and show excellent electrocatalytic activity for HER, which highlights a new approach for high efficiency utilizing Pt as catalyst [31].

In addition to the choice of catalyst, controlling the surface morphology and dispersion of the catalyst to expose active sites are equally important for enhancing HER performance. Notably, in the electrochemical test and practical applications, polymer binders like Nafion or polytetrafluoroethylene are usually used to immobilize the catalysts on the electrode surfaces in case of the destruction from hydrogen bubbles. Whereas, these polymer binders may block active sites, inhibit diffusion and increase the electron transfer resistance [32]. Thus, designing binder-free catalyst with homogeneous noble metal nanoparticulates distributed on the support is believed to be a hopeful strategy to obtain high performance catalyst for HER.

Herein, we report the fabrication of binder-free HER catalysts by using porous Ti₃C₂T_x MXene/Ti₃AlC₂ hybrid monolith as catalyst support and Pt nanoparticulates as active sites. In the manner of spontaneous redox reaction between Ti₃C₂T_x MXene and [PtCl₆]^2- complex ions, the Pt nanoparticles anchored on the highly electrically hybrid support exhibit high catalytic performance with low overpotential and good stability even with very low Pt loadings. This preliminary study provides a new strategy for developing highly efficient HER catalysts.

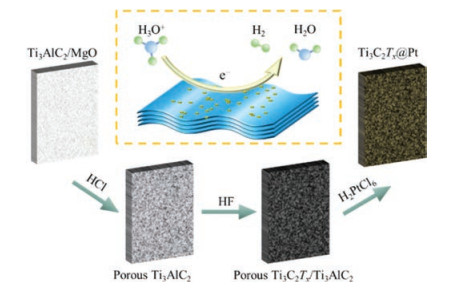

Fig. 1 shows the schematic of Pt immobilized on porous MXene/MAX hybrid monolith for HER. The porous MXene/MAX hybrid monolith was prepared from a porous Ti₃AlC₂ matrix. To obtain the porous Ti₃AlC₂ matrix, a Ti₃AlC₂/MgO composite was firstly prepared by reactive hot pressing of the blended powders of Ti, Al, graphite and MgO at 1450 ℃ for 1 h. The as-prepared Ti₃AlC₂/MgO composite was then cut into pieces with the dimensions of 13 mm × 8.4 mm × 1 mm. Considering the good stability of MAX phases in hydrochloric acid solution [33], these pieces were subsequently immersed into 1 mol/L hydrochloric acid solution to eliminate MgO through forming water soluble MgCl₂, leaving porous Ti₃AlC₂ as the matrix. After that, the porous Ti₃AlC₂ cuboids were partially etched in 40% HF aqueous solution to generate a thin layer of Ti₃C₂T_x MXene on the outmost surface of the Ti₃AlC₂ grains composing of the porous MAX monolith. Very importantly, the interesting structure, i.e., Ti₃C₂T_x MXene endogenously grown on the Ti₃AlC₂, enables the firm bonding between Ti₃C₂T_x and Ti₃AlC₂ matrix and guarantees the good electronic conduction for HER. Finally, the porous Ti₃C₂T_x/Ti₃AlC₂ hybrid monolith was immersed into 1 mL of H₂PtCl₆ aqueous solution to trigger the spontaneous redox reaction between Ti₃C₂T_x and [PtCl₆]^2-. As a result, Pt nanoparticulates were firmly anchored on the surface of Ti₃C₂T_x MXene. Two concentrations of H₂PtCl₆ aqueous solutions were selected as 0.1 and 1 mmol/L to prepare two types of porous Ti₃C₂ T_x/Ti₃AlC₂ monoliths with different Pt loadings, which are denoted as Ti₃C₂T_x@0.1 Pt and Ti₃C₂T_x@1 Pt, respectively. The corresponding Pt loadings do not exceed 8.9 μg/cm² or 88.9 μg/cm² for Ti₃C₂ T_x@0.1 Pt and Ti₃C₂T_x@1 Pt, respectively. The optical photographs of the as-prepared samples are shown in Fig. S1 (Supporting information).

As shown in Fig. S2 (Supporting information), the Ti₃AlC₂/MgO composite was prepared by using MgO as pore forming agent. To the best of our knowledge, the Ti₃AlC₂/MgO composite was reported in the literature for the first time. Considering the MgO is inert to many MAX phases, the method report in this work may be applicable to fabricate other MAX phases/MgO composite. With immersion in diluted hydrochloric acid solution, the MgO as pore forming agent was completely removed, giving rise to porous Ti₃AlC₂ monolith. Fig. S3 (Supporting information) exhibits the morphology and energy dispersive spectroscopy (EDS) elemental mapping of Ti₃AlC₂/MgO composite. As shown in Fig. S4 (Supporting information), after 1 mol/L hydrochloric acid solution treatment, almost all the MgO were eliminated, leaving the micronsized holes on the surface of Ti₃AlC₂, which is well identified by EDS elemental mapping results and in consist with the XRD results (Fig. S2). The present method represents a facile approach to prepare porous MAX phases. As shown in Fig. S5 (Supporting information), the Raman spectra of Ti₃AlC₂/MgO composite and porous Ti₃AlC₂ are comparable in terms of well-recognized Raman bands assignable to Ti₃AlC₂ [34, 35], which unambiguously indicates that the near surface of Ti₃AlC₂ grains are still highly lattice ordered and hydrochloric acid solution treatment do not introduce many defects on the surface of Ti₃AlC₂ grains. Due to the strong diffraction from Ti₃AlC₂ and much less contents of Ti₃C₂T_x MXene and Pt, the diffraction peaks of Ti₃C₂T_x MXene and Pt were hardly observed (Fig. S6 in Supporting information). In stark contrast, as a surface sensitive analysis method, Raman spectroscopy recognizes strong Raman peaks belonging to Ti₃C₂T_x MXene [12, 36, 37], as shown in Fig. S7 (Supporting information). Upon loading Pt, the Raman bands of MXene for the Ti₃C₂T_x@0.1 Pt are observable, while they are invisible for the Ti₃C₂T_x@1 Pt.

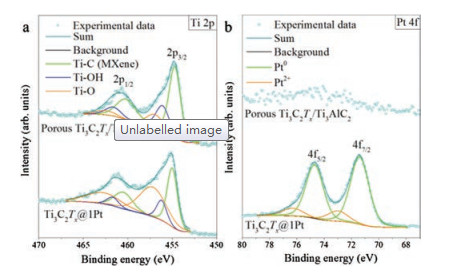

To understand the spontaneous formation of Pt nanoparticulates on Ti₃C₂T_x MXene, we comprehensively investigated the porous Ti₃C₂T_x/Ti₃AlC₂ hybrid monolith before and after H₂PtCl₆ aqueous solution treatment. Fig. 2 shows the XPS spectra for Ti 2p and Pt 4f of porous Ti₃C₂T_x/Ti₃AlC₂ and Ti₃C₂T_x@1 Pt. As shown in Fig. 2a, the functional groups of -O increased while -OH decreased after H₂PtCl₆ aqueous solution treatment, which proves the valence of Ti increased in MXene [36, 38], as a result of electron donation from Ti. Correspondingly, the Pt 4f peaks corresponding to metallic Pt is well recognized for the sample after 1 mmol/L H₂PtCl₆ aqueous solution treatment. The formation of metallic Pt is believed to the reduction of Pt cations as the result of accepting electrons from Ti₃C₂T_x MXene.

According to morphological analysis by scanning electron microscopy (SEM), the surface of as-etched porous Ti₃AlC₂ exhibits typical morphology of MXenes with aligned microslits (Figs. 3a and b). With low Pt loadings, for Ti₃C₂T_x@0.1 Pt, it is morphologically hard to identify the presence of Pt on the surface of MXene within the resolution of SEM (Figs. 3c and d). With the assistance of transmission electron microscopy (TEM), the existence of Pt ultra-small nanoparticulates has been confirmed in Fig. S8 (Supporting information). In stark contrast, with high Pt loadings, for Ti₃C₂T_x@1 Pt, Pt nanoparticles are distributed on the surface of porous Ti₃C₂T_x/Ti₃AlC₂, which are morphologically observed by SEM (Figs. 3e and f).

The HER activities of the catalysts were evaluated in a threeelectrode system containing 0.5 mol/L H₂SO₄ aqueous solution. Fig. 4a exhibits the polarization curves of porous Ti₃AlC₂, porous Ti₃C₂T_x/Ti₃AlC₂, Ti₃C₂T_x@0.1 Pt and Ti₃C₂T_x@1 Pt respectively. The potential to reach HER current density (j) of -10 mA/cm² is a key HER performance metric [10]. The porous Ti₃AlC₂ and porous Ti₃C₂T_x request the overpotentials of -251 mV and -219 mV vs. reversible hydrogen electrode (RHE) for j = -10 mA/cm² electrode current respectively. In stark contrast, the overpotentials to reach -10 mA/cm² are 43 mV and 37 mV for Ti₃C₂T_x@0.1 Pt and Ti₃C₂T_x@1 Pt respectively. The close overpotentials indicate that MXene@Pt exhibit high catalytic activity even at very low platinum loadings, which is critical for future commercial applications. Higher Pt loadings show better performance on high current density (Fig. S9 in Supporting information). To gain insights on the HER kinetics for these catalysts, the Tafel slopes were calculated. As is presented in Fig. 4b, the Tafel slope of porous Ti₃AlC₂ is 148 mV per decade (mV/dec) while the porous Ti₃C₂T_x/Ti₃AlC₂ is 292 mV/dec. As high-performance pseudosupercapacitor material, Ti₃C₂T_x MXene will generate capacitance before HER. In another word, the reaction between H⁺ ions in H₂SO₄ aqueous solution and -O functional groups of Ti₃C₂T_x contributes the current before HER [36]. That is the reason why the Tafel slope of Ti₃C₂T_x MXene is higher than porous Ti₃AlC₂ even though the porous Ti₃C₂T_x/Ti₃AlC₂ shows lower overpotential for HER at the same current density. Upon loading Pt on MXene, the Tafel slops of Ti₃C₂T_x@Pt decrease overtly and are 80 mV/dec and 89 mV/dec for Ti₃C₂T_x@0.1 Pt and Ti₃C₂T_x@1 Pt, respectively. The higher loading means that [PtCl₆]^2- complex ions obtain more electrons from Ti in Ti₃C₂T_x MXene and more -OH functional groups convert to -O functional groups. This makes Ti₃C₂T_x@1 Pt possesses higher current density than Ti₃C₂T_x@0.1 Ptbefore HER so that the Tafel slope of Ti₃C₂T_x@Pt increase when Ti₃C₂T_x were loaded more Pt. Furthermore, electrochemical impedance spectroscopy (EIS) was performed to investigate the kinetics of the various samples. Fig. S10 (Supporting information) shows the spectra that collected at the potential of -5 mV vs. RHE. The Ti₃C₂T_x@0.1 Pt exhibits similar kinetics behavior to porous Ti₃C₂T_x/Ti₃AlC₂ because of the low Pt loadings. In stark contrast, Ti₃C₂T_x@1 Pt shows downward arc at low frequency region, which is related to HER. The difference in electrochemically active surface areas (ECSAs) of various samples was also evaluated via a simple cyclic voltammetry method. Interestingly, the Ti₃C₂T_x@0.1 Pt exhibits the highest value rather than Ti₃C₂T_x@1 Pt, which suggests that the HER is more dependent on the contents of Pt nanoparticulates than ECSAs (Fig. S11 in Supporting information). A long-term stability testing on Ti₃C₂T_x@0.1 Pt was also carried out by means of galvanostatic test. As is shown in Fig. 4c, Ti₃C₂T_x@0.1 Pt shows low voltage increasing over 10 h at a constant current density (10 mA/cm²) operation.

In summary, we have fabricated Pt-immobilized partially etched MXene/MAX hybrid monolith as high-performance catalysts for HER through the spontaneous redox reaction between [PtCl₆]^2- and MXene. This strategy takes the advantages of the good stability of MAX phases in acidic solution, high electronic conductivity and firm bonding between MXene and MAX phase. The catalyst shows low overpotential vs. RHE (43 mV for -10 mA/cm²) based on low Pt loadings (lower than 8.9, μg/cm²). This work not only provides the strategy to fabricate Pt-based catalyst for HER, but also paves avenues to further exploration and design of highly efficient catalysts based on noble metals and porous MXenes/MAX phases monoliths for other reactions.

This work was supported by the Youth Innovation Promotion Association, Chinese Academy of Sciences (CAS) (No. 2011152), Shenyang National Laboratory for Materials Science, Institute of Metal Research, CAS and by Special Program for Applied Research on Super Computation of the NSFC-Guangdong Joint Fund (the second phase) (No. U1501501).

Supplementary material related to this article can befound, in the online version, at doi:https://doi.org/10.1016/j.cclet.2019.08.026.
