Among biosensor, MXenes have attracted immense attention. Initially, R. B. Rakhi
et al. [
43] considered Ti
3C
2T
x for immobilization of glucose oxidase enzyme for enzymatic sensing of glucose. To achieve higher signal sensitivity, Ti
3C
2T
x was coupled with Au NPs providing the sensor high detection leverage. In this context, L. Wu
et al. [
44] considered the use of Ti
3C
2-MXene for the immobilization of tyrosine enzyme. Based on the abundant 2D laminar area, the Ti
3C
2 could immobilize sufficient concentration of the enzyme. This immobilized platform was then used for the construction of mediator free biosensor for phenol. The oxidation of phenol to
o-quinone by tyrosine enzyme generated a signal which was subsequently boosted by reduction of
o-quinone to polyhydric phenol. The strategy enabled phenol detection in a range of 0.05 μmol/L to 15.5 μmol/L and LOD value of 12 nmol/L. The aminosilane functionalized MXene has also been considered for the detection of cancer biomarkers. S. Kumar
et al. [
45] functionalized Ti
3C
2T
x with aminosilane, which was later used for covalent immobilization of carcinoembryonic (CEA) antibodies. This platform was then used for probing CEA biomarker using ([Ru(NH
3)
6]
3+ as a redox mediator. The sensor exhibited high selectivity towards CEA in the concentration range of 0.0001– 2000 ng/mL with electrode sensitivity of 37.9 μA ng mL
-1 cm
-2. In a similar context, the capability of MXene in the development of aptasensors has also been investigated. S. Zhou
et al. [
46] reported the application of Ti
3C
2T
x coupled with phosphomolybdic acid (PMo12) embedded with polypyrrole (PPy@Ti
3C
2T
x/PMo12) to detect osteopontin (OPT). OPT is a phosphoprotein responsible for the regulation of tumor metastasis. The dense chemical functionality of PPy@Ti
3C
2T
x/PMo12 could form G-quadruplex with OPT which allowed its sensitive detection with a lower detection limit of 0.98 fg/mL. The inclusion of MXenes and their hybrids in the field of applicable portable devices such as microfluidic chips and wearable sensors has shown tremendous potential for practical applications. MXene, with its flexibility yet firm laminar structure, could easily be integrated into microfluidic beds and flexible wearable sensors. The concept of engineering MXene in portable devices was experimentally studied by J. Liu
et al. [
47]. In their study, the multifunctional capabilities of MXene substrate were highlighted using the microfluidic chip as a model device. This device was further used in continuous monitoring of whole blood for hemodialysis, uric acid, urea, and creatinine. Here, MXene was not only used for the immobilization of enzymes but also acted as a substrate to anchor MB to produce an independent signal for ratiometric evaluation. This approach not only provided a sensitive signal, but also minimized the signal drifting and fouling issues of the electrode. The detection of each analyte was based on a different mechanism. In the case of uric acid (UA), inhibition strategy was considered. Initially, UA adsorbed onto the surface of MXene subsequent to the formation of hydrogen bonds between UA and functional moieties of MXene (
i.e., OH, O and F). The inhibition in measured current response for the electro-catalytic oxidation of UA in reference to the probe current (MB) was then measured as the primary signal directly proportional to the concentration of UA (

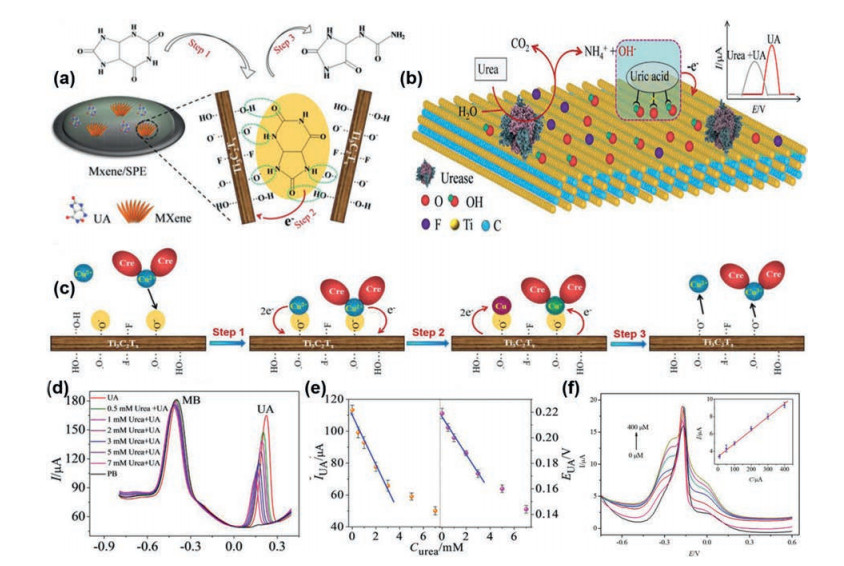

Fig. 3a). In the case of urea, a unique approach was designed. Since the by-product of urea catalysis is hydroxyl ions (
i.e., pH), the catalysis of urea can directly alter the pH of the system, which in turn can affect the electro-catalytic oxidation signal of UA without changing the signal response of MB. Thus, using this approach, urea was detected in a concentration range of 0–3×10
-3 mol/L. The mechanism with corresponding signal inhibition values for urea could be seen in
Figs. 3b and
d. Similarly, creatinine (Cre) was detected based on its capability to form a complex with copper ions. The Cre-Cu
2+ ion could easily be adsorbed onto the surface of MXene, which during SWV sweep exhibited strong signals related to the redox behavior of copper (
Fig. 3c). The current response obtained from the stripping peaks of Cu
2+ ion was found linear with the concentration of Cre present in the system. This method enabled detection of Cre in a concentration range of 10–400 μmol/L with a LOD value of 1.2 μmol/L. The constructed microfluidic devise also demonstrated excellent working potential when tested for the renal function analysis of 105 healthy people compared to the conventional biochemical assays. Similarly, the ratiometric approach has also been considered for detecting piroxicam drug [
48]. Here, Ti
3C
2T
x was modified with Cu NPs, to produce a stable hybrid platform capable of anchoring MB dye to act as a ratiometric probe. The hybrid system detected piroxicam both in tablet and human serum samples with acceptable recoveries. The working range, in this case, was described between 0.1 μmol/L and 80 μmol/L with a LOD value of 0.05 μmol/L. In another approach, Lei
et al. [
49] constructed a wearable sensor for invasive detection of glucose and lactase using the enzyme immobilization approach. The invasive sensors usually suffer from poor signal response, low-shell life and compromised sensitivity. Here, the use of MXene coupled with unique electrode configuration, allowed sufficient O
2 supply throughout the measurement, providing high reliability during intensive measurement. In addition, the sensor utilized a ratiometric approach, which subsequently minimized signal fluctuation. This sensor was capable of detecting glucose in a range of 1.0 μmol/L to 0.015 mol/L, with a LOD value of 0.33 μmol/L. The lactate concentration could be detected in a range of 1.0 μmol/L to 0.022 mol/L with a LOD of 0.67 μmol/L. Moreover, the wrist band sensor could also be employed for pH detection.
Table 1 comprises the electrochemical and biosensor reports utilizing MXene directly or indirectly for detecting various chemical and biological species. From the perspective of electrochemical (bio) sensors, MXenes' have shown rapid growth. However, there are still immense possibilities to utilize and configure MXenes to produce rapid yet sensitive and reliable signal output.
