The efficient detection of hydrogen peroxide and glucose has triggered increasing attentions due to their important roles in food industry, fuel cells and especially in clinical diagnostics [1-3]. The concentrations of H₂O₂ and glucose in biological bodies are closely related to physiological health, such as diabetes, Parkinson and myocardial infarction [4-6]. The real-time detection of H₂O₂ and glucose in biological bodies is beneficial to not only discovering the inherent small molecule-disease relationship, but also diagnosing diseases timely and accurately along with monitoring the disease progression [7]. Nowadays, the electrochemical method becomes increasingly popular for sensor research because of the simple operation, high sensitivity, and fast response [8, 9], compared with other detective technologies including colorimetric [10], spectro-photometric [11] and surface plasmon resonance methods [12]. Normally, the reliability of electrochemical sensors, which is classified into enzyme-based and enzyme-free sensors, strongly depended on the electrode materials which are expected to be highly active to target small molecules. Although the enzyme-based sensors show excellent selectivity and outstanding sensitiv-ity for target small molecular, their disadvantages include high cost, complicated operation, and the intrinsic properties affected easily by environment factors hinder the scale-up application [13, 14]. Considering the above-mentioned, it is highly desirable to develop enzyme-free sensors with high selectivity and sensitivity based on the consideration of economy.

In literatures, noble metal (NM) based materials have been widely demonstrated to be a class of excellent enzyme-free electrochemical sensors due to their high sensitivity [15, 16]. However, the low natural abundance and high cost greatly impede their widely adoption. Recently, cost-efficiency transition metal oxides, such as Co₃O₄-rGO [17], CuO-SiNWs [18], Fe₃O₄ [19], have being studied as enzyme-free and NM-free electrochemical sensors for small molecules. But the poor conductivity and easy aggregation of the transition metal oxides could reduce the activity sites, and limit the kinetics of the catalytic process. Thus, the emergence of transition metal oxides/carbon hybrids [20-22] could efficiently prevent the aggregation and improve the conductivity of the catalysts. Therefore, the structural design of transition metal oxides-based sensor should be given consider-ations to the following aspects: (1) Sensitivity. Take advantages of the good redox performance of transition metal oxides, explore more active sites of the catalysts. (2) Electron and mass transfer. Arranging the conductive carbon materials in an ordered manner could facilitate the transfer of both electrons and target molecules.

Herein, we fabricate hollow frameworks of Co₃O₄/nitride-doped carbon nanotubes (Co₃O₄/NCNTs) hybrids derived from MOFs as an efficient catalyst for the electrochemical detection of H₂O₂ and glucose. Firstly, the Co₃O₄ nanoparticles can provide active sites for enzyme-free detection, improving the activity of the catalysts. Secondly, the in-situ formed carbon nanotube frame-works can improve the electronic conductivity, and facilitate the mass transfer of target molecules.Thirdly, the coated carbon shells can effectively immobilize the oxide nanoparticles and, thus suppress the aggregation. This study opens a new avenue for developing cost-efficiency yet high-performance electrochemical sensors via rationally structural design.

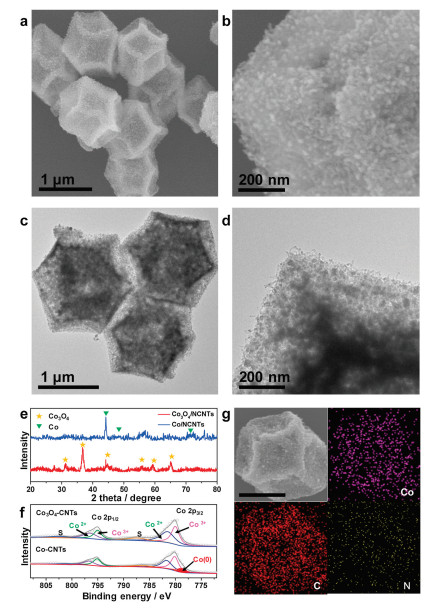

The synthesis of the catalysts was followed by the reported method [23]. The dodecahedral ZIF-67 nanoparticles (Fig. S1 in Supporting information) were selected as the precursor and self-sacrificing template to prepare the Co/NCNTs and Co₃O₄/NCNTs. The Co/NCNTs were obtained by simply carbonizing the ZIF-67 under the H₂/Ar atmosphere. As shown in Fig. S2 (Supporting information), the polyhedral structure can be well retained after thermal annealing, despite of the notably roughness and concave-ness on the surface of Co/NCNTs. Close inspection by TEM (Figs. S2b and S2d) on Co/NCNTs reveals that high density of carbon nanotubes array on the surface of hollow dodecahedrons, with the terminal of each nanotube encapsulating a Co particle. Then, the Co/NCNTs were converted into Co₃O₄/NCNTs by keeping at 150 ℃ under air for 12 h in an oven. Both TEM and SEM images (Figs. 1a-d) show a greatly swelling in size after the above oxidation treatment. The crystalline nature of the product can be further confirmed by XRD. Fig. 1e shows the XRD patterns of Co/ NCNTs (the blue line) and Co₃O₄/NCNTs (the red line). The main peaks marked with triangles in Co/NCNTs are assigned to Co (Co# JCPDS No. 15-0806). After oxidation treatment, the characteristic peaks of Co are disappeared, the main peaks marked with stars are in accord with the Co₃O₄ (Co₃O₄# JCPDS No. 43-1003). X-ray photoelectron spectroscope (XPS) was carried out to identify the surface valence states of the products (Fig. 1f). The major peaks at 794.6 and 779.2 eV were in accordance with Co 2p_1/2 and Co 2p_3/2, respectively. The two weak peaks at 803.3 eV and 786.7 eV (marked by S) can be further confirmed as the satellite peaks of Co oxidation state. The red peak in Co/NCNTs indicates the Co metallic state, and this peak was disappeared after oxidation treatment, suggesting that the Co(0) has turned into Co oxides completely. The elements distribution of Co₃O₄/NCNTs (Fig. 1g) and Co/NCNTs (Fig. S3a in Supporting information) conducted by EDS mapping shows that the Co, C and N distributed uniformly in the samples. To understand the bonding environment of the elements, high resolution XPS spectrums of C 1s and N 1s have been taken. As shown in Fig. S3b (Supporting information), the peak at 284.5 eV is related to the sp² carbon and the peak at 285.7 eV is related to combination of sp³ carbon and C-N bonding. As shown in Fig. S3c (Supporting information), the peaks at 398.2, 399.8, and 400.9 eV are related to pyridinic, pyrrolic, and graphitic nitrogen, which could suggest the existence of nitride-doped carbon structure. Raman spectrum of the Co/NCNTs was shown in Fig. S3d (Supporting information). The peaks at 1337.5 and 1580.6 cm^-1 were assigned to the characteristic G (graphite band) and D (defect band) bands of carbon. The D band demonstrated the doping of N and Co in the carbon nanotubes, and the G band includes the vibrations of carbon atoms along and around the circumference of the nanotube. The I_D/I_G is 1.20, which indicates the strong doping effect in the Co/NCNTs [24].

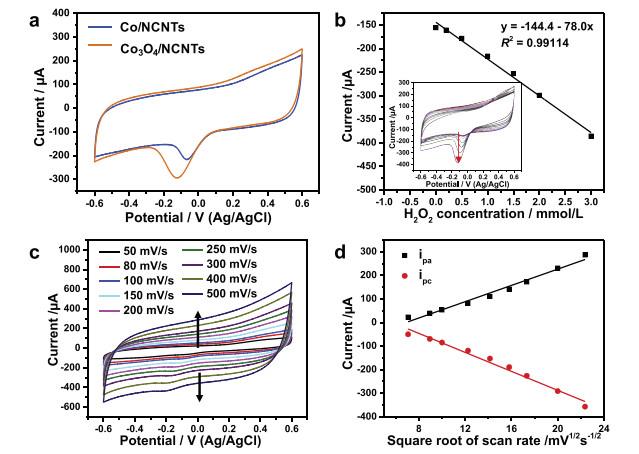

The enzyme-free H₂O₂ electrochemical detection is conducted in a traditional three-electrode system by the CHI 660e electro-chemical workstation (Shanghai Chenhua Instrument Corporation, China). In our study, we use 0.1 mol/L PBS solution (pH 7.4) as the electrolyte. Fig. 2a depicts the cyclic voltammograms of Co/NCNTs and Co₃O₄/NCNTs modified electrodes in 0.1 mol/L PBS containing 1 mmol/L H₂O₂. A series of CVs were recorded on Co₃O₄/NCNTs modified GCE at various H₂O₂ concentrations (0, 0.1, 0.2, 0.5, 1.0, 1.5, 2.0 and 3.0 mmol/L) (inset in Fig. 2b). The cathodic current increases obviously with the addition of H₂O₂, and the peak current is in good linear relationship with the H₂O₂ concentration (Fig. 2b). According to the previous reports, the electrocatalysis of H₂O₂ on the Co₃O₄/NCNTs can be expressed by the following Eq. (1) [18]:

The electrochemical process of H₂O₂ on the Co₃O₄/NCNTs modified GCE was studied in 0.1 mol/L PBS buffer solution (pH 7.4) containing 0.1 mol/L H₂O₂ at different scan rate (50, 80, 100, 150, 200, 250, 300, 400 and 500 mV/s) (Fig. 2c). We can further find that the current at 0.0 V versus Ag/AgCl can be in good linear with the square root of the scan rates (Fig. 2d), which indicate that the H₂O₂ oxidation on the Co₃O₄/NCNTs modified electrode was a typical diffusion-controlled process.

The optimal potential can be found by amperometric technology at different applied potentials with the successive addition of 0.2 mmol H₂O₂ (Fig. S4a in Supporting information). Fig. S4b (Supporting information) shows the calibration curve of current at different applied potentials (-0.15 V, -0.20 V and -0.25 V versus Ag/AgCl). We can find that the most sensitive current respond is occurred at -0.20 V versus Ag/AgCl, so we select 0.20 V as the best applied potential for further use. Compared with Co/NCNTs modified GCE, the Co₃O₄/NCNTs modified GCE has a higher sensitivity. The sensitivity of Co₃O₄/NCNTs is evaluated to be 87.4 μA (mmol/L)^-1 cm^-2 through the linear calibration curve.

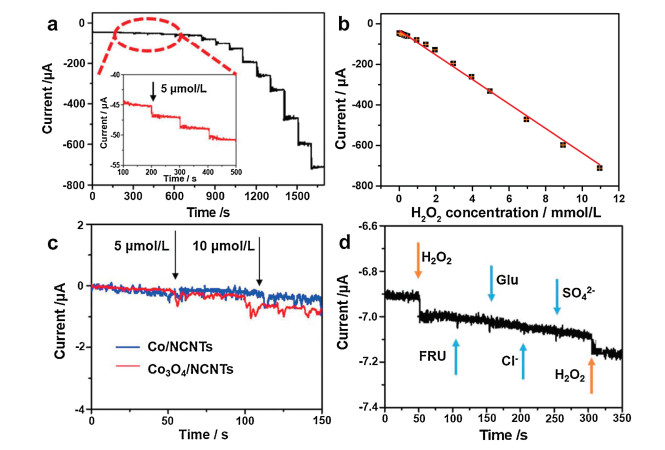

Fig. 3a shows the amperometric response to successive injection of various concentration of H₂O₂ into the 0.1 mol/L PBS buffer solution (pH 7.4) at an applied potential of -0.2 V versus Ag/ AgCl. It is found that the current of Co₃O₄/NCNTs modified GCE increases rapidly with the successive addition of H₂O₂, and only take few seconds to obtain a new current platform. The calibrated curve of current and concentration (Fig. 3b) shows that there is a linear range from 5.00 μmol/L to 11.00 mmol/L. The detection limitation of Co₃O₄/NCNTs is conducted by signal-to-noise ratio (S/N =3) is 1 μmol/L through amperometric test. Fig. 3c depicts the amperometric response of Co/NCNTs and Co₃O₄/NCNTs with the same addition of H₂O₂. The Co₃O₄/NCNTs is more sensitive than Co/ NCNTs. The results indicate that the Co₃O₄/NCNTs can enable accelerate the adsorption and activation of H₂O₂ molecules. As recorded in Table S1 (Supporting information), compared with other reported H₂O₂ sensors, our Co₃O₄/NCNTs shows a larger linear range and a lower detection limitation. Although, some electrodes exhibit a higher sensitivity, the narrow detection range could limit the practical application. Thus, the Co₃O₄/NCNTs could be used as an excellent catalyst for enzyme-free H₂O₂ sensors. The selectivity is another important parameter to evaluate the performance of the catalysts, especially in the practical applica-tion. In this work, we investigated the co-existence of other interfering species with H₂O₂ (GLU, FRU, Cl and SO₄^2-). As shown in Fig. 3d, the i-t curve was conducted by successive injection of 2 mmol/L H₂O₂ and interfering species at an applied potential of -0.2 V (versus Ag/AgCl). There is a negligible current response to the addition of the interfering species. The excellent selectivity of Co₃O₄/NCNTs for H₂O₂ detection can be ascribed to the negative potential that the interfering species cannot conduct electrochemical reaction.

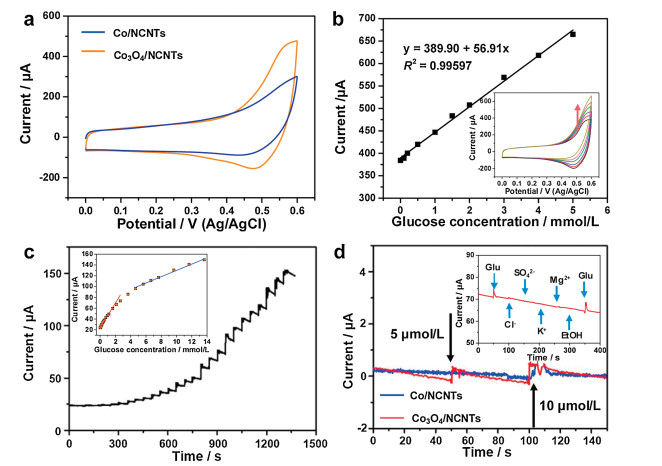

The Co₃O₄/NCNTs are also active for enzyme-free glucose detection. Fig. 4a depicts the cyclic voltammograms of Co/NCNTs and Co₃O₄/NCNTs modified electrodes in 0.1 mol/L NaOH containing 1 mmol/L glucose. The inset of Fig. 4b shows the CVs of the Co₃O₄/NCNTs modified GCE in 0.1 mol/L NaOH solutions contain-ing various glucose concentrations. The anodic currents at 0.6 V (versus Ag/AgCl) are in good linear relationship with the glucose concentrations (Fig. 4b). CV curves at different scan rate in 0.1 mol/L NaOH containing 1 mmol/L glucose have been measured (Fig. S5a in Supporting information). The current at 0.6 V versus Ag/ AgCl can be in a good linear with the square root of scan rates (Fig. S5b in Supporting information), which indicates that the glucose oxidation on the Co₃O₄/NCNTs modified electrode was a typical diffusion-controlled process.

Amperometric technology has been taken to find the optimal potential by successive addition of 0.2 mmol/L glucose at different applied potential (Fig. S5c in Supporting information). The calibration curves show that 0.6 V versus Ag/AgCl is the best potential for further use. The sensitivity of Co₃O₄/NCNTs is evaluated to be 86.6 μA (mmol/L)^-1 cm^-2 through the linear calibration curve (Fig. S5d in Supporting information). Fig. 4c shows the amperometric response to successive injection of various concentration of glucose into the 0.1 mol/L NaOH solution at an applied potential of 0.6 V versus Ag/AgCl. The rapid current response indicates the good detection performance. The calibrated curve (inset in Fig. S6d in Supporting information) shows that there are two linear ranges, which are 5.00 mmol/L-2.65 mmol/L and 4.65-13.65 mmol/L. The two linear ranges are caused by different glucose absorption and activation behavior on the Co₃O₄/ NCNTs modified GCE under different glucose concentrations. The selectivity of glucose was conducted by chronoamperometry at 0.6 V (versus Ag/AgCl). The i-t curve of successive addition of 2 mmol/L glucose and other interfering substances (Cl^-, SO₄^2-, K⁺, Mg²⁺ and EtOH) was shown in the inset of Fig. 4d. The current gets an obvious increase with the injunction of glucose, and no responses of the injunction of the interfering substances, indicating that the excellent selectivity of Co₃O₄/NCNTs for glucose detection. The detection limitation of Co₃O₄/NCNTs is 5 μmol/L through amperometric test. With the same addition of glucose, Co₃O₄/NCNTs is sensitive than Co/NCNTs (Fig. 4d), indicating that the Co₃O₄ has a higher detective ability towards glucose, probably because the glucose can be oxidized more easily by the high valence cobalt. Compared with other glucose and glucose oxidase immobilized sensors (Table S2 in Supporting information), the glucose detection performance of our Co₃O₄/NCNTs is better than those of other sensors. The Co₃O₄/NCNTs have a lower detection limitation, better sensitivity and larger linear range than glucose oxidase immobilized sensors. Thus, the Co₃O₄/NCNTs are excellent for enzyme-free glucose detection.

In summary, the Co₃O₄/NCNTs were prepared by simply pyrolyzing the ZIF-67 precursor in H₂/Ar atmosphere. The ZIF-67 derived Co₃O₄/NCNTs is an excellent catalytic material for the enzyme-free sensor, which is related to the special structure. Firstly, the Co₃O₄ can provide more active sites and improve the activity. Secondly, the conductive carbon nanotubes can cover the poor conductivity of Co₃O₄ nanoparticles, which can facilitate the transfer of both electrons and target molecules and prevent the aggregation of Co₃O₄ nanoparticles. The Co₃O₄/NCNTs modified electrode exhibit excellent electrochemical performance towards H₂O₂ detection, with a sensitivity of 87.40 μA (mmol/L) ^-1 cm ^-2, a linear range of 5.00 μmol/L-11.00 mmol/L, and a detection limitation of 1 μmol/L. Although, there are still lots of challenges in the practicability of enzyme-free electrochemical sensor, the Co₃O₄/NCNTs is a promis-ing candidate in this field.
