Non-invasive remote control and modulation of biological events are advanced technologies for manipulating physiological process and disease treatment [1]. As a remote controller, nearinfrared (NIR) light has been widely employed to regulate cellular activities, because NIR light not only can penetrate into deep tissues but also can be transformed into heat based on the photothermal therapy (PTT) [2, 3]. In the past decade, conjugated polymers nanoparticles (CPNs) have been drawing much attention in biosensing, imaging, disease diagnosis and therapy by virtue of their unique advantages including versatile surface functionalization, good water dispersion and biocompatibility, excellent photostability and tunable optoelectronic properties [4-7]. In addition, various CPNs with NIR absorption and emission have been developed by altering the electron donor and electron acceptor (D-A) building blocks in the conjugated polymers for extending their biomedical applications [8]. For example, Wang's group designed a novel strategy to remotely control the gene expression in living cells based on the NIR-active and photothermal-responsive CPNs [9]. Pu and coauthors reported hybrid nanoparticles composed of NIR-absorbing conjugated polymers and nanoceria to serve as the photosensitizer and the ROS regulator to improve the phototherapeutic performance in cancer therapy [10].

Carbon dioxide (CO₂), as a "green" trigger, has been extensively used in development of stimuli-responsive polymers [11], because of its energy-efficient characteristics and good biocompatibility compared to other stimuli including pH, redox agents, ions and magnetic fields [12-14]. The structure and properties of CO₂ stimuli-responsive polymers will readily change after reacting with CO₂ based on the CO₂ stimuli-responsive groups, such as amidine, amine or carboxyl, resulting in a wide applicability both in CO₂-controlled assembly and biomimetic materials [15, 16]. For example, our group reported several CO₂ stimuli-responsive conjugated polymers for CO₂ sensing [17-19] and fabrication of CO₂ responsive biomimetic supramolecular assembly [20]. Jessop's group developed a library of CO₂ controlled on–off switches including solvents, solutes and surfactants based on functionalization of the materials with amidine moieties [21]. Yuan and coauthors designed the amphiphilic diblock copolymer containing amidine groups, which formed "breathing" vesicles in aqueous solution with reversible size controlled by introducing and removing CO₂ [22]. In addition, oligonucleotides such as singlestranded DNA (ssDNA) are widely explored in gene therapy to replace a defective gene or to inactivate a harmful gene product [23]. Because nucleic acids macromolecules are usually hindered by biomembrane and easily degraded by enzymes in cell [24], many strategies are developed by assembling DNA with functionalized nanoparticles, which can efficiently penetrate cell membrane and release DNA in cells based on the photothermal effect [25, 26]. However, most of the nanoparticles used in gene delivery systems are controlled by single cue [27, 28], which limits its application in the complicated environment of cell. Therefore, inspired by these observations, we fabricate CO₂/NIR dual controlled CPNs to manipulate the biological process.

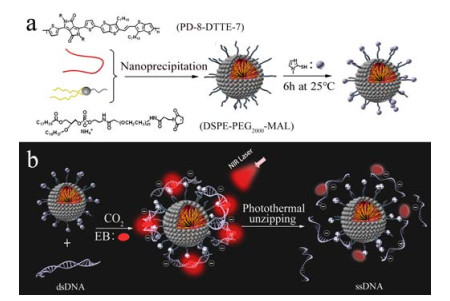

Here, an imidazole functionalized conjugated polymers nanoparticles (imidazole-CPNs) is fabricated to remotely unzip dsDNA under CO₂ stimulus and NIR light. As shown is Scheme 1, 1, 2- distearoyl-sn-glycero-3-phosphor-ethanol-amine-N-[maleimide-(polyethyleneglycol)-2000] (DSPE-PEG₂₀₀₀-Mal) is used as the encapsulation matrix. The imidazole-CPNs were prepared by using nanoprecipitation method through coprecipitating donor-acceptor (D-A) type conjugated polymer (PD-8-DTTE-7) with DSPEPEG₂₀₀₀-Mal. Furthermore, the imidazole groups are grafted on the shell to endow the CPNs with CO₂ responsive features. Upon reacting with CO₂, the imidazole groups are protonated and the nanoparticles exhibit positive charges, leading to dsDNA absorption on to the surface of CPNs showing strong fluorescence of ethidium bromide (EB), based on the intensive electrostatic interaction. And then, the dsDNA is unzipped into ssDNA under NIR irradiation based on the photothermal effect of PD-8-DTTE-7 which disrupts the hydrogen bonds between base pairs and separate double stranded helix into two single strands by heat, resulting in releasing of EB and the quenching of the fluorescence. However, dsDNA is unable to assemble with imidazole-CPNs in the absence of CO₂, or unzipped without NIR irradiation. Compared with traditional approaches for unzipping dsDNA including heating, force or chemical denaturants, both of NIR light and CO₂ are biocompatible, and can freely penetrate into cell membrane [29-31]. Therefore, CO₂/NIR dual controlled CPNs with two biocompatible transducers exhibit promising applications in remote manipulation of biological event.

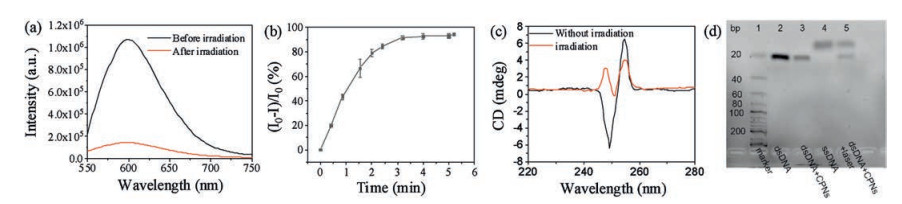

In order to analyze the ability of imidazole-CPNs to remotely control the unzipping process of dsDNA under NIR irradiation in the presence of CO₂ based on the photothermal effect of PD-8- DTTE-7, we employed ethidium bromide (EB) as a probe which contains a planar structure that can intercalate into the double helix strands of dsDNA with strong flurescence emission. As shown in Fig. 1a, EB probe exhibited very strong fluorescence intensity before NIR irradiation. However, 86.5% of the emission intensity of EB was quenched after 808 nm laser irradiation with the power density of 2.0 W/cm² for 2.5 min, thanks to the transformation of dsDNA to ssDNA. This indicates that dsDNA was absorbed on the shell of imidazole-CPNs in the presence of CO₂ due to the strong electrostatic interaction, and then it was unwound into singlestranded DNA leading to releasing of EB based on the photothermal effect of imidazole-CPNs under NIR irradiation, which is consistent with the working mechanism proposed in Scheme 1. However, control experiments demonstrated that dsDNA could not strongly interact with imidazole-CPNs without CO₂-stimuli resulting in the weak modulation activity (Figs. S1 and S2 in Supporting information). In addition, the fluorescence intensity of EB gradually decreased with the increasing NIR illumination time, indicating that more and more dsDNA transformed into ssDNA induced by NIR (Fig. 1b). To further confirm the unzipping of dsDNA controlled by CO₂/NIR, circular dichroism (CD) spectroscopy was employed to measure the conformational changes of dsDNA. For the dsDNA, CD spectra exhibit a positive peak at 256 nm and a negative at 248 nm which are the characteristic signals of righthanded double helix of the B-type dsDNA [32]. Upon treating with CO₂/NIR, however, CD spectra exhibited the weakness of the peak at 256 nm and the appearance of positive peaks at 248 nm, which are the characteristic signals of ssDNA (Fig. 1c). Moreover, agarose gel electrophoresis experiments were performed to further proof the dsDNA unzipping activity of imidazole-CPNs under CO₂/NIR. As shown in Fig. 1d, only a 20 base pairs band was observed before NIR irradiation that identifies with dsDNA. However, a new ssDNA band of 20 bases clearly emerged after illumination, which is the direct evidence of the transformation of dsDNA into ssDNA. Therefore, these results illustrate that the unzipping of dsDNA can be remotely controlled by CO₂ stimuli and NIR irradiation based on the imidazole-CPNs.

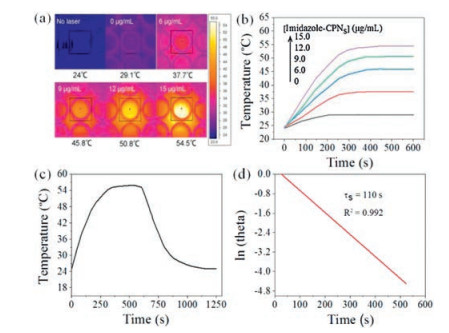

Taking the photothermal effect of PD-8-DTTE-7 in to consideration, the photothermal performance of imidazole-CPNs was further investigated. As demonstrated in Fig. 2a, infrared thermal images of imidazole-CPNs aqueous solution with various concentrations under NIR irradiation were captured by infrared thermal camera, revealed that the temperature gradually increased with the increasing amount of imidazole-CPNs after exposing to 808 nm laser irradiation with the power density of 2.0 W/cm² for 10 min. The temperature of imidazole-CPNs aqueous solution with concentrations of 15.0 μg/mL reached to 54.5 ℃, which is much higher than the melting temperature of dsDNA (42.4 ℃) used in this work (Fig. S3 in Supporting information). In addition, the time sweep demonstrated that the temperature increased sharply and reached plateau in 5 min (Fig. 2b). Furthermore, the photothermal conversion efficiency of imidazole-CPNs was calculated. As shown in Fig. 2c, the temperature of imidazoleCPNs (15.0 μg/mL) raised rapidly from 0 s to 300 s under NIR irradiation and reached steady state. Subsequently, NIR laser illuminator was switched off, and the temperature spontaneously decreased to room temperature at 1200 s. The time constant was measured according to the rate of heat transfer from the imidazole-CPNs solution to the environment (Fig. 2d). Finally, the photothermal conversion efficiency of imidazole-CPNs was calculated to be 27.5%. These results show that the imidazole-CPNs can efficiently convert near infrared light energy into heat energy.

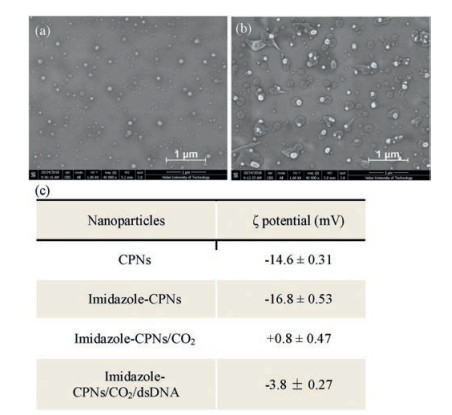

To prove the CO₂ triggered assembly between dsDNA and imidazole-CPNs, scanning electron microscopy (SEM) measurements were performed to visualize the morphology of particles. As shown in Figs. 3a and b, imidazole-CPNs form well-dispersed nanoparticles, however, dsDNA intensively assembles with imidazole-CPNs to form supramolecular structure with bigger size upon CO₂-bubbling. It means that dsDNA was substantially absorbed on the shell of imidazole-CPNs based on the electrostatic interaction. In addition, control experiments indicate that dsDNA only can weakly assemble with imidazole-CPNs in the absence of CO₂ (Fig. S4 in Supporting information). Meanwhile, there was no significant change in the particle size and appearance of imidazoleCPNs before and after reacting with CO₂, which was consistent with the results of dynamic light scattering measurements (Fig. S5 in Supporting information). To further understand the mechanism of CO₂ triggered assembly between dsDNA and imidazole-CPNs, the ζ potentials were measured. As shown in Fig. 3c, both of the ζ potentials of CPNs and CPNs grafted with imidazole groups (imidazole-CPNs) were intensively negative. However, the ζ potentials of imidazole-CPNs became slightly positive after reacting with CO₂, from -16.8 mV to + 0.8 mV, leading to the electrostatic interaction between dsDNA and imidazole-CPNs. Consequently, imidazole-CPNs became mildly negative after binding with dsDNA in the presence of CO₂. Therefore, CO₂ can readily control the assembly of dsDNA and imidazole-CPNs based on the charge reversal of imidazole groups.

In summary, we have developed a dual stimulation responsive nanoparticles to remotely unzip dsDNA by using imidazole functionalized CPNs (imidazole-CPNs) as the transducer under CO₂ and NIR light irradiation. Upon introducing CO₂, the surface charge of CPNs changes from negative to positive due to the protonation of imidazole groups, which promotes dsDNA successfully coats on the shell of imidazole-CPNs to form imidazole-CPNs/dsDNA assembly based on intensively electrostatic interaction. Moreover, the D-A type conjugated polymers loaded in imidazole-CPNs endow the nanoparticles with good photothermal conversion capacity under NIR light. Therefore, the imidazole-CPNs/dsDNA assembly effectively generates localized heat to trigger dsDNA unzipping under NIR light irradiation. Owing to the wide dispersion and good biocompatibility of CO₂, the combination of CO₂ stimulus and NIR laser to regulate dsDNA unzipping offers a promising strategy for the development of gene thermotherapy.

The authors are grateful for the financial support of the National Natural Science Foundation of China (Nos. 21574037, 21773054 and 51803046), the "100 Talents" Program of Hebei Province, China (No. E2014100004), the Natural Science Foundation of Hebei Province (No. B2017202051), the Program for Top 100 Innovative Talents in Colleges and Universities of Hebei Province (No. SLRC2017028).

Supplementary data associated with this article can be found, in the online version, at https://doi.org/10.1016/j.cclet.2019.04.020.
