Photocatalysis is promising for various applications, including contaminant removal, hydrogen evolution, CO₂ reduction and nitrogen fixation [1-5]. However, its practical application is largely limited by the low light utilization efficiency, especially the low efficiency in the visible light region in natural sunlight. Many efforts to improve the photocatalytic performance of semiconductors have been proposed, such as elemental doping, sensitization, and coupling with narrow band-gap semiconductors [6-11]. Recently, Mie scattering in hollow microspheres has attracted extensive attention due to the enhancement of light interaction [12-14]. Mie scattering is a physical phenomenon, which occurs when the size of the particles is comparable to the wavelength of the incident light. Especially, the Mie resonance (resonant Mie scattering) occurs when the particles have hollow nanoshell morphology because the hollow structure may significantly enhance the transport mean free path of incident light [13-15]. This will allow the light travelling a round trip inside the shell to escape from the powder with minimum multiple scattering and to produce constructive interference with the light directly scattered from the microspheres.

The hollow microspheres have demonstrated to be an efficient scattering layer for dye-sensitized solar cells whereas the improved photovoltaic conversion efficiency was due to the Mie scattering [16-20]. It was also reported that the Mie scattering of TiO₂ spheres was responsible for the superior photoactivity of H₂ evolution under UV light irradiation (λ < 387 nm) [21]. However, it is still unclear whether the accurate tuning of scattering peak to match the absorption range of dyes or semiconductors benefits the photocatalysis greater. To address this issue, we design C-TiO₂ hollow nanoshells with strong Mie resonance for enhanced photocatalytic hydrogen evolution in an Eosin Y-sensitized system under visible light irradiation. The carbon species are embedded into the hollow nanoshells by the carbonization of organic species during the calcination process. The addition of carbon can further suppress the multiple scattering and enhance the Mie resonance intensity [12, 22]. Pt co-catalyst is deposited on the surface of C-TiO₂ to promote charge separation through a photo-reduction method. The peaks of Mie resonance shift from ultraviolet to visible light when the inner diameters of C-TiO₂ hollow nanoshells varies from 160 nm to 210 nm. The 210 nm size C-TiO₂ hollow nanoshells with Eosin Y sensitization exhibits the highest photocatalytic hydrogen evolution rate (468.1 μmolh⁻¹ g⁻¹) among all the studied sizes under visible light illumination (λ≥420 nm) due to the better excitation of Eosin Y dyes by Mie resonance in hollow nanoshells. The theoretical backscattering in hollow nanoshells is calculated based on Mie's theory, and a possible mechanism considering charge transfer and light utilization is proposed for the photocatalytic process.

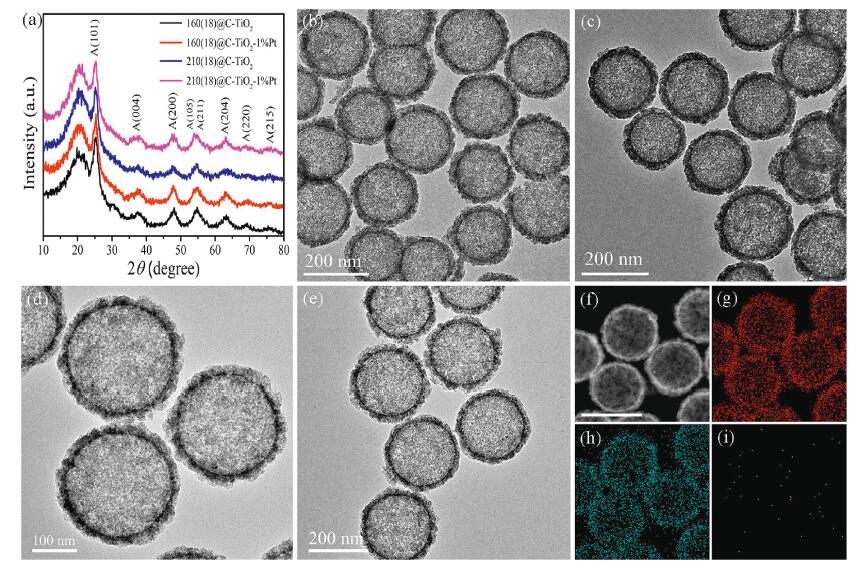

C-TiO₂ hollow nanoshells were obtained through a simple sol-gel method followed by calcination under inert atmosphere, and Pt nanoparticles were deposited on the surface by an in-situ photoreduction method (see the detailed experiments in Supporting information). The crystalline structure of the as-synthesized samples was analysed by the powder X-ray diffraction (XRD) (Fig. 1a). The diffraction peaks at 25.3°, 37.8°, 48.0°, 53.8°, 55.0°, and 62.6° can be ascribed to (101), (004), (200), (105), (211) and (204) planes of anatase TiO₂ [23, 24]. The broad peak between 16° and 23° was attributed to the carbon resulting from the carbonization of organic species during the calcination process [25]. The formation of carbon species can be further confirmed by the Raman spectra (Fig. S1 in Supporting information). The peaks at 144, 197, 400, 518 and 637 cm⁻¹ were assigned to the Raman-active modes of anatase TiO₂ [26]. The D and G peaks were clearly detected at 1336 and 1602 cm⁻¹, indicating the existence of carbon [27]. No diffraction peaks of Pt were detected probably because of the low loading amount and high dispersion. The transmission electron microscope (TEM) images indicate that the as-synthesized samples show the well-defined hollow nanostructure (Figs. 1b-e). The two hollow nanoshells are recorded as 160(18)@C-TiO₂ and 210(18)@C-TiO₂, respectively (160 and 210 represent the mean inner diameter (nm) and 18 in the bracket represents the shell thickness (nm) of the hollow nanoshells). The size distribution of inner diameter and shell thickness is displayed in Fig. S2 (Supporting information). It is difficult to find Pt nanoparticles due to the small size and high dispersion. The high angle annular dark field-scanning transmission electron microscope (HAADF-STEM) image and corresponding energy-dispersive X-ray spectroscopy (EDS) elemental mapping are displayed in Figs. 1f-i. Ti and O elements are uniformly distributed on the shell surface, and Pt nanoparticles are anchored on the surface with high dispersion.

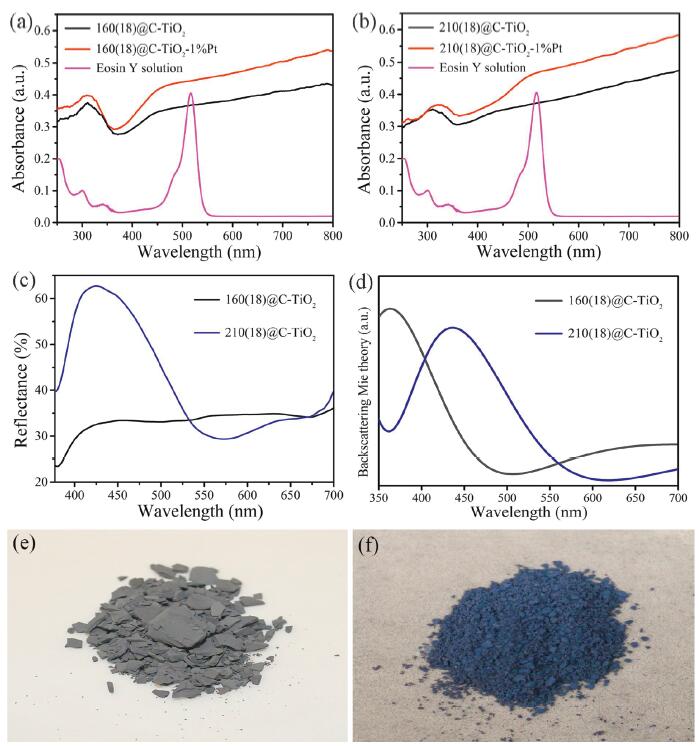

The optical absorption property was conducted on a UV–vis spectroscopy. As shown in Figs. 2a and b, the 160(18)@C-TiO₂ and 210(18)@C-TiO₂ hollow nanoshells has a strong absorption in the whole UV–vis light region. The absorption in UV light region results from the band-to-band transition of anatase TiO₂, while the absorption in visible light region originates from the carbon species. After Pt deposition, the absorption increases slightly [28, 29]. The Eosin Y dye shows the characteristic absorption peak at about 516 nm. The reflectance spectra of the hollow nanoshells were recorded on an optical microscope (Zeiss, Axioscope) equipped with a probe type Ocean Optics HR4000CG-UV–vis spectrometer in reflection mode (Fig. 2c). In this work, we mainly focus on the research of photocatalytic hydrogen evolution under visible light irradiation (λ≥420 nm). No reflection peaks in visible light region are observed for 160(18)@C-TiO₂, while 210(18)@C-TiO₂ hollow nanoshells displays an obvious reflection peak centered at 436 nm. Thus, 160(18)@C-TiO₂ and 210(18)@C-TiO₂ hollow nanoshells appear to be grayish color and violet color, respectively (Figs. 2e and f). The bright color of the C-TiO₂ hollow nanoshells is resulted from the Mie resonance, which can be confirmed by theoretical calculation based on Mie's theory (see Supporting information for details) [13, 30, 31]. As shown in Fig. 2d, the simulated scattering peak is located at 362 nm for the smaller 160(18)@C-TiO₂ hollow nanoshells, while the peak has a red shift to 436 nm when the inner diameter increases from 160 nm to 210 nm. As widely known, anatase TiO₂ is a typical semiconductor with a band gap of ~3.2 eV, which can strongly absorb UV light below 380 nm. Therefore, the scattering peak below 380 nm cannot be observed clearly in the reflectance spectra of C-TiO₂ hollow nanoshells. The calculated scattering peak (436 nm) of 210(18)@C-TiO₂ hollow nanoshells is well consistent with the experimental reflectance spectrum, which corresponds to the violet color. The enhanced light scattering from Mie resonance in hollow nanoshells can be further absorbed by the neighbouring dye molecules when the light of Mie resonance can excite the sensitized dyes. It is thus reasonable to believe that effective use of solar energy can be achieved by rationally tuning the peak of Mie resonance.

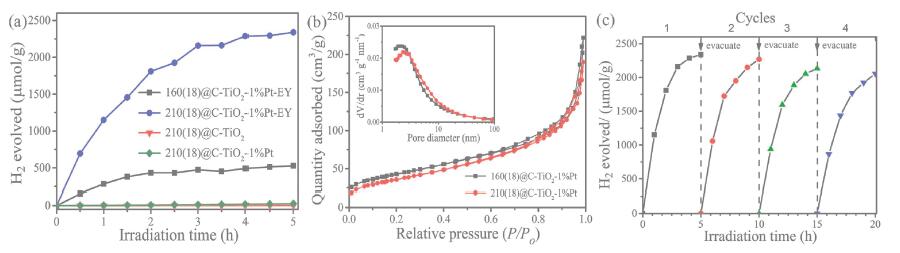

The effect of Mie resonance in hollow nanoshells on the photocatalytic activity is investigated by the photocatalytic hydrogen evolution in an Eosin Y-sensitized system with Pt as the cocatalyst and triethanolamine (TEOA) as the sacrificial donor under visible light irradiation (Fig. 3a). The C-TiO₂ and C-TiO₂-1%Pt hollow nanoshells show no activity for H₂ generation due to the wide band gap of anatase TiO₂. However, the Eosin Y-sensitized C-TiO₂-1%Pt hollow nanoshells presents the enhanced photocatalytic performance for water splitting due to the excitation of Eosin Y molecules and the electrons transfer from excited state Eosin Y to TiO₂ under visible light irradiation [32-34]. Meanwhile, the Eosin Y-sensitized 210(18)@C-TiO₂-1%Pt exhibits a higher H₂-evolution rate (468.1 μmolh⁻¹ g⁻¹), which is 4.4 times as much as Eosin Y-sensitized 160(18)@C-TiO₂ hollow nanoshells (105.5 μmolh⁻¹ g⁻¹). The experimental parameters of photocatalytic hydrogen generation are particularly identical over 160(18)@C-TiO₂ and 210(18)@C-TiO₂, including catalyst amount, Pt loading amount, Eosin Y concentration, and TEOA amount. The only difference between the two samples is their different inner diameter, and thus different Mie scattering. Moreover, we also take the specific surface area into account, and the nitrogen adsorption-desorption isotherms with pore size distributions are displayed in Fig. 3b. These two samples show the type Ⅳ isotherms with H3 hysteresis loops at high relative pressure, indicating the existence of slitlike mesopores [35]. The 160(18)@C-TiO₂-1%Pt and 210(18)@C-TiO₂-1%Pt hollow nanoshells have the specific surface area of 144.5 and 121.1 m²/g, respectively, and both of them show the similar pore size distribution from 2 nm to 10 nm. The photocatalytic activity of Eosin Y-sensitized 210(18)@C-TiO₂-1%Pt is 5.2 times as high as that of Eosin Y-sensitized 160(18)@C-TiO₂-1%Pt if the photocatalytic H₂-generation rate is calculated by per unit surface area. Therefore, the enhanced photocatalytic H₂ production of Eosin Y-sensitized 210(18)@C-TiO₂-1%Pt is because its Mie scattering peak (436 nm) can excite the Eosin Y molecules more compared to 160(18)@C-TiO₂-1%Pt under visible light irradiation. The apparent quantum efficiency (AQE) for hydrogen evolution over 210(18)@C-TiO₂-1%Pt with Eosin Y sensitization reaches 22.5%. In addition, it is found that the H₂-evolution rate gradually decreases with increasing reaction time, possibly due to the degradation of sensitized dyes (Fig. 3a) [36]. The UV–vis absorption spectra are measured to determine the change of Eosin Y dyes (Fig. S3 in Supporting information). The Eosin Y dyes are gradually degraded in the photocatalytic process of hydrogen evolution, and the absorption peak shifts to shorter wavelength, resulting in the decreased photocatalytic activity with increasing reaction time. Furthermore, we investigate the stability of hydrogen evolution over 210(18)@C-TiO₂-1%Pt with Eosin Y sensitization under visible light irradiation (λ≥420 nm). After each run, the catalyst is collected by centrifuging from the reaction mixture and re-dispersed in the fresh 10% TEOA aqueous solution with Eosin Y dyes and then evacuated in Labsolar-6A photocatalytic system (Beijing Perfectlight Technology Co., Ltd., China). As shown in Fig. 3c, the photocatalytic performance remained stable after a few cycles, indicating the good stability of 210(18)@C-TiO₂ system.

In order to further explore the effect of shell size on the photocatalytic performance, larger size C-TiO₂ hollow nanoshells are studied for photocatalytic water splitting. With further increasing the shell inner diameter to 240 nm with a thickness of 18 nm, cyan-colored C-TiO₂ hollow nanoshells can be obtained (Fig. S4 in Supporting information). The sample of 240(18)@C-TiO₂ hollow nanoshells shows a broad reflection peak centered at about 480 nm, which is consistent with the calculated backscattering peak based on Mie's theory (Fig. S5 in Supporting information). The broad reflection peak may be caused by the polydispersion of size distribution because it is practically difficult to get completely monodispersed hollow nanoshells with the exactly same diameter and shell thickness especially when the diameter increased. The 240(18)@C-TiO₂-1% Pt shows a photocatalytic H₂ evolution rate of 420.4 μmolh⁻¹ g⁻¹ in the Eosin Y sensitized system under visible light irradiation (Fig. S6a in Supporting information), which is slightly lower than Eosin Y sensitized 210(18)@C-TiO₂-1%Pt, but is much higher than Eosin Y sensitized 160(18)@C-TiO₂-1%Pt. The 240(18)@C-TiO₂-1%Pt also show the type Ⅳ nitrogen adsorption-desorption isotherm with a specific surface area of 112.2 m²/g (Fig. S6b in Supporting information). If the specific surface area is considered as one of the effect factors, similar photocatalytic activity order is obtained (Eosin Y sensitized 210(18)@C-TiO₂-1%Pt > 240(18)@C-TiO₂-1%Pt > 160(18)@C-TiO₂-1%Pt).

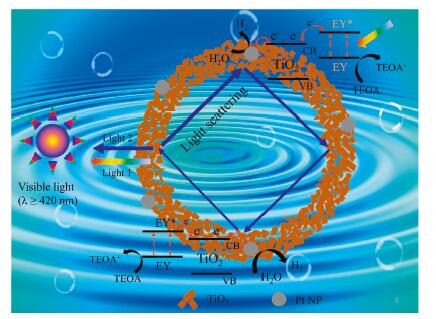

Based on the above experimental results and discussion, a possible mechanism was proposed for the photocatalytic process in terms of charge separation, Mie resonance, and light utilization (Fig. 4). Under visible light irradiation, the Eosin Y is excited to the excited state Eosin Y* by transferring the electrons in highest occupied molecular orbital to lowest unoccupied molecular orbital [37, 38]. Then, the Eosin Y* injects the electrons to the conduction band of anatase TiO₂ because the reduction potential of Eosin Y (−0.8 V vs. NHE) is more negative than the conduction band of anatase TiO₂ (−0.2 V vs. NHE) [39, 40]. After that, the electrons will rapidly migrate to the Pt nanoparticles for H₂ production due to the high work function and low overpotential of Pt [36, 38]. In this work, the scattered light in hollow nanoshells can be greatly enhanced by the phenomenon of Mie resonance (constructive interference of Light 1 and Light 2 in Fig. 4. Light 1 is the directly scattered light from the surface, and Light 2 is the escaped light after travelling around in the hollow nanoshells), and the peak of Mie resonance can be tuned by optimizing the shell diameter, thickness or the relative refractive index [12-14]. Herein, no scattering peak is observed for 160(18)@C-TiO₂ above 400 nm, and an obvious scattering peak at 436 nm is detected for 210(18)@C-TiO₂ hollow nanoshells. The scattered light at 436 nm can be further utilized to excite the Eosin Y molecules and generate more excited electrons, which thus greatly improves the utilization efficiency of incident light and enhances the photocatalytic performance for hydrogen production. The enhanced scattering light from 420 nm to 516 nm in 240(18)@C-TiO₂ is still feasible for the excitation of Eosin Y molecules, resulting in efficient light utilization and improved photocatalytic performance. However, the photo energy of resonant Mie scattering in 210(18)@C-TiO₂ is higher than that in 240(18)@C-TiO₂. Thus, the 210 nm size C-TiO₂ hollow nanoshells with Eosin Y sensitization exhibits the highest photocatalytic H₂ evolution rate among all the studied sizes. It is difficult to obtain C-TiO₂ hollow nanoshells with narrow scattering peak at about 516 nm for the accurate matching with the characteristic absorption peak of Eosin Y due to the polydispersion of size distribution. In future, more efficient ways may be explored for the synthesis of monodipersed hollow nanoshells of semiconductor-based materials with independent scattering peak in visible light region. In some sense, this work well demonstrates the Mie resonance in hollow nanoshells is efficient for the improved light utilization by tuning the scattering peaks.

In summary, C-TiO₂ hollow nanoshells with Mie resonance have been explored for photocatalytic H₂ evolution in the Eosin Y sensitized system under visible light irradiation. When the Mie resonance in hollow nanoshells can excite Eosin Y dyes, the enhanced scattering light can be further utilized for the photoexcitation of Eosin Y molecules and thus more electrons are produced for water reduction. This work demonstrates rational tuning of Mie resonance in hollow nanoshells can be a promising strategy for efficient utilization of incident light, and thus improved photocatalytic performance.

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Financial support for this project was provided by the National Natural Science Foundation of China (Nos. 51702023, 51702022) and Natural Science Research of Jiangsu Higher Education Institutions of China (No. 17KJB430001).

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2020.05.013.
