Thermally activated delayed fluorescence (TADF) materials have drawn increasing attention in recent years for their ability to utilize 100% excitons in organic light-emitting diodes (OLEDs) through the reverse intersystem crossing (RISC) process from triplet (T₁) to singlet (S₁) state enabled by small singlet-triplet energy gap (ΔE_ST) [1-5]. To date, most of the efficient TADF OLEDs are fabricated via vacuum-deposition technology [6-11]. While TADF materials suitable for solution processes that are cost-effective and compatible with large-area fabrication of devices are relatively scarce [12-30].

Dendritic luminescent materials, which feature branched structures and good solubility in organic solvents, are a kind of promising solution-processed materials for OLED applications [31]. Compared to polymeric materials which may suffer from wide molecular-weight distribution and terminal defects, the unique advantage of dendrimers is that they have absolute molecular weights and well-defined chemical structures. Moreover, the periphery-core structure of dendrimer can prevent concentration quenching of the emitting center, making them suitable for developing high-efficiency solution-processed OLEDs. However, up to now, although many fluorescent and phosphorescent dendrimers are developed [31, 32], the categories of TADF dendrimers are relatively rare, and their device efficiency still needs to be improved [33-39]. Since Yamamoto et al. first reported the TADF dendrimers with electron-accepting triazine unit as the core and electron-donating 1^st-4^th generation carbazoledendrons as the periphery [33], several strategies have been demonstrated to improve the device efficiency of TADF dendrimers. For example, by introducing alkyl or aryl groups into carbazoledendrons to enhance the hydrophobicity for lamination of electron-transporting layers, external quantum efficiency (EQE) up to 9.4% is realized for the fully solution-processed OLEDs [34]. Yang et al. have reported carbazole-based dendrimers by using diphenyl ketone as the acceptors, exhibit promising EQE of 13.8% for the non-doped solution-processed OLEDs [36]. Recently, Jiang et al. have reported TADF dendrimers by using N, N'-dicarbazolyl-3,5-benzene (mCP) as the exciplex-forming dendrons, giving the high maximum EQE of 16.5% for solution-processed OLEDs with 4,6-bis(3,5-di(pyridin-3-yl)phenyl)-2-methylpyrimidine (B3PYMPM) as electron-transporting material [38]. Nevertheless, it is noted that highly efficient TADF dendrimers with internal quantum efficiency approaching 100% are still scarce. Design strategy for TADF dendrimers to further improve their device efficiency is still needed.

Here we report a novel strategy for highly efficient TADF dendrimers by alkoxy encapsulation of the dendritic carbazole-based donor-acceptor emitters. The alkoxyl groups are expected to increase the electron-donating ability of carbazoledendron without significantly lowering the triplet state [40], and thus can reduce the energy of S₁ states while keeping the T₁ states, leading to smaller ΔE_ST and stronger TADF effect. Using this strategy, two dendrimers, namely O-D1 and O-D2 (Fig. 1), which contain the first-/second-generation carbazoledendrons bearing n-butoxyen capsulation groups as donor and triphenyltriazine as acceptor are designed and synthesized. It is found that, compared to the commonly-used tert-butyl groups, introduction of alkoxy encapsulating groups into the dendrimers can reduce the ΔE_ST, leading to stronger TADF effect together with faster RISC process. Consequently, solution-processed TADF OLEDs using the alkoxy-encapsulated dendrimers O-D1 and O-D2 exhibit state-of-the-art device efficiency with maximum external quantum efficiency of 16.8% and 20.6%, respectively, which are ~1.6 and ~2.0 folds that of the tert-butyl-encapsulated counterparts.

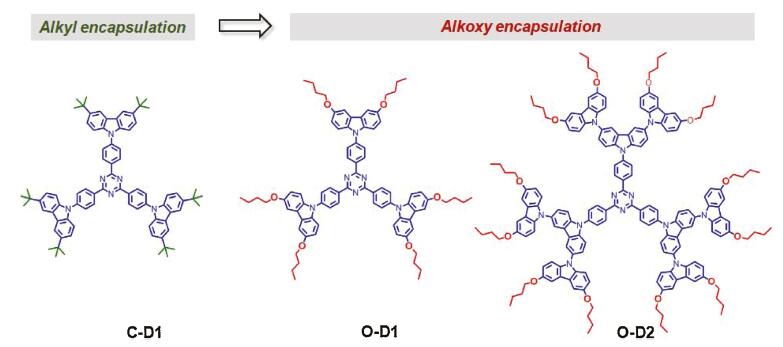

The chemical structures of the dendrimers are displayed in Fig. 1. The alkoxy-encapsulated dendrimers O-D1 and O-D2 contain the first-/second-generation carbazoledendrons bearing n-butoxyen capsulating groups as the donor and tripenyltriazine core as acceptor. For comparison, the alkyl-encapsulated dendrimer C-D1 consisting of the first-generation carbazoledendron with tert-butyl terminal groups as donor and tripenyltriazine core as acceptor is also provided. All the dendrimers were facilely synthesized via the palladium-catalyzed C-N coupling of the carbazoledendrons with the 2,4,6-tris(4-bromophenyl)-1,3,5-triazine core in good yields (61%–80%) (Scheme S1 in Supportinginformation). Their chemical structures were confirmed by ¹H and ¹³C NMR spectra, matrix-assisted laser desorption ionization time-of-flight (MALDI-TOF) mass spectrometry and elemental analysis (Figs. S1-S9 in Supporting informaiton). The three dendrimers possess excellent solubility in common solvents such as tetrahydrofuran, chloroform, toluene, chlorobenzene and so on, indicating they are suitable for fabrication of solution-processed OLEDs.

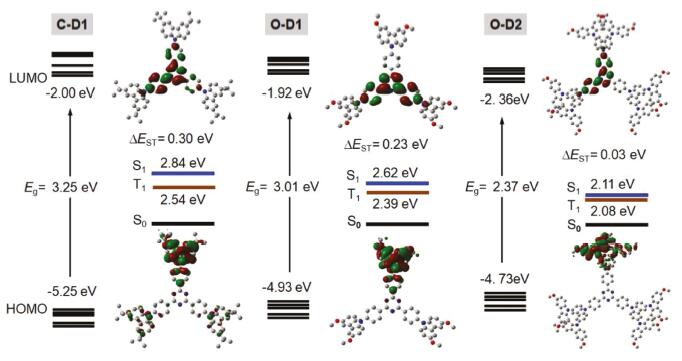

To get the insight into the electronic structure of the dendrimers, density functional theory (DFT) calculation was carried out to investigate their frontier orbital distributions. Meanwhile, the time dependent density functional theory (TD-DFT) analysis are also performed to explore the electron transition and excited energy levels of the lowest singlet and triplet states. As shown in Fig. 2, the highest occupied molecular orbital (HOMO) of the dendrimers are mainly distributed on the carbazoledendrons, while the lowest unoccupied molecular orbital (LUMO) are localized on the triphenyltriazine core. The calculated HOMO/LUMO levels are -5.25/-2.00 eV, -4.93/-1.92 eV and -4.73/-2.36 eV for C-D1, O-D1 and O-D2 respectively, which are in the same trend as the experimental values determined by cyclic voltammetry (Table 1 and Fig. S10 in Supporting information). The much higher HOMO level of O-D1 than C-D1 is attributed to the much stronger electron-donating ability of the n-butoxy groups than the tert-butyl ones, while the higher HOMO level of O-D2 compared to O-D1 can be assigned to the more dispersed HOMO distribution in the second-generation carbazoledendrons. The elevated HOMO levels for the n-butoxy-encapsulated dendrimers should be preferable for hole injection from the anode to the dendrimers. Moreover, owing to the separated HOMO and LUMO distributions, the dendrimers exhibit small ΔE_ST values, indicating their potential as TADF emitters. Importantly, it is found that on going from C-D1 to O-D1 and O-D2, the ΔE_ST value is gradually decreased from 0.30 eV to 0.23 eV and 0.03 eV, respectively. The lowered ΔE_ST of O-D1 compared with C-D1 indicates that the electron-rich n-butoxy group can lower the S₁ state (by 0.22 eV) to a greater extent than the T₁ state (by 0.15 eV). In addition, the lower ΔE_ST of O-D2 than O-D1 is also reasonable considering the more dispersed HOMO distribution along the second-generation carbazoledendrons which leads to smallerelectron cloud overlap between the donor and acceptor.

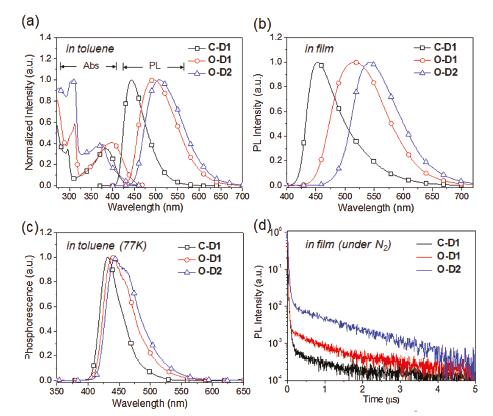

The absorption and photoluminescence (PL) spectra of the dendrimers are presented in Figs. 3a and b. All the dendrimers exhibit strong π- π* transition bands below 320 nm in toluene, together with broad absoptions at 350−450 nm which mainly belong to the intramolecular charge transfer transition. The PL spectra of the dendrimers in toluene exhibit broad and unstructured emission bands with the peaks located at 444−509 nm attributed to thecharge transfer emission. Compared with C-D1, O-D1 show red-shifted emission by 51 nm, in linewith the stronger electron-donating ability of the n-butoxy groups than that of tert-butyl ones. From O-D1 to O-D2, the emissoin is further red-shifted by 14 nm because of the extended conjugation of the second-generation carbazole dendron. PL spectra of the dendrimers in neat film show similar charge transfer emission as in solution, with the emission peaks red-shifted in the trend of C-D1 (452 nm), O-D1 (515 nm) and O-D2 (541 nm). PL spectra of the dendrimers in doped films (10 wt% in host material Ad-4D2 [41], whose chemical structure is shown in Fig. 4a), however, exhibit hypochromic shift for the emission bands relative to the neatfilms, indicating the weaker intermolecular interaction of the dendrimers in this case (Fig. S11 in Supporting information). To determine the T₁ state, phosphorescence spectra of the dendrimers are measured in toluene at 77K (Fig. 3c). The T₁ energy levels calculated from the highest peaks of the phosphorescence spectra are 2.87 eV, 2.83 eV and 2.81 eV for C-D1, O-D1 and O-D2, respectively. Consequently, the experimental ΔE_ST values determined from the difference between S₁ and T₁ energy levels are 0.21 eV for C-D1, 0.09 eV for O-D1 and 0.02 eV for O-D2 (Table 1). Compared to C-D1, O-D1 and O-D2 exhibit much smaller ΔE_ST values, which is in consistence with the TD-DFT calculations. Such small ΔE_ST values make them promising TADF candidates. To confirm the TADF property, transient PL decay characteristics of the dendrimers are measured. As shown in Fig. 3d, all the dendrimers show decay curves consisting of a prompt component and a delayed component. The lifetimes of the delayed components (τ_d) are in the range of 0.71–1.43μs, with the contribution of 12%, 33% and 64% for C-D1, O-D1 and O-D2, respectively. The RISC rate constants (k_RISC) of the dendrimers are calculated to be 0.34×10⁻⁶ s^-1, 1.07×10⁻⁶ s^-1 and 1.67×10⁻⁶ s^-1 for C-D1, O-D1 and O-D2, respectively, suggesting the favorable RISC processes from the T₁ state to S₁ state. Importantly, the faster RISC processes of O-D1 and O-D2 than C-D1 indicate the more effective conversion of triplet excitons into the singlet ones in the alkoxy-encapsulated dendrimers [42]. The photoluminescent quantum yield (PLQY) of the O-D1 and O-D2 doped films are 65% and 74% respectively, which is higher than that of C-D1 film (53%), consistent with the slower non-radiative decay and faster RISC processes (Table S1 in Supporting information) in the n-butoxy-substituted dendrimers.

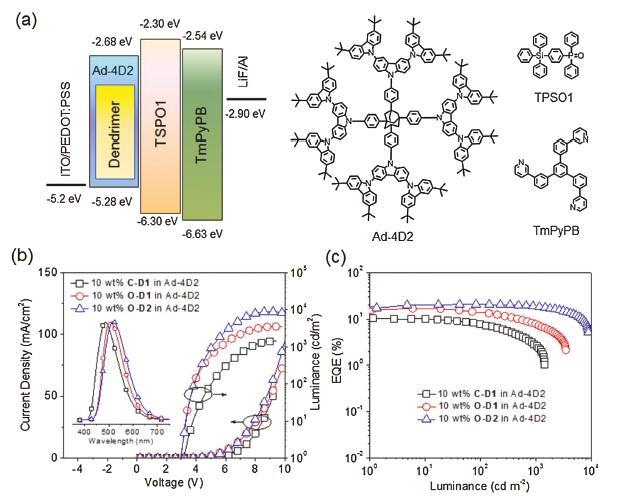

To investigate the EL performance, two kinds of solution-processed OLEDs were fabricated with the configuration of ITO/PEDOT: PSS (poly(3,4-ethylenedioxythiophene): poly(styrene sulfonic acid), 30 nm)/Emissive layer (40 nm)/TSPO1 (diphenyl(4-(triphenylsilyl)phenyl)phosphine oxide [43], 8 nm)/TmPyPB (1,3,5-tri(m-pyrid-3-ylphenyl)benzene [44], 42 nm)/LiF(1 nm)/Al (100 nm). One is the non-doped devices using the dendrimer neat films as emissive layers (EML), the other is the doped devices with EMLs of dendrimers doped in the adamantane-cored dendritic host material Ad-4D2 at concentration of 5 wt% and 10 wt%. In both non-doped and doped devices, the dendrimers show typical EL spectra from the charge transfer emissions (Fig. 4b and Figs. S14 and S15 in Supporting information), with the emission peaks moving toward longer wavelength in the order of C-D1, O-D1 and O-D2. The emission from the host is not observed in the doped devices, implying that the energy transfer from Ad-4D2 to the dendrimers is efficient in the EML.

The current density (J)–voltage (V)-luminance (L) characteristics, as well as the luminance dependence of external quantum efficiency (EQE) for the devices is shown in Figs. 4b and c and Figs. S14 and S15. The device performances are summarized in Table 2 and Table S1. The non-doped devices show maximum luminous efficiency (LE) of 2.2 cd/A, 10.4 cd/A and 24.3 cd/A as well as maximum EQEs of 1.6%, 3.2% and 7.9% for C-D1, O-D1 and O-D2, respectively. In comparison, the doped devices show much higher device performance with the maximum LEs increased to 24.9 cd/A, 50.0 cd/A and 63.3 cd/A, corresponding to the maximum EQEs of 10.1%, 16.8% and 20.6% for C-D1, O-D1 and O-D2, respectively. Compared to those for C-D1, efficiencies of both the doped and non-doped devices for O-D1 and O-D2 are greatly improved. Especially, for the 10 wt% doped devices, the maximum EQEs of O-D1 and O-D2 are ~1.6 and ~2.0 times that of C-D1. The enhanced device efficiency is reasonable considering that O-D1 and O-D2 exhibit much faster RISC process (1.07×10⁻⁶ ~ 1.67×10⁻⁶ s^-1) than C-D1 does (0.34×10⁻⁶ s^-1), leading to more effective utilization of triplet excitons in the devices. It is noted that the devices based on O-D2 also show gentle efficiency roll-off. For example, EQE of the doped device containing 10 wt% O-D2 can be kept at 20.5% at 100 cd/m² and 18.2% at 1000 cd/m², which is remarkable for TADF OLEDs through solution processes. The small efficiency roll-off can be attributed to the large size of 2^nd-generation carbazoledendrons of O-D2 which protect the emitting core from unwanted intermolecular interactions, leading to inhibited triplet-triplet annihilation (TTA) and triplet-polaron annihilation (TPA) at high luminance.

In summary, we have demonstrated a new strategy for highly efficient TADF dendrimers by alkoxy encapsulation of the dendritic donor-acceptor emitters consisting of carbazoledendrons and triazine cores. Compared to the tert-butyl counterpart, the alkoxy encapsulating groups can reduce the singlet-triplet energy gap from 0.21 eV to 0.02 eV, which accelerates the RISC rate constant from 0.34×10⁻⁶ s^-1 to 1.67×10⁻⁶ s^-1. Consequently, solution-processed OLEDs based on the dendrimers bearing alkoxy-encapsulated second-generation carbazoledendrons exhibit state-of-the-art device efficiency with the maximum EQE up to 20.6%. These results indicate that alkoxy encapsulation of the carbazole-based TADF dendrimers is a promising approach for developing highly efficient emitters for solution-processed OLEDs.
