As an essential life building block and important carrier of hydrogen energy, ammonia (NH₃) is currently synthesized by the industrial scale Haber-Bosch process [1]. However, this over a century-old Haber-Bosch process requires high temperature (400–500 ℃) and pressure (100–350 atm), consumes tremendous energy and natural gas (as the hydrogen source), and concurrently results in greenhouse gas (e.g., CO₂) emission [2, 3]. Therefore, it is highly desirable to develop alternative routes for nitrogen (N₂) reduction to NH₃ under ambient temperature and pressure conditions. In recent years, photocatalytic, electrocatalytic and photoelectrochemical (PEC) techniques have been intensively investigated for the N₂ reduction reaction (NRR) at ambient conditions, demonstrating great potentials to replace the traditional Haber-Bosch process [4, 5]. Nonetheless, it is critically important for developing high-efficiency catalysts, capable of adsorption and activation of intrinsically inert N₂ molecules, as well as reasonable configuration of the catalysts in these systems for high-efficiency NH₃ synthesis.

As we know, it has been widely accepted that the photocatalytic oxidation and reduction half-reactions occur at the same photocatalyst particle for a particulate suspension photocatalysis system, resulting in a rapid recombination of photogenerated carriers and thus obviously decreasing photocatalytic efficiency [6, 7]. This issue existed in the photocatalytic system can be well solved by using the PEC technique, in where a suitable potential bias is applied to a photocatalyst immobilized on a conducting substrate to allow the combination of electrochemical technique with photocatalysis and greatly minimize the charge recombination, thereby significantly increasing the photocatalytic efficiency [8, 9]. Owing to these advantages, the PEC technique has been successfully employed to water splitting to generate H₂, CO₂ reduction, organic compound oxidation, environmental detection and so on [8-10]. Recently, several research groups have demonstrated that N₂ reduction to NH₃ by the PEC technique is experimentally feasible, exhibiting high NH₃ yield rate and selectivity [11, 12]. Hamers et al. reported that the illuminated hydrogen-terminated diamond under ultraviolet (UV) light in a dual-compartment H-cell can result in electron emission to produce solvated electrons in water, thus inducing NRR at ambient temperature and pressure [13]. MacFarlane and co-workers synthesized an Au nanoparticles modified p-type Si photoelectrode, achieving an NH₃ yield rate of 6.0 μg h⁻¹ cm^-2 without an applied potential bias by photoelectrochemical N₂ reduction under 2 sun illumination and 7 atm pressure [14]. In addition, the development of high-efficiency photocathodes in PEC technique, such as the aerophilic-hydrophilic heterostructured Si-based electrode and R-BiOI photocathode, has become another feasible means for high active and selective N₂ reduction to NH₃. In their studies, the synthesized Si-based and R-BiOI photocathodes have the bifunctionality of solar-light absorption and N₂ adsorption/activation [12, 15]. Therefore, reasonable design of the photocathodes' composition and structure is critically important for high-efficiency PEC N₂ reduction, but great challenging. Comparatively, varieties of high-efficiency photoanodes have been widely developed and fabricated for PEC applications [16]. Indeed, most of recent reported photoanodes in PEC applications are mainly focused on the oxidation half-reactions to overcome the slow reaction kinetics in water oxidation or organic oxidation [9, 17, 18]. As for the PEC N₂ reduction to NH₃, a high-efficiency cathodic catalyst is essential in the PEC system. Therefore, the integration of a high-performance photoanode and an efficient cathodic NRR catalyst in a PEC system can extend its N₂ reduction application. However, there is no related report in literatures so far.

Herein, we report the conversion N₂ into NH₃ by solar-driven PEC technique, composed of high-efficiency cobalt phosphate (CoPi) modified Ti-doped Fe₂O₃ (CoPi/Ti-Fe₂O₃) nanoarrays photoanode and cobalt single-atom catalyst (Co-SAC) constructed cathode. As shown in Scheme S1 (Supporting information), the fabricated CoPi/Ti-Fe₂O₃ photoanode under a suitable potential bias and solar light irradiation is responsible for the oxidation half-reaction in alkaline media, namely, oxidation of H₂O/OH^– to release O₂, and meanwhile the photogenerated electrons under suitable potential bias transfer to the Co-SAC cathode to attack the adsorbed N₂ on the Co-SAC, thus yielding NH₃. As a result, such solar-driven PEC-NRR system can achieve an NH₃ yield rate of 1021.5 μg mg_Co⁻¹ h⁻¹ and faradic efficiency (FE) of 11.9% at an applied bias of 1.2 V versus reversible hydrogen electrode (vs. RHE) on photoanode in 0.2 mol/L NaOH electrolyte. The high NH₃ synthesis performance using such solar-driven PEC-NRR system can be attributed to the developed high-efficiency CoPi/Ti-Fe₂O₃ photoanode and Co-SAC cathode to overcome the slow reaction kinetics of anode H₂O oxidation, provide abundant photoelectrons and N(O)-coordinated Co active sites for N₂ adsorption/activation, leading to an efficient conversion of N₂ to NH₃.

In this work, we employed a facile hydrothermal method to fabricate FeOOH nanoarrays on FTO conductive glass [19], followed by chemical vapor deposition (CVD) of TiCl₄ and thermal tre atment to obtain Ti doped Fe₂O₃ nanoarrays (denoted as Ti-Fe₂O₃) [20]. For comparison, the pure Fe₂O₃ nanoarrays on FTO substrate (denoted as Fe₂O₃) were also fabricated by thermal tre atment of FeOOH nanoarrays. Subsequently, CoPi modified Ti-Fe₂O₃ (CoPi/Ti-Fe₂O₃) nanoarrays photoanode was fabricated by a photoassisted deposition method [19]. In this study, the aim of Ti doping and CoPi modification in Fe₂O₃ nanoarrays is to promote the charge conductivity and water oxidation efficiency of photoanode, respectively, thus enhancing the PEC efficiency of photoanode [17, 21, 22].

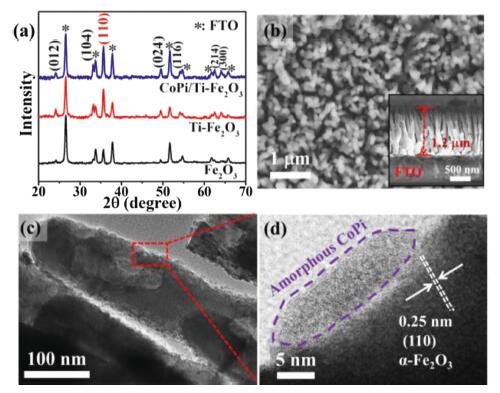

Fig. 1a shows the XRD patterns of Fe₂O₃, Ti-Fe₂O₃ and CoPi/Ti-Fe₂O₃ samples. The diffraction peaks at 2θ = 26.6°, 33.8°, 37.9°, 51.7°, 54.6°, 61.7° and 65.8° for these three samples can be due to SnO₂ (JCPDS No. 41-1445) from FTO substrate. Besides of SnO₂ diffraction peaks, the XRD patterns of Fe₂O₃ sample exhibit several diffraction peaks at 2θ = 24.1°, 33.1°, 35.6°, 49.5°, 54.2°, 62.5° and 64.1°, ascribed to the hematite structured α-Fe₂O₃ (JCPDS No. 33-0664) [17, 23]. After Ti doping and CoPi modification, no new diffraction peaks can be observed for the Ti-Fe₂O₃ and CoPi/Ti-Fe₂O₃ samples compared with the Fe₂O₃ sample, indicating the dominant α-Fe₂O₃ phase in these samples. For these three samples, the (110) diffraction peak of α-Fe₂O₃ is predominant, revealing an obvious preferential orientation for [110] axis vertical to the FTO substrate [24]. As indicated in previous works, the preferential orientation of (110) is favourable for the electron mobility along this axis relative to other axis in hematite [25, 26]. The improvement of electron mobility would contribute to improving PEC current density and suppress the photogenerated charge recombination [27, 28], thus promoting the PEC efficiency of catalyst [26]. In Fig. 1a, it can be clearly found that the (110) diffraction peak becomes stronger after Ti doping in Fe₂O₃, meaning more superior electron mobility, beneficial for the separation of photogenerated carriers, thus improving the PEC efficiency of photoanodes [29, 30], as also revealed in previous work [31]. In addition, the Raman spectra measurement results (Fig. S1 in Supporting information) demonstrate that these three samples all exhibit seven Raman-active vibration modes (2A_1g+5E_g), assigned to hematite structured α-Fe₂O₃ [19]. It is noteworthy that the Raman peak at ~663 cm^–1 is ascribed to the longitudinal optical (LO) mode of Fe₂O₃, resulted from the breakdown of Raman space symmetry and activation of extra modes induced by lattice defects and surface defects [32]. Clearly, the peak intensities of LO mode of Ti-Fe₂O₃ and CoPi/Ti-Fe₂O₃ become stronger compared to Fe₂O₃, suggesting the increased defects in Ti doped samples, possibly favourable for improving their PEC performance [21, 26]. Fig. 1b shows the surface SEM image of CoPi/Ti-Fe₂O₃, exhibiting well-aligned Fe₂O₃-based nanoarrays perpendicular to the FTO substrate. The cross-sectional SEM image (inset in Fig. 1b) displays the nanoarrays film thickness of ~1.2 μm and the nanorod diameter of ~90 nm, respectively. The elemental mapping images (Fig. S2 in Supporting information) of CoPi/Ti-Fe₂O₃ indicate the presence of Fe, O, Co, Ti, Sn and P, implying successful fabrication of CoPi modified Ti-doped Fe₂O₃. The low-magnification TEM image (Fig. 1c) further confirms the formation of CoPi/Ti-Fe₂O₃ nanorod structure. Importantly, the HRTEM image (Fig. 1d) of an individual CoPi/Ti-Fe₂O₃ nanorod indicates that the amorphous CoPi layer contacts closely to Fe₂O₃ rod, and the lattice spacing of 0.25 nm can be indexed to the (110) plane of α-Fe₂O₃, well coincided with the XRD results.

The fabricated CoPi/Ti-Fe₂O₃ can be used as the photoanode for PEC oxidation half-reaction in aqueous electrolyte to boost reaction kinetics of water oxidation [19, 22] and supply photogenerated electrons for NRR in cathode. However, to realize the PEC-NRR application in CoPi/Ti-Fe₂O₃ involved photoelectrochemical system, an efficiency cathodic NRR catalyst is also necessary. Recently, Au, Ru, Fe, Mo, Co and Cu single-atom catalysts have been developed for electrocatalytic NRR, exhibiting high NRR to NH₃ performance [33-39]. In this work, our aim is to integrate high-efficiency CoPi/Ti-Fe₂O₃ photoanode with an efficient electrocatalyst cathode for the PEC NRR application. Therefore, we utilized bacterial cellulose (BC) as the adsorption regulator to synthesize Co single-atom catalyst (Co-SAC). The BC precursor exhibits uniform fiber-like structure and possesses surface-rich O-containing functional groups (Fig. S3 in Supporting information). Through three-step synthetic processes including adsorption, pyrolysis and acid etching tre atment, atomically dispersed Co on BC converted graphitic carbon can be achieved. Fig. 2a shows the XRD patterns of the as-synthesized Co-SAC, only exhibiting a broad diffraction peak centered at 2θ = 20°, owing to the graphitic carbon. No diffraction peaks of metallic Co and cobalt oxides can be observed in the XRD patterns, possibly meaning the formation of atomically dispersed Co on BC converted graphitic carbon. To further confirm this, the aberration-corrected high-angle annular dark-field scanning transmission electron microscopes (HAADF-STEM) characterization of Co-SAC was performed to elucidate the distribution details of Co species. The HAADF-STEM images (Fig. 2b) indicate that no Co-related particles can be observed and Co atoms are homogeneously dispersed on the surface of BC converted graphitic carbon, confirming atomically dispersed nature of the formed Co. In addition, the X-ray absorption near-edge structure (XANES) and Fourier transformed (FT) k³-weighted extended X-ray absorption fine structure (EXAFS) spectra were carried out to further clarify the detailed structural information on single atomic Co in Co-SAC. The normalized Co K-edge XANES spectra (Fig. 2c) indicate that the presence of metallic Co° in Co-SAC can be excluded by the different pre-edge feature from that of the referenced Co foil [40]. Moreover, the onset energy (~7710 eV) of Co K-edge absorption gradually grows higher from Co foil to Co₂O₃, revealing a change of the valence state from 0 to +3 in the referenced samples of Co foil and cobalt oxides (e.g., CoO and Co₂O₃). In XANES spectra (Fig. 2c), the onset energy and absorption line for Co-SAC are situated between those for Co foil and CoO, confirming its electronic structure of Co^φ+ (0 < φ < 2). Additionally, it should be also noted that the white line peak (> 7720 eV) for Co-SAC exhibits lower energy than that of CoO (Co²⁺), further revealing the valence state of Co atoms in Co-SAC is situated between 0 and +2 [41]. Moreover, no Co-Co scattering (dominated in Co foil) path at ~2.19 Å can be observed in the FT EXAFS spectrum of R space (Fig. 2d) for Co-SAC, again confirming the formation of single atomic Co. More importantly, the EXAFS spectrum of Co-SAC shows a strong peak centered at ~1.59 Å close to the Co-N coordination (~1.54 Å) in cobalt phthalocyanine (CoPc) and Co-O coordination (~1.53 Å) in Co₂O₃, suggesting that Co single atoms in Co-SAC could coordinate with N and/or O atoms to form CoN_x and/or CoO_x species. These formed single atomic Co sites were predicted to be electrocatalytically active for NRR by first-principles calculation [42]. With the aid of quantum physics, most of material properties (chemical, catalytic, electrical, magnetic, optical, etc.) and corresponding chemical reactions can, in principle, be predicted from the atomic number and mass of the atomic species by the first-principles calculation. Based on the first-principles calculation, the density functional theory (DFT) computations results indicated that a series of metal SACs, including Co, Mo, Ti, W and Pt, are promising candidates for NRR catalysts [43]. Fig. S4a (Supporting information) presents the surface survey XPS spectrum of Co-SAC, indicating the presence of C (83.7 at%), O (15.3 at%), N (0.6 at%) and Co (0.4 at%). Meanwhile, the high-resolution XPS spectra of O 1s, N 1s and Co 2p are shown in Figs. S4b-d (Supporting information). It indicates that there are abundant oxygen-containing functional groups (including O-C=O and -OH) and slight nitrogen-species (including graphitic N, pyrrolic N and pyridinic N atoms) in the Co-SAC sample, which can act as available supports for metal single atoms [44, 45]. However, the XPS signals of Co 2p are very weak, coincided with the absent signal for Co-O or Co-N bonds in O 1s or N 1s XPS spectra, owing to the low loading amount of Co single-atoms. In this work, single atomic Co content in Co-SAC was determined to be 1.2 wt% by the inductively-coupled plasma optical emission spectroscopy (ICP-OES) technique.

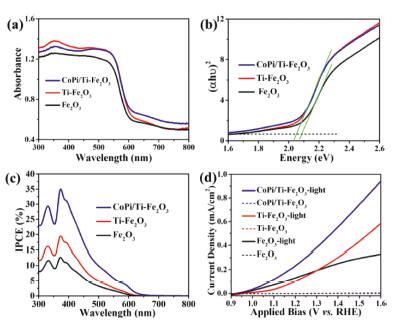

In a PEC-NRR system integrated of CoPi/Ti-Fe₂O₃ photoanode and Co-SAC cathode, the NRR performance of Co-SAC is highly dependent on the performance of CoPi/Ti-Fe₂O₃ photoanode. Therefore, we firstly investigated the optical properties of the as-synthesized CoPi/Ti-Fe₂O₃ photoanode. Fig. 3a shows the UV–vis diffuse reflection spectra (DRS) of Fe₂O₃, Ti-Fe₂O₃ and CoPi/Ti-Fe₂O₃ samples. The calculated bandgap is 2.09 eV, 2.05 eV and 2.05 eV for Fe₂O₃, Ti-Fe₂O₃ and CoPi/Ti- Fe₂O₃ based on the DRS, respectively (Fig. 3b). Obviously, Ti doping in Fe₂O₃ results in narrower bandgap than that of pristine Fe₂O₃, meaning its better visible-light harvesting capacity [17, 46]. Moreover, the CoPi modification on Ti-Fe₂O₃ has not significant influence on its bandgap, still exhibiting superior visible light absorption property for CoPi/Ti-Fe₂O₃, favourable for high PEC performance. Fig. 3c shows the incident photon-to-current efficiency (IPCE) curves of Fe₂O₃, Ti-Fe₂O₃ and CoPi/Ti-Fe₂O₃ measured at 1.23 V (vs. RHE in 0.2 mol/L NaOH solution) under simulated sunlight irradiation (AM 1.5 G, 100 mW/cm²). The results reveal that CoPi/Ti-Fe₂O₃ possesses the highest IPCE value of ~35% at a wavelength of 370 nm, and its IPCE is over ~10% in wider wavelength range from 300 nm to 500 nm, indicating that Ti doping and CoPi modification can afford high PEC performance of Fe₂O₃ photoelectrode [25].

The Mott-Schottky (M-S) analysis was subsequently performed to identify the charge transfer property and carrier density of all investigated photoanodes. In Fig. S5 (Supporting information), the M-S curves of all measured electrodes exhibit positive slopes, manifesting that these three photoelectrodes are typical n-type semiconductors that are suitable for application as photoanodes. Moreover, the carrier densities of Fe₂O₃, Ti-Fe₂O₃ and CoPi/Ti-Fe₂O₃ photoelectrodes were calculated to be 4.27×10¹⁹, 1.97×10²⁰ and 2.94×10²⁰ cm⁻³, respectively, and their carrier densities can be further enhanced with light irradiation, as listed in Table S1 (Supporting information). The results show that the CoPi/Ti-Fe₂O₃ photoelectrode under light irradiation possesses the largest carrier density of 4.65×10²⁰ cm⁻³ among all investigated photoelectrodes, indicating its superior electrical conductivity and charge separation efficiency, resulted from Ti doping and CoPi modification [47, 48]. The high carrier density in CoPi/Ti-Fe₂O₃ photoelectrode contributes to its high PEC performance. Fig. 3d shows the relationship of the photocurrent density (J) and applied potential bias (V) of Fe₂O₃, Ti-Fe₂O₃ and CoPi/Ti-Fe₂O₃ photoelectrodes with and without light irradiation in 0.2 mol/L NaOH solution. For all cases, without light irradiation, no photocurrent can be observed, while the photocurrent is increased with applied potential bias under light irradiation for all photoelectrodes. Comparatively, the CoPi/Ti-Fe₂O₃ photoelectrode shows larger photocurrent in the investigated potential range than that of Fe₂O₃ and Ti-Fe₂O₃ photoelectrodes, meaning its higher PEC oxidation efficiency owing to Ti doping and CoPi modification [22, 49]. Importantly, it can be seen from Fig. 3d, the pristine Fe₂O₃ photoelectrode shows an onset potential of ~0.9 V (vs. RHE), while after Ti doping, the onset potential of Ti-Fe₂O₃ photoelectrode positively shifts ~100 mV compared to the Fe₂O₃ photoelectrode, consistent with the reported work [47]. This is mainly ascribed to the additional donor level induced by Ti doping, which influences the band bending at the semiconductor/electrolyte interface [29, 47]. Moreover, the theoretical studies have also revealed that larger overpotential is required for PEC oxidation of water using Ti doped hematite [50]. Thus, CoPi was employed as the oxygen evolution reaction (OER) co-catalyst in this work to reduce surface kinetic barriers and negatively shift the onset potential of water oxidation (around 100–150 mV) [19, 51]. As a result, the CoPi modified Ti-Fe₂O₃ photoelectrode exhibits an onset potential of ~0.9 V (vs. RHE), identical to that of Fe₂O₃ photoelectrode. The Ti doping and CoPi modification synergistically enhance the PEC performance of Fe₂O₃ photoelectrode, mainly due to the improved electron conductivity, accelerated photogenerated carriers transfer and reduced surface kinetic barriers of water oxidation [19, 29].

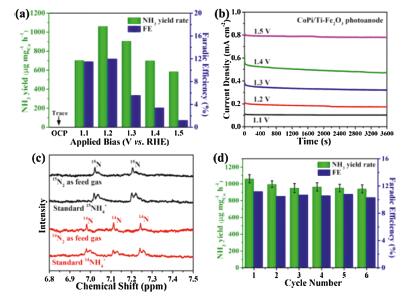

Subsequently, we evaluated the PEC NRR performance using CoPi/Ti-Fe₂O₃ photoanode and Co-SAC cathode integrated in a photoelectrochemical cell (Scheme S1). Fig. S6 (Supporting information) shows the photograph of photoelectrochemical cell composed of CoPi/Ti-Fe₂O₃ photoanode and Co-SAC cathode. Prior to all measurements, ¹⁴N₂ (or ¹⁵N₂) feeding gas was pre-treated using 0.01 mol/L H₂SO₄ solution and distilled water to eliminate any environmental NH₃ interferences [52]. Then, the used N₂ tail gas passing through the cathodic compartment was absorbed by two series of 0.01 mol/L H ₂SO₄ solution to avoid the loss of NH₃ analyzed by the indophenol blue method (Fig. S7 in Supporting information) [53]. Using this photoelectrochemical system, the yielded NH₃ from PEC NRR on Co-SAC cathode was quantitatively preliminary experimental results demonstrate that the NH₃ product yielded can be detected in the samples obtained from the cathodic compartment and tail gas absorption solution. Therefore, the NH₃ yield is the collective amount of the NH₃ produced from the cathodic compartment and tail gas absorption solution in this work. Fig. 4a shows the dependence of the NH₃ yield rate and faradaic efficiency (FE) on different applied potential bias employed on the CoPi/Ti-Fe₂O₃ photoanode in 0.2 mol/L NaOH electrolyte under AM 1.5 G simulated solar light irradiation of 1 h (light intensity of 100 mW/cm²). The corresponding photocurrent density curves are shown in Fig. 4b. The results demonstrate that the largest NH₃ yield rate can achieved to be 1021.5 μg mg_Co^-1 h^-1 (12.26 μg mg_cat.^-1 h^-1) with the highest FE of 11.9% on Co-SAC cathode at an applied potential bias of 1.2 V (vs. RHE) on photoanode, which is comparable to recently reported single-atomic NRR catalysts (Table S2 in Supporting information). With further increasing potential bias, the photocurrent density is obviously enhanced (Fig. 4b), but the NH₃ yield rate and FE are both decreased, mainly attributed to the competitive hydrogen evolution reaction (HER) concurrently happened on the Co-SAC cathode [39, 53]. For comparison, we also performed the experiment at open-circuit potential (OCP) condition under AM 1.5 G simulated solar-light irradiation of 1 h, the yielded NH₃ is almost undetectable (Fig. 4a and Fig. S8 in Supporting information). The above result suggests that the photoelectrocatalytic approach by employing a potential bias on the CoPi/Ti-Fe₂O₃ can dramatically enhance its photogenerated charge transfer efficiency [54], thus improving the NRR performance on the Co-SAC. Additionally, we also compared the PEC NRR performance on the Co-SAC cathode using Fe₂O₃ and Ti-Fe₂O₃ photoanode at 1.2 V (vs. RHE) in 0.2 mol/L NaOH solution under AM 1.5 G simulated solar light irradiation of 1 h. As shown in Fig. S9 (Supporting information), the NH₃ yield rate is 371.4 and 422.4 μg mg_Co^-1h^-1 with FE of 4.5% and 11.1% on the Co-SAC cathode using the Fe₂O₃ and Ti-Fe₂O₃ photoanode, respectively, obviously lower than that (1021.5 μg mg_Co^-1h^-1 with FE of 11.9%) on the Co-SAC cathode using the CoPi/Ti-Fe₂O₃ photoanode, indicating that the CoPi/Ti-Fe₂O₃ photoanode possesses higher PEC performance. To confirm the yielded NH₃ resulted from the Co-SAC cathode in this solar-driven CoPi/Ti-Fe₂O₃ photoanode involved PEC system, several control experiments were also conducted in this work. As shown in Fig. S8, the yielded NH₃ is ignorable when the experiments were carried out in N₂-saturated 0.2 mol/L NaOH solution without Co-SAC catalyst at a potential bias of 1.2 V (vs. RHE) on photoanode with light irradiation (denoted as blank) and with Co-SAC catalyst and light irradiation but under open-circuit condition (denoted as open-circuit). In addition, when the experiments were carried out in Ar-saturated 0.2 mol/L NaOH solution with Co-SAC catalyst at a potential bias of 1.2 V (vs. RHE) on photoanode (denoted as Ar-saturated electrolyte), the measurable NH₃ is also ignorable. The above control experimental results indicate that the yielded NH₃ is from the NRR on Co-SAC cathode in the solar-driven CoPi/Ti-Fe₂O₃ photoanode involved PEC system without any noticeable environmental interference. To further confirm this, the isotopic labeling experiments were subsequently conducted using ¹⁴N₂ and ¹⁵N₂ as the feeding gases in 0.2 mol/L NaOH solution at an applied potential bias of 1.2 V (vs. RHE) on photoanode for 1 h PEC-NRR period [53]. Then we analyzed qualitatively and quantitatively the ¹H nuclear magnetic resonance (NMR) spectra of the samples [55]. Based on the NMR spectra of ¹⁴NH₄⁺ and ¹⁵NH₄⁺ standards, the corresponding calibration curves are shown in Fig. S10 (Supporting information). The experimental results (Fig. 4c) show that the yielded concentration of ¹⁴NH₄⁺ and ¹⁵NH₄⁺ calculated by ¹H NMR is 1.21 and 1.33 μg/mL, respectively, nearly identical with the determined values (1.26 μg/mL for ¹⁴NH₄⁺ and 1.38 μg/mL for¹⁵NH₄⁺) by the indophenol blue method. The almost identical ¹⁴NH₄⁺ and ¹⁵NH₄⁺ concentrations determined by both methods categorically demonstrate that the yielded NH₃ is indeed originated from the Co-SAC catalyzed NRR in the solar-driven CoPi/Ti-Fe₂O₃ photoanode involved PEC system.

The recycling stability of the PEC-NRR system is tested as shown in Fig. 4d. Employing an applied potential bias of 1.2 V (vs. RHE) on CoPi/Ti-Fe₂O₃ photoanode with light irradiation, the NH₃ yield rate and FE on Co-SAC cathode in 0.2 mol/L NaOH solution can be well maintained after 6 consecutive cycles. After 6 cycles of measurements, the collected cathode electrocatalyst (labeled as Co-SAC-used) was characterized by the XRD and HAADF-STEM techniques. The XRD characterization results (Fig. S11a in Supporting information) reveal that only one broad peak centered at 2θ = 20° ascribed to the graphitic carbon can be detected and no characteristic peaks derived from metallic Co nanoparticles are detectable, similar to that of pristine Co-SAC catalyst (Fig. 2a). Moreover, the HAADF-STEM image (Fig. S11b in Supporting information) of the Co-SAC-used still shows atomically dispersed nature of Co on the BC converted graphitic carbon. The above results indicate that the Co-SAC possesses high stability, favourable for high-efficiency PEC-NRR to NH₃.

In summary, we developed a photoelectrochemical N₂ reduction system integrated of CoPi/Ti-Fe₂O₃ photoanode and Co-SAC cathode. Utilizing such PEC-NRR system, the NH₃ yield rate on Co-SAC cathode can be achieved to be 1021.5 μg mg_Co⁻¹ h⁻¹ with a faradic efficiency of 11.9% at an applied potential bias of 1.2 V (vs. RHE) in 0.2 mol/L NaOH electrolyte under simulated solar irradiation. The high PEC-NRR to NH₃ performance can be resulted from high-efficient CoPi/Ti-Fe₂O₃ photoanode providing abundant photoelectrons and Co-SAC catalyst supplying electrocatalytically active Co-N(O)_x sites for N₂ adsorption and activation. The findings in this work demonstrate the feasibility of integrating high-efficiency photoanode and efficient NRR catalyst cathode for solar-driven PEC-NRR to NH₃ application.
