Chinese Chemical Letters | 2021, 32(3): 973-982

• Review •

Methods for enhancing the capacity of electrode materials in low-temperature lithium-ion batteries

Full

Ying Na^a, Xiaohong Sun^a^,^*, Anran Fan^b, Shu Cai^a, Chunming Zheng^*^,^b

Affiliations

^a School of Materials Science and Engineering, Key Laboratory of Advanced Ceramics and Machining Technology of Ministry of Education, Tianjin University, Tianjin 300072, China

^b School of Chemistry and Chemical Engineering, State Key Laboratory of Hollow-fiber Membrane Materials and Membrane Processes, Tiangong University, Tianjin 300387, China

Ying Na received her B.S. degrees from Changchun University of Science and Technology in 2019. She is now an M.S. candidate in the School of Materials Science and Engineering at Tianjin University in China. Her research focuses on the design of electrode materials to improve the electrochemical performance for lithium-ion batteries

Xiaohong Sun is an Associate Professor in School of Materials Science and Engineering at Tianjin University in China. She received her B.S. and pH.D. degree in 2005 and 2010 from Nankai University in China. Her research interests include the structure and morphology design, synthesis and characteristics of nanoscale and porous materials and their applications in electrochemical and energy storage

Anran Fan received her B.S. degree from Jilin Jianzhu University of Science and Technology in 2017. She is currently undertaking her M.S. degree under the supervision of Pr. Xiaohong Sun in the School of Materials Science and Engineering, Tianjin University, China. Her research focuses on the design of electrode materials including the structure and morphology to improve the electrochemical performance for lithium-ion batteries and sodium-ion batteries

Shu Cai is a Professor of the School of Materials Science and Engineering at Tianjin University, China. She received her pH.D. degree from Tianjin University in 2000. Her research focuses on synthesis of nanoparticles, and applications in sodium ion battery; processing and properties of oxide ceramics and composite ceramics; biomaterials for orthopedic application

Chunming Zheng received the B.S., M.S. and pH.D. degree from Nankai University, China in 2002, 2006 and 2010. He is now a Professor of the School of Chemistry and Chemical Engineering at Tiangong University, China. His research interests include the controllable synthesis of nanoporous metal oxides and their applications in sustainable chemical and electrochemical processes

Published: 2021-03-15 doi: 10.1016/j.cclet.2020.09.007

Outline

Abstract

Less

Lithium-ion batteries (LIBs) have evolved into the mainstream power source of energy storage equipment by reason of their advantages such as high energy density, high power, long cycle life and less pollution. With the expansion of their applications in deep-sea exploration, aerospace and military equipment, special working conditions have placed higher demands on the low-temperature performance of LIBs. However, at low temperatures, the severe polarization and inferior electrochemical activity of electrode materials cause the acute capacity fading upon cycling, which greatly hindered the further development of LIBs. In this review, we summarize the recent important progress of LIBs in low-temperature operations and introduce the key methods and the related action mechanisms for enhancing the capacity of the various cathode and anode materials. It aims to promote the development of high-performance electrode materials and broaden the application range of LIBs.

Key words

Lithium-ion batteries / Low-temperature capacity / Cathode materials / Anode materials / Optimizing methods

Cite this Article

Ying Na, Xiaohong Sun, Anran Fan, Shu Cai, Chunming Zheng. Methods for enhancing the capacity of electrode materials in low-temperature lithium-ion batteries[J]. Chinese Chemical Letters, 2021 , 32 (3) : 973 -982 . DOI: 10.1016/j.cclet.2020.09.007

Full Text

Less

1 Introduction

Less

Lithium-ion batteries (LIBs) have become the main energy storage system for various civilian electronic equipment owing to their high specific energy, excellent charge retention ability and low toxicity [1, 2]. In addition, LIBs are gradually replacing traditional nickel-cadmium batteries and are used in deep-sea exploration, aerospace, military equipment and other fields [3]. Compared with civilian equipment, deep submersibles, planetary detectors, military mobile power supplies and other devices place stricter requirements on the performance of batteries, especially to provide electricity even at low temperatures. However, in the practical application of low temperatures (≤10 ℃), the energy and power of LIBs are reduced greatly [4]. It is reported that the energy and power density provided by commercial 18, 650 LIBs at -40 ℃ are only 5% and 1.25% of the values at room temperature, which severely limits its use in the cold-resistant fields such as the deep sea, aerospace and military [5, 6]. Hence, outstanding low-temperature performance is one of the urgent problems to be solved in the development of LIBs.

In recent years, many researchers have made in-depth studies on the main factors causing the poor performance of LIBs at low temperatures and summarized them into three aspects. (1) The viscosity of the electrolyte increases and the conductivity decreases significantly [7]. (2) The electrochemical impedance increases, especially the charge transfer resistance (R_ct) [8]. (3) The diffusion capacity of Li⁺ reduces in the electrode material [9]. Above mentioned drawbacks jointly contribute to the severe polarization and inferior electrochemical activity of electrode materials at low temperatures, and thus resulting in sharp capacity fading of electrodes during charge-discharge processes. Furthermore, during low-temperature charging, especially at high rates, the anode is more prone to precipitate lithium metal and exacerbate the irreversible reaction with the electrolyte, which causes the cell polarization to increase again [10]. Eventually, the performance of the battery is further deteriorated. However, the types of electrolytes available are limited and the development of separators is relatively slow, so the current research on the low-temperature performance of LIBs mainly focuses on the modification of electrode materials. By enhancing the ion diffusion rate, electronic conductivity and spatial structure stability of electrode materials to improve its charge-discharge specific capacity at low temperatures.

In this review, we systematically analyze the major factors that limit the capacity of LIBs in combination with recent studies on low-temperature performance. Then, according to the different cathode and anode materials, the methods and the related action mechanisms for enhancing the capacity of LIBs in cold environments are summarized, including reducing the particle size, surface coating, designing structures and doping. Finally, the research direction of LIBs at low temperatures has prospected.

2 Methods for enhancing the low-temperature capacity of cathode materials

Less

The cathode is the core component of a LIB and directly affects its electrochemical performance. The capacity attenuation of the cathode material at low temperature is mainly caused by four factors: the reduced activation of the active material in the cathode leads to a decrease in capacity; the more difficult Li⁺ intercalation causes a certain discharge capacity loss; the increased electrochemical impedance reduces the electrochemical reaction kinetics, especially the R_ct; the lattice contraction limits the diffusion of Li⁺ in the crystal and reduces the diffusion coefficient of Li⁺ [11, 12]. For these reasons, we focused on the improvement methods of LiFePO₄, Li₃V₂(PO₄)₃, nickel-cobalt-manganese ternary materials, Li-rich materials and LiMn₂O₄ cathode materials that are often used at low temperatures (Table 1).

2.1 LiFePO₄ cathode material

LiFePO₄ with olivine structure has been the mainstream cathode material in LIBs as a result of its advantages, such as high discharge specific capacity (~170 mAh/g), stable structure, excellent cycle performance and high safety [13]. In theory, LiFePO₄ exchanges Li⁺ with the electrolyte on all surfaces, but the actual Li⁺ can only move to the crystal in the [010] direction, which seriously affects the diffusion capacity of Li⁺ (~10^-14cm²/s) [14, 15]. Meanwhile, LiFePO₄ also has poor electronic conductivity (~10^-9 S/cm) [16]. These shortcomings will be amplified as the electrochemical activity of the material decreases in cold environments, resulting in a sharp reduction in battery capacity. Therefore, the research on LiFePO₄ mainly focuses on improving the extremely poor ion diffusion rate and electron conductivity at low temperatures. The optimizing methods are surface coating, particle size reduction, and doping.

Surface coating is a useful method to enhance the low-temperature capacity of cathode materials. On the one hand, electron transport networks will be established to increase the conductivity of the cathode material [17, 18]. On the other hand, the material structure will be stabilized by reducing the polarization of the material during charging and discharging. Carbon coating in the surface coating is a relatively mature approach to optimize the electrochemical performance of LiFePO₄. Firstly, at high temperature, carbon can not only form more pores in the pyrolysis process to promote the infiltration of electrolyte on the LiFePO₄ but also effectively inhibit Fe²⁺ oxidation to enhance the purity of LiFePO₄ phase [13, 15, 19, 20]. Secondly, a uniform and complete carbon coating can build a conductive network to enhance the surface conductivity of LiFePO₄ particles. Finally, the coating of multiple carbon sources can not only improve the graphitization degree of the carbon but also establish a better conductive network through complementary advantages, thus optimizing the low-temperature performance of LiFePO₄. Yao et al. [21] wrapped nano-sized LiFePO₄ spheres with in-situ graphitized carbon cages, resulting in better electron conductivity (2.15×10^-1 S/cm) and excellent capacity (87 mAh/g vs. 17 mAh/g) in 1 mol/L LiPF₆ ethylene carbonate (EC)-dimethyl carbonate (DMC)-ethyl methyl carbonate (EMC) (the volume ratio of the three is 1:1:1) electrolyte solution at -40 ℃. Xie et al. [22] used graphene nanofibers to form LiFePO₄/C with a "bridge network" structure. The composite in 1 mol/L LiPF₆ EC-DMC (the volume ratio of the two is 1:1) delivered the capacities of 92.8 mAh/g after 200 cycles at -20 ℃ and 1 C. Liu et al. [23] demonstrated that LiFePO₄/C coated with fructose and calcium lignosulfonate had a capacity retention rate of 75.1% at -10 ℃ and 0.5 C in 1 mol/L LiPF₆ EC-EMC-diethyl carbonate (DEC) (the volume ratio of the three is 3:3:4) electrolyte. The 3D carbon-nanotube-decorated nano-LiFePO₄@C/CNTs designed by Wu et al. showed an excellent low-temperature property [24]. At -25 ℃ in 1 mol/L LiPF₆ EC-DMC-DEC (the weight ratio of the three is 1:1:1) electrolyte, the capacity retention of this synthetic composite could achieve ~71.4% of that at 25 ℃. Fig. 1 shows the morphology of the LiFePO₄@C/CNT composite. It displays that the improvement in low-temperature performance results from the synergy of the amorphous uniform carbon coating. The amorphous carbon is evenly coated on LiFePO₄ nanoparticles, which improves the diffusion capacity of Li⁺ and enhances the stability of the interface of LiFePO₄. Simultaneously, the carbon nanotubes connect the LiFePO₄@C particles to form an optimal 3D conducting network in the entire electrode, thus cutting down the internal resistance and optimizing the low-temperature performance. Moreover, the method also alleviates the effect of low temperature on LiFePO₄ working voltage. The middle discharge voltage of LFP@C/CNT (3.26 V) was higher than that of the pristine LFP (3.00 V), LFP@C (3.03 V) and LFP/CNT (3.09 V) at -25 ℃. This is because the co-coating of carbon and carbon nanotubes reduces the polarization of LiFePO₄ at low temperatures, accelerates the electrochemical reaction, and thus increases its working voltage.

However, some studies have shown that excessive carbon coating can cause the production of Fe₂P as a by-product, which seriously reduces the tap density of LiFePO₄ and induces a declining actual specific capacity of LiFePO₄ [25]. Therefore, some conductive polymers with similar mechanisms of carbon action are selected to modify the conductivity of LiFePO₄, such as polyaniline and polypyridine [26, 27]. Compared with carbon, they have better compatibility with electrolytes, which can effectively adjust the polarity difference between LiFePO₄ and electrolyte, promote the infiltration of electrolyte into active particles and lower the R_ct [28]. Gao et al. [29] synthesized the 2.95% polypyrrole-coated LiFePO₄ composite (LiFePO₄/PPy) had a high capacity of 85.7 mAh/g at -20 ℃ and 1 C in 1 mol/L LiPF₆ EC-DEC (the volume ratio of the two is 1:1) electrolyte. Furthermore, they also showed that the coating of Polypyrrole (2.95%) slowed the drop in discharge voltage caused by low temperatures, but too much PPy had the opposite effect. This is because PPy has no discharge voltage platform, which will inevitably affect the discharge platforms of LiFePO₄/PPy composites. Moreover, metals or metal oxides have drawn high attention from researchers by reason of their excellent conductivity and simple preparation. Lin et al. [30] systematically researched the effect of Sn-coating on the electrochemical performance of LiFePO₄/C and showed that Sn-coating was beneficial to enhance the low-temperature capacity of LiFePO₄/C (Fig. 2). It is attributed to the fact that the Sn-coating increases the mutual contact between LiFePO₄ particles, reduces the activation energy required to transport Li⁺ (42.76 kJ/mol vs. 81.02 kJ/mol), and thus promotes the rapid diffusion of Li⁺ at low temperature. At the same instant, the coating layer also inhibits the dissolution of Fe in the electrolyte and plays an effective role in protecting the active material. Yao et al. [31] reported that Li⁺ had better insertion/extraction capability in CeO₂-coated LiFePO₄ at low temperatures. This is by reason of the improved contact between the LiFePO₄ and the current collector and particles, which alleviates the increase in R_ct (606.5 Ω vs. 744.4 Ω) and delivers an excellent low-temperature capacity of 99.7 mAh/g after 30 cycles at -20 ℃ and 0.1 C in 1 mol/L LiPF₆ EC-DMC (the volume ratio of the two is 1:1) electrolyte. Similarly, Jin et al. [32] coated highly conductive V₂O₃ (103 S/cm) on the external of LiFePO₄ to promote Li⁺ transport in the LiFePO₄ and raise the low-temperature capacity of LiFePO₄/C (~135 mAh/g at -10 ℃ and 0.2 C in 1 mol/L LiPF₆ EC-DEC (the weight ratio of the two is 1:1) electrolyte). In addition to the coating mentioned above, Cai et al. [33] showed that coating with 4 wt% Ti₃SiC₂ (TSC-4) was another effective tactic to enhance the poor low-temperature performance of LiFePO₄/C. The crystal structure of Ti₃SiC₂ is a highly anisotropic hexagon and has a huge surface area. Ti₃SiC₂ can form a "plane-to-point" conduction mode between the original particles, increase the low electron transfer rate and make it compatible with the diffusion rate of Li⁺, thereby improving the low-temperature capacity of LiFePO₄. The results showed that the TSC-4 kept capacity retention of 97.0% at -10 ℃ and 1 C after 100 cycles in 1 mol/L LiPF₆ EC-DMC (the volume ratio of the two is 1:1) electrolyte (LiFePO₄/C was 81.2%).

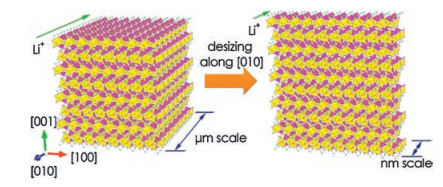

Particle size reduction has a general mechanism of action in improving the low-temperature capacity for LiFePO₄. Reducing the particle size can observably shorten the length of the diffusion path of Li⁺ and electrons, promote the lithium insertion/extraction process, and enhance the electron transfer speed to a certain extent [34, 35]. Meanwhile, the huge specific surface area of the small particles can make them fully get in touch with the electrolyte and promote the rapid diffusion of Li⁺ between the solid and the liquid phases [36]. Zhao et al. [37] proposed that the discharge capacity of carbon-coated LiFePO₄ material would increase with the decrease of particle size at low temperatures. At -20 ℃ under 0.2 C, the capacity could be enhanced from 52.4 mAh/g to 105.6 mAh/g when the particle size diminished from 1.63 μm to 1.45 μm (1 mol/L LiPF₆ in EC-DEC (the volume ratio of the two is 1:1) as the electrolyte). However, smaller particles not only produce more side reactions but also require a large amount of binder for binding, which will inevitably lead to a reduction in capacity [38]. Moreover, for the 1D diffusion of LiFePO₄ in the [010] direction. Zhao et al. [39] prepared large-sized single-crystal LiFePO₄ nanosheets with a high exposure ratio along the direction of [010] by controlling the thickness of the particle layer, as shown in Fig. 3. The shorter path lengths and the larger effective contact field with the electrolyte in the [010] direction are significantly improved the Li⁺ diffusivity (6.2×10^-13cm²/s).

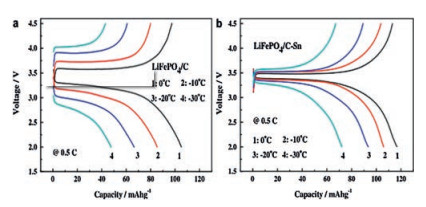

The low-temperature capacity of LiFePO₄ can also be increased by trace doping of elements. The fact that the doped ion is close to the iron ion radius does not induce a large change in the structure of the crystal. Proper doping can change the ratio of Fe³⁺/Fe²⁺, reduce the energy level of conduction bands and valence bands, and improve the conductivity of LiFePO₄ [40]. Moreover, doping can promote the formation of phases and provide more Li⁺ vacancies, and thus optimize the electrochemical activity of LiFePO₄ [41]. Zeng et al. [42] developed LiFe_0.98Mn_0.02PO₄/C materials, which showed a high capacity of 70 mAh/g at -20 ℃ and 5 C in 1 mol/L LiPF₆ EC-DMC-DEC-EMC (the volume ratio of the four is 1:1:1:1) electrolyte. The substitution of trace Mn²⁺ weakens the increase of potential difference between the charging and discharging voltage platforms, promotes the insertion and extraction of Li ⁺, and thus enhances the electrochemical performance. Li et al. [43] announced that the LiFePO₄/C with Ti in-situ doped had a discharge capacity of 26 mAh/g more than LiFePO₄/C at -20 ℃ and 1 C in 1 mol/L LiPF₆ EC-DEC (the volume ratio of the two is 1:1) electrolyte. Huang et al. [44] prepared LiFe_0.92Mg_0.08(PO₄)_0.99F_0.03 electrode material co-doped with Mg and F by solid-phase method. The doped F rearranges the electron cloud in the PO₄^3- to increase the electronic conductivity. The length of the Mg-O bond is shorter than that of the Fe-O, which broadens the diffusion channel of Li⁺ and improves the ion conductivity of LiFePO₄. At -20 ℃ in 1 mol/L LiPF₆ EC-DEC (the volume ratio of the two is 1:1) electrolyte, the specific capacities of the material were 109 (1 C), 94 (2 C), and 74 mAh/g (5 C). Zhang et al. [45] synthesized La and Mg-doped Li_0.99La_0.01Fe_0.9Mg_0.1PO₄ composite electrode material by solution impregnation process and had a high low-temperature capacity, 56.6 mAh/g under -20 ℃ and at 50 C (1 mol/L LiPF₆ in EC-DEC (the volume ratio of the two is 1:1) as the electrolyte). The results of electrochemical impedance experiments indicated that the ion doping, and carbon aerogel coatings improved the electronic conductivity of LiFePO₄ (10^-1 S/cm).

2.2 Li₃V₂(PO₄)₃ cathode material

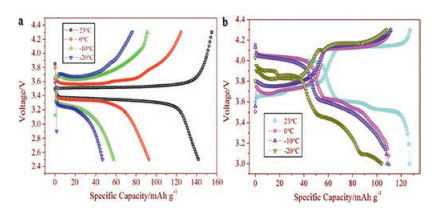

Li₃V₂(PO₄)₃ has attracted great attention because of its good thermal stability, excellent ions mobility and high reversible capacity (~197 mAh/g) [46, 47]. Rui and co-workers reported that the low-temperature performance of Li₃V₂(PO₄)₃/C was remarkably exceeded that of LiFePO₄/C in 1 mol/L LiPF₆ EC-DMC (the weight ratio of the two is 1:1) electrolyte [48]. The initial charge and discharge curves of Li₃V₂(PO₄)₃/C and LiFePO₄/C at diverse temperatures are illustrated clearly in Fig. 4. At -20 ℃, Li₃V₂(PO₄)₃/C has a stable and reversible discharge capacity of 108.1 mAh/g versus LiFePO₄/C is only 45.4 mAh/g. Obviously, at low temperatures, Li₃V₂(PO₄)₃ has better capacity stability than LiFePO₄. It may be due to the 3D network Li⁺ channels of Li₃V₂(PO₄)₃ (LVP) which contribute to Li⁺ diffusion, resulting in excellent Li⁺ intercalation/deintercalation reversibility and structural stability [49, 50]. To further improve the low-temperature capacity of Li₃V₂(PO₄)₃, scholars have adopted the strategies of surface coating and designing structures.

The mechanism of the surface coating to optimize the low-temperature performance of Li₃V₂(PO₄)₃ is the same as LiFePO₄, which raises the electrical conductivity and reduces the polarization to increase the low-temperature capacity of materials [51, 52]. The Li₃V₂(PO₄)₃/C coated with polyvinyl alcohol prepared by Qiao et al. provided a remarkably initial discharge capacity of 84.3 mAh/g (3.0-4.3 V) and 118.9 mAh/g (3.0-4.8 V) in the electrolyte 1 mol/L LiPF₆ EC-DMC (the weight ratio of the two is 1:1) at -20 ℃, 0.1 C [53]. Cai et al. [54] proved that CeO₂ (2%) significantly reduced the R_ct (from 491.8 Ω to 119.5 Ω) and increase the capacity (70.4 mAh/g (3.0-4.3 V); 103.3 mAh/g (3.0-4.8 V)) of Li₃V₂(PO₄)₃/C at -20 ℃ and 1 C. Tai et al. [55] demonstrated that the Li₃V₂(PO₄)₃ coated with glucose and carbon nanotubes showed an excellent low-temperature capacity, 86.1 mAh/g between 3.0 V and 4.3 V at -20 ℃, 10 C (1.2 mol/L LiPF₆ in EC-DMC-EMC (the volume ratio of the three is 1:1:1) as the electrolyte). The synergistic effect of two carbon sources prevents particle agglomeration and provides remarkable electron and Li⁺ transport paths.

The structure design can dramatically enhance the low-temperature capacity of the electrode materials. For example, the large specific surface field of the flat plate structure raises the contact area between the electrode and the electrolyte and promotes the rapid diffusion of Li⁺ between them [56], and the mixing of various structures can efficiently avoid the self-aggregation of low-dimensional nanomaterials and improve the tap density [57]. The plate-shaped Li₃V₂(PO₄)₃/C material with a thickness of 100 nm and a size of 1-2 μm prepared by Teng et al. had a specific capacity of 120.7 mAh/g at -20 ℃ and 0.1 C (1 mol/L LiPF₆ in EC-DMC (the volume ratio of the two is 1:1) as the electrolyte), which is 95.3% of the capacity at room temperature [58]. Cheng et al. [59] designed a novel 3D structure of Li₃V₂(PO₄)₃@biomorphic carbon that can operate at low temperatures (LVP@HPBC). As shown in Fig. 5, after calcination, the gelatinous layer on one side of the agar was carbonized into a 2D carbon layer, and the long beard on the other side was converted into a 1D carbon tube and 0D carbon-coated LVP particles, thus forming this three-dimensional hybrid structure. The synergistic effect produced by the combination of 0D, 1D and 2D carbon provides fast ion transport, high conductivity and strong structural stability of Li₃V₂(PO₄)₃, hence obtaining high low-temperature capacity (105 mAh/g at -20 ℃ in 1 mol/L LiPF₆ EC-DMC-EMC (the volume ratio of the three is 1:1:1) electrolyte).

2.3 Nickel-cobalt-manganese ternary cathode material

Nickel-cobalt-manganese ternary cathode material (NMC) combines the advantages of LiNiO₂, LiCoO₂ and LiMnO₂ ternary layered materials, namely, it has a high reversible specific capacity, good cycling stability and low toxicity [60-63]. Current research on low-temperature capacity performance mainly focuses on increasing the diffusion kinetics of Li⁺ by controlling the ratio of three metal ions (Ni, Co, Mn).

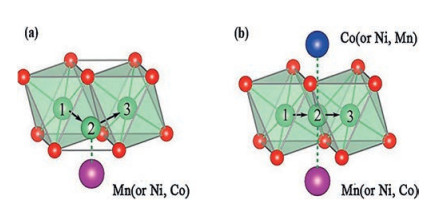

In the layered structure of NMC, Li⁺ has two diffusion paths, namely, tetrahedral path and oxygen dumbbell path [64, 65]. In the early stage of charging, Li⁺ is inclined to choose oxygen dumbbell hopping, and tetrahedral position hopping begins to dominate when the Li⁺ extracted exceeds 1/3, as shown in Fig. 6. In Fig. 6a, When the Li⁺ diffuses to position 2, the distance between Li and O atoms will affect the diffusion activation energy of Li⁺. In Fig. 6b, the electrostatic interaction of transition metal cations on Li⁺ influences the work done by the system to transfer Li⁺. Consequently, the Li⁺ diffusion kineticsdepend on the Li slab space and the type and valence state of transition metals. Based on this, Cui et al. [66] indicated that Li(Ni_0.6Mn_0.2Co_0.2)O₂ had the highest diffusion coefficient of Li⁺ and a small dependence on temperatures, with a capacity of 55 mAh/g at 0 ℃, 5 C. As Ni content rises in NMC material (532-622-71515-811), average ions radius enhances (Ni²⁺ (0.069 nm) > Ni³⁺ (0.056 nm) > Co³⁺ (0.054 nm) > Mn⁴⁺ (0.053 nm)). However, the increase of Ni valence will lead to a decrease in the average radius of Ni. These two conditions restrict each other, and there is an equilibrium point near 622, which maximizes the space of the Li slab space in 622, thus optimizing the low-temperature capacity property of NMC.

In NMC, Ni, Co, and Mn have an obvious ternary synergistic effect, and each has its advantages and disadvantages [67]. The Mn^3+/4+ band lies above the Ni^2+/3+ band, and Mn³⁺ tends to be oxidized to Mn⁴⁺ during the synthesis process by reducing Ni³⁺ to Ni²⁺ [68]. Thus, Mn⁴⁺ helps to incorporate Ni as a stable Ni²⁺ into NMC and is used as a structural stabilizer without participating in the charge-discharge processes. However, Mn readily migrates into the lithium plane due to the smaller octahedral site stability energy (OSSE) (Co³⁺ (-2.13 Δ_o) > Ni³⁺ (-1.35 Δ_o) > Mn³⁺ (-0.42 Δ_o)), which changes the crystal structure from a layered to a spinel structure and leads to a significant reduction in capacity. In contrast, Co does not occur such migration and can effectively keep the layered structure in a steady state due to the large OSSE. But the disadvantage of Co is that it is expensive and harmful to the environment. The properties of Ni are between Mn and Co (Table 2), which can both increase the capacity of the material and stabilize the structure [68, 69]. Yoon et al. [70] also showed that the high nickel content in NMC can greatly increase the low-temperature capacity of NMC. The capacity of Li(Ni_0.85Co_0.075Mn_0.075)O₂ is 127.4 mAh/g, while Li(Ni_1/3Co_1/3Mn_1/3)O₂ is 76.8 mAh/g at -20 ℃ and 0.2 C (both are in 1.2 mol/L LiPF₆ EC-EMC (the volume ratio of the two is 3:7) electrolyte).

2.4 Li-rich cathode materials

The Li-rich cathode materials xLi₂MnO₃·(1-x)LiMO₂ (M=Ni, Co, Mn) (LLR) are more attractive than existing commercial cathode materials due to their higher specific capacity (more than 250 mAh/g, 4.6 V) and low cost [71, 72]. The high discharge specific capacity of LLR benefits from their unique structural components, namely layered Li₂MnO₃ and MnO₂ [73]. When the charging potential is 4.5 V, Li₂MnO₃ is activated [74]. Meanwhile, Li⁺ escapes from the lithium layer and produces O vacancies, and forms MnO₂ subsequently. Therefore, a delithiation and deoxygenation platform is created to increase capacity. At present, the research on its low-temperature performance is still in the exploration stage, and the improvement methods mainly include controlling component content and surface coating.

In 2014, Qiu et al. [75] explored the low-temperature properties of Li[Li_0.144Ni_0.136Co_0.136Mn_0.544]O₂. The results showed that the initial coulombic efficiency decreased from 91.5% to 74.2% with the applied charging/discharging temperature from 50 ℃ to 0 ℃, which indicated that the charge and discharge asymmetry of the LLR increased as the temperature decreased. Furthermore, through the analysis of the dQ/dV curves, it was found that the peak at around 3.3 V obviously relied on the temperature, and the peak was assigned to the reaction process in which Li⁺ was embedded into MnO₂ component. This means that the process of lithium re-intercalation into MnO₂ derived from the Li₂MnO₃ component is an important reason for the degradation of the low-temperature properties of LLR. Similarly, Yu and co-workers also indicated that the content of Li₂MnO₃ (x) had a certain effect on the low-temperature performance of xLi₂MnO₃·(1-x)LiMn_1/3Ni_1/3Co_1/3O₂, mainly the electrical conductivity [76]. x=0.3 ameliorated the layered structure of the compound and reduced the mixing of Li⁺/Ni⁺ cations to a minimum, thus the composite material exhibited the largest conductivity (4.36×10^-6 S/cm). In addition to regulating the composition of Li₂MnO₃, Kou et al. [77] pointed out that trace Co could reduce the sensitivity of LLR to temperature. As shown in Fig. 7, compared with other contents, the reduction peak of Ni⁴⁺ or Co⁴⁺ at 3.85 V of the sample with high Co content is hardly affected by temperatures. This means that trace amounts of Co can reduce the charge transfer activation energy at low temperatures by promoting the interface reduction reaction of Ni⁴⁺ or Co⁴⁺, thereby optimizing the low-temperature performance of the LLR (the capacity retention rate of Li_1.2Ni_0.2-xCo_2xMn_0.6-xO₂ at x=0.05 is 17.3% higher than x=0 at -20 ℃ and 0.1 C (1 mol/L LiPF₆ in EC-EMC (the volume ratio of the two is 1:1) as the electrolyte).

Surface coating can enhance the low-temperature capacity of LLR to some extent. Zhao et al. [78] showed that coating AlF₃ provided a feasible method for the application of low-temperature LLR. Firstly, the dense AlF₃ layer builds fast Li⁺ transport channels for adjacent active materials and reduces the side reactions between the electrolyte and the active materials. Secondly, AlF₃ promotes electrochemical performance by changing the working voltage of LLR. The coating of AlF₃ enables the sample to form an oxidation peak at 2.8 V that does not exist in the pure sample, thus forming the spinel structure on the surface of LLR. And the electron migration rate in the spinel structure is higher than that in layered structure [79], which is beneficial to charge transfer reaction. Finally, the presence of LiAlO₂ enhances the diffusion kinetics of Li⁺. The Li_1.2Ni_0.13Co_0.13Mn_0.54O₂ coated with 2% AlF₃ coating prepared by this research group displayed a higher discharge capacity than the original sample at low temperatures (161.9 mAh/g vs. 144.1 mAh/g at -10 ℃, 109.3 mAh/g vs. 54.9 mAh/g at -20 ℃ (0.1 C)).

2.5 LiMn₂O₄ cathode material

The spinel structure of the LiMn₂O₄ cathode material has the advantages of non-toxicity and low cost due to the absence of Co. Nevertheless, the Jahn-Teller effect can cause the phase transformation of LiMn₂O₄ (cubic system-tetragonal system) and induce a large change in the volume during the cycling process, thereby reducing the capacity of the LiMn₂O₄ [80, 81]. In the process of the discharge, Mn²⁺ and Mn⁴⁺ produced by the disproportionation reaction of Mn ions (2Mn³⁺=Mn²⁺+Mn⁴⁺) are easily soluble in the electrolyte, leading to the reduction of cathode active materials and the attenuation of capacity. The low-temperature performance of LiMn₂O₄ has been rarely reported. Shen et al. [82] investigated the phase transition in spinel LiMn₂O₄ by using powder synchrotron radiation diffraction. The study showed that doping Co in the [Mn₂O₄] framework could increase the average valence state of Mn, reduce the concentration of Mn³⁺, and play a role in suppressing Jahn Teller distortion. Elia and co-workers explored the low-temperature performance of a full battery (LiNi_0.5Mn_1.5O₄/Sn-C) [83]. The study not only pointed out that the sudden drop in battery capacity in cold temperatures is due to the cold accelerates the polarization of the electrode and seriously hinders the Li-Sn alloying process. And it also showed that this specially configured battery had a higher low-temperature capacity, which is 105 mAh/g (75% of theoretical value) after 200 cycles at -5 ℃ and 0.25 C in 1 mol/L LiPF₆ EC-DEC-DMC (1:1:1) electrolyte.

3 Methods for enhancing the low-temperature capacity of anode materials

Less

The anode material of a LIB is usually accompanied by the rapid increase of R_ct and the difficulty of Li⁺ embedding during the low-temperature charge-discharge processes [4, 11]. In that case, the anode polarization is serious and a large amount of metal lithium precipitates on the surface [84]. This metal lithium easily reacts with the electrolyte to form non-reactive sediment, which leads to the decrease of Li⁺ concentration in the electrolyte and the attenuation of the capacity. In this review, anode materials are divided into carbon and non-carbon materials to discuss optimizing methods (Table 3).

3.1 Carbon materials

Graphite is the most commonly used carbon anode material for LIBs under subzero temperature conditions. In cold environments, the poor lithium intercalation/deintercalation ability of graphite is related to the high R_ct at graphite electrode interface, the lowered Li⁺ diffusion capability within graphite layers, and the instability of the solid electrolyte interface (SEI) film [9, 85, 86]. Furthermore, the graphite electrode has a low operating voltage (less than 0.2 V vs. Li/Li⁺), which can easily structure a lithium coating and causes serious safety issues, especially at low temperatures [87, 88]. Heretofore, the low-temperature performance is mainly optimized by surface oxidation, surface coating, doping, mix multiple mechanisms, and pre-lithiation.

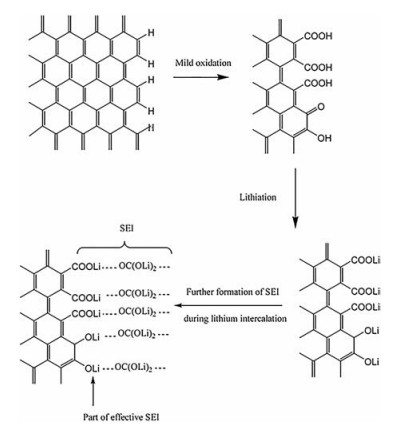

There is a given number of dangling bonds and groups on the graphite surface, and the carbon-hydrogen bonds block Li⁺ from intercalating into the graphite structure to inhibit the lithium storage process [89]. The surface oxidation can convert the carbon-hydrogen bond into a carboxyl group, and the lithiated carboxyl can form a lithium salt on the electrode surface and act as a component of the SEI film, thereby increasing the lithium content in the SEI film and reducing the impedance (illustrated in Fig. 8). Simultaneously, the oxidation process also produces nanochannels and micropores, which can serve as reversible lithium storage sites to promote the insertion/extraction of Li⁺ [90, 91]. Mao et al. [92] reported that K₂FeO₄ oxidation formed some mesoscopic channels on the graphite surface, which promoted the infiltration of electrolyte and graphite. Whereby, the charge transfer impedance and the diffusion impedance were reduced, as shown in Fig. 9. Zhao et al. [93] demonstrated that oxidation modification raised the average interlayer distance of Mesocarbon Microbeads (MCMB) and promoted Li⁺ insertion kinetics, which extraordinarily ameliorated the capacity of MCMB at -40 ℃ (100 mAh/g, the original MCMB has almost no capacity at -40 ℃ and 0.2 C).

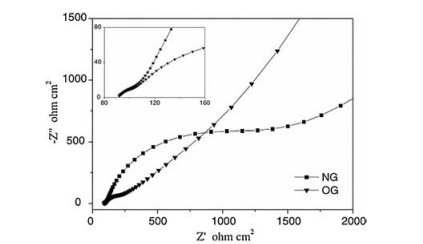

The low-temperature properties of graphite materials are improved after surface coating, which may be caused by (1) stabilized the SEI film [94]. Defects on the graphite surface are likely to cause the SEI to rupture, which leads to the reaction between graphite and electrolyte and accelerates the stripping of graphite structure. The coating can be adsorbed on the defective position and cover it to improve the stability of the SEI. (2) The coating of metal or metal oxide can greatly lower the resistance between graphite particles and heighten the intercalation dynamics of Li⁺ [95]. Nobili et al. [96] used tin-coated graphite as the anode. Compared with the uncoated material, the SEI resistance and R_ct were reduced by 3 and 10 times at -20 ℃ and 0.2 C (1 mol/L LiPF₆ EC-DEC-DMC (1:1:1) as the electrolyte). It showed that tin coating reduced the polarization of the battery in a cold environment. Friesen et al. [97] announced that a small amount of surface coating of Al₂O₃ fully prevented the obvious risk of lithium metal deposition.

The doping of metal nanoparticles can improve the desolvation of Li⁺ and enhance the internal conductivity of carbon materials, thus increasing low-temperature capacity [98]. The excellent low-temperature performance of the Sn doped oxidized graphite electrode was ascribed to the increase in the internal conductivity of the metal-dispersed powder electrode (94 mAh/g at -30 ℃ and 0.2 C in LiPF₆ 1 mol/L in EC-DEC-DMC (1:1:1) electrolyte) [96]. Similar to it, Yan and co-workers synthesized a Sn/expanded graphite (Sn/EG) composite material with a close-packed layered structure [99]. And the experimental results showed that as the temperature decreased, the R_ct of Sn/EG increased less rapidly than graphite and exhibited faster Li⁺ intercalation kinetics, which helped to improve low-temperature capacity. At -20 ℃ in 1 mol/L LiPF₆ EC-DMC (the volume ratio of the two is 1:1) electrolyte, the capacity of Sn/EG is 130 mAh/g was better than graphite (< 10 mAh/g). Li et al. [100] designed a Fe-doped Fe₃C carbon nanofiber composite, which showed a high capacity of 250 mAh/g after 55 cycles at -15 ℃ and 400 mA/g in 1 mol/L LiPF₆ EC-EMC-DMC (the volume ratio of the three is 1:1:1) electrolyte. The introduction of Fe enhances the conductivity of Fe₃C and reduces the polarizability of the electrode surface.

In addition to the above methods, preparing composite electrodes and pre-lithiation can also improve the low-temperature capacity of graphite. Xu et al. [101] developed a novel electrode composed of carbon nanotubes and thin graphite sheets with holes. The holes in the graphite nanosheets facilitated the transport of Li⁺ and the CNT prevented the restack of graphite sheets, thus improving the low-temperature performance (180 mAh/g at -40 ℃ and 0.1 C in 1 mol/L LiPF₆ EC-EMC-DMC (the volume ratio of the three is 1:1:1) electrolyte). Liu et al. [102] built a LIB with an outstanding low-temperature performance by an ordinary pre-lithiation strategy. The initial Li⁺ extracted from Li₃V₂(PO₄)₃ was used to pre-harden hard carbon. The self-formed Li₃V₂(PO₄)₃ was used as the cathode and the pre-lithiated hard carbon as the anode to form 4 V LIB with a high capacity retention rate of over 67% at -40 ℃, which was much better than traditional LIBs.

3.2 Non-carbon materials

Up to now, there has been less research on the low-temperature operation of non-carbon anode materials, mainly including Li ₄Ti₅O₁₂, Rutile-TiO₂ and Si-based materials. The methods for enhancing the low-temperature capacity of these three anode materials are summarized below.

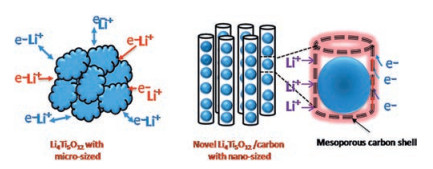

The spinel-type Li₄Ti₅O₁₂ is a potential anode material for LIBs [103]. Compared with graphite anode materials, Li₄Ti₅O₁₂ has good Li⁺ intercalation/deintercalation reversibility and displays no structural transition during the cycle [104, 105]. Furthermore, it possesses a high working voltage of 1.55 V (vs. Li/Li⁺), which can stay away from the formation of lithium dendrites and partly ensure the security of LIBs [106-108]. Nevertheless, its poor electronic conductivity (< 10^-13 S/cm) and sluggish Li⁺ diffusion coefficient (10^-9~10^-13cm²/s) severely limit its electrochemical kinetics, particularly at low temperatures [109, 110]. At present, the low-temperature capacity is mainly improved by reducing particle size, surface coating and structural design. Pohjalainen et al. [111] researched on the low-temperature property of two different sizes of Li₄Ti₅O₁₂ (~150 nm vs. ~225 nm) and showed that small particle size and large surface area were beneficial to the capacity (110 mAh/g vs. 84 mAh/g at -20 ℃ and 1 C in 1 mol/L LiPF₆ EC-DMC (the volume ratio of the two is 1:1) electrolyte). The small particles form secondary aggregates with a larger specific surface area (22 m²/g vs. 7 m²/g), which not only increases the tap density of Li₄Ti₅O₁₂ (970 g/dm³ vs. 670 g/dm³) but also promotes the lithium insertion/extraction process. Yuan and co-workers demonstrated that the capacity of sucrose-coated Li₄Ti₅O₁₂ (Li₄Ti₅O₁₂/C) (119 mAh/g) was higher than the original Li₄Ti₅O₁₂ (108 mAh/g) at -20 ℃ and 1 C in 1 mol/L LiPF₆ EC-DMC (the volume ratio of the two is 1:1) electrolyte [112]. This is since the carbon coating averts the direct contact of Li₄Ti₅O₁₂ with the electrolyte and improves the compatibility. As a result, the impedance of Li₄Ti₅O₁₂ is significantly reduced and the diffusion rate of Li⁺ is increased, as shown in Table 4. Peng et al. [113] designed a novel peapod-like Li₄Ti₅O₁₂ composite architecture with excellent low-temperature performance. Fig. 10 schematically illustrates that the synergy effect between the active-material core and the carbon fiber shell improves the kinetics of Li⁺. The internal Li₄Ti₅O₁₂ nanoparticles with a diameter of 20-30 nm shorten the diffusion path of Li⁺ and lower the resistance. The external core-shell connects Li₄Ti₅O₁₂ nanoparticles to further enhance the conductivity of lithium ions and electrons. For this reason, Li₄Ti₅O₁₂ in 1 mol/L LiPF₆ EC-DEC (the volume ratio of the two is 1:1) electrolyte showed a higher coulomb efficiency of ~99% after 500 cycles at -25 ℃ and 10 C.

Rutile-TiO₂ is an alternative material for carbonaceous anodes with high capacity (335 mAh/g), low cost, non-toxic and other characteristics [114]. The optimization method of low-temperature capacity is mainly a mixture of multiple mechanisms. At room temperature, it is difficult to insert lithium into bulk rutile, but it can be partially inserted in nano-scale rutile material [115, 116]. There are two different paths for the insertion/extraction of Li⁺ in rutile-TiO₂, showing a high anisotropy (along the ab-plane (D_Li⁺=10^-14cm²/s) and via the c-axis (D_Li⁺=10^-6cm²/s)) [117, 118]. Marinaro et al. [119] proposed that high-surface nano-sized rutile TiO₂ (180 m²/g) had a high low-temperature capacity (77 mAh/g) inside a potential window of 0.1–3 V at -40 ℃ and 0.2 C (1 mol/L LiPF₆ in EC-DMC-DEC (the volume ratio of the three is 1:1:1) as the electrolyte). It can be seen that TiO₂ is a promising low-temperature non-carbon anode material. Li et al. [120] designed an N-doped TiO₂/TiN/graphene multiple-phase composite using a variety of mixing multiple mechanisms, which exhibited a high reversible capacity at low temperatures (211 mAh/g at -20 ℃ and 0.1 A/g in 1 mol/L LiPF₆ EC-DMC (the volume ratio of the two is 1:1) electrolyte). The reasons are as follows: (1) TiO₂ nanotubes promote the diffusion kinetics of Li⁺ by shortening the path. (2) The introduction of N and TIN increased the conductivity of the TiO₂. (3) The large specific surface area of the graphene sheets promotes electron transfer by reducing the resistance between TiO₂ nanotubes.

Other than two intercalation-type anodes, the alloy-type silicon-based anode materials are also used in low-temperature applications. Silicon-based anodes are gradually replacing current commercial graphite anodes due to the high specific capacity of silicon (Li_4.4Si is 4212 mAh/g) [121, 122]. However, the material will undergo a huge volume expansion during the alloying process, resulting in a sharp decline in capacity [123, 124]. Markevich et al. [125] compared the cycle performance of graphite composite anode and silicon anode in 1 mol/L LiPF₆ FEC-DMC (1:4) electrolyte and studied the low-temperature capacity performance of amorphous monolithic columnar silicon anode. The capacity of the silicon anode hardly decreases in the range of -20 ℃ to -30 ℃. Subburaj et al. [126] developed and tested a 1Ah lithium-ion pouch battery with silicon as the anode and LiNi_0.8Co_0.15Al_0.05O₂ as the cathode. At -40 ℃ in 1 mol/L LiPF₆ EC-DMC-DEC (the volume ratio of the three is 1:3:1) electrolyte, the cell still retains 50% of the initial capacity after 60 cycles (C/15 charge and C/10 discharge rate). These reports prove that silicon-based materials are very attractive anode materials for low-temperature LIB, but further improvements are needed to improve low-temperature performance.

4 Conclusion and prospective

Less

The low-temperature performance of LIBs is a critical factor restricting the application and the low-temperature capacity of cathode and anode materials plays a decisive role. Throughout all studies, reducing the particle size, surface coating and doping have a general mechanism of action in enhancing the low-temperature capacity for various electrode materials. The smaller particle can significantly shorten the diffusion path distance of Li⁺ and improve the lithium insertion/extraction process. Surface coating is beneficial to improve the surface conductivity of electrode materials and reduce contact resistance. Doping can form vacancies in the lattice structure and broaden the ion diffusion channel to promote the mobility of Li⁺ and electrons in the material. By summarizing, it is found that non-carbon anode materials show a higher low-temperature capacity than carbon materials. However, there are few studies on them, so research should be strengthened in the future. In addition to continuing to modify the existing materials to reduce the diffusion resistance of Li⁺, some electrode materials with excellent conductivity and short Li⁺ diffusion distance can also be developed to decrease the reduction of capacity caused by low temperature. In the end, we should also pay attention to the overall optimization of the battery system, that is, the correct matching of cathodes and anodes, so that the low-temperature performance of the battery can be further increased.

Declaration of competing interest

Less

The authors report no declarations of interest.

Acknowledgments

Less

This work was supported by the National Natural Science Foundation of China (NSFC, Nos. 51772205, 51572192, 51772208, 51472179) and the General Program of Municipal Natural Science Foundation of Tianjin (Nos. 17JCYBJC17000, 17JCYBJC22700).

References

Less

[1]

J.B. Goodenough, K. Park, J. Am. Chem. Soc. 135(2013) 1167-1176.

[2]

N. Zhang, X. Li, T. Hou, et al., Chin. Chem. Lett. 31(2020) 1221-1225.

[3]

M.C. Smart, B.V. Ratnakumar, L.D. Whitcanack, et al., Int. J. Energy Res. 34(2010) 116-132.

[4]

S.S. Zhang, K. Xu, T.R. Jow, J. Power Sources 115(2003) 137-140.

[5]

G.T.K. Fey, Y.Y. Lin, K.P. Huang, et al., Adv. Mater. Res. 415-417(2011) 1572-1585.

[6]

J. Fan, J. Power Sources 117(2003) 170-178.

[7]

Y. Ji, Y. Zhang, C. Wang, J. Electrochem. Soc. 160(2013) A636-A649.

[8]

S.S. Zhang, K. Xu, T.R. Jow, Electrochim. Acta 49(2004) 1057-1061.

[9]

A. Senyshyn, M.J. Mühlbauer, O. Dolotko, H. Ehrenberg, J. Power Sources 282(2015) 235-240.

[10]

G. Zhu, K. Wen, W. Lv, et al., J. Power Sources 300(2015) 29-40.

[11]

J. Hou, M. Yang, D. Wang, J. Zhang, Adv. Energy Mater. (2020) 1904152.

[12]

P. Suresh, A.K. Shukla, N. Munichandraiah, J. Appl. Electrochem. 32(2002) 267-273.

[13]

J. Wang, X. Sun, Energy Environ. Sci. 5(2012) 5163-5185.

[14]

P.P. Prosini, M. Lisi, D. Zane, M. Pasquali, Solid State Ion. 148(2002) 45-51.

[15]

L. Yuan, Z. Wang, W. Zhang, et al., Energy Environ. Sci. 4(2011) 269-284.

[16]

Y.N. Xu, S.Y. Chung, J.T. Bloking, Y.M. Chiang, W.Y. Ching, Electrochem. Solid State Lett. 7(2004) A131-A134.

[17]

Z. Chen, Y. Qin, K. Amine, Y.K. Sun, J. Mater. Chem. 20(2010) 7606.

[18]

P. Guan, L. Zhou, Z. Yu, et al., J. Energy Chem. 43(2020) 220-235.

[19]

Q. Liu, S. Liao, H. Song, Z. Liang, J. Power Sources 211(2012) 52-58.

[20]

Y. Kadoma, J. Kim, K. Abiko, et al., Electrochim. Acta 55(2010) 1034-1041.

[21]

B. Yao, Z. Ding, J. Zhang, X. Feng, L. Yin, J. Solid State Chem. 216(2014) 9-12.

[22]

D. Xie, G. Cai, Z. Liu, et al., Electrochim. Acta 217(2016) 62-72.

[23]

G. Wu, N. Liu, X. Gao, et al., Appl. Surf. Sci. 435(2018) 1329-1336.

[24]

X. Wu, Y. Guo, J. Su, et al., Adv. Energy Mater. 3(2013) 1155-1160.

[25]

R. Dominko, M. Bele, M. Gaberscek, et al., J. Electrochem. Soc. 152(2005) A607-A610.

[26]

Y. Wang, Y. Wang, E. Hosono, K. Wang, H. Zhou, Angew. Chem. Int. Ed. 47(2008) 7461-7465.

[27]

K.S. Park, S.B. Schougaard, J.B. Goodenough, Adv. Mater. 19(2007) 848-851.

[28]

W. Chen, Y. Huang, L. Yuan, J. Electroanal. Chem. 660(2011) 108-113.

[29]

Y. Gao, Int. J. Electrochem. Sci. 14(2019) 3408-3417.

[30]

Y. Lin, Y. Lin, T. Zhou, et al., J. Power Sources 226(2013) 20-26.

[31]

J. Yao, F. Wu, X. Qiu, N. Li, Y. Su, Electrochim. Acta 56(2011) 5587-5592.

[32]

Y. Jin, C.P. Yang, X.H. Rui, T. Cheng, C.H. Chen, J. Power Sources 196(2011) 5623-5630.

[33]

G. Cai, R. Guo, L. Liu, et al., J. Power Sources 288(2015) 136-144.

[34]

C.R. Sides, C.R. Martin, Adv. Mater. 17(2005) 125-128.

[35]

B. Zou, H. Wang, Z. Qiang, et al., Electrochim. Acta 196(2016) 377-385.

[36]

B. Ellis, H.P. Subramanya, Y.H. Rho, et al., Faraday Discuss. 134(2007) 119-141.

[37]

N. Zhao, Y. Li, X. Zhao, X. Zhi, G. Liang, J. Alloys Compd. 683(2016) 123-132.

[38]

P.G. Bruce, B. Scrosati, J. Tarascon, Angew. Chem. Int. Ed. 47(2008) 2930-2946.

[39]

Y. Zhao, L. Peng, B. Liu, G. Yu, Nano Lett. 14(2014) 2849-2853.

[40]

K.L. Harrison, C.A. Bridges, M.P. Paranthaman, et al., Chem. Mater. 25(2013) 768-781.

[41]

Z. Hua, X. Zhang, X. Feng, et al., Chin. Chem. Lett. 30(2019) 792-796.

[42]

L. Zeng, Q. Gong, X. Liao, et al., Chin. Sci. Bull. 56(2011) 1262-1266.

[43]

Z. Li, X. Ren, Y. Zheng, et al., Ionics 26(2020) 1599-1609.

[44]

Y. Huang, Y. Xu, X. Yang, Electrochim. Acta 113(2013) 156-163.

[45]

H. Zhang, Y. Xu, C. Zhao, X. Yang, Q. Jiang, Electrochim. Acta 83(2012) 341-347.

[46]

M.Y. Saidi, J. Barker, H. Huang, J.L. Swoyer, G. Adamson, J. Power Sources 119-121(2003) 266-272.

[47]

S. Yin, H. Grondey, P. Strobel, H. Huang, L.F. Nazar, J. Am. Chem. Soc. 125(2003) 326-327.

[48]

X.H. Rui, Y. Jin, X.Y. Feng, L.C. Zhang, C.H. Chen, J. Power Sources 196(2011) 2109-2114.

[49]

R. Qin, Y. Wei, T. Zhai, H. Li, J. Mater. Chem. A 6(2018) 9737-9746.

[50]

X.H. Rui, N. Ding, J. Liu, C. Li, C.H. Chen, Electrochim. Acta 55(2010) 2384-2390.

[51]

L. Zhang, X.L. Wang, J.Y. Xiang, et al., J. Power Sources 195(2010) 5057-5061.

[52]

J. Zhai, M. Zhao, Y. Wang, J. Solid State Electrochem. 18(2014) 2857-2862.

[53]

Y.Q. Qiao, J.P. Tu, X.L. Wang, C.D. Gu, J. Power Sources 199(2012) 287-292.

[54]

G. Cai, Y. Yang, R. Guo, et al., Electrochim. Acta 174(2015) 1131-1140.

[55]

L. Tai, Q. Zhao, L. Sun, et al., New J. Chem. 39(2015) 9617-9626.

[56]

Y.Q. Qiao, X.L. Wang, Y.J. Mai, et al., J. Power Sources 196(2011) 8706-8709.

[57]

Y. Ding, P. Kopold, K. Hahn, et al., Adv. Funct. Mater. 26(2016) 1112-1119.

[58]

F. Teng, Z. Hu, X. Ma, et al., Electrochim. Acta 91(2013) 43-49.

[59]

Y. Cheng, K. Feng, H. Wang, et al., Adv. Mater. Interfaces 4(2017) 1700686.

[60]

J.M. Zheng, X.B. Wu, Y. Yang, Electrochim. Acta 56(2011) 3071-3078.

[61]

C.S. Johnson, N. Li, C. Lefief, M.M. Thackeray, Electrochem. Commun. 9(2007) 787-795.

[62]

Q.Y. Wang, J. Liu, A.V. Murugan, A. Manthiram, J. Mater. Chem. 19(2009) 4965.

[63]

Z. Luo, Y. Sun, H. Liu, Chin. Chem. Lett. 26(2015) 1403-1408.

[64]

Y. Wei, J. Zheng, S. Cui, et al., J. Am. Chem. Soc. 137(2015) 8364-8367.

[65]

K. Kang, Y.S. Meng, J. Breger, C.P. Grey, G. Ceder, Science 311(2006) 977-980.

[66]

S. Cui, Y. Wei, T. Liu, et al., Adv. Energy Mater. 6(2016) 1501309.

[67]

C. Julien, A. Mauger, K. Zaghib, H. Groult, Materials 9(2016) 595.

[68]

A. Manthiram, Nat. Commun. 11(2020) 1550.

[69]

S. Myung, F. Maglia, K. Park, et al., ACS Energy Lett. 2(2016) 196-223.

[70]

S. Yoon, S. Myung, Y. Sun, J. Electrochem. Soc. 161(2014) A1514-A1520.

[71]

N. Yabuuchi, K. Yoshii, S. Myung, I. Nakai, S. Komaba, J. Am. Chem. Soc. 133(2011) 4404-4419.

[72]

M.M. Thackeray, C.S. Johnson, J.T. Vaughey, N. Li, S.A. Hackney, J. Mater. Chem. 15(2005) 2257.

[73]

X. Liu, H. Li, E. Yoo, M. Ishida, H. Zhou, Electrochim. Acta 83(2012) 253-258.

[74]

J. Kim, C.S. Johnson, J.T. Vaughey, et al., Chem. Mater. 16(2004) 1996-2006.

[75]

B. Qiu, J. Wang, Y. Xia, et al., J. Power Sources 268(2014) 517-521.

[76]

C. Yu, H. Wang, X. Guan, J. Zheng, L. Li, J. Alloys Compd. 546(2013) 239-245.

[77]

J. Kou, L. Chen, Y. Su, et al., ACS Appl. Mater. Interfaces 7(2015) 17910-17918.

[78]

B. Zhao, J. Xie, H. Zhuang, et al., Solid State Ion. 347(2020) 115245.

[79]

C. Yu, H. Wang, X. Guan, J. Zheng, L. Li, J. Alloys Compd. 546(2013) 239-245.

[80]

B. Xu, D. Qian, Z. Wang, Y.S. Meng, Mater. Sci. Eng. R Rep. 73(2012) 51-65.

[81]

J.W. Fergus, J. Power Sources 195(2010) 939-954.

[82]

C.H. Shen, R. Gundakaram, R.S. Liu, H.S. Sheu, J. Chem. Soc. Dalton Trans. (2001) 37-40.

[83]

G.A. Elia, F. Nobili, R. Tossici, et al., J. Power Sources 275(2015) 227-233.

[84]

K. Tatsumi, J. Conard, M. Nakahara, et al., J. Power Sources 81(1999) 397-400.

[85]

J. Fan, S. Tan, J. Electrochem. Soc. 153(2006) A1081.

[86]

C.K. Huang, J.S. Sakamoto, J. Wolfenstine, S. Surampudi, J. Electrochem. Soc. 147(2000) 2893.

[87]

M. Petzl, M. Kasper, M.A. Danzer, J. Power Sources 275(2015) 799-807.

[88]

Y.P. Wu, C. Jiang, C. Wan, R. Holze, J. Power Sources 111(2002) 329-334.

[89]

L.J. Fu, H. Liu, C. Li, et al., Solid State Sci. 8(2006) 113-128.

[90]

X. Cao, J.H. Kim, S.M. Oh, Electrochim. Acta 47(2002) 4085-4089.

[91]

Y.P. Wu, C. Jiang, C. Wan, R. Holze, Solid State Ion. 156(2003) 283-290.

[92]

W. Mao, J. Wang, Z. Xu, Z. Niu, J. Zhang, Electrochem. Commun. 8(2006) 1326-1330.

[93]

G. Zhao, Z. Wei, N. Zhang, K. Sun, Mater. Lett. 89(2012) 243-246.

[94]

L.J. Fu, H.P. Zhang, Y.P. Wu, H.Q. Wu, R. Holze, Electrochem. Solid State Lett. 8(2005) A456.

[95]

M. Mancini, F. Nobili, S. Dsoke, et al., J. Power Sources 190(2009) 141-148.

[96]

F. Nobili, M. Mancini, S. Dsoke, R. Tossici, R. Marassi, J. Power Sources 195(2010) 7090-7097.

[97]

A. Friesen, S. Hildebrand, F. Horsthemke, et al., J. Power Sources 363(2017) 70-77.

[98]

F. Nobili, S. Dsoke, T. Mecozzi, R. Marassi, Electrochim. Acta 51(2005) 536-544.

[99]

Y. Yan, L. Ben, Y. Zhan, X. Huang, Electrochim. Acta 187(2016) 186-192.

[100]

J. Li, W. Wen, G. Xu, et al., Electrochim. Acta 153(2015) 300-305.

[101]

J. Xu, X. Wang, N. Yuan, et al., J. Power Sources 430(2019) 74-79.

[102]

Y. Liu, B. Yang, X. Dong, Y. Wang, Y. Xia, Angew. Chem. Int. Ed. 56(2017) 16606-16610.

[103]

S. Wang, Y. Yang, Y. Dong, Z. Zhang, Z. Tang, J. Adv. Ceram. 8(2019) 1-18.

[104]

A. Guerfi, S. Sévigny, M. Lagacé, et al., J. Power Sources 119-121(2003) 88-94.

[105]

S. Zhang, X. Ge, C. Chen, Chin. Chem. Lett. 28(2017) 2274-2276.

[106]

W. Xu, X. Chen, W. Wang, et al., J. Power Sources 236(2013) 169-174.

[107]

T.P. Zhou, X.Y. Feng, X. Guo, et al., Electrochim. Acta 174(2015) 369-375.

[108]

M. Guo, H. Chen, S. Wang, et al., J. Alloys Compd. 687(2016) 746-753.

[109]

M.M. Rahman, J. Wang, M.F. Hassan, D. Wexler, H.K. Liu, Adv. Energy Mater. 1(2011) 212-220.

[110]

K. Kim, C. Yu, C.S. Yoon, et al., Nano Energy 12(2015) 725-734.

[111]

E. Pohjalainen, T. Rauhala, M. Valkeapää, J. Kallioinen, T. Kallio, J. Phys. Chem. C 119(2015) 2277-2283.

[112]

T. Yuan, X. Yu, R. Cai, Y. Zhou, Z. Shao, J. Power Sources 195(2010) 4997-5004.

[113]

L. Peng, H. Zhang, L. Fang, Y. Zhang, Y. Wang, Nanoscale 8(2016) 2030-2040.

[114]

Y. Wang, Y. Liao, W. Li, X. Tang, X. Li, Ionics 21(2015) 1539-1544.

[115]

Y.S. Hu, L. Kienle, Y.G. Guo, J. Maier, Adv. Mater. 18(2006) 1421-1426.

[116]

M.A. Reddy, M.S. Kishore, V. Pralong, et al., Electrochem. Commun. 8(2006) 1299-1303.

[117]

F. GLIGOR, S. DELEEUW, Solid State Ion. 177(2006) 2741-2746.

[118]

M.V. Kouiachova, N.M. Harrison, S.W. de Leeuw, Phys. Rev. B (2002) 235423.

[119]

M. Marinaro, M. Pfanzelt, P. Kubiak, R. Marassi, M. Wohlfahrt-Mehrens, J. Power Sources 196(2011) 9825-9829.

[120]

J. Li, Y. Li, Q. Lan, Z. Yang, X. Lv, J. Power Sources 423(2019) 166-173.

[121]

C. Park, J. Kim, H. Kim, H. Sohn, Chem. Soc. Rev. 39(2010) 3115.

[122]

A.A. Ensafi, M.M. Abarghoui, B. Rezaei, J. Alloys Compd. 712(2017) 233-240.

[123]

B. Fuchsbichler, C. Stangl, H. Kren, F. Uhlig, S. Koller, J. Power Sources 196(2011) 2889-2892.

[124]

V.G. Khomenko, V.Z. Barsukov, J.E. Doninger, I.V. Barsukov, J. Power Sources 165(2007) 598-608.

[125]

E. Markevich, G. Salitra, D. Aurbach, J. Electrochem. Soc. 163(2016) A2407-A2412.

[126]

T. Subburaj, W. Brevet, F. Farmakis, et al., Electrochim. Acta 354(2020) 136652.

Appendix

Less

Year 2021 volume 32 Issue 3

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2020.09.007

Receive Date：2020-07-22
Online Date：2026-01-04
Published：2021-03-15

Article Data

Affiliations

History

Received：2020-07-22
Revised：2020-08-24
Accepted：2020-09-08

Affiliations

^a School of Materials Science and Engineering, Key Laboratory of Advanced Ceramics and Machining Technology of Ministry of Education, Tianjin University, Tianjin 300072, China

^b School of Chemistry and Chemical Engineering, State Key Laboratory of Hollow-fiber Membrane Materials and Membrane Processes, Tiangong University, Tianjin 300387, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2020.09.007

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1 Low-temperature capacity of different cathode materials.

Table 3 Low-temperature capacity of different anode materials.

Fig. 4 The initial charge and discharge curves of (a) LiFePO₄/C and (b) Li₃V₂(PO₄)₃/C at diverse temperatures (23, 0, -10 and -20 ℃) and 0.3 C. Reproduced with permission [48]. Copyright 2011, Elsevier.

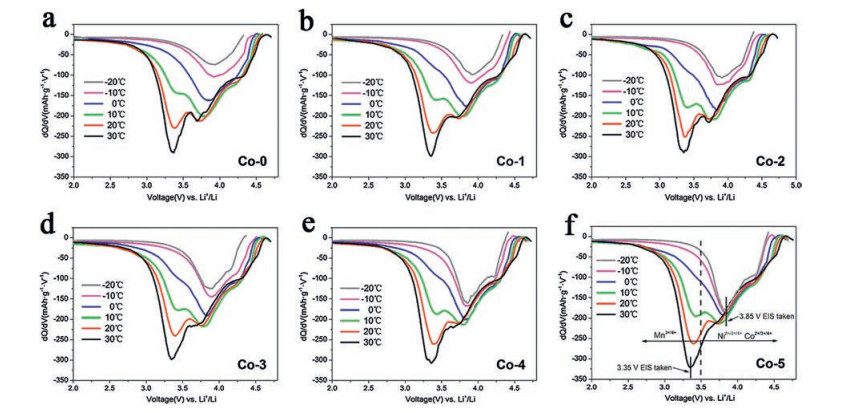

Fig. 7 dQ/dV plots of the Li_1.2Ni_0.2-_xCo_2xMn_0.6-_xO₂ ((a) x = 0, (b) 0.01, (c) 0.02, (d) 0.03, (e) 0.04, (f) 0.05) cells under different temperatures. Copied with permission [77]. Copyright 2015, American Chemical Society.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
