Stable confinement of Fe/Fe3C in Fe, N-codoped carbon nanotube towards robust zinc-air batteries
收藏切换
PDF
Lingbo Zonga, Xin Chena, Shuming Doub, Kaicai Fanc, *, Zumin Wangd, Wenjun Zhanga, Yunmei Dua, Jie Xub, Xiaofei Jiaa, Qi Zhanga, Xia Lia, Yida Dengb, Yanan Chenb, *, Lei Wanga
Chinese Chemical Letters | 2021, 32(3) : 1121 - 1126
Less
收藏切换
Chinese Chemical Letters | 2021, 32(3): 1121-1126
• Communication •
Stable confinement of Fe/Fe3C in Fe, N-codoped carbon nanotube towards robust zinc-air batteries
Full
Lingbo Zonga, Xin Chena, Shuming Doub, Kaicai Fanc, *, Zumin Wangd, Wenjun Zhanga, Yunmei Dua, Jie Xub, Xiaofei Jiaa, Qi Zhanga, Xia Lia, Yida Dengb, Yanan Chenb, *, Lei Wanga
Affiliations
  • a Taishan Scholar Advantage and Characteristic Discipline Team of Eco Chemical Process and Technology, Key Laboratory of Optic-electric Sensing and Analytical Chemistry for Life Science, MOE, State Key Laboratory of Eco-chemical Engineering, College of Chemistry and Molecular Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
  • b School of Materials Science and Engineering, Key Laboratory of Advanced Ceramics and Machining Technology of Ministry of Education, Tianjin Key Laboratory of Composite and Functional Materials, Tianjin University, Tianjin 300072, China
  • c Centre for Clean Environment and Energy, School of Environment and Science, Griffith University, Queensland 4222, Australia
  • d Institute of Process Engineering, Chinese Academy of Sciences, Beijing 100190, China
Published: 2021-03-15 doi: 10.1016/j.cclet.2020.08.029
Outline
收藏切换

Catalytic oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) have garnered great attention as the key character in metal-air batteries. Herein, we developed a superior nonprecious bifunctional oxygen electrocatalyst, fabricated through spatial confinement of Fe/Fe3C nanocrystals in pyridinic N and Fe-Nx rich carbon nanotubes (Fe/Fe3C-N-CNTs). During ORR, the resultant electrocatalyst exhibits positive onset potential of 1.0 V (vs. RHE), large half-wave potentials of 0.88 V (vs. RHE), which is more positive than Pt/C (0.98 V and 0.83 V, respectively). Remarkably, Fe/Fe3C-N-CNTs exhibits outstanding durability and great methanol tolerance, exceeding Pt/C and most reported nonprecious metal-based oxygen reduction electrocatalysts. Moreover, Fe/Fe3C-N-CNTs show a markedly low potential at j =10 mA/cm2, small Tafel slopes and extremely high stability for OER. Impressively, the Fe/Fe3C-N-CNTs-based Zn-air batteries demonstrate high power density of 183 mW/cm2 and robust charge/discharge stability. It is revealed that the spatial confinement effect can impede the aggregation and corrosion of Fe/Fe3C nanocrystals. Meanwhile, Fe/Fe3C and Fe-Nx play synergistic effect on boosting the ORR/OER activity, which provides an important guideline for construction of inexpensive nonprecious metal-carbon hybrid nanomaterials.

Patial confinement  /  Nonprecious metal  /  Bifunctional  /  Oxygen electrocatalyst  /  Synergistic effect Zn-air batterie
Lingbo Zong, Xin Chen, Shuming Dou, Kaicai Fan, Zumin Wang, Wenjun Zhang, Yunmei Du, Jie Xu, Xiaofei Jia, Qi Zhang, Xia Li, Yida Deng, Yanan Chen, Lei Wang. Stable confinement of Fe/Fe3C in Fe, N-codoped carbon nanotube towards robust zinc-air batteries[J]. Chinese Chemical Letters, 2021 , 32 (3) : 1121 -1126 . DOI: 10.1016/j.cclet.2020.08.029
Full Text
Less
Electrochemical oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) have attracted great interests as a vital process of metal-air batteries and fuel cells [1, 2]. The commercialization of these energy conversion and storage devices prominently relies on the manufacture of low cost, highly active and stable ORR/OER electrocatalysts [3]. At present, the most widely employed ORR/OER electrocatalysts are noble metal-based materials. Unfortunately, relative scarcity, high cost, poor durability and susceptibility to poisoning have impeded practical applications of noble metal-based materials [4]. Thus, great efforts are needed to develop cost effective and earth abundant electrocatalysts with comparable or even better electrocatalytic activity for ORR/OER than that of precious metal-based materials.
To date, numerous nonprecious metal bifunctional oxygen electrocatalysts have been developed, including heteroatoms-doped carbon nanomaterials [5, 6], metal oxides [7-9], metal oxides supported on carbon materials and transition metal-nitrogen-carbon materials (TM-N-Cs, TM=Fe, Co) [10-12], etc. Especially, TM-N-Cs show exceptional catalytic activities towards ORR, which are better or comparable to benchmark precious metals [13]. However, most of them presents far from satisfactory catalytic activity and stability towards OER, owing to the serious deterioration of principal features of active sites, including electrochemical oxidation or defunctionalization of carbon atoms located at edges/defects sites or reversible adsorption of oxygen groups on carbon atoms adjacent to TM-Nx sites in the potential range for OER [14-16]. Recently, tremendous efforts have been devoted to alleviate the degradation of active sites, such as introducing proper foreign atom into carbon or integrating metal-based nanoparticles with well-defined graphitized carbon [17-19]. Amongst, transition metal particles encapsulated in nitrogen doped carbon (M@NC) have been highlighted as fabulous bifunctional oxygen electrocatalyst, which is likely to be used in zinc-air battery [18, 19].
Recently, carbon nanotubes (CNTs) accompanied with intrinsically remarkable electrical conductivity, high chemical stability and unique structural features become attractive when used as matrix for nonprecious metal and noble metal electrocatalysts for ORR/OER [20, 21]. CNTs-based hybrids are beneficial to increase the number of active centers, promote the mass transportation and improve electrochemical corrosion resistance [22-24]. By taking advantage of the high surface area and porous nanostructures, CNTs as well as the rich active sites exhibit excellent electrocatalytic performance [25]. Apart from the above aspect, TM-Nx active sites bonded or linked on CNTs can boost the electrocatalytic activity by the rapidly electron transfer from current collector to catalytically active sites [26]. Notably, CNTs shells encapsulated transition metal nanocrystals provide remarkable ORR activity because of the electron transfer from metal nanoparticles to carbon shells, leading to the decreased work function on carbon shell surface [27]. Moreover, recent investigations elucidate that nitrogen doping is an effective strategy to hinder the corrosion and enhance the stability of carbon-based materials through modifying the charge distribution in the carbon rings. Increasing the doping level of nitrogen cannot only augment the exposure of catalytic active sites but also stabilize the carbon-based support, thus boosting the performance of the electrocatalysts [28]. However, very few progress have been made in employing CNTs as carbon matrix for Fe-N-C electrocatalysts because of the tedious processes of surface treatment [29]. In these regards, controllable fabrication of Fe and N doped CNTs with stable spatial confined Fe/Fe3C as bifunctional electrocatalyst for ORR/OER is desirable. Therefore, it is still fascinating and challenging to explore facile and cost-effective strategy to prepare non-noble metal-based oxygen electrocatalysts with decent activity, proper architecture and excellent interaction between carbon and Fe/Fe3C nanocrystals.
In this study, we present a scalable and straightforward approach to produce highly active ORR/OER electrocatalyst: Fe, N-doped nanotubes with spatial confined Fe/Fe3C nanocrystals. Through pyrolysis, the in situ generated Fe/Fe3C nanocrystals are well spatial confined by Fe, N-doped CNTs. In this spatial confinement effect, steric effect can impede the corrosion and aggregation of Fe/Fe3C nanocrystals in harsh medium during electrocatalysis. The in-depth investigation indicates that Fe/Fe3C nanocrystals can dramatically boost the electrocatalytic activity of active sites. The synergetic effect between Fe-Nx active sites, Fe/Fe3C nanocrystals and Fe, N-doped CNTs architecture elevates electrocatalytic activity of Fe/Fe3C-N-CNTs bifunctional oxygen electrocatalyst. Notably, the fabricated rechargeable Zn-air batteries possess large powder density of 183 mW/cm2, excellent durability of 195h and small charge-discharge voltage gap of 0.81 V.
Materials: Melamine (Sigma Aldrich), Nafion solution (Sigma Aldrich), NaNO3, FeCl3·6H2O, KOH and HCl (Sinopharm Chemical Reagent Co., Ltd.), 20wt% commercial Pt/C and 99.95% RuO2 (Alfa Aesar). All chemicals were used without further purification.
Efficient Fe/Fe3C-N-CNTs bifunctional oxygen electrocatalyst was synthesized using straightforward sol-gel approach. Firstly, 1.2g glucose and 1.6g NaNO3 were firstly dissolved in 30 mL DI water to form a homogeneous solution. Melamine (1.2g) was dump in and stirred for 10min. Secondly, 6 mL HCl (0.5 mol/L) and 10 mL FeCl3 (0.5 mol/L) solution were added into the solution to form homogeneous supramolecular hydrogel, and the formed hydrogel state was stabilized through holding for 12h. The resulted products were washed with Milli-Q water and freeze dried. And then they were heated in N2 atmosphere 800 ℃ for 1h (gas flow rate: 50sccm, 5 ℃/min). The obtained products were then washed thoroughly by Milli-Q water to wipe off the remained NaCl impurity and subsequently freeze dried. The final oxygen electrocatalyst denoted as Fe/Fe3C-N-CNTs was collected for further characterization and test.
The N-doped carbon materials (N-C) electrocatalyst was fabricated according to the strategy for preparing Fe/Fe3C-N-CNTs without introduction of FeCl3·6H2O.
The obtained electrocatalysts were characterized using Scanning electron microscope (SEM, FE-SEM, S4800, Hitachi), transmission electron microscope (TEM, JEM-2100F), high angle annular dark field scanning transmission electron microscope (HAADF-STEM) and powder X-ray diffraction (XRD Rigaku-Dmax 2500 diffractometer with Cu-Kα radiation, λ = 0.15405 nm). The chemical compositions and chemical valence state were inspected by X-ray photoelectron spectroscopy (XPS, Kratos Axis ULTRA). The specific surface area of the result electrocatalysts were characterized using nitrogen adsorption/desorption at 77K (Micromeritics ASAP 2020 physisorption analyzer). Raman spectroscopy was obtained on the confocal Raman microscope with the laser wavelength of 532 nm (LabRAM HR800).
The electrochemical performance was conducted on electrochemical workstation (Gamry, USA), which equipped with the Pine' RDE (rotational disk electrode, D = 5 mm) and RRDE (ring-disk electrode, D = 5.61 mm). The rotating glassy carbon electrode was polished by Al2O3. The catalyst ink was prepared by mixing 5.0 mg of electrocatalysts in the mixed solution (730.0 μL of water, 240.0 μL of isopropanol and 30.0 μL of Nafion). The electrocatalyst loading was 0.510 mg/cm2.
Glassy carbon electrode with electrocatalysts, Ag/AgCl (saturated KCl) and graphite rod were applied as working electrode, reference electrodes and counter electrodes, respectively. 0.1 mol/L KOH or 0.5 mol/L H2SO4 solution was used as electrolyte solution. For comparison, the commercial Pt/C electrocatalyst ink was also prepared. The ORR performance was evaluated by bubbling the alkaline electrolyte with high purity O2. The working electrode was cycled 50 circles at a scan rate of 50 mV/s before the measurement. The LSV polarization curves were performed from 1.2 V to 0.2 V (vs. RHE) with different electrode rotating rates (scan rate of 5 mV/s). All the obtained LSV polarization curves were corrected with iR-correction.
For the calculation of H2O2% and electron transfer number (n), RRDE measurement was conducted in O2 saturated 0.1 mol/L KOH and the Pt ring electrode potential was constant at 1.2 V (vs. RHE). The H2O2% and n were calculated by the following equations:
Here, Idisk and Iring were the disk current and ring current, and N=0.37 was the current collection efficiency of Pt ring.
The glassy carbon electrode (D =5 mm, 0.196 cm2) loaded with resulted electrocatalysts was used as the working electrode, Hg/HgO electrode and graphite rod as reference and counter electrode, respectively. The catalyst loading of RuO2 (or the obtained electrocatalysts) was 0.510 mg/cm2. The LSV were obtained at a scan rate of 5 mV/s and 1600rpm to alleviate the O2 bubbles on working electrode surface. The recorded potential was converted to the reversible hydrogen electrode (RHE), following the equation of ERHE = EHg/HgO + 0.926 V - 95% iR in 1.0 mol/L KOH solution.
The electrocatalyst slurry was prepared by mixing electrocatalysts (5 mg) in isopropanol (950 μL)/Nafion (50 μL) mixed solution, followed by ultrasonication. 6 mol/L KOH solution was used as an electrolyte. Air cathode was fabricated by uniformly coating electrocatalyst slurry onto the carbon paper followed by drying at room temperature. The loading capacity for the obtained electrocatalysts is 1 mg/cm2. Zn plate was used as the anode of the constructed rechargeable Zn-air battery with 6 mol/L KOH solution as electrolyte. The rechargeable Zn-air battery was conducted on home-built cells.

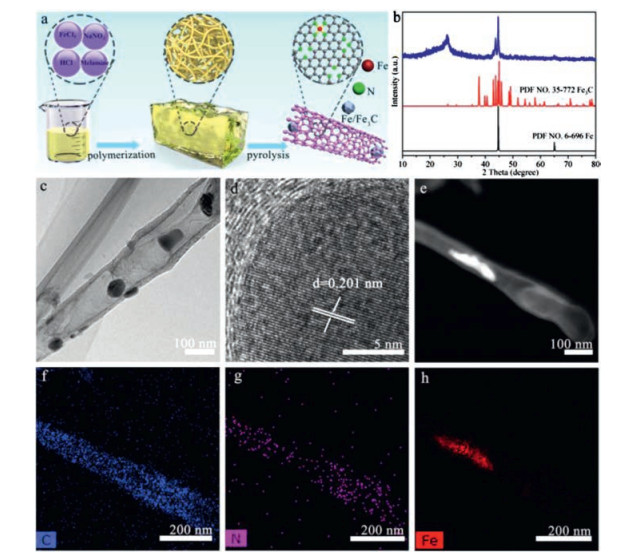

The growth of Fe/Fe3C-N-CNTs is schematically demonstrated in Fig. 1a. Typically, the hydrogel is firstly prepared through forming metal-melamine coordination with the assistance of sodium nitrate. Then, the hydrogel mixture composed of glucose, melamine and FeCl3 is carbonized under the N2 atmosphere for the efficient development of Fe/Fe3C-N-CNTs. During the pyrolysis process, Fe3+ is reduced to Fe by the carbothermal reduction reactions and then Fe reacted with the carbon, leading to the hybrid of Fe and Fe3C [30]. X-ray diffraction (XRD) pattern is employed to distinguish the composition of the obtained electrocatalyst. As elucidated in Fig. 1b, Fe/Fe3C-N-CNTs display obvious sharp peaks at 26.0°, 43.7°, 44.7° and 65.0°, which can be assigned undisputedly to (002) plane of graphitic carbon, (102) plane of Fe3C and (110) and (200) planes of Fe, respectively. The XRD results signify that graphitic carbon, Fe and Fe3C consist in Fe/Fe3C-N-CNTs. In this reaction system, glucose provides carbon source for the controlled growth of Fe/Fe3C-N-CNTs catalyzed by iron species [31]. It is revealed that Fe and Fe3C can promote the graphitization of the surrounding carbon, and thus Fe/Fe3C nanocrystals are encompassed by the graphitic carbon.
The morphology of hydrogel precursor is firstly investigated by scanning electron microscopy image (SEM). As shown in Fig. S1 (Supporting information), the aerogel is constructed by smooth and ultralong nanofiber with a diameter of 240 nm. The representational transmission electron microscopy image (TEM) in Fig. 1c further confirms the growth of CNTs, which should be originated from the transportation and realignment of carbon atoms catalyzed by the added iron in the pyrolysis process. The bright-field high-resolution TEM image (HRTEM, Fig. 1d) discloses that iron-containing nanoparticles confined by CNTs are well crystallized with the lattice distance of 0.201 nm (corresponding to the (110) crystallographic plane of cubic metallic Fe (PDF No. 06-696) or (220) plane of Fe3C (PDF No. 35–772). Energy dispersive X-ray mapping (EDX) is also employed to illustrate the different elements distributions. Remarkably, the corresponding High-angle annular dark-field STEM image (HAADF-STEM) of Fig. 1e and element mappings (Figs. 1f–h) reveal highly dispersed Fe, Fe3C nanocrystals and uniform distributions of C, N, Fe elements. The detected Fe signal illustrates the successful dispersion of Fe in N-doped CNTs.

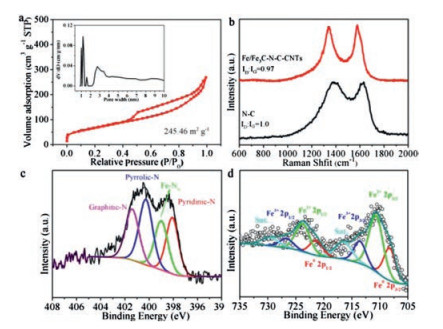

In addition, N2 adsorption/desorption isotherm (Fig. 2a) demonstrates large Brunauer-Emmett-Teller (BET) surface area of Fe/Fe3C-N-CNTs (245.46 m2/g) with meso/macroporous characteristic, favoring the mass transport and exposure of more active sites. Raman spectroscopy is conducted to describe the carbon structure of Fe/Fe3C-N-CNTs, and the corresponding Raman spectra (Fig. 2b) clearly display characteristic D peak (defect band) and G peak (graphite band). As characterized by the intensity ratio of ID/IG, it suggests that Fe/Fe3C-N-CNTs show lower ID/IG (0.97) than N-C (1.0), signifying higher degree of graphitization and excellent electrical conductivity. The improved graphitization degree is attributed to the Fe catalyzed graphitization mechanism in the high temperature pyrolysis process [32]. To further investigate the composition and chemical states of Fe/Fe3C-N-CNTs, X-ray photon spectroscopy (XPS, Fig. 2c) characterization is adopted. The N 1s spectrum indicates the coexistence of graphitic N (401.2 eV), pyrrolic N (399.6 eV), Fe-Nx (399.0 eV) and pyridinic-N (398.1 eV) [33, 34]. As shown in Fig. 2d, the high-resolution Fe 2p spectrum indicates that these peaks are identified as Fe0 (708.1 eV), Fe2+ (710.7 eV, 723.9 eV), Fe3+ (713.6 eV, 726.7 eV) and satellite peak (716.5 eV, 729.6 eV) [35]. It should be noted that the graphitization of carbon is another key factor that influences the stability of the electrocatalyst. Though the Fe-Nx single atom structure is formed at relative low pyrolysis temperature, e.g., 700 ℃, the catalytic activity and stability are inferior than the one prepared at higher temperature. The amorphous or low graphitized carbon, which experiences obviously structure decomposition at high oxidizing potentials should be avoided in the prepared electrocatalysts [36, 37].
To explore the effect of pyrolysis temperature on ORR activities, the electrocatalytic performance of Fe/Fe3C-N-CNTs pyrolyzed at different temperatures of 700 ℃, 800 ℃ and 900 ℃ are demonstrated in Fig. S2 (Supporting information). In addition, the N2 adsorption/desorption isotherm curves (Fig. S3 in Supporting information) show similar high specific surface area of 226.3 m2/g for Fe/Fe3C-N-CNTs-700, 245.5 m2/g for Fe/Fe3C-N-CNTs-800, 275.3 m2/g for Fe/Fe3C-N-CNTs-900), thus eliminating the effect of specific surface area on ORR activity. As displayed in Fig. S2, Fe/Fe3C-N-CNTs-800 show the highest Eonset (onset potential), most positive E1/2 (half-wave potential), and largest j (limiting current density). The results testify that the pyrolysis temperature at 800 ℃ seemed to be the optimal temperature in the synthesis of Fe/Fe3C-N-CNTs electrocatalyst. The weak electrocatalytic performance of Fe/Fe 3C-N-CNTs-700 may due to the lower graphitization, which is demonstrated by Raman spectra (Fig. S4 in Supporting information). For the Fe/Fe3C-N-CNTs-900, despite the outstanding graphitic degree, they own low N content and poor active N species (pyridinic-N), as illustrated by XPS analysis (Fig. S5, Tables S1 and S2 in Supporting information). Thus, the influence of pyrolysis on electrocatalytic activity may be attributed to the synergistic effect of active N doping and graphitic degree of the electrocatalysts obtained at different pyrolysis temperatures.

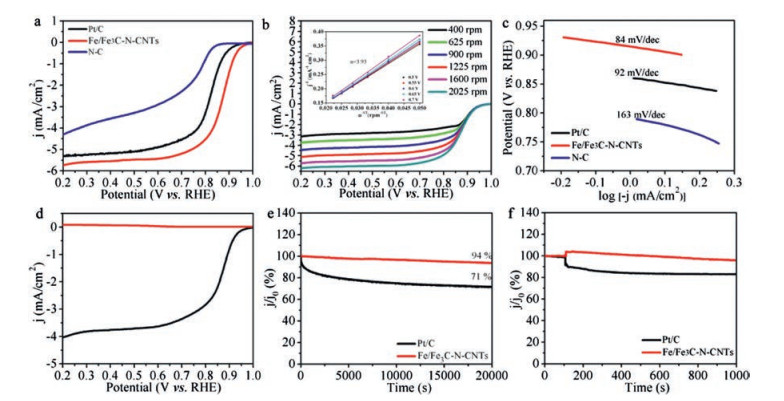

Fig. 3a reveals the linear sweep voltammetry (LSV) results of Fe/Fe3C-N-CNTs, N-C and benchmark Pt/C. The LSV curves show that the control electrocatalyst (N-C) displays the worst ORR performance in terms of the onset potential Eonset, half-wave potential E1/2 and limited current density j. Significantly, when Fe/Fe3C nanocrystals are introduced into the carbon matrix, the ORR activity of Fe/Fe3C-N-CNTs dramatically leaped forward according to the largest Eonset (1.0 V) and most positive E1/2 (0.88 V), which is 110 mV and 50 mV more positive than that of N-C (E1/2=0.77 V), benchmark Pt/C (E1/2=0.83 V), respectively. The superior ORR activity of Fe/Fe3C-N-CNTs is more excellent than that of most nonprecious metal electrocatalysts [38, 39] and CNT-based carbon electrocatalysts (Table S3 in Supporting information). The largest j indicates that the conductivity of Fe/Fe3C-N-CNTs is boosted, which may be due to the improvement of graphitization degree in the presence of Fe/Fe3C nanocrystals and N doping during pyrolysis process [40]. The electron transfer number (n) for ORR is acquired from LSV curves under different rotation speeds (Fig. 3b) according to the Koutechy-Levich (K–L) plots. The K–L plots (Fig. 3b inset) show good linear relationships, with similar slope of 3.93, confirming a four-electron pathway for ORR process. It is well known that a smaller Tafel slope signifies the faster kinetic process for ORR [41]. Fig. 3c shows the smallest Tafel plots of ~ 84 mV/dec than that of Pt/C (92 mV/dec) and N-C (163 mV/dec) suggesting outstanding ORR kinetics.
To further evaluate the ORR process of Fe/Fe3C-N-CNTs, RRDE measurements is employed. As shown in Fig. 3d, Fe/Fe3C-N-CNTs indicate high disk current density for ORR and much lower ring current density for H2O2 oxidation. Fig. S6 (Supporting information) reveals the electron transfer numbers (n) and H2O2% calculated from the RRDE curves. As shown in Fig. S6, the H2O2% is strikingly suppressed by Fe/Fe3C-N-CNTs, and the H2O2% is lower than 10%. The large electron transfer number (n) for Fe/Fe3C-N-CNTs indicates that Fe/Fe3C-N-CNTs possess highly efficient four-electron transfer process and superior electrocatalytic efficiency. Thus, the analysis results illustrate that it is all-important to introduce Fe/Fe3C nanocrystals into the material for attaining exceptionally high performance, which can facilitate the formation of Fe-Nx active species. In addition, the stability and methanol tolerance are also explored. Notably, Fe/Fe3C-N-CNTs show strong long-term durability than Pt/C, as attested by the slower decay rate of the chronoamperometry measurement (Fig. 3e). After 20, 000s stability test, the TEM image of Fe/Fe3C-N-CNTs displays exceptional morphological stability (Fig. S7 in Supporting information), elucidating the encouraging stability of the as-synthesis electrocatalyst. After the injection of methanol into the electrolyte solution, the current density of benchmark Pt/C decrease rapidly, whereas no significant change of Fe/Fe3C-N-CNTs (Fig. 3f). These experimental results unambiguously testify that Fe/Fe3C-N-CNTs own excellent methanol tolerance much better than and superior stability stronger than benchmark Pt/C. The superior ORR activity of Fe/Fe3C-N-CNTs under alkaline electrolyte stimulates us to study the ORR performance in 0.5 mol/L H2SO4 acidic media. As shown in Fig. S8a (Supporting information), it is demonstrated that the Eoneset (0.84 V) of Fe/Fe3C-N-CNTs is only 60 mV lower than the benchmark Pt/C (0.90 V). Remarkably, Fe/Fe3C-N-CNTs exhibit strong robustness in acidic media, as disclosed by the very weak decay (5%, 1600rpm) after 20, 000s continuous cycles (Fig. S8b in Supporting information).

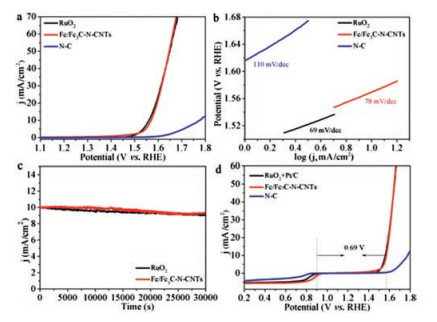

To demonstrate the difunctional performance, we further evaluate the OER activity of the Fe/Fe3C-N-CNTs in 1.0 mol/L KOH solution. LSV curves of the samples are recorded at 5 mV/s, 1600rpm. As displayed in Fig. 4a, the LSV of N-C presents the largest onset potential (1.68 V) of OER at j =10 mA/cm2, indicating the inferior activity. The onset potential decreases rapidly and the anodic current density increases rapidly when Fe/Fe3C nanocrystals are introduced into the carbon matrix. The superior OER activity of Fe/Fe3C-N-CNTs is reflected by the lower potential of 1.57 V at j =10 mA/cm2 and much higher currents density. It has been demonstrated that pyridinic N electron-withdrawing functional groups can facilitate OER reaction [17]. Thus, Fe/Fe3C-N-CNTs with higher pyridinic N show better OER activity than N-C. The OER kinetics of the electrocatalysts are further analyzed by the Tafel curves as exhibited in Fig. 4b. The Tafel slope of Fe/Fe3C-N-CNTs is 78 mV/dec, which is similar to RuO2 (69 mV/dec), suggesting the extremely exceptional OER kinetics. More noteworthy, Fe/Fe3C-N-CNTs reserve more that 95% of its initial current density (Fig. 4c) even after 30, 000s long-term testing, strongly confirming the excellent robustness of the electrocatalyst. The Fe/Fe3C-N-CNTs after 30, 000s durability test are characterized by TEM (Fig. S9 in Supporting information). The TEM image exhibits no obvious change of morphology, demonstrating excellent stability during the electrochemical testing. The potential gap (ΔE) between the OER potential at j =10 mA/cm2 and E1/2 for ORR is adopted to estimate the electrocatalytic performance of bifunctional oxygen electrocatalyst [42]. As reported, a better bifunctional oxygen electrocatalysts tend to have a smaller ΔE. Remarkably, as can be seen in Fig. 4d, Fe/Fe3C-N-CNTs elucidate an exceptionally low ΔE of 0.69 V, which is much smaller than that RuO2, Pt/C and many reported bifunctional oxygen electrocatalysts [43, 44]. Therefore, the newly fabricated Fe/Fe3C-N-CNTs bifunctional oxygen electrocatalyst further elucidate the exceptional activity for both ORR and OER, which confirm the huge potential as outstanding air cathode electrocatalyst for Zn-air batteries.

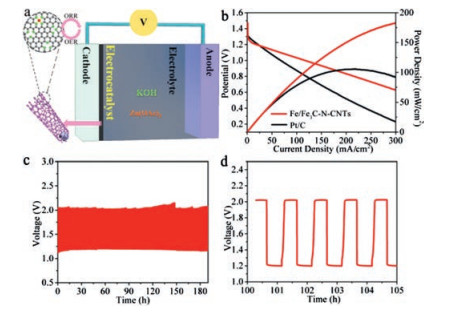

To evaluate the potential energy conversion application of Fe/Fe3C-N-CNTs, rechargeable Zn-air batteries are assembled (Fig. 5a) by using Fe/Fe3C-N-CNTs as air cathodes. As shown in Fig. 5b, the assembled Zn-air batteries deliver the polarization and power density curves of Zn-air batteries, and Zn-air batteries with Fe/Fe3C-N-CNTs air cathodes have the larger peak power density of 183 mW/cm2 than that of Pt/C based air cathodes (110 mW/cm2), indicating remarkable performance of the Zn-air batteries. Furthermore, Zn-air batteries assembled with Fe/Fe3C-N-CNTs reveal a much higher discharge current compared to benchmark Pt/C, confirming the outstanding catalytic activity of Fe/Fe3C-N-CNTs [45, 46]. The recharge ability and robustness of Zn-air batteries is of great significance for large-scale applications, and the stability is assessed by galvanostatic charge-discharge cycling displayed in Figs. 5c and d. It indicates that the Fe/Fe3C-N-CNTs electrode displays very stable charge and discharge potential even after 195h (cycle for 195h: 2.0 V for charging, 1.19 V for discharging), indicating the ultrahigh electrocatalytic stability of Fe/Fe3C-N-CNTs bifunctional oxygen electrocatalyst.
In conclusion, high-performance nonprecious metal Fe/Fe3C-N-CNTs bifunctional oxygen electrocatalyst with high density Fe-Nx sites, active N species and spatial confined Fe/Fe3 nanocrystals for ORR/OER is developed by a simple sol-gel approach and followed pyrolysis tactics. Due to the architectural and componential characteristics, the obtained Fe/Fe3C-N-CNTs exhibit remarkable electrocatalytic performance in both alkaline and acidic electrolyte, including positive ORR Eonset, large ORR E1/2 and the lower potential of OER at j =10 mA/cm2. Experimental results reveal that the remarkable catalytic activities attribute to the synergistic effect of confined Fe/Fe3C nanocrystals and intrinsic Fe-Nx active sites as well as the porous network of carbon matrix. Furthermore, Zn-air batteries based on Fe/Fe3C-N-CNTs air electrode exhibit high peak power density of ~ 183 mW/cm2, excellent discharge current and charge-discharge durability (~ 195h). Consequently, this finding not only offers feasible approach towards excellent ORR/OER and Zn-air batteries but also presents a reliable technique to prepare new dispersed metal-N4 active sites electrocatalysts for energy conversion.
Declaration of competing interest
Less
The authors declare that there is no conflict of interest.
Acknowledgments
Less
This work was supported financially by the National Natural Science Foundation of China (Nos. 51702180, 21703116, 91963113, 51372127), The Scientific and Technical Development Project of Qingdao, China (No. 18-2-2-52-jch), The Taishan Scholar Advantage and Characteristic Discipline Team of Eco Chemical Process and Technology.
Appendix A. Supplementary data
Less
Supplementary material relatedtothisarticle canbefound, in the online version, at doi:https://doi.org/10.1016/j.cclet.2020.08.029.
References
Less
[1]
J. Zhang, Z. Zhao, Z. Xia, L. Dai, Nat. Nanotechnol. 10 (2015) 444-452.
[2]
C. Guan, A. Sumboja, W. Zang, et al., Energy Storage Mater. 16 (2019) 243-250.
[3]
H.J. Qiu, P. Du, K. Hu, et al., Adv. Mater. 31 (2019) 1900843.
[4]
J. Wu, H. Zhou, Q. Li, et al., Adv. Energy Mater. 9 (2019) 1900149.
[5]
H. Jiang, J. Gu, X. Zheng, et al., Energy Environ. Sci. 12 (2019) 322-333.
[6]
L. Chen, X. Xu, W. Yang, J. Jia, Chin. Chem. Lett. 31 (2020) 626-634.
[7]
W. Wang, L. Kuai, W. Cao, et al., Angew. Chem. Int. Ed. 56 (2017) 14977-14981.
[8]
Y. Jiang, K. Dong, Y. Lu, et al., Sci. China Mater. 63 (2020) 1247-1256.
[9]
X. Zhao, J. Meng, Z. Yan, F. Cheng, J. Chen, Chin. Chem. Lett. 30 (2019) 319-323.
[10]
Z.S. Wu, S. Yang, Y. Sun, et al., J. Am. Chem. Soc. 134 (2012) 9082-9085.
[11]
Z. Jiang, W. Sun, H. Shang, et al., Energy Environ. Sci. 12 (2019) 3508-3514.
[12]
X. Chen, X. Zhen, H. Gong, et al., Chin. Chem. Lett. 30 (2019) 681-685.
[13]
B.Q. Li, C.X. Zhao, S. Chen, et al., Adv. Mater. 31 (2019) 1900592.
[14]
J. Li, M. Chen, D.A. Cullen, et al., Nat. Catal. 1 (2018) 935-945.
[15]
Z. Liu, Z. Zhao, Y. Wang, et al., Adv. Mater. 29 (2017) 1606207.
[16]
L. Bai, C.S. Hsu, D.T.L. Alexander, H.M. Chen, X. Hu, J. Am. Chem. Soc. 141 (2019) 14190-14199.
[17]
H.B. Yang, J. Miao, S.F. Hung, et al., Sci. Adv. 2 (2016) 1501122.
[18]
T. Tang, W.J. Jiang, X.Z. Liu, et al., J. Am. Chem. Soc. 142 (2020) 7116-7127.
[19]
G. Wu, K.L. More, C.M. Johnston, P. Zelenay, Science 332 (2011) 443-447.
[20]
K. Gong, F. Du, Z. Xia, M. Durstock, L. Dai, Science 323 (2009) 760-764.
[21]
B. Chen, G. Sun, J. Wang, et al., Chem. Commun. 56 (2020) 5131-5134.
[22]
P.J. Wei, G.Q. Yu, Y. Naruta, J.G. Liu, Angew. Chem. Int. Ed. 53 (2014) 6659-6663.
[23]
J.C. Li, P.X. Hou, C. Shi, et al., Carbon 109 (2016) 632-639.
[24]
S. Yasuda, A. Furuya, Y. Uchibori, J. Kim, K. Murakoshi, Adv. Funct. Mater. 26 (2016) 738-744.
[25]
C. Zhu, S. Fu, J. Song, et al., Small 13 (2017) 1603407.
[26]
R. Cao, R. Thapa, H. Kim, et al., Nat. Commun. 4 (2013) 2076-2082.
[27]
D. Deng, L. Yu, X. Chen, et al., Angew. Chem. Int. Ed. 52 (2013) 371-375.
[28]
Y. Li, W. Zhou, H. Wang, et al., Nat. Nanotechnol. 7 (2012) 394-400.
[29]
Y.J. Sa, D.J. Seo, J. Woo, et al., J. Am. Chem. Soc. 138 (2016) 15046-15056.
[30]
Z. Wen, S. Ci, F. Zhang, et al., Adv. Mater. 24 (2012) 1399-1404.
[31]
D. Xia, X. Yang, L. Xie, et al., Adv. Funct. Mater. 29 (2019) 1906174.
[32]
Z. Zhang, J. Sun, F. Wang, L. Dai, Angew. Chem. Int. Ed. 57 (2018) 9038-9043.
[33]
W. Zang, A. Sumboja, Y. Ma, et al., ACS Catal. 8 (2018) 8961-8969.
[34]
H.W. Liang, W. Wei, Z.S. Wu, X. Feng, K. Mullen, J. Am. Chem. Soc. 135 (2013) 16002-16005.
[35]
L. Lin, Q. Zhu, A.W. Xu, J. Am. Chem. Soc. 136 (2014) 11027-11033.
[36]
B.Y. Xia, Y. Yan, N. Li, et al., Nat. Energy 1 (2016) 15006-15013.
[37]
Y. Zhang, J. Zai, K. He, et al., Chem. Commun. 54 (2018) 3158-3161.
[38]
P. Yin, T. Yao, Y. Wu, et al., Angew. Chem. Int. Ed. 55 (2016) 10800-10805.
[39]
B.Y. Guan, L. Yu, X.W. Lou, Energy Environ. Sci. 9 (2016) 3092-3096.
[40]
W.J. Jiang, L. Gu, L. Li, et al., J. Am. Chem. Soc. 138 (2016) 3570-3578.
[41]
M. Xiao, H. Zhang, Y. Chen, et al., Nano Energy 46 (2018) 396-403.
[42]
S. Chen, J. Duan, Y. Zheng, et al., Energy Storage Mater. 1 (2015) 17-24.
[43]
Q. Liu, Y. Wang, L. Dai, J. Yao, Adv. Mater. 28 (2016) 3000-3006.
[44]
T.Y. Ma, J. Ran, S. Dai, M. Jaroniec, S.Z. Qiao, Angew. Chem. Int. Ed. 54 (2015) 4646-4650.
[45]
C. Wang, N.H. Xie, Y. Zhang, et al., Chem. Mater. 31 (2019) 1023-1029.
[46]
W. Liu, J. Zhang, Z. Bai, et al., Adv. Funct. Mater. 28 (2018) 1706675.
