High thermal conductivity of graphene and structure defects: Prospects for thermal applications in graphene sheets

Full

Chenglong Cai^a^,^b, Ting Wang^a^,^b^,^*, Guanwen Qu^b, Zhangqi Feng^c

Affiliations

^a State Key Laboratory of Bioelectronics, National Demonstration Centre for Experimental Biomedical Engineering Education, School of Biological Science and Medical Engineering, Southeast University, Nanjing 210096, China

^b Southeast University Jiangbei New Area Innovation Institute, Nanjing 210096, China

^c School of Chemical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China

Published: 2021-04-15 doi: 10.1016/j.cclet.2020.10.030

Outline

Abstract

Less

The utilization of thermal energy from different sources is an important development direction for conserving energy. With the development of technology, refined and rapid utilization of thermal energy is required. Traditional thermal conductive materials cannot meet the growing needs of human beings. Therefore, people pay attention to two-dimensional graphene film materials for their thermal conductivity. This review collects current modeling group of thermal transport on graphene, including non-equilibrium Green function (NEGF) theory, molecular dynamics (MD) simulations modeling and Boltzmann transport equation method. These models can well explain several phenomena of phonon transport in graphene. Further, structural defects were discussed and expounded the effect for graphene thermal conductivity, including doping, grain boundary and defects. Deeply understanding of defects on graphene, we can better grasp the thermal conductivity of graphene from the microscopic point of view.

Key words

Graphene / Phonon / Thermal transport / Modeling / Two-dimensional

Cite this Article

Chenglong Cai, Ting Wang, Guanwen Qu, Zhangqi Feng. High thermal conductivity of graphene and structure defects: Prospects for thermal applications in graphene sheets[J]. Chinese Chemical Letters, 2021 , 32 (4) : 1293 -1298 . DOI: 10.1016/j.cclet.2020.10.030

Full Text

Less

1 Introduction

Less

Action as a novel two-dimensional material composed of sp² hybrid carbon atoms, graphene has drawn growing attentions, since they were found by mechanical exfoliation [1]. Its excellent properties such as high thermal conductivity and high electronic conductivity generated from π-conjunction of graphene. Because of the excellent properties of its structure, graphene has a good prospect in many fields, such as personal wearable thermal management [2, 3], application in phase change materials (PCMs) [4-6] and thermal interface materials (TIM) [7, 8]. How to prepare large area graphene in a simple way and make it have advanced thermal property were attracted more attentions in current scientific research. Thermal performance analysis and thermal effects of graphene will be very important to study for improvement of graphene properties.

As a nonmetallic material, the heat in graphene should be mostly carried by phonon rather than by electrons [9, 10]. From the view of quantum mechanics, energy of the simple harmonic oscillator that represents the collective movement of atoms is quantized. The quantum of different lattice vibration is called the phonon, it is the smallest unit of energy w_i. However, integrated graphene film cannot be prepared at present. Phonons will collide at the defects with losing energy, which will lead to the decrease of thermal conductivity of graphene. A. Carlos et al. studied the phonon scattering caused by point defects by ab initio Green's function methodology, and obtained the conclusion that the thermal conductivity of graphene decreased due to point defects [11]. Furthermore, it was found that the symmetry of graphene with double carbon vacancy is lower than that of single carbon vacancy, and the change of scattering rate with wave vector is obviously larger than that of single carbon vacancy, which leads to the decrease of thermal conductivity. H. K. Liu et al. further explored the thermal conductivity (κ) of polycrystalline graphene, and simulated the dependence of thermal conductivity on grain boundary (GB) energy and grain size by using molecular dynamics simulations model [12]. The result illuminated that the thermal conductivity is inversely proportional to grain boundary energy and directly proportional to grain size. It can be concluded that the energy of grain boundary can induce phonon scattering, which is not conducive to improving the thermal conductivity of graphene. The above examples show that phonon propagation in graphene is very complex. Any defect will change the transmission energy of phonon, and the thermal conductivity will be influenced. The investigation of relations between phonon dispersion and vibrational density defect of states will be very important for understanding the thermal properties of graphene.

Phonon transport has been incorporated into important heat carriers process in graphene studied. In this review, we outline different types of theoretical approaches that developed for phonon transport in graphene and paves the way for further research. We concentrate on the phonon motion characteristics in defect of graphene and try to structure a physical description of phonons transfer their energy in nanostructures with lattice mismatches. In the second part, we briefly learn different theoretical models for description of phonon in single layer graphene and simulation methods on heat conduction. In the third part, we investigate the theoretical and experimental results for the thermal transport properties of graphene and the influences of structural defects, strain and substrate adsorption. In the last part, we summarize and outlook.

2 Theoretical models of thermal conductivity

Less

Many interesting phenomena were discovered when researchers made effort in the thermal transfer in graphene, such as thermal rectification (TR) [13-15], thermophoresis [16, 17] and negative differential thermal resistance (NDTR) [18, 19]. Therefore, researchers are committed to developing various models for prediction the thermal conductivity of graphene nano-system [20, 21]. At present, three different models were set up. (1) non-equilibrium Green function (NEGF) theory, (2) molecular dynamics (MD) simulations and (3) Boltzmann transport equation (BTE). We will introduce these methods in detail.

2.1 Non-equilibrium Green function

NEGF theory is commonly used for electronic transport, but can be extended to thermal counterpart in nanostructure. It is efficient to use NEGF method to deal with many problems, when the mechanical properties of anisotropy are weak in objects and materials, when interactions are weak, especially in ballistic thermal transport, which obtain the maximum thermal conductance of graphene [22-25]. Generally, this system investigated is assumed as dividing into three parts, called, the left lead (L), the central region (C) and the right lead (R). The classical Hamiltonian is given by

(1)

in which

delegates coupled harmonic oscillators, u^α is the longitudinal quantity of all displacements in area α, and u^α is a conjugate vector of equal size and opposite direction. K^α is the spring constant matrix, which is calculated by empirical force field or the first principle method. In addition, V^LC and V^CR respectively represent the coupling matrix of the left lead to central region and central region to right lead. When the environment of graphene is low enough, the lattice vibration can be regarded as a harmonic system. Under the harmonic state, the Green's function of the retarded surface of the left region was expressed as follows:

(2)

when η→0. The left/right lead retarded self-energies can be calculated by:

(3)

For the central scattering area retarded Green's function, it can be expressed as:

(4)

in which Σ_L^r, Σ_R^r represent the retarded self-energies of the left and right lead, respectively.

The phonon transport function τ_i can be used to predict the thermal conductivity of graphene, which is described as:

(5)

here Γ_{L, i} and Γ_{R, i} are taken as the contact correlation function of the left terminal and right terminal for simple, and G_i^r or G_i^a is the retarded Green's function of the center section. More detailed description of the calculation process can refer to other literature.

The NEGF method is initially used to handle electrical transport, originating from the quantum field theory. With the further research, this method is suitable for the study of ballistic phonon transport at low temperature. Theoretically, combining NEGF and first principle calculation explains relationship of the phonon and electron interactions at low-temperature. However, introduction of external parameters to accurately describe the characteristics of phonon scattering should further be considered in NEGF method.

2.2 Molecular dynamics simulations

MD simulations are ideal for addressing such issues since they can be used to study individual microstructural elements and can be combined with Newton's mechanical equations to deal with atomic level complex structures. The advantage of MD simulation is that there are few variables to be added. Only the structural parameters of graphene and the empirical force field are needed as the known conditions, and the simulation results can be quite accurate. With the development of MD simulations for many years, equilibrium molecular dynamics (EMD) and non-equilibrium molecular dynamics (NEMD) have been derived. EMD mainly relies on the fluctuation–dissipation theorem simulation to calculate the thermal conductivity of graphene, which is slow but accurate. The NEMD establishes the heat transfer equilibrium by disturbing the system, and obtains the thermal conductivity by solving the heat conduction equation. The algorithm is fast, but it is disturbed greatly and its reliability is not high [26]. In NEMD methods, two thermostats with different temperatures are applied on both sides of the sample, and a temperature gradient is applied on the simulation unit, thus a heat flow closer to the actual experimental measurement is generated in the simulation unit. By running for a long time, the simulation system achieves the non-equilibrium steady state with constant heat flow and temperature gradient. Therefore, the thermal conductivity of the system can be calculated according to the Fourier heat conduction law:

(6)

where J is the density of heat flow and ∇T is the temperature gradient along the heat transport direction. According to the external injected energy, J is calculated, and ∇T is extracted by linear fitting of temperature distribution.

As mentioned before, EMD method is more accurate than NEMD method, so the thermal conductivity of graphene nanostructures is simulated based on Green-Kubo formula [27]:

(7)

where λ represents the heat conductivity, V as the system volume, T acts the issue temperature, k_B is Boltzmann's constant, t is the time, and the symbol of " < > " denotes the system average value. J(t) is the density of heat flow in the system during the t moment and is calculation as:

(8)

in which r_i, v_i and E_i represent the coordinate, velocity and total energy of atom i in the system. In addition, the large number of tests has proved that the Brenner et al. [28] is very good in testing the mechanical properties, thermal conductivity and chemical properties of carbon materials, and has high accuracy.

The Molecular dynamics, as the most widely used method to study the thermal transport properties of carbon materials, is involved in different nanostructures, such as the defect [29, 30], strain [31], chemisorption [32], interface [33, 34] and substrate [35], and the thermal conductivity of carbon materials can be more accurately inferred by combining different calculation models.

2.3 Boltzmann transport equation

In order to describe the transport of phonons in the crystals of graphene materials and balance the relative relationship of phonon population n, the first term diffusive drift and scattering of phonon. Based on the perturbation theory, linearized BTE is defined as follow [36]:

(9)

in which η_i represents number of phonons involved in transport and

represents the group velocity of phonon mode i. So, scattering will bring some complicated variables in calculation for the heat conduction of graphene by BTE method. The most conventional method is to add relaxation time approximation (RTA), which is to calculate the single-mode relaxation time approximation (SMRTA). Besides, each mode is designated as relaxation time (τ_i), which shows the net effect of different scattering mechanisms; it can also be expressed as the collision term approximation in the formula as follows:

(10)

in which η_{i, 0} is the phonon occupation number mode i under thermal equilibrium, namely, the Bose-Einstein distribution. And the τ_i is the time constant which represents phonon return to its equilibrium occupation from a nonequilibrium. As shown in formula (10), the SMRTA method is a first-order approximation to the phonon BTE, it neglects the deviation of τ from equilibrium values when the system is in nonequilibrium states. By introducing RTA, we can correct system deviation for the SMRTA method. On this basis, Omini et al. [37] developed a set of solutions to the linearized Boltzmann equation by iteration. This scheme was adopted by Broido who calculated of phonon thermal transport in graphene [38]. This method takes into account τ (correction factor) by the non-equilibrium layout of each phonons in different collision process, thus this method is wider range of applications than SMRTA. For high κ nano-materials like graphene and carbon nanotubes, the relaxation time of umklapp (U) process is closely related to the changing of equilibrium phonon population caused by strong normal process. The experimental results show that for high κ materials with nitrogen (N)-doped, linear iterative scheme is more precise than SMRTA scheme [39].

3 Thermal transport in graphene sheet

Less

The ultra-high thermal conductivity of graphene is closely related to the fast propagation of phonon. The phonon propagation is susceptible to changing of graphene structure. Fig. 1 illustrates that different structural defects can affect phonon transport.

3.1 Doped in graphene

Doping graphene with different elements, the carbon atom is replaced by other atoms, the bond length and bond angle are changed, the original structure and corresponding properties of graphene are preserved [40, 41], and the thermal conductivity of graphene can be changed by controlling the doping concentration. Therefore, many researchers artificially changed the carbon element in graphene sheet to other elements, such as nitrogen [42, 43], boron [44], silicon [45] and isotope. A. Carlos et al. [11] doped different element atoms in graphene, and calculated the corresponding thermal conductivity by ab initio Green's function method. They found that atomic mass is similar, the scattering degree of boron and nitrogen for graphene has changed greatly. They found that atomic mass is the similar, the scattering degree of boron and nitrogen for graphene has changed greatly. The scattering rate of out-of-plane acoustic (ZA) phonons from normal defects is almost one order of magnitude smaller than that from boron defects. As shown in Fig. 2a, the effect of defects on surrounding atoms is derived along the red line in Fig. 2a. Any tiny atomic substitution on graphene sheets different distribution of phonon density function and results in thermal conductivity change, Fig. 2b shows that replacing different atom makes τ_nitrogen^ZA≈τ_boron^ZA. At the same time, different levels of atomic doping lead to the change of thermal conductivity. Generally, doping of heteroatoms level provides a strategy for improving the energy density of materials but it is negative to the thermal conductivity (Figs. 2c and d). In term calculation, compared with first-order perturbation approaches, the ab initio Green's function methodology is more accurate to describe the phenomenon when scattering rate increased with ω₀.

C.J. Li et al. [46] used different concentrations of doped hydrogen to study the thermal conductivity of graphene, and used non-equilibrium molecular dynamics simulations to simulate the propagation of phonon. They found that the thermal conductivity variation of graphene with patterned hydrogen doping with respect to doping coverage and doping stripe orientation. In addition, with different angle and hydrogen doping, the thermal conductivity is different. In general, the wider the coverage, the greater the angle change and the worse the thermal conductivity, as shown in Fig. 3.

N-doped in graphene sheet was considered has high potential to application in sensors, electronic devices, catalysts, hydrogen storage and other systems. Unfortunately, the mechanisms of thermal conductivity for N-doped graphene sheet was not deeply understand, so we use carbon nanotubes as reference. L. Yuan et al. [47] used chemical vapor deposition to grow the N-doped carbon nanotube and studied its thermal conductivity characteristic. In addition, the thermal conductivity of plasma and acid treatment nitrogen doped carbon nanotube is compared. It can be seen that thermal conductivity of CNTs decreased with the increase of nitrogen content. Besides, the thermal conductivity of the materials is further reduced by the different sputtering strength and the changes of defects and nitrogen content after acidification. The reason is that the scattering of phonons in carbon nanotubes is further intensified, which improves the heat accumulation ability and reduces the thermal conductivity of the materials [48, 49], as shown in Fig. 4.

3.2 Grain boundary of graphene

Large area graphene films are generally observed in polycrystalline form [50-52]. The interface between crystal graphene is commonly in the form of grain boundaries (GBs) [53-56]. Worth to mention, the different crystal size and morphology character of graphene films prepared by different methods will have a great influence on the thermal conductivity of graphene, so it is significant to observe the thermal conductivity of graphene by investigating the grain boundary of graphene [57, 58]. T. Ma et al. [59] synthesized polycrystalline graphene with maximum nucleation density by segregation-adsorption CVD (SACVD) on Pt foil.

As shown in Fig. 5, it can be concluded that with the increase of CVD processing temperature, carbon atoms at the edge can obtain more energy to form large area graphene, the scattering density of phonon edge decreases, and the thermal conductivity of graphene is further improved. When the grain size reaches 10 μm, the thermal of graphene reaches 5230W m^-1K^-1. Therefore, increasing the preparation temperature can effectively reduce the grain boundary density of graphene, thus improving the thermal conductivity of graphene.

The curvature of the grain boundary and the out of plane structural deformation at the boundary also affect the thermal conductivity of graphene [60, 61]. Y. Lu et al. [62] applied the non-equilibrium Green function method to the heat conduction calculation of graphene crystal. The results show that grain boundary offer excellent thermal conductivity independence, which is difference with electron transport dependence structure. The zigzag oriented symmetrical grain boundary has the highest thermal conductivity, which is less dependent on the orientation angle of graphene domain. The thermal conductivity of grain boundary increases with the temperature, and the thermal ballistic degree decreases with the increase of temperature. The thermal conductivity of graphene grain boundary is dominated by out-of-plane acoustic mode. In addition, L. M. Sandonas et al. [63] combined atomic Green's function technique with density functional tight-binding (DFTB) to study the structure and dynamical disorder for thermal conductivity of graphene. the result shows linear GBs have higher thermal conductance than curved GBs. Moreover, the increase of disorder in the grain boundary results in the decrease of phonon transmission in the plane and out of plane vibration modes, so the thermal conductivity and transport performance decrease sharply.

3.3 Defect of graphene

Graphene has a variety of defect structures, which can establish the relationship between different types of graphene defect structure and thermal conductivity, which helps us to better understand the thermal conductivity mechanism of graphene. At present, there are four types of structural defects in graphene, which are Single-vacancy, Double-vacancy, Stone-Wales, Multi-vacancy, as shown in Fig. 6a. in general, the inherent thermal conductivity of graphene is decreased with the structural defects increase. But when defect graphene combines with other materials, like epoxy [64], it can enhance entirety thermal conductivity, which due to defect graphene can well match the low frequency curve of epoxy resin, showing in Fig. 6b.

Indeed, for pure graphene membrane, in the rapid transport of phonons mainly depends on the establishment of complete graphene structure. If the complete structure of graphene is destroyed, a large number of phonons will be scattered and the thermal conductivity will be decreased. Compared with grain boundary and layers number, the graphene thermal conductivity rises first then decreases with the density of point defect increase. The main reason for this phenomenon is that the Young's modulus of the material will be enhanced by the low density of defects [65]. In addition to the above two defects, there are other ways to reduce the transmission performance of phonons. Malekpour et al. [66]. used low-energy electron beam to introduced defects in graphene. Through the Raman test, we can clearly obvious that with the step of irradiation increase, the defect of graphene become more in Fig. 7a. The corresponding thermal conductivity is shown in Fig. 7b. In addition, the author thought that these three reasons lead to the decrease of thermal conductivity, which are Umklapp scattering due to lattice anharmonicity, mass-difference scattering and rough edge scattering.

3.4 The effect of graphene layer on the thermal conductivity

For monolayer graphene thermal conductivity, it is affected by the intrinsic thermal conductivity which limited by anharmonic crystal lattice and extrinsic thermal conductivity, such as phonon-rough-boundary or phonon-defect scattering. However, the thermal conductivity of few-layer-graphene (FLG) is related to the thickness, H or number of atomic planes, n. First of all, we should get the exact number of layers of graphene. Generally, the number of layers can be accurately determined by measuring the 2D peak intensity at ~2700 cm^-1, and the thermal conductivity is decrease with the number of layers increase whatever the graphene is zigzag or armchair, as shown in Figs. 8a–c [67-69]. However, different layers will affect the main factors of graphene thermal conductivity. When the width and length of the flake are unified, the increase of the number layers makes graphene change from 2D structure to 3D structure. When the thin FLG atomic layers thickness (n < 4), the thickness is to thin and the scattering from top to bottom is too weak, so the influence on thermal conductivity is very limited, but there is still edge scattering [69]. At this time, the thermal conductivity of graphene is mainly affected by the by the intrinsic thermal conductivity, also called anharmonic crystal lattice. This theory about graphene heat conduction is described by the Fermi-Pasta-Ulam Hamiltonians with layers number varying from 1 to 4 [70]. When the number of graphene layers increasing (n < 4), the effect of bound scattering is gradually obvious. As shown in Fig. 8d, compared with bilayer graphene, the number of phonon states available for three-phonon Umklapp scattering in single layer graphene is only a quarter of that of bilayer graphene. besides, with the number of layers increasing, the degree of Umklapp scattering is deepening [71]. At this time, the scattering is the main reason for the decrease of thermal conductivity.

4 Conclusion and outlook

Less

In this paper, on the one hand, we introduce a variety of heat conduction calculation methods, which have a good prospect in graphene heat conduction simulation, and can provide guidance for graphene heat conduction materials. On the other hand, thermal transport in graphene has been discussed. Fast propagation of phonon was proved related with the high structural Integrity of graphene. From MD, it was proved that replaced the carbon atom, different levels of doping graphene lead to the change of thermal conductivity. Umklapp scattering due to lattice anharmonicity, mass-difference scattering, and rough edge scattering were also been discussed by adopted BTE analysis and MD simulation. The most interesting part will be the grain boundary of graphene, when the grain size or the nucleation density increases it was proved that the thermal conductivity increased from ~610W m^-1K^-1 to ~5230W m^-1K^-1. It can be deduced that, synthesized polycrystalline graphene with large nucleation density will also give graphene high thermal conductivity. In conclusion, to explore new methods to prepare graphene with large grain size or high nucleus density other than CVD, will be the most potential development direction in the future.

Declaration of competing interest

Less

The authors report no declarations of interest.

Acknowledgments

Less

This research was supported by the National Natural Science Foundation of China (Nos. 11204033, 51773093); the Natural Science Foundation of Jiangsu Province (No. BK20141397); the Research Fund for the Doctoral Program of Higher Education of China (No. 20120092120042]; the CMA L'OREAL China Skin Grant 2015 (No. S2015121421) and the Open Research Fund of State Key Laboratory of Natural Medicines, China Pharmaceutical University (No. SKLNMKF201803), Southeast University and Nanjing Medical University Cooperation Project (No. 2242018K3DN14).

References

Less

[1]

K.S. Novoselov, A.K. Geim, S.V. Morozov, et al., Science 306(2004) 666-669.

[2]

F. Kargar, Z. Barani, M. Balinskiy, et al., Adv. Electron. Mater. 5(2019) 1800558.

[3]

E. Pop, V. Varshney, A.K. Roy, MRS Bull. 37(2012) 1273-1281.

[4]

R. Prabakaran, J.P.N. Kumar, D.M. Lal, et al., J. Therm. Anal. Calorim. 139(2020) 941-952.

[5]

Y. Qu, S. Wang, D. Zhou, et al., Renew. Energ. 146(2020) 2637-2645.

[6]

F. Xue, Y. Lu, X.D. Qi, et al., Chem. Eng. J. 365(2019) 20-29.

[7]

K.M.F. Shahil, A.A. Balandin, Solid State Commun. 152(2012) 1331-1340.

[8]

K.M.F. Shahil, A.A. Balandin, Nano Lett. 12(2012) 861-867.

[9]

J.E. Parrott, A.D. Stuckes, Phys. Today 30(1977) 60-61.

[10]

R.C. Weast, M.J. Astle, W.H. Beyer, et al., Am. J. Med. Sci. 257(1982) 423.

[11]

C.A. Polanco, L. Lindsay, Phys. Rev. B 97(2018) 014303.

[12]

H.K. Liu, Y. Lin, S.N. Luo, J. Phys. Chem. C 118(2014) 24797-24802.

[13]

G. Wu, B. Li, Phys. Rev. B: Condens. Matter. 76(2007) 085424.

[14]

N. Yang, G. Zhang, B. Li, Appl. Phys. Lett. 93(2008) 190-192.

[15]

G. Wu, B. Li, J. Phys. Condens. Matter 20(2008) 075435.

[16]

A. Barreiro, R. Rurali, E.R. Hernandez, et al., Science 320(2008) 775-778.

[17]

T. Chang, H. Zhang, Z. Guo, et al., Phys. Rev. Lett. 114(2015) 015504.

[18]

Z.G. Shao, B.Q. Ai, W.R. Zhong, Appl. Phys. Lett. 104(2014) 013106.

[19]

B.Q. Ai, W.R. Zhong, B.B. Hu, J. Phys. Chem. C 116(2012) 13810-13815.

[20]

Z.X. Xie, Y. Zhang, X. Yu, et al., J. Appl. Phys. 115(2014) 104309.

[21]

Z.X. Xie, J.Z. Liu, X. Yu, et al., J. Appl. Phys. 117(2015) 114308.

[22]

N. Mingo, Phys. Rev. B 74(2006) 125402.

[23]

J.S. Wang, J. Wang, T. Lu, J. Eur. Phys. J. B 62(2008) 381-404.

[24]

Y. Xu, J.S. Wang, W.H. Duan, et al., Phys. Rev. B 78(2008) 224303.

[25]

T. Yamamoto, K. Watanabe, Phys. Rev. Lett. 96(2006) 255503.

[26]

R.S. Ruoff, D.C. Lorents, Carbon 33(1995) 925-930.

[27]

R.L. Rowley, M.M. Painter, Int. J. Thermophys. 18(1997) 1109-1121.

[28]

D.W. Brenner, Phys. Rev. B 42(1990) 9458-9471.

[29]

T. Feng, X. Ruan, Z. Ye, et al., Phys. Rev. B 91(2015) 224301.

[30]

X. Li, J. Chen, C. Yu, et al., Appl. Phys. Lett. 103(2013) 013111.

[31]

M. Hu, X. Zhang, D. Poulikakos, Phys. Rev. B 87(2013) 195417.

[32]

J.Y. Kim, J.H. Lee, J.C. Grossman, ACS Nano 6(2012) 9050-9057.

[33]

Y. Zhang, Q.X. Pei, C.M. Wang, et al., J. Phys. Chem. C 122(2018) 22783-22789.

[34]

F. Liu, R. Zou, N. Hu, et al., Nanoscale 11(2019) 4067-4072.

[35]

J. Chen, G. Zhang, B. Li, Nanoscale 5(2013) 532-536.

[36]

V.P. Carey, G. Chen, C. Grigoropoulos, et al., Nanoscale Microscale Thermophys. Eng. 12(2008) 1-60.

[37]

M. Omini, A. Sparavigna, B. Physica 212(1995) 101-112.

[38]

L. Lindsay, D.A. Broido, N. Mingo, Phys. Rev. 82(2010) 115427.

[39]

L. Lindsay, D.A. Broido, N. Mingo, Phys. Rev. B 80(2009) 125407.

[40]

Z.G. Wang, P.J. Li, Y.F. Chen, et al., J. Mater. Chem. C 3(2015) 6301-6306.

[41]

J.Y. Li, L. Lin, D.R. Rui, et al., ACS Nano 11(2017) 4641-4650.

[42]

L.S. Panchokarla, K.S. Subrahmanyam, S.K. Saha, et al., Adv. Mater. 21(2009) 4726-4730.

[43]

H.B. Wang, T. Maiyalagan, X. Wang, ACS Catal. 2(2012) 781-794.

[44]

Z.H. Sheng, H.L. Gao, W.J. Bao, et al., J. Mater. Chem. 22(2012) 390-395.

[45]

S.J. Zhang, S.S. Lin, X.Q. Li, et al., Nanoscale 8(2016) 226-232.

[46]

C.J. Li, G. Li, H.J. Zhao, J. Appl. Phys. 118(2015) 7.

[47]

Y. Li, N. Chopra, Carbon 77(2014) 675-687.

[48]

A.N. Volkov, L.V. Zhigilei, Appl. Phys. Lett. 101(2012) 203508.

[49]

J. Yang, S. Waltermire, Y. Chen, et al., Appl. Phys. Lett. 96(2010) 98-117.

[50]

E. Loginova, S. Nie, K. Thuermer, et al., Phys. Rev. B 80(2009) 085430.

[51]

H.J. Park, J. Meyer, S. Roth, et al., Carbon 48(2010) 1088-1094.

[52]

T.R. Albrecht, H.A. Mizes, J. Nogami, et al., Appl. Phys. Lett. 52(1988) 362-364.

[53]

R. Grantab, V.B. Shenoy, R.S. Ruoff, Science 330(2010) 946-948.

[54]

Y. Liu, B.I. Yakobson, Nano Lett. 10(2010) 2178-2183.

[55]

O.V. Yazyev, S.G. Louie, Nat. Mater. 9(2010) 806-809.

[56]

B.D. Kong, S. Paul, M.B. Nardelli, et al., Phys. Rev. B 80(2009) 033406.

[57]

A. Bagri, S.P. Kim, R.S. Ruoff, et al., Nano Lett. 11(2011) 3917-3921.

[58]

O.V. Yazyev, S.G. Louie, Phys. Rev. B 81(2010)195420.

[59]

T. Ma, Z. Liu, J. Wen, et al., Nat. Commun. 8(2017) 14486.

[60]

P.Y. Huang, C.S. Ruiz-Vargas, A.M. Van Der Zande, et al., Nature 469(2011) 389-392.

[61]

Z.L. Li, Z.M. Li, H.Y. Cao, et al., Nanoscale 6(2014) 4309-4315.

[62]

Y. Lu, J. Guo, Appl. Phys. Lett. 101(2012) 5.

[63]

E. Mervinetsky, I. Alshanski, Y. Hamo, et al., Sci. Rep. -UK 9498(2017) 9498.

[64]

M. Li, H. Zhou, Y. Zhang, et al., Carbon 130(2018) 295-303.

[65]

S.E. Krasavin, V.A. Osipov, EPL 113(2016) 3.

[66]

D. Yoon, Y.W. Son, H. Cheong, Phys. Rev. Lett. 106(2011) 4.

[67]

I. Calizo, I. Bejenari, M. Rahman, et al., J. Appl. Phys. 106(2009) 666.

[68]

W.R. Zhong, M.P. Zhang, B.Q. Ai, et al., Appl. Phys. Lett. 98(2011) 202105.

[69]

D.L. Nika, E.P. Pokatilov, A.S. Askerov, et al., Phys. Rev. B 79(2009) 12.

[70]

M. Fujii, X. Zhang, H. Xie, et al., Phys. Rev. Lett. 95(2005) 065502.

[71]

S. Ghosh, W. Bao, D.L. Nika, et al., Nat. Mater. 9(2010) 555-558.

Appendix

Less

Year 2021 volume 32 Issue 4

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2020.10.030

Receive Date：2020-07-13
Online Date：2026-01-04
Published：2021-04-15

Article Data

Affiliations

History

Received：2020-07-13
Revised：2020-09-13
Accepted：2020-10-21

Affiliations

^b Southeast University Jiangbei New Area Innovation Institute, Nanjing 210096, China

^c School of Chemical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2020.10.030

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

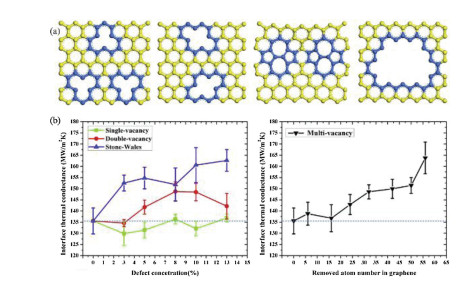

Fig. 1 Various graphene defect structure.

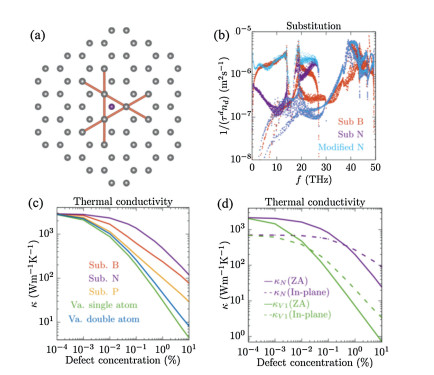

Fig. 2 (a) Schematic diagram of atom doping; (b) T-matrix scattering rates for different substitution; (c) thermal conductivity of different substitution; (d) thermal conductivity of different plane. Reprint with permission [11]. Copyright 2018, American Physical Society Sites.

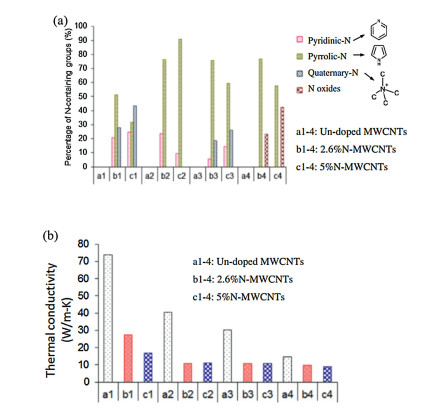

Fig. 4 (a) The proportion of different forms of N element proportion after doping different concentrations of N-MWCNTs in a1~4 un-doped MWCNTs, b1~4 2.6% N-MWCNTs, c1~4 5%N-MWCNTs. (b) a1~4 Un-doped MWCNTs, b1~4 2.6% N-MWCNTs, c1~4 5%N-MWCNTs, after acidification and plasma, the thermal conductivity changes with the change of nitrogen content. Reprint with permission [47]. Copyright 2014, Elsevier.

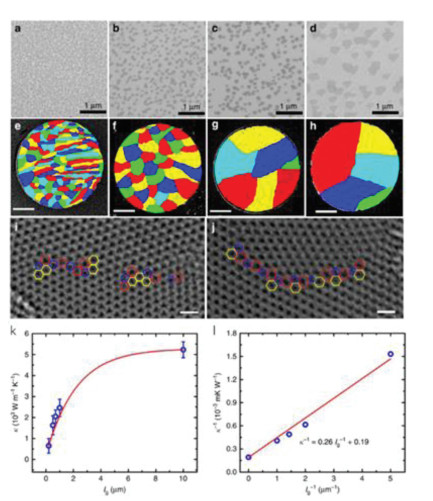

Fig. 5 (a~d) The SEM of graphene with different grain size. (e~h) Grain size of graphene under different preparation conditions. Scale bars: 500 nm. (i, j) Graphene films with grain size of ~200 and ~700 nm, respectively under HRTEM. (k, l) Effect of size on thermal conductivity of graphene. Reprint with permission [59]. Copyright 2017, Nature Publishing Group.

Fig. 6 (a) Types of defect from left to right: single vacancy, double vacancy, Stone-wales defect, multi vacancy. (b) The whole thermal conductivity of composites is increase with the defect increases. Reprint with permission [64]. Copyright 2018, Elsevier.

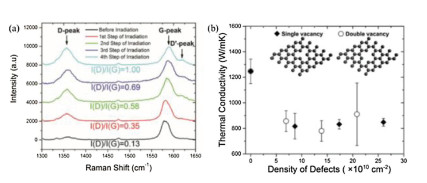

Fig. 7 (a) The Raman spectra of different step of irradiation. (b) Thermal conductivity of different defect density with single and double vacancy in graphene. Reprint with permission [66]. Copyright 2016, the Royal Society of Chemistry.

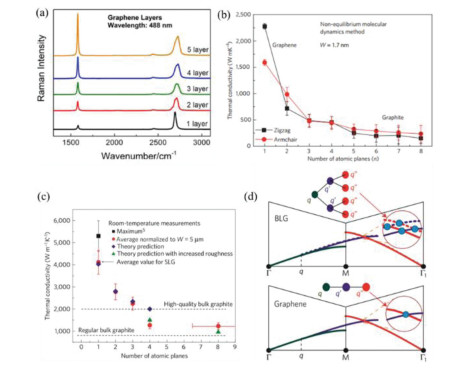

Fig. 8 (a) The Raman spectra of different graphene layers at 488 nm wavelength. Reprint with permission [67] Copyright 2009, American Institute of Physics. (b) The thermal conductivity of few layer graphene decreases with number layer increasing, which is obtained by non-equilibrium molecular dynamics method. (c) The thermal conductivity of graphene sheet with a width of 5 μm varies with the thickness of graphene. Reprint with permission [68]. Copyright 2011, American Institute of Physics. (d) Compared with single layer graphene, bilayer graphene processes more state available for scattering to increase phonon branch. Reprint with permission [69]. Copyright 2010, Nature Publishing Group.
