Carbon-halogen bond activation by a structurally constrained phosphorus(Ⅲ) platform

Carbon-halogen bond activation by a structurally constrained phosphorus(Ⅲ) platform

PDF

Penglong Wang^a^,¹, Qin Zhu^a^,^b^,^c^,¹, Yi Wang^a, Guixiang Zeng^*^,^b, Jun Zhu^*^,^c, Congqing Zhu^*^,^a

Chinese Chemical Letters | 2021, 32(4) : 1432 - 1436

Less

Chinese Chemical Letters | 2021, 32(4): 1432-1436

• Communication •

Carbon-halogen bond activation by a structurally constrained phosphorus(Ⅲ) platform

Full

Penglong Wang^a^,¹, Qin Zhu^a^,^b^,^c^,¹, Yi Wang^a, Guixiang Zeng^*^,^b, Jun Zhu^*^,^c, Congqing Zhu^*^,^a

Affiliations

^a State Key Laboratory of Coordination Chemistry, Jiangsu Key Laboratory of Advanced Organic Materials, School of Chemistry and Chemical Engineering, Nanjing University, Nanjing 210093, China

^b Kuang Yaming Honors School, Institute for Brain Sciences, Nanjing University, Nanjing 210093, China

^c State Key Laboratory of Physical Chemistry of Solid Surfaces and Collaborative Innovation Center of Chemistry for Energy Materials (iChEM), and Department of Chemistry, College of Chemistry and Chemical Engineering, Xiamen University, Xiamen 361005, China

Published: 2021-04-15 doi: 10.1016/j.cclet.2020.11.005

Outline

Abstract

Less

The σ-bond activation by main group element has received enormous attention from theoretical and experimental chemists. Here, the reaction of C–X (X=Cl, Br, Ⅰ) bonds in benzyl and allyl halides with a pincer-type phosphorus(Ⅲ) species was reported. A series of structurally robust phosphorus(Ⅴ) compounds were formed via the formal oxidative addition reactions of C–X bonds to the phosphorus(Ⅲ) center. Density functional theory calculations show that the nucleophilic addition process is more favorable than the direct oxidative addition mechanism. Isomerization of bent structures of phosphorus(Ⅲ) compound to poorly nucleophilic compounds to undergo further C–X bond activation can be rationalized by frontier molecule orbital analysis. This study not only provides a deep understanding of the reactivity of phosphorus(Ⅲ) species but also demonstrates a potential of main group elements for the small-molecule activation.

Key words

Pincer ligand / Phosphorus / C—X bond activation / Main group element

Cite this Article

Penglong Wang, Qin Zhu, Yi Wang, Guixiang Zeng, Jun Zhu, Congqing Zhu. Carbon-halogen bond activation by a structurally constrained phosphorus(Ⅲ) platform[J]. Chinese Chemical Letters, 2021 , 32 (4) : 1432 -1436 . DOI: 10.1016/j.cclet.2020.11.005

Full Text

Less

Neutral tri-coordinate phosphorus (σ³-P) compounds are phosphorus compounds with a pyramidal structure, and have received significant attention due to their wide applications in synthetic chemistry [1-4]. Owing to the facile regulation of the steric and electronic properties, the lone pair of electrons and the π-accepting properties of the σ³-P compounds have played important roles as nucleophilic catalysts [5, 6]. In recent years, distorted geometry-constraining tridentate pincer-type phosphorus compounds have received great attention because of their ability to cleave covalent chemical bonds [7]. Research has demonstrated that the nontrigonal geometries of pincer-type phosphorus compounds (Ⅰ-Ⅳ in Fig. 1) are capable of O-H, N-H, B–H or B–O bond activation [8-14]. Significantly, rare examples of the catalytic hydrogenation of azobenzene and the hydroboration of imine have been realized by these novel tri-coordinate phosphorus catalysts [10a, e]. Density functional theory (DFT) calculations have shown that the phosphorus atom and the ligand both have a synergistic effect in this process [15]. Despite such remarkable progress in this area, the oxidative addition of a C–X bond to the phosphorus atom remains underdeveloped. Experiments show that C-Br bond activation in benzyl bromide can not occur in the presence of compound Ⅳ because of the poorly nucleophilic character [10c]. However, we herein report that a series of C(sp³)-X (X=Cl, Br and Ⅰ) bonds in benzyl and allyl halides are activated by Ⅲ via formal oxidative addition to the phosphorus center, leading to the formation of structurally robust phosphorus(Ⅴ) adducts that permit complete characterization.

As shown in Fig. 2, the reaction of benzyl iodine with phosphorus(Ⅲ) compound 1 in toluene solution proceeds slowly at room temperature, but after heating the mixture at 110 ℃ for 2 days, the³¹P NMR spectrum indicates quantitative conversion of 1 to a new product, 2a. The ³¹P NMR spectrum of 2a shows a triplet resonance at δ −58.6 (² J_PH = 14.6Hz), which collapses to a singlet upon proton decoupling. Furthermore, a doublet was observed at δ 4.27 in the ¹H NMR spectrum, which was attributed to the protons in the CH₂ of the benzyl. The structure of 2a was further confirmed by single-crystal X-ray diffraction. Under the similar conditions, other substituted benzyl iodine species, such as 4-methoxybenzyl iodide and ethyl alpha-iodophenylacetate, have been observed to react with 1 to give the corresponding penta-coordinate phosphoranes 2b and 2c, respectively, for which phosphorus resonances were observed at −57.4 and −62.4 ppm as a triplet and a doublet in their³¹P NMR spectra, respectively.

The activation of benzyl iodines by 1 encouraged us to investigate its reactivity towards other benzyl halide substrates. The benzyl bromide and benzyl chloride substrates were also found to undergo formal oxidative addition with 1 to give 2d-2i (Fig. 2). The presence of electron-withdrawing (2d) or electron-donating (2f and 2h) groups on benzyl did not inhibit the reactivity. Interestingly, only the C–X bonds of the benzyl were activated when aryl C–X bonds were contained in the same substrate (2e, 2g and 2i). The resonances of the ³¹P NMR spectra of the products were observed within a narrow range (−25.8 ~ −21.7 ppm for benzyl bromide and −9.7 ~ −6.8 ppm for benzyl chloride), and all of them collapse to a singlet upon proton decoupling, indicating that all adducts have a homologous structure.

The molecular structures of 2a, 2e and 2g were further confirmed by single-crystal X-ray diffraction. As shown in Fig. 3, the ONO ligand exhibits a planar conformation, and the phosphorus center adopts a trigonal bipyramidal geometry in all these compounds, with O1 and O2 occupying the axial vertices (τ=0.69, 0.74, and 0.67 for 2a, 2e and 2g, respectively) [16]. The bond angles of O1-P1-O2 in these series (171.1(3)°−175.66(1)°) were significantly larger than that observed in compound 1 (109.55(5)°) [11a]. The bond lengths of P1-N1 (1.696(3)-1.709(7) Å) in all species were clearly shorter than that observed in compound 1 (1.757(1) Å). However, both P1-O1 and P1-O2 (1.684(6)-1.705(1) Å) are significant longer than those found in compound 1 (1.659(1) and 1.652(1) Å, respectively). The lengths of the P1–C1 bond in these compounds are almost identical, ranging from 1.823(3) Å to 1.830(3) Å. The bond lengths of P1-X1 for 2a, 2e and 2g were 2.474(7), 2.235(2) and 2.059(1) Å, respectively, which are consistent with the decreasing atomic radius from Ⅰ to Br to Cl. The solid-state structures clearly show the formal oxidation addition products from compound 1 with benzyl halides. Therefore, the demonstration of C–X bond activation by a pincer-type phosphorus center was achieved by the reaction of benzyl halides with compound 1.

However, despite continued efforts, we could not activate the C–F bond by compound 1, which is probably due to the fact that the C–F bond has the highest bond dissociation energy in the series of C–X bonds [17]. This result was consistent with the DFT calculations, where the t-butyl groups on the ONO ligand were replaced with methyl groups to reduce computational costs (Fig. 4). We found that reaction barriers are too high to activate C–F bonds for both the direct oxidative addition and nucleophilic addition mechanisms. For the activation of other C–X bonds, our studies revealed that the nucleophilic addition pathways are preferred via Lewis acidic σ⁴-P⁺ intermediate, leading to the formation of penta-coordinate (σ⁵-P) final product. Specifically, the reaction barriers for the activation of C–I, C-Br and C-Cl are 17.8, 20.8 and 25.5kcal/mol, respectively, which are much lower than those via direct oxidative addition pathways (35.7, 36.4 and 41.6kcal/mol, respectively). The lowest reaction barrier for the activation of C–I bond was consistent with the experimental conditions with lower temperature. Moreover, transformation of Int1 to the final product is an intermolecular process (Fig. S1 in Supporting information).

Surprisingly, we found this reaction was initiated by the strained geometry 1′-bent transforms to the C symmetric planar geometry 1′-planar with endothermicity of 1.5kcal/mol. However, according to natural bond orbital (NBO) analysis [18], the lone pair in the phosphorus-based compound 1′-bent and 1′-planar are in a hybridization of sp^0.44 and sp^0.19, respectively, demonstrating the poor nucleophilicity of 1′-planar. In order to probe the origin of reaction mode by 1′-planar, we examined the frontier orbitals of 1′-bent and 1′-planar. As shown in Fig. 5, the p orbital of phosphorus in 1′-bent mainly resides in HOMO-4 (-8.08 eV), whereas the p orbital of phosphorus in 1′-planar mainly resides in HOMO-1 (-6.39 eV). Therefore, the HOMO orbital in 1′-planar could be one of the major factors contributing to the C–X bond activation.

Further DFT calculations show that the activation of C–X bonds in allyl halides by compound 1 is also possible (Fig. S3 in Supporting information). The reaction barriers for the activation of allyl halides are slightly higher than those of benzyl halides, which was further confirmed by the energy decomposition analysis (EDA) of the transition states [19]. In general, the reaction barrier contains the deformations of the reactants (Δ E_Deform(1′) and Δ E_Deform(C–X)) and binding of the deformed reactants (Δ E_b); thus Δ E(barrier) = Δ E_Deform(1′) + Δ E_Deform(C–X) + Δ E_b. As shown in Fig. 6, the binding energy (Δ E_b) provides the major contribution to the difference of those reaction barriers.

Therefore, treatment of compound 1 with allyl iodide leads to the formation of the C–I bond cleavage product 3a (Fig. 7). NMR showed that compound 1 was fully consumptive, leading to a characteristic penta-coordinate phosphorus resonance observed at δ −58.1 in the ³¹P NMR spectrum, which is consistent with the values observed for 2a-2c (ranging from −62.4 ppm to −57.4 ppm). Similar to compound 2, this signal showed a proton coupled multiplet that collapsed to a singlet after proton decoupling. The signal for the CH₂ protons of the allyl group in 3a was observed at 3.59 ppm as a doublet due to the coupling of the phosphorus. The C–I bonds in other allyl iodides with different substitutes (3b and 3c in Fig. 7) were also reacted with compound 1.

Under similar conditions, allyl bromide and allyl chloride were also found to undergo formal C–X bond oxidative addition with 1. As shown in Fig. 7, the substituted allyl bromide, such as 4-bromomethyl-5-methyl-1, 3-dioxol-2-one, methyl 4-bromocrotonate, and 3-bromocyclohexene, could react with compound 1 to form penta-coordinate phosphoranes 3d-3f in high yields. The ³¹P NMR resonances in each species were observed in the narrow range of −26.5 to −13.6 ppm, consistent with an analogous structure of penta-coordinate adducts 2d-2f (−25.8 ~ −21.7 ppm). In addition, the C-Cl bonds in allyl chloride with different substitutes or heterocycles (3g-3i) were also reacted by the phosphorus center in compound 1. The proton-coupled ³¹P NMR resonance (−12.1 ~ −7.6 ppm) was also observed for these adducts of allyl chloride with compound 1.

One of the solid-state structure of these products, 3f was further confirmed by single-crystal X-ray diffraction studies (Fig. 3). The general features on the phosphorus center were similar to those observed in compounds 2a, 2e and 2g. The bond lengths of P1-C1 and P1-Br1 were 1.840(3) Å and 2.257(8) Å, respectively, which are slightly longer than those found in 2e. These results confirm the formal oxidative addition of C-Br bonds to the phosphorus(Ⅲ) center in compound 1.

We concluded that the geometrically constrained phosphorus(Ⅲ) compound 1 can react with the C–X bonds (X=Cl, Br and Ⅰ) in benzyl halides and allyl halides, leading to the formation of penta-coordinate adducts. DFT calculations suggest that the nucleophilic addition pathway is more feasible than the direct oxidative addition mechanism. This study further demonstrates that pincer-type phosphorus(Ⅲ) can maintain the nucleophilic character, highlighting the wide application of geometrically constrained phosphorus(Ⅲ) as an effective reagent.

Declaration of competing interest

Less

The authors declare no competing financial interests.

Acknowledgments

Less

This research was supported by the National Natural Science Foundation of China (Nos. 21772088 and 21573179), the Natural Science Foundation of Jiangsu Province (No. BK20170635), the Young Elite Scientist Sponsorship Program of China Association of Science and Technology, the program of Jiangsu Specially-Appointed Professor and Shuangchuang Talent Plan of Jiangsu Province.

Appendix A. Supplementary data

Less

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2020.11.005.

References

Less

[1]

L. Horner, W. Jurgeleit, K. Klupfel, Liebigs Ann. Chem. 591(1955) 108-117.

[2]

R.F. Hudson, Structure and Mechanism in Organophosphorus Chemistry, Academic Press, New York, 1965.

[3]

(a) X. Lu, C. Zhang, Z. Xu, Acc. Chem. Res. 34 (2001) 535-544; (b) J.L. Methot, W.R. Roush, Adv. Synth. Catal. 346 (2004) 1035-1050; (c) L.W. Ye, J. Zhou, Y. Tang, Chem. Soc. Rev. 37 (2008) 1140-1152; (d) H. Guo, Y.C. Fan, Z. Sun, Y. Wu, O. Kwon, Chem. Rev. 118 (2018) 10049-10293; (e) G. Tao, Z. Duan, F. Mathey, Org. Lett. 21 (2019) 2273-2276; (f) L. Zhang, C. Liu, Z. Duan, F. Mathey, Eur. J. Inorg. Chem. (2017) 2504-2509; (g) R. Tian, H. Liu, Z. Duan, F. Mathey, J. Am. Chem. Soc. 131 (2009) 16008-16009.

[4]

(a) P.C.J. Kamer, P.W.N.M. van Leeuwen, Phosphorus(Ⅲ) Ligands in Homogeneous Catalysis: Design and Synthesis, Wiley, Hoboken, NJ, 2012; (b) V. Nair, R.S. Menon, A.R. Sreekanth, N. Abhilash, A.T. Biju, Acc. Chem. Res. 39 (2006) 520-530; (c) L.W. Ye, J. Zhou, Y. Tang, Chem. Soc. Rev. 37 (2008) 1140-1152.

[5]

D.G. Gilheany, Chem. Rev. 94(1994) 1339-1374.

[6]

(a) X. Lu, Y. Du, C. Lu, Pure Appl. Chem. 77 (2005) 1985-1990; (b) S.E. Denmark, G.L. Beutner, Angew. Chem. Int. Ed. 47 (2008) 1560-1638; (c) X. Zeng, Chem. Rev. 113 (2013) 6864-6900; (d) T. Wang, X. Han, F. Zhong, W. Yao, Y. Lu, Acc. Chem. Res. 49 (2016) 1369-1378.

[7]

(a) A. Brand, W. Uhl, Chem. Eur. J. 25 (2019) 1391-1404; (b) E. Coyle, C. O'Brien, Nat. Chem. 4 (2012) 779-780.

[8]

K. Lee, A.V. Blake, A. Tanushi, et al., Angew. Chem. Int. Ed. 58(2019) 6993-6998.

[9]

(a) S.A. Culley, A.J. Arduengo Ⅲ, J. Am. Chem. Soc. 106 (1984) 1164-1165; (b) A.J. Arduengo Ⅲ, C.A. Stewart, F. Davidson, et al., J. Am. Chem. Soc. 109 (1987) 627-647.

[10]

(a) N.L. Dunn, M. Ha, A.T. Radosevich, J. Am. Chem. Soc. 134 (2012) 11330-11333; (b) S.M. McCarthy, Y.C. Lin, D. Devarajan, et al., J. Am. Chem. Soc. 136 (2014) 4640-4650; (c) W. Zhao, S.M. McCarthy, T.Y. Lai, H.P. Yennawar, A.T. Radosevich, J. Am. Chem. Soc. 136 (2014) 17634-17644; (d) K.D. Reichl, N.L. Dunn, N.J. Fastuca, A.T. Radosevich, J. Am. Chem. Soc. 137 (2015) 5292-5295; (e) Y.C. Lin, E. Hatzakis, S.M. McCarthy, et al., J. Am. Chem. Soc. 139 (2017) 6008-6012; (f) T.V. Nykaza, T.S. Harrison, A. Ghosh, R.A. Putnik, A.T. Radosevich, J. Am. Chem. Soc. 139 (2017) 6839-6842; (g) T.V. Nykaza, A. Ramirez, T.S. Harrison, M.R. Luzung, A.T. Radosevich, J. Am. Chem. Soc. 140 (2018) 3103-3113; (h) A. Tanushi, A.T. Radosevich, J. Am. Chem. Soc. 140 (2018) 8114-8118; (i) T.V. Nykaza, J.C. Cooper, G. Li, et al., J. Am. Chem. Soc. 140 (2018) 15200-15205.

[11]

(a) T.P. Robinson, D.M. De Rosa, S. Aldridge, J.M. Goicoechea, Angew. Chem. Int. Ed. 54 (2015) 13758-13763; (b) T.P. Robinson, S.K. Lo, D. De Rosa, S. Aldridge, J.M. Goicoechea, Chem. Eur. J. 22 (2016) 15712-15724; (c) T.P. Robinson, D. De Rosa, S. Aldridge, J.M. Goicoechea, Chem. Eur. J. 23 (2017) 15455-15465.

[12]

(a) J. Cui, Y. Li, R. Ganguly, et al., J. Am. Chem. Soc. 136 (2014) 16764-16767; (b) J. Cui, Y. Li, R. Ganguly, R. Kinjo, Chem. Eur. J. 22 (2016) 9976-9985.

[13]

(a) A. Murillo, L.M. Chiquette, P. Joesphnathan, R. Contreras, Phosphorus Sulfur Silicon Relat, Elem. 53 (1990) 87-101; (b) M. Driess, N. Muresan, K. Merz, M. Päch, Angew. Chem. Int. Ed. 44 (2005) 6734-6737; (c) S. Volodarsky, R. Dobrovetsky, Chem. Commun. 54 (2018) 6931-6934; (d) A. Hentschel, A. Brand, P. Wegener, W. Uhl, Angew. Chem. Int. Ed. 57 (2018) 832-835.

[14]

Q. Zhu, P. Wang, J. Zhu, C. Zhu, G. Zeng, Inorg. Chem. 59(2020) 15636-15645.

[15]

(a) G. Zeng, S. Maeda, T. Taketsugu, S. Sakaki, J. Am. Chem. Soc. 138 (2016) 13481-13484; (b) G. Zeng, S. Maeda, T. Taketsugu, S. Sakaki, ACS Catal. 6 (2016) 4859-4870; (c) A. Pal, K. Vanka, Inorg. Chem. 55 (2016) 558-565; (d) G. Zeng, S. Maeda, T. Taketsugu, S. Sakaki, Angew. Chem. Int. Ed. 53 (2014) 4633-4637.

[16]

A.W. Addison, T.N. Rao, Van J. Rijn, G.C. Veschoor, J. Reedijk, J. Chem. Soc., Dalton Trans. (1984) 1349-1356.

[17]

J.E. Huheey, E.A. Keiter, R.L. Keiter, Inorganic Chemistry, 4th ed., HarperCollins College Publishers, New York, 1993.

[18]

E.D. Glendening, J.K. Badenhoop, A.E. Reed, et al., Natural Bond Orbital 7.0, Theoretical Chemistry Institute, University of Wisconsin, Madison, WI, 2013. http://nbo7.chem.wisc.edu/.

[19]

F.M. Bickelhaupt, K.N. Houk, Angew. Chem. Int. Ed. 56(2017) 10070-10086.

Appendix

Less

Year 2021 volume 32 Issue 4

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2020.11.005

Receive Date：2020-09-14
Online Date：2026-01-04
Published：2021-04-15

Article Data

Affiliations

History

Received：2020-09-14
Revised：2020-10-29
Accepted：2020-11-02

Affiliations

^a State Key Laboratory of Coordination Chemistry, Jiangsu Key Laboratory of Advanced Organic Materials, School of Chemistry and Chemical Engineering, Nanjing University, Nanjing 210093, China

^b Kuang Yaming Honors School, Institute for Brain Sciences, Nanjing University, Nanjing 210093, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2020.11.005

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

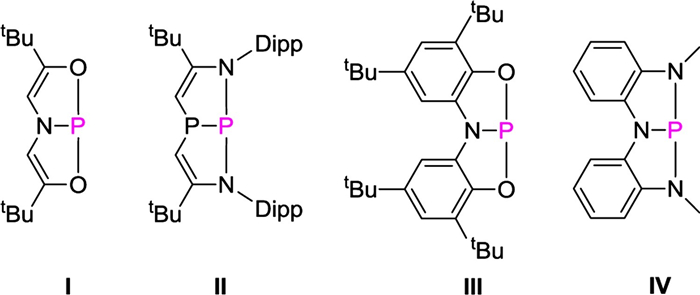

Fig. 1 Representative examples of pincer-type phosphorus compounds.

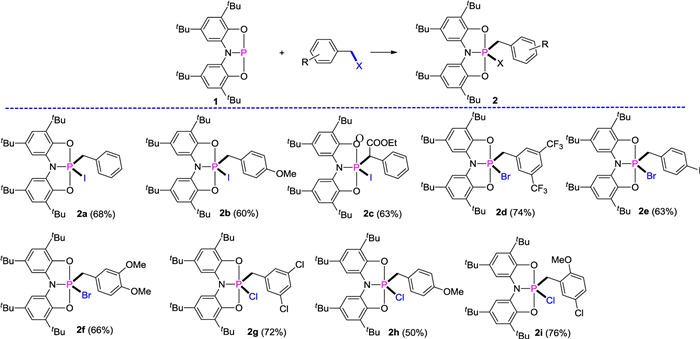

Fig. 2 Reactions of compound 1 with benzyl halides. The isolated yields are given in parentheses.

Fig. 3 Molecular structures of 2a, 2e, 2g and 3f (thermal ellipsoids shown at 50% probability). Hydrogen atoms and solvents were omitted for clarity.

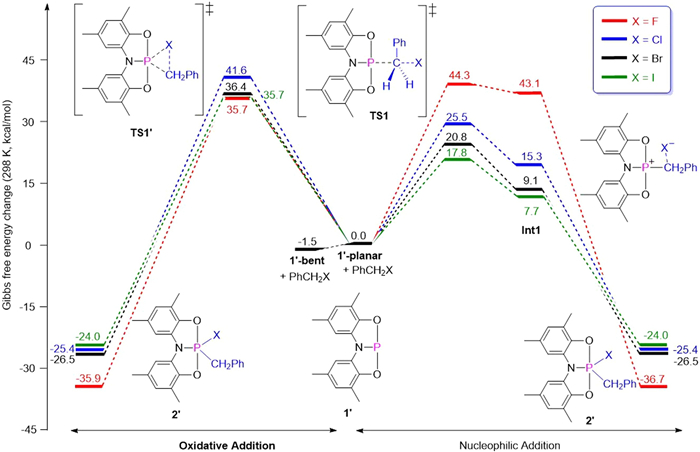

Fig. 4 Gibbs energy profiles for the activation of CX bonds by compound 1.

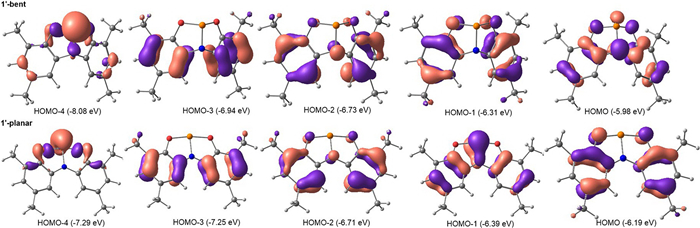

Fig. 5 Occupied key molecular orbitals for 1′-bent and 1′-planar.

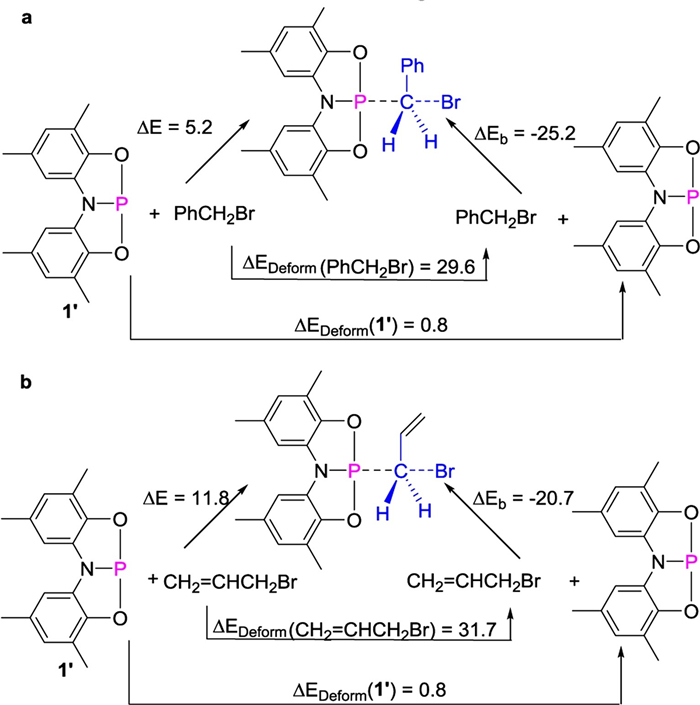

Fig. 6 EDA on the transition states of C-Br activation by 1′. The energies are given in kcal/mol.

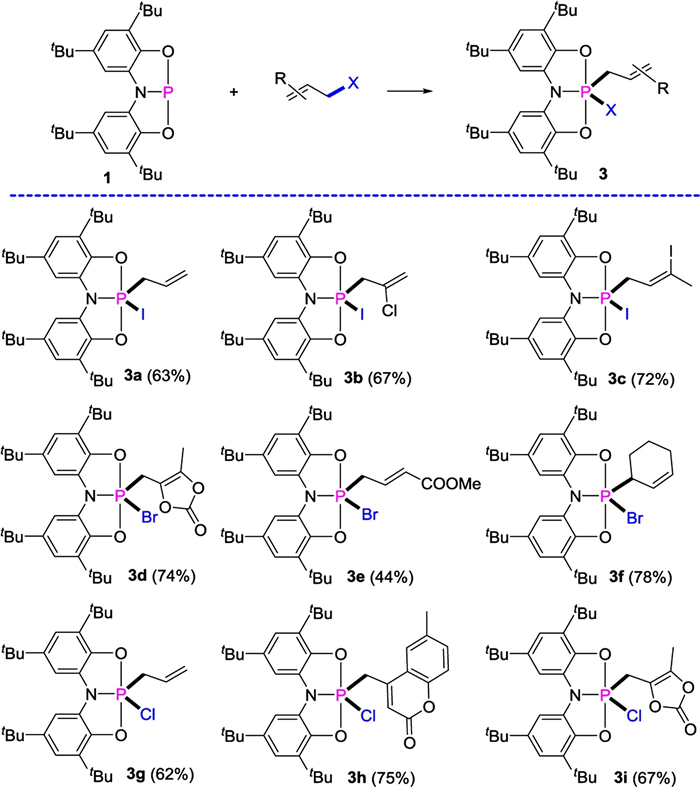

Fig. 7 Reactions of compound 1 with allyl halides. The isolated yields are given in parentheses.
