Efficient synthesis of novel macrocyclic hosts with unique structures and good host–guest properties is a permanent and challenging topic in the field of supramolecular chemistry [1-7]. During the last decade, considerable effort has been devoted to the development of macrocyclic molecular and a number of new macrocyclic receptors with novel properties have been reported, such as heterocalix[n]aromatics [8-10], pillar[n]arene [11-16], helicarenes [17-19], naphthotubes [20-24], Ex-box and Ex-cage [25-32], and others [33-37]. However, most of the reported macrocyclic hosts showed poor solubility and weak host–guest interactions in water. To develop a new macrocyclic molecule with good water solubility and molecular recognition properties not only helps us to understand and mimic the biological processes, but also enriches the toolbox of supramolecular chemists. Water soluble groups including sulfonate [38-40], carboxylate [41-43] and quaternary amine groups [44, 45] have been modified onto the macrocyclic hosts to increase their water solubility. These approaches often suffer from long synthetic steps and low yields, which restrict their further application in the complicated supramolecular self-assembly. Undoubtedly, it is important to develop novel water-soluble macrocyclic hosts that could be obtained in high yields and show good host–guest properties in water. Recently, Li and coworkers [46, 47] reported the efficient synthesis of water-soluble macrocyclic hosts using dynamic covalent chemistry (DCC) approach. In their method, both macrocycles and [2] catenanes could be obtained in high yields under the thermodynamic control. However, the purification of [2] catenanes need chromatographic. Previously, our group [42, 43] prepared a novel water-soluble cylindrical macrotricyclic host, and found that the host could bind two N-methylquinolinium salts to form 1:2 complexes in water. Inspired by these results, we deduced that whether we could find a new strategy to construct novel water-soluble macrocyclic host with significant host–guest properties in high yields.

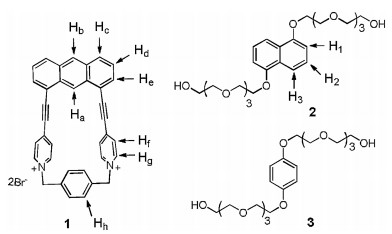

So far as we know, 1, 8-bis(4-pyridylethynyl)anthracene, which looks like a molecule "clip", has been used as donor building block to prepare trigonal prisms [48]. Thus, the anthracene-based "clip" could also serve as half part of a macrocycle and a macrocyclic host could be obtained when a suitable building block was introduced to this clip. Herein, we report the efficient synthesis of a novel water soluble macrocyclic host 1²⁺·2Br⁻ and its complexation with neutral guests in water. By the utilization of the anthracene-based "clip" to react with 1, 4-bis(bromomethyl)benzene, host 1²⁺·2Br⁻ can be obtain via simple filtration in a high yield of 82%. Moreover, it was found that host 1²⁺·2Br⁻ could form 1:1 complexes with guests 2 and 3 in water solution (Fig. 1). Interestingly, we discovered that host 1²⁺·2Br⁻ could only selectively accommodate naphthalene among a variety of polycyclic aromatic hydrocarbons in water. This selective host-guest recognition could be employed for the further removal of naphthalene from sewage.

Synthesis of host 1²⁺·2Br⁻ was outlined in Scheme 1. Compound 4 was first prepared according to the literature procedure [48]. By the reaction of 4 and commercially available 1, 4-bis(bromomethyl)benzene in acetonitrile at 90 ℃, host 1²⁺·2Br⁻ could be easily synthesized in 82% yield. Macrocyclic host 1²⁺·2Br⁻ showed moderate solubility in water, and its structure was confirmed by ¹H NMR, ¹³C NMR, HRMS spectra and crystal structure analysis (Supporting information).

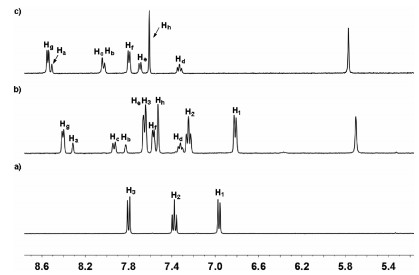

Firstly, the binding properties of host 1²⁺·2Br⁻ toward neutral guests 2 and 3 were investigated by ¹H NMR spectra in water solution. Unlike the previous results that reported by our group [43], after electron-poor host 1²⁺·2Br⁻ (4.0 mmol/L) and electron-rich guest 2 with 1:1 molar ratio were mixed in water, no obviously color change was observed. The similar phenomenon was also observed for the aqueous solution between host 1²⁺·2Br⁻ and guests 3. These results led us to doubt that whether host 1²⁺·2Br⁻ could form of complexes with guests 2 and 3. Consequently, the ¹H NMR experiments were carried out to further investigate the complexation between host 1²⁺·2Br⁻ and guest 2 in water. As shown in Fig. 2, the ¹H NMR spectrum of a 1:1 mixture of 1²⁺·2Br⁻ and 2 in D₂O showed a great difference with those for free host 1²⁺·2Br⁻ and free guest 2. Upfield shifts of the resonances of protons H₁, H₂ and H₃ corresponding to guest 2 were observed, which indicated that the naphthalene unit of 2 experienced a shielded magnetic environment in the aromatic cavity of 1²⁺·2Br⁻. Moreover, the signal of protons H_f and H_g in host 1²⁺·2Br⁻ also shifted upfield, implying that the electron-poor pyridine unit of 1²⁺·2Br⁻ was in shielded magnetic environment and a new complex 1·2 could be formed. Meanwhile, by increasing the amount of guest 2, the spectrum of complex 1·2 showed only one set of resonances, which indicated that the complexation and decomplexation between host 1²⁺·2Br⁻ and guest 2 were a fast exchange process on the NMR time scale at room temperature. The formation of complex 1·2 was also supported by 2D NOESY spectral experiment. As shown in the Fig. S4 (Supporting information), the clear correlation signals between protons H₁-H_g, H₂-H_g and the protons of crown ether units of host 1²⁺·2Br⁻ were observed, which was also consistent with the formation of complex 1·2. Moreover, ¹H NMR titrations and nonlinear fitting were then performed to quantitatively estimate the 1:1 binding manner between host 1²⁺·2Br⁻ and guest 2. Consequently, it was found that 1:1 complex 1·2 were formed by the mole ratio plot. The binding constant (K) of the complex 2⊂1²⁺·2Br⁻ was calculated to be 184±4 L/mol by the Scatchard plot [49]. By the counteranion exchange of 1²⁺·2Br⁻, we also prepared oil-soluble 1²⁺·2PF₆⁻ and investigated its complexation with 2 in MeCN. As shown in Fig. S3 (Supporting information), the ¹H NMR spectrum of the 1:1 mixture of 1²⁺·2PF₆⁻ and 2 was essentially the sum of the two components, indicating that no obvious complexation between 1²⁺·2PF₆⁻ and 2 occurred and the major driving force for the formation of 2⊂1²⁺·2Br⁻ in water could be hydrophobic interactions. In addition, the binding constant of the complex 3⊂1²⁺·2Br⁻ was measured to be around 64±2 L/mol in D₂O at 298 K. Compared to guest 2 containing a naphthalene unit, guest 3 has a smaller phenyl hydrophobic moiety, which accounted for its lower binding constant within host 1²⁺·2Br⁻.

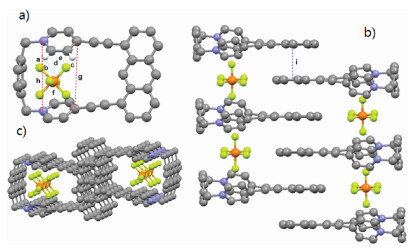

The attempts to obtain the single crystal of 2⊂1²⁺·2Br⁻ and 1²⁺·2Br⁻ were unsuccessful. Fortunately, a yellow single crystal of 1²⁺·2PF₆⁻ was obtained by slow vapor diffusion of ether to a solution of 1²⁺·2PF₆⁻ in CH₃CN, providing unambiguous evidence for the formation of 1²⁺·2Br⁻. As shown in Fig. 3a, the two pyridinium residues orientate in a face-to-face nanner and the distance between two N and C atoms of pyridinium residues are measured to be 5.812 Å (h) and 5.647 Å (g), indicating the moderate-sized cavity of host 1²⁺·2PF₆⁻. Interestingly, it was found that PF₆⁻ ion showed not only multiple CH···F hydrogen bonds but also anion···π interactions with pyridinium rings with the distance of 2.989 (d), 3.062 (e) and 3.159 (f), respectively. Moreover, π···π interaction between two anthracene groups of host 1²⁺·2PF₆⁻ with a distance of 3.846 Å (i) was also observed (Fig. 3b). Because of these multiple noncovalent interactions, the macrocyclic molecule 1²⁺·2PF₆⁻ could self-assemble to form a 1D tubular channel with PF₆⁻ ions inside the channels.

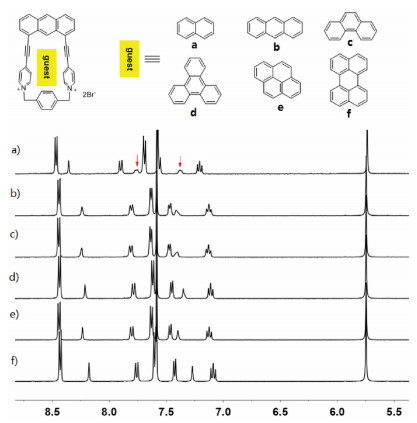

Inspired by the formation of complex 1·2 in water, we further investigated the capability of 1²⁺·2Br⁻ to accommodate a variety of polycyclic aromatic hydrocarbons in water. As shown in Fig. 4a, ¹H NMR spectroscopy revealed that 1²⁺·2Br⁻ can encapsulate naphthalene to formation of 1:1 complex. However, the formation of 1:1 complexes between 1²⁺·2Br⁻ and anthracene, phenanthrene, triphenylene, pyrene and perylene were not observed (Figs. 4b–f). These observations could be explained by the fact that host 1²⁺·2Br⁻ had a small cavity and could only recognize small polycyclic aromatic hydrocarbons such as naphthalene. However, because of the extremely poor solubility of naphthalene in water, the corresponding binding constants of host 1²⁺·2Br⁻ and naphthalene could not be determined. The highly selective binding behavior of host 1²⁺·2Br⁻ toward naphthalene could be further used for the separation of naphthalene from a variety of polycyclic aromatic hydrocarbons.

In conclusion, by taking advantage of anthracene-based "clip" structure, we developed an efficient approach to construct a water-soluble macrocycle and studied its binding ability toward neutral guests containing naphthalene or phenyl units in water. The formation of 1:1 complexes between host 1²⁺·2Br⁻ and 2 or 3 were confirmed by the ¹H NMR titrations experiment. Additionally, we demonstrated that the major driving force for the formation of 2⊂1²⁺·2Br⁻ or 3⊂1²⁺·2Br⁻ in water might be hydrophobic interactions. We further investigated its ability to host a variety of polycyclic aromatic hydrocarbons in aqueous solution. It was found that host 1²⁺·2Br⁻ could selectively encapsulate of naphthalene to formation of 1:1 complexes over a variety of polycyclic aromatic hydrocarbons. This highly selective accommodation hydrophobic guest in water could be explained by the fact that host 1²⁺·2Br⁻ had a relatively small hydrophobic cavity. The application of this novel water-soluble host for the separation of naphthalene from a variety of polycyclic aromatic hydrocarbons and removal of naphthalene from sewage, are underway in our laboratory.
