Fabrication of HRP/Bi2WO6 photoenzyme-coupled artificial catalytic system for efficiently degrading bisphenol A
收藏切换
PDF
Hongjun Donga, Ning Songa, Ming Yana, Huihui Wua, Haibo Zhanga, Changchang Mab, Yun Wanga, *
Chinese Chemical Letters | 2021, 32(6) : 2047 - 2051
Less
收藏切换
Chinese Chemical Letters | 2021, 32(6): 2047-2051
• Communication •
Fabrication of HRP/Bi2WO6 photoenzyme-coupled artificial catalytic system for efficiently degrading bisphenol A
Full
Hongjun Donga, Ning Songa, Ming Yana, Huihui Wua, Haibo Zhanga, Changchang Mab, Yun Wanga, *
Affiliations
  • a Advanced Chemical Engineering Laboratory of Green Materials and Energy of Jiangsu Province, Institute of Green Chemistry and Chemical Technology, School of Chemistry and Chemical Engineering, Jiangsu University, Zhenjiang 212013, China
  • b Department of Chemistry, Dongguk University, Seoul 04620, Republic of Korea
Published: 2021-06-15 doi: 10.1016/j.cclet.2020.11.015
Outline
收藏切换

A novel photoenzyme-coupled artificial catalytic system is fabricated by immobilizing horseradish peroxidase (HRP) on the Bi2WO6 hollow nanospheres via a facile electrostatic self-assembly process. The obtained Bi2WO6/HRP sample not only improves the visible light harvest ability but also promotes the high-efficiency separation of charge carriers. More importantly, the photogenerated electrons and produced H2O2 on Bi2WO6 directly take part in redox cycle reactions of HRP to induce photoenzyme synergic catalytic effect. In consequence, the degradation activity of Bi2WO6/HRP is significantly improved relative to Bi2WO6 and HRP for removing bisphenol A (BPA) under the visible light irradiation. This work launches a feasible design strategy for exploiting photoenzyme-coupled artificial catalytic system with special structure to degrade organic pollutants in water efficiently.

Photoenzyme-coupled  /  Synergistic catalytic effect  /  BPA degradation  /  Reaction mechanism
Hongjun Dong, Ning Song, Ming Yan, Huihui Wu, Haibo Zhang, Changchang Ma, Yun Wang. Fabrication of HRP/Bi2WO6 photoenzyme-coupled artificial catalytic system for efficiently degrading bisphenol A[J]. Chinese Chemical Letters, 2021 , 32 (6) : 2047 -2051 . DOI: 10.1016/j.cclet.2020.11.015
Full Text
Less
Organic wastewater pollution caused by industrial development has become increasingly severe so as to affect the survival of organisms and human health [1-4]. Up to now, many efforts have focused on reducing the harm caused by organic pollutants in wastewater by developing the photocatalysis and biocatalysis technologies. It is well known that the solar-driven photocatalysis process has the features of stable performance and no secondary pollution [5-9] and the biocatalysis process exhibits the high degradation efficiency and mild operating conditions [10]. Recently, fabricating photoenzyme-coupled artificial catalytic system has been regarded as novel potential promising strategy because it can produce synergistic catalytic effect between photocatalysis and biocatalysis, which has lately been evidenced as the effective heterogeneous catalytic reaction for organic pollutant degradation [11]. For instance, we prepared a photocatalyst/enzyme heterojunctionvia immobilizing horseradish peroxidase (HRP) on the surface of mesoporous graphitic carbon nitride [12], which exhibits the outstanding degradation activity and cycle stability for removing bisphenol A (BPA) in water. Zhang, et al. also fabricated integrated TiO2-HRP hybrid catalyst, which exhibited the prominent catalytic performance, reusability and thermostability for the degradation of 2, 4-dichlorophenol [13]. Therefore, fabricating photoenzyme-coupled artificial catalytic system has been expected to achieve high-efficiency catalytic performance for degrading the organic pollutants in water.
For immobilizing bio-enzyme on the photocatalyst surface to hold the enduring activity and stability, photocatalyst should meet a variety of conditions, such as low toxicity, fine biological compatibility, high chemical stability, etc. [14]. As one of the most attractive visible-light driven photocatalysts for degrading organic pollutants, Bi2WO6 has the superior intrinsic properties, such as unique layered structure, suitable energy band positions, high photothermal chemical stability and low toxicity [15-19]. More importantly, it is active for water oxidation to·OH and H2O2 under visible light irradiation, and H2O2 can act as accessory ingredient of enzyme catalytic reaction [20]. Therefore, Bi2WO6 can serve as an ideal candidate for immobilization of enzyme to fabricate the photoenzyme-coupled artificial catalytic system. It is reported that the Bi2WO6 hollow microsphere exhibits some obvious advantages owing to its unique hierarchical architecture composed of thin nanosheets [21]. For instance, it exhibits large specific surface area and outstanding permeation features, which is conducive to enzyme passing through surface abundant pore channels to complete inside and outside immobilization. Meanwhile, the thin Bi2WO6 nanosheet structure can generate a synergy of accommodating the volume swing and promoting the transport and separation of charge carriers [21]. Therefore, the Bi2WO6 hollow microsphere avails to induce the photoenzyme-coupled synergistic catalytic effect.
Herein, a novel photoenzyme-coupled artificial catalytic system was constructed based on HRP and Bi2WO6 hollow microspheres, in which the HRP was immobilized on the internal and external Bi2WO6 hollow microsphere. The as-prepared Bi2WO6/HRP sample distinctly improves visible light response ability and the separation efficiency of charge carriers, finally realizing the high-efficiency degradation of BPA in water.

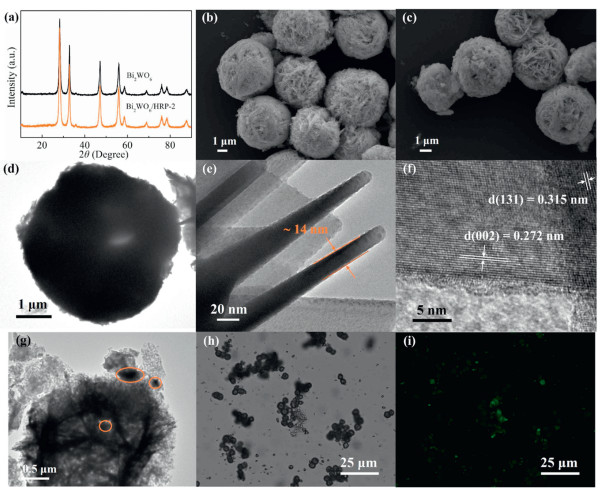

As X-ray diffraction (XRD) shown in Fig. 1a, the intense and sharp diffraction peaks of Bi2WO6 sample are produced, implying the identical crystalline phase Bi2WO6 with good crystallinity is obtained (JCPDS Card No. 73-1126) [22]. No diffraction peaks of HRP are appeared in XRD of Bi2WO6/HRP-2 sample, which is probably due to the trace loading. Moreover, scanning electron microscopy (SEM) image (Fig. 1b) exhibits that the Bi2WO6 sample has the high-uniform dispersion and the individual microsphere has a diameter of about 5 μm. The abundant pores are formed on Bi2WO6 sample owing to assembly of nanosheets, which can act as the transport channels in favor of enzymes and pollutant molecules diffusing into the hollow microsphere. It will enhance the immobilization of HRP on Bi2WO6 to improve the degradation activity and stability. In addition, the SEM image (Fig. 1c) shows the remained hollow microsphere architecture of Bi2WO6 after immobilizing HRP. Furthermore, as transmission electron microscopy (TEM) image spotted in Fig. 1d, the obvious brightness difference between edge and center of individual Bi2WO6 microsphere confirms the hollow structure feature. Besides, TEM image (Fig. 1e) further reveals that Bi2WO6 microsphere is assembled by thin nanosheets with thicknesses of about 14 nm. The thin nanosheet architectural feature can shorten the charge transfer distance perpendicular to nanosheet planes to improve the separation efficiency of charge carriers. High resolution TEM (HRTEM) image (Fig. 1f) shows the distinct lattice fringes with an interplanar spacing of 0.272 and 0.315 nm, which agrees well with the (002) and (131) lattice planes of Bi2WO6, respectively [23]. Moreover, For TEM image of Bi2WO6/HRP-2 sample shown in Fig. 1g, HRP is anchored on the external and interior of Bi 2WO6 hollow microsphere, which is also apparently confirmed by bright and fluorescence field images of laser scanning confocal microscope (LSCM) in Figs. 1h and i. The results above demonstrate the formation of Bi2WO6/HRP photoenzyme-coupled artificial catalytic system.

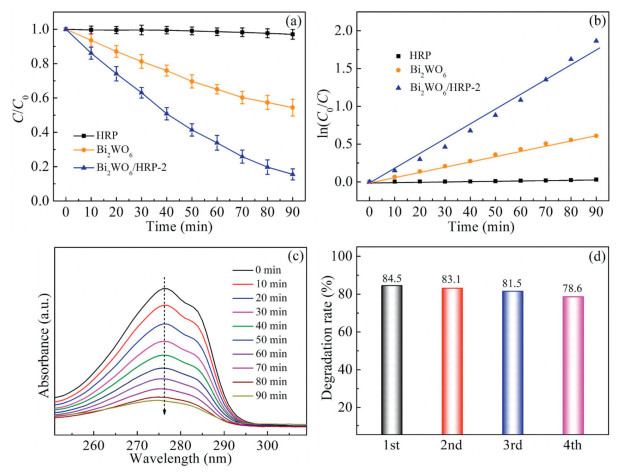

The photocatalytic activity of samples was evaluated by the degradation of BPA under the visible light irradiation. Firstly, we confirm that the Bi2WO6/HRP-2 sample has the optimal photodegradation performance when the mass fraction of HRP is 2% (Fig. S1 in supporting information). The degradation dynamic curves of BPA in Fig. 2a indicate that only 3% and 45.6% BPA is degraded over the HRP and Bi2WO6 sample within 90 min, respectively. In contrast, the degradation rate of BPA over the Bi2WO6/HRP-2 sample reaches up to 84.5%. Besides, the degradation kinetic curves of BPA can be approximated as a pseudo-first-order process and the plots of ln(C0/C) versus time are depicted in Fig. 2b, the fitting degradation rate constant of BPA over the Bi2WO6/HRP-2 (0.0193 min−1) is 2.8 and 64 times larger than that of Bi2WO6 (0.0070 min−1) and HRP (0.00003 min−1), respectively. Meanwhile, Fig. 2c displays that the absorbance of BPA solution gradually decreases with the degradation progression, forecasting that the benzene ring structure is completely decomposed into small molecule/ion products [24]. Moreover, the degradation rate of BPA (Fig. 2d) is still as high as 78.6% and the relative enzyme activity can maintain 55.9% after four cycles (Fig. S2 in Supporting information), indicating that the Bi2WO6/HRP-2 sample has the superior stability and recyclability.
Moreover, the possible produced intermediates are inferred by MS in the BPA degradation process. As shown in Fig. S3a (Supporting information), a strong signal is observed at m/z277 owing to releasing H+ from one phenolic hydroxyl group of BPA. After 60 min of degradation reaction, Fig. S3b (Supporting information) shows that the signal intensity at m/z277 decreases significantly and some new signals appeared at the low m/z values, where compound A is decomposed into B (m/z207), C (m/z188) and D (m/z149) by the ring-opening reaction of one benzene ring. And then compounds B, C and D are further degraded to E (m/z127), F (m/z116) and G (m/z110) through breaking long side chains and opening the double bonds in the benzene ring. Subsequently, compounds E, F and G further take place the ring-opening reaction to produce H (m/z 131) and I (m/z62), finally being decomposed into CO2 and H2O. When the degradation reaction prolongs to 90 min, all signal intensities in Fig. S3c (Supporting information) further decrease distinctly, which implies all the produced intermediates can be degraded and mineralized. Based on these analyses, the possible degradation intermediates and pathway of BPA are shown in Fig. S4 (Supporting information).

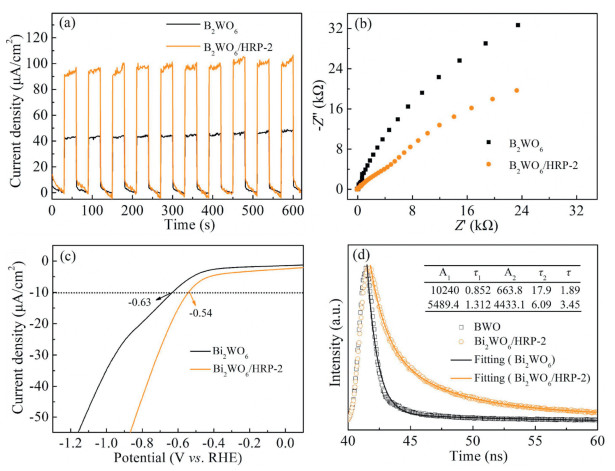

The optical absorption property of the samples is investigated via Uv-vis diffuse reflectance spectrum (UV-vis DRS) (Fig. S5 in Supporting information) [25]. The Bi2WO6/HRP-2 sample displays a slight red-shift of absorption edge and produces the obvious absorption in excess of 450 nm, which is in favor of the solar harvest and utilization. In addition, the band gap energy of Bi2WO6 decreases from 2.63 eV to 2.53 eV after immobilizing HRP, which suggests electrons are more easily excited from valence band (VB) to conduction band (CB) to enhance the photocatalytic activity. Meanwhile, the VB values of Bi2WO6 before and after immobilizing HRP can be calculated to be 3.02 eV and 2.97 eV, while corresponding CB values are 0.39 eV and 0.44 eV, respectively. Moreover, it is reported that photocurrent and electrochemical impedance spectroscopy (EIS) reflect the migration and separation ability of photogenerated electron-hole pairs [26-28]. As shown in Fig. 3a, the photocurrent intensity of the Bi2WO6/HRP-2 electrode is far higher than that of Bi2WO6, which indicates that the incorporation of HRP distinctly improves the interfacial charge separation efficiency and mobility. The Nyquist curve radius of the Bi2WO6/HRP-2 electrode is clearly smaller than that of Bi2WO6 (Fig. 3b), suggesting that the former possesses the lower charge migration resistance in interfacial electrolyte solution, in favor of enhancing photocatalytic degradation activity. Furthermore, as polarization curves shown in Fig. 3c, the overpotential of Bi2WO6/HRP-2 electrode (−0.54 V) at 10 mA/cm2 is distinctly smaller than that of Bi2WO6 (−0.63 V), which demonstrates that the incorporation of HRP effectively decreases the overpotential and thus fundamentally improves the photocatalytic degradation activity [29, 30]. Moreover, based on the time-resolved photoluminescence (TR-PL) decay plots (Fig. 3d), the fitted fluorescence lifetime (1.89 ns) of Bi2WO6/HRP-2 sample is obviously shorter than that of Bi2WO6 (3.45ns), which implies that the probable new nonradioactive decay way is produced to suppress recombination of photogenerated electrons and holes [31, 32]. These results indicate that the immobilization HRP on Bi2WO6 microsphere has a positive effect to improve the photocatalytic activity. Besides, the similar pore structure and specific surface areas of the Bi2WO6 and Bi 2WO6/HRP-2 samples (Fig. S6 in Supporting information) imply that they have insignificant effect on the photocatalytic activity, indirectly attesting that the enhanced degradation activity mainly originates from the photoenzyme synergic catalytic effect produced on the Bi2WO6/HRP-2 sample.

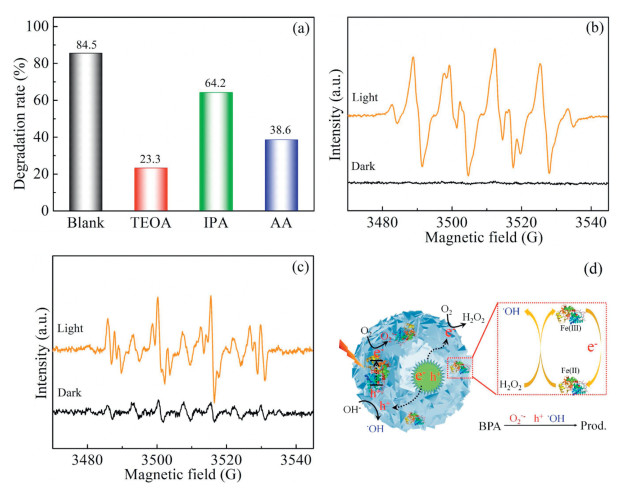

Triethanolamine (TEOA), ascorbic acid (AA) and isopropanol (IPA) act as scavengers of holes (h+), superoxide radical (O2·−) and hydroxyl radical (·OH) to investigate the photocatalytic degradation mechanism of BPA, respectively. As depicted in Fig. 4a, when TEOA and AA are added to the reaction system, the degradation rate of BPA decreases from blank 84.5%-23.3% and 38.6%, respectively. The strong inhibition effect manifests that h+ and O2·− are major active species involved in degradation reaction. In addition, the degradation rate of BPA also decreases to 64.2% in the presence of IPA, suggesting that ·OH also plays an important role. Moreover, the generated O2·− and ·OH active species are further detected by ESR spectra (Figs. 4b and c), in which the strong characteristic signals can be observed under the visible light illumination, further declaring O2·− and ·OH active species are produced in the BPA degradation process
On the base of discussions above, we propose the possible photoenzyme synergistic catalytic mechanism over the Bi2WO6/HRP sample in Fig. 4d. The photogenerated electrons and holes are firstly produced on the Bi2WO6/HRP sample and migrate to the surface under the visible light irradiation, respectively. It is reported that the one-electron reduction of O2 by electron on Bi2WO6 is not allowed in thermodynamics because the CB position (0.44 eV) of Bi2WO6 is more positive than reduction potential of O2/O2·− (−0.046 V vs. NHE), but the multiple electron reduction of O2 can be occurred easily owing to the more positive reduction potential of O2/H2O2 (−0.70 V vs. NHE) [20]. Therefore, the photogenerated electrons reduce O2 dissolved in water to produce H2O2 and O2·− on Bi2WO6 and HPR, respectively. Notably, Fe3+-porphyrin (oxidized state) in HRP can be reduced by photogenerated electrons to transform into reduction state, and H2O2 can oxidize Fe2+-porphyrin (reduction state) to recover oxidation state simultaneously and produce ·OH. As a result, ·OH is released continuously, which significantly improves the degradation performance. Meanwhile, ·OH can also be produced by reaction between h+ and OH− because the standard redox potential of OH−/·OH (2.3 V vs. NHE) is higher than VB position of Bi2WO6 (2.97 eV). Finally, hole, ·OH, and O2·− active species further oxidize BPA to CO2 and H2O. We have to point out that the Bi2WO6 hollow structure avails immobilization of HRP and diffusion of BPA molecule in and out of microsphere through the abundant pore channels, promoting the photoenzyme synergistic catalytic effect to improve degradation performance for removing BPA.
In summary, a photoenzyme-coupled artificial catalytic system Bi2WO6/HRP is prepared, in which HRP significantly enhances the visible light absorption ability and separation efficiency of charge carriers, in favor of improving the catalytic degradation activity. The optimal degradation rate constant of BPA over the Bi2WO6/HRP-2 sample reaches up to 0.0193 min−1, which is 2.8 and 64 times larger than that of Bi2WO6 (0.0070 min−1) and HRP (0.00003 min−1), respectively. The photocatalytic degradation mechanism indicates that h+, ·OH and O2·− all play the important roles in the process of degrading BPA, as well as the photogenerated electrons and produced H2O2 on Bi2WO6 can take part in the redox process of HRP to induce photoenzyme synergistic catalytic effect that results in the continuous release of ·OH to improve the catalytic degradation performance.
Declaration of competing interest
Less
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
Acknowledgments
Less
This work was supported by the NSFC-Shanxi Coal Based Low Carbon Joint Fund (No. U1810117), the National Natural Science Foundation of China (No. 52072153), the Natural Science Foundation of Jiangsu Province (No. BK20190867), the Open Project Program of Key Laboratory of Preparation and Application of Environmental Friendly Materials (Jilin Normal University) (No. 2019009), the Open Project Program of Key Laboratory of Groundwater Resources and Environment (Jilin University), Ministry of Education (No. 202005001KF), and the Young Talent Cultivate Programme of Jiangsu University (No. 4111310017).
Appendix A. Supplementary data
Less
Supplementary material related to this article can befound, in the online version, at doi: https://doi.org/10.1016/j.cclet.2020.11.015.
References
Less
[1]
S. Hu, Y. Yu, Y. Guan, et al., Chin. Chem. Lett. 31(2020) 2839-2842.
[2]
R. Mu, Y. Ao, T. Wu, C. Wang, P. Wang, J. Hazard. Mater. 382(2020) 121083.
[3]
A. Xie, J. Cui, J. Yang, et al., Appl. Catal. B: Environ. 264(2020) 118548.
[4]
L. Jing, Y. Xu, M. Xie, et al., Chem. Eng. J. 360(2019) 1601-1612.
[5]
Y. Xiao, Z. Peng, W. Zhang, Y. Jiang, L. Ni, Appl. Surf. Sci. 494(2019) 519-531.
[6]
M. Ren, Y. Ao, P. Wang, C. Wang, Chem. Eng. J. 378(2019) 122122.
[7]
Q. Wang, D. Astruc, Chem. Rev. 120(2020) 1438-1511.
[8]
M. Zhang, J. He, Y. Chen, et al., Chin. Chem. Lett. 31(2020) 2721-2724.
[9]
H. Dong, X. Zhang, J. Li, et al., Appl. Catal. B: Environ. 263(2020) 118270.
[10]
R. Zhang, L. Wang, J. Han, et al., J. Hazard. Mater. 383(2020) 121130.
[11]
H. Wang, W. Yang, X. Wang, et al., Sensor. Actuat. B: Chem. 304(2020) 127389.
[12]
H. Zhang, J. Wu, J. Han, et al., Chem. Eng. J. 385(2020) 123764.
[13]
X. Ji, Z. Su, M. Xu, G. Ma, S. Zhang, ACS Sustain. Chem. Eng. 4(2016) 3634-3640.
[14]
L. Wang, W. Zhi, D. Lian, et al., ACS Sustain. Chem. Eng. 7(2019) 14611-14620.
[15]
C. Li, G. Chen, J. Sun, et al., Appl. Catal. B: Environ 188(2016) 39-47.
[16]
J. Hu, D. Chen, Z. Mo, et al., Angew. Chem. Int. Ed. 58(2019) 2073-2077.
[17]
S. Cao, B. Shen, T. Tong, J. Fu, J. Yu, Adv. Funct. Mater. 28(2018) 1800136.
[18]
H. Shen, G. Liu, Y. Zhao, et al., Fuel 259(2020) 1163119.
[19]
H. Zhang, J. He, C. Zhai, M. Zhu, Chin. Chem. Lett. 30(2019) 2338-2342.
[20]
J. Sheng, X. Li, Y. Xu, ACS Catal. 4(2014) 732-737.
[21]
C. Li, G. Chen, J. Sun, et al., New J. Chem. 39(2015) 4384-4390.
[22]
T. Fei, L. Yu, Z. Liu, et al., J. Colloid Interf. Sci. 557(2019) 498-505.
[23]
X. Kong, T. Tong, B. Ng, et al., ACS Appl. Mater. Interfaces 12(2020) 26991-27000.
[24]
E. Jiang, N. Song, G. Che, et al., Chem. Eng. J. 399(2020) 125721.
[25]
R. Koutavarapu, B. Babu, C.V. Reddy, et al., J. Environ. Manage. 265(2020) 110504.
[26]
H. Liu, L. Li, C. Guo, et al., Chem. Eng. J. 385(2020) 123929.
[27]
H. Wang, J. Zhang, P. Wang, et al., Chin. Chem. Lett. 31(2020) 2789-2794.
[28]
D. Samanta, P. Basnet, T.I. Chanu, S. Chatterjee, J. Alloys Compd. 844(2020) 155810.
[29]
H. Dong, S. Hong, P. Zhang, et al., Chem. Eng. J. 395(2020) 125150.
[30]
H. Dong, M. Xiao, S. Yu, et al., ACS Catal. 10(2020) 458-462.
[31]
W. Tu, Y. Zhou, Q. Liu, et al., Adv. Funct. Mater. 23(2013) 1743-1749.
[32]
Y. Chen, J.F. Li, P.Y. Liao, et al., Chin. Chem. Lett. 31(2020) 1516-1519.
