Selective detection of Zn²⁺ and Cd²⁺ ions in water using a host-guest complex between chromone and Q[7]

Full

Zhishu Zeng, Yunqian Zhang, Xiaodong Zhang, Guangyan Luo, Jun Xie, Zhu Tao, Qianjun Zhang^*

Affiliations

Key Laboratory of Macrocyclic and Supramolecular Chemistry of Guizhou Province, Guizhou University, Guiyang 550025, China

Published: 2021-08-15 doi: 10.1016/j.cclet.2021.03.071

Outline

Abstract

Less

In this paper, the host-guest interaction of cucurbit[7]uril (Q[7]) and chromone (CMO) has been developed as a fluorescent probe for the highly selective detection of Zn²⁺ and Cd²⁺ in water based on a chelation-enhanced fluorescence (CHEF) mechanism. There was a good linear relationship between the fluorescence intensity of the CMO@Q[7] probe and the concentration of Zn²⁺ or Cd²⁺ in the range of 0–3.0 × 10^–5 mol/L and the detection limit for Zn²⁺ and Cd²⁺ was found to be 2.03 × 10^–6 mol/L and 1.89 × 10^–6 mol/L, respectively. The X-ray crystal structure indicated that different coordination fashions were triggered by Zn²⁺ and Cd²⁺ in the CMO@Q[7] complexes, respectively. However, both metal ions coordinated with the carbonyl oxygen of CMO, which was encapsulated in the cavity of Q[7], thus leading to the enhancement of recognition fluorescence emission of CMO.

Key words

Chromone / Cucurbit[7]uril / Host-guest interaction / Selective detection / Zn²⁺ and Cd²⁺

Cite this Article

Zhishu Zeng, Yunqian Zhang, Xiaodong Zhang, Guangyan Luo, Jun Xie, Zhu Tao, Qianjun Zhang. Selective detection of Zn²⁺ and Cd²⁺ ions in water using a host-guest complex between chromone and Q[7][J]. Chinese Chemical Letters, 2021 , 32 (8) : 2572 -2576 . DOI: 10.1016/j.cclet.2021.03.071

Full Text

Less

Chromone (CMO, Scheme 1), also known as benzo-γ-pyranone, is the parent of natural chromone compounds. Natural chromone compounds are a natural oxygen-containing heterocyclic compounds widely found in plants, which exhibit a variety of biological activities such as anti-inflammatory, antibacterial, anti-platelet, antiviral and anticancer [1-4] activities. CMO and its derivatives can also be used as colorimetric and fluorescent probes used for the effective detection of metal ions in an aqueous solution due to their special structures [5].

Cucurbit[n]urils, (Q[n]s, Scheme 1) are a new type of highly symmetrical barrel-shaped macrocyclic molecule with a large hydrophobic cavity and hydrophilic portals that can form host-guest complexes with a variety of metal cations or organic small molecules via hydrophobic interactions, hydrogen bonding and ion dipole non-bonding interactions, which exhibit unique host-guest chemistry [6-15] and coordination chemistry [16-19].

Zinc is the second largest transition metal ion after iron found in the human body, which plays an important role in many cell functions [20]. Many nervous system diseases, including Alzheimer's disease, cerebral ischemia and epilepsy, are associated with disorders in Zn²⁺ metabolism [21-23]. Cadmium is a heavy metal element with the highest biological toxicity, which has high chemical activity, high mobility and long-lasting toxicity in the environment. It is easy to endanger human health through its enrichment in the food chain [24]. The rapid, efficient and accurate detection of Zn²⁺ and Cd²⁺ in the human body and living environment has important application value for the protection of the environment and human health. At present, electrochemical methods, atomic absorption spectrometry and spectrophotometry are commonly used for the detection of Zn²⁺ and Cd²⁺ [25]. When compared with these traditional techniques, fluorescence spectroscopy has attracted a lot of attention due to its high selectivity and sensitivity, simple operation, real-time detection and no damage to the substrate [26-28]. Therefore, fluorescence detection has developed rapidly in recent years and has become a common analysis method in practical investigation [29-31].

In this work, CMO interacted with Q[7] in a neutral aqueous solution to produce a 1:1 inclusion complex (CMO@Q[7]). The inclusion complex had high selectivity and sensitivity for zinc and cadmium ion recognition in water. When zinc or cadmium ions were added, the fluorescence intensity at 364 nm increased, which was used as a fluorescent probe to quantitatively detect and monitor zinc and cadmium ions in the environment and life systems.

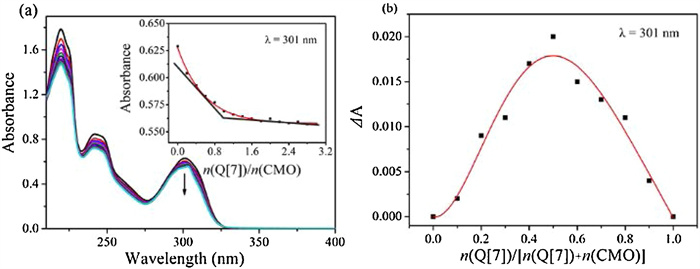

The interaction between Q[7] and CMO was first evaluated using UV–vis spectroscopy. The UV absorption spectrum of the interaction between CMO and Q[7] is shown in Fig. 1. CMO had strong absorption at 301 nm and the absorption intensity of CMO decreased upon increasing the concentration of Q[7]. The decrease in absorption was attributed to the host-guest interaction formed between CMO and Q[7]. In the molar ratio method, when n(Q[7])/n(CMO) approached 1.0 equiv., the UV absorption spectrum became steady and then there was almost no significant change. In the Job's method, when n(Q[7])/[n(Q[7])+n(CMO)]=0.5, the absorption value change reached its maximum, indicating that the ratio of CMO to Q[7] was 1:1.

Isothermal titration calorimetry (ITC) and mass spectrometry (MS) can also provide some evidence in regards to the interaction between CMO and Q[7] to support the determination of the binding constant (K). The ITC titration spectra and thermodynamic parameters obtained upon adding an aqueous solution of Q[7] (2.0 × 10^–3 mol/L) to an aqueous solution of CMO (1.0 × 10^–4 mol/L) at 25 ℃, indicated that the inclusion process of CMO and Q[7] was mainly driven by enthalpy at a molar ratio of 1:1 and K = 3.54 × 10⁵ L/mol (Fig. S1, Table S1 in Supporting information). MS showed that the parent ion peaks of the CMO@Q[7] complex was located at m/z 1309.3863 [M+H]⁺ (calcd. 1309.3876 [M+H]⁺) (Fig. S2 in Supporting information), supporting the formation of a 1:1 inclusion complex between CMO and Q[7].

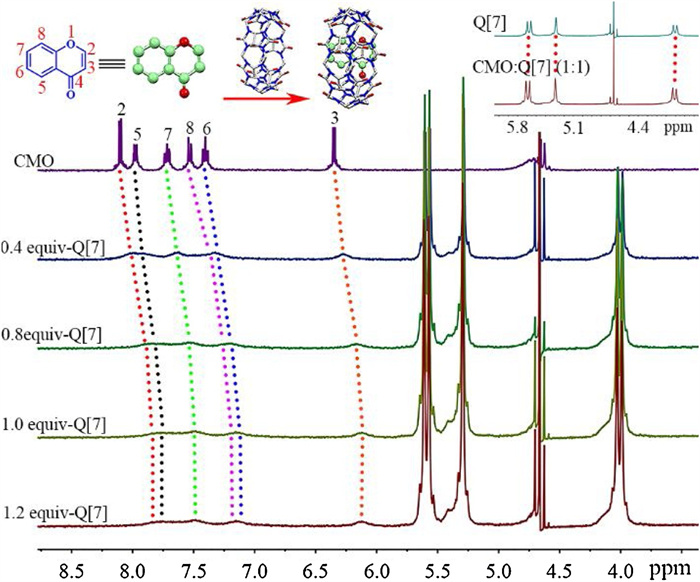

The interaction between Q[7] and CMO was further investigated using ¹H NMR spectroscopy. Fig. 2 and Table S2 (Supporting information) show the changes in the ¹H NMR spectra of CMO, in which all the proton resonance peaks of CMO underwent an upfield shift after the gradual addition of Q[7] in a deuterated aqueous solution. At the same time, after the host-guest interaction occurred, the resonance peak of Q[7] gradually shifted to a downfield (Fig. 2 upper right illustration). This indicated that CMO and Q[7] had a host-guest inclusion, and the whole CMO molecule entered the cavity of Q[7]. On the other hand, the addition of Q[7] caused the peaks observed for all the protons in CMO to broaden, which was due to the self-assembly and self-dissociation of the host-guest interactions occurring at the same time and the weak transition between them. The fluorescence titration results showed that the fluorescence intensity had no obvious change in the range of n(Q[7])/n(CMO) from 0 to 3.0 (Fig. S3 in Supporting information).

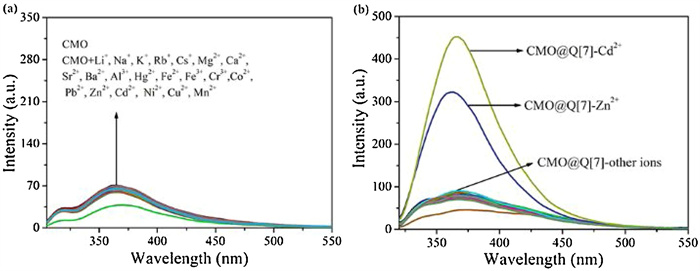

First of all, we needed to confirm whether metal ions had an effect on the fluorescence of the guest. Fig. 3a shows that CMO itself did not exhibit an obvious fluorescence change to the abovementioned metal cations. This result indicated that metal cations and free CMO were difficult to form complexes in aqueous solutions. In addition, the addition of the Q[7] to the CMO solution also did not cause significant fluorescence spectra changes (Fig. 3b). However, when various metal cations, such as Li⁺, Na⁺, K⁺, Rb⁺, Cs⁺, Mg²⁺, Ca²⁺, Sr²⁺, Ba²⁺, Al³⁺, Hg²⁺, Fe²⁺, Fe³⁺, Cr³⁺, Co²⁺, Pb²⁺, Zn²⁺, Cd²⁺, Ni²⁺, Cu²⁺, and Mn²⁺, were added to an aqueous solution of CMO@Q[7] (1:1), the results showed that the fluorescence intensity of CMO@Q[7] (1:1) was almost unaffected by the addition of other ions except Zn²⁺ or Cd²⁺ (Fig. 3b). Simultaneously, an increase in the absolute fluorescence quantum yield (QY) was observed for the CMO@Q[7]@Zn²⁺ and CMO@Q[7]@Cd²⁺ complexes (Table S3 in Supporting information). It was found that the QY of CMO@Q[7]@Zn²⁺ and CMO@Q[7]@Cd²⁺ were 2.25 and 2.67-fold stronger than CMO, respectively.

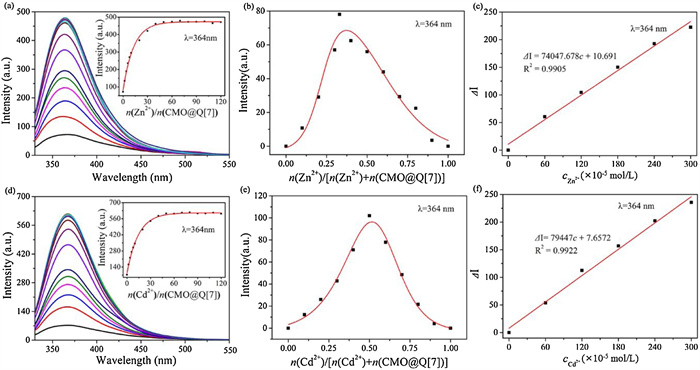

Consequently, CMO@Q[7] was applied toward the detection of Zn²⁺ and Cd²⁺ in aqueous solution. Upon the gradual addition of increasing concentrations of Zn²⁺ or Cd²⁺ to an aqueous solution of CMO@Q[7] (Fig. 4), the fluorescence titration spectra showed a linear increase trend within the Zn²⁺ or Cd²⁺ concentration range of 0–3.0 × 10^–3 mol/L at the maximum emission wavelength of 364 nm. The respective linear regression equations and correlation coefficients were ΔI=74047.678c + 10.691 and R²=0.9905 (Zn²⁺, Fig. 4c); ΔI=79447c + 7.6572 and R²=0.9922 (Cd²⁺, Fig. 4f). In addition, the limit of detection (LOD=3σ/slope) for Zn²⁺ and Cd²⁺ was 2.03 × 10^–6 and 1.89 × 10^–6 mol/L, respectively, based on a standard deviation of 0.05. In Figs. 4a and d, when n(Zn²⁺ or Cd²⁺): n(CMO@Q[7]) > 40, the increasing trend in the fluorescence intensity decreased and the fluorescence intensity gradually became stable. The Job's method was used to obtain the ratio of Zn²⁺ or Cd²⁺ to CMO@Q[7]. When n(Zn²⁺)/[n(Zn²⁺)+n(CMO@Q[7])]=0.33, the fluorescence intensity changed the most (Fig. 4b), indicating that the ratio of Zn²⁺ and CMO@Q[7] was 1:2, when n(Cd²⁺)/[n(Cd²⁺)+n(CMO@Q[7])]=0.5, the fluorescence intensity changed (Fig. 4e), indicating that the ratio of Cd²⁺ and CMO@Q[7] was 1:1.

In order to investigate the interference of other metal ions on the CMO@Q[7] probe during the detection of Zn²⁺ and Cd²⁺, aqueous solutions containing different metal ions with the same molar concentration were added to a solution of CMO@Q[7]@Zn²⁺ or CMO@Q[7]@Cd²⁺, and the fluorescence intensity measured (Fig. S4 in Supporting information). The results showed that the fluorescence intensity of the system was almost unaffected by the other ions except Cd²⁺ and Zn²⁺ when the CMO@Q[7]@Zn²⁺ or CMO@Q[7]@Cd²⁺ complex were mixed with the other metal ion. Therefore, metal ions did not interfere with the detection results.

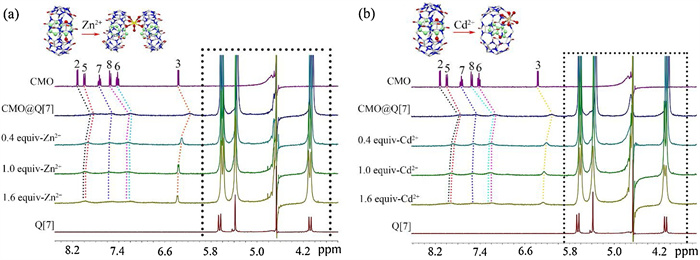

The mode of interaction between CMO@Q[7] and Zn²⁺ or Cd²⁺ was inferred using a ¹H NMR titration experiment. Fig. 5 shows the changes observed in the ¹H NMR spectra recorded for CMO@Q[7] after the addition of Zn²⁺ or Cd²⁺ in D₂O. Upon increasing the concentration of Zn²⁺ or Cd²⁺, the chemical shifts observed for the proton resonant peaks in CMO were continuously shifted downfield, especially the chemical shift corresponding to 3-H, which changed significantly, indicating that CMO was pulled to the portal of Q[7] from the Q[7] cavity by Zn²⁺ or Cd²⁺. At the same time, the proton resonance peaks in Q[7] also shifted upon the addition of Zn²⁺ or Cd²⁺ (Fig. S5 in Supporting information). It can be inferred that Zn²⁺ or Cd²⁺ combined with CMO@Q[7] to form stable host-guest-metal ion complexes. The MS results (Fig. S6 in Supporting information) showed the CMO@Q[7]@Zn²⁺ parent ion peak was located at m/z 1341.3410 M²⁺ (calcd. 1341.3452 M²⁺) and the CMO@Q[7]@Cd²⁺ parent ion peak was located at m/z 711.1404 M²⁺ (calcd. 711.1420 M²⁺), which indicated CMO@Q[7]@Zn²⁺ was a 2:2:1 complex and CMO@Q[7]@Cd²⁺ was a 1:1:1 complex.

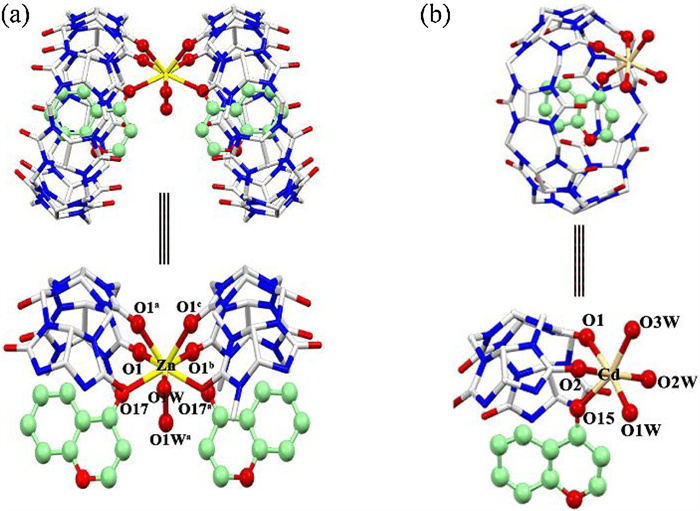

The coordination mode of CMO@Q[7] on Zn²⁺ or Cd²⁺ could be further explained by their crystal structures. Fig. 6 shows the crystal structure of the CMO@Q[7] probe with Zn²⁺ and Cd²⁺, and the crystal data and refined parameters are shown in Table S4 (Supporting information). Fig. 6a shows that in an asymmetric unit of crystal structure, the Zn²⁺ ion bridged two CMO@Q[7] to form a 1:2 complex [{Zn(H₂O)₂(CMO@Q[7])₂}²⁺{2Q[7], 8ClO₄⁻}]. An asymmetric unit contained one Zn²⁺, two CMO@Q[7] molecules, two uncoordinated Q[7] molecules and eight ClO₄⁻ anions. Zn²⁺ coordinates with eight oxygen atoms, four of which were derived from the carbonyl oxygen atoms (O1, O1^a, O1^b, O1^c) at the ports of Q[7] in two adjacent CMO@Q[7], two were derived from the carbonyl oxygen atoms (O17, O17^a) on the CMO molecules in the two adjacent Q[7] cavities and two were derived from two coordinated water molecules (O1W, O1W^a). Under the guidance of Zn²⁺, the carbonyl oxygen atom of CMO and the Q[7] port in CMO@Q[7] were directly coordinated with Zn²⁺ and the 3-H in the CMO molecule in the cavity of Q[7] was also moved to the port of Q[7] due to the addition of Zn²⁺.

Fig. 6b shows that the crystal structures of CMO@Q[7]@Cd²⁺ and CMO@Q[7]@Zn²⁺ were quite different. In the asymmetric unit of the crystal structure of CMO@Q[7]@Cd²⁺, Cd²⁺ and CMO@Q[7] formed a 1:1 complex [{Cd(H₂O)₃(CMO@Q[7])}²⁺{2ClO₄⁻}], that is, an asymmetric unit contained one Cd²⁺ and one CMO@Q[7] molecule, three coordination water molecules and two ClO₄⁻ anions. Cd²⁺ coordinates with six oxygen atoms, two of which were derived from the carbonyl oxygen atoms (O1, O2) in the port of Q[7] in CMO@Q[7] and one was derived from the CMO in the cavity of Q[7] due to the carbonyl oxygen atom (O15) in the molecule, and three derived from three coordinated water molecules (O1W, O2W, O3W). Under the guidance of Cd²⁺, the carbonyl oxygen atom of CMO and the Q[7] port in CMO@Q[7] were directly coordinated to Cd²⁺ and the 3-H on the CMO in the cavity of Q[7] was also moved to the port of Q[7] due to the addition of Cd²⁺. In the CMO@Q[7]@Zn²⁺ or Cd²⁺ systems, the counter anions (ClO₄^–) surrounded the Q[7] molecules via the outer surface interaction of Q[n]s (OSIQ) and created an electronegative environment, which is favorable for the coordination of Zn²⁺ or Cd²⁺ with the portal carbonyl oxygen atoms of Q[7] and the interaction distance was 3.042–3.610 Å (Fig. S7 in Supporting information).

The results showed that the fluorescence response of CMO@Q[7] toward Zn²⁺ or Cd²⁺ in neutral aqueous solution was due to their mutual coordination to form clathrates with an interaction ratio of 2:1 or 1:1. Because the carbonyl oxygen atom on the CMO contained lone pair of electrons and there was a PET process, which led to fluorescence quenching. When CMO and Q[7] formed the CMO@Q[7] complex, after adding Zn²⁺ or Cd²⁺, the carbonyl oxygen atom on the CMO and Q[7] were complexed with the Zn²⁺ or Cd²⁺, and the PET process of CMO was blocked, so that CMO emitted fluorescence. This process belonged to chelation fluorescence enhancement.

In summary, the CMO and Q[7] formed a 1:1 inclusion complex, which selectively recognized Zn²⁺ and Cd²⁺ in an aqueous solution. The crystal structure of CMO@Q[7]@Zn²⁺ showed a 2:2:1 complex and that of CMO@Q[7]@Cd²⁺ a 1:1:1 complex. In addition, the fluorescence emission of CMO@Q[7] was enhanced by metal ions was the result of a CHEF mechanism of Zn²⁺ and Cd²⁺ coordinate with the carbonyl oxygen of CMO, which was encapsulated in the cavity of Q[7]. As a result, the present work indicated that cucurbit[n]urils-assisted fluorophores can be used as fluorescent probe for cations in an aqueous solution via a CHEF mechanism.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgment

Less

The authors acknowledge the support from the Science and Technology Support Plan of Guizhou Province [Guizhou Science and Technology Cooperation Support (2020) 4Y218].

Appendix A. Supplementary data

Less

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2021.03.071.

References

Less

[1]

A. Gaspar, M.J. Matos, J. Garrido, E. Uriarte, F. Borges, Chem. Rev. 114 (2014) 4960–4992

[2]

J. Reis, A. Gaspar, N. Milhazes, F. Borges, J. Med. Chem. 60 (2017) 7941–7957

[3]

A. Farukh, A. Zeenat, R. Thierry, Rsc. Adv. 8 (2018) 37375–37390

[4]

L. Yoonji, B. Shaherin, C. Sun, J. Med. Chem. 61 (2018) 1–46

[5]

A. Mohammadi, B. Khalili, A.S. Haghayegh, Spectrochim. Acta A 222 (2019) 117193

[6]

J. Lagona, P. Mukhopadhyay, S. Chakrabarti, L. Isaacs, Angew. Chem. Int. Ed. 44 (2005) 4844–4870

[7]

W. Wu, S. Song, X.W. Cui, et al., Chin. Chem. Lett. 29 (2018) 95–98

[8]

S.K. Li, Y. Gao, Y.F. Ding, A.N. Xu, H.P. Tan, Chin. Chem. Lett. 32 (2021) 313-318

[9]

T. Zhang, Y.H. Liu, B.W. Hu, et al., Chin. Chem. Lett. 30 (2019) 949–952

[10]

L. Isaacs, Acc. Chem. Res. 47 (2014) 2052–2062

[11]

K.I. Assaf, W.M. Nau, Chem. Soc. Rev. 44 (2014) 394–418

[12]

X.L. Ni, S.Y. Chen, Y.P. Yang, Z. Tao, J. Am. Chem. Soc. 138 (2016) 6177–6183

[13]

K.D. Zhang, J. Tian, D. Hanifi, et al., J. Am. Chem. Soc. 135 (2013) 17913–17918

[14]

J. Liu, Y. Lan, Z. Yu, et al., Acc. Chem. Res. 50 (2017) 208–217

[15]

W. Liu, S.K. Samanta, B.D. Smith, L. Isaacs. Chem. Soc. Rev. 46 (2017) 2391–2403

[16]

M.N. Sokolov, D.N. Dybtsev, V.P. Fedin, Russ. Chem. B 52 (2003) 1041–1060

[17]

J. Lü, J.X. Lin, M.N. Cao, R. Cao, Coord. Chem. Rev. 257 (2013) 1334–1356

[18]

X.L. Ni, X. Xiao, H. Cong, et al., Chem. Soc. Rev. 42 (2013) 9480–9508

[19]

X.L. Ni, S.F. Xue, Z. Tao, et al., Coord. Chem. Rev. 287 (2015) 89–113

[20]

B.L. Vallee, K.H. Falchuk, Physiol. Rev. 73 (1993) 79–118

[21]

A.I. Bush, W.H. Pettingell, G. Multhaup, et al., Science 265 (1994) 1464–1467

[22]

J.Y. Koh, S.W. Suh, B.J. Gwag, et al., Science 272 (1996) 1013–1016

[23]

C.F. Walker, R.E. Black, Annu. Rev. Nutr. 24 (2004) 255–275

[24]

L. Noël, H.D. Céline, T. Guérin, et al., Biometals 19 (2006) 473-481

[25]

H. Xu, L.P. Zeng, D.K. Huang, Y.Z. Xian, L.T. Jin, Food Chem. 109 (2008) 834–839

[26]

Š. Milda, Š. Edmundas, B. Dalė, A. Dalia, Med. Chem. 51 (2015) 100–106

[27]

L.C. Weng, N.J. Lee, W.T. Yeh, L.T. Ho, W.H. Pan, J. Formos. Med. Assoc. 111 (2012) 651–659

[28]

Z. Liu, C.N. Peng, C.X. Guo, et al., Tetrahedron 71 (2015) 2736–2742

[29]

F. Mauro, F. Vieri, G. Luca, M. Mauro, Coordin. Chem. Rev. 256 (2012) 170–192

[30]

H.N. Kim, M.H. Lee, H.J. Kim, J.S. Kim, J. Yoon, Chem. Soc. Rev. 37 (2008) 1465–1472

[31]

K.G. Vinod, K.S. Ashok, M. Naveen, Electrochim. Acta 117 (2014) 405–412

Appendix

Less

Year 2021 volume 32 Issue 8

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.03.071

Receive Date：2020-12-29
Online Date：2026-01-04
Published：2021-08-15

Article Data

Affiliations

History

Received：2020-12-29
Revised：2021-03-24
Accepted：2021-03-25

Affiliations

Key Laboratory of Macrocyclic and Supramolecular Chemistry of Guizhou Province, Guizhou University, Guiyang 550025, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.03.071

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

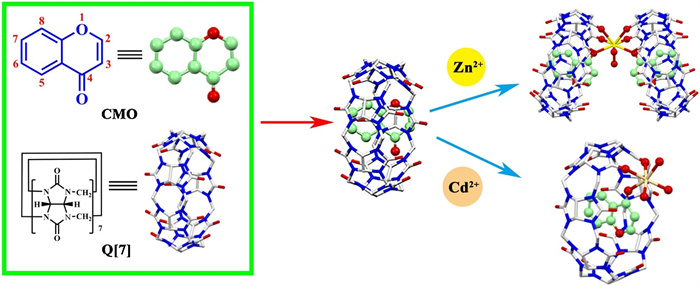

Scheme 1 The chemical structures of Q[7] and CMO and a schematic representation of the recognition of Zn²⁺ and Cd²⁺ in an neutral aqueous solution by CMO@Q[7].
