Flexibly regulated electrochemiluminescence of all-inorganic perovskite CsPbBr₃ quantum dots through electron bridge to across interfaces between polar and non-polar solvents

Full

Nan Hao*^,^a, Yu Qiu^a, Jinwen Lu^a, Xu Han^c, Yaqi Li^d, Jing Qian^a, Kun Wang*^,^a^,^b

Affiliations

^a School of Chemistry and Chemical Engineering, Jiangsu University, Zhenjiang 212013, China

^b Key Laboratory of Sensor Analysis of Tumor Marker, Ministry of Education, College of Chemistry and Molecular Engineering, Qingdao University of Science and Technology, Qingdao 266042, China

^c Science and Technology on Space Physics Laboratory, Beijing 10076, China

^d School of Grain Science and Technology, Jiangsu University of Science and Technology, Zhenjiang 212003, China

Published: 2021-09-15 doi: 10.1016/j.cclet.2021.01.029

Outline

Abstract

Less

All-inorganic perovskite quantum dots (QDs) have attracted great interests due to its outstanding properties. But their poor stability in polar solvents seriously hampered wide applications in analytical chemistry. In this work, strong, stable and flexibly regulated the electrochemiluminescence (ECL) emission form CsPbBr₃ QDs was successfully obtained and applied in the analysis of polar solvents through the unique structure of closed bipolar electrode (BPE). To demonstrate the feasibility, it was successfully used in the detection of tetracycline (Tc) aqueous solution. CsPbBr₃ QDs was immersed into organic solution in anode microcell of closed BPE while Tc aqueous solution was added into cathode microcell. The two microcells were physically separated and would not interfere with each other. But the bio-recognition event between aptamer and Tc in cathode microcell would induce the ECL signal change in anode microcell through the electrons conducted by BPE as the bridge. The ECL emission can be flexibly regulated by environmental factors of both polar and non-polar solvents and the interface status of the BPE. Compared with traditional methods to overcome the intrinsic instability in polar medium, the reported method does not need any further surface modifications, has no limitations on the targets and can provide wide development space for further deep research, which may open a new direction for the ECL sensing of CsPbBr₃ QDs.

Key words

Electrochemiluminescence / Perovskite / Quantum dots / Closed bipolar electrode / Tetracycline

Cite this Article

Nan Hao, Yu Qiu, Jinwen Lu, Xu Han, Yaqi Li, Jing Qian, Kun Wang. Flexibly regulated electrochemiluminescence of all-inorganic perovskite CsPbBr₃ quantum dots through electron bridge to across interfaces between polar and non-polar solvents[J]. Chinese Chemical Letters, 2021 , 32 (9) : 2861 -2864 . DOI: 10.1016/j.cclet.2021.01.029

Full Text

Less

All-inorganic cesium lead halide (CsPbX₃, X = Cl, Br, I) perovskite quantum dots (QDs) have been widely applied in optoelectronic and photovoltaic devices due to their superior optical/electronic performances [1, 2]. However, the application of these materials in the analysis field has rarely been reported due to the poor stability in the polar solvents [3, 4]. Considering most targets exist in aqueous system, a strong polar solvent, this instability is no doubt a great obstacle. To extend the application area, the most widely applied methods are to enhance the stability through the protection of nanospheres or ligands [5, 6]. But besides complex modification progress, the dispersity of CsPbX₃ QDs in water may be affected by the protection layer. Another method is to drive the target molecule to escape from aqueous solution into the non-polar solution containing CsPbX₃ QDs. For example, rat brain micro-dialysis solution containing hydrogen sulfide (H₂S) was added into to the phosphoric acid solution. H₂S gas was released and injected into n-hexane solution to quench the fluorescence of CsPbBr₃ QDs [7]. Obviously, this strategy is only feasible for some special targets.

As a novel emitter, the electrochemiluminescence (ECL) performance of perovskite nanocrystals (NCs) has also been explored [8-11]. Zhu's group [11] researched the ECL emission of CsPbBr₃ QDs thin films in organic solution, and the study showed that the ECL efficiency was five times higher than the classical Ru(bpy)₃²⁺/tri -n-propylamine(TPrA) system. For the application in aqueous system, CsPbBr₃ QDs and coreactant are encapsulated into SiO₂ matrix, which provides an efficient method to obtain stable ECL emission [12]. Being protected by SiO₂ shell, CsPbBr₃ QDs are isolated from polar solvents. But the interactions between CsPbBr₃ QDs and other environmental factors to regulate the ECL performance are also inevitably affected. For example, the electrical signal is critical to excite ECL emission while SiO₂ shell has a low conductivity. The strategy that simultaneously satisfy the requirement of stability, strength and flexible regulation of the ECL biosensing based on CsPbX₃ QDs has not been well developed. Bipolar electrode (BPE) technology is a promising tool in electrochemistry, which allows the remote control of electrical field applied to the electrode without the direct connection with power supply [13-15]. Unlike traditional three-electrode system, the electrochemical oxidation and reduction reactions occur at the two ends of the BPE. The cathodic and anodic ends can be immersed into one solution (open BPE) or two physically separated solutions (closed BPE). Because of the unique structure and great flexibility of closed BPE, many researches have been conducted in previous works, which is also an ideal platform for the application of CsPbX₃ QDs.

Tetracycline (Tc) is a widely used broad-spectrum antibiotic [16-19]. The excessive use of tetracycline will lead to many residues in animal products, and the remaining of hazardous materials in the food chain is a great threaten to human health [20, 21]. In this work, a novel closed BPE system using the stable and strong ECL performance of all-inorganic perovskite CsPbBr₃ QDs has been constructed for sensitive detection of Tc as a proof of concept experiment. Through the electrons conducted by the BPE as the bridge, the quantitative detection of Tc aqueous solution in the cathode reaction cell was successfully achieved by recording the ECL intensity of CsPbBr₃ immersed under organic solution at the anode cell of the closed BPE. The ECL emission can be flexibly regulated by environmental factors of both polar and non-polar solvents and the interface status of the BPE, which affords wide space for the further deep research and improvement on the ECL performance of CsPbBr₃ QDs.

The detection of the closed BPE is based on the principle of conservation of charge [22-24]. In this work, anode and cathode microcells of the fabricated BPE chip were modified with the luminescent reagent CsPbBr₃ QDs and Tc aptamer respectively. CsPbBr₃ QDs film in the anode microcell was immersed into organic electrolyte solution while the cathode microcell was filled with PBS aqueous solution. When an enough voltage was applied on the BPE, a stable and strong ECL emission of CsPbBr₃ could be excited with the dual enhancement of TPrA and H₂O₂. But the aptamer in the cathode cell would enhance the steric hindrance of the electrode interface and prevent electron transfer, resulting in a sharp drop in ECL strength [25]. After the addition of Tc molecules, it would bind with the aptamer and the aptamer was detached from the sensing interface, and the ECL signal was restored [26] The change of the ECL intensity was proportional to the concentration of Tc. So the quantitation of targets in the aqueous solution could be obtained through the ECL signal generated in the organic medium, the assembly process was shown in Scheme 1.

The detailed information about the reagents, apparatus, the preparation of CsPbBr₃ QDs, and the fabrication process of BPE are provided in the Supporting information. The well dispersed uniform cubic CsPbBr₃ QDs of approximately 10 nm were observed in the transmission electron microscopy (TEM) image. And the solution generated bright green light emission under ultraviolet light, indicating the successful preparation (Fig. S1 in Supporting information).Fig. 1 presents the ECL responses of perovskite QDs modified bipolar electrodes under different experiment conditions. When the anode and cathode microcell were only CsPbBr₃ QDs/organic electrolyte solution and PBS solution respectively, the ECL intensity was about 1000 (Fig. 1, curve a). After adding the co-reactant TPrA into the anode microcell, TPrA can be oxidized to TPrA⁺^null and then produced TPrA^null, which can inject electrons into the LUMO of CsPbBr₃ QDs to produce anion radicals, which then reacted with the oxidized cation radicals and generated unstable excited substances ([CsPbBr ₃]*). The relaxation of excitation state to the ground state produced 5 times enhanced ECL emission (Fig. 1, curve b) [27, 28]. After adding a certain amount of H₂O₂ in the cathode microcell, the ECL intensity was further enhanced to about 10 times (Fig. 1, curve c). The reduction of H₂O₂ can promote the electron transport, thus making the oxidation reaction of CsPbBr₃ QDs more complete. Through adjusting the environmental factors of both polar and non-polar solvents, the ECL performance was greatly improved [29, 30].

Under optimized experimental conditions (Figs. S2 and S3 in Supporting information), CsPbBr₃ QDs showed excellent and stable ECL intensity with the presence of TPrA and H₂O₂ (Fig. 2A, curve a). When the aptamer was immobilized on the surface of the cathode reaction cell (Fig. 2A, curve b), the ECL intensity decreased sharply. After adding Tc solution (Fig. 2A, curve c), the ECL intensity increased immediately. To study the fixation and detachment of the aptamer, electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV) were used to monitor the connection between the aptamer and GO and the process of detachment from the electrode surface after introducing Tc. In Fig. 2B, R_et (electron-transfer resistance) increased significantly from 500 Ω to 3000 Ω after the modification of aptamer, indicating that the aptamer was successfully assembled on the ITO surface through a non-covalent bond connection with GO. Then the impedance decreased after adding Tc solution due to the desorption of the Tc-aptamer complex from the BPE. As shown in Fig. S4 (Supporting information), the current change during the assembly process was opposite to the impedance change. All these results indicated that the proposed ECL aptasensor has been successfully prepared and can be used for the detection of Tc.

Fig. 3A shows the ECL response of aptamer sensors at different concentrations of Tc solutions. The ECL signal gradually increased with increasing Tc concentration due to the release of more Tc-aptamer complexes. A good linear relationship was obtained between the ECL intensity of the aptasensor and the logarithm of the Tc concentration in the range of 1 nmol/L and 1 mmol/L (R² = 0.9954) (Fig. 3B). In addition, the detection limit was estimated to be 0.33 nmol/L (S/N = 3). As shown in Fig. S5 (Supporting information), the selectivity, reproducibility and stability of this ECL aptasensing system were explored. After adding 100 nmol/L of various antibiotics solutions (pH 7.4), including ampicillin, oxytetracycline, chloramphenicol, and streptomycin, only Tc caused significant enhancement of ECL intensity, showing the good selectivity and anti-interference ability. No significant signal changes occurred and the calculated relative standard deviation (RSD) was 6.33% under 5 times test, indicating relatively good stability performance. This biosensor was further applied in the detection of milk samples with a good recovery ranging from 98.4%–102.7%, and the RSD were less than 7.6% (Table S1 in Supporting information).

In summary, we explored the flexibly regulated ECL performance of CsPbBr₃ QDs based on the closed BPE system. Through adjusting the polar solvent in anode microcell, the non-polar solvent in cathode microcell and the interface status of BPE, a stable and strong ECL from CsPbBr₃ QDs was achieved and applied in the detection of Tc in aqueous solution. Compared with traditional methods to overcome the intrinsic instability of perovskite QDs in polar medium, the reported method doesn't need any further surface modifications, has no limitations on the targets and can provide wide development space for further deep research, which may open a new direction for the ECL sensing of CsPbBr₃ QDs.

Declaration of competing interest

Less

We declare that we have no financial and personal relationships with other people or organizations that can inappropriately influence our work.

Acknowledgments

Less

We acknowledge the financial support from the National Natural Science Foundation of China (Nos. 21876068, 21705059 and 21675066). Project of Faculty of Agricultural Equipment of Jiangsu University (No. NZXB20200210).

Appendix A. Supplementary data

Less

Supplementarymaterial related to this article can befound, in the online version, at doi:https://doi.org/10.1016/j.cclet.2021.01.029.

References

Less

[1]

L. Protesescu, S. Yakunin, M.I. Bodnarchuk, et al., Nano Lett. 15(2015) 3692-3696.

[2]

A. Swarnkar, V.K. Ravi, A. Nag, ACS Energy Lett. 2(2017) 1089-1098.

[3]

F. Palazon, Q.A. Akkerman, M. Prato, et al., ACS Nano 10(2016) 1224-1230.

[4]

M. Saliba, T. Matsui, K. Domanski, et al., Science 354(2016) 206-209.

[5]

Y. Cao, W. Zhu, H. Wei, et al., Anal. Chem. 92(2020) 4123-4130.

[6]

H. Peng, W. Wu, Z. Huang, et al., Electrochem. Commun 111(2020) 106667.

[7]

C. Chen, Q. Cai, F. Luo, Anal. Chem. 91(2019) 15915-15921.

[8]

Z. Cai, F. Li, W. Xu, et al., Nano Res. 11(2018) 1447-1455.

[9]

Y. Huang, M. Fang, G. Zou, et al., Nanoscale 8(2016) 18734-18739.

[10]

Y. Huang, X. Long, D. Shen, et al., Inorg. Chem. 56(2017) 10135-10138.

[11]

J. Xue, Z. Zhang, F. Zheng, et al., Anal. Chem. 89(2017) 8212-8216.

[12]

L. Li, Z. Zhang, Y. Chen, et al., Adv. Funct. Mater. 29(2019) 1902533.

[13]

A. Arora, J.C.T. Eijkel, W.E. Morf, et al., Anal. Chem. 73(2001) 5633-5633.

[14]

L. Koefoed, S.U. Pedersen, K. Daasbjerg, Curr. Opin. Electrochem. 2(2017) 13-17.

[15]

O. Phuakkong, M. Sentic, H. Li, et al., Langmuir 32(2016) 12995-13002.

[16]

M.H. Khan, H. Bae, J. -Y. Jung, J. Hazard. Mater. 181(2010) 659-665.

[17]

W. Yang, F. Zheng, Y. Lu, et al., Ind. Eng. Chem. Res. 50(2011) 13892-13898.

[18]

L. Zhou, D.J. Li, L. Gai, et al., Sens. Actuator B: Chem. 162(2012) 201-208.

[19]

X.D. Zhu, Y.J. Wang, R.J. Sun, et al., Chemosphere 92(2013) 925-932.

[20]

L. Long, Y. Han, X. Yuan, et al., Food Chem. 331(2020) 127359.

[21]

J. Qian, H. Cui, X. Lu, et al., Chem. Eng. J. 401(2020) 126017.

[22]

X. Lin, L. Zheng, G. Gao, et al., Anal. Chem. 84(2012) 7700-7707.

[23]

S. Wu, Z. Zhou, L. Xu, et al., Biosens. Bioelectron. 53(2014) 148-153.

[24]

X. Zhang, C. Chen, J. Li, et al., Anal. Chem. 85(2013) 5335-5339.

[25]

K. Yan, Y. Liu, Y. Yang, et al., Anal. Chem. 87(2015) 12215-12220.

[26]

H.M. Meng, H. Liu, H. Kuai, et al., Chem. Soc. Rev. 45(2016) 2583-2602.

[27]

S. Deng, H. Ju, Analyst 138(2013) 43-61.

[28]

X. Tan, B. Zhang, G. Zou, J. Am. Chem. Soc. 139(2017) 8772-8776.

[29]

L. Bouffier, S. Arbault, A. Kuhn, et al., Anal. Bioanal. Chem. 408(2016) 7003-7011.

[30]

N. Hao, J. Lu, Z. Dai, et al., Electrochem. commun. 108(2019) 106559.

Appendix

Less

Year 2021 volume 32 Issue 9

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.01.029

Receive Date：2020-10-15
Online Date：2026-01-04
Published：2021-09-15

Article Data

Affiliations

History

Received：2020-10-15
Revised：2020-12-03
Accepted：2021-01-15

Affiliations

^a School of Chemistry and Chemical Engineering, Jiangsu University, Zhenjiang 212013, China

^b Key Laboratory of Sensor Analysis of Tumor Marker, Ministry of Education, College of Chemistry and Molecular Engineering, Qingdao University of Science and Technology, Qingdao 266042, China

^c Science and Technology on Space Physics Laboratory, Beijing 10076, China

^d School of Grain Science and Technology, Jiangsu University of Science and Technology, Zhenjiang 212003, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.01.029

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

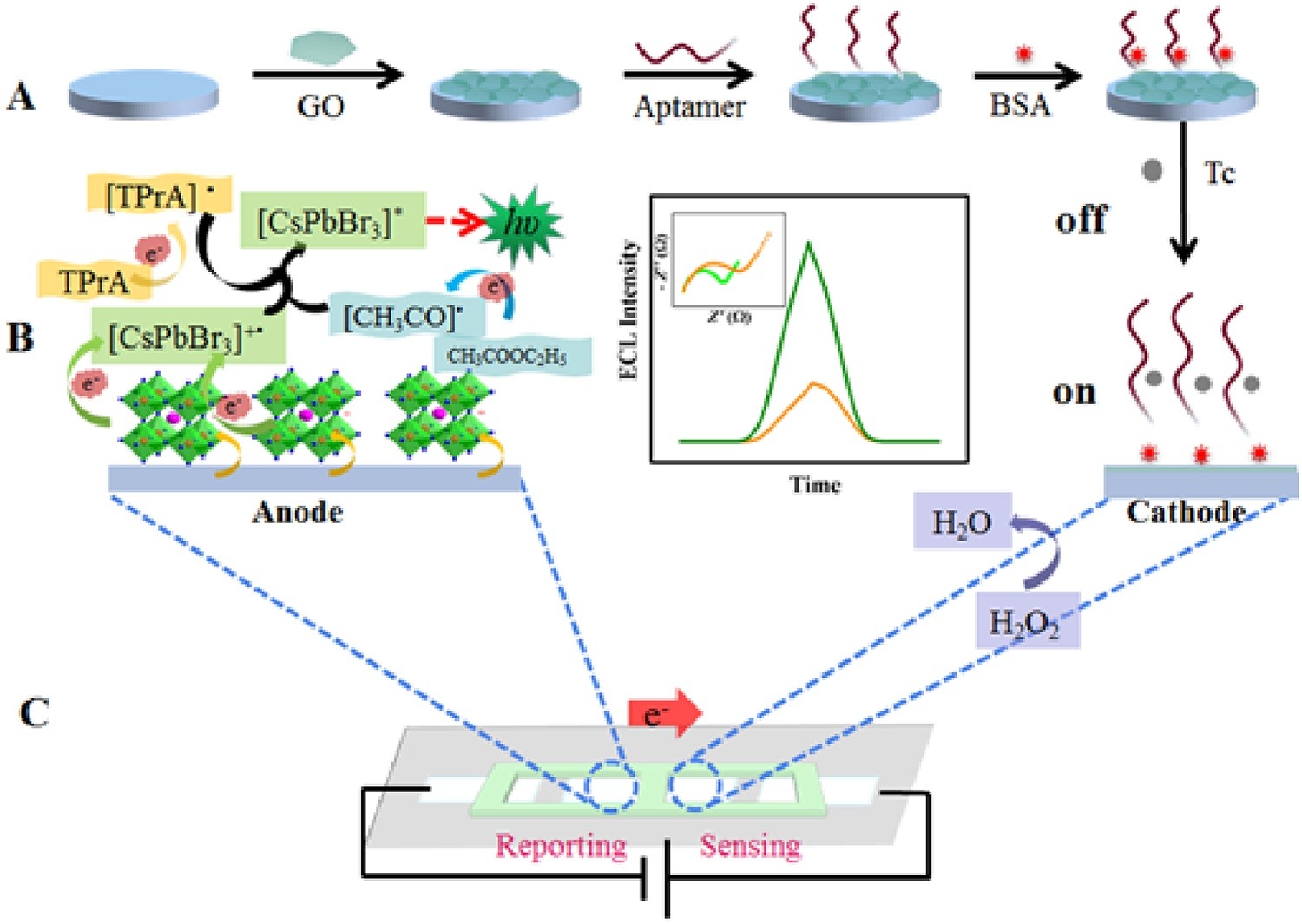

Scheme 1 The processes of constructing the ECL aptasensor for tetracycline detection. (A) Schematic diagram of the assembly process of the sensing cell. (B) Schematic diagram of ultrasensitive detection of Tc, and (C) schematic diagram of the BPE with the 3D printed microcell.

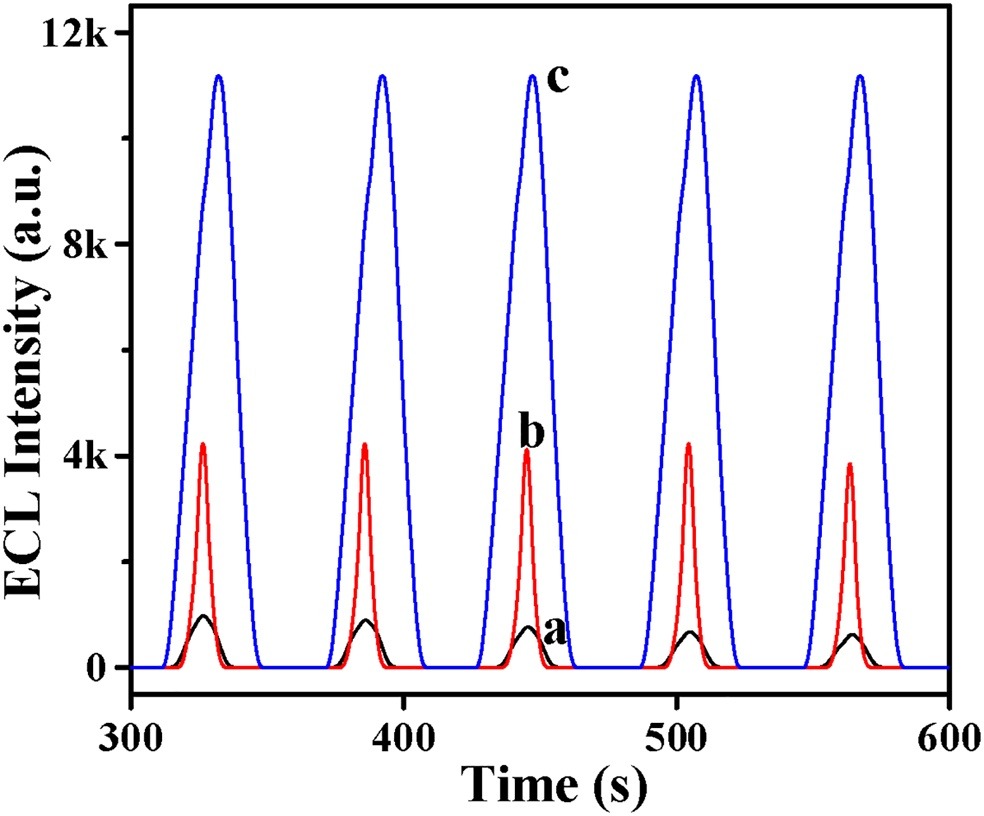

Fig. 1 ECL responses of CsPbBr₃ QDs (a), CsPbBr₃ QDs/TPrA (b) and CsPbBr₃ QDs/TPrA/H₂O₂ (c).

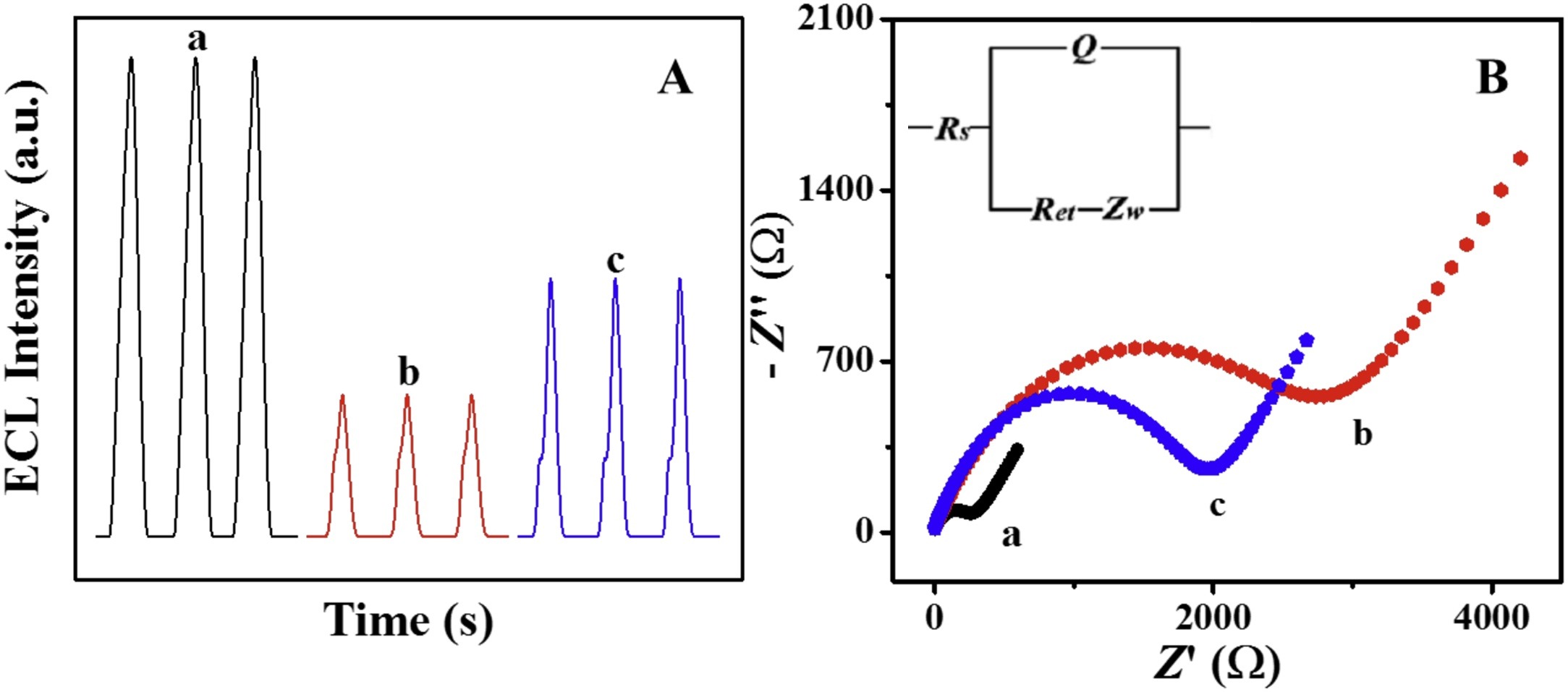

Fig. 2 (A) ECL responses of CsPbBr₃ QDs/TPrA/H₂O₂ (a), CsPbBr₃ QDs/TPrA/H₂O₂-Aptamer (b) and CsPbBr₃ QDs/TPrA/H₂O₂-Ampater/Tc (c). (B) EIS spectra of bare BPE (a), Aptamer/BPE (b) and Tc/aptamer/BPE (c).

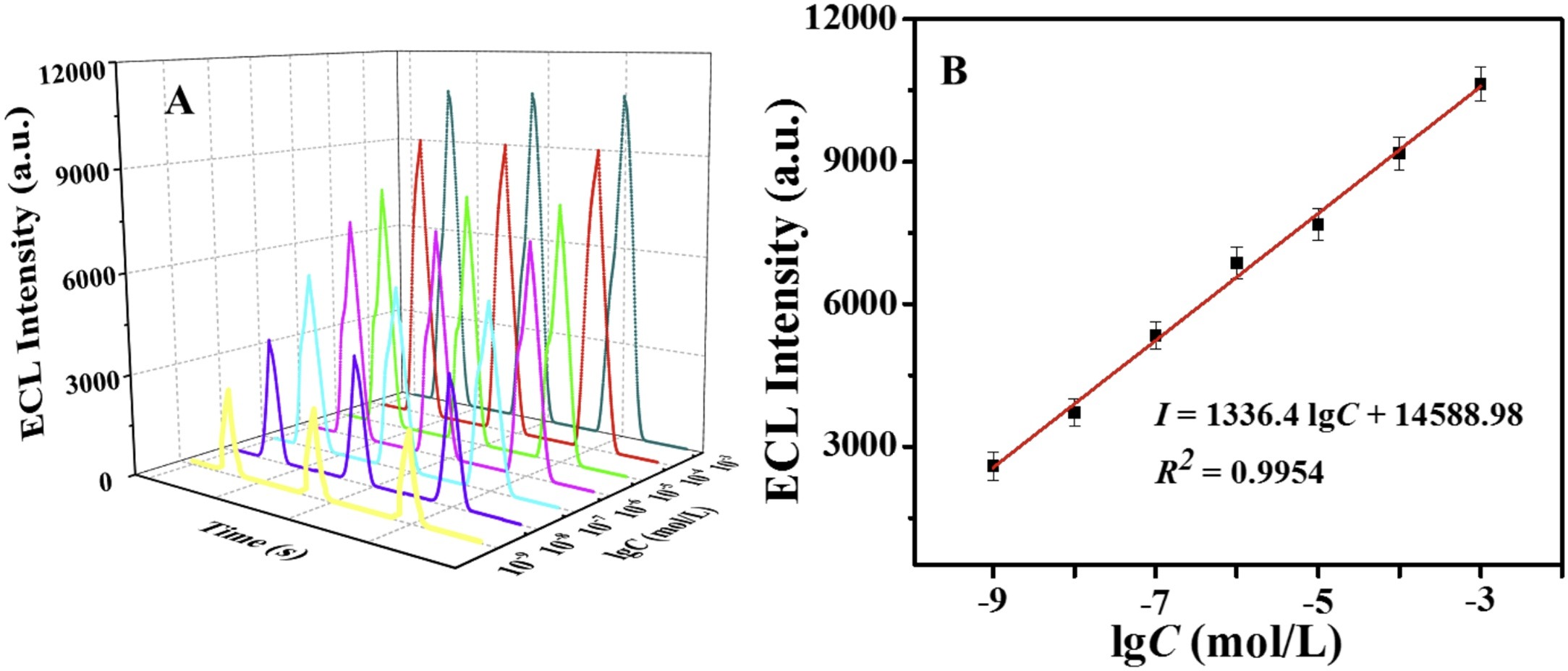

Fig. 3 (A) ECL responses of the aptasensor at different concentrations of Tc: (10⁻⁹ → 10^-3 mol/L) and (B) the corresponding linear calibration curve for Tc detection.
