Dual-functional hydrogen-bonded organic frameworks for aniline and ultraviolet sensitive detection
收藏切换
PDF
Zhijun Ke, Kexin Chen, Zhenzhen Li, Jie Huang, Zizhu Yao, Wen Dai, Xiaofan Wang, Chulong Liu*, Shengchang Xiang, Zhangjing Zhang*
Chinese Chemical Letters | 2021, 32(10) : 3109 - 3112
Less
收藏切换
Chinese Chemical Letters | 2021, 32(10): 3109-3112
• Communication •
Dual-functional hydrogen-bonded organic frameworks for aniline and ultraviolet sensitive detection
Full
Zhijun Ke, Kexin Chen, Zhenzhen Li, Jie Huang, Zizhu Yao, Wen Dai, Xiaofan Wang, Chulong Liu*, Shengchang Xiang, Zhangjing Zhang*
Affiliations
  • Fujian Provincial Key Laboratory of Polymer Materials, College of Chemistry and Materials Science, Fujian Normal University, Fuzhou 350007, China
Published: 2021-10-15 doi: 10.1016/j.cclet.2021.03.043
Outline
收藏切换

A novel hydrogen-bonded organic frameworks (HOFs) FJU-200 has been constructed from N, N'-bis(5-isophthalic acid)naphthalimide (H4L). FJU-200 has a good dual-function of aniline and ultraviolet detection. FJU-200 is the first case of HOF with dual sensing of visual color changes and photoluminescence quenching for aniline detection, and the detection limit of aniline can reach 5.5 × 10−4 mol/L. Under ultraviolet FJU-200 will rapidly change from light yellow to rustic brown, which makes it possible to use FJU-200 to achieve minute-level ultraviolet detection. Moreover, for more convenient use, FJU-200 test papers are prepared. Using them, convenient and fast aniline or ultraviolet detection can be realized. The single-crystal X-ray structures show that compared with the original FJU-200, both and UV-FJU-200 have larger pore sizes, and the dihedral angles of the H2L2− in framework has been changed.

Hydrogen-bonded organic frameworks (HOFs)  /  Dual-function  /  Aniline detection  /  Ultraviolet detection  /  Sensitive
Zhijun Ke, Kexin Chen, Zhenzhen Li, Jie Huang, Zizhu Yao, Wen Dai, Xiaofan Wang, Chulong Liu, Shengchang Xiang, Zhangjing Zhang. Dual-functional hydrogen-bonded organic frameworks for aniline and ultraviolet sensitive detection[J]. Chinese Chemical Letters, 2021 , 32 (10) : 3109 -3112 . DOI: 10.1016/j.cclet.2021.03.043
Full Text
Less
As a typical aromatic amine, aniline is an indispensable chemical precursor, and is widely applied in rubber industries [1], dyes intermediates [2], pharmaceuticals [3], and other fields [4]. However, aniline is toxic, corrosive, difficult to handle, and is easily absorbed subcutaneously and endangers life, even at extremely low concentration. So far, the traditional approaches used to detect amines include high-performance liquid chromatography [5], gas chromatography coupled with mass spectrometry [6], fluorometric analysis [7], and cyclic voltammetry [8]. In fact, these methods require expensive instruments, long analysis time, and professional operators, and they are not easily accessible in most cases [9]. Therefore, rapid and efficient detection of aniline is extremely urgent for public security and environmental protection.
In this regard, porous crystalline chemical sensors have attracted great interest due to their fast, reversible and recyclable sensing capabilities [10-13]. Among them, hydrogen-bonded organic frameworks (HOFs) have attracted many attentions in recent years. The inherent features of hydrogen bond (weak, flexible, poorly directional, and reversible) make HOFs have some intriguing differences compared to zeolites, metal-organic frameworks (MOFs), and covalent organic frameworks (COFs), such as solution processability and characterization, easy purification and healing by simple recrystallization [14]. Recently, many HOFs have been reported with promising applications in gas storage and separation [15-17], proton conduction [18-20], photodynamic therapy [21], heterogeneous catalysis [22], fluorescent sensing [23-25] and so on. However, the exploration of fluorescence sensing of HOFs is still at an early stage and is rarely used to detect aniline.
So far, the study of HOF materials to detect aniline is only one case reported by Zhang's group in 2020 [13]. It is based on analyte–organic linker interaction, in which hydrogen bonds play an important role. Considering that aniline is a good electron donor, we choose an electron-deficient organic linker to construct HOF.N, N'-bis(5-isophthalic acid)naphthalimide (H4L) is a typical electron-deficient and fluorescent linker, which can be used to construct MOFs and as an amine sensor. H4L is also widely used in optics as a photochromic variable material. Interestingly, it can be used for both naked eye and fluorescence detection. Unfortunately, quite a few metal salts are not environmentally friendly, which often limits the use of MOFs in many conditions [26-28]. Compared with MOFs, HOFs are not restricted by metal salts.
Hence, we synthesized FJU-200 with H4L by solvothermal method. Single-crystal X-ray diffraction analysis reveals that FJU-200 has one-dimensional (1D) pores. When FJU-200 was immersed in the aniline solution, the single crystal changed from light yellow to deep red, and the transformation from single crystal to single crystal occurred. This is the first case of HOFs, which has visible color changes, photoluminescence quenching dual sensing of aniline. Because the aniline forms a hydrogen bond with the framework of FJU-200, the twist of the skeleton is restricted. Moreover, FJU-200 not only shows a good detection limit but also has a certain specific recognition. The detection limit can reach 5.5 × 10−4 mol/L. In addition, the crystal can be easily deposited on paper, making a simple test paper that can be used for aniline detection. And FJU-200 is sensitive to ultraviolet light and can achieve minute-level ultraviolet detection.

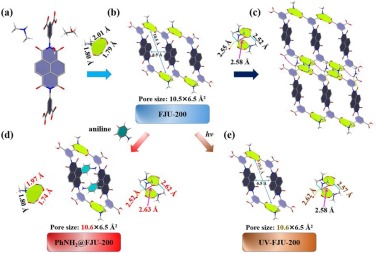

Single-crystal X-ray diffraction analysis reveals that FJU-200 crystallizes in the triclinic space group P-1. It is composed of H2L2−, [NH2(CH3)2]+, EtOH and H2O (Fig. 1a). It is different from the reported three-dimensional HOFs [15, 16, 29, 30]. From the a-axis direction, FJU-200 has a hydrogen-bonded closed ring composed of three different hydrogen bonds. These three hydrogen bonds can be divided into two categories, one of which is the two hydrogen bonds formed by [NH2(CH3)2]+ ion and the adjacent H2L2− (N-H⋯O/1.80 Å and 2.01 Å, N-H⋯O/170.8° and 157.6°), the other is a single hydrogen bond formed by two adjacent H2L2− (H-O⋯O/1.79 Å, O-H⋯O/155.1°) (Fig. 1b). Through the hydrogen bonds formed by adjacent H2L2−, 1D diamond-shaped pores with a size of 6.50 × 10.5 Å2 are constructed, and 1D ribbon structures are formed (Fig. 1b). The hydrogen bond rings are connected each other by a 2.52 Å hydrogen bond formed by dimethylammonium ion and the oxygen atom of 1, 3-phthalic acid group in the next layer. The adjacent dimethylammonium ions are bridged by a 2.58 Å hydrogen bond formed by the oxygen atom of the 1, 3-phthalic acid group, and the other segment forms a 2.55 Å hydrogen bond with the carbonyl group of H2L2− in the next layer (Fig. 1c). In this way, the hydrogen-bonded bands are connected to form a two-dimensional (2D) HOF (Fig. 1c). Considering that FJU-200 has 1D pores, we tried to test N2 adsorption. Unfortunately, there was almost no N2 adsorption, and the pores collapsed. At present, acid-base ionic two-component HOFs with permanent pore structures are generally accompanied by interspersed structures or structural characteristics of smaller pore diameters [31-33]. However, FJU-200 has a large pore size and does not have an interpenetrating structure, and the structural stability is poor. It can easily collapse when FJU-200 loses the solvent in the framework.
Similarly, PhNH2@FJU-200 crystallizes in the triclinic space group P-1. Its asymmetric unit is composed of one-half of H2L2−, [NH2(CH3)2]+, and aniline. It also forms a 2D HOF. Compared with FJU-200, the size of the hydrogen-bonded ring in PhNH2@FJU-200 has been changed. The hydrogen bond formed by adjacent H2L2− is strengthened with the length decreased from 1.79 Å to 1.74 Å. In addition, it can be seen from the a-axis that the 1D diamond-shaped pores are occupied by aniline, and the pore size increased from 10.5 × 6.5 Å2 to 10.6 × 6.5 Å2 (Fig. 1d). In the 2D structure formed by PhNH2@FJU-200, the hydrogen bond between the hydrogen-bonded bands is weakened with the length increased from 2.52 Å to 2.62 Å, the length of N-H⋯O hydrogen bond between dimethylammonium ion and the 1, 3-phthalic acid group is increased to 2.63 Å, but the hydrogen bond formed at the other end is slightly strengthened with the length decreased to 2.52 Å (Fig. 1d). What's more, from the perspective of the b-axis, the dihedral angle between the benzene ring of the 1, 3-phthalic acid group and the naphthalene ring of H2L2− in the middle is 87.7° (Fig. S2 c in Supporting information).
UV-FJU-200 also crystallizes in the triclinic space group P-1, and forms a 2D HOFs. It is composed of H2L2−, [NH2(CH3)2]+, EtOH and H2O. However, we found that there are three obvious differences between UV-FJU-200 and FJU-200. The pore size is slightly larger, increased from 10.5 × 6.5 Å2 to 10.6 × 6.5 Å2 (Fig. 1e). In the 2D structure formed by UV-FJU-200, the hydrogen bond between the hydrogen-bonded bands is weakened with the length increased from 2.52 Å to 2.57 Å, and the length of the hydrogen bond between dimethylammonium ion and the carbonyl group of H2L2− in the next layer is decreased from 2.55 Å to 2.62 Å (Fig. 1e). In addition, the dihedral angle between the benzene ring and the naphthalene ring of H2L2− is decreased from 82.5° to 80.5° (Fig. S2b in Supporting information).

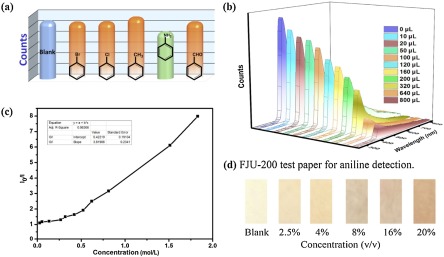

The detection of aniline is often affected by other aromatic compounds. Therefore, we performed a specific identification test for FJU-200. Some different aromatic compounds such as bromobenzene, toluene, benzaldehyde were tested. Experiments had proved that only aniline had a significant decrease in fluorescence intensity (Fig. 2a). Interestingly, for these aromatic compounds, the color of the crystals becomes darker only when aniline is added (Fig. S3 in Supporting information). Therefore, we further explored the detection of FJU-200 for aniline in DMF solution. We use the titration method for testing. The results show that it has a good linearity at low concentrations, and the linearity will become worse as the concentration increases, which may be due to self-absorption. The quenching efficiency can be evaluated by the Stern-Volmer (SV) equation: I0/I=1 + Ksv[M], combined with 3 δ/k [34, 35], these two equations can be used to calculate the FJU-200's detection of aniline in DMF solution limited to 5.5 × 10−4 mol/L (Fig. 2). The comparison between various luminescence sensors for aniline detection is shown in Table S2 (Supporting information). In addition, the crystal can be easily deposited on paper, so we tried to make a simple test paper that can be used for aniline detection. The results show that FJU-200 can be made into test paper, which can not only quickly detect aniline, but also the color of the test paper will continue to deepen as the concentration of aniline increases (Fig. 2d).
We found that when FJU-200 and H4L dispersed in DMF solution, the emission peaks of the two are the same, which indicates aniline mainly interacts with H2L2− (Fig. S4 in Supporting information). From the results of single crystal X-ray diffraction, there are significant differences between FJU-200 and PhNH2@FJU-200. First, from the b-axis, the dihedral angle of PhNH2@FJU-200 is 5.2° larger than that of FJU-200 (Fig. 3a). Second, the aniline forms a hydrogen bond with the skeleton of H2L2−. This is because aniline is a very good electron donor, and H4L is a good electron acceptor. When aniline is present in FJU-200, the carbonyl group of H2L2− on the skeleton is a good site, which can form a N-H⋯O (2.50 Å) hydrogen bond with the amino group of aniline (Fig. 3b). The interactions of the two hydrogen bonds increase the dihedral angle and decrease the overlap of the electron cloud density, which lead the anti-bond orbital energy increased, thereby decreasing the fluorescence.

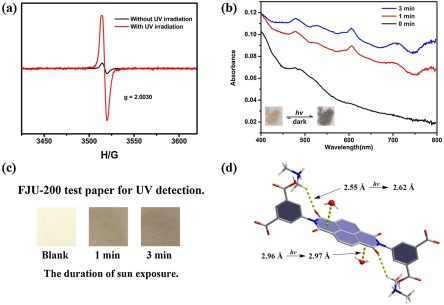

UV-FJU-200, like ECUT−HOF-30 [36], is very sensitive to ultraviolet rays. When using ultraviolet light (365 nm) to irradiate FJU-200 only for 1 min, the crystal changes from light yellow to rustic brown. Since FJU-200 is sensitive to ultraviolet, we made FJU-200 into test paper and exposed it to the sun. The test paper changed color after 1 min, and the color became darker after 3 min. These results show that it can be used for the rapid detection of ultraviolet light (Fig. 4). FJU-200 solid-state UV–vis spectrum display a broad absorption band of about 400 nm corresponds to n-π* and π-π* transitions of the aromatic organic part [37]. Remarkably, after irradiation for 1 min, several new additional peaks (607 nm, 711 nm and 784 nm) were generated, which arises from a photo-induced electron-transfer transition. Naphthalene-tetracarboxdiimide (NDI) moiety is known to be redox-active and can generate radicals upon light irradiation [38, 39]. This radical generation has been confirmed by the ESR spectra (Fig. 4a). FJU-200 shows a weak ESR signal at g=2.0030 before irradiation; however, after irradiation the signal gets enhanced. Single crystal X-ray diffraction shows that the UV-FJU-200 single crystal structure has undergone subtle changes. The single crystal structure of UV-FJU-200 shows that water molecules and H2L2− form a lone-pair···π after light exposure was weakened with the length increased from 2.96 Å to 2.97 Å. It plays an important role in the electron transfer electron transfer transition [40-43]. At the same time, we also found that the C-H⋯O hydrogen bond formed by the carbonyl group and the adjacent dimethylammonium ion also weakened with the length increased from 2.55 Å to 2.62 Å. Under the applied force, the naphthalene ring of H2L2− was deflected, and the dihedral angle decreased from the original 82.1° to 80.2°. This is the first time that the electronic transition process caused by multiple forces has been observed in the hydrogen-bonded organic framework after ultraviolet light.
In short, we chose the classic fluorescent linker H4L and synthesized FJU-200 by hydrothermal method. When FJU-200 is immersed in aniline solution, the transformation from single crystal to single crystal can occur. Studies have shown that under the synergistic effect of two N-H⋯O hydrogen bonds, the dihedral angle of H4L can be changed. In this way, the fluorescence intensity of the crystal can be changed and both naked eye and fluorescent detection can be used. In addition, FJU-200 is sensitive to ultraviolet and can be used to quickly and conveniently detect ultraviolet. This provides a new way to design HOF materials for rapid detection of aniline and ultraviolet light.
Declaration of competing interest
Less
The authors report no declarations of interest.
Acknowledgments
Less
This work was supported by the National Natural Science Foundation of China (Nos. 21673039, 21573042, 21805039, 21975044, 21971038 and 21922810) and the Fujian Provincial Department of Science and Technology (Nos. 2018J07001 and 2019H6012).
Appendix A. Supplementary data
Less
Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2021.03.043.
References
Less
[1]
B.G. Soares, G.S. Amorim, F.G. Souza, M.G. Oliveira, J.E.P. da Silva, Synthetic Met. 156 (2006) 91−98
[2]
A. Grirrane, A. Corma, H. García, Science 322 (2008) 1661
[3]
V. Alagarsamy, V.R. Solomon, K. Dhanabal, Bioorg. Med. Chem. 15 (2007) 235−241
[4]
J.M. Landete, B. de las Rivas, A. Marcobal, R. Muñoz, Int. J. Food Microbiol. 117 (2007) 258−269
[5]
Z. Quan, G. Xie, Q. Peng, et al., Pol. J. Environ. Stud. 25 (2016) 1669−1673
[6]
W.G. Stillwell, M.S. Bryant, J.S. Wishnok, Biomed. Environ. Mass Spectrom. 14 (1987) 221−227
[7]
Y. Zhang, C. Peng, X. Ma, Y. Che, J. Zhao, Chem. Commun. 51 (2015) 15004−15007
[8]
S. Pandey, K.K. Nanda, ACS Sensors 1 (2016) 55−62
[9]
J.J. Liu, Q.T. Que, D. Liu, et al., CrystEngComm 22 (2020) 4124−4129
[10]
M.E. Davis, Nature 417 (2002) 813−821
[11]
Z. Xie, L. Ma, K.E. deKrafft, A. Jin, W. Lin, J. Am. Chem. Soc. 132 (2010) 922−923
[12]
J. Zhang, X. Liu, S. Wu, et al., J. Mater. Chem. 20 (2010) 6453−6459
[13]
B. Wang, R. He, L.H. Xie, et al., J. Am. Chem. Soc. 142 (2020) 12478−12485
[14]
R.B. Lin, Y. He, P. Li, et al., Chem. Soc. Rev. 48 (2019) 1362−1389
[15]
Y. He, S. Xiang, B. Chen, J. Am. Chem. Soc. 133 (2011) 14570−14573
[16]
H. Wang, B. Li, H. Wu, et al., J. Am. Chem. Soc. 137 (2015) 9963−9970
[17]
W. Yang, A. Greenaway, X. Lin, et al., J. Am. Chem. Soc. 132 (2010) 14457−14469
[18]
A. Karmakar, R. Illathvalappil, B. Anothumakkool, et al., Angew. Chem. Int. Ed. 55 (2016) 10667−10671
[19]
G. Xing, T. Yan, S. Das, T. Ben, S. Qiu, Angew. Chem. Int. Ed. 57 (2018) 5345−5349
[20]
W. Yang, F. Yang, T.L. Hu, et al., Cryst. Growth Des. 16 (2016) 5831−5835
[21]
Q. Yin, P. Zhao, R.J. Sa, et al., Angew. Chem. Int. Ed. 57 (2018) 7691−7696
[22]
B. Han, H. Wang, C. Wang, et al., J. Am. Chem. Soc. 141 (2019) 8737−8740
[23]
I. Hisaki, Y. Suzuki, E. Gomez, et al., J. Am. Chem. Soc. 141 (2019) 2111−2121
[24]
Z. Sun, Y. Li, L. Chen, X. Jing, Z. Xie, Cryst. Growth Des. 15 (2015) 542−545
[25]
T. Liu, B. Wang, R. He, et al., Can. J. Chem. 98 (2020) 352−357
[26]
A. Mallick, B. Garai, M.A. Addicoat, et al., Chem. Sci. 6 (2015) 1420−1425
[27]
M. Al Kobaisi, S.V. Bhosale, K. Latham, et al., Chem. Rev. 116 (2016) 11685−11796
[28]
A.M. Rice, C.R. Martin, V.A. Galitskiy, et al., Chem. Rev. 120 (2020) 8790−8813
[29]
Q. Yin, Y.L. Li, L. Li, et al., ACS Appl. Mater. Interfaces 2019, 11, 17823−17827
[30]
H. Wang, H. Wu, J. Kan, et al., J. Mater. Chem. A 5 (2017) 8292−8296
[31]
A. Comotti, S. Bracco, A. Yamamoto, et al., J. Am. Chem. Soc. 136 (2014) 618−621
[32]
J. Lü, C. Perez-Krap, M. Suyetin, et al., J. Am. Chem. Soc. 136 (2014) 12828−12831
[33]
I. Brekalo, D. E. Deliz, L. J. Barbour, et al., Angew. Chem. Int. Ed. 59 (2020) 1997−2002
[34]
L. Liu, Y. Wang, R. Lin, et al., Dalton Trans. 47 (2018) 16190−16196
[35]
Y. Salinas, R. Martínez-Máñez, M.D. Marcos, et al., Chem. Soc. Rev. 41 (2012) 1261−1296
[36]
L. Wang, L. Yang, L. Gong, et al., Chem. Eng. J. 383 (2020) 123117
[37]
Z. Li, J. Guo, F. Xiang, et al., CrystEngComm 20 (2018) 7567−7573
[38]
L. Han, L. Qin, L. Xu, et al., Chem. Commun. 49 (2013) 406−408
[39]
F. Wei, Y. Ye, W. Huang, et al., Inorg. Chem. Commun. 93 (2018) 105−109
[40]
J.J. Liu, Y.J. Hong, Y.F. Guan, et al., Dalton Trans. 44 (2015) 653−658
[41]
J.J. Liu, Z.J. Wang, S.B. Xia, J. Liu, X. Shen, Dyes Pigments 172 (2020) 107856
[42]
J.Z. Liao, J.F. Chang, L. Meng, et al., Chem. Commun. 53 (2017) 9701−9704
[43]
C. Fu, G.S. Zhang, H.Y. Wang, et al., CrystEngComm 20 (2018) 6821−6827
