The successful exfoliation of graphene in 2004 opens the door of two-dimensional (2D) materials [1]. Different from their bulk materials, 2D materials possess unique optical, electronic, and mechanical properties, which show great potential in applications in next-generation electronic, optoelectronic, spintronic, and other novel devices. Take graphene as an example, the unique 2D honeycomb structure together with the sp² hybridized C-C covalent bonds endows graphene with some special chemical and physical properties. Firstly, graphene possesses very high carrier mobility (~1.5 × 10⁴ cm² V⁻¹ s⁻¹) at room temperature. Secondly, graphene exhibits an excellent mechanical property. Thirdly, graphene shows very high thermal conductivity (~5300 W/mK) [2]. However, the zero-gap of graphene is an obstacle to switch current on and off in field-effect transistors. So more other two-dimensional materials, such as h-BN [3, 4], BC₃ [5, 6] and NC₃ [7, 8], have been investigated theoretically and synthesized experimentally.

In theory, since both boron and nitrogen atoms also can form strong sp² hybridized covalent bonds, a simple and effective method of designing new 2D materials is replacing partially or wholly the carbon atoms of graphene with boron or nitrogen atoms. The 2D materials designed by this method have both the honeycomb structure and sp² hybridized covalent bonds the same as graphene, which are also called graphene-like 2D materials. Interestingly, the resulting graphene-like 2D materials can gain many fascinating properties such as a more suitable band gap, superconductivity, high carrier mobility, and high thermal conductivity. For example, the graphene-like h-BN [3, 4] with a band gap of 5.8 eV is called white graphene, which can be used as a substrate or gate dielectric layer to improve the performance of electronic/photonic devices based on graphene or other 2D materials. Graphene-like BC₃ nanosheet has been theoretically suggested as a promising candidate for gas-sensitive materials [9]. The extraordinary property makes single-layer BC₃ (SLBC) adaptable to many applications [10-13]. Graphene-like carbon-nitrogen materials C₂N and C₃N were fabricated by Mahmood et al. in 2015 [14] and in 2016 [15] respectively, which were also found to be semiconductors. More complicated ternary 2D B_xC_yN_z materials also have been synthesized by using pyrolysis [16], chemical vapor deposition [17], and doping [18]. Some of the 2D B_xC_yN_z still remain the honeycomb structure. For example, hexagonal graphitic BCN (h-BCN) [19] with one-atom thickness have been successfully synthesized. First-principles calculations on h-BCN predicted a direct electronic band gap of 1.5 eV [20] that is intermediate between gapless graphene and insulting h-BN. BC₂N was theoretically predicted by using first-principles calculations [21] and success-fully synthesized by the chemical vapor deposition method in the experiment [22]. B₄CN₃ and B₃CN₄ were proposed theoretically to be potential spintronic materials [23]. Graphene-like BC₆N single-layer is a semiconductor with a direct band gap of 1.3 eV [24]. So we can see that the 2D ternary B–C-N materials can effectively expand the graphene-like 2D material family, gaining new 2D materials with unexpected properties.

In addition to some significant applications mentioned above, 2D boron-carbon-nitride materials also have a wide range of applications in other fields, such as energy storage [25-29], solar cells [30], and biotechnologies [31]. More to the point, because 2D boron-carbon-nitride materials have a large surface area, which is conducive to gas adsorption, they may be potential catalytic materials [32-44]. As an important industrial raw material, CO₂ can be electroreduced to value-added chemicals or fuels driven by low-grade renewable electricity, enabling both renewable energy storage and negative carbon cycle [45-51]. However, our research shows that the interaction between the pristine BC₃N₂ and CO₂ is rather weak, which limits its immediate potential for application as a catalyst. What is exciting is that decorating foreign atoms is an effective way to tune the interaction between 2D materials and molecules [52-56]. Mo is cheaper than other precious metals, such as Ru, Rh, Pd, and Au, moreover, there are many studies on Mo loaded on 2D materials recently [57-61]. It is worth noting that Cui and co-workers reported that a single-Mo doped BN monolayer can be used as a promising catalyst for CO₂ reduction to CH₄ [62]. Because of this, we screened possible single-atom catalysts involving five transition metals (TM = Mo, Ru, Rh, Pd, and Au) anchored on the BC₃N₂ monolayer. The results show that a single-Mo-atom-loaded BC₃N₂ monolayer possesses excellent performance for activating CO₂ molecules.

In this paper, we employed the automatic structure search algorithm to predict the possible stable structures of BC₃N₂. We identified an unusual stoichiometry, a BC₃N₂ monolayer, with a graphene-like structure, which meets the thermodynamical, dynamical, and mechanical stability requirements. Although all B, C, and N elements are non-metallic elements, the BC₃N₂ shows a metallic character. It was discussed in detail for the structural characteristics, stabilities, electronic structure, mechanical properties, and the adsorption properties of CO₂ on BC₃N₂ and Mo/BC₃N₂ sheets.

The global minimum structure of BC₃N₂ monolayer was predicted using the particle-swarm optimization (PSO) method as implemented in the CALYPSO code [63, 64]. Unit cells containing 1–4 formula units (f.u.) were considered. The population size and the number of generations were both set to 30, which had been tested to give convergent results. All of the initial structures were fully relaxed including the atomic positions and lattice parameters. The structural optimizations and the electronic property calculations were carried out using density functional theory in the Vienna ab initio simulation package (VASP) [65]. The projector augmented-wave (PAW) pseudopotential was used to represent electron-ion interactions [66, 67]. The electron exchange-correlation energy was treated within the generalized gradient approximation (GGA), using the functional of Perdew, Burke, and Ernzerhof (PBE) [68]. The energy cutoff of the plane wave was set to be 520 eV and the Brillouin zone was sampled with a 9 × 9 × 1 Γ-centered Monkhorst-Pack k-point grid. The convergence was chosen as 10⁻⁵ eV and 2 × 10^-2 eV/Å for energy and force, respectively. The B 2s²2p¹, C 2s²2p², N 2s²2p³, O 2s²2p⁴ and Mo 4s²4p⁶5s¹4d⁵ electron configurations were treated as valence electrons.

The kinetic stability of the BC₃N₂ monolayer was assessed by phonon dispersion calculations, with the finite displacement method implemented in the PHONOPY package [69]. To evaluate thermal stability, we performed ab initio molecular dynamics (AIMD) calculations using PBE function and PAW pseudopotential. AIMD simulation in the canonical ensemble (NVT) lasts for 15 ps with a 2 × 2 × 1 supercell. The temperature was controlled by using the Nose-Hoover method.

In light of the electronic structure of the molybdenum atom, the spin polarization was taken into account to attain the ground state energy, we chose the 3 × 3 × 1 supercell as a basic unit. A plane wave cutoff energy for 400 eV was used. The Brillouin zone was sampled with a 3 × 3 × 1 Γ-centered Monkhorst-Pack k-point grid, and a Γ-centered Monkhorst-Pack grid of 5 × 5 × 1 was used for the final density of states (DOS) calculations. 10⁻⁵ eV and 2 × 10⁻² eV/Å were chosen as the convergence accuracies of energy and force, respectively. A large vacuum space of 20 Å in the perpendicular direction of the sheet was used to avoid the interactions between periodic images. The van der Waals correction was also estimated employing the DFT-D2 method [70].

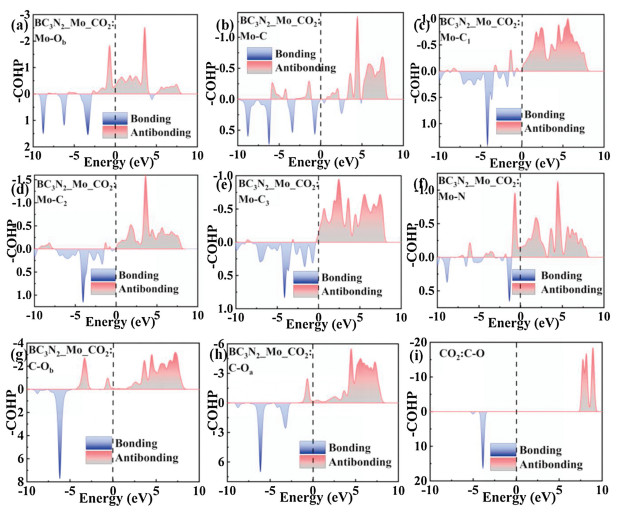

The adsorption energy (E_ads) of an atom or a molecule (A: Mo or CO₂) on a substrate (B: BC₃N₂ or Mo/BC₃N₂) was calculated using the expression: E_ads = E_AB − E_A − E_B, where E_A(B) represents the total energy of A (or B) and E_AB represents the total energy of the system with an adsorbate. According to the above definition, negative adsorption energy suggests that the adsorption process is exothermic and the adsorption system is thermodynamically stable. Contrarily, a positive value corresponds to endothermic and unstable adsorption. Bader charge analysis [71] was used to evaluate the atomic charges and electron transfer in the chemical reactions. The difference charge density was calculated to gain insights into the bonding nature. The crystal orbital Hamiltonian population (COHP) formalism was used to analyze the bonding features of the Mo/BC₃N₂ and CO₂ adsorbed on Mo/BC₃N₂, as implemented in the LOBSTER package [72-74].

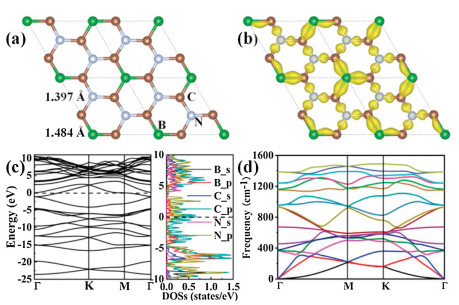

The stable structure of BC₃N₂ obtained through the global structure searching is shown in Fig. 1a, from which we found that the 2D structure exhibits planar honeycomb lattice. Two dimensional BC₃N₂ possesses a space group of P-62m (No. 189) and one unit cell of BC₃N₂ monolayer consists of one B, three C, and two N atoms with optimized lattice constants of a = b = 4.275 Å. Each of the B atom and N atom binds to three C atoms and the bond lengths of B-C and C-N are 1.484 and 1.397 Å, respectively, indicating that sp² hybridized B-C and C-N bonds exist in BC₃N₂. The chemical bonding of the BC₃N₂ can be understood from its charge difference density (Fig. 1b), which is defined as the total electronic density of the BC₃N₂ minus the electron density of isolated B, C, and N atoms at their respective positions. It is obviously seen from Fig. 1b that the atoms between B-C and C-N are covalently bonded. The calculated band structure, as well as its projected density of states, are shown in Fig. 1c, different from the graphene and h-BN monolayer, the BC₃N₂ plane is metallic with a large density-of-states (DOS) at the Fermi level. The metallic character in BC₃N₂ is due to the contribution of 2p states of B, C and N atoms to the DOS at the Fermi level.

To clarify the stability of predicted two dimensional BC₃N₂, we estimated its formation energy defined as E_f = E_BC3N2 ‒ E_BC3 ‒ E_N2, where E_BC3N2, E_BC3 and E_N2 are the total energies of BC₃N₂ monolayer, BC₃ monolayer, and the nitrogen, respectively. The calculated formation energy for the BC₃N₂ monolayer is ‒0.08 eV per f.u. The negative formation energy indicates the stability of the BC₃N₂ plane, and also implies that the synthesis of the BC₃N₂ under ambient conditions is feasible. The dynamical stability of BC₃N₂ was assessed by calculating the phonon dispersion curves. As shown in Fig. 1d, no imaginary frequency in the first Brillouin zone is found, which confirms the dynamical stability of BC₃N₂. Then, we performed AIMD simulations of the BC₃N₂ with a 2 × 2 × 1 supercell at the temperature of 2400 K and 2700 K, which can provide a fundamental evaluation in the thermodynamic stability of the given 2D material [75-79]. The fluctuation of the total potential energy with simulation time at 2400 K is plotted in Fig. S1 (Supporting information), which shows that the average value of the total potential energy remains nearly constant during the entire simulation. From the snapshot taken at the end of 15 ps, one can see that the original geometry of BC₃N₂ is generally well-kept and no bond is broken at 2400 K. The above results reveal that the BC₃N₂ monolayer can maintain its structural integrity at a high temperature of 2400 K.

The mechanical properties were investigated by calculating its linear elastic constants using the formulas [80], which have been given in Table S1 (Supporting information). Due to the symmetry, the hexagonal structures have C₁₁ = C₂₂ and an additional relation which is C₆₆ = 0.5(C₁₁ ‒ C₁₂). The four independent elastic constants (C₁₁, C₂₂, C₁₂, C₆₆) of BC₃N₂ monolayer were calculated to be C₁₁ = C₂₂ = 329.4 N/m, C₁₂ = 59.2 N/m, and C₆₆ = 135.1 N/m, respectively. All the calculated elastic constants meet the necessary mechanical equilibrium conditions [81] for mechanical stability: C₁₁C₂₂ ‒ C₁₂² > 0, and C ₁₁, C₂₂, C₆₆ > 0, indicating that BC ₃N₂ monolayer is a favorable structure from the mechanical point of view. According to the elastic constants, Young's modulus (in-plane stiffness) for strains in the Cartesian directions is E = (C₁₁C₂₂ ‒ C₁₂²)C₁₁⁻¹. For BC₃N₂, as shown in Table S1, the in-plane stiffness is calculated to be 319.0 N/m, which is lower than that of graphene (350.0 N/m) [82] and much higher than other reported values such as MoS₂ monolayer (125.0 N/m) [83], silicene (71.2 N/m) [84], and germanene (42.0 N/m) [85].

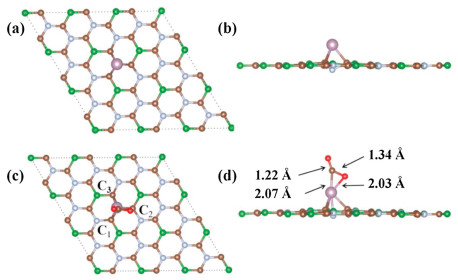

We first studied the adsorption energies of CO₂ molecule on the BC₃N₂ surface at the possible sites, including the hollow site of B-C-N (H), the top sites of B(T₁), C(T₂), and N(T₃) atoms, and the bridge sites of B-C (Br₁) and N-C bonds (Br₂). Two adsorption manners were designed, namely, the CO₂ molecule being parallel and vertical to the BC₃N₂ plane. Exact adsorption sites are hard to fathom for the actual adsorption process, but these selected sites are highly representative and capable to simulate all the possible adsorption situations. As shown in Table S2 (Supporting information), due to the sp² hybridized B-C and C-N bonds in the BC₃N₂ sheet, CO₂ is difficult to adsorb on the surface of BC₃N₂. Therefore, we decorated the atoms on BC₃N₂ for changing the electronic structure of the pristine monolayer. As shown in Table S3 (Supporting information), compared with the other noble metal atoms, such as Ru, Rh, Pd and Au, Mo atoms can bond with BC₃N₂ sheet better. Therefore, it was chosen to functionalize the BC₃N₂ surface. To determine the most stable configuration for the Mo atom on the BC₃N₂ surface, we performed a scan of the energy of the adsorbed atom at the six adsorption sites mentioned above on the BC₃N₂ sheet. From the energy point of view, the Mo atom prefers to be adsorbed at the T₃ site with an E_ads of ‒3.49 eV, which is lower than those at the other sites in Table S2, showing that the Mo/BC₃N₂ system is relatively stable in thermodynamics. As shown in Fig. 2a and b, the stable structure of Mo/BC₃N₂ is formed from one Mo atom connected with three surrounding C atoms and the Mo atom is just above the center of an equilateral triangle consisted of three carbon atoms. Because of the strong interactions between Mo and C (C₁, C₂, and C₃) atoms, the latter protrudes outside from the BC₃N₂ substrate with the N atom heavily sinking. As is seen from Table S4 (Supporting information), each of the three C atoms is equidistant from Mo, and the distance is nearly 2.16 Å, which is 2.34 Å for Mo and N atoms. Then we discussed the interaction between the CO₂ molecule and Mo/BC₃N₂ monolayer. The Possible initial configurations were optimized to find out the most favorable geometrical structure. After strict calculations, the optimal structure of CO₂ adsorption on Mo/BC₃N₂ system is given in Figs. 2c and d, we can see that the O_b and C atoms of CO₂ molecule bind to Mo which is loaded on BC₃N₂ sheet. In contrast to Mo/BC₃N₂, the distances between Mo and three C (C₁, C₂ and C₃) atoms change obviously. As given in Table S4, the C₁ atom is closer to the Mo atom, the distance between them has been shortened from 2.16 Å to 2.11 Å, which decreases by about 2.3% comparing with the previous value, and the distance is also getting shorter between the C₃ and Mo atoms, which decreases from 2.16 Å to 2.12 Å, however, it increases from 2.16 Å to 2.21 Å for the distance between the C₂ atom and Mo atom. Finally, we needed to pay attention to the distance given in Table S4 between N and Mo atoms, which decreases from 2.34 Å to 2.20 Å. The changes mentioned above are mainly because of the adsorption of CO₂ molecules. The interaction is mutual so that the geometric configuration of the adsorbed CO₂ molecule must have changed accordingly. In terms of bond lengths shown in Table S4, the C-O_a bond length is elongated from 1.17 Å to 1.22 Å around the interaction area, and in particular, we should note that it significantly increases from 1.17 Å to 1.34 Å for the distance between C and O_b. Moreover, the CO₂ molecule also features an O_a-C-O_b bond angle of 132.23 degrees, which also changes obviously. The results indicate that the CO₂ molecule is activated. Through the above analysis, we can know that compared with the pristine BC₃N₂ surface, Mo/BC₃N₂ has a stronger adsorption affinity to CO₂ molecules. The variation probably has something to do with charge redistribution and the bonding nature, which will be discussed in the following sections in terms of the Partial density of states (PDOS), COHP, and Bader charge

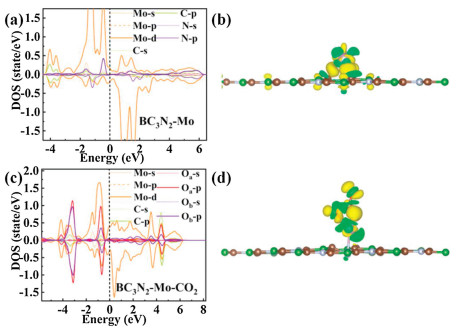

Firstly, we analyzed the electronic structure of Mo/BC₃N₂. Fig. 3a shows the partial DOS (PDOS) map for the BC₃N₂ system with Mo adsorption. The Mo 4d state crosses the Fermi level, indicating that Mo/BC₃N₂ also possesses metallic conductivity. The energy states around the Fermi level are mainly from the Mo 4d and N 2p states, suggesting that the Mo 4d and N 2p states dominate the conductivity of Mo/BC₃N₂. Furthermore, the density of states near the Fermi level is obviously asymmetric, thereby the Mo/BC₃N₂ system has a magnetic character. The PDOS of the BC₃N₂ system change greatly nearby the Fermi level when loaded with Mo, and the PDOS peaks for the Mo 4d state are wider and higher than those of the other atomic states of Mo/BC₃N₂, which implies the high activity of Mo/BC₃N₂ and also indicates a strong interaction between the Mo atom and BC₃N₂ sheet. Thus, loading with the Mo atom is responsible for the electronic and magnetic properties of the Mo/BC₃N₂ system. Besides, as shown in Table S4, an apparent charge of 0.66e is transferred from Mo to the BC₃N₂ sheet, which further demonstrates that Mo is chemisorbed on the BC₃N₂ monolayer. In Fig. 3b, we can see that the Mo atom interacts with the BC₃N₂ through ionic bonds with electrons (yellow) gathering on the surface of the BC₃N₂. The existence of ionic bonds between Mo and C (C₁, C₂ and C₃) atoms can be attributed to the significant difference in electronegativity. In addition, as depicted in Fig. S2 (Supporting information), there is a very weak bonding between Mo and N, but the bonds between three C atoms and Mo are much stronger to make the system stable. Secondly, we considered the adsorption of CO₂ on Mo/BC₃N₂. Combined with the above geometric configuration analysis of CO₂ absorbed on Mo/BC₃N₂, it can be seen that, due to the adsorption of CO₂ on Mo/BC₃N₂, there is a profound impact on the electronic structure of the Mo/BC₃N₂. The PDOS map, as depicted in Fig. 3c, shows that the adsorption of CO₂ does not change the fact that the system is magnetic and metallic. But comparing with the Mo/BC₃N₂ sheet, the PDOS peaks change obviously for the Mo 4d states when adsorbed with CO₂, indicating that the Mo atom's contribution is no longer overwhelming to the total density of states around the Fermi level. In Figs. 4a and b, it can be seen that both O_b and C atoms bond with Mo. In Fig. 3d, the differential charge density analysis further illustrates that the ionic feature exists in the Mo-C and Mo-O_b. As shown in Figs. 4c-e and Figs. S2a-c, before and after CO₂ adsorption, there are slight changes for the interactions between Mo and C (C₁, C₂, and C₃) atoms in the BC₃N₂ substrate. Most notably, by comparing Fig. 4f and Fig. S2d, we found that it is significantly enhanced for the bonding between Mo and N atoms. Meanwhile, it has changed significantly for the bonding between C and each of the two oxygen atoms, that is, the C-O bonds become weaker, which is easily found in Figs. 4g–i. This is consistent with the results of the geometric configuration analysis mentioned above. According to the analysis of the Bader charge, it gains 0.9 e for CO₂ molecule from Mo/BC₃N₂ system, which also explains why the bonding between C and O is weaker. Finally, it should be emphasized that Mo decorated on BC₃N₂ support can significantly change the electronic structure of the BC₃N₂ sheet. Moreover, it is also changed for the adsorption behavior as well as the molecular structure of CO₂ loaded on Mo/BC₃N₂, namely, the ability to capture CO₂ for Mo/BC₃N₂ is far better than that of the pristine BC₃N₂, and the charges (0.9 e) given in Table S4 transfers from the Mo atom to the CO₂ molecule, facilitating the activation of CO₂ on Mo/BC₃N₂.

In conclusion, we search a new metallic BC₃N₂ monolayer by using the PSO-based global structure search method and first-principles calculations, which is stable thermodynamically, dynamically, and mechanically. Ab initio molecular dynamics (AIMD) simulation shows that BC₃N₂ system has thermal stability. Moreover, the BC₃N₂ has an in-plane stiffness comparable to that of graphene. The study on CO₂ adsorption shows that the interaction between the pristine BC₃N₂ and CO₂ is rather weak due to the sp² hybridized B-C and C-N bonds in the BC₃N₂ sheet. However, the decoration of the Mo atom greatly enhances the interaction between gas molecule CO₂ and Mo/BC₃N₂, which demonstrates that metallic atom decorated on BC₃N₂ monolayer can change the adsorption capacity of BC₃N₂ to a great extent towards gas molecule CO₂, facilitating the activation of CO₂ on Mo/BC₃N₂. According to our research, it can be predicted that metal-modified BC₃N₂ may be an excellent catalyst if BC₃N₂ is loaded with an appropriate metallic atom.

The authors report no declarations of interest.

This research was supported by the National Natural Science Foundation of China (Nos. 21603109, U1404216, U1904179, U1404608), the Special Fund of Tianshui Normal University, China (Grant No. CXJ2020-08), the Key Science Fund of Educational Department of Henan Province of China (Nos. 19A140013, 20B140010) and Shaanxi Provincial Education Department Serves Local Scientific Research Program (Nos. 19JC020, 20JK0676).

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2021.02.046.
