Target-induced mimic enzyme deactivation based on mixed-node metal-organic frameworks for colorimetric assay of hydrogen sulfide
收藏切换
PDF
Fenfen Zhoua, Yanli Zhoub, *, Jianwei Zhangb, Hui Donga, b, Lantao Liua, b, Yintang Zhangb, Maotian Xua, b
Chinese Chemical Letters | 2021, 32(10) : 3155 - 3158
Less
收藏切换
Chinese Chemical Letters | 2021, 32(10): 3155-3158
• Communication •
Target-induced mimic enzyme deactivation based on mixed-node metal-organic frameworks for colorimetric assay of hydrogen sulfide
Full
Fenfen Zhoua, Yanli Zhoub, *, Jianwei Zhangb, Hui Donga, b, Lantao Liua, b, Yintang Zhangb, Maotian Xua, b
Affiliations
  • a College of Chemistry, Zhengzhou University, Zhengzhou 450001, China
  • b Henan Key Laboratory of Biomolecular Recognition and Sensing, College of Chemistry and Chemical Engineering, Shangqiu Normal University, Shangqiu 476000, China
Published: 2021-10-15 doi: 10.1016/j.cclet.2021.02.053
Outline
收藏切换

Accurate detection of hydrogen sulfide (H2S) is of great significance for environmental monitoring and protection. We propose a colorimetric method for the detection of H2S by the use of mixed-node Cu-Fe metal organic frameworks (Cu-Fe MOFs) as highly efficient mimic enzymes for target-induced deactivation. The Cu-Fe MOFs were synthesized by a simple solvothermal method and could catalyze the H2O2 mediated oxidation of 3, 3′, 5, 5′-tetramethylbenzidine (TMB) to oxTMB with a blue color. The presence of dissolved H2S would deactivate the mimic enzymes, and then the blue color disappeared. The mechanism of the sensor was discussed by steady-state kinetic analysis. The designed assay was highly sensitive for H2S detection with a linear range of 0−80 μmol/L and a detection limit of 1.6 μmol/L. Moreover, some potential substances in the water samples had no interference. This method with the advantages of low cost, high sensitivity, selectivity, and visual readout with the naked eye was successfully applied to the determination of H2S in industrial wastewater samples.

Metal-organic frameworks  /  Hydrogen sulfide  /  Colorimetric assay  /  Deactivation  /  Mimic enzyme
Fenfen Zhou, Yanli Zhou, Jianwei Zhang, Hui Dong, Lantao Liu, Yintang Zhang, Maotian Xu. Target-induced mimic enzyme deactivation based on mixed-node metal-organic frameworks for colorimetric assay of hydrogen sulfide[J]. Chinese Chemical Letters, 2021 , 32 (10) : 3155 -3158 . DOI: 10.1016/j.cclet.2021.02.053
Full Text
Less
Metal-organic frameworks (MOFs) as a class of highly porous crystalline materials play as crucial role in sensing of target analytes due to their superior frameworks and structural attributes, such as extremely high surface area, and large functional sites and porosity [1, 2]. For the MOF materials, plenty of coordination nodes and organic linkers can produce essentially infinite number of possible combinations. Their pore sizes are from several angstroms to several nanometers and their structures for different target molecules could be tuned by the selection of metal ions and organic linkers. Thus, beyond the accessible porosity, the versatile functionalities including catalysis, electricity, fluorescence, and luminescence make them an excellent platform for highly selective and sensitive detection of various analytes [3-7].
The monitoring and control of dissolved hydrogen sulfide (H2S) in natural and waster waters have been in demand for a long time because its level is an important environmental index [8, 9]. With the aim of real-time, miniaturized, and highly selective detection of H2S, nanomaterials (e.g., carbon-based nanomaterials, metal nanoparticles, metal oxide nanoparticles, and quantum dots) have been utilized [10-15]. In recent years, the MOF-based detection of H2S have been widely researched in terms of fluorescent, cataluminescent, and electrochemical properties [16]. The MOF-based sensors mainly rely on host-guest interactions between the metal ions of MOFs and S2−. For the fluorescent and cataluminescent detection of H2S [17-30], pre- and post-synthetic modification methods of MOFs like incorporating functional groups of azide, nitro, or vinyl have been illustrated as effective strategy to improve the sensing performance. However, the critical challenges associated with this technique were the maintenance of long-term photostability and the complex synthesis routes of MOFs. On the account of the electrocatalytic activity of MOFs, the MOF composites were modified on the electrode surfaces for the electrochemical sensing of H2S [31, 32]. Interestingly, the synergistic combination of MOFs and active components could provide the outstanding characteristics. The MOFs as excellent host matrics were not only served as nanocarriers for electroactive materials but also worked as catalysts for H2S oxidation. Nevertheless, the low signal transduction capacity was still a problem for its high sensitive detection. Hence, it is desirable to explore an efficient MOF-based method for sensitive and selective analysis of H2S.
Very recently, MOF-based colorimetric assays have been reported based on the catalytic activity of the mimic enzymes [33]. They have demonstrated obvious advantages over natural enzymes in terms of good stability, high efficiency, low cost, and easy storage. Furthermore, the unique physicochemical characteristics of MOFs endow MOF-based mimic enzymes with multiple functionalities via the rational design. The studies on colorimetric sensing have manifested MOFs as useful peroxidase mimics for the detection of hydrogen peroxide (H2O2), glucose, and some reducing agents like ascorbic acid [34-37]. By contrast, the potential of MOFs as mimic enzymes has rarely been exploited for the evaluation of levels of H2S [38, 39]. The unsatisfactory catalytic activity of single component MOFs might limit their application in colorimetric sensors.

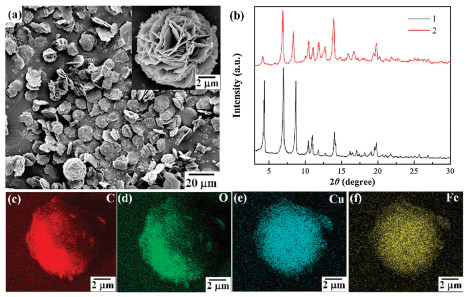

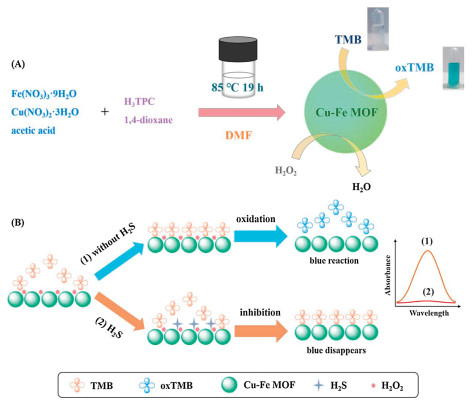

In this contribution, we presented a mixed-node Cu-Fe MOF as the mimic enzyme for the colorimetric detection of H2S based on the target-induced deactivation effect. In Scheme 1A, the mixed and high-density open metal sites of Cu-Fe MOFs were synthesized by a simple one-pot approach under the control of reacting temperature and reactant ratio [40]. The mixed Cu-Fe MOFs were constructed from a well-known paddle-wheel-like [Cu2(COO)4] dimer and a [Fe3(μ3-O)(COO)6] trimeric cluster. The morphology and structure of Cu-Fe MOFs were identified by scanning electron microscope (SEM) and X-ray diffraction (XRD). In Fig. 1a, Cu-Fe MOFs formed petal ellipsoid aggregates which was composed of cross-linked sheets with 5–10 micrometers (μm) in size. The XRD patterns of Cu-Fe MOFs (Fig. 1b) showed that the as-obtained samples were crystalline and its diffraction peaks were consistent with the simulated samples which previously reported [40]. The elemental mapping in Figs. 1c–f demonstrated the even distribution of Cu and Fe element, which signified the location of both Cu and Fe species in the crystal lattices of Cu-Fe MOFs. The energy dispersive spectrometer (EDS) analysis (Fig. S1 in Supporting information) revealed that the atomic ratio of Cu/Fe in the Cu-Fe MOFs was 2/1.

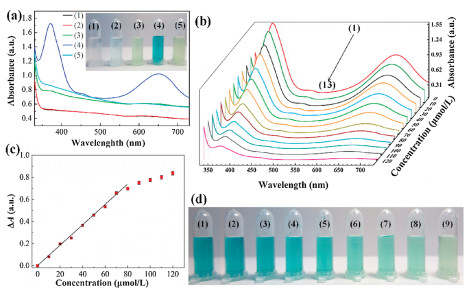

The peroxidase-like activity of Cu-Fe MOFs was evaluated by the catalytic oxidation of 3, 3′, 5, 5′-tetramethylbenzidine (TMB) in the presence of H2O2. Typical absorption spectra of TMB in different reaction systems were illustrated in Fig. 2a. The solution of TMB in NaAc-HAc buffer just had a background absorption, and its color was colorless. When only H2O2 was added, the absorption curve was nearly unchanged and the solution color was light blue (near colorless) due to the partial oxidation of TMB. Meanwhile, when just MOF was added, the background absorption of Cu-Fe MOFs was observed and the solution appeared light green color of Cu-Fe MOFs, indicating that TMB did not react with Cu-Fe MOFs directly. On this basis, the Cu-Fe MOFs catalyzed the oxidation of TMB to oxTMB with a blue color in the presence of H2O2, and there was a strong absorbance peak at 652 nm. Obviously, the Cu-Fe MOFs behaved like peroxidase toward typical TMB substrate. Interestingly, after the induction of H2S into this system, the absorption peak disappeared rapidly and the color was expected to change from blue to light green. The addition of H2S caused the deactivation of the peroxidase mimic, which might be ascribed to the occupation by H2S on the active sites of Cu-Fe MOFs. Thus, oxidation-induced blue color generation could be efficiently inhibited by H2S. In addition, after the above catalytic oxidation and combination, the XRD data (Fig. 1b) still remained the same patterns with the Cu-Fe MOFs, proving the high stability of the Cu-Fe MOFs. In view of this, a simple colorimetric method for H2S detection was proposed in Scheme 1B.
Similar to horseradish peroxidase (HRP) enzyme, the catalytic activity of Cu-Fe MOFs as enzyme mimics is also dependent on pH and substrate concentration. Therefore, to obtain the best sensing performance of Cu-Fe MOFs for H2S detection, key parameters including buffer pH, quantity of Cu-Fe MOFs, concentration of H2O2 or TMB were systematically varied and optimized in this study. The absorption difference (ΔA) after and before the addition of H2S was utilized as the parameter of colorimetric assay. Firstly, catalytic activity of Cu-Fe MOFs in a series of NaAc-HAc buffer solution with different pH values was evaluated from pH 3–6 in Fig. S2a (Supporting information). It was found that there was strong absorption response in the acidic solution, which might be due to the fact that acidic solution could provide more H+ and promote the catalytic oxidation of TMB in the presence of H2O2 [41, 42]. Thus, 0.1 mol/L NaAc-HAc buffer solution (pH 3.5) was selected as the optimal reaction medium. The Cu-Fe MOFs were further controlled to find out the suitable quantity for effective response to H2S (Fig. S2b in Supporting information). As the quantity of Cu-Fe MOFs was less than 0.30 mg/mL, the performance of the colorimetric assay gradually increased. The response reached a maximum value when its quantity was 0.30 mg/mL and then decreased. Therefore, 0.30 mg/mL of Cu-Fe MOFs was fixed as the optimal quantity for the following studies. By analogy, other optimum conditions were obtained: 1.4 mmol/L TMB and 0.56 mmol/L H2O2 (Figs. S2c and S2d in Supporting information). These results were close to the values obtained with other mimics and HRP [41, 42].
To further analyze the catalytic mechanism, a comparison of detection of H2S using the colorimetric system was investigated by use of the Cu-Fe MOFs and monometallic Cu-MOFs and Fe-MOFs (Fig. S3 in Supporting information). For the Cu-MOFs, low catalytic activity for the oxidation of TMB was observed. After the addition of H2S, the absorption peak could decrease rapidly and the solution changed to nearly colorless, indicating that the Cu-MOFs had strong binding with H2S. Clearly, the Fe-MOFs showed high catalytic activity for the oxidation of TMB, whereas the absorption peak and the solution color had unnoticeable changes for detection of H2S. Compared with the monometallic Cu-MOFs and Fe-MOFs, the biggest ΔA and the obvious color change by the use of Cu-Fe MOFs could be obtained for detection of H2S, which was attributed to the combined properties of strong binding ability from Cu and catalytic activity from Fe. The catalytic activity of Cu-Fe MOFs was also studied by enzyme kinetics theory with H2O2 and TMB as substrates. The steady-state kinetic parameters including Michaelis-Menten constant (Km) and maximum initial velocity (Vmax) were investigated by changing the concentrations of TMB or H2O2 in this system while other variables remained unchanged. Three typical Michaelis-Menten curves was obtained (Figs. S4a, S4c, S5a and S5c in Supporting information) in a certain range of substrate concentration. The results demonstrated that the oxidation reaction catalyzed by Cu-Fe MOFs and HRP agreed with the typical Michaelis-Menten behavior towards substrate TMB. The Km and Vmax were obtained by showing the slope and intercept of the double reciprocal line graph from Michaelis-Menten equation [25, 37]. Smaller Km values indicate stronger affinity between the enzyme and the substrate. In Table S1 (Supporting information), the apparent Km of MOF with H2O2 and TMB as substrate was much lower than that of HRP, which suggested that MOF had relatively high affinity for substrate than HRP. This could be attributed to the combined catalytic activity from bimetallic Cu-Fe MOFs. The double-reciprocal plots V0 and [S] revealed that a series of lines intersected at the negative half axis of the reciprocal of concentration (Figs. S4b, S4d, S5b and S5d in Supporting information). The Km value remained constant, but Vmax value decreased with the increase of H2O2 concentration. Therefore, this inhibition mode was speculated to be noncompetitive inhibition [43]. H2O2 as an inhibitor and Cu-Fe MOFs as enzymes could combine with the inactive sites to form H2O2-MOF complex, and then the complex combined with the substrate TMB. In other words, inhibitors had no effect on the binding of enzyme and substrate.
Under optimized conditions, the performance of this method was investigated in terms of linearity and limit of detection. The increasing amount of sodium sulfide was added to the colorimetric system. As shown in Fig. 2b, the corresponding UV–vis spectra were monitored and the absorbance peak at 652 nm gradually decreased and disappeared finally. With the increase of H2S concentration, the absorbance difference tended to be stable (Fig. 2c). A strong linear relationship was observed between ΔA and H2S concentration ranging from 0 to 80 μmol/L (ΔA =0.0062 c + 0.0088, R2 = 0.997), which was accompanied by a distinct color change from green blue to final light green (Fig. 2d). The limit of detection with naked-eyes and UV–vis spectrophotometer was 10 and 1.6 μmol/L, respectively, which were close to or lower than relevant MOF-based sensors, as shown in Table S2 (Supporting information). Our results also met the requirement of the World Health Organization for the detection of the maximum allowable level of H2S in drinking water [11]. The obtained high sensitivity could be ascribed to the high affinity of Cu-Fe MOFs to the substrate and the subsequent occupation on the active sites of Cu-Fe MOFs by H2S. Moreover, this method could be visual for end result with short assay time.

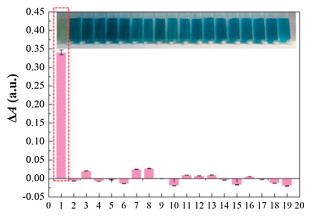

To evaluate the selectivity of bimetallic MOF sensor for detecting H2S, several interfering substances (Cl−, HCO3−, NO3−, NO2−, SO42-, HPO42-, H2PO4−, Br−, I−, K+, Al3+, Ca2+, Mg2+, Zn2+, Cr3+, Cd2+, Pb2+ and Mn2+) that might exist in actual water samples were selected and added to the colorimetric sensing system respectively. The concentration of above solutions was 80 μmol/L, which was consistent with that of H2S. As shown in Fig. 3, it was clear that upon addition of above substances, only H2S could produce a significant decrease in absorbance at 652 nm, whereas the other interference caused no noticeable change of the absorption value after subtracting the baseline value. Our assay was specific for H2S by direct visualization of the color change from green blue to final light green, while the solution color unchanged for the other interference. The high selectivity could be ascribed to the specific occupation on the active sites of Cu-Fe MOFs by H2S. In contrast, other important components of wastewater were not absorbed on the surface of Cu-Fe MOFs. Thus, the outstanding advantages of this assay with characteristics of high sensitivity and selectivity could be applied in the detection of H2S in real samples.
In order to verify the feasibility of the sensor in practical application, we applied it to the determination of H2S in industrial wastewater and the samples were collected without pretreatment. No H2S was found at detectable levels in the real samples and the same results were also confirmed by national standard method (GB/T 16489-1996). Hence, the recovery test was carried out by adding sodium sulfide standard solutions with different concentrations (40, 50 and 60 μmol/L), and the results were shown in Table S3 (Supporting information). The recoveries of H2S in wastewater samples ranged from 99.5% to 102%, and RSD ranged from 0.3% to 3.2%. The results show that the sensor had high accuracy and could be used for the rapid detection of H2S in real samples.
In conclusion, we propose a colorimetric method for the detection of H2S using the strategy of target-induced inactivation based on Cu-Fe MOFs as mimic enzymes. The results showed that the prepared MOFs had inherent peroxidase like activity and kinetic analysis showed that the catalyst was in accordance with the typical Michaelis-Menten kinetics. Compared with the reported MOF-based methods for detection of H2S, the proposed sensor provides important advantages as follows: (i) Simplicity of the use of mixed-node Cu-Fe MOFs as the mimic enzymes without any modification, design, and complex synthesis; (ii) high sensitivity owing to the high affinity of Cu-Fe MOFs to the substrate; (iii) excellent selectivity due to the specific occupation on the active sites of Cu-Fe MOFs by H2S; and (iv) easy and direct visualization of end result with color change. Our work will promote the application of MOFs in water quality analysis and environmental protection.
Declaration of competing interest
Less
The authors report no declarations of interest.
Acknowledgments
Less
The authors greatly appreciate the financial support from the National Natural Science Foundation of China (Nos. 21675109, 22074089), Central Thousand Talents Plan (No. ZYQR201810151), and Henan Joint International Research Laboratory of Chemo/Biosensing and Early Diagnosis of Major Diseases.
Appendix A. Supplementary data
Less
Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2021.02.053.
References
Less
[1]
H.C.J. Zhou, S. Kitagawa, Chem. Soc. Rev. 43 (2014) 5415-5418.
[2]
I. Stassen, N. Burtch, A. Talin, et al., Chem. Soc. Rev. 46 (2017) 3185-3241.
[3]
P. Kumar, A. Deep, K.H. Kim, TrAC Trend. Anal. Chem. 73 (2015) 39-53.
[4]
X.Y. Ren, L.H. Lu, Chin. Chem. Lett. 26 (2015) 1439-1445.
[5]
L.E. Kreno, K. Leong, O.K. Farha, et al., Chem. Rev. 112 (2012) 1105-1125.
[6]
W.P. Lustig, S. Mukherjee, N.D. Rudd, et al., Chem. Soc. Rev. 46 (2017) 3242-3285.
[7]
L.T. Liu, Y.L. Zhou, S. Liu, M.T. Xu, ChemElectroChem 5 (2018) 6-19.
[8]
V.S. Lin, W. Chen, M. Xian, C.J. Chang, Chem. Soc. Rev. 44 (2015) 4596-4618.
[9]
S.K. Pandey, K.H. Kim, K.T. Tang, TrAC Trend. Anal. Chem. 32 (2012) 87-99.
[10]
Y. Luo, C.Z. Zhu, D. Du, Y.H. Lin, Anal. Chim. Acta 1061 (2019) 1-12.
[11]
X.N. Liu, L.J. Huang, Y.P. Wang, et al., Sensor. Actuat. B: Chem. 306 (2020) 127565.
[12]
Z.Q. Gao, D.Y. Tang, D.P. Tang, R. Niessner, D. Knopp, Anal. Chem. 87 (2015) 10153-10160.
[13]
Z.H. Chen, C.Q. Chen, H.W. Huang, et al., Anal. Chem. 90 (2018) 6222-6228.
[14]
Y. Liu, Y.L. Zheng, D. Ding, R. Guo, Langmuir 33 (2017) 13811-13820.
[15]
C. Wang, G.Y. Ren, B.B. Yuan, et al., Anal. Chem. 92 (2020) 7822-7830.
[16]
K. Vikrant, V. Kumar, Y.S. Ok, K.H. Kim, A. Deep, Tr A.C. Trend, Anal. Chem. 105 (2018) 263-281.
[17]
Y. Ma, H. Su, X. Kuang, et al., Anal. Chem. 86 (2014) 11459-11463.
[18]
X. Zhang, J.M. Zhang, Q. Hu, et al., Appl. Surf. Sci. 355 (2015) 814-819.
[19]
X.Y. Wan, L.Q. Wu, L.C. Zhang, H.J. Song, Y. Lv, Sens. Actuators B: Chem. 220 (2015) 614-621.
[20]
X. Zhang, Q. Hu, T.F. Xia, et al., ACS Appl. Mater. Interfaces 8 (2016) 32259-32265.
[21]
A. Buragohain, S. Biswas, CrystEngComm 18 (2016) 4374-4381.
[22]
X.F. Yang, H.B. Zhu, M. Liu, Inorg. Chim. Acta 466 (2017) 410-416.
[23]
Y.P. Li, X. Zhang, L. Zhang, et al., J. Solid State Chem. 255 (2017) 97-101.
[24]
Y.Y. Cao, X.F. Guo, H. Wang, Sensor. Actuat. B: Chem. 243 (2017) 8-13.
[25]
X.B. Zheng, R.Q. Fan, Y. Song, et al., ACS Appl. Mater. Interfaces 10 (2018) 32698-32706.
[26]
H.Z. Yu, C.Y. Liu, Y.H. Li, A.S. Huang, ACS Appl. Mater. Interfaces 11 (2019) 41972-41978.
[27]
J. Zhang, F. Liu, J.L. Gan, et al., Sci. China Mater. 62 (2019) 1445-1453.
[28]
Y.F. Shu, J.N. Hao, D.C. Niu, Y.S. Li, J. Mater. Chem. C 8 (2020) 8635-8642.
[29]
W.M. Zhang, J. Wang, L.C. Su, et al., Sci. China Chem. 63 (2020) 1315-1322.
[30]
X.L. Zhao, L.J. Zhang, J.G. Bai, et al., Spectrochim. Acta A 243 (2020) 118794.
[31]
K. Tian, X.X. Wang, Z.Y. Yu, H.Y. Li, X. Guo, ACS Appl. Mater. Interfaces 9 (2017) 29669-29676.
[32]
H.Y. Shang, H. Xu, L.J. Jin, et al., Sensor. Actuat. B: Chem. 301 (2019) 127060.
[33]
J. Wang, Y.Y. Hu, Q. Zhou, et al., ACS Appl. Mater. Interfaces 11 (2019) 44466-44473.
[34]
W.Y. Xie, M.L. Tian, X. Luo, et al., Sensor. Actuat. B: Chem. 302 (2020) 127180.
[35]
H.X. Dai, W.J. Lü, X.W. Zuo, et al., Biosens. Bioelectron. 95 (2017) 131-137.
[36]
Y.Q. Yin, C.L. Gao, Q. Xiao, et al., ACS Appl. Mater. Interfaces 8 (2016) 29052-29061.
[37]
Y.L. Liu, X.J. Zhao, X.X. Yang, Y.F. Li, Analyst 138 (2013) 4526-4531.
[38]
Y. Jiang, Q. -M. Yang, Q.J. Xu, et al., Anal. Biochem. 577 (2019) 82-88.
[39]
R. Dalapati, S.N. Balaji, V. Trivedi, L. Khamari, S. Biswas, Sensor. Actuat. B: Chem. 245 (2017) 1039-1049.
[40]
J.W. Zhang, M.C. Hu, S.N. Li, et al., Chem. Commun. 54 (2018) 2012-2015.
[41]
J.J. Chen, H.J. Gao, Z.H. Li, Y.X. Li, Q. Yuan, Chin. Chem. Lett. 31 (2020) 1398-1401.
[42]
C.J. Gao, H.M. Zhu, J. Chen, H.D. Qiu, Chin. Chem. Lett. 28 (2017) 1006-1012.
[43]
Q. Fu, J. Tang, M. Cui, et al., J. Chromatogr. B 990 (2015) 169-173.
