Recently, 2D layered materials always gain tremendous attraction in the fields of electromagnetic interference shielding [1], catalysis [2], photothermal conversion [3] and energy storage field [4, 5] for their unique characteristics, such as their planar geometry with atomic or molecular thickness [6, 7], easy to process [8, 9] and more exposed atom [10]. Among the existing 2D nanomaterials, the thriving family, MXene (M_n+1X_nT_x), as one of the most promising electrode materials, is standing out for their unique combination of metallic conductivity, nanosheet processability, hydrophilicity and widely tunable properties [11-13], where, M is an early transition metal such as Ti, X is C or N, and T_x indicates the different functional groups (-O, -OH and -F) on the surface of metal layers. However, the self-aggregation of Ti₃C₂T_x nanosheets due to the strong interlayer van der Waals interaction or hydrogen bonding deteriorates ionic dynamical diffusion, bringing about low accessibility of the electrolyte ions [14, 15]. As a result, their performance in many fields is hindered severely by the aggregate phenomenon.

Hitherto, two approaches have been proposed for alleviating the self-stacking as well as enhancing ion transport kinetics, including construction of porous 3D structures [16, 17] and introduction of interlayer pillars [18]. Nevertheless, the mechanical performance is rarely reported in above works, which is also crucial for practical supercapacitor application as a free-standing film. Actually, numerous efforts have been devoted to reinforce the mechanical strength of Ti₃C₂T_x film, typically, introducing the nano-scale polymers (such as polyvinyl alcohol, bacteria cellulose and cellulose nanofiber) [19-21]. Unfortunately, the improvement of mechanical properties is at the expense of electrochemical performance. Generally, the capacitance of these nanocomposite films decreased quickly with the addition of nano-scale polymers due to the reduced interlayer conductivity. Thereby, there is much room in developing MXene-based materials to realize the trade-off between mechanical properties and electrochemical performance.

Herein, a novel strategy was proposed to fabricate anti-aggregation MFC@Ti₃C₂T_x film electrode towards promoted electrochemical performance as well as mechanical strength. Cellulose with micron diameter (MFC) was selected as reinforcing materials due to their high aspect ratio, abundant of -OH groups and high Young's modulus (> 150 GPa) [22]. In designed architecture, the Ti₃C₂T_x nanosheets would be coating 1D MFC to produce MFC@Ti₃C₂T_x microgel quickly owing to the rich -OH groups on MFC, hereby the 1D/2D conducting Ti₃C₂T_x pathways in horizontal and vertical directions was constructed. As-prepared MFC@Ti₃C₂T_x microgel not only suppresses the aggregation of Ti₃C₂T_x nanosheets efficiently, but the mechanical properties of MFC@Ti₃C₂T_x film have enhanced due to the framework of 1D MFC. As a result, the rate performance of MFC@Ti₃C₂T_x film is increased from 64% to 71% profit by the unique anti-aggregation structure for fast ion transport. What is more, the self-assembled MFC@Ti₃C₂T_x film could deliver an enhanced specific capacitance of 451 F/g at 1 A/g and superior tensile strength of 46.3 MPa, the balance of the energy storage and mechanical strength is realized in such anti-aggregation MFC@Ti₃C₂T_x free-standing film.

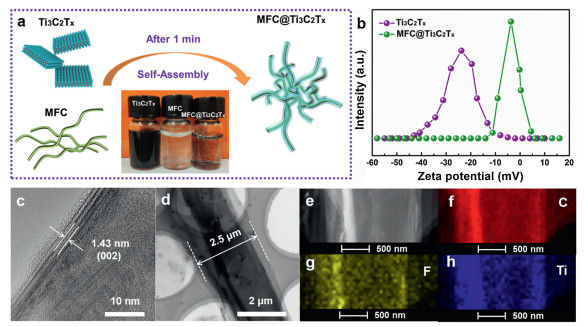

The Ti₃C₂T_x colloid solution was first prepared by etching Ti₃AlC₂ in HCl and LiF solution. After the introduction of MFC with abundant -OH groups (Fig. S2 in Supporting information) [23], the MFC@Ti₃C₂T_x microgel was synthesized successfully within 1 min (Video S1 in Supporting information) due to the strong hydrogen bonding linkage between the terminations (e.g., -F, -O and -OH) on the Ti₃C₂T_x nanosheets and -OH groups on the MFC. Consequently, Because of the micron-sized average diameter of MFC (around 2 μm), the formed large-scale MFC@Ti₃C₂T_x microgel greatly decreased the vacuum filtration time (filter membrane with 0.22 μm pore size), and the acquisition of MFC@Ti₃C₂T_x film only took several minutes. Based on the huge size differences of Ti₃C₂T_x nanosheets to MFC, Ti₃C₂T_x nanosheets were self-assembled parallel to the radial direction of MFC. After coating, each 1D MFC@Ti₃C₂T_x would interconnect each other to generate larger microgel, the schematic diagram of synthesis process of MFC@Ti₃C₂T_x via self-assembly process is illustrated in Fig. 1a. The digital photos of the obtained MFC@Ti₃C₂T_x film by vacuum-assist filtration in Fig. S3 (Supporting information) indicates much looser and coarser than that of the Ti₃C₂T_x film, which means that the alleviation of stacking, accompanied by the improved dispersity of Ti₃C₂T_x nanosheets, such anti-aggregation structure could be seen in Fig. S4d. As a result, more electrochemical active sites would be exposed for such anti-aggregation architecture of MFC@Ti₃C₂T_x microgel. As for the MFC@Ti₃C₂T_x free-standing films, distinct ultralong MFC could be observed in Fig. S4c (Supporting information), which is the guarantee for the robust mechanical strength. Fig. 1b shows the zeta potentials of Ti₃C₂T_x and MFC@Ti₃C₂T_x dispersions are −23 mV and −3 mV, respectively. The positive shift of the zeta potential demonstrates the negative potential on Ti₃C₂T_x surface is partially offset by the strong hydrogen bonding linkage, further confirming the successful self-assembly process of the MFC@Ti₃C₂T_x microgel.

Fig. S5 (Supporting information) shows the SEM images of Ti₃C₂T_x nanosheet, MFC and MFC@Ti₃C₂T_x microgel. Ultrathin 2D Ti₃C₂T_x nanosheet is similar to the graphene, large-scaled cellulose is composed of much ultralong nanocellulose. Basis on the characteristic of MFC, MFC@Ti₃C₂T_x microgel featuring 1D structure, the diameter and the length of are ~2.5 μm, ~120 μm, separately, with the high aspect ratio of 50. Fig. 1c is the TEM image of Ti₃C₂T_x nanosheets, stacked 3 ~ 4 layers, which the thickness is about 3 nm (Fig. S6 in Supporting information). In addition, the interlayer spacing of Ti₃C₂T_x is 1.43 nm, corresponding to the (002) plane of Ti₃C₂T_x. Fig. 1d is the TEM image of MFC@Ti₃C₂T_x, as expected, distinct analogous core-shell architecture was formed. The thickness of MFC@Ti₃C₂T_x is about 2.5 μm, in good agreement with that from SEM characterizations (Figs. S5c and d in Supporting information). Figs. 1e–h are the EDX elemental mapping results, which also show a clear interface between MFC and Ti₃C₂T_x, further indicating explicitly the formation of MFC@Ti₃C₂T_x architecture.

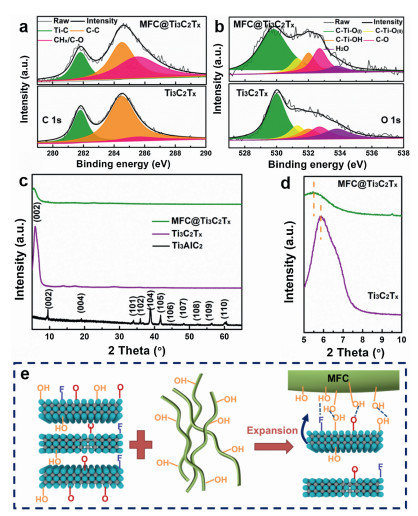

The XPS spectra of Ti₃C₂T_x and MFC@Ti₃C₂T_x films in the C 1s region and O 1s region is shown in Figs. 2a and b. It could be seen that the contents of C-O/CH_x increase significantly due to the introduction of organic MFC. In addition, the contents of T-C bonding have negligible change, which proves that connecting with MFC would not break the internal Ti-C bonding of Ti₃C₂T_x. This result demonstrates that the self-assembling strategy is not only facile but also nondestructive, and it could be further demonstrated in Ti 2p region (Fig. S7 in Supporting information). The XRD data of Ti₃C₂T_x and MFC@Ti₃C₂T_x is represented in Fig. 2c. The (104) main peak (2θ = 39°) of precursor MAX is disappeared in composition of the Ti₃C₂T_x, suggesting that the Al element is successfully removed during the etching process. Additionally, the (002) peak is broadened and shift to 5.9° from 9.5°, manifesting that the c-lattice parameter and the interlayer spacing of Ti₃C₂T_x is 30 Å and 15 Å, respectively. The value of interlayer spacing (15 Å) is closed to the results of TEM analysis (1.43 nm). After bonding with MFC, the (002) peak shift from 5.9° to 5.5° (Fig. 2d), revealing that the interlayer spacing is expanded from 15 Å to 15.9 Å. Considering that the large diameter of the MFC, it is impossible to intercalation the narrow interlayer of Ti₃C₂T_x nanosheets (only 1.5 nm). Thus, the increasing interlayer spacing may be due to the pulling effect of hydrogen bonding. According to the results of TEM of MFC@Ti₃C₂T_x microgel and Fig. 1a, single coated MFC@Ti₃C₂T_x would connect each other, thereby the intermediate Ti₃C₂T_x nanosheets would be pulled and expanded due to the stronger hydrogen linkage between MFC and Ti₃C₂T_x, as described in Fig. 2e. Such expanded interlayer spacing in favor of the intercalation of H⁺ ion, and thus more faradic reaction could be occurred as follows:

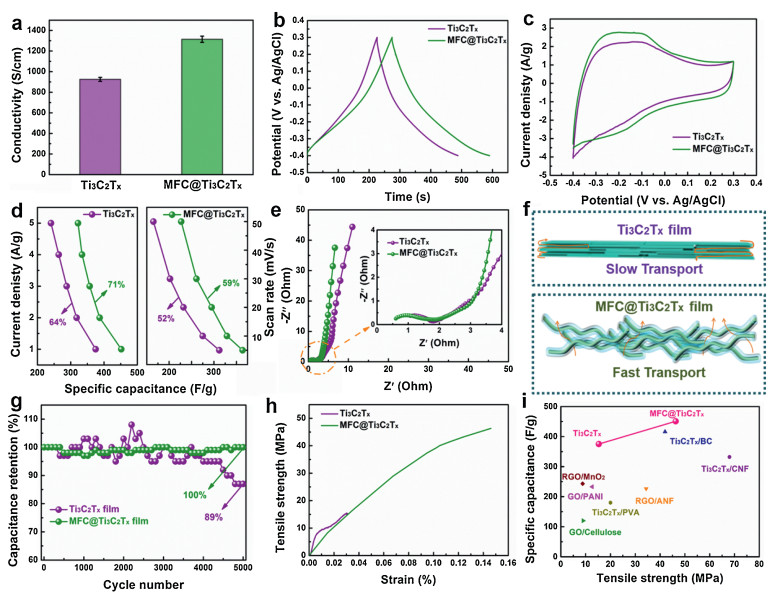

Different from the decreased conductivity arise from introduction of nano-scale polymers, the micro-scale MFC would not affect the charge transport of Ti₃C₂T_x nanosheets. From Fig. 3a, strikingly, the conductivity MFC@Ti₃C₂T_x film is enhanced compared to the encounter Ti₃C₂T_x film. Ultralong 1D/2D conducting Ti₃C₂T_x pathway is responsible for the promoted charge transport, however, as increasing the contents of MFC, the conductivity of composites film became decreased due to the excess insulator MFC, some exposed 1D MFC would block the electron transport in the planar dimension, thus the conductivity investigated by four-point probe technique would be decreased, as shown in Fig. S8 (Supporting information). The electrochemical performance of Ti₃C₂T_x and MFC@Ti₃C₂T_x electrode is carried out in three-electrode configuration. Fig. 3b shows the GCD curves of different films at 1 A/g, it could be observed that the discharge time of MFC@Ti₃C₂T_x electrode is longer than that of the pristine Ti₃C₂T_x electrode, and the specific capacitance of Ti₃C₂T_x electrode and MFC@Ti₃C₂T_x electrode are 375 F/g and 451 F/g, respectively. The value of 451 F/g at 1 A/g in MFC@Ti₃C₂T_x electrode is higher than most ever-reported anti-aggregated Ti₃C₂T_x-based electrode for supercapacitors (Table S1 in Supporting information). The enhanced capacitance in MFC@Ti₃C₂T_x electrode is not only due to the increase of interlayer spacing, more the point, attributing to the shorten of ion diffusion channel [24, 25]. Fig. 3c exhibits the CV curves of different films at 5 mV/s. The shape of the deviated from rectangle indicated the pseudocapacitance of the Ti₃C₂T_x material, and the larger CV area in MFC@Ti₃C₂T_x reveals the promoted charge storage. Based on specific capacitance from the GCD and CV curves at different current density and scan rate (Figs. S9 and S10, Table S2 in Supporting information), the rate performance is shown in Fig. 3d. It is not hard to find that the rate performance both increased by 7%, more importantly, the capacitance retained 71% after current density up to 5 A/g. Such enhanced rate performance is ascribing to the more accessible surface of Ti₃C₂T_x nanosheet for electrolyte. Similar results could be found in EIS curves (Fig. 3e). After adding MFC, the high frequency region still maintained a negligible semicircle, proving excellent conductivity of MFC@Ti₃C₂T_x electrode. Comparing the slope of the straight line in the low frequency region, it could be found that the MFC@Ti₃C₂T_x electrode possessed higher slope, indicating that the diffusion impedance has reduced in MFC@Ti₃C₂T_x electrode. Consequently, introduction of MFC could ease the stacking phenomenon between the layers as well as shortened the ion transport path greatly. Based on above result, compared with the compact Ti₃C₂T_x film, looser MFC@Ti₃C₂T_x microgel film provide the faster ion transport, as displayed in Fig. 3f. The cycling performance of pristine Ti₃C₂T_x and MFC@Ti₃C₂T_x electrodes at 10 A/g is shown in Fig. 3g. The MFC@Ti₃C₂T_x electrode could keep initial capacitance after 5000 cycles, which better than that of pristine Ti₃C₂T_x electrode, confirming its good cycle stability. Concluding the factor of improved electrochemical performance of MFC@Ti₃C₂T_x electrode, the coated anti-aggregation structure is mainly account for larger interlayer spacing (hydrogen pulling effect), fast ion (looser architecture) and charge (1D/2D conducting pathway) transport. Considering the practical application in aqueous electrolyte, the mechanical properties of Ti₃C₂T_x-based film must be taken into account. Fig. 3h and Fig. S11 (Supporting information) are the tensile stress–strain curves of Ti₃C₂T_x and MFC@Ti₃C₂T_x films. The stress strength of MFC@Ti₃C₂T_x film is up to 46.3 MPa owning to the synergistic bonding effect, leading to 3-fold improvement in competition of pristine Ti₃C₂T_x film (16.1 MPa). Fig. S12 (Supporting information) is the photograph of a piece of 7 mm wide strip made from MFC@Ti₃C₂T_x film, which can hold a 105 g weight, ~20,000 times its own weight. The plot of the gravimetric specific capacitance versus mechanical strength in Fig. 3i shows that the MFC@Ti₃C₂T_x electrodes display the superior integration of the capacitance and mechanical strength among some of the previously reported notable supercapacitor electrodes, such as Ti₃C₂T_x/PVA [19], Ti₃C₂T_x/BC [20], Ti₃C₂T_x/CNF [21], RGO/ANF [26], GO/PANI [27], GO/cellulose [28] and RGO/MnO₂ [29], This indicates that in MFC@Ti₃C₂T_x composites, an optimized trade-off between mechanical properties and energy storage is realized, where the mechanical strength is greatly improved compared to pristine Ti₃C₂T_x film while the electrochemical properties of Ti₃C₂T_x also improved.

In summary, the green and accessible 1D MFC was introduced into 2D Ti₃C₂T_x nanosheets to fast fabricate anti-aggregation MFC@Ti₃C₂T_x microgel. This facile and time-saving strategy to assembling 2D Ti₃C₂T_x into a 1D/2D conducting channel is definitely nondestructive. Surprisingly, benefiting from the alleviation of self-stacking and shortened ion transport pathway of Ti₃C₂T_x nanosheets, 71% rate performance was realized in aqueous electrolyte. Besides, the self-assembly MFC@Ti₃C₂T_x microgel film exhibited an improved capacitance of 451 F/g as well as the outstanding mechanical stress of 46.3 MPa, which is a guarantee for the practical potential. In addition, the cycling performance of MFC@Ti₃C₂T_x electrode could withstand 5000 cycles without any capacitance decay. This fast self-assembly approach provides a new sight to construct anti-aggregation structure between 1D fibers and 2D nanosheets.
