As a widely used volatile organic compound, acetone is regarded as one of the most harmful reagents to human health and environmental safety due to its easy volatilization, toxic and flammable nature [1,2]. Clinically, it is also considered to be one of the specific biomarkers for diagnosing human type Ⅰ diabetes. An individual may be afflicted with diabetes if his expiration product gives an acetone concentration of above 1.8 ppm, whereas it is lower than 0.9 ppm for a healthy one [3,4]. Therefore, gas sensors aimed at acetone have been extensively investigated, and it is significant for the environment safety as well as the human health to find an acetone gas sensor with excellent performances. Lately, plenty of metal oxide semiconductors, such as Fe₂O₃ [5], ZnO [6], SnO₂ [7] and CuO [8], have been used as gas sensing materials to detect acetone. Among them, Fe₂O₃ has been proved to be a more promising n-type semiconductor with excellent gas sensing characteristics [9,10]. However, it still has some shortcomings, e.g., low sensitivity and poor selectivity, which set up great obstacles for its commercial applications. Thus, many fascinating methods have been applied to improve the performances of Fe₂O₃-based gas sensor towards acetone.

As is well-known, the morphology of the sensing material plays a key role in its sensing performances for a metal oxide-based gas sensor. Of late, the metal-organic frameworks (MOFs) have been drawing more and more attention since some metal oxides with defined morphology and amazing shapes can be obtained through a high-temperature calcination of metal ions and organic ligands in them [11,12]. Generally, the metal oxides derived from MOFs can not only avoid aggregation and provide sufficient reaction sites but also facilitate gas diffusivity so that the gas sensing performances can be enhanced a lot [1,13]. In light of the merits of MOFs, many researchers have set their sights on taking advantage of them as precursors to get Fe₂O₃ in the field of gas sensing. For instance, Gao et al. [14] synthesized Fe₂O₃ porous nanorods with controlled morphologies by thermolysis of Fe-based MOF (MIL-88A), which exhibited better selectivity to acetone compared to the other samples. Yin et al. [15] used MOF of MIL-53 as a self-sacrificing template for preparing PrFeO₃/α-Fe₂O₃ composite, and exhibited a high gas response and superior selectivity to ethyl acetate gas. Tian et al. [16] have prepared hollow porous Fe₂O₃ nanoboxes derived from MOF of Prussian blue (PB) and then used for a H₂S gas sensor. On the other side, another general route to enhance gas sensing performances of a gas sensor is the surface modification, especially combining with other metal oxides to form an interesting heterojunction. As an attractive p-type material, Co₃O₄ has been reported as a perfect gas sensing material for detecting reduce gases as a result of its strong catalytic oxidation activity [17,18]. Besides, the ionic radiuses of the Fe and Co are so similar that lattice mismatches and oxygen vacancies can be obtained easily. Thus, combining Fe₂O₃ with Co₃O₄ to form p-n heterojunctions can effectively enhance the gas sensing performances of a gas sensor theoretically. Although the gas sensors based on n-type metal oxide and Co₃O₄ have received widespread attention, to the best of our knowledge, there are few reports on the hollow Fe₂O₃/Co₃O₄ microcubes derived from MOF of Prussian blue for improved gas sensing performances towards acetone.

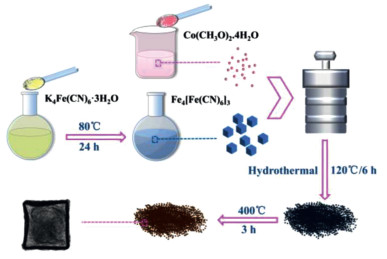

Herein, hollow Fe₂O₃/Co₃O₄ microcubes have been fabricated using MOF of PB through a hydrothermal method along with a calcination process, as shown in Fig. 1 (more details can be found in Supporting information). In this strategy, the MOF of PB is used as a soft template to get the microcubes as well as the source of Fe. The fabricated hollow Fe₂O₃/Co₃O₄ microcubes have a side length of around 400 nm and an outer shell of 20-40 nm, and their gas sensing properties towards acetone have been investigated carefully. The results show that the gas sensor based on the hollow microcubes had a higher response of 21.2 and a shorter response time of 5 s when exposed to 20 ppm acetone at a working temperature of 200 ℃, which is superior to that of pure Fe₂O₃ and Co₃O₄. The excellent gas sensing properties may be attributed to the hollow structures, the catalytic activity of Co₃O₄ as well as the formed p-n heterojunctions between Fe₂O₃ and Co₃O₄, and the gas sensor based on the as-prepared microcubes has a potential to find its practical application to detect acetone, especially towards its low concentration.

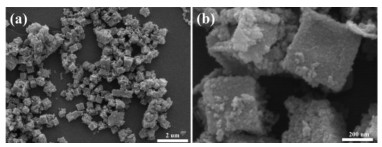

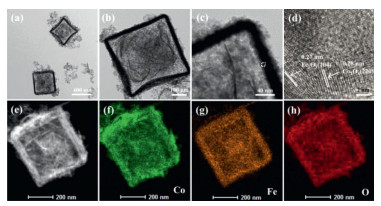

A series of techniques have been used to characterize the samples carefully (more details can be found in Supporting information). The morphologies and microstructures of the samples were elucidated by scanning electron microscopy (SEM) and transmission electron microscopy (TEM). As shown in Fig. S2 (Supporting information), the Fe₂O₃ composites are composed of microcubes, and the Co₃O₄ composites consist of irregular nanoparticles. Fig. 2a and b present the SEM images of the obtained sample at low magnification and high magnification, respectively. It can be found that the sample is composed of relatively uniform microcubes, and they have rough surfaces with a side length of 300-400 nm, and quite a number of particles accumulated on the surface of the microcubes. Noticeably, some microcubes have collapsed from the inside, indicating that the microcubes may have a hollow morphology. In order to further confirm this, the microcubes were investigated by TEM. As shown in Figs. 3a-c, it is clear that the microcubes are hollow. They have a side length of around 400 nm, which is in good accordance with the SEM results, and an outside shell thickness of 20-40 nm. Fig. 3d exhibits a high-resolution transmission electron microscope (HRTEM) image of the microcube, from which it can be seen that the interplanar space of ca. 0.28 nm and ca. 0.27 nm coexisted in the same area, corresponding to the < 220 > crystal plane of Co ₃O₄ and the < 104 > crystal plane of Fe ₂O₃, respectively. Afterwards, a high angle annular dark field (HADDF) and element mapping spectrogram tests were carried out in order to further study the microcubes. As displayed by Figs. 3e-h, the HADDF image also exhibits hollow microcubes, and the element mapping maps clearly reflects that the microcubes contains elements of Co, Fe and O, which are evenly distributed within the microcubes without obvious aggregation. These results illustrate that Co₃O₄ has been successfully combined with Fe₂O₃ to form p-n heterostructures between them.

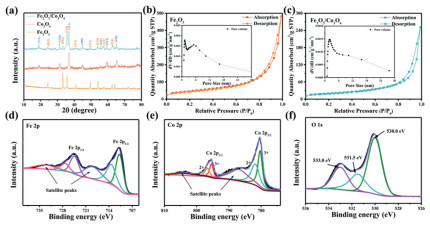

In order to explore their phases, powder X-ray diffraction (XRD) technique was performed on the Fe₂O₃, Co₃O₄ and Fe₂O₃/Co₃O₄ samples, as presented in Fig. 4a. For the two pristine samples, the obvious diffraction peaks match well with pure hematite Fe₂O₃ (PDF#33-0664) and pure spinel Co₃O₄ (PDF#43-1003), respectively [19]. With respect to the hollow Fe₂O₃/Co₃O₄ microcubes, the main diffraction peaks can be well indexed to the crystal planes of hematite Fe₂O₃ and spinel Co₃O₄, indicating their successful synthesis. In addition, no peaks of other impurities can be observed, illustrating a high purity of the samples. Figs. 4b and c present the nitrogen adsorption-desorption isotherms and pore size distribution curves of pure Fe₂O₃ and Fe₂O₃/Co₃O₄ microcubes. From these figures, it can be seen that an obvious hysteresis loops are formed. They can be assigned to the typical type Ⅳ according to the IUPAC classification, indicating the presence of mesopores in the samples. The specific areas of pristine Fe₂O₃ and Fe₂O₃/Co₃O₄ microcubes are calculated to be 39.9 and 69.5 m²/g, respectively. The microcubes have a much larger specific area than that of pure Fe₂O₃. Furthermore, to explore the surface elemental compositions, the microcubes were investigated by X-ray photoelectron spectroscopy (XPS). Figs. 4d-f present the Fe 2p, Co 2p and O 1s spectra of the microcubes and the peak fitting results. The spectra of Fe 2p in the Fig. 4d are composed of two main peaks located at 711.1 eV and 724.5 eV. They originate from Fe 2p_3/2 and Fe 2p_1/2, and two satellite peaks of 719.2 eV and 733.2 eV can be seen [20,21]. The peaks of 780.3 eV and 795.6 eV in the Fig. 4e can be assigned to Co 2p_3/2 and Co 2p_1/2 with a spin energy separation of 15.3 eV [22]. There are also two low satellite peaks at 787.2 eV and 803.8 eV, corresponding to Co 2p_3/2 and Co 2p_1/2 [23]. As for the O 1s spectra in the Fig. 4f, the peaks at 530.0 eV, 531.5 eV and 533.0 eV can be assigned to the surface lattice oxygen, surface-adsorbed oxygen (O₂⁻, O₂²⁻, O⁻) and physically adsorbed oxygen species (O₂), respectively [20,24].

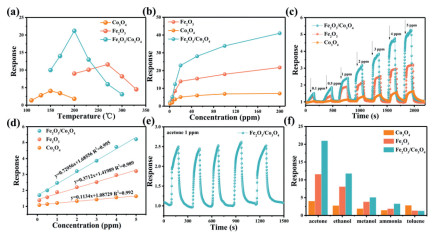

In order to evaluate the gas sensing performance of the samples, many tests were carried out on the measurement system (more details can be found in Supporting information). Regarding a gas sensor, working temperatures have a significant impact on its performance. The responses of gas sensors based on pure Fe₂O₃, Co₃O₄ and Fe₂O₃/Co₃O₄ microcubes towards 20 ppm acetone at different temperatures are shown in Fig. 5a. The results clearly show that the responses of the gas sensors all present a parabolic-like shape. It can be seen that with the working temperature rose, the response of each gas sensor first increased, then reached the maximum and decreased finally. It' not hard to understand that the response towards acetone depends on the balance between the adsorption rate and desorption rate. If the working temperature increases, the adsorption of acetone will be accelerated, thereby enhancing the gas response. When the working temperature rises to a higher level, the desorption rate will be much faster than the adsorption rate, thereby reducing the response. Obviously, from the Fig. 5a, the working temperatures of the Fe₂O₃, Co₃O₄ and Fe₂O₃/Co₃O₄ microcubes-based gas sensor at their maximum responses towards 20 ppm acetone are 270 ℃, 150 ℃ and 200 ℃, respectively. These always can be used as their optimal working temperatures. Meanwhile, the response of microcubes-based gas sensor is 21.2, which is almost 2.1 and 5.5 times much higher than that of Fe₂O₃ and Co₃O₄-based gas sensors at their optimal working temperatures. The above results show that the responses of microcubes-based gas sensor are significantly better than that of Fe₂O₃ and Co₃O₄-based gas sensors. Hence, the modification of Fe₂O₃ by Co₃O₄ cannot only effectively reduce the working temperature of a Fe₂O₃-based gas sensor, but also increase its response. Fig. 5b displays the responses of the gas sensors to different concentrations of acetone, e.g., 1, 5, 10, 20, 50, 100 and 200 ppm, at their optimal working temperatures. It is obvious that the microcubes-based gas sensor has the optimum responses towards acetone. As the acetone concentration increases, all the gas sensors show a saturated trend, which is due to the relative saturation of adsorption sites on the sensing materials. Fig. 5c gives dynamic curves of the gas sensors towards low acetone concentrations of 0.1, 0.5, 1, 2, 3, 4, 5 ppm at their optimal working temperature. These curves illustrate that all the gas sensors have good response-recovery properties. Among them, microcubes-based gas sensor also showed superior performance than others, and it still has a response of 1.70 when the acetone concentration is as low as 0.1 ppm. Fig. 5d presents the fitting curves of the concentration (x) versus the response (y) obtained from the Fig. 5c. A good linear relationship and a perfect R² of 0.995 are given for the microcubes-based gas sensor, indicating a promising application for the quantitative detection of acetone at a low concentration. Fig. 5e showed five cycles of microcubes-based gas sensor towards 1 ppm acetone at 200 ℃, and the response varies slightly, demonstrating its excellent stability for low concentration. In addition, the selectivity is also a key parameter for determining a gas sensor's effectiveness and accuracy. Fig. 5f depicts the responses of the gas sensors to acetone, ethanol, methanol, ammonia and toluene of 20 ppm at 200 ℃, respectively. The microcubes-based gas sensor had the highest response of 21.2 towards acetone, which is ca. 1.8, 4.2, 6.4, 16.2 times larger than that of ethanol, methanol, ammonia, and toluene. This indicates the microcubes-based gas sensor has an outstanding selectivity toward acetone against the other four unwanted gases.

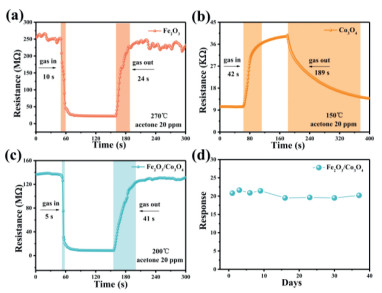

As a real-time monitoring device, the response and recovery times of a gas sensor are other important parameters to pass judgment on the sensing performance for practical applications. Figs. 6a-c illustrate the response and recovery times of the gas sensors to 20 ppm acetone at their optimal working temperatures. Once the acetone was injected into the sealed chamber, the resistance of microcubes-based gas sensor declined swiftly and presents a response time of 5 s, which precedes the Fe₂O₃-based and Co₃O₄-based gas sensor by 5 s and 37 s, respectively. When being exposed to the fresh air, the resistances of gas sensors return to their original state gradually, and the recovery time of the microcubes-based gas sensor was 41 s, about 148 s faster than that of the Co₃O₄-based gas sensor. However, it is 17 s longer than that of the Fe₂O₃-based gas sensor. This may be due to the high working temperature of Fe₂O₃-based gas sensor, thus prompting the transmission of gas over its surface and thus leading to a shorter recovery time. Fig. 6d depicts the long-time stability of microcubes-based gas sensor to 20 ppm acetone at 200 ℃. It can be found that the responses to 20 ppm acetone did not change significantly within 37 days, demonstrating that the gas sensor has reliable long-term stability, which will be beneficial to its practical applications. Table S1 (Supporting information) is the comparison of some reported Fe₂O₃-based gas sensors toward acetone. Taking the response, working temperature and response time into consideration, it is obvious that the microcubes-based gas sensor in this work have advantages in detecting acetone. To ascertain the impact of Co₃O₄ on the gas sensing properties, the Fe₂O₃/Co₃O₄ nanocomposites with different quantity of Co₃O₄ were also synthesized using the same procedure (details in Supporting information). It found that the compound with moderate content of Co₃O₄ possesses better sensing performance.

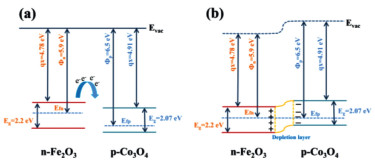

The sensing mechanism of the designed acetone gas sensors can be discussed according to the generally accepted principle at their operating temperatures [18,25]. Based on the results of gas sensing measurements, the microcubes-based gas sensors have enhanced gas sensing performances compared with that of pure Fe₂O₃ and Co₃O₄-based gas sensors. This may be explained by the following factors. Firstly, the hollow Fe₂O₃ /Co₃O₄ microcubes have a larger specific surface area, abundant mesopores with smaller sizes and more rough surfaces. This can provide more activated sites, and thus facilitates the gas adsorption on their surface so that the gas sensing performances can be enhanced greatly. Furthermore, as shown in Fig. 7, Fe₂O₃ is a typical n-type semiconductor with a work function of 5.9 eV, and Co₃O₄ is p-type with a work function of 6.5 eV [26]. The work function of Co₃O₄ is higher than that of Fe₂O₃, and thus when they contact with each other to form a p-n heterojunction, the electrons will flow from the Fe₂O₃ to the Co₃O₄, and the holes will be transferred from an opposite direction until their Fermi levels reach equilibrium. During this process, the electron concentration changes, leading to an obvious band bending. The p-n heterostructure will produce enhanced charge separation at their contact interface, resulting in an enhanced conductance modulation [27,28]. What is more, the synergistic effect of Fe₂O₃ and Co₃O₄ could be another key aspect in improving gas sensing performances. Due to the adding of Co₃O₄, more lattice mismatches will be generated, and more defects and dangling bonds will be formed at the interface, which will improve the gas sensing performance apparently.

In the study, hollow Fe₂O₃/Co₃O₄ microcubes have been prepared by a hydrothermal method followed by an annealing process taking metal-organic framework of PB as a soft template. The hollow microcubes have a side length of around 400 nm and an outer shell of 20-40 nm. Compared with that of pure Fe₂O₃ and Co₃O₄, the hollow microcubes-based gas sensor demonstrates enhanced gas sensing performances towards acetone, which could be due to the hollow structure, and the p-n heterojunction formed between Fe₂O₃ and Co₃O₄.
