Ning Jiang^a^,¹, Zaigang Zhou^b^,^c^,¹, Wei Xiong^d, Jiashe Chen^b^,^c, Jianliang Shen^b^,^c^,^*, Rongtao Li^a^,^*, Ruirong Ye^a^,^*

Chinese Chemical Letters | 2021, 32(12) : 3948 - 3953

Less

Chinese Chemical Letters | 2021, 32(12): 3948-3953

• Communication •

Tumor microenvironment triggered local oxygen generation and photosensitizer release from manganese dioxide mineralized albumin-ICG nanocomplex to amplify photodynamic immunotherapy efficacy

Full

Ning Jiang^a^,¹, Zaigang Zhou^b^,^c^,¹, Wei Xiong^d, Jiashe Chen^b^,^c, Jianliang Shen^b^,^c^,^*, Rongtao Li^a^,^*, Ruirong Ye^a^,^*

Affiliations

^aFaculty of Life Science and Technology, Kunming University of Science and Technology, Kunming 650500, China

^bState Key Laboratory of Ophthalmology, Optometry and Vision Science, School of Ophthalmology and Optometry, School of Biomedical Engineering, Wenzhou Medical University, Wenzhou 325027, China

^cWenzhou Institute, University of Chinese Academy of Sciences, Wenzhou 325001, China

^dDepartment of Urology, Xiangya Hospital, Central South University, Changsha 410008, China

Published: 2021-12-15 doi: 10.1016/j.cclet.2021.06.053

Outline

Abstract

Less

Photodynamic therapy (PDT) has emerged as a potential clinical strategy for tumor therapy. It can generate reactive oxygen species (ROS) to cause the chemical damage of tumor cells and promote the immune killing effects of T cells on tumor cells in the presence of enough oxygen and PDT drugs. However, most solid tumors are in a state of oxygen deficiency, which seriously limit the efficacy of PDT in generation enough ROS. Besides, few safe PDT drugs with ideal pharmacokinetic behavior are available in the clinic, which severely limits the clinical transformation and application of PDT. Herein, we utilized manganese chloride to mineralize the hydrophilic indocyanine green/albumin polyplexes (ICG@BSA@MnO₂) by using bio-mineralized method to solve these problems of PDT. These ICG@BSA@MnO₂ nanoparticles could circulate in the blood for a long period other than quickly removed from body after 30 min like free ICG. When accumulated at the tumor site, ICG was responsively released in the presence of hydrogen peroxide. Apart this, the tumor hypoxia microenvironment was also reversed owing to enhanced O₂ generation by the reaction of MnO₂ with hydrogen peroxide. Benefits from the rich accumulation of ICG and ameliorated tumor hypoxia in the tumor sites, the enhanced generation of ROS could successfully promote the distribution of CD3⁺ and CD8⁺ T cells inside the tumors, which then lead to the amplified efficacy of PDT in both CT26 and B16F10 tumor models without causing any side effects.

Key words

Photodynamic therapy / Bio-mineralized method / Hypoxia / Indocyanine green / Manganese dioxide

Cite this Article

Ning Jiang, Zaigang Zhou, Wei Xiong, Jiashe Chen, Jianliang Shen, Rongtao Li, Ruirong Ye. Tumor microenvironment triggered local oxygen generation and photosensitizer release from manganese dioxide mineralized albumin-ICG nanocomplex to amplify photodynamic immunotherapy efficacy[J]. Chinese Chemical Letters, 2021 , 32 (12) : 3948 -3953 . DOI: 10.1016/j.cclet.2021.06.053

Full Text

Less

In the last few decades, PDT has become one of the most effective local treatments for solid tumors [1,2]. It could generate reactive oxygen species (ROS) in the presence enough PDT drugs and sufficient oxygen, as well as initiating the antitumor immunity by promoting antigen presentation to cytotoxic T lymphocytes (CTL) to form a systemic immune effect [3–5]. Due to its merits like non-invasion and high spatiotemporal controllability, PDT is expected to become an effective tumor therapy to treat cancer in the near run [6].

Although PDT possess numerous advantages compared to other tumor therapies, its usage in clinic is still very limited [7,8]. The main cause of this status was due to the lack of safe and effective PDT molecules for clinical usage [6,8]. As we all known, a lot of PDT molecules have been discovered in the past few years, such as near-infrared photodynamic molecules, quantum dot and inorganic nano-sheets [6]. Although these molecules or nanoparticles possess ideal ROS production ability and show obvious tumor cell growth inhibition capacity, their potential hepatorenal toxicity and some unknown potential toxicity still limit their prospect of clinical application [9,10]. Thus, it is of great value to better enhance the efficacy of clinical used PDT molecule, especially the only clinical usable near-infrared PDT molecule indocyanine green (ICG) [8].

Currently, ICG is a diagnostic drug used to examine liver function in clinic [11]. 97% of the free ICG could be quickly removed from the blood by the liver and excreted into feces in a short time of 30 min [12,13]. When used in PDT therapy, its efficacy is very limited owing to obviously limited tumor accumulation [14]. To solve this problem, a lot of nanomaterials are developed, including liposomes and albumin nanoparticles, among which albumin nanoparticles possess the best transformation prospect since it is approved and used in clinic [15,16]. However, ICG loaded albumin nanoparticles still possess some defects, like poor blood stability and serious drug leakage in the blood, leading to the limited ICG accumulation in tumors [17,18]. Thus, avoiding the leakage of ICG from nanoparticles in the blood to achieve better drug accumulation in tumors is still urgently needed.

Currently, manganese dioxide albumin nanoparticles (MnO₂@BSA) prepared by simple bio-mineralization method are widely used in tumor therapy and diagnosis [19,20]. MnO₂@BSA prepared by this method have many advantages, including high stability, small particle size, low cost and industrial production possibility [20]. When accumulated in the tumor, MnO₂@BSA can generate enough O₂ in the presence of H₂O₂ in tumors to enhance the efficacy of oxygen-sensitive tumor therapies, especially radiotherapy and PDT [21–23]. Besides, MnO₂@BSA could also be used to selectively deliver cationic water-soluble drug to the tumor cells [23]. But, to our best knowledge, whether it could deliver hydrophilic anion drugs to tumors are rarely proven [23–25].

In this study, by using mild bio-mineralization method, we creatively utilized MnO₂@BSA to encapsulate the hydrophilic anion drug ICG to solve the problems of PDT (Scheme 1) [26–28]. ICG@BSA@MnO₂ could circulate in the blood for a long period to avoid the quick clearance of ICG from the body. When accumulated at the tumor site, hydrogen peroxide highly expressed in tumors could selectively trigger the release of ICG. Meanwhile, the tumor hypoxia microenvironment was also reversed owing to the enhanced O₂ generation by reaction of MnO₂ with hydrogen peroxide. Due to the enhanced ICG delivery and reversed tumor hypoxia, more ROS was generated, as well as the distribution of CD3⁺ and CD8⁺ T cells in tumors, leading to the amplified PDT efficacy in both CT26 and B16F10 tumors.

To be specific, ICG@BSA@MnO₂ was prepared by mild bio-mineralization method. Generally, ICG and BSA were firstly hybridized in deionized water to form loose complex. Then, through the redox reaction between MnCl₂ and BSA, stable ICG@BSA@MnO₂ was obtained. The prepared ICG@BSA@MnO₂ showed highly homogeneous spherical structure of 60.5 ± 4.3 nm with zeta potential of −38.5 ± 2.7 mV (Figs. 1A and B; Fig. S1 in Supporting information). By using elemental mapping analysis, it was confirmed that amounts of manganese and oxygen element was located in the ICG@BSA@MnO₂, meaning that MnO₂ did form a nanosystem with ICG@BSA complex (Fig. 1A). It was also further revealed that ICG was encapsulated in ICG@BSA@MnO₂ nanoparticles by NR-VIS analyse (Fig. 1C). Following this, the stability of ICG@BSA@MnO₂ was researched. Results indicated that the particle size of ICG@BSA@MnO₂ did not obviously change in the PBS buffer at pH 7.4 or 6.4 and for 10% FBS at per-set time (Fig. S2 in Supporting information). All these results revealed that ICG@BSA@MnO₂ was well prepared with highly homogeneous spherical structure and well stability.

To predict the ability of ICG@BSA@MnO₂ to release ICG and generate O₂ at the hydrogen peroxide highly expression microenvironment, the release behavior of ICG@BSA@MnO₂ at H₂O₂ in vitro was evaluated. Results showed that ICG would be quickly released from ICG@BSA complex, while few ICG was released from ICG@BSA@MnO₂ in the same condition (Fig. 1D). Besides, the ICG release from ICG@BSA@MnO₂ at different time with the addition of 100 µmol/L H₂O₂ was obviously enhanced, meaning that ICG@BSA@MnO₂ could be degraded by H₂O₂ to trigger the release of ICG (Figs. 1D and E). Meanwhile, it was also revealed that abundant O₂ was also generated with the reaction of H₂O₂ and ICG@BSA@MnO₂ (Fig. S3 in Supporting information). With the obviously enhanced generation of O₂ and released ICG, more ROS was generated after laser radiation, which may then cause obvious damage to tumor cells (Fig. 1F). All these results above indicated that ICG@BSA@MnO₂ possess high O₂ and ROS generation ability in vitro when triggered by the moderate amount of H₂O₂.

As indicated above, ICG@BSA@MnO₂ possessed high O₂ and ROS generation ability in vitro, we speculated that ICG@BSA@MnO₂ may enhance the efficacy of PDT in vitro. To prove this, the effects of ICG@BSA@MnO₂ on the tumor cell uptake was evaluated. As shown in Fig. 2A, the red fluorescence signal of ICG in CT26 tumor cells from free ICG or ICG@BSA@MnO₂ was almost all located in the cell cytoplasm after incubation for 2 h or 6 h. Besides, no obvious fluorescence signal difference was found between free ICG or ICG@BSA@MnO₂ treated cells (Fig. S4 in Supporting information), meaning that ICG@BSA@MnO₂ had no effect on the cell uptake of ICG. Then, ROS generation in CT26 cells after laser radiation were measured with DCFH-DA under hypoxia (3% O₂) and normoxia (21% O₂). As indicated, a stronger green fluorescence of ROS in CT26 cells were observed after treatment with ICG@BSA@MnO₂ together with laser radiation compared with ICG groups (Fig. 2B; Figs. S5 and S6 in Supporting information). Meanwhile, enhanced cell membrane exposure of calprotectin (CRT) was also detected in ICG@BSA@MnO₂ treated CT26 tumor cells together with laser radiation (Fig. 2B; Fig. S7 in Supporting information). All results mean that ICG@BSA@MnO₂ could enhance ROS generation and CRT exposure in CT26 cancer cells in vitro.

Following this, the cell viability assay was conducted by using CCK-8. As shown in Figs. 2C and D, ICG@BSA@MnO₂ and ICG without laser radiation showed no obvious toxicity to CT26 cells, suggesting that ICG@BSA@MnO₂ possess good biocompatibility. When ICG@BSA@MnO₂ or free ICG was co-treated with laser irradiation in hypoxia (3% O₂), the cell viability of ICG@BSA@MnO₂ was dramatically decreased compared with free ICG treated tumor cells (Fig. 2D). This indicated that ICG@BSA@MnO₂ mediated PDT exhibited obvious cell growth inhibition ability. Meanwhile, when ICG@BSA@MnO₂ or free ICG was co-treated with laser irradiation in normoxia (21% O₂), the difference of the ability in inhibiting the cell growth between free ICG and ICG@BSA@MnO₂ co-treated with laser irradiation disappeared (Fig. 2C), meaning that enhanced oxygen production by ICG@BSA@MnO₂ increased the cell cytotoxicity ICG@BSA@MnO₂ mediated PDT. All in all, these results above showed that ICG@BSA@MnO₂ exhibited high PDT efficacy in vitro.

To track the pharmacokinetics of ICG@BSA@MnO₂ in vivo, the blood metabolic behavior of ICG@BSA@MnO₂ was firstly evaluated. As shown in Fig. S8 (Supporting information), free ICG was quickly removed from the mice at a short period of about 30 min. But for ICG@BSA@MnO₂ treated mice, the blood residence time of ICG@BSA@MnO₂ was significantly increased. At 24 h and 48 h, the mice were sacrificed to collect the major organs and tumors. Results indicated that more ICG was accumulated in the heart, liver, spleen, lung, kidney and tumors of ICG@BSA@MnO₂ treated mice, while almost no ICG was detected in these tissues in free ICG treated mice (Figs. S9 and S10 in Supporting information). Thus, ICG could better accumulate at the tumor site when encapsulated in ICG@BSA@MnO₂ nanoparticles (Fig. 3A; Fig. S11 in Supporting information).

As all known, MnO₂ could generate amounts of O₂ by reaction with H₂O₂ and about 100-1000 µmol/L H₂O₂ located in different types of tumors [29]. Thus, ICG@BSA@MnO₂ may also possess the ability to reverse tumor hypoxia in vivo in CT26 tumors. To prove this, HIF-1 α and Pimonidazole, two indirect tumor hypoxia indicators, were used. As indicated, both BSA@MnO₂ and ICG@BSA@MnO₂ downregulated HIF-1 α expression in CT26 tumors in vivo, while ICG itself did not possess this ability, meaning that MnO₂ in ICG@BSA@MnO₂ mediated the reversed tumor hypoxia microenvironment other than ICG (Fig. 3B; Fig. S12 in Supporting information). Moreover, a similar phenomenon that ICG@BSA@MnO₂ mediated the reversed tumor hypoxia was also obtained by using another hypoxia indicator Pimonidazole (Figs. S13 and S14 in Supporting information). Thus, ICG@BSA@MnO₂ could obviously reverse tumor hypoxia in vivo.

Very recently, it was proved that PDT could relieve T cell exhaustion by inducing immunogenic death, such as CRT [30,31]. As proved above, ICG@BSA@MnO₂ mediated PDT obviously induced CRT exposure in cell membrane (Fig. 2B). Thus, we speculated that ICG@BSA@MnO₂ mediated PDT could also relieve T cell exhaustion in vivo. Results indicated that the infiltration and distribution of CD3⁺ and CD8⁺ T cells were significantly increased in CT26 tumors treated by ICG@BSA@MnO₂ with laser radiation compared (Fig. 3C; Fig. S15 in Supporting information). Subsequently, TUNEL and H & E staining were used to evaluate anti-tumor effects of ICG@BSA@MnO₂ with laser radiation. Results showed that more CT26 tumor cells apoptosis was induced by ICG@BSA@MnO₂ mediated PDT than other groups including cells treated by free ICG and laser radiation (Fig. 3D; Fig. S16 in Supporting information). All in all, ICG@BSA@MnO₂ mediated PDT could most effectively induce the tumor cell death.

Inspired by the above results, we next evaluated the efficacy of ICG@BSA@MnO₂ mediated PDT in inhibiting CT26 tumor growth in vivo (Fig. 4A). All these procedures strictly complied with the ethical and legal requirements under the Administration Committee of Experimental Animals in Zhejiang Province and were approved by Ethics Committee of Wenzhou Medical University. As shown in Fig. 4B, ICG@BSA@MnO₂ + laser treatment showed the most significant tumor growth inhibition ability, while only little such effect existed in ICG + laser treated mice. The difference of efficacy between ICG@BSA@MnO₂ + laser group and ICG + laser group in inhibiting tumor growth was at least partly caused by the phenomenon ICG@BSA@MnO₂ + laser treated mice showed effectively reversed tumor hypoxia and increased ICG accumulation in tumors compared with free ICG (Figs. 3A and B). At Day 14, all mice were sacrificed to collect the tumors. Results also showed that the average tumor weight of ICG@BSA@MnO₂ + laser group was only about 25% of the tumors of PBS treated mice (Fig. 4C). Meanwhile, although the average tumor weight of ICG + laser group was slightly decreased compared with that of mice PBS treated mice, no obvious difference was found (Fig. 4C). More importantly, no significant body weight changes were observed after ICG@BSA@MnO₂ administration (Fig. S17 in Supporting information), indicating that ICG@BSA@MnO₂ possessed good biocompatibility in vivo.

Following this, the general validity of ICG@BSA@MnO₂ mediated PDT in inhibiting tumor growth was also researched in B16F10 tumors (Fig. 4D). The average tumor weight of ICG@BSA@MnO₂ + laser group was only about 20% of the tumors of PBS treated mice (Fig. 4E). Meanwhile, no significant body weight changes were observed after ICG@BSA@MnO₂ administration in B16F10 tumors (Fig. S17 in Supporting information). Thus, ICG@BSA@MnO₂ mediated PDT effectively inhibited tumor growth in vivo in different tumors.

To predict the clinical application potential of ICG@BSA@MnO₂, the biosafety of ICG@BSA@MnO₂ was researched. Results showed that the therapeutic dose of ICG@BSA@MnO₂ and BSA@MnO₂ did not cause any red blood cell hemolysis (Fig. S18 in Supporting information). Besides, ICG@BSA@MnO₂ had no effect on the renal function and liver function compared with PBS group in Balb/c mice (Figs. S19 and S20 in Supporting information). Meanwhile, BSA@MnO₂ also not inflected the renal function and liver function (Figs. S19 and S20). Moreover, Balb/c mice treated with ICG@BSA@MnO₂ and BSA@MnO₂ showed no obvious histopathological damage in the major organs compared to the PBS treated mice (Fig. S21 in Supporting information). All these results above proved that ICG@BSA@MnO₂ possessed ideal biological safety.

In conclusion, ICG@BSA@MnO₂ nanoparticles were prepared by using bio-mineralized method. By using this method, the ICG@BSA@MnO₂ nanoparticles could circulate in the blood for a long period other than quickly removed in a short period of 30 min like the free ICG, leading to enhanced ICG accumulation in the tumor. In the presence of high hydrogen peroxide in tumor surroundings, ICG was selectively released. Besides, the tumor hypoxia microenvironment was also specifically reversed owing to enhanced O₂ generation. Due to the enhanced ICG delivery and reversed tumor hypoxia, more ROS was generated, as well as the distribution of CD3⁺ and CD8⁺ T cells in tumors, which then lead to the amplified efficacy of PDT in different tumors. Considering the fact that albumin and ICG were both widely used in clinic, ICG@BSA@MnO₂ has great potential to become a highly effective cancer treatment modality.

Declaration of competing interest

Less

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Acknowledgments

Less

This work was supported by the National Natural Science Foundation of China (Nos. 22007042, 31800833, 21977081, 81874094, 81974397 and 82003697), Zhejiang Provincial Natural Science of Foundation of China (No. LZ19H180001).

Supplementary materials

Less

Supplementary material associated with this article can be found, in the online version, at doi:10.1016/j.cclet.2021.06.053.

References

Less

[1]

C. Liu, L. Zhou, F. Wei, et al., ACS Appl. Mater. Interfaces 11(2019) 8797-8806.

[2]

X. Li, S. Lee, J. Yoon, Chem. Soc. Rev. 47(2018) 1174-1188.

[3]

J. Cheng, H. Zhao, L. Yao, et al., ACS Appl. Mater. Interfaces 11(2019) 29498-29511.

[4]

G. Yang, L. Xu, Y. Chao, et al., Nat. Commun. 8(2017) 902.

[5]

W. Fan, P. Huang, X. Chen, Chem. Soc. Rev. 45(2016) 6488-6519.

[6]

U. Chilakamarthi, L. Giribabu, Chem. Rec. 17(2017) 775-802.

[7]

B.M. Luby, C.D. Walsh, G. Zheng, Angew. Chem. Int. Ed. 58(2019) 2558-2569.

[8]

X. Li, J.F. Lovell, J. Yoon, Nat. Rev. Clin. Oncol. 17(2020) 657-674.

[9]

A. Oniszczuk, K.A. Wojtunik-Kulesza, T. Oniszczuk, K. Kasprzak, Biomed. Pharmacother. 83(2016) 912-929.

[10]

S.H. Ibbotson, Photodermatol. Photoimmunol. Photomed. 27(2011) 116-130.

[11]

H. Wang, X. Li, B.W. Tse, et al., Theranostics 8(2018) 1227-1242.

[12]

X. Jiang, B. Du, J. Zheng, Nat. Nanotechnol. 14(2019) 874-882.

[13]

H. Yu, M. Ji, Mol. Imaging Biol. 23(2021) 160-172.

[14]

H. Hu, J. Chen, H. Yang, et al., Nanoscale 11(2019) 6384-6393.

[15]

H.J. Yoon, H.S. Lee, J.Y. Lim, J.H. Park, ACS Appl. Mater. Interfaces 9(2017) 5683-5691.

[16]

F. An, Z. Yang, M. Zheng, et al., J. Nanobiotechnol. 18(2020) 49.

[17]

A. Sahu, J.H. Lee, H.G. Lee, et al., J. Control. Release 236(2016) 90-99.

[18]

D. Sun, Y. Huang, X. Zhang, et al., J. Mater. Chem. B 6(2018) 6969-6976.

[19]

Y.Z. Wang, Y.J. Song, G.X. Zhu, et al., Chin. Chem. Lett. 29(2018) 1685-1688.

[20]

W.W. Zhu, Z.L. Dong, T.T. Fu, et al., Adv. Funct. Mater. 26(2016) 5490-5498.

[21]

Q. Chen, L.Z. Feng, J.J. Liu, et al., Adv. Mater. 28(2016) 7129-7136.

[22]

L. Meng, Y. Cheng, S. Gan, et al., Mol. Pharm. 15(2018) 447-457.

[23]

L. Meng, Y. Cheng, X. Tong, et al., ACS Nano 12(2018) 8308-8322.

[24]

J. Wen, K. Yang, S. Sun, Chem. Commun. 56(2020) 7065-7079.

[25]

X. Wang, K. Su, L. Tan, et al., ACS Appl. Mater. Interfaces 11(2019) 15014-15027.

[26]

J. Chen, Q. Chen, C. Liang, et al., Nanoscale 9(2017) 14826-14835.

[27]

J. Ge, R. Cai, X. Chen, et al., Talanta 195(2019) 40-45.

[28]

X. Yi, L. Chen, X.Y. Zhong, et al., Nano Res. 9(2016) 3267-3278.

[29]

L. Zhou, Y. Wu, X. Meng, et al., Small 14(2018) e1801008.

[30]

Z. Chen, L. Liu, R. Liang, et al., ACS Nano 12(2018) 8633-8645.

[31]

H. He, L. Liu, R. Liang, et al., Acta Biomater. 104(2020) 188-197.

Appendix

Less

Year 2021 volume 32 Issue 12

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2021.06.053

Receive Date：2021-01-13
Online Date：2026-01-04
Published：2021-12-15

Article Data

Affiliations

History

Received：2021-01-13
Revised：2021-06-11
Accepted：2021-06-21

Affiliations

^aFaculty of Life Science and Technology, Kunming University of Science and Technology, Kunming 650500, China

^bState Key Laboratory of Ophthalmology, Optometry and Vision Science, School of Ophthalmology and Optometry, School of Biomedical Engineering, Wenzhou Medical University, Wenzhou 325027, China

^cWenzhou Institute, University of Chinese Academy of Sciences, Wenzhou 325001, China

^dDepartment of Urology, Xiangya Hospital, Central South University, Changsha 410008, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2021.06.053

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

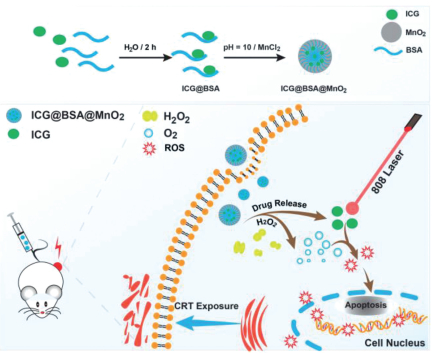

Scheme 1 Schematic illustration of the synthesis route of ICG@BSA@MnO₂ nanoparticles and the mechanism of enhanced photodynamic immunotherapy mediated by relieving tumor hypoxia and selectively release of ICG in vivo.

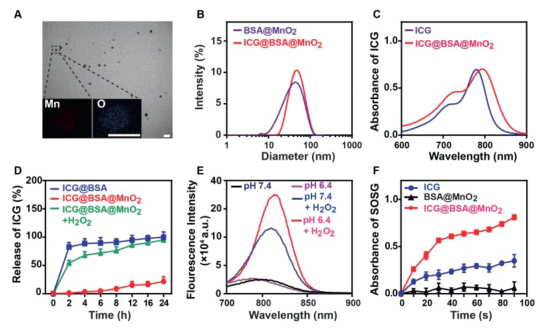

Fig. 1 Characterization of the ICG@BSA@MnO₂. (A) Representative images of TEM and energy-spectrum element scanning of the prepared ICG@BSA@MnO₂, scale bar = 100 nm. (B) Hydrodynamic diameters of BSA@MnO₂ and ICG@BSA@MnO₂. (C) UV-vis spectra of free ICG and ICG@BSA@MnO₂ in deionized water. (D) The stability of ICG@BSA and ICG@BSA@MnO₂ detected by DLS in pH 7.4 or 6.4 PBS buffer at per-set time. (E) Fluorescence spectra of ICG@BSA@MnO₂ in different PBS buffers including pH 7.4, 6.4, 7.4 plus 100 µmol/L H₂O₂ and pH 6.4 plus 100 µmol/L H₂O₂. (F) The ability of free ICG, BSA@MnO₂ or ICG@BSA@MnO₂ to generate ROS in deionized water with 100 µmol/L H₂O₂. Data were shown as mean ± SD, n = 3. ^** P < 0.01.

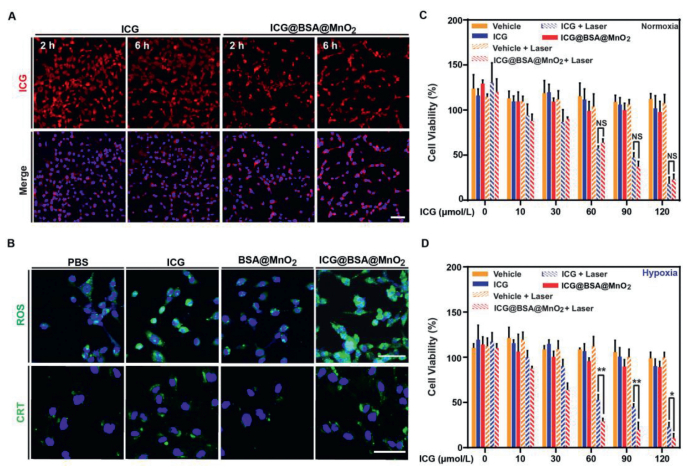

Fig. 2 ICG@BSA@MnO₂ generated more ROS and induced obvious tumor cell cytotoxicity in vitro. (A) Representative fluorescence images of ICG in CT26 tumor cells at 2 h and 6 h after free ICG or ICG@BSA@MnO₂ treatment, scale bar = 50 µm. (B) Representative fluorescence images of the generation of ROS and cell membrane loaction of CRT in CT26 tumor cells in hypoxia (3% O₂), scale bar = 50 µm. (C, D) Cell viability of CT26 cells detected by CCK-8 assay after indicated different treatments under normoxia (21% O₂) and hypoxia (3% O₂). Data were shown as mean ± SD, n = 3. P < 0.05, ^** P < 0.01, ^*** P < 0.001 and NS, no significant difference.

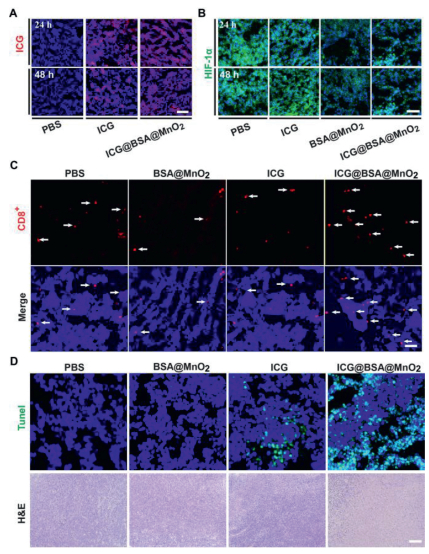

Fig. 3 ICG@BSA@MnO₂ reversed tumor hypoxia and obviously increased the infiltration of T cells and induced apoptosis in CT26 tumors. (A) Representative fluorescence images of ICG in CT26 tumors at 24 h or 48 h after intravenous injection of free ICG or ICG@BSA@MnO₂ nanoparticles, scale bar = 100 µm. (B) Representative immunofluorescence images of HIF-1 α in CT26 tumor slices at 24 h and 48 h after intravenous injection of free ICG or ICG@BSA@MnO₂, scale bar = 100 µm. (C) Representative immunofluorescence images of CD8⁺ T cells (red) in the tumor tiusses at 24 h after indicated treatments. White arrows denoted the location of CD8⁺ T cells in the tumor tiusses, scale bar = 100 µm. (D) Representative immunofluorescence images of Tunel⁺ CT26 tumor cells (green) at 24 h after different treatments with laser radiation, scale bar = 100 µm. H & E staining of tumor sections after different treatments in the presence of laser radiation, scale bar = 200 µm.

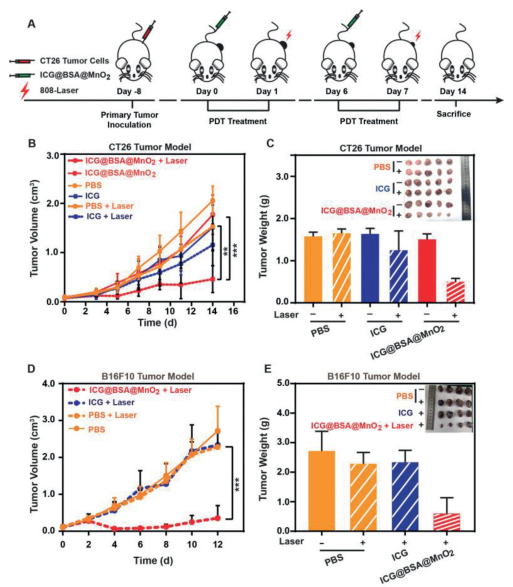

Fig. 4 Antitumor effects of ICG@BSA@MnO₂ mediated PDT in CT26 tumors. (A) Schematic illustration of tumor model establishment and the therapeutic process. (B) CT26 tumor growth curves of mice in each group: PBS; PBS + Laser; ICG; ICG + Laser; ICG@BSA@MnO₂ and ICG@BSA@MnO₂ + Laser. (C) Tumor weight and photograph of collected CT26 tumors from different groups at Day 14 after various treatments. (D) B16F10 tumor growth curves of mice in each group: PBS; PBS + Laser; ICG + Laser; and ICG@BSA@MnO₂ + Laser. (E) Tumor weight and photograph of collected B16F10 tumors from different groups at Day 14 after various treatments. Data were shown as mean ± SD, n = 5. ^** P < 0.01, ^*** P < 0.001.
