Establishment of a new molecular model for mercury determination verified by single crystal X-ray diffraction, spectroscopic analysis and biological potentials

Full

Jiapei Gu^a^,^b, Feifan Zhang^a, Ziman Zheng^a, Xiangqian Li^a^,^b, Runxuan Deng^a, Zhan Zhou^**^,^a, Lufang Ma^a, Wanqiang Liu^c, Qianming Wang^*^,^b^,^d

Affiliations

^a College of Chemistry and Chemical Engineering, Henan Key Laboratory of Function-Oriented Porous Materials, Luoyang Normal University, Luoyang 471934, China

^b Key Laboratory of Theoretical Chemistry of Environment, Ministry of Education, School of Chemistry, South China Normal University, Guangzhou 510006, China

^c School of Chemistry and Chemical Engineering, Hunan University of Science and Technology, Xiangtan 411201, China

^d Guangdong Provincial Key Laboratory of Optical Information Materials and Technology & Institute of Electric Paper Displays, South China Academy of Advanced Optoelectronics, South China Normal University, Guangzhou 510006, China

Published: 2021-01-15 doi: 10.1016/j.cclet.2020.09.021

Outline

Abstract

Less

A wide variety of molecular probes have been developed for real-time analysis, but most of organic fluorophores possess small Stokes shifts and self-absorption or inner filter effect that could not be avoided. In this study, a new dicyanoisophorone-based derivative (E)-O-(4-(2-(3-(dicyanomethylene)-5, 5-dimethylcyclohex-1-en-1-yl)vinyl)phenyl)diphenylphosphinothioate (λ_ex = 405 nm, λ_em = 551 nm, denoted as ICM-S) with strong push-pull electron effect has been afforded and it exhibits red shift for absorption from 407 nm to 426 nm with distinct color change from pale yellow to deep yellow upon exposure to Hg²⁺. Moreover, an easily distinguishable fluorescence color change follows the route from green, yellow to red in the presence of Hg²⁺ over the range of 0-90 μmol/L (detection limit = 137 nmol/L) can be observed by the naked eye under a UV lamp irradiation. Chlorodiphenylphosphine and sublimed-sulfur are incorporated as responsive sites and P-O bond has been cleaved upon the addition of mercury ions. During the recognition process, such dicyanoisophorone dye (ICM-S) has been evolved to 2-(3-(4-hydroxystyryl)-5, 5-dimethylcyclohex-2-enylidene) malononitrile (ICM OH). Clear evidences in the chemical processes can be identified via single crystal X-ray diffraction, spectroscopic analysis, photophysical studies and titration experiments. With the aim of exploring its potential in biological systems, its in vitro responses to Hg²⁺ have been evaluated in 293 Tcells and the effectiveness in zebrafish model has also been verified.

Key words

Dicyanoisophorone / Ratiometric fluorescent probe / Mercury ions / Cell imaging / Zebrafish

Cite this Article

Jiapei Gu, Feifan Zhang, Ziman Zheng, Xiangqian Li, Runxuan Deng, Zhan Zhou, Lufang Ma, Wanqiang Liu, Qianming Wang. Establishment of a new molecular model for mercury determination verified by single crystal X-ray diffraction, spectroscopic analysis and biological potentials[J]. Chinese Chemical Letters, 2021 , 32 (1) : 87 -91 . DOI: 10.1016/j.cclet.2020.09.021

Full Text

Less

As one of the most toxic heavy metal ions and widespread pollutants, mercury ion (Hg²⁺) has caused serious adverse effects on both environment and human health [1-5]. The excessive toxicity of Hg²⁺ is derived from its high ability to bind with thiol groups in enzymes and proteins, which can be accumulated in organisms and may eventually lead to some diseases, such as heart disease, liver dysfunction, kidney failure, bone disease, breast cancer, prostatic cancer, nervous system damage and diabetes [6-11]. Currently, the Hg²⁺ level is widely used as a reliable indicator to diagnose these diseases [12-17]. Therefore, the development of targeted Hg²⁺ detection probes for safe evaluation under various physiological conditions will be urgently necessary.

Up to now, a few strategies have been used to detect Hg²⁺, such as atomic spectroscopy, inductively coupled plasma mass spectroscopy (ICP-MS), surface-enhanced Raman scattering, cold vapor atomic fluorescence spectrometry, resonance Rayleigh scattering, colorimetric sensors, redox sensors, electrochemistry and fluorescence probe [18-27]. Among these methods, fluorescent information has been considered as an attractive and versatile tool due to its selectivity, high in situ sensitivity, and real-time, noninvasive or minimally invasive monitoring in living organisms. The light signal can provide rapid and spatiotemporal information on target analytes [28-36]. As a general concept, fluorescent probes based on "ratiometric response" behavior are preferable to either effects of fluorescence enhancement or quenching. Ratiometric fluorescent probes are defined as the relative changes of fluorescence intensities at two different wavelengths under same excitation wavelength. Such measurement is an efficient approach, which can improve the sensitivity and eliminate intensity fluctuations from instrumental or environmental factors [37-44]. Thus, the development of high selectivity ratiometric fluorescent probes for Hg²⁺ detection under various physiological conditions is required.

In this research, we have prepared a novel dicyanoisophorone-based ratiometric fluorescent probe ICM-S, which exhibited excellent selectivity, sensitivity and practicability for Hg²⁺ detection (Scheme S1 in Supporting information). The low detection limit (137 nmol/L) was calculated from the fluorescence titration results. ¹H NMR, HRMS studies and density functional theory (DFT) calculation demonstrated that Hg²⁺-mediated cleavage of the thiophosphinate ester P-O bond in ICM-S and the transformation from ICM-S to ICM−OH was observed, resulting in significant changes in color and fluorescence. More importantly, living cells and zebrafish imaging experiments established the feasibility of this probe for the determination of Hg²⁺. It has been expected this strategy may provide a promising chemical tool for tracking heavy metal ions in biological systems.

The proposed probe ICM-S was synthesized in three steps, as shown in Fig. S1 (Supporting information). Firstly, 2-(3, 5, 5-trimethylcyclohex-2-enylidene) malononitrile was obtained as white solid by the reaction of malononitrile with isophorone in absolute ethanol. Then, the reaction of 2-(3, 5, 5-trimethylcyclohex-2-enylidene) malononitrile with p-hydroxybenzaldehyde afforded the key intermediate ICM−OH as orange solid [24]. Finally, the probe ICM-S was synthesized as a yellow powder by the reaction of ICM−OH with Ph₂PCl and elemental sulfur in THF under nitrogen [4]. The chemical structure of probe ICM-S was well characterized by using ¹H NMR, HRMS and single crystal X-ray diffraction. For the crystallographic properties of ICM-S, the crystal structure was analyzed by Mercury software. Fig. 1 showed X-ray crystal structure and packing arrangement of ICM-S along the a-axis direction, the b-axis direction and the c-axis direction. The unit cell parameters ICM-S were given as a = 9.1419 Å, b = 10.4376 Å, c = 15.9500 Å, α = 91.253°, β = 95.210°, γ = 113.788°, which has been assigned to the triclinic system. It can be seen that ICM-S possesses a good crystallization effect, the detailed crystal information was provided in Table S1 (Supporting information).

The spectral features and the response of probe ICM-S to Hg²⁺ were subsequently investigated under mild conditions. In this respect, response time is a key factor for a responsive probe. Therefore, the time dependent fluorescence responses of ICM-S toward Hg²⁺ (9.0 equiv.) were investigated. As shown in Fig. 2A, in the absence of Hg²⁺, the emission band of ICM-S was located at 551 nm. Upon addition of Hg²⁺ and with increased incubation time, a dramatic enhancement in the emission at 582 nm was quickly detected, reached the maximum within 90 min, and then remained stable with increasing time (Fig. 2B). The result indicated that the fluorescence assay time of 90 min was selected in the evaluation of the selectivity and sensitivity of the ICM-S toward Hg²⁺ under mild conditions and without the assistance of any catalyst.

As shown in Fig. 2C, the fluorescent spectra of ICM-S in the absence or presence of Hg²⁺ at different concentrations were also explored. With the increasing concentration of Hg²⁺, the fluorescence intensity at 582 nm was improved significantly. A good linear correlation (R² = 0.9756) of titration experiment was obtained and the detection limit (DL) was determined as 137 nmol/L through the equation DL = 3 × SD/slope, where SD is the standard deviation of the blank sample (Fig. 2D) [45, 46]. Moreover, an easily distinguishable fluorescence color change from green, yellow to red with the increase of Hg²⁺ concentration can be observed by the naked eye under a UV lamp.

As a crucial parameter for assessing the properties of the probe in practical sensing, we investigated the selectivity of ICM-S toward various metal ions and common anions. Only the addition of Hg²⁺ to the probe solution caused obvious fluorescence intensity change at 551 nm and 582 nm (Figs. S2E and F in Supporting information). Therefore, ICM-S exhibited an outstanding selectivity toward Hg²⁺ among other common cations and anions (Fe³⁺, Al³⁺, Pb²⁺, Ni²⁺, Mg²⁺, Cd²⁺, Zn²⁺, Na⁺, K⁺, Ag⁺, HPO₄²⁻, H₂PO₄⁻, SO₄²⁻, SO₃²⁻, HSO₃⁻, Cl⁻, NO₃⁻), which substantiated that the developed approach can be used for specific detection of Hg²⁺.

Except the fluorometric titration, colorimetric sensing by naked eye is another efficient way to evaluate the selectivity of probe ICM-S. UV–vis absorption spectra observed before and after the addition of Hg²⁺ (0−90 μmol/L) to the solution of probe ICM-S (10 μmol/L) in DMSO-H₂O system (v/v, 1/1) were shown in Fig. S7 (Supporting information). Upon the addition of 9.0 equiv. of Hg²⁺ ions, ICM-S displayed a dramatic color change from pale yellow to deep yellow at room temperature. The absorption spectral experiments of ICM-S in the presence of various anions and cations were also performed. As shown in Fig. S8 (Supporting information), compared to other metal ions examined, only Hg²⁺ caused an obvious red-shift of the absorption of ICM-S from 407 nm to 426 nm, whereas no remarkable changes were found with other tested anions and cations. The selective visual color change can be used for the "naked eye" detection of Hg²⁺.

To figure out the sensing mechanism of ICM-S to Hg²⁺, fluorescence, UV–vis, ¹H NMR and HRMS spectra of ICM-S, ICM-S + Hg²⁺ and ICM−OH were performed. As shown in Fig. S9 (Supporting information), the UV–vis absorption spectrum of free ICM-S had an absorption band centered at 407 nm, which was attributed to the presence of the intramolecular charge transfer (ICT) in the conjugate system [28, 39, 47-49]. Upon the addition of Hg²⁺ (90 μmol/L), the maximum absorption peak at 407 nm was vanished, and a new absorption band appeared at around 426 nm which was nearly identical with the free ICM−OH. As shown in Fig. S10 (Supporting information), upon the addition of Hg²⁺ (90 μmol/L), the red band at 582 nm was significantly increased and the resultant emission curve was almost overlapped with the free ICM−OH. As shown in Fig. S11 (Supporting information), we carried out ¹H NMR experiments upon addition of Hg²⁺ to ICM-S in DMSO-d₆. With Hg²⁺ concentration was increased, the cleavage of the thiophosphinate ester P-O bond in ICM-S would occur [4]. It has been found that the proton peaks at 8.00, 7.97 ppm (Ha) and 7.61−7.58 ppm (Hb) assigned to the benzene attached to the phosphorus atoms were shifted to higher field strengths (7.74, 7.71 ppm (Ha') and 7.49−7.46 ppm (Hb')). At the same time, the new signals at 7.56, 7.25−7.18, 6.78 ppm were emerged which were consistent with the ¹H NMR data of ICM−OH. Moreover, the product of ICM-S + Hg²⁺ was further examined by HRMS, the achieved data m/z 289.1284 was attributed to ICM−OH [M−H]⁻ (Fig. S12 in Supporting information). The reaction products of ICM-S with Hg²⁺ were isolated and utilized for standard characterization, which was unambiguously confirmed to be ICM−OH by X-ray single crystal structure (Fig. S6 and Table S2 in Supporting information). The above experimental results showed that ICM−OH and the mixture following reaction of ICM-S with Hg²⁺ were identical (Fig. S13 in Supporting information).

The theoretical information about the molecular structure has been investigated and the Gaussian 09 program DFT calculations for ICM-S and ICM−OH were carried out at the level of B3LYP/6−31 G(d). As can be seen from Fig. 3A, the highest occupied molecular orbitals (HOMO) of ICM-S were dispersed in dicyanoisophorone unit and 4-hydroxystyryl group. The lowest unoccupied molecular orbitals (LUMO) were mainly localized on dicyanoisophorone unit and (vinylphenyl)phosphinothioate group, the results revealed an ICT character for ICM-S. In addition, release of thiophosphinate moiety in ICM-S afforded ICM−OH and such change triggered the decreasing of energy gap (ΔE) of ICM-S from 3.236 eV to 2.883 eV [25, 50]. The absorption change of ICM-S in the presence of Hg²⁺ was also measured in Fig. 3B. In fact, upon addition of 9.0 equiv. of Hg²⁺ ions to the solution of robe ICM-S, the absorption band at 407 nm was slightly increased and a new band was formed at 426 nm, with a color change from pale yellow to deep yellow (Insert in Fig. 3B). As illustrated in Fig. 3C, the profile of the simulated absorption spectrum of ICM-S was exactly the same as the experimental curve. From a quantitative point of view, the computed data are in excellent agreement with the available experimental data for both absorption band position and relative intensity. In this way, the above DFT calculation supported the reliability of the red shift in the absorption spectrum (from 407 nm to 426 nm) of ICM-S with the treatment of Hg²⁺.

The cytotoxicity studies for subsequent cellular imaging applications were evaluated. Probe ICM-S at different concentrations (0, 10, 20, 30, 40 and 50 μmol/L) and 293 T cells were incubated for 24 h in the medium. As shown in Fig. S14 (Supporting information), the survival rate of cells was above 90%, which indicated that ICM-S has good biocompatibility at low concentration to cells and can be used for biological imaging. The excellent Hg²⁺ sensing performance of ICM-S inspired us to evaluate its ability to detect Hg²⁺ in living cells. As given in Fig. S15A (Supporting information), 293 T cells stained by 10 μmol/L ICM-S alone showed weak fluorescence in the red channel. Upon addition of 30 μmol/L Hg²⁺, the fluorescence intensity in the red channel was increased (Fig. S15B in Supporting information), this result provided evidence of good cell-membrane permeability of ICM-S. The fluorescent images shown in Fig. S15B clearly indicated that the intracellular fluorescence intensity exhibited an uneven distribution, which may be related to the distribution of Hg²⁺ in the cells. The fluorescence was significantly increased in the red channel at the higher concentration of 90 μmol/L Hg²⁺ (Fig. S15C in Supporting information). These results indicated ICM-S is able to penetrate into 293 T cells and could be used for the detection of Hg²⁺ in living cells.

The experiment of ICM-S applied for recognizing Hg²⁺ imaging in zebrafish was performed. In the first step, the zebrafish embryos were incubated at 28 ℃ with E3 medium containing ICM-S (10 μmol/L) for 2 h. Furthermore, the zebrafish embryos were further cultured with 30 and 90 μmol/L of Hg²⁺ for another 90 min, respectively. As described in Fig. 4, the fluorescence signal was observed in the green channel when zebrafish were treated with ICM-S without Hg²⁺ (Fig. 4A). In the presence of 30 μmol/L Hg²⁺ (Fig. 4B), the bright luminescence signals were collected in the red channel. The corresponding red emission was substantially enhanced at higher concentration of 90 μmol/L Hg²⁺ (Fig. 4C). These facts demonstrated that the probe ICM-S can be effective for Hg²⁺ imaging during in vivo studies.

In order to evaluate the feasibility of the ICM-S in real samples, we investigated the recoveries of Hg²⁺ using tap water samples from laboratory. The water samples were added with Hg²⁺ at different concentrations (5 μmol/L, 10 μmol/L and 20 μmol/L). As shown in Table S3 (Supporting information), Hg²⁺ was accurately determined in the spiked water samples, and the recovery rate of these samples is good (98.1%–103%).

The efficiency for most of optical probes was inherently limited by the spectral overlap between excitation and emission bands. In this contribution, the sensitive and selective detection of mercury ions has been realized via a dicyanoisophorone-based organic fluorophore. The recognition strategy was found to involve Hg²⁺ trigged cleavage of the thiophosphinate ester P-O bond in probe ICM-S to produce ICM−OH, which was fully characterized by ¹H NMR, HRMS analysis and DFT calculation. The probe ICM-S gave smart ratiometric response to only Hg²⁺ even in the presence of excessive amounts of other analytes. In addition, we have monitored the intracellular changes of Hg²⁺ in 293 T cells and such fluorescent signals can be resistant to interference within complicated cell culture medium. Further experiments explored its feasibility for tracking Hg²⁺ ions in zebrafish model. These new findings would facilitate the study of biological functions based on responsive molecular frameworks. It has to be mentioned that the stability of such organic fluorophore needs to be improved compared with inorganic/hybrid based sensor. Moreover, ICM-S was partially soluble in aqueous environment and the solubility might lead to slower response to guest ions. Additionally, the change from ICM-S to ICM−OH was not reversible in the presence of Hg²⁺ under current conditions. Future work will focus on the establishment of recyclable route during recognition process.

Declaration of competing interest

Less

The authors report no declarations of interest.

Acknowledgments

Less

Q. Wang thanks Guangzhou Science and Technology Plan (No. 202002030325), Science and Technology Plan of Guangdong Province (No. 2020A0505100055), National Natural Science Foundation of China-Guangdong Joint Funding Support (No. U1801256), Science and Technology Program of Guangzhou (No. 201905001) and Guangdong Provincial Key Laboratory of Optical Information Materials and Technology (No. 2017B030301007). L. Ma thanks Project of Central Plains Science and Technology Innovation Leading Talents of Henan Province (No. 204200510001).

Appendix A. Supplementary data

Less

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2020.09.021.

References

Less

[1]

J. Ding, H. Li, C. Wang, et al., ACS Appl. Mater. Interfaces 7 (2015) 11369-11376.

[2]

Z. Ruan, L. Zong, Y. Song, et al., Sens. Actuators B: Chem. 226 (2016) 211-217.

[3]

Y. Jiao, X. Liu, L. Zhou, et al., Sens. Actuators B: Chem. 247 (2017) 950-956.

[4]

L. Chen, S.J. Park, D. Wu, H. Kim, J. Yoon Chem. Commun. 55 (2019) 1766-1769.

[5]

T. Gao, X. Huang, S. Huang, et al., J. Agric. Food Chem. 67 (2019) 2377-2383.

[6]

S.Y. Lin, H.J. Zhu, W.J. Xu, G. Wang, N. Fu, Chin. Chem. Lett. 25 (2014) 1291-1295.

[7]

Y. Wang, H. Ding, S. Wang, et al., RSC Adv. 9 (2019) 11664-11669.

[8]

S. Huang, T. Gao, A.Y. Bi, et al., Dyes Pigments 172 (2020) 107830.

[9]

X. Wu, Y. Li, S. Yang, H. Tian, B. Sun, Dyes Pigments 174 (2020) 108056.

[10]

Y. Yu, C. Liu, B. Tian, et al., Dyes Pigments 177 (2020) 108290.

[11]

Z.X. Han, B.S. Zhu, T.L. Wu, et al., Chin. Chem. Lett. 25 (2014) 73-76.

[12]

Y. Wang, M. Gao, C.Y. Liao, F. Yu, L. Chen, Sens. Actuators B: Chem. 301 (2019) 127038.

[13]

S. Oh, J. Jeon, J. Jeong, et al., Anal. Chem. 92 (2020) 4917-4925.

[14]

Y. Miao, X. Sun, J. Lv, G. Yan, Anal. Chem. 91 (2019) 5036-5042.

[15]

X.D. Jiang, H.F. Yu, J.L. Zhao, et al., Chin. Chem. Lett. 26 (2015) 1241-1245.

[16]

X. Li, G. Yuan, W. Yu, et al., Lab Chip 20 (2020) 414-423.

[17]

Y. Liu, E.B. Yang, R. Han, et al., Chin. Chem. Lett. 25 (2014) 1065-1068.

[18]

L. Li, Y. Feng, Y. Qiu, et al., Microchem. J. 155 (2020) 104762.

[19]

S. Siddiqui, A. Nafady, H.M. El-Sagher, et al., J. Solid State Electr. 23 (2019) 2073-2083.

[20]

Z. Zhou, X. Li, Y. Tang, et al., Chem. Eng. J. 351 (2018) 364-370.

[21]

Z.Y. Li, Y.Y. Wang, M.N. Li, et al., Dyes Pigments 162 (2019) 339-347.

[22]

H.Y. Li, H.Y. Lin, W.X. Lv, P. Gai, F. Li, Biosens. Bioelectron. 165 (2020) 112336.

[23]

X. Li, Z. Zhou, Y. Tang, et al., Sens. Actuators B: Chem. 276 (2018) 95-100.

[24]

M. Yang, J. Fan, W. Sun, et al., Chem. Commun. 55 (2019) 8583-8586.

[25]

K. Wang, C.X. Zhao, T.H. Leng, et al., Dyes Pigments 151 (2018) 194-201.

[26]

Z. Zhou, J. Gu, X. Qiao, et al., Sens. Actuators B: Chem. 282 (2019) 437-442.

[27]

X. Qiu, X. Jiao, C. Liu, et al., Dyes Pigments 140 (2017) 212-221.

[28]

S. Gong, J. Hong, E. Zhou, G.Q. Feng, Talanta 201 (2019) 40-45.

[29]

X. Li, J. Gu, Z. Zhou, et al., Dyes Pigments 172 (2020) 107844.

[30]

X. He, H. Chen, C. Xu, et al., J. Hazard. Mater. 388 (2020) 122029.

[31]

P. Liu, N. Liu, C. Liu, et al., Dyes Pigments 163 (2019) 489-495.

[32]

I. Ahmad, Z. Zhou, H.Y. Li, S.Q. Zang, Sens. Actuators B: Chem. 304 (2020) 127379.

[33]

X. Li, Z. Zhou, C.C. Zhang, et al., Inorg. Chem. 57 (2018) 8866-8873.

[34]

J.Y. Ren, P.S. Zhang, H. Liu, et al., Sens. Actuators B 304 (2020) 127299.

[35]

X. He, W. Xiong, L.L. Zhang, et al., Dyes Pigments 174 (2020) 108059.

[36]

Z. Zhou, J. Gu, Y. Chen, et al., Spectrochim. Acta Part A 212 (2019) 88-93.

[37]

P. Zhang, H. Wang, Y. Hong, et al., Biosens. Bioelectron. 99 (2018) 318-324.

[38]

X. He, Q. Xie, J. Fan, et al., Dyes Pigments 177 (2020) 108255.

[39]

S. Wu, Y.J. Wei, Y.B. Wang, et al., Chin. Chem. Lett. 25 (2014) 93-98.

[40]

J. Li, F. Huo, Z. Wen, C.X. Yin, Spectrochim. Acta Part A 221 (2019) 117156.

[41]

Y. Yang, Y. Feng, Y.Z. Wang, et al., Sens. Actuators B: Chem. 253 (2017) 1055-1062.

[42]

Y. Ding, Y. Pan, Y. Han, Ind. Eng. Chem. Res. 58 (2019) 7786-7793.

[43]

L. Yang, Y. Su, Y. Geng, et al., Org. Biomol. Chem. 16 (2018) 5036-5042.

[44]

C. Zhang, H. Zhang, M. Li, et al., Talanta 197 (2019) 218-224.

[45]

L. Lan, Q. Niu, T. Li, Anal. Chim. Acta 1023 (2018) 105-114.

[46]

B. Gu, L. Huang, W. Su, et al., Anal. Chim. Acta 954 (2017) 97-104.

[47]

Y. Zhou, X. He, H. Chen, et al., Sens. Actuators B: Chem. 247 (2017) 626-631.

[48]

G. Qiao, L. Liu, X. Hao, et al., Chem. Eng. J. 382 (2020) 122907.

[49]

A. Yu, Y. Zhang, W. Liu, et al., Spectrochim. Acta A 233 (2020) 118218.

[50]

X. Liu, X. Li, P. Dong, et al., Microchim. Acta 187 (2020) 313.

Appendix

Less

Year 2021 volume 32 Issue 1

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1016/j.cclet.2020.09.021

Receive Date：2020-07-20
Online Date：2026-01-04
Published：2021-01-15

Article Data

Affiliations

History

Received：2020-07-20
Revised：2020-08-11
Accepted：2020-09-15

Affiliations

^a College of Chemistry and Chemical Engineering, Henan Key Laboratory of Function-Oriented Porous Materials, Luoyang Normal University, Luoyang 471934, China

^b Key Laboratory of Theoretical Chemistry of Environment, Ministry of Education, School of Chemistry, South China Normal University, Guangzhou 510006, China

^c School of Chemistry and Chemical Engineering, Hunan University of Science and Technology, Xiangtan 411201, China

References

Share

https://castjournals.cast.org.cn/joweb/ccl/EN/10.1016/j.cclet.2020.09.021

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

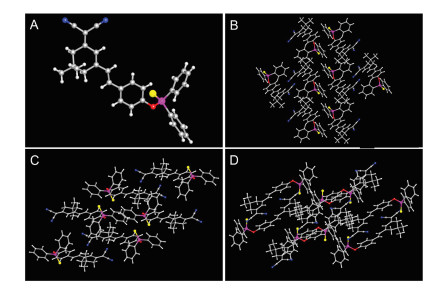

Fig. 1 X-ray crystal structure (A) and packing arrangement of ICM-S along the a-axis direction (B), the b-axis direction (C) and the c-axis direction (D). The C, N, O, P and S atoms were drawn in gray, blue, red, purple and yellow.

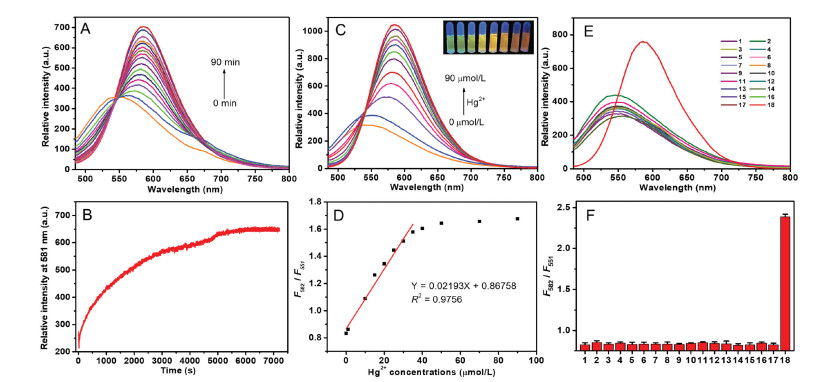

Fig. 2 (A) Time-dependent fluorescence emission spectra of ICM-S (10 μmol/L) with Hg²⁺ (90 μmol/L). (B) Time-dependent fluorescence intensity changes at 582 nm for solutions of ICM-S (10 μmol/L) upon addition of Hg²⁺ (90 μmol/L). (C) Fluorescence emission spectra of ICM-S (10 μmol/L) obtained upon addition of Hg²⁺ (0–90 μmol/L) in DMSO-H₂O system (v/v, 1/1) (inset: photograph of solutions of 10 μmol/L ICM-S upon addition of Hg²⁺ (0–90 μmol/L) under 365 nm hand-held UV lamp). (D) The changes of F₅₈₂/F₅₅₁ of probe ICM-S (10 μmol/L) with the amount of Hg²⁺ (0–90 μmol/L). (E) Fluorescence emission spectra of probe ICM-S (10 μmol/L) before and after addition of 90 μmol/L different cations and anions (1. Fe³⁺, 2. Al³⁺, 3. Pb²⁺, 4. Ni²⁺, 5. Mg²⁺, 6. Cd²⁺, 7. Zn²⁺, 8. Na⁺, 9. K⁺, 10. Ag⁺, 11. HPO₄²⁻, 12. H₂PO₄⁻, 13. SO₄²⁻, 14. SO₃²⁻, 15. HSO₃⁻, 16. Cl⁻, 17. NO₃⁻, 18. Hg²⁺) in DMSO-H₂O system (v/v, 1/1). (F) Fluorescence intensity ratios (F₅₈₂/F₅₅₁) of probe ICM-S (10 μmol/L) before and after addition of 90 μmol/L different cations and anions (1. Fe³⁺, 2. Al³⁺, 3. Pb²⁺, 4. Ni²⁺, 5. Mg²⁺, 6. Cd²⁺, 7. Zn²⁺, 8. Na⁺, 9. K⁺, 10. Ag⁺, 11. HPO₄²⁻, 12. H₂PO₄⁻, 13. SO₄²⁻, 14. SO₃²⁻, 15. HSO₃⁻, 16. Cl⁻, 17. NO₃⁻, 18. Hg²⁺) in DMSO-H₂O system (v/v, 1/1).

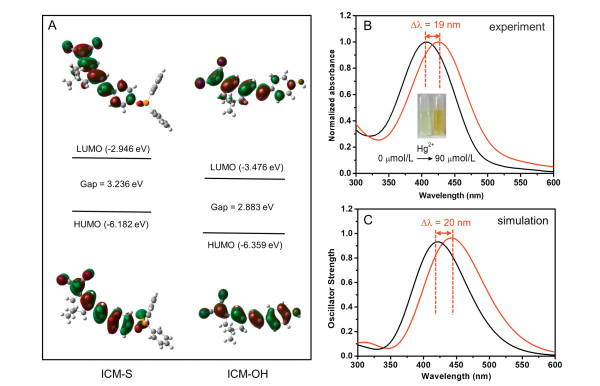

Fig. 3 (A) Frontier molecular orbital profiles of probe ICM-S and ICM−OH based on DFT (B3LYP/6-31G^*) calculations. (B) The experimental UV–vis absorbance spectra of ICM-S (10 μmol/L) obtained upon addition of Hg²⁺ (0–90 μmol/L) in DMSO-H₂O system (v/v, 1/1) (inset: photograph of solutions of 10 μmol/L ICM-S before and after the addition of 90 μmol/L Hg²⁺ under day light) and (C) the simulated one.
