Fabricate and design of complex nanostructures are extensively discussed based on their structural features and compositional merits. Amongst the myriad nanostructures, hollow nanostructures are of great interest because of their structural merits and have shown potential applications in various fields in recent years [1-3]. In particular, hollow nanostructures with higher surface-to-volume ratios and unique structural features hold great promise as electrode materials for water splitting electrolyzers and hybrid supercapacitors [4]. Most hollow structured MOF derivatives are synthesized through thermal treatments or ion exchange reactions under appropriate conditions.

Metal-organic frameworks (MOF) possessing intriguing structures and abundant coordination centers have been widely investigated as versatile precursors to prepare transition metal materials [5-9]. For examples, Co₃O₄ [10], Fe₂O₃ [11], NiCo₂O₄ [12], having novel morphologies, can be obtained by directly annealing MOFs in air. The controlled etching method is generally used to create hollow space by selectively dissolving the inner part of solid MOF precursors [13]. Zeolitic imidazolate frameworks (ZIF), such as ZIF-67 [14-16] and ZIF-8 [17], are a novel class of porous materials with zeolite-like 3D topological structures, abundant carbon and nitrogen ligands, and high metal ion contents and are expected to be good candidates as the precursor template to design various porous nanostructured metal-carbon hybrid materials and the corresponding phosphide derivatives. The metal incorporated porous carbon has high surface area and can be used to fabricate electrodes for proton exchange membrane fuel cell, lithium ion battery, and so on [18, 19].

Transition metal phosphides (TMP) have emerged as advanced HER catalysts in pH-universal range due to their excellent conductivity and analogous active sites in hydrogenases with strong ability of attracting protons [20, 21]. For example, Feng et al. have synthesized porous nickel–cobalt phosphide nanocubes via a template-engaged strategy using Prussian blue analogues as precursors [22]. They found that the synergistic effect between the two phases (Ni₂P and CoP) has great contribution to the excellent HER performance, which suggests that metal phosphides with complex compositions may improve the electrocatalytic activity compared to single phase metal phosphides. A hybrid catalyst combining TMP and MOF, if appropriately designed, may not only possesses an optimal ΔGH^* but also takes advantage of MOF's well-defined porous structure, both of which are beneficial to HER performance.

In this work, we demonstrate a facile and economical three-step preparation of Ni–Co mixed metal phosphide hollow polyhedrons. The thermal conversion of the etched MOFs method can be also applied to other metal-doping systems. When used as an HER electrocatalyst, the NiCoP hollow polyhedrons exhibits extraordinary pH-universal Pt-like activity and high stability, with overpotentials of 82, 102 and 261 mV at the current density of 10 mA/cm² in 0.5 mol/L H₂SO₄, 1 mol/L KOH and 1 mol/L phosphate buffer solution (PBS, pH 7.0), respectively. This work could open a door to the design and modification of high performance electrocatalysts based on MOFs.

ZIF67 was prepared according to the literature [23]. Typically, two solutions were first prepared by dissolving 5 mmol of Co(NO₃)₂·6H₂O and 20 mmol of 2-methylimidazole in 50 mL of methanol. Then, the solution of 2-methylimidazole was quickly poured into the solution of Co(NO₃)₂ and the resultant mixed purple solution was aged for 24 h at room temperature. The purple precipitate was obtained by centrifugation and dried in vacuum at 60 ℃ for 12 h.

Next, what is very important in the experiment is the synthesis of ZIF-67@Ni-Co LDH, Co₃O₄/NiCo₂O₄ Yolk-shelled Polyhedrons and Co₃O₄ polyhedrons. Firstly, 0.152 g Ni(NO₃)₂·6H₂O was dissolved in 50 mL ethanol. Then 0.076 g ZIF-67 was dispersed in 10 mL ethanol, the dispersion was quickly poured into the former solution. After stirring for 60 min, the mixed solution was allowed standing for 1 h at room temperature. An aquamarine blue precipitate was formed and collected by centrifugation, following by washing with ethanol and dried in vacuum overnight. Similarly, the morphology of ZIF-67@Ni-Co LDH particles can be easily modulated by varying the mass ratio of ZIF-67 to Ni(NO₃)₂·6H₂O. Finally, the Co₃O₄/NiCo₂O₄ yolk-shelled polyhedrons were obtained by annealing the as-obtained structure of yolk-shelled polyhedron in air at 300 ℃ for 2 h with a ramp rate of 1 ℃/min.

The Co₃O₄ polyhedrons were obtained according to the reported method. Firstly, 100 mg ZIF-67 was put in a tube furnace and heated with a rate of 1 ℃/min and maintained at 300 ℃ for 2 h under Ar gas flow.

The Co₃O₄/NiCo₂O₄ yolk-shelled polyhedrons (100 mg) were put in a tube furnace, and 500 mg of NaH₂PO₂·H₂O was placed at the upstream side. Under Ar gas, the temperature of the furnace was heated to 300 ℃ at a rate of 2 ℃/min and maintained for 1 h. After the system was cooled to ambient temperature under Ar, the final products were denoted as NiCoP hollow polyhedrons.

CoP polyhedrons were synthesized with the same method except the precursor was Co₃O₄ polyhedrons. The morphology and structure of NiCoP hollow polyhedrons and its precursors were characterized by field-emission scanning electron microscopy (FESEM, JSM-6700 F, Japan) with energy dispersive X-ray spectroscopy (EDS), and transmission electron microscopy (TEM; JEOL, JEM-2010). X-ray diffraction (XRD) patterns were conducted on a Bruker D2 Phaser X-ray diffractometer.

All electrochemical measurements were carried out with a CHI660E electrochemical workstation in a typical three-electrode setup, with a glass carbon electrode (GCE, 3 mm in diameter) coated with the catalyst ink as the working electrode, a graphite rod as the counter electrode, and an Ag/AgCl (sat. KCl) as the reference electrode. The catalyst ink was prepared by dispersing 5 mg of catalyst into 0.5 ml of solution containing 430 μL of water/ethanol (v/v = 4:1) and 70 μL of 5 wt% Nafion solution, followed by sonicated for at least 20 min to form a homogeneous ink solution. Then 5 μL of the catalyst ink was dropped onto the carbon cloth and dried at room temperature. (loading: < 0.262 mg/cm²). All the potentials were calibrated with respect to a reversible hydrogen electrode (RHE). In 0.5 mol/L H₂SO₄ (pH 0), E(RHE) = E(Ag/AgCl) + 0.232 V. In 1.0 mol/L KOH (pH 14), E(RHE) = E(Ag/AgCl) + 1.059 V. In 1.0 mol/L PBS (pH 7), E(RHE) = E(Ag/AgCl) + 0.646 V. Linear sweep voltammetry (LSV) measurements were conducted in electrolyte with a scan rate of 5 mV/s. Corresponding Tafel curves were calculated from the LSV data. Electrochemical impedance spectroscopy (EIS) measurements were performed at an overpotential of 160 mV with a frequency range from 0.01 Hz to 100 kHz. Cyclic voltammetry was used to estimate theelectrochemical double layer capacitance (Cdl) in nonfaradaic region from 0 to 0.1 V vs. RHE with different scan rates (20 − 140 mV/s). The Cdl was estimated by plotting J = J_anodic − J_cathodic at 0.05 V vs. RHE against the scan rate. The linear slope is twice the Cdl. Electrochemical stability was measured using cyclic voltammetry (CV) sweeps at 50 mV/s between −0.4 V and −0.1 V vs. RHE for 2000 cycles. The current density − time (I−t) curves were carried out at overpotentials of 82, 102 and 261 mV in 0.5 mol/L H₂SO₄, 1.0 mol/L KOH and 1.0 mol/L PBS, respectively. All data were corrected using iR compensation.

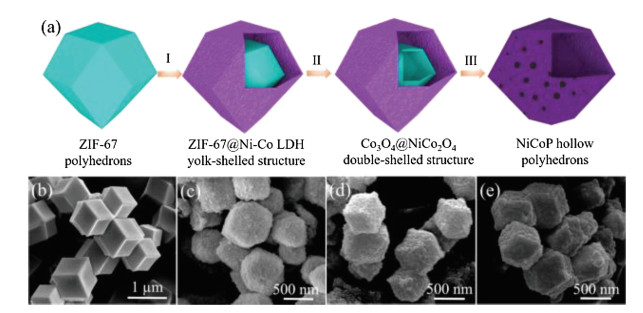

Fig. 1 illustrates the synthesis process of the NiCoP hollow polyhedrons catalyst. ZIF-67 is prepared via a coprecipitation method under room temperature, and it exhibits distinct topological features with rhombic dodecahedron structure (Fig. 1b). In the first step, these ZIF-67 particles are dispersed in ethanol solution of Ni(NO₃)₂ and continuously stirred for 60 min to produce ZIF-67/Ni-Co LDH yolk-shelled structures (Fig. 1c). During the process, protons generated from the hydrolysis of Ni²⁺ ions can gradually etch ZIF-67 templates and the released Co²⁺ ions may be partially oxidized by dissolved O₂ and NO₃− ions in the solution. Then the Co²⁺/Co³⁺ ions will coprecipitate with Ni²⁺ ions to form Ni-Co LDH shells [24]. Afterward, thermal calcination is applied during which the ZIF-67 cores and Ni-Co LDH shells can be converted into Co₃O₄ and NiCo₂O₄ yolk-shelled polyhedrons (Fig. 1d) [25], respectively. Because of the as-formed gap between ZIF-67 and Ni-Co LDH, possible strain between the cores and the shells generated during the calcination process that may result in the collapse of the shells can be effectively alleviated. Finally, the phosphorization process is followed by which the as-prepared NiCoP hollow polyhedrons (Fig. 1e) are subsequently converted.

The XRD pattern of the ZIF-67 crystals matches well with previous reports, and the EDX result confirms the stoichiometry of the as-prepared crystals (Figs. S1a and b in Supporting information). FESEM and TEM images (Figs. S1c and d in Supporting information) reveal that the ZIF-67 particles show a polyhedral shape with a smooth surface and an average size of approximately 850 nm. According to the EDS elemental mapping (Fig. S1e in Supporting information) also revealed that Co, C, N elements were evenly distributed over the entire ZIF-67.

After reaction with Ni(NO₃)₂ in ethanol solution for 60 min, the particles still retain the polyhedral shape but exhibit the rougher surface constructed by small nanosheets (Figs. S2c and d in Supporting information) XRD pattern demonstrates these polyhedrons are still mainly ZIF-67 with diminished peak intensity, further confirmed by the EDX analysis (Figs. S2a and b in Supporting information). FESEM image of a particle with a broken outer shell (Fig. S2c) reveals that the inner core preserves the smooth surface. The distinctions between the shell and the core are further revealed by TEM observations (Fig. S2d) where the shell is composed of interconnected small nanosheets while the core appears similar to ZIF-67. According to the EDS elemental mapping (Fig. S2e in Supporting information) also revealed that Co, Ni, C, N elements were evenly distributed over the entire ZIF-67.

XRD pattern of the annealed product of ZIF-67/Ni-Co LDH yolk-shelled structures confirms the formation of the spinel type oxides containing Ni and Co (Figs. S3a and b in Supporting information). From the panoramic FESEM image (Fig. S3c in Supporting information), the annealed product inherits the polyhedral shape from the ZIF-67/Ni-Co LDH yolk-shelled structures. Furthermore, the inner shell can be well identified from some particles with broken outer shells (Fig. S3c). From TEM observations (Fig. S3d in Supporting information), the yolk-shelled polyhedrons derived from the Ni-Co LDH do not shrink significantly whereas the inner polyhedrons derived from ZIF-67 show significant shrinkage with decreased size compared with the original ZIF-67 cores. The thickness of the shells has been determined by TEM observation under higher magnification. As shown in Fig. S3d, the thickness of the outer NiCo₂O₄ shell is about 250 nm while the inner Co₃O₄ shell shows similar thickness but with a very uneven surface. The spatial distribution of different elements in the Co₃O₄/NiCo₂O₄ yolk-shelled polyhedrons is investigated by elemental mapping analysis on representative Co₃O₄/NiCo₂O₄ yolk-shelled polyhedrons under TEM observation. The elemental mapping results indicate that Co and O (Fig. S3e in Supporting information) are distributed homogeneously in both the outer shell and the inner shell with some apparent enhancement in the central region. On the contrary, the signal intensity of Ni (Fig. S3e) is very uniform throughout the region without any enhancement in the central area where the inner Co₃O₄ polyhedrons locates, indicating the inner shell is free of Ni. Thus, these EDX results further verify that the inner shell mainly consists of Co₃O₄, and the outer shell is composed of NiCo₂O₄, confirming the successful formation of materials with different shell compositions.

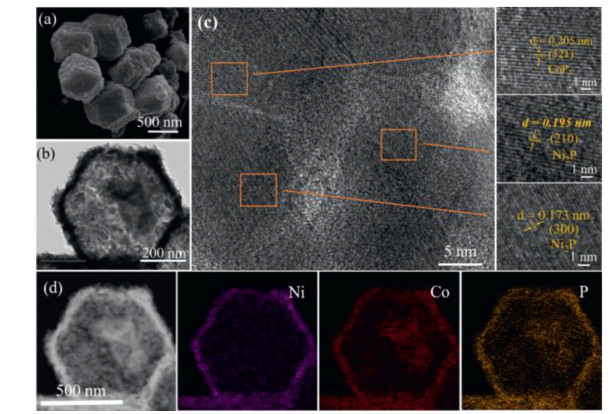

After the phosphidation of Co₃O₄/NiCo₂O₄ yolk-shelled polyhedrons, SEM image in Fig. 2a shows that the morphology of polyhedrons is well maintained, and the hollow structure can be clearly observed in Fig. 2b. The original core-shell structure was transformed into hollow structure. It can be further observed in the transmission electron microscope image corresponding to Fig. 2b that the inner core Co₃O₄ polyhedrons structure has been highly granular before being phosphatized, so the inner core has become agglomerated after higher-temperature phosphating process. The HRTEM image shows distinct lattice fringes with an interplanar spacing of 0.205 nm, corresponding well to the (321) lattice plane of the CoP3, whereas the lattice spacing of 0.195 nm and 0.173 nm can be ascribed to the (210) and (300) plane of the Ni₂P phase (Fig. 2c), confirming the formation of the heterostructure [26]. The EDX elemental mapping images (Fig. 2d) confirm the even distributions of Ni, Co, and P elements throughout the whole shell of the polyhedrons. The Co₃O₄ polyhedrons were obtained by calcining ZIF67 in air (Fig. S4 in Supporting information). And then CoP polyhedrons were obtained by phosphating Co₃O₄ (Fig. S5 in Supporting information). The ZIF-67/Ni-Co LDH yolk-shelled structures will reunite without being calcined in air, so the crystal structure of the material after calcination will become more stable (Fig. S6 in Supporting information).

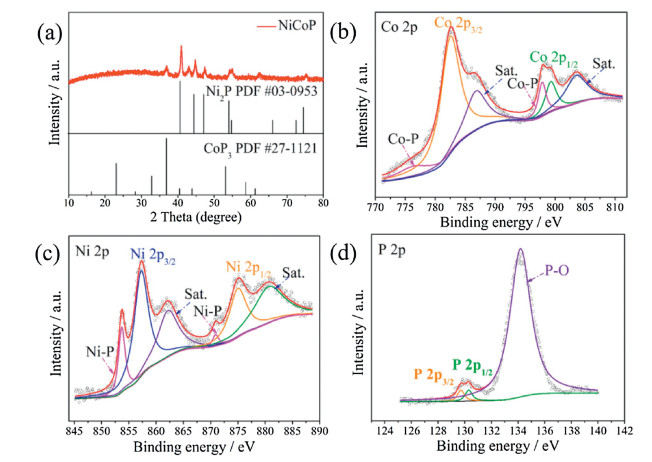

XRD in Fig. 3a presents the diffraction peaks at around 40.8°, 44.6°, 47.3°, 54.9°, 74.6°, 80.9° which can be well-indexed to CoP₃ (JCPDS No. 27-1121), the diffraction peaks at around 40.5°, 43.9°, 47.1°, 50.2°, 53.1°, 61.3°, 80.9° which can be well-indexed to Ni₂P (JCPDS No. 03-0953), demonstrating that NiCoP hollow polyhedrons is composed of CoP₃ and Ni₂P [27-29]. The XPS survey spectrum of NiCoP hollow polyhedrons in Fig. S3 indicates the presence of Ni, Co, P, C and N. The chemical state and surface compositions of the NiCoP hollow polyhedrons are analyzed by XPS. For the Co 2p_3/2 (Fig. 3b), the binding energies at 776.6, 782.5 and 787.1 eV are attributed to Co-P, oxidized Co species, and satellite peak, respectively. Similarly, the binding energies at 797.5, 799.2 and 803.6 eV for the Co 2p_1/2 can be ascribed to Co-P, oxidized Co species and satellite peak, respectively. For the Ni 2p_3/2 (Fig. 3c), the binding energies at 853.6, 857.2, and 862.3 eV are attributed to Ni-P, oxidized Ni species, and satellite peak, respectively. Besides, the binding energies at 871.2, 875.1, and 881.3 eV for the Ni 2p_1/2 can be ascribed to Ni-P, oxidized Ni species, and satellite peak, respectively. For the P 2p (Fig. 3d), the doublet at 128.8 and 130.1 eV can be attributed to Ni-P or Co-P in metal phosphide [30, 31]. These results indicate that Co and Ni have positive charges (δ⁺), while the P has a negative charge (δ⁻), suggesting the existence of electron density transfer from Co and Ni to P.

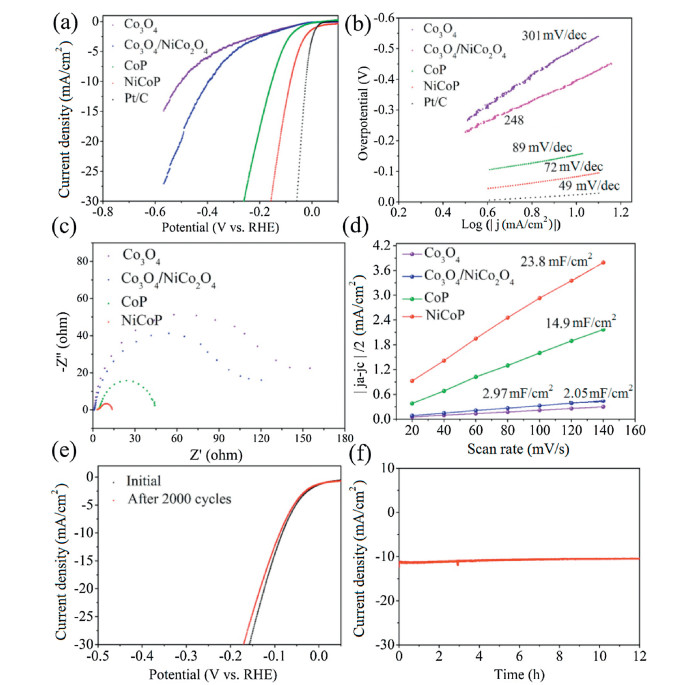

The HER performances of all the samples were firstly tested in a 0.5 mol/L H₂SO₄ solution. The linear sweep voltammetric (LSV) curves shown in Fig. 4a suggest that NiCoP hollow polyhedrons is superior to Co₃O₄, Co₃O₄@NiCo₂O₄, and CoP in all the range of testing potentials. Co₃O₄ exhibits the lowest performance with a current density of 10 mA/cm² even at an overpotential of about 421 mV. NiCoP hollow polyhedrons only needs an overpotential of 82 mV to achieve 10 mA/cm², far lower than those of Co₃O₄@NiCo₂O₄ (282 mV) and CoP (185 mV), close to that of commercial Pt/C catalyst (56 mV). The HER kinetics of the above catalysts are verified by the corresponding Tafel slopes, and a lower Tafel slope will lead to a faster increment of HER rate with increasing overpotential. As shown in Fig. 4b, the NiCoP hollow polyhedrons delivers a Tafel slope of < 72 mV/dec, suggesting that the corresponding HER abides by a Volmer−Heyrovsky mechanism [32, 33], and the electrochemical desorption process could be the rate-limiting step. It can be found that the Tafel slope of NiCoP hollow polyhedrons is larger than that of Pt/C (49 mV/dec) but obviously smaller than those of CoP (89 mV/dec), Co₃O₄@NiCo₂O₄ (248 mV/dec) and Co₃O₄ (301 mV/dec). As the Tafel slope is directly associated with the reaction kinetics of electrocatalysts, the lower Tafel slope for NiCoP hollow polyhedrons implies its faster catalytic kinetics and higher catalytic activity toward HER as compared with other samples. The electrical impedance spectroscopy (EIS) was carried out to study the catalysts' conductivity as well as the mass transport between the electrode and electrolyte. The Nyquist plots shown in Fig. 4c show that the charge transfer resistance (R_ct, the semicircles in the higher frequency range) of NiCoP/C hollowpolyhedrons is far smaller than those of CoP, Co₃O₄ and Co₃O₄@NiCo₂O₄. The order of the mass transfer resistance (R_mt, the semicircles in the lowest frequency range) is NiCoP < CoP < Co₃O₄@NiCo₂O₄. In addition, the double-layer capacitance (C_dl) was probed to estimate the electrochemically active surface areas (ECSA) and the corresponding intrinsic activity. The CV curves of NiCoP, CoP, Co₃O₄ and Co₃O₄@NiCo₂O₄ with different scan rates in a non-faradaic region from 0 to 0.1 V vs. RHE are shown in Fig. S8 (Supporting information). As presented in Fig. 4d, NiCoP hollow polyhedrons exhibits a slope of 23.8 mF/cm², much larger than those of CoP (14.9 mF/cm²), Co₃O₄ (2.97 mF/cm²) and Co₃O₄@NiCo₂O₄. These prove that NiCoP hollow polyhedrons expose more effective active sites at the solid − liquid interface, resulting in higher electrochemical HER activity. Continuous CV with a potential range from −0.4 V to −0.1 V (vs. RHE) scanning was conducted with the scan rate of 50 mV/s, and the negligible difference could be observed after 2000 cycles (Fig. 4e). The excellent long-term stability of the NiCoP hollow polyhedrons catalyst is further confirmed by chronoamperometric investigation at an overpotential of 150 mV in 0.5 mol/L H₂SO₄. From the polarization curves in Fig. 4f, the current density at 12 h is < 92% of the initial value. The excellent stability is probably associated with the good compositional and structural stability of NiCoP hollow polyhedrons [34-37].

The performances of CoP/Co-MOF toward HER were also studied in 1 mol/L KOH and 1 mol/L PBS solution, separately. Fig. S9a (Supporting information) shows the LSV curves of each catalyst in 1 mol/L KOH. The performance of Co₃O₄ is too poor to be detected in -0.6 V to 0 V. NiCoP hollow polyhedrons exhibits an overpotential of 102 mV to achieve the current density of 10 mA/cm², close to that of Pt/C (69 mV), much smaller than those of Co₃O₄@NiCo₂O₄ (314 mV) and CoP (194 mV). Fig. S9b (Supporting information) indicates that NiCoP hollow polyhedrons possesses the fastest dynamics with the Tafel slope of 101 mV/dec, close to Pt/C of 59 mV/dec, lower than those of CoP (132 mV/dec) and Co₃O₄@NiCo₂O₄ (196 mV/dec). Remarkably, the NiCoP hollow polyhedrons still exhibits good stability and durability even in such acid medium. After 2000 continuous CV cycles in 1 mol/L KOH, the polarization curves of NiCoP hollow polyhedrons show little loss, and the overpotential slightly increases at 10 mA/cm² (Fig. S9c in Supporting information). Furthermore, the time-dependent current density curve at a static overpotential of 150 mV vs. RHE indicates that NiCoP hollow polyhedrons can retain its catalytic activity for at least 12 h (Fig. S9d in Supporting information). The HER performance of the NiCoP hollow polyhedrons in 1.0 mol/L PBS are investigated as showed in Fig. S9e (Supporting information). The NiCoP hollow polyhedrons demands a relatively high overpotential of 261 mV to achieve a current density of 10 mA/cm², whereas other samples have overpotentials of > 400 mV at the same current density. It is worth noting that all the samples show different polarization curves in neutral electrolyte compared to those in alkaline or acidic electrolyte. This might be associated with a higher solution resistance and less effective proton transport in neutral medium, and the exact reason is not completely understood at present time. Fig. S9f (Supporting information) indicates that NiCoP hollow polyhedrons possesses the fastest dynamics with the Tafel slope of 176 mV/dec, lower than those of CoP (218 mV/dec) and Co₃O₄@NiCo₂O₄ (325 mV/dec). All the above results demonstrate that the NiCoP hollow polyhedrons electrocatalyst can be used as a pH universal electrocatalyst with high HER activity and good stability, and its property is comparable and even superior to those of other non-noble metal HER electrocatalysts that can be applied under alkaline, acidic, or neutral conditions. The all-pH applicability of the NiCoP hollow polyhedrons electrocatalyst permits it to be utilized in different water electrolysis technologies [38-43], such as water − alkali and chlor − alkali electrolyzers [44-47], the proton exchange membrane cells (acidic conditions) [48-52], and microbial electrolysis cells (neutral conditions) [53-58].

In summary, NiCoP hollow and porous polyhedrons have been synthesized by acidic etching and precipitation of ZIF-67 polyhedron and further phosphorization treatment with NaH₂PO₂. Benefiting from the synergistic effects of metal ions and the well-defined porous polyhedron structure, the as-synthesized NiCoP hollow polyhedrons shows better electrochemical properties and mechanical stability for hydrogen evolution reaction over a pH-universal range, with a small Tafel slopes of 72, 101, 176 mV/dec, and a low overpotential of 82, 102, 261 mV at a current density of 10 mA/cm² in 0.5 mol/L H₂SO₄, 1 mol/L KOH and 1 mol/L PBS. This work demonstrates a promising route to achieve high-performance and low-cost CoP-based electrocatalysts for hydrogen evolution in wide pH conditions.

The authors report no declarations of interest.

This work was supported by the National Natural Science Foundation of China (Nos. 51672109, 51802177), the Independent Cultivation Program of Innovation Team of Ji'nan City (No. 2019GXRC011), and Natural Science Foundation of Shandong Province (No. ZR2018BEM019). All the authors discussed the results and commented on the manuscript.

Supplementary material related to this article can be found, in the online version, at doi:https://doi.org/10.1016/j.cclet.2020.10.046.
